INSTRUCTION MANUAL
MODEL 2015-7075 Upconverter
TABLE OF CONTENTS PAGE
Warranty 2
1.0 General 3
1.1 Equipment Description 3
1.2 Technical Characteristics 4
1.3 Monitor & Control Interface 5
1.4 Environmental Use Information 11
2.0 Installation 12
2.1 Mechanical 12
2.2 Rear Inputs & Outputs 13
2.3 Front Panel Controls & Indicators 14
2.4 Operation 14
2.5 Menu Settings 16
WARRANTY - The following warranty applies to all Cross Technologies, Inc. products.
All Cross Technologies, Inc. products are warranted against defective materials and
workmanship for a period of one year after shipment to customer. Cross Technologies, Inc.’s
obligation under this warranty is limited to repairing or, at Cross Technologies, Inc.’s option,
replacing parts, subassemblies, or entire assemblies. Cross Technologies, Inc. shall not be
liable for any special, indirect, or consequential damages. This warranty does not cover parts
or equipment which have been subject to misuse, negligence, or accident by the customer
during use. All shipping costs for warranty repairs will be prepaid by the customer. There are
not other warranties, express or implied, except as stated herein.
CROSS TECHNOLOGIES, INC.
6170 Shiloh Road
Alpharetta, Georgia 30005
[phone]
FAX [phone]
Toll Free 888-900-5588
WEB www.crosstechnologies.com
E-MAIL [email protected]
2015-7075 Manual_Rev.0 Page 2 02/15/2024

MODEL 2015-7075 Upconverter
1.0 General
1.1 Equipment Description
The 2015-7075 Upconverter converts 70 ± 18 MHz to 7.0 to 7.5 GHz in 125 kHz steps. Synthesized local
oscillators (LO) provide ±0.01 ppm stability frequency selection. Push button switches select the RF frequency,
gain, and other parameters. Front panel LEDs provide indication of DC power (green), remote operation
(yellow), PLL alarm (red), and TX MUTE (yellow). Variable attenuators for the IF input and RF output provide
a gain range of +10 to +30 dB as adjusted by the front panel pushbutton switches. Remote operation allows
selection of frequency and gain. Parameter selection and frequency and gain settings appear on the LCD
display. Connectors are BNC female for IF input and 10MHz reference input and output, and Type N female
for the RF output (other connector configurations available). It is powered by a 100-240 ±10% VAC power
supply; and housed in a 1.75” X 19” X 16” rack mount chassis.
MENU
EXECUTE
MODEL 2015
CROSS TECHNOLOGIES INC.
F = 7250.000 G=+10
REF=INT
MUTE
REMOTE
POWER
ALARM
UPCONVERTER
FRONT PANEL
AC
RF OUT
GND
J4
J3
J10
J18
10 MHZ REF
OUTPUT
10 MHZ
EXT REF
INPUT
IF IN
MONITOR
AND
CONTROL
J5
1
5
2
3
4
6
7
8
9
REAR PANEL
FIGURE 1.1 Model 2015-7075 Front and Rear Panels
7.0
to
7.5
GHz
OUT
70
MHz
IN
CONTROLLER
F=7375.000
G=+10.0
VAR
ATT
EXT
10 MHz
VAR
ATT
INT
10 MHz
Block Diagram
FIGURE 1.2 Model 2015-7075 Upconverter Block Diagram
2015-7075 Manual_Rev.0 Page 3 02/15/2024

1.2 Technical Characteristics
2015-7075 Manual_Rev.0 Page 4 02/15/2024
± 2.0 dB, 7.0-7.5 GHz; ± 0.8 dB, 36 MHz BW
Frequency Response
Non-inverting
Frequency Sense
0.015 ns/MHz2, parabolic, 0.05 ns/MHz, Linear, 1 ns ripple
Group Delay, Maximum
< -50 dBc for two carriers spaced at Fc ±2 Mhz apart each at -8 dBm out
Intermod
< -50 dBc carrier and non-carrier related
Spurious Response
Channel Characteristics
Synthesizer Characteristics
125 kHz minimum; 1 kHz steps option X1006
Frequency Step
3 dBm, ± 3 dB
10 MHz In/Out Level
± 0.01 ppm max. over temp external reference; ext ref. input
Frequency Accuracy
+30.0 ± 2 dB Max; adjustable from +10.0 to +30.0 dB, 0.5 ±0.5 dB steps
Gain Max. / range
Other
100-240 ±10% VAC, 47-63 Hz, 45 watts maximum
Power
19 inch, 1RU Standard Chassis 1.75” high X 16.0” deep
Size
DB9 - NO or NC Contact Closure on Alarm
Alarm/Remote Connectors
BNC (female), 75Ωworks with 50 or 75 ohms
10 MHz Connectors
Type N (female) 50Ω/ BNC (female) 75Ω, Others optional
RF / IF Connector
-105
-95
-80
-70
-60
1 MHz
100 kHz
10 kHz
1 kHz
100 MHz
dBC/Hz
Phase Noise @ F (Hz) >
Green LED, Red LED, Yellow LED, Yellow LED
Power; Alarm; Remote; Mute
Controls, Indicators
Direct Readout LCD, Pushbutton Switches or Remote Selection
Frequency/Gain Selection
RS232C, 9600 baud (options; RS485, Q; Ethernet)
Remote
TABLE 1.1 2015-7075 Upconverter Specifications*
>50 dB @ 0 dBm out
Mute
+10 dBm, at max. gain
Output 1 dB Compression
-30 to -10 dBm
Input Level
70 ±18 MHz
Frequency
-20 to 0 dBm
Output Level
Output Characteristics
Input Characteristics
7.0 to 7.5 GHz
Frequency (See Models)
50Ω/ 14 dB
Impedance / Return Loss
75Ω/ 18 dB
Impedance / Return Loss
Ethernet with TCP/IP, Telnet®
- W28
Contact Cross Technologies for other available options.
Remote M&C Interfaces:
Ethernet with Web Browser & SNMP
- W18
Available Options
Ethernet with Web Browser
- W8
W8 + W18 + 28
RS485/422
- W828
- Q
Attenuator 0.1 dB on Upconverter
- Z
*10˚C to 40˚C; Specifications subject to change without notice. © 2020 Cross Technologies, Inc.

1.3 Monitor and Control Interface
A) Remote Serial Interface
Protocol: RS-232C, 9600 baud rate, no parity, 8 data bits, 1 start bit, and 1 stop bit.
(RS-232C standard, RS-422/RS-485 - Option -Q)
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
Female DB-9
PC Com Port
Male DB-9
2015/16/17 M&C Port
M&C Cable Diagram - Cross Technologies Frequency Converters
RX
RX
TX
TX
DTR
SG
DSR
RTS
CTS
SG
Connector - Rear panel, DB-9 female
Pinouts (RS-485/422/232C)
Pin Description
1 Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5 Ground
6 Alarm Relay - Common
7 Alarm Relay - Normally Open
8 Not Used
9 Alarm Relay - Normally Closed
2015-7075 Manual_Rev.0 Page 5 02/15/2024

B) Status Requests -
Table 1.3 lists the status requests for the 2015-7075 and briefly describes them.
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the table below,
should be used ONLY when RS-485, (OPTION-Q), is selected.
Status Requests specific to a switch must be preceeded by *i where i is the switch number.
Note: "Legacy" commands are supported for compatability with older designs.
Table 1.3 2015-7075 Status Requests
Table 1.3 2015-7075 Status Requests
Table 1.3 2015-7075 Status Requests
Command Syntax Description
Get Unit Settings {aaS1} returns: {aaS1bbbbbbbcccddAM}
aa = unit address, range = 00 to 31, only used if interface is RS485
1 = command code
bbbbbbb = frequency in kHz.
ccc = gain in dB.
dd = absolute value of input level in dBm (value is always negative, minus sign omitted).
A = Alarm Status (0 = no alarm, 1 = alarm).
M = Tx output status (1 = normal, 0 = muted).
The unit will append the '>' character if the command is sucessfully processed.
Get Frequency {aaSF} returns: {aaSFxxxxxxxx}
aa = unit address, range = 00 to 31, only included if the interface is RS485.
F = command code
xxxxxxx = output frequency in kHz.
The unit will append the '>' character if the command is sucessfully processed.
Get Gain {aaSG} returns: {aaSGxxx}
aa = unit address, range = 00 to 31, only included if the interface is RS485.
G = command code
xxx = gain in dB.
The unit will append the '>' character if the command is sucessfully processed.
Get Input Level {aaSI} returns: {aaSIxxx}
aa = unit address, range = 00 to 31, only included if the interface is RS485.
I = command code
xxx = input level in dBm.
The unit will append the '>' character if the command is sucessfully processed.
Get Alarm Status {aaSA} returns: {aaSAx}
aa = unit address, range = 00 to 31, only included if the interface is RS485.
A = command code
x = Alarm status: 0 = off, 1 = on.
The unit will append the '>' character if the command is sucessfully processed.
2015-7075 Manual_Rev.0 Page 6 02/15/2024

Table 1.3 2015-7075 Status Requests Continued
Table 1.3 2015-7075 Status Requests Continued
Table 1.3 2015-7075 Status Requests Continued
Command Syntax Description
Get Mute Status {aaSM} returns: {aaSMx}
where:
aa = unit address, range = 00 to 31, only included if the interface is RS485.
M = command code
x = 1 if the output is muted. x = 0 if the output is un-muted.
The unit will append the '>' character if the command is sucessfully processed.
Get External {aaSE} returns: {aaSEx}
Refference Status where:
aa = unit address, range = 00 to 31, only included if the interface is RS485.
E = command code
x = 1 if the external reference is selected. x = 0 if the internal reference is selected.
The unit will append the '>' character if the command is sucessfully processed.
Get Temerature {aaST} returns: {aaSTxxx}
(option T) where:
aa = unit address, range = 00 to 31, only included if the interface is RS485.
T = command code
xxx = unit temperature in degrees celsius.
The unit will append the '>' character if the command is sucessfully processed.
Get IP Address {aaSi} returns: {aaSixxx.xxx.xxx.xxx}
(Ethernet Option only) where:
aa = unit address, range = 00 to 31, only included if the interface is RS485.
i = command code
xxx.xxx.xxx.xxx = unit IP Address
The unit will append the '>' character if the command is sucessfully processed.
Get Subnet Mask {aaSs} returns: {aaSsxxx.xxx.xxx.xxx}
(Ethernet Option only) where:
aa = unit address, range = 00 to 31, only included if the interface is RS485.
s = command code
xxx.xxx.xxx.xxx = unit Subnet Mask
The unit will append the '>' character if the command is sucessfully processed.
2015-7075 Manual_Rev.0 Page 7 02/15/2024

C) Commands -
Table 1.2 lists the commands for the 2015-7075 and briefly describes them.
After a command is sent the 2015-7075 sends a return “>” indicating the command has been received
and executed.
General Command Format - The general command format is {aaCND...}, where:
{ = start byte
aa = Address (RS-485 only)
C = 1 character, either C (command) or S (status)
N = 1-digit command or status character
D = 1 character or more of data (depends on command)
} = stop byte
*PLEASE NOTE: The two character {aa}(00-31) prefix, in the followiing table,
should be used ONLY when RS-485, (OPTION-Q), is selected.
Status Requests specific to a switch must be preceeded by *i where i is the switch number.
Note: "Legacy" commands are supported for compatability with older designs.
2015-7075 Manual_Rev.0 Page 8 02/15/2024

Table 1.2 2015-7075 Commands
Table 1.2 2015-7075 Commands
Command Syntax Description
Set Frequency {aaCFxxxxxxx} where:
aa = unit address, range = 00 to 31, only used if interface is RS485,
otherwise omit
F = command code
xxxxxxxx = desired switch output frequency in kHz.
This value must be a multiple of 125 kHz.
Range: 7000000 to 7500000
example: {CF7350125}
Will set the output frequency to 7350.125 MHz
The unit will reply with the '>' character if the command is
sucessfully processed.
Set Gain (aaCGxxx) where:
aa = unit address, range = 00 to 31, only used if interface is RS485, otherwise omit
G = command code
xxx = Gain in dB. This value must be in 1.0 dB steps.
Range: 10 to 30 dB in 1.0 dB steps.
example: {CG12}
Will set the gain to 12 dB.
The unit will reply with the '>' character if the command is sucessfully processed.
2015-7075 Manual_Rev.0 Page 9 02/15/2024

Table 1.2 2015-7075 Commands Continued
Table 1.2 2015-7075 Commands Continued
Table 1.2 2015-7075 Commands Continued
Command Syntax Description
Set Mute {aaCMx} where:
aa = unit address, range = 00 to 31, only used if interface is RS485,
otherwise omit
M = command code
x = 0 or 1.
A value of 0 will enable (un-mute) the output signal.
A value of 1 will disable (mute) the output signal.
example: {CM1}
Will disable (mute) the output signal.
The unit will reply with the '>' character if the command is
sucessfully processed.
Set External Reference {aaCEx} where:
aa = unit address, range = 00 to 31, only used if interface is RS485,
otherwise omit
E = command code
x = 0 or 1.
A value of 0 will disable the external reference and set the unit to
Internal reference mode.
A value of 1 will disable the external reference and set the unit to
Enternal reference mode.
example: {CE0}
Will disable the external reference. The unit will use its internal reference.
The unit will reply with the '>' character if the command is
sucessfully processed.
2015-7075 Manual_Rev.0 Page 10 02/15/2024

1.4 Environmental Use Information
A.Rack-Mounting - To mount this equipment in a rack, please refer to the installation instructions
located in the user manual furnished by the manufacturer of your equipment rack.
B. Mechanical loading - Mounting of equipment in a rack should be such that a hazardous condition
does not exist due to uneven weight distribution.
C.Elevated operating ambient temperature - If installed in a closed or multiunit rack assembly,
the operating ambient temperature of the rack may be greater than room ambient temperature.
Therefore, consideration should be given to Tmra (Maximum Recommended Ambient Temperature).
D. Reduced air flow - Installation of the equipment in a rack should be such that the amount of air flow
required for safe operation of the equipment is not compromised. Additional space between units
may be required.
E. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply
circuit and the effect that overloading of circuits could have on over current protection and supply wiring.
Appropriate consideration of equipment name plate rating should be used, when addressing this concern.
F. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular
attention should be given to supply connections other than direct connection to the Branch
(use of power strips).
G. Top Cover - There are no serviceable parts inside the product so, the Top Cover should not be removed.
If the Top Cover is removed the ground strap and associated screw MUST BE REINSTALLED
prior to Top Cover screw replacement. FAILURE TO DO this may cause INGRESS and/or EGRESS
emission problems.
2015-7075 Manual_Rev.0 Page 11 02/15/2024

2.0 Installation
2.1 Mechanical
The 2015-7075 consists of one RF/Controller PCB which is housed in a 1 RU (1 3/4 inch high) by 16 inch deep
chassis. A switching, ± 12, +24, +5 VDC power supply provides power for the assembly. The 2015-7075 can
be secured to a rack using the 4 holes on the front panel. Figure 2.1 shows how the 2015-7075 is assembled.
POWER
SUPPLY
SECOND
MIXER/FILTER
OSC
J5
PCB
FIGURE 2.1 2015-7075 Mechanical Assembly
2015-7075 Manual_Rev.0 Page 12 02/15/2024

2.2 Rear Panel Input / Output Signals - Figure 2.2 shows the input and output connectors on the rear panel.
AC
GND
J18
10 MHZ REF
OUTPUT
J10
AND
MONITOR
CONTROL
5 4 3 2 1
9 8 7 6
J10 - MONITOR AND CONTROL
DB9 female connector.
See Table 2.1.
J4
J3
10 MHZ
IF IN
EXT REF
J4 - IF IN
-30 to -10 dBm input. BNC (female) connector.
See Table 2.2 for other options.
INPUT
RF OUT
J5
J5 - RF OUT
-20 to 0 dBm, 7.0 to 7.5 GHz, Type N
female connector.
See Table 2.2 for other options.
J3 - 10 MHz EXT REF INPUT
10 MHz external reference input, 3 dBm ± 3 dB,
50/75 ohms, BNC female connector
J18 - 10 MHz REF OUTPUT
10 MHz reference output,
3 dBm ± 3 dB, 50/75 ohms,
BNC female connector.
AC - POWER IN
AC input for switching power supply.
100-24 ±10% VAC, 47-63 Hz.
FIGURE 2.2 2015-7075 Rear Panel Inputs and Outputs
TABLE 2.1 J10 Pinouts (RS-232C/422/485*)
TABLE 2.1 J10 Pinouts (RS-232C/422/485*)
Pin Function
1 Rx-
2 Rx+ (RS-232C)
3 Tx+ (RS-232C)
4Tx-
5GND
6 Alarm Relay: Common
7 Alarm Relay: Normally Open
8 Not Used
9 Alarm Relay: Normally Closed
TABLE 2.2 IF/RF Connector Options
TABLE 2.2 IF/RF Connector Options
TABLE 2.2 IF/RF Connector Options
Option IF RF
STD BNC, 75ΩN-Type, 50Ω
-S BNC, 50ΩSMA, 50Ω
-S7 BNC, 75ΩSMA, 50Ω
-SS SMA, 50ΩSMA, 50Ω
-M BNC, 50ΩN-Type, 50Ω
*Interface: DB-9 Female
Protocol: RS232C or (option Q) RS422/RS485, 9600 baud
rate, no parity, 8 data bits, 1 start bit, 1 stop bit
2015-7075 Manual_Rev.0 Page 13 02/15/2024

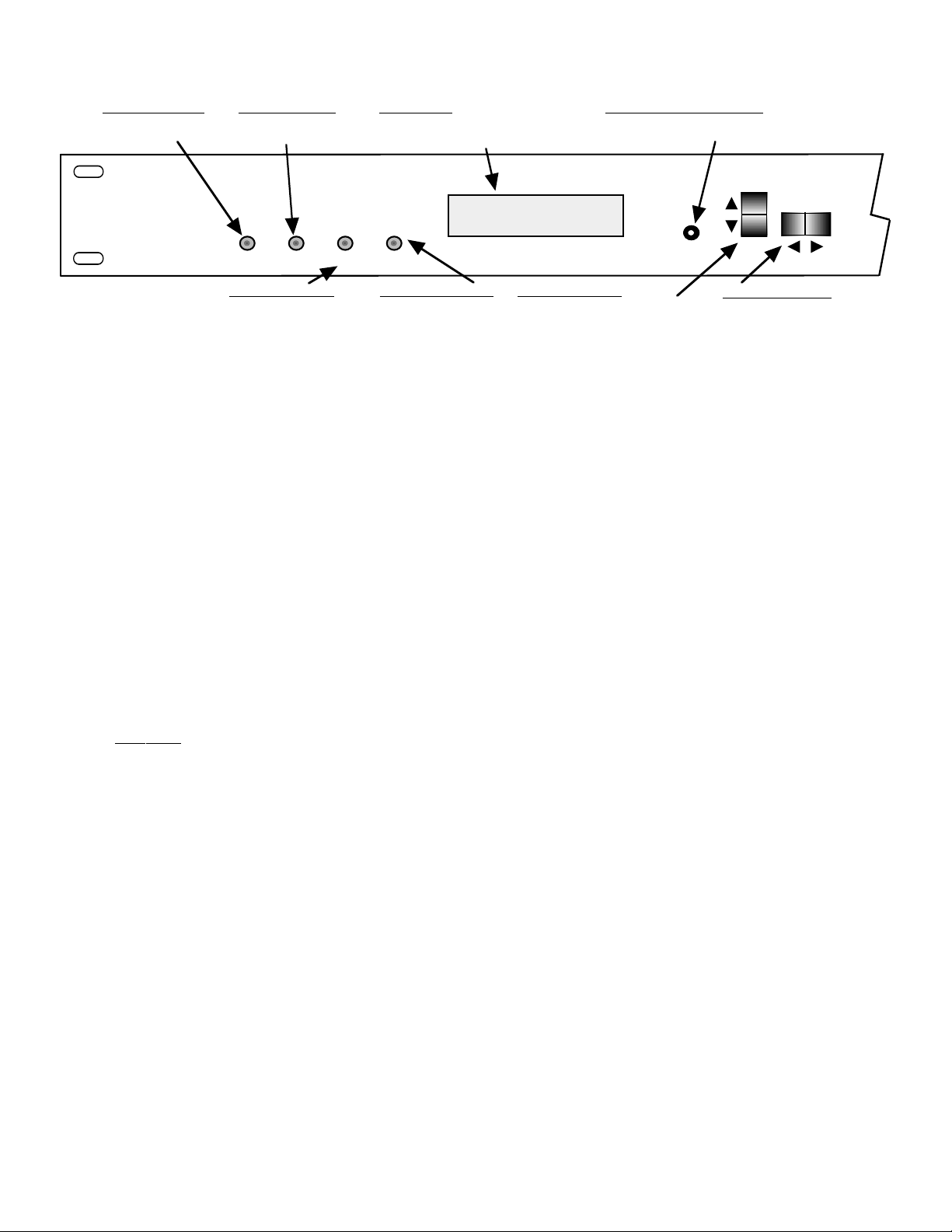

2.3 Front Panel Controls and Indicators - Figure 2.3 shows the front panel controls and indicators.
MENU
EXECUTE
F = 7250.000 G=+10
REF=INT
MUTE
REMOTE
POWER
LCD DISPLAY
Display shows frequency in MHz and
Gain in dB, and is used to change
settings in Program mode.
S1 - MENU/EXECUTE BUTTON
Press this to get into Program mode
and to execute any changes.
DS6 - POWER LED
Green LED indicates
presence of DC power.
DS1 - REMOTE LED
Yellow LED indicates
remote operation.
S2 - VERT. TOGGLE
Vertical toggle switch that controls
values in the Menu items when in
program mode. Does not function in
the normal display mode
S3 - HORIZ. TOGGLE
Horizontal toggle switch that
controls which values are being
adjusted. Does not function in the
normal display mode
ALARM
DS5 - UP MUTE LED
Red LED indicates
upconverter mute.
DS2 - UP ALARM LED
Red LED indicates
upconverter alarm.
FIGURE 2.3 2015-7075 Front Panel Controls and Indicators
2.4 Installation / Operation
2.4.1 Installing and Operating the 2015-7075 Upconverter
1. Connect a -30 dBm to -10 dBm, 70 MHz signal to IF IN, J4 (Figure 2.2)
2. Connect RF OUT, J5, to the external equipment.
3. Connect 100- 240 ± 10% VAC, 47 - 63 Hz to AC input on the back panel.
4. Set the desired output frequency (See Section 2.5 Menu Settings).
5. Set the input level (See Section 2.5 Menu Settings).
6. Set the gain for +10 to +30 dB. Make sure the output stays within -20 to 0 dBm with the gain selected
and the input level provided. If the combination of gain and input level settings produce an output
outside of the -20 to 0 dBm range than the spurrious and 1dB compression performance may be
compromised.
7. Be sure DS6 (green, DC Power) is on and DS2 (red, Alarm) is off (Figure 2.3).
8. AC Fuse - The fuse is a 5 mm X 20 mm, 2 amp slow blow (Type T) and is inserted in the far slot in the
drawer below the AC input as shown in Figure 2.4. There is a spare fuse in the near slot. If a fuse
continues to open, the power supply is most likely defective.
2015-7075 Manual_Rev.0 Page 14 02/15/2024

AC Fuse - 5 amp slow blow (Type T),
5 mm X 20 mm
FUSE DRAWER
SPARE FUSE
~
INPUT
100-240± 10%VAC
47-63 Hz
2A MAX
FUSE
TYPE T 5A GDC
250 VOLT
FOR 100 - 240 V~
~
FIGURE 2.4 Fuse Location and Spare Fuse
2015-7075 Manual_Rev.0 Page 15 02/15/2024

2.5 Menu Settings
2.5.1 Functions - This section describes operation of the front panel controls. There are three operator
switches, the LCD display and alarm indicator LEDs. All functions for the equipment are controlled by these
components. The functions are (see Figure 2.5):
Power Up
Normal Display
Menu 1 Frequency in MHz
Menu 2 Input Level in dBm (-10 to -30)
Menu 3 Gain in dB (+10 to +30 dB)
Menu 4 Mute TX Signal
Menu 5 Set Unit to Remote Operation
Menu 6 Select External 10 MHz Reference
Menu 7 Select RS232, RS422, or RS485 Remote Operation (option Q)
Menu 8 Select RS485 Remote Address for Unit (option Q)
Save Menu When “R” is selected in any of the above menus or when operator reaches the end
Alarm indications appear on the LEDs (see figure 2.2).
All program changes must start with the operation of the Menu/Execute switch and must also end with the
operation of the Menu/Execute switch verified by the “Save Settings?” Menu. If this sequence is not followed,
none of the changes will take effect. If programming is initiated and no operator action takes place for
approximately 12 seconds (before the final press of the Menu/Execute switch) the display will revert to its
previous status and you will need to start over.
2015-7075 Manual_Rev.0 Page 16 02/15/2024

2.5.2. Power On Settings
NOTE: The last status of a unit is retained even when power is removed. When power is restored, the unit
will return to it's previous settings.
When power is first applied, the LCD display goes through three steps.
1.The LCD goes black to show all segments are functioning.
2.The software version will be displayed.
REV 1.00
3.The present frequency, gain, and selected RF output of the upconverter is shown.
F = 7250.000 G=+10
REF=INT
The unit is now operational and ready for any changes the operator may desire.
2.5.3 Control Switches
1. Menu/Execute - Any change to the programming of the unit must be initiated by
pressing the Menu/Execute switch and completed by pressing the Menu/Execute switch.
2. Horizontal Switch - This switch is mounted so its movement is horizontal and moves
the cursor left or right.
3. Vertical Switch - This switch is mounted so its movement is vertical and has two functions:
A. During frequency, gain changes, the vertical movement will raise or lower the
number in the direction of the arrows.
B. For other functions such as Mute on/off, the vertical switch will alternately turn the
function on or off regardless of the direction operated.
2015-7075 Manual_Rev.0 Page 17 02/15/2024

2.5.4 Frequency Changes
At any time during the modification process, if you have made a mistake and do not wish to save the changes
you have made, do not press the Menu/Execute switch; simply do nothing for approximately 12 seconds,
and the system will return to the normal operating mode or scroll to “R” and push the menu/Execute switch
and select “NO” in the “SAVE SETTINGS?” window.
To change the FREQUENCY:
Operate the Menu/Execute switch until you get to the menu item you want to change see Figure 2.5 for
the sequence of menu options. The following display is for changing the upconverter frequency:
F = 7050.000
R
Pressing the Up/Down switch down will toggle the display to:
F = 7150.000
R
By using the horizontal rocker switch the cursor can be moved left or right .
F = 7150.000
R
NOTE: CHANGES DO NOT TAKE PLACE ON FREQUENCY UNTIL YOU GO TO THE SAVE
MENU AND INDICATE YOU WANT TO SAVE THE CHANGES. THE CARRIER IS MUTED
WHEN FREQUENCY IS CHANGED.
When the display indicates the value desired you can push the Menu/Execute switch to the next item:
INLVL = -10
R
OR you can scroll to “R”, push the Menu/Execute switch to get to:
SAVE SETTINGS? YN
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to the default display:
F = 7250.000 G=+10
REF=INT
Figure 2.5 shows all the menu items and how to make changes.
2015-7075 Manual_Rev.0 Page 18 02/15/2024

2.5.5 Gain Changes
When you get to this menu note that the gain changes will be made as you make them but if you do not wish to
save the changes you have made, scroll to “R” and push the menu/Execute switch and select “NO” in the
“SAVE SETTINGS?” window or do not press the Menu/Execute switch; simply do nothing for
approximately 12 seconds, and the system will return to the normal operating mode.
To change the GAIN, first push the Menu/Execute switch to get to the gain setting:
Operate the Menu/Execute switch until you get to the menu item you want to change (see Figure 2.5 for
the sequence of menu options). The following display is for changing the upconverter input level. This
is an important setting to optimize spurious and should be made as accurately as possible:
INLVL = -10
R
NOTE: CHANGES TAKE PLACE ON LEVEL AND GAIN IMMEDIATELY BUT DO NOT GET
SAVED UNTIL YOU GO TO THE SAVE MENU AND INDICATE YOU WANT TO SAVE THE
CHANGES.
Press the Up/Down switch to change the level in 1 dB steps and then push the Menu/Execute switch to
get to the Gain setting:
G = +10
R
Press the Up/Down switch to change the gain in 1 or 10 dB steps:
G = +15
R
By using the horizontal rocker switch the cursor can be moved left or right. Pressing the Up/Down
switch down will toggle the display digit selected until you have the desired gain.
NOTE: THE GAIN WILL BE CHANGED AS YOU ADJUST THE NUMBERS. HOWEVER, THE
VALUE WILL NOT BE STORED UNTIL YOU INDICATE YES IN THE SAVE SETTINGS
WINDOW. DO NOT SET A GAIN THAT WOULD EXCEED -10 dBm OR HAVE LESS THAN -30 dBm
OUTPUT LEVEL. THE FIRMWARE DOES PREVENT YOU FROM THIS.
When the display indicates the value desired you can push the Menu/Execute switch to the next item
OR you can scroll to “R”, push the Menu/Execute switch to get to:
SAVE SETTINGS? YN
Selecting Ywill save the new settings. Selecting Nwill revert to the previous settings.
Pushing the Menu/Execute switch then takes you to:
F = 7250.000 G=+10
REF=INT
Figure 2.5 gives the menu items and how to make changes
2015-7075 Manual_Rev.0 Page 19 02/15/2024

2.5.5 Alarm Indications
An alarm condition for will occur if the local oscillator phase lock loop (PLL) comes out of lock.
The Mute LED will light if you select to mute the Tx Signal and the Remote LED will light when you
select the Remote mode.
ON POWER UP
NORMAL DISPLAY
PUSHING MENU/EXECUTE SEQUENCE
REV 1.00
F = 7000.000 G=+10
REF=INT
PUSH BUTTON
Power Up
Normal Display
Menu 1 Set Frequency
Menu 2 Set Input Level (from
-30 to -10)
Menu 3 Set Gain (+10.0 to +30.0)
Menu 4 Mute TX signal
Menu 5 Set Unit to Remote
Operation
Menu 6 Select External 10 MHz
Reference
Menu 7 Set Remote Mode
(option -Q ONLY)
Menu 8 Set RS-485 Address
(option -Q ONLY)
Save Settings? At the end or
when “R” is selected from any of
the above menus
SAVE SETTINGS? YN
SCROLL <> PUSH BUTTON
F = 7050.000
SCROLL <>
SCROLL
PUSH BUTTON
R
INLVL = -10
R
G = +10
SCROLL <>
SCROLL PUSH BUTTON
R
MUTE OFF
SCROLL <>
SCROLL PUSH BUTTON
R
REMOTE OFF
SCROLL <>
SCROLL PUSH BUTTON
R
RS 485
SCROLL <>
SCROLL PUSH BUTTON
R
PUSH BUTTON
ADDRESS = 00
SCROLL <>
SCROLL
PUSH BUTTON
R
EXT REF OFF
SCROLL <>
SCROLL PUSH BUTTON
R
FIGURE 2.5 Menu Display and Sequence
2015-7075 Manual_Rev.0 Page 20 02/15/2024
