PureLink FiberX FX-I250 User manual

Version 1.0 | 2018
Instruction manual (EN)
FX-I250 DisplayPort 1.2 AOC Cable

2
DisplayPort 1.2 AOC Cable
TABLE OF CONTENTS
CHAPTER PAGE
Introduction ............................................................................................. 3
Intended Use ............................................................................................ 3
Safety Instructions ............................................................................. 4- 5
Delivery content ..................................................................................... 5
Features ..................................................................................................... 6
Application ............................................................................................... 7
Specications ..................................................................................... 7-9
Mechanical properties and Environmental performance �������� 7
 Specications������������������������������������������������������������������������������������������������� 8
Environmental Conditions ����������������������������������������������������������������������� 9
Cross Section ........................................................................................... 9
Construction ���������������������������������������������������������������������������������������������������� 9
Cable Construction �������������������������������������������������������������������������������������� 9
Operation and connection diagram .......................................... 10- 11
Troubleshooting ................................................................................... 11
Maintenance ......................................................................................... 12
Cleaning ................................................................................................. 12
Warranty and Liability ........................................................................ 13
CE Conformity ....................................................................................... 14
Disposal of the Device ........................................................................ 14
Disclaimer .............................................................................................. 15

3
INTRODUCTION
Thank you for purchasing the Fiber Optic DisplayPort 1.2 AOC
Cable.
This Cable allows you to transmit DisplayPort signals to
a distance of up to 100m without external power supply.
This cable is a hybrid cable containing both ber optic and
copper cores. Our DisplayPort Active Hybrid Cable is the most
competitive long distance DisplayPort interconnection solution
on the market. It supports a maximum data rate of 5.4 Gbps per
channel, is light weight, exible, and has an ultra-small xed
installation bending radius of 48mm.
With our advanced optical engine embedded the DisplayPort
Hybrid Cable provides full signal integrity.
INTENDED USE
This product is intended for indoor use only. Do not use it
outdoors. Contact with moisture, e.g. in bathrooms, must be
avoided under all circumstances.
For safety and approval purposes (CE), you must not rebuild
and/or modify this product. If you use the product for purposes
other than those described above, the product may be dam-
aged. In addition, improper use can cause hazards such as short
circuiting, re, electric shock etc.
Read the instructions carefully and keep them. Make this prod-
uct available to third parties only together with its operating
instructions.

4
SAFETY INSTRUCTIONS
Read the operating instructions carefully and especially
observe the safety information. If you do not follow the safety
instructions and information on proper handling in this manual,
we assume no liability for any resulting personal injury or
damage to property. Such cases will invalidate the warranty/
guarantee.
The device is not a toy. Keep it out of the reach of children and
pets. Do not leave packaging material lying around carelessly.
These may become dangerous playing material for children. Risk
of suocation!
The maximum pulling tensile load of the cable is 150N (15kg).
Never pull the cable with higher load. The minimum bending
radius of the hybrid cable is approximately 48mm, bending the
cable to a smaller radius will irreversibly destroy the cable.
Pay attention to trip hazards; make sure that the cable is
installed safely.
Protect the product from extreme temperatures, direct sunlight,
strong jolts, high humidity, moisture, ammable gases, vapors
and solvents.
Do not place the product under any mechanical stress.
If it is no longer possible to operate the product safely, take it
out of operation and protect it from any accidental use.

5
Safe operation can no longer be guaranteed if the product:
• is visibly damaged
• is no longer working properly
• has been stored for an extended period in poor ambient
conditions or
• has been subjected to any serious transport-related stresses.
Please handle the product carefully. Jolts, impacts or a fall even
from a low height can damage the product.
Also observe the safety and operating instructions of any other
devices which are connected to the product.
Consult an expert when in doubt about the operation, safety or
connection of the device.
DELIVERY CONTENT
1x DisplayPort 1.2 AOC Cable
1x User Manual DE/EN
1x Warning Insert

6
FEATURES
This DisplayPort 1.2 AOC Cable has many features that enable
it to perform in a superior manner. Among those features you
will nd:
• Supports DisplayPort 1.2 specication with data rates
up to 21.6 Gbps
• Supports HBR2
• Low RFI / EMI prole for sensitive applications
• Supports resolutions up to Ultra HD 4K
(3840x2160) 60Hz, 4:4:4
• Supports computer resolutions including 1080P and 4K2K
(60Hz)
• Supports lossless DisplayPort audio formats
• Supports EDID incl. self-detecting function
• Long-term bending radius (48mm)
• Plug and Play
• Low Power Consumption: 250mW (max) (Power Required)
• No loss of signal
• Delivering crystal clear digital images instantly

7
APPLICATION
This product is for example applicable to:
• Digital Signage
• LED Signboards
• Home Theater
• Blu-ray, 3D Video, Projector, Set-top box, DVR, Game Consoles
and Computer
• TV Broadcast Station
• Conference Room
• Video Equipment
• Security Systems
... and more
SPECIFICATIONS
Mechanical properties and Environmental performance:
Item Units Specied values
Tensile strength
(Long-term)
N Up to 150
Crush resistance
(Long-term)
N/100mm 300
Minimum bending radius
(dynamic)
mm 20 D*
Minimum bending radius
(static)
mm 10 D*
*D = the diameter of the cable body, in this case it is 4.5mm

8
Specications:
Item Description
Units Transmitter (Source) Receiver (Display)
DisplayPort Version DisplayPort 1.2, Fully Support bi-directional
EDID, HDCP and DPCP communication
Video Bandwidth 21.6 Gbps – 5.4 Gbps pro Kanal + Clock
Supported
Resolution & Distance
Max. resolutions: 2160p60 4:4:4 8/10bit
PC: WUXGA 1920x1200 up to 100 meters
HDTV: 480p, 720p, 1080i and 1080p deep
O/E Converter 4 channel 850 nm
VCSEL array
4 CH GaAs PD array
Connector Type DisplayPort
Cable Type Hybrid type with OM3 ber and copper wire
Cable Outer Diameter 4.8 mm
Jacket Outer Material PVC
Dierential Input 100 Ohm
Power Consumption 250 mW (max.)
Power Supply Non external power required
Passive Power Supply 4.75-5.5 V

9
Environmental Conditions
Operating Temperature: -10– 50°C
Storage Temperature: -20– 60°C
Relative Humidity: 10– 80%RH
CROSS SECTION
Construction:
Hybrid cable, ber (high speed data) & copper (low speed
signals)
Cable construction:
4 ber cores and 7 cooper conductors
Cable jacket: PVC / TPU,
Diameter: 4.8mm
Connector dimensions: 46.9 x 20 x 12.3 mm
Connector material: Zinc Alloy
Aramid yarns
Insulating layer
Copper
Fiber
Semi-tighted
Sheath
Jacket

10
OPERATION AND CONNECTION DIAGRAM
Attention:
The FX-I250 series is designed for use with the + 5V passive
power supply, provided by the source device through the Dis-
playPort connection. This +5V connection, as well as powering
the internal ber optic module, is also carried through to the
other sink via a full standard copper connection. Please make
sure, that the source device is capable of delivering more than
500mA.
This cable can only be used in one direction. The connectors are
marked with “SOURCE” and “DISPLAY”. Each connector must be
plugged into the correct port to avoid signal loss.
Before using this cable, please make sure that all devices which
will be connected with the AOC DisplayPort Cable are shut down
and without power.
Then you can start to connect the “source side” of the Display-
Port plug to the transmitter and connect the “display side” of the
other DisplayPort plug to the receiver/display.
This works without additional power supply.
We do not recommend using any intermediate cables or
adapters between the connections, as the signal transmission
performance maybe attenuated.
Switch on the power of the device of the DisplayPort source and
the display.
If the system does not work properly, see trouble shooting guide in
next section.

11
TROUBLESHOOTING
The Display shows:
• A black screen
• Screen is distorted
• Noise interference
1. Check that the connectors are in the correct ports of the
source and sink devices – check the labels on the connector
housing to be sure.
2. Ensure that the DisplayPort plugs are rmly inserted into the
DisplayPort source and display.
3. Check if the DisplayPort source and display are powered on
and properly booted.
4. Reset the system by unplugging and re-plugging the source
or display port.
5. Re-boot the system with the optical DisplayPort cable system
reconnected.

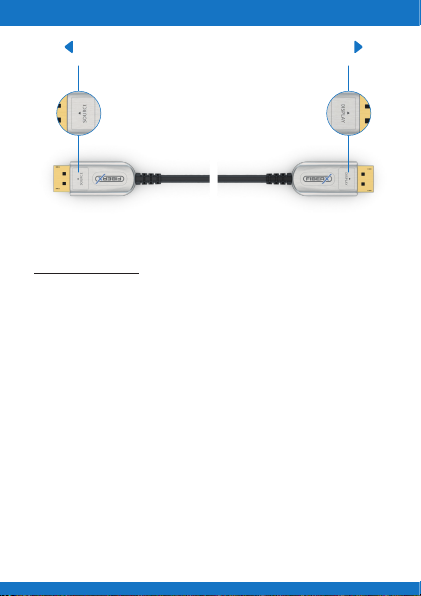

Connect to
Source
Connect to
Display

12
MAINTENANCE
There are no components located inside the product you need to
maintain. Never open/dismantle the product.
Maintenance, modications and repairs are to be performed
exclusively by an expert or at a qualied shop.
If you have questions which remain unanswered by these oper-
ating instructions, contact our technical support service or other
technical personnel.
CLEANING
Before cleaning the product it must be disconnected from all
other connected products.
Do not use abrasive or solvents or any aggressive cleaning
agents, rubbing alcohol or other chemical solutions as they can
cause damage to the housing and malfunctioning.
To clean the product, a dry, soft and clean cloth is sucient. Do
not apply too much pressure to the housing as this may cause
scratch marks. You can easily remove dust using a long-haired,
soft and clean brush.

13
WARRANTY AND LIABILITY
The producer grants 2 years warranty to a new device.
As the manufacturer has no inuence on installation, warranty
only applies to the product itself.
If any fault or damage is detected on your product, please
contact your dealer and provide your sales slip or invoice as
evidence of the purchase, if necessary. Your dealer will repair the
fault either on site, or send the device to the manufacturer. You
make the work of our technicians considerably easier, describing
possible faults in detail – only then you can be assured that
faults, occurring only rarely, will be found and repaired with
certainty!
The manufacturer is not liable for damages to persons or prop-
erty caused by improper installation, operation or maintenance,
not described in this manual.
Do not alter or modify the product or its accessories.
Any use other than described in this user`s manual is not
permitted and causes loss of warranty, loss of guarantee, and
non-liability.

14
CE CONFORMITY
PureLink GmbH hereby declares that the FX-I250 Series
complies with Directive 2014/30/EU.
The full text of the EU Declaration of Conformity is
available at the following Internet address:
www.purelink.de/ce/FX-I250-XXX_CE.pdf
DISPOSAL OF THE DEVICE
WEEE-Reg. No.: DE 93847290
According to the European WEEE directive, any elec-
trical and electronic equipment must not be disposed
with consumers waste. As a consumer, you are commit-
ted by law to reposit electrical and electronic devices
to public collecting points or to the dealer for free at
the end of the device’s lifetime. Details are regulated
in the respective national legislations. The garbage can
symbol on the product, in the manual or on the
packaging refers to these terms. With the return of your
used devices you actively take part in protecting the
environment.

15
DISCLAIMER
This product complies with the statutory national and European
requirements. All company names and product names are trade-
marks of their respective owners.
All rights reserved.
We reserve our right for misprints and changes of the device,
packing or user`s manual.

PureLink GmbH
Von-Liebig-Straße 10
48432 Rheine
Deutschland
Tel.: [phone]
Fax: [phone]
[email protected]
www.purelink.de
