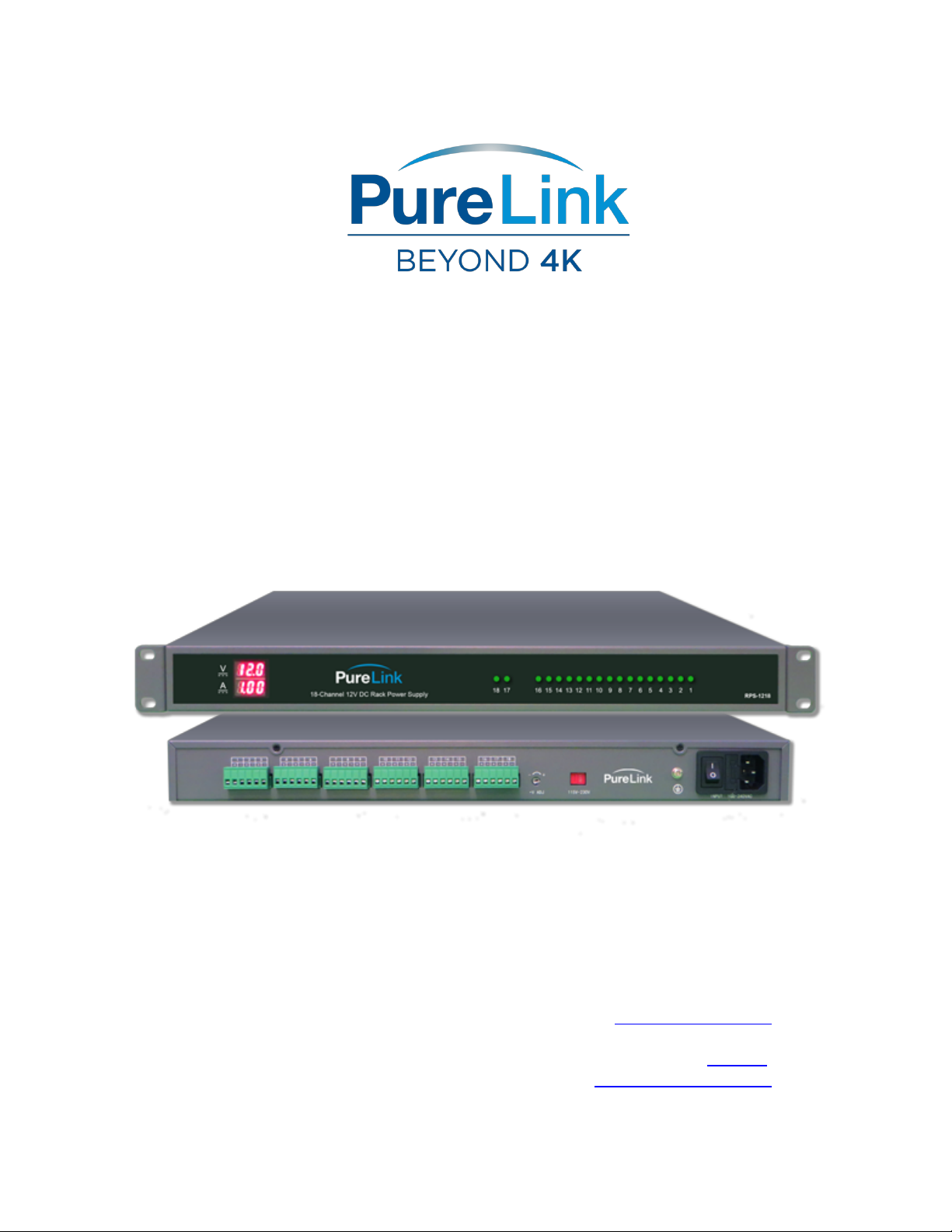

PureLink RPS-1218 User manual

RPS-1218
18-Channel 12V DC Rack Power Supply
USER MANUAL
PureLinkÔ
22-10 State Rt. 208
Fair Lawn, NJ 07410 USA
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
For order support, please contact your local rep.
For technical support, please contact us at [email protected]

RPS-1218 User Manual (ver. 1.0)
2
Table&of&Contents&
What’s in The Box ................................................................................................................... 3
Product Description ................................................................................................................. 4
Things to Know Before You Start ............................................................................................. 7
Setting your computer to communicate with VIP-STREAM-100 .............. Error! Bookmark not defined.
Network switch requirements ...................................................... Error! Bookmark not defined.
Network switch recommendations ........................................................ Error! Bookmark not defined.
Setting Up a VIP-STREAM-100 System: ......................................... Error! Bookmark not defined.
Connections ..................................................................................................................................... 7
Encoding ................................................................................................ Error! Bookmark not defined.
Decoding/Viewing with VLC Player ........................................................ Error! Bookmark not defined.
Decoding/Viewing with YouTube Live .................................................... Error! Bookmark not defined.
Decoding/Viewing with Facebook Live ................................................... Error! Bookmark not defined.
Glossary ....................................................................................... Error! Bookmark not defined.
PureLink™ Three (3) Year Limited Warranty ............................................................................ 9
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&

RPS-1218 User Manual (ver. 1.0)
3
&
&
&
What’s&in&The&Box&
RPS-1218((
• 1 x RSP-1218 1U Rack Power System
• 1 x IEC Power cable for 120VAC
Optional(Accessories(
• RPS-12VDC-leadpack
Use Manual can be found online in the Resources tab of the VIP-STREAM-100 product page.

RPS-1218 User Manual (ver. 1.0)
4

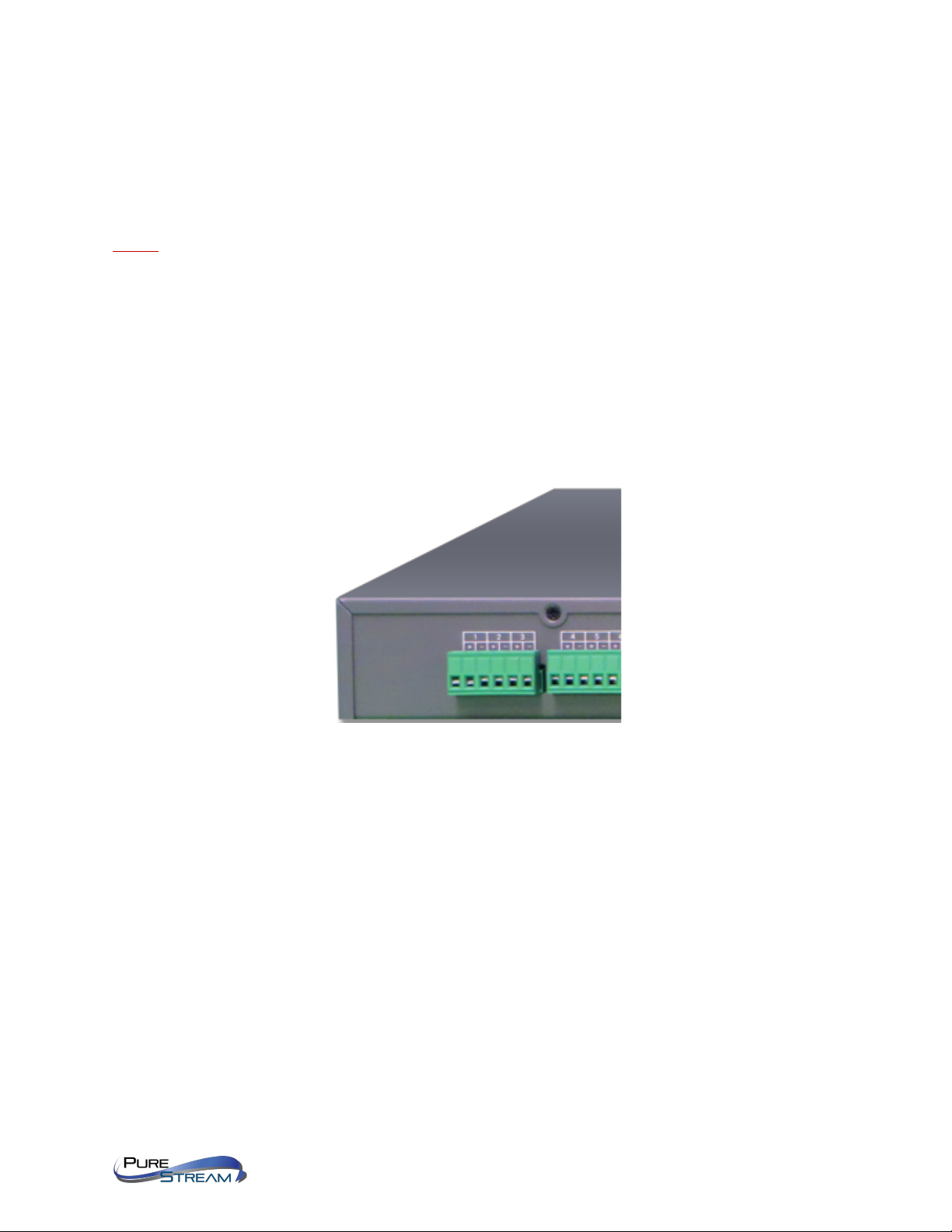

Product&Description&
The RPS-1218 rack power supply system provides eighteen channels of 12 VDC outputs using installation
convenient phoenix output connectors. Each output is protected by an automatic PTC fuse, providing
protection from overcurrent and shorts. Output channels 1 through 16 provide up to
Specifications(
General Specifications
Voltage per output
12 VDC
Current per output 1 thru 16
1.6 A MAX each
Current per output 17 thru 18
5 A MAX each
Total current output
20 A MAX
Number of outputs
18
Interface
Front panel volt/current digital meter
Calibration
Rear panel fine output adjustment
Protection
PTC fuse per channel
output connections
phoenix
Input Voltage
110-220 VAC 50/60 Hz switch selectable
Input connection
IEC 320 - NEMA 5-15P power cable (supplied)
Power Consumption
Max load ~400 Watts
Operating Temperature
-10 to +40 C
Storage Temperature
-14 to +86 C
Relative Humidity
Enclosure
Enclosure Type
Steel, powder coated
Rack-Mounting Option
Yes, 1U
Product Dimensions
51 x 28 x 9.6 cm
Product Weight
4KG
Warranty
HDTools
Limited Warranty (3-Years)

RPS-1218 User Manual (ver. 1.0)
5
&

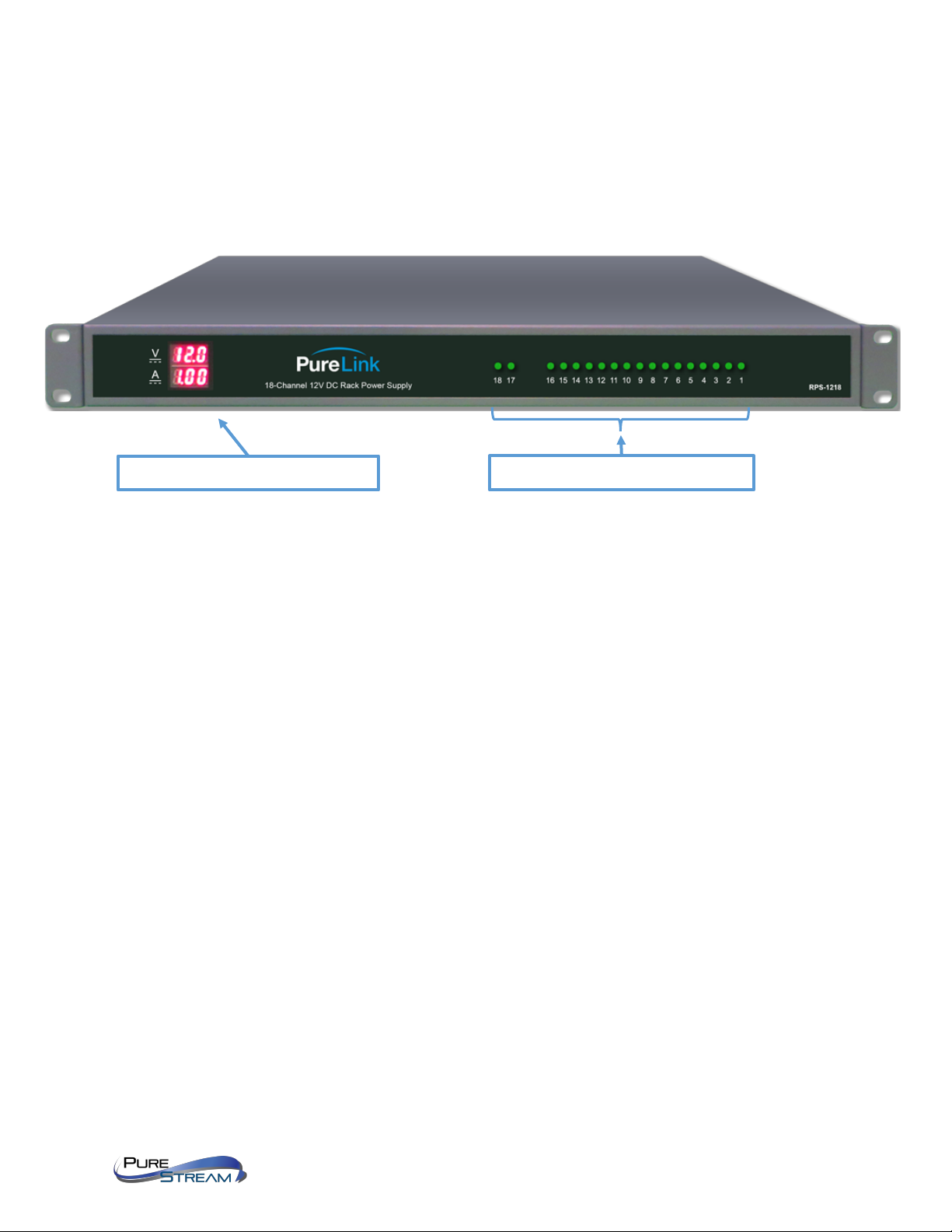

Front&Panel&
&
&
&
&
&
&
&&&&&&&
&
&
System'output'voltage'meter'
Provides real time voltage level to all outputs
System'output'amperage'meter'
Provides real time total current draw of outputs
Master'output'voltage'fine'adjustment'
Allows fine tune adjustment of system output voltage level
Output'channel'status'indicators'
Displays on/off status of each output channel. Normally on (greed led), off condition would indicate PTC
fuse activation.
&
Volts/Amps meters
Output channel LED indicators
