ISSUED: FEB. 2014
Flat Panel Display Stand & Cart and Accessories
INSTALLATION MANUAL
CAUT ION: DO NOT EXCEED
RATED LISTED WEIGHT. SERIOUS
INJURY OR PROPERTY DAMAGE
MAY OCCUR!
200x200/300x300
400x200/400x400
600x400
PDS-2201S
70"
MAX
70kg
(154lbs)
RATED
70kg
(154lbs)
RATED
PDS-2201C
70"
MAX
200x200/300x300
400x200/400x400
600x400
Maintenance
• Check that the bracket is secure and safe to use at regular intervals(at least every three months).
• Please contact your distributor if you have any questions.
PDS-9501
Note: The accessories
are not standard.
The accessories will be
selected according to
user requirement.
Optional Accessories
PDS-2101C
70"
MAX
200x200/300x300
400x200/400x400
600x400
PDS-2101S
70"
MAX
200x200/300x300
400x200/400x400
600x400
Run the cables through
the cable clamps and
the rubber strip.
9. Adjustment
+3° -3°
+90°
+45°

WARNING
21
NOTE: Read the entire instruction manual before you start installation and assembly.
• Do not begin the installation until you have read and understood all the instructions
and warnings contained in this installation sheet. If you have any questions
regarding any of the instructions or warnings, please contact your local distributor.
• This mounting bracket was designed to be installed and utilised ONLY as
specified in this manual. Improper installation of this product may cause damage
or serious injury.
• Always use an assistant or mechanical lifting equipment to safely lift and position
the equipment.
• Tighten screws firmly, but do not over tighten. Over tightening can cause damage
to the items, This greatly reduces their holding power.
• This product is intended for indoor use only. Using this product outdoors could
lead to product failure and personal injury.
Package M
washer
M-F
(x4)
M8x20
M-C
(x4)
M5x14
M-A
(x4) M6x14
M-B
(x4)
big spacer (x4)
M-H
M6x30
M-D
(x4)
M8x30
M-E
(x4) small spacer (x8)
M-G
M8x65 (x8)
J
cable clamp (x4)
I
M8x40(X4)
L
5mm Allen key (x1)
M
6mm Allen key (x1)
N
D8 washer (x4)
O
Component (PDS-2101C/PDS-2201C only)
supporting foot (x4)
S
caster wheel/brake
P
(x2) caster wheel
Q
(x2) wrench (x1)
R
Component (PDS-2101S/PDS-2201S only)
rubber pad (x4)
T
(Peel off the backing paper from the rubber pad
and stick the rubber pad on to the supporting foot.)
PDS-9501 (The following accessories are optional)
power socket (x1)
T-H
ST4.8x9.5 (x4)
P-G

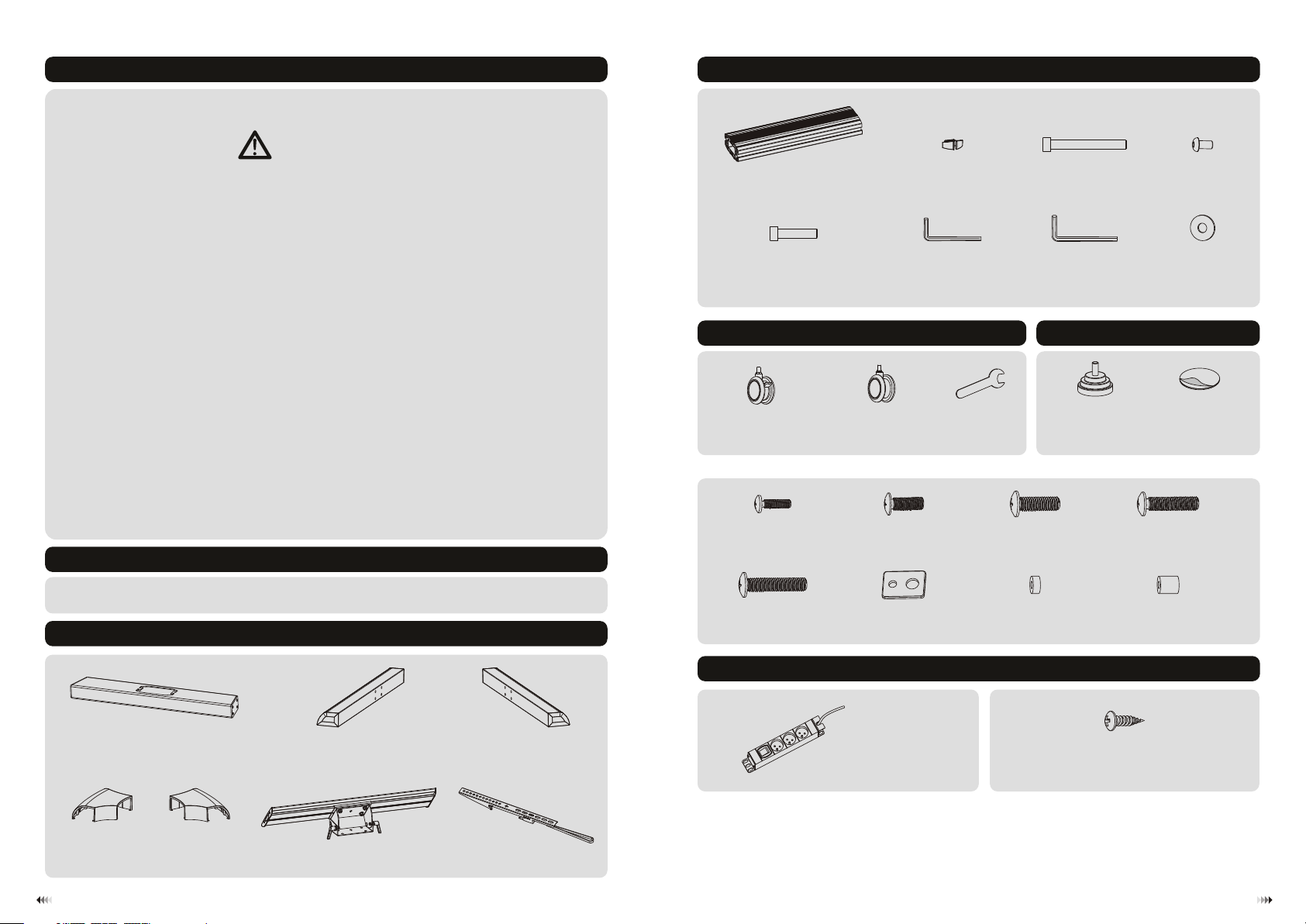

Component Checklist
IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation.
If any parts are missing or faulty, telephone your local distributor for a replacement.
PDS-2101C/PDS-2101S PDS-2201C/PDS-2201S
adapter bracket
G
(x2)
middle base (x1)
A
left cover
D
(x1) right cover(X1)
E
left base
B
(x1) right base
C
(x1)
column (x1)
H
universal plate (x1)
F
M8x16 (x4)
K

Attach the left and right base to the middle base using the appropriate screws. Tighten all screws with an
Allen key.
4
3
1. Assembling the Base
2. For the model PDS-9501 installation
(Assembly based on the accessories selected by user.)
3. Attaching the Column to the Base
Attach the power socket to the back of column using the appropriate screws. Tighten all screws with a
phillips screwdriver.
Attach the column to the assembled base using the appropriate screws and washers.
Tighten all screws with an Allen key.
NOTE: Lock the brakes on the casters to avoid any sudden movements during installation.
JN
T-H
L
N
O
4. Installing the Covers
D
E
5. Installing the Universal Plate
Attach the universal plate to the column using the appropriate screws.
Tighten all screws with an Allen key.
P-G
6. Installing the Adapter Brackets
Top of the display
Note: With the brake
wheels facing forward.
M
K
B
A
C

6
5
6-1 For Flat Back Screens
TV
TV
TV
M-A/M-B/M-C
M-F
6-2 For Recessed Back Screens or to Access A/V Inputs
TV
TV
TV
Tighten all screws but do not over tighten.
• Position the adapter brackets as close as possible to the center of the display.
• Screw the adapter brackets onto the display.
Note: Choose the appropriate screws, washers and spacers (if necessary) according to the type of screen.
or
M-F
M-C
M-G
M-C M-D/M-E/
M-F
M-G
M-D/M-E
M-F
M-H
M-D/M-E
M-F
M-G
M-H
or or
7. Hanging the Display onto the Universal Plate
8. Cable Management
Insert the cable clamps horizontally into the plate slots, then turn the cable clamps to the vertical to
secure them.
I
Lift the display carefully and pull downward two straps at the same time , then hook the adapter brackets
to the universal plate. Fasten the adapter brackets to the universal plate by releasing the straps.
