PureMounts PM-EASYFLEX-65 User manual

55"
MAX
200x200/400x200
300x300/400x400
600x400
200x200/400x200
300x300/400x400
70"
MAX
ISSUED: OCT. 2013
30kg
(66lbs)
RATED
30kg
(66lbs)
RATED
CAUTION: DO NOT EXCEED
RATED LISTED WEIGHT. SERIOUS
INJURY OR PROPERTY DAMAGE
MAY OCCUR!
INSTALLATION MANUAL
TV Wall Mount
PM-EASYFLEX-52
PM-EASYFLEX-65

21

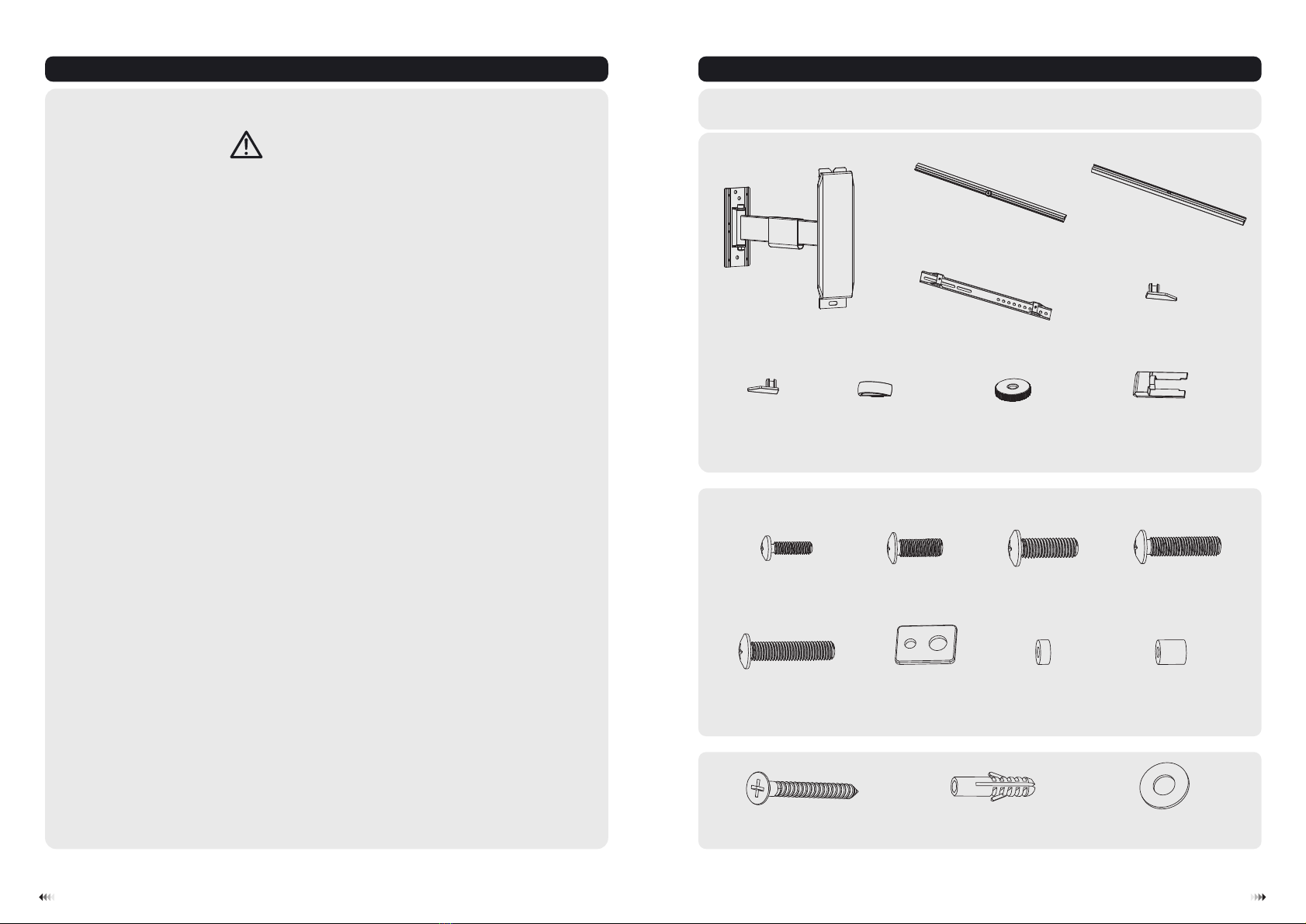

NOTE: Read the entire instruction manual before you start installation and assembly. Component Checklist
WARNING
IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation.
If any parts are missing or faulty, telephone your local distributor for a replacement.
Package M
articulated arm assembly (x1)
A
bottom horizontal bar (x1)
C
top horizontal bar (x1)
B
adapter bracket (x2)
D
bumper pad (x4)
G
thumbscrew (x1)
H
plastic stopper 1 (x2)
E
plastic stopper 2 (x2)
F
plastic cover 1 (x2)
I
Package W
ST6.3x55 (x3)
W-A
concrete anchor (x3)
W-B
D6 washer (x3)
W-C
M5x14 (x4)
M-A
M6x14 (x4)
M-B
washer
M-F
(x4)
M8x20 (x4)
M-C
big spacer (x4)
M-H
M6x30 (x4)
M-D
M8x30 (x4)
M-E
small spacer (x8)
M-G
• Do not begin the installation until you have read and understood all the instructions
and warnings contained in this installation sheet. If you have any questions
regarding any of the instructions or warnings, please contact your local distributor.
• This mounting bracket was designed to be installed and utilised ONLY as
specified in this manual. Improper installation of this product may cause damage
or serious injury.
• This product should only be installed by someone with good mechanical ability
who has basic building experience and fully understands this manual.
• Make sure that the supporting surface will safely support the combined weight of
the equipment and all attached hardware and components.
• If mounting to wood wall studs, make sure that mounting screws are anchored
into the center of the studs. The use of a stud finder is highly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position
the equipment.
• Tighten screws firmly, but do not over tighten. Over tightening can cause damage
to the items, This greatly reduces their holding power.
• This product is intended for indoor use only. Using this product outdoors could
lead to product failure and personal injury.

X X
√
4
3
WARNING
• Make sure that mounting screws are anchored into the center of the studs. The use of a stud
finder is highly recommended.
• Installers are responsible to provide hardware for other types of mounting situations.
• Installers must verify that the supporting surface will safely support the combined weight of the
equipment and all attached hardware and components.
1a. For Wood Stud Wall Mounting
Installers must verify that the supporting surface will safely support the combined weight of
the equipment and all attached hardware and components.
WARNING
1b. For Solid Brick and Concrete Mounting
W-C
Screw the wall
mount onto
the wall Screw the wall
mount onto
the wall
X X
√
12
3
Drill pilot holes
ø 4.5mm
(ø 3/16")
55mm
(2.2")
55mm
2.2"( )
55mm
(2.2")
Find and mark
the exact location
of mounting holes
1
Drill pilot holes
2
Mark the exact
location of
mounting
holes
60mm
(2.4")
60mm
2.4"( )
60mm
(2.4")
ø 10mm
(ø 3/8")
W-A
W-C
W-A
W-B

4. Installing the Adapter Brackets
65
GF
E
2. Mounting the Plastic Covers
3. Assembling the Adapter Brackets and Horizontal Bars
Note: P .
ull the articulated arm and make it vertical to wall ,insert both top and bottom plastic covers
thumbscrew
= =
BOTTOM
4-1 For Flat Back Screens
TV
TV
TV M-A
M-B
M-C
M-F
Adjust the brackets to fit mounting holes on
the back side of the TV. Then tighten screws
to fix the adapter brackets and horizontal bars.
wall wall
I
I

5. Hooking the TV onto the Wall Mount
87
4-2 For Recessed Back Screens or to Access A/V Inputs
TV
TV
TV
wall
wall
· Level the TV.
· Place the lower thumbscrew; Tighten both thumbscrews.
DO NOT OVER TIGHTEN SCREWS
· Screw the assembled bracket onto the TV.
· Position the assembled bracket as close as possible to the middle of the screen.
or or or
M-C/M-D/M-E
Tighten all screws but do not over tighten.
· Position the adapter brackets as close as possible to the center of the display.
· Screw the adapter brackets onto the TV.
Note: Choose the appropriate screws, washers and spacers (if necessary) according to the type of screen.
M-G
M-F
M-C
M-G
M-F
M-G M-H
M-F
M-D
M-E
M-H
M-F
M-D
M-E
M-G

6. Adjustment
109
wall
180°
-15°
-2° ~ +2°
Adjust to the desired position or tilt.
Maintenance
• Check that the bracket is secure and safe to use at regular intervals(at least every three months).
• Please contact your distributor if you have any questions.
