PurePower 700 User manual

User’s Guide and Warranty Information
PurePower 100/110/120 Volt models
PurePowerTM

Audio/Video Power Supply • www.purepoweraps.com | 01
Contents
Table of Contents
About the PurePower APS 2
Safety Warnings 3
Installation
Inspecting the Equipment 4
PurePower Preparation 5
Activating Up Your PurePower 8
Operation 10
PurePower Maintenance 13
Specifications 14
Troubleshooting 16
Service and Support 17

02 | Pure Power in > Pure Sound out
About the PurePower APS
The PurePower Audio Power Supply
The PurePower Audio Power Supply (APS) provides pure regenerated power for your sensitive
home theater and audio equipment. This is accomplished through our double conversion technol-
ogy. We convert the incoming AC power to produce a clean DC supply, then recreate a new AC
wave form with propper voltage and frequency from the DC. We make sure that your system gets
the power it was designed for and your amplifiers get the current they need for top performance.
The APS also protects from power disturbances including power sags, power surges, over-
voltages, line noise, undervoltages, frequency variations, switching transients and harmonic dis-
tortion. Power disturbances have the potential to damage sensitive hardware causing expensive
repairs with either catastrophic failures or degradation over time through chronic overheating.
With the APS you can safely eliminate the effects of power disturbances and guard the integrity
of your equipment.
In addition to pure power, the APS provides you with something unique in audio power
regenerators - protection against power outage. The APS maintains full wattage output even
when the power fails completely.
Providing outstanding performance and reliability, the
PurePower’s unique benefits include the following:
• True double conversion AC regeneration design with pure sine wave output. The APS filters
and regulates incoming AC power, creates a DC source, then regenerates new pure AC and
provides monitored, consistent power to your components.
• The APS improves amplifier performance by ensuring full wattage and improves signal
component output quality by removing noise and distortion.
• The PurePower APS design allows any of our high quality, full contact receptacles
to supply digital, analog or amplifier components.
• Hours of extended viewing or listening time with optional APS PowerPack Modules
during outages.
• Built in line surge protection guards against spikes and surges on coax, RJ11and RJ45 lines.
•
USB communiction port allows the APS to be integrated into whole home systems.

Audio/Video Power Supply • www.purepoweraps.com | 03
Safety Warnings
Safety Warnings
Read the following precautions before you install the APS.
IMPORTANT SAFTEY INSTRUCTIONS - SAVE THESE INSTRUCTIONS.
This manual contains important instructions that you should follow during installation and main-
tenance of the APS and batteries. Please read all instructions before operating the equipment and
save this manual for future reference.
DANGER
This APS contains LETHAL VOLTAGES. All repairs and service should be preformed by AUTHORIZED
SERVICE PERSONNEL ONLY. There are NO USER SERVICEABLE PARTS inside the APS.
WARNING
This APS contains its own energy source. The output receptacles may carry live voltage even when
the APS is not plugged in.
Under normal operating conditions, do not remove or unplug the input cord when the APS is
turned on. This removes the safety ground from the APS and the equipment connected to the
APS.
To reduce the risk of fire or electric shock, install this APS in a temperature and humidity
controlled, indoor environment, free of conductive contaminants. Ambient temperature must not
exceed 32°C (90°F). Do not operate near water or excessive humidity (95% max).
To comply with international standards and wiring regulations, the total equipment connected
to the output of this APS must not have an earth leakage current greater than 3.5 milliamperes.
CAUTION
Batteries can present a risk of electrical shock or burn from high short-circuit current. Observe
proper precautions. Servicing should be preformed by qualified service personnel knowledgeable
of batteries and required precautions.
Proper disposal of batteries is required. Refer to your local codes for disposal requirements.
Never dispose of batteries in a fire. Batteries may explode when exposed to flame.

04 | Pure Power in > Pure Sound out
Installation
Inspecting the Equipment
Before installation, please check to ensure that your PurePower APS package is complete and
undamaged. If any deficiencies are discovered, please contact your PurePower Dealer.
Package Contents
The PurePower
package includes:
PurePower APS
Quick Start Guide
Input line cord
with an IEC female connector to fit the PurePower input connector and a Nema
5-15P (700 and 1050) or Nema 6-20P (2000) plug.
Rack mount bracket kit
This manual
Shipping damage
If any equipment has been damaged during shipment, keep the shipping cartons and packing
materials for the carrier or place of purchase and file a claim for shipping damage. If you discover
damage after acceptance, file a claim for concealed damage.
To file a claim for shipping damage or concealed damage:
1) File with the carrier within 15 days of receipt of the equipment
2) Send a copy of the damage claim within 15 days to your PurePower APS dealer.

Audio/Video Power Supply • www.purepoweraps.com | 05
Installation
APS Preparation

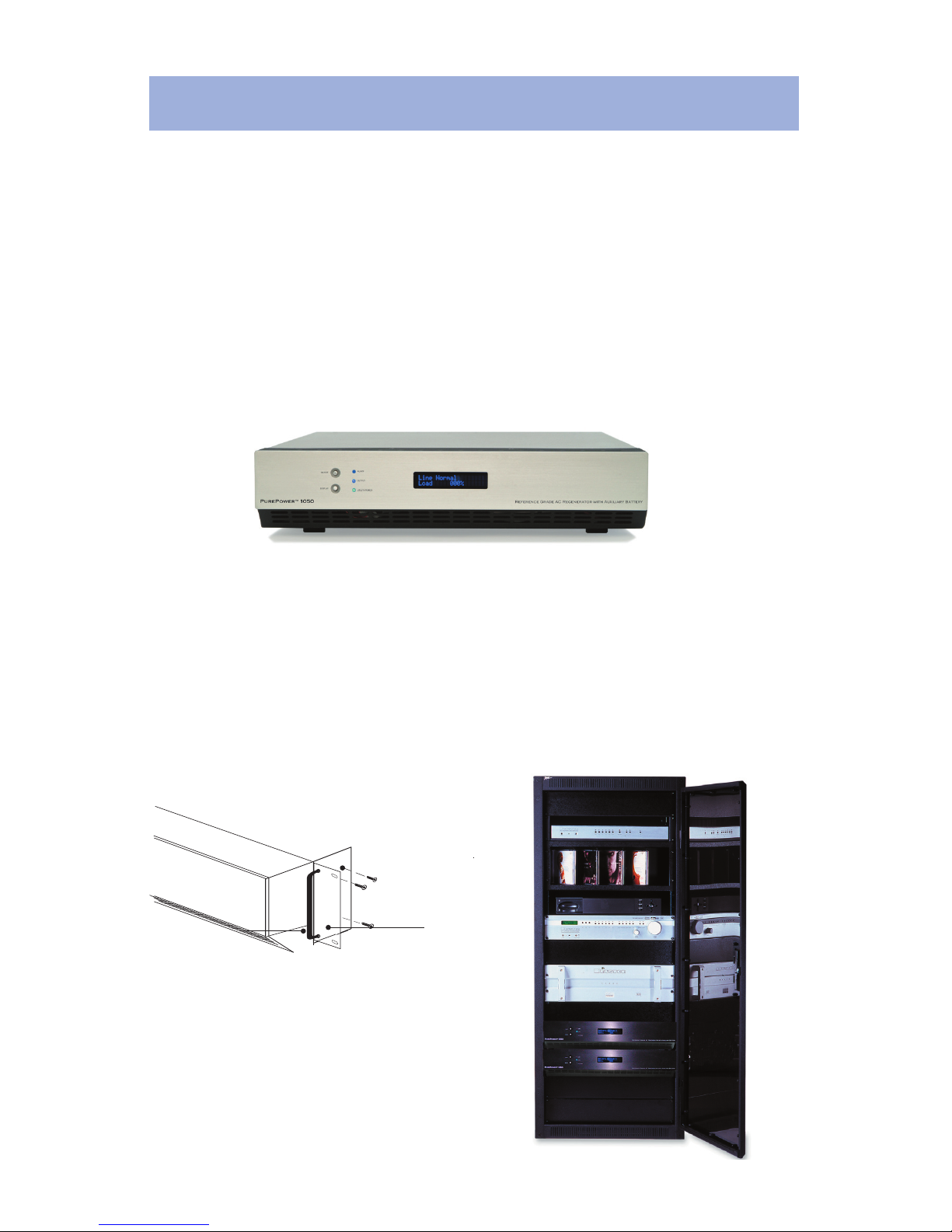

The APS is designed for flexible configurations and can be rack mounted or placed on a shelf or
as a standalone cabinet.
Standalone / shelf component
When you position the APS horizontally on a shelf or in a non-rack style AV equipment stand or
enclosure, ensure there is sufficient clearance for unimpeded airflow through the grilles at front
and rear of the unit.
Rack-Mount
The APS can be installed in 19 or 23-inch racks and needs only 2U of rack space for 700 adn
1050 models, 3U for the 2000. Mounting rails or a rack shelf are recommended.
Place the APS on a flat, stable surface with the front of the APS facing toward you.
Attach the mounting handles to the bracket with the screws provided in the accessory kit.
If installing optional PowerPacks, install rack handles for each unit.
NOTE The PowerPacks must be installed
BELOW
the APS.
Mounting
Handle
Mounting
Bracket

06 | Pure Power in > Pure Sound out
Installation
Connections

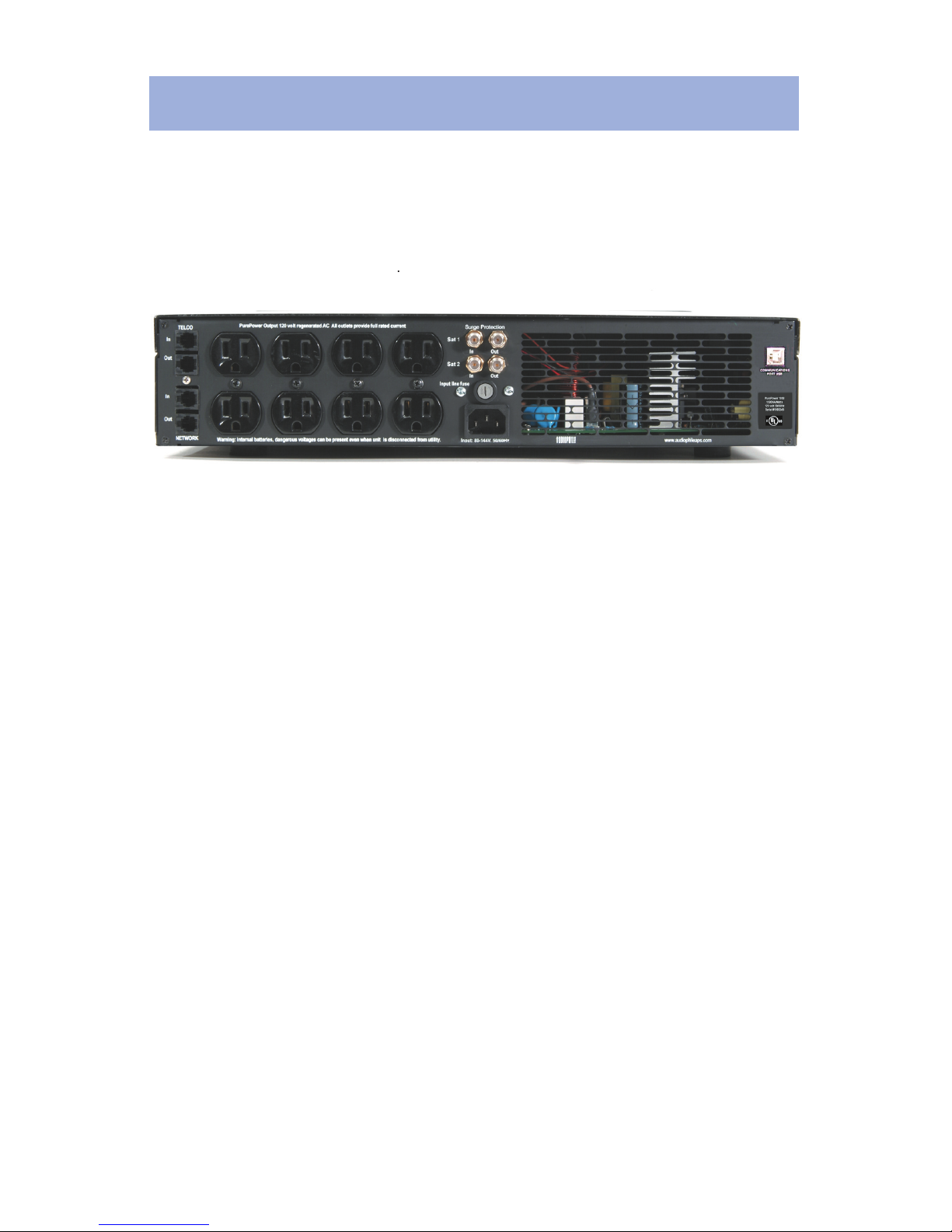

The PurePower APS 700 and 1050 provide
8
Hubbell NEMA 5-15 output receptacles that may
be used interchangeably to power signal components, video components or ampli
fiers. The 2000
provides 10 Hubbell 5-15 receptacles
.
Surge protection connectors
The PurePower unit provides
built in surge protection to isolat
e system components such as cable
television, satellite, ethernet and teleph
one lines from your AV system.
The surge protection is not provided specifically to protect satellite receivers, computer network
and telephone equipment from damage from surges -- although it does that task admirabl
y. The
main purpose
is to
prevent satellite or cable TV coax cables, telephone and ethernet lines from
providing a path that would allow surges or spikes to damage your AV system that is otherwise
isolated from surg
es arising in the
AC power lines by the PurePower A
PS.
It is
intended to prevent
a back door attack that would circumvent the PurePower protection.
All surge modules provide instantaneous response using advanced silicon avalanche diodes with
the ability to safely dissipate surge currents of up to 1kA and auto reset in readiness for any sub-
sequent surge or transient voltage.
Connector Voltage Let through Bandwidth
Coax
Type F (2) 30 45 2 GHzT
Telephone
RJ11 4 wire 190 <298 na
Network
RJ45 5 10 155MHz
USB and DB9
USB and DB9 serial connectors are availab
le to allow communication of power conditions to an
attached computer system. Contact PurePower for system requireme
nts and software compat-
ability.

Audio/Video Power Supply • www.purepoweraps.com | 07
Installation
Installing Optional Power Packs
Power Pack Modules must be installed
before
powering the APS
. In a rack mount installa-
tion, place the Power Packs below the PurePower unit.
The op
tional 36 volt
Power
Pack for the
PurePower 1050 is attached to the PurePower main unit with an umbillical cord that fits a
PowerPack Connector that is only built into PurePower units ordered with this feature. The con-
nector is a factory installed option.
If your PurePower 1050 is not e
quipped with a Power Pack connector and you wish to add
one
or more Power Packs,
the unit can be factory retrofit
. Please contact PureP
ower service for details.
All PurePower 2000 models incorporate a PowerPack connector that mates only with the 72 Volt
PowerPack
designed for the 2000.
For
both 1050 and 2000 models, u
p to 3
Power
Packs may be daisy chained together to provide
extended operating time.
CAUTION:
A small amount of arcing may occur when connecting a PowerPack Module to the
APS. This is normal and will not harm you. Insert the connection cable into the APS battery con-
nector quickly and firmly.
· Plug the first PowerPack cable into the battery connector on the APS rear panel
· If additional PowerPacks are to be installed, plug the cable of the second cabinet into the
battery connector on the previous Powerpack
NOTE: The batteries charge to 80% capacity in approximately 2 hours. However, it is recom-
mended that the batteries charge for 24 hours after installation or long-term storage. The battery
charging process will occur during normal operation and will not interfere with the supply of
power from the APS.

08 | Pure Power in > Pure Sound out
Installation
Activating your PurePower APS
The following steps explain how to install and start the APS.
Activating the APS
· Examine the rear panel label to ensure the voltage specifications of the unit and the
power source are correctly matched.
· Plug the components to be supplied into the APS output receptacles. The PurePower APS
design allows any outlet to supply digital, analog or power amplifier components.
· E
nsure that each component is switched off.
· DO NOT operate electric space heaters or other items with heater elements with the APS.
·
O
n the 2000 model only, ensure the inpu
t circit breaker is switched to "on"
· Plug the APS power cord into a utility outlet. The APS conducts a self-test. You may hear
a slight click and the fans will rotate momentarily. When the self-test is complete, the APS
is in standby mode.
· Start the APS by pressing the On/Off button until the blue LED is illuminated..
When the blue "Output" LED is illuminated, power is being supplied to the PurePower output
receptacles. The APS will operate in Bypass mode for a few seconds, then turn on its inverter out-
put - indicated by the LCD Display. The PurePower APS is now in Normal mode and ready to sup-
ply power to your system. Turn on the components, ensuring that the total load does not exceed
the capacity of the PurePower APS.
After init
ial start up it is best to keep the
APS on at all times to ensure its batteries are fully
charged. Battery charging will continue with the unit turned Off so long as it is plugged in to an
AC supply
.
If the
LCD lights fail to illuminat
e after plugging the unit in and pressing the On/Off button, chec
k
the line cord,
ensure AC power is available at the receptacle and
check the line fuse located
in
the back of the unit before
notifying PurePower service.
If the
amber "Fault" LED is illuminated ther
e may be a problem requiring sevice of the APS.
Ple
ase call our support line for instructions.
I

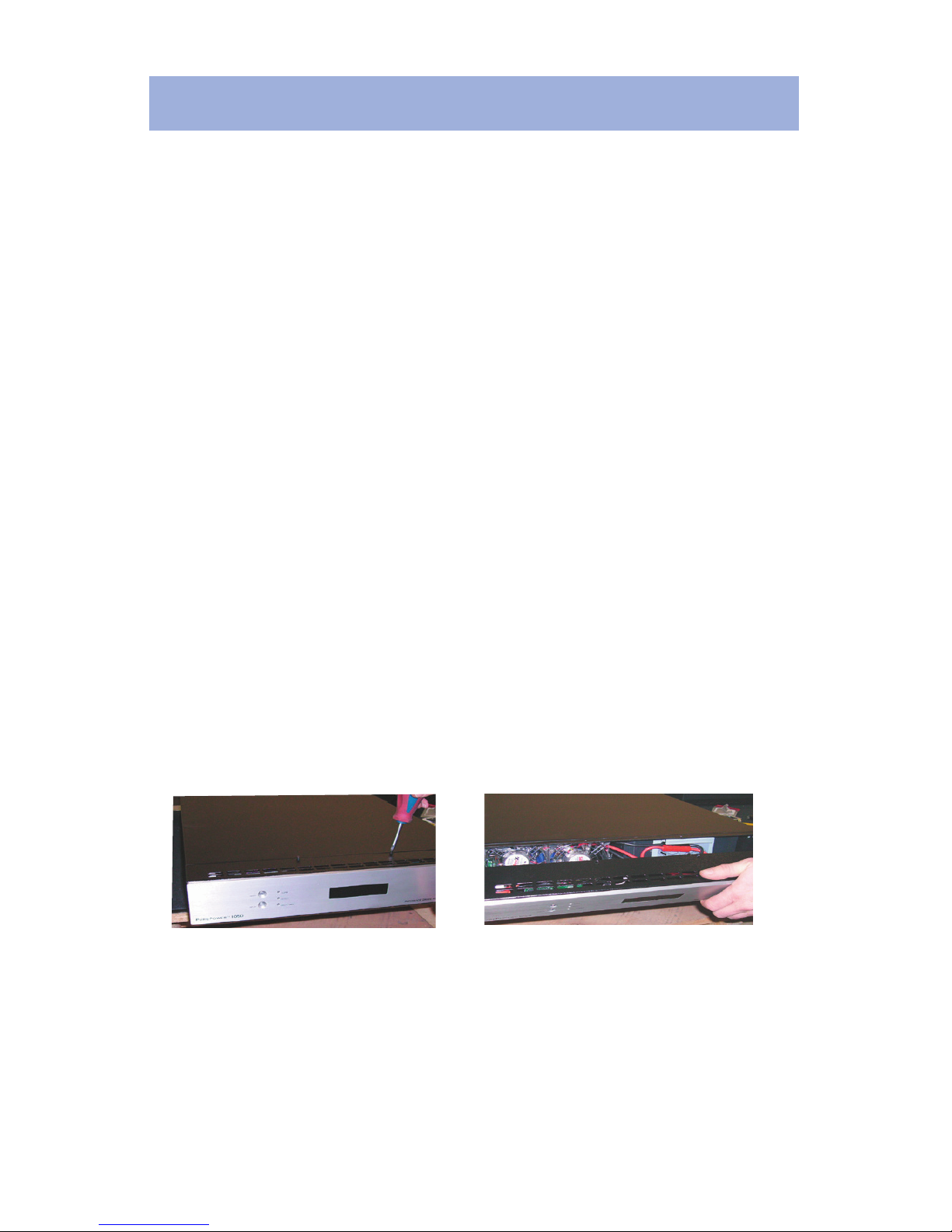

n no circumstances should the lid of the PurePower unit be removed. Ther are no user service-
able components inside and there may be lethal voltages present even if the unit is unplugged
from the wall.

Audio/Video Power Supply • www.purepoweraps.com | 09
Installation
Turning the PurePower On
After the APS is connected to a power outlet, it conducts a self-test and enters Standby mode,
during which it will operate its batteries charging circuit, but all output receptacles are off.
To turn on the APS output power, press the On/Off button on the front panel for 2 to 3 seconds

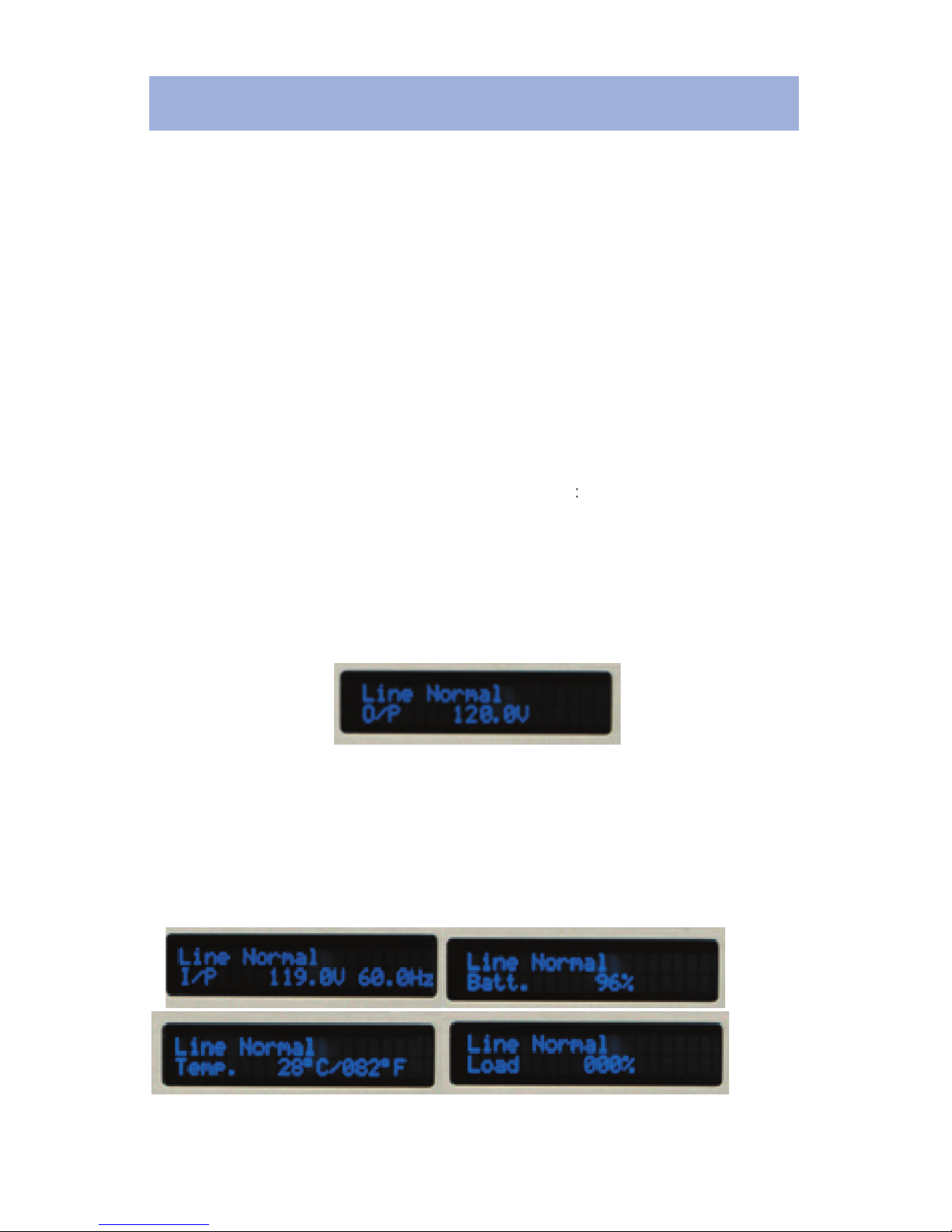

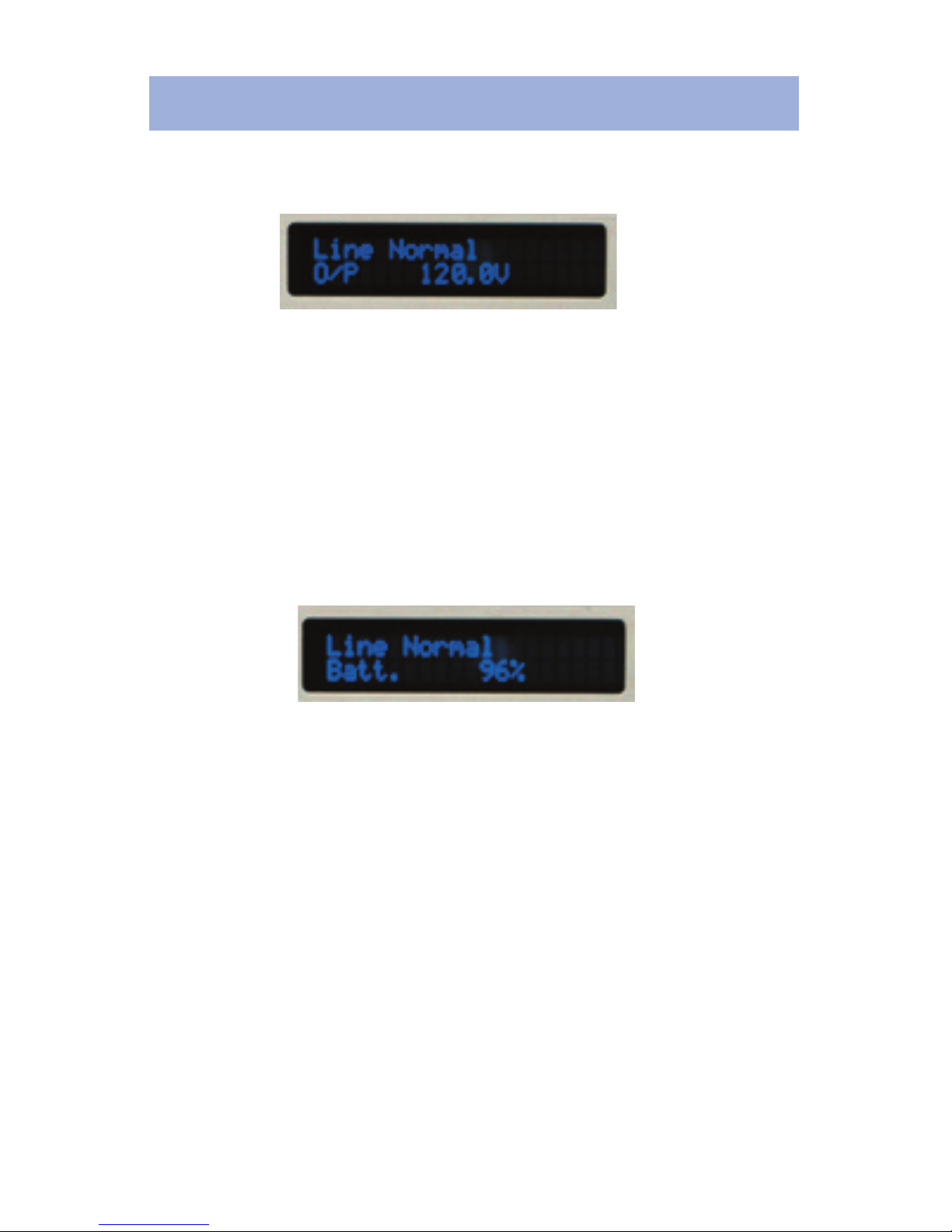

until the blue "Output" LED illuminates. The LCD display will indicate "bypass" for a few seconds
and then indicate "Line Normal" mode and display the output voltage.
Starting the PurePower APS on battery
To turn on the APS when utility power is unavailable, press and hold the On/Off button until the
blue "Output" LED illuminates. The APS supplies power to your equipment and goes into Battery
Mode. When the APS starts on battery, it does not conduct a self-test to conserve battery power.
It will automatically return to Line Normal when utility power becomes available.
Turning the PurePower APS off
To turn off the APS press and hold the On/Off button until the blue "Output" LED turns off.
Power to the APS output receptacles will be off. If you do not unplug the APS, it remains in
Standby mode and the batteries will remain fully charged.
Initiating the Self-Test
Press and hold the On/Off button for one second while the unit is in "Line Normal" mode to
initiate the self-test. During the 10-second test, the unit will switch to batttery operation and the
display will read "testing" .
NOTE: The batteries must be charged and the APS must be in normal mode to perform the self-
test.
