Puretec Elite Z1-Tripla User manual

Z1-Tripla™
Elite
Quick Twist Filter System with a Tripla™ Elite Mixer Tap
User Guide
MAINS WATER

2 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023
What's Inside
AS 3497
Licence No. WM 74617
Pro-Switch Pty Ltd
What's Inside
Puretec Customer Service ........................................................................................................... 3
Operation ............................................................................................................................................... 3
Cleaning Your Mixer Tap................................................................................................................ 3
Cartridge Replacement................................................................................................................... 3
Servicing................................................................................................................................................. 4
Technical Information ..................................................................................................................... 4
Recommended Working Pressures .......................................................................................... 4
Dimensions & Models..................................................................................................................... 5
Tap Assembly ...................................................................................................................................... 7
Parts Diagram..................................................................................................................................... 8
Installation Diagram..................................................................................................................... 10
Quick Connect Fittings................................................................................................................. 10
SmartTee™......................................................................................................................................... 11
Water Connections......................................................................................................................... 12
Installation Requirements ......................................................................................................... 12
Use Guidelines ................................................................................................................................. 13
Preparing Your System................................................................................................................ 13
Tap Installation................................................................................................................................ 14
Filter Installation............................................................................................................................. 15
Cartridge Installation/Changeout ......................................................................................... 16
Replacements ................................................................................................................................. 17
Warranty.............................................................................................................................................. 18

3
Z1 Tripla™Elite User Guide
Introduction
Puretec Customer Service
Thank you for purchasing Puretec Z1 Tripla™Elite water filter system. Your system is a proven
performer manufactured from only quality materials and components and will give years of
‘spring fresh’ water free of impurities if maintained properly.
The Puretec Z1 Tripla™Elite system cartridges need replacing regularly to maintain optimum
performance. This is a simple procedure when following instructions.
The system is designed for metropolitan supply water but can be used in other situations.
For other types of water supply please contact your local Puretec stockist or call our Puretec
Customer Service Helpline prior to installing the tap.
Customer Service Helpline 1300 140 140 (Australia) 0800 130 140 (New Zealand).
Caution: Do not use with water that is microbiologically unsafe or with water of unknown
quality without adequate disinfection before or aer the system. This product must be
installed in accordance with local plumbing regulations by a licensed plumber.
Installation Note: A water filter system/tap, like any product, has a limited life and may
eventually fail. Also sometimes failure happens early due to unforeseen circumstances. To
avoid possible property damage, this product should be regularly examined for leakage and/
or deterioration and replaced when necessary. A drain pan, plumbed to an appropriate drain
or outfitted with a leak detector, should be used in those applications where any leakage
could cause property damage, and/or the water supply should be turned off if no one is home/
present.
Operation
The Puretec Z1 Tripla™Elite system is designed to run economically for many years,
dependent on the initial installation and periodical maintenance.
Flush systems for 10 minutes aer any period of non-use more than 2 days. For a period of
non-use of 2 weeks or more, it may be necessary to replace cartridge.
Cleaning Your Mixer Tap
Plated Surface - should only be cleaned with a minimal amount of liquid detergent/soap
with water. Under no circumstance should any abrasive or acid-base cleaning products be
used.
Cartridge Replacement
To maintain the high quality of the purified water the cartridges need changing every 6-12
months dependent on water quality and usage. Order Z1-R for a replacement cartridge to suit
your Z1 Tripla™Elite System.

4 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023
Servicing
Servicing
Periodically clean the aerator for any lodged sediment that may restrict flow.
Should it be necessary to have your mixer serviced while under warranty, please carry out the
following procedure:
1. Firstly call your plumber, preferably the one that has installed it, (most problems are
caused by the supply lines not being cleaned out properly, prior to connecting the
mixers).
2. Make sure that the plumber has installed your mixer according to the User Guide.
3. If the plumber is satisfied that they cannot rectify the problem then contact your
plumbing supply store or your local Puretec stockist.
Important: We do not recommend the dismantling of any internal part of the mixer as
this will breach your warranty.
Tapware Technical Information
Puretec mixer taps can be used in conjunction with:
• Pressure storage hot water system.
• Any mains water pressure not exceeding 500 kPa.
• Maximum hot water temperature of 60°C.
• Instantaneous hot water system.
• Any filtered water supply.
Recommended Working Pressures
• Minimum working pressure 172 kPa.
• Maximum working pressure 500 kPa.
It should be noted that water mains pressure builds up during off peak periods, mainly at
night, sometimes doubling or tripling normal daytime pressures.
Note: Not suitable for unequal pressure. On high pressure areas where the pressure exceeds
the recommended working pressure as indicated above pressure limiting valves must be
installed or warranty is voided.

5
Z1 Tripla™Elite User Guide
133
228
370
254
230
75
51
133
228
370
254
230
75
51

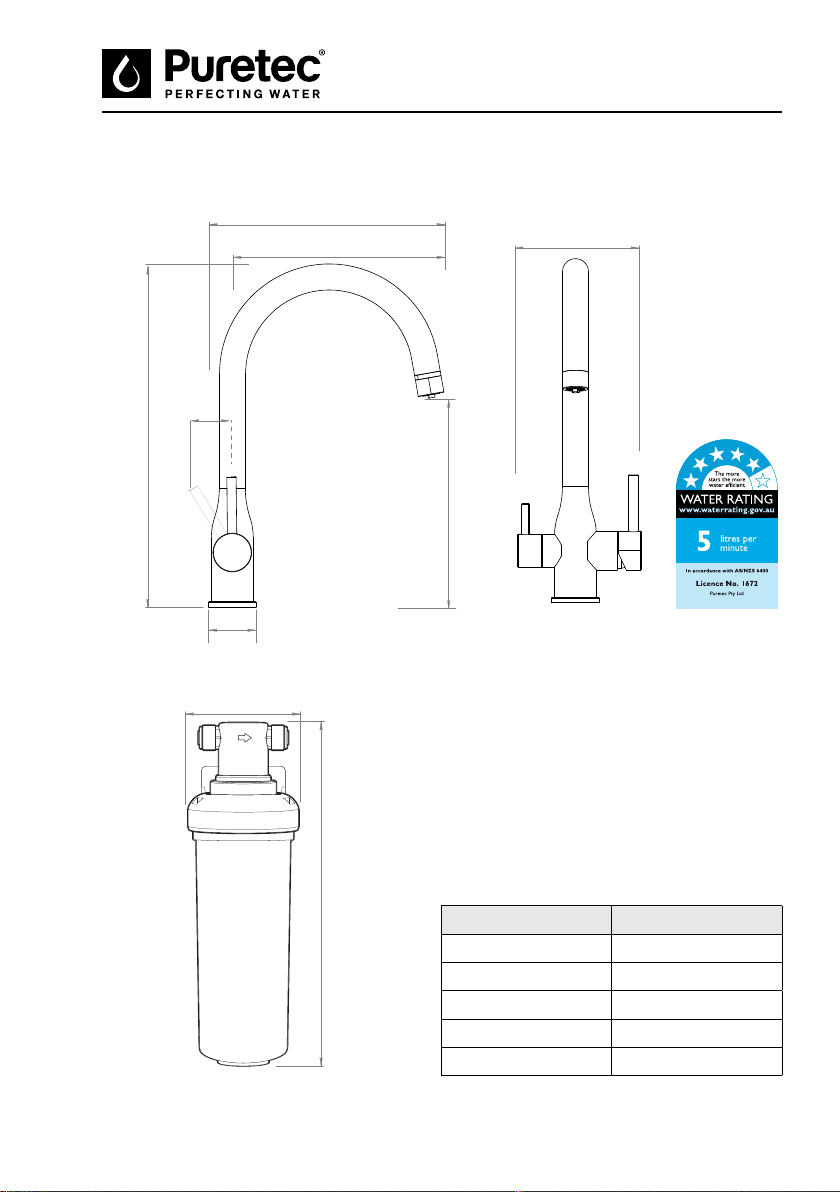

Fig. 1 - Z1 Tripla™ Elite 10 Series Dimensions
Model Code Colour
Z1-E10-CH Chrome
Z1-E10-BN Brushed Nickel
Z1-E10-BG Brushed Gold
Z1-E10-GM Gunmetal
Z1-E10-MB Matt Black
Dimensions & Models
90
290
Depth: 77

6 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023
Fig. 2 - Z1 Tripla™ Elite 20 Series Dimensions
Model Code Colour
Z1-E20-CH Chrome
Z1-E20-BN Brushed Nickel
Z1-E20-BG Brushed Gold
Z1-E20-GM Gunmetal
Z1-E20-MB Matt Black
Dimensions & Models
133
281
315
306
75
280
51
90
290
Depth: 77

7
Z1 Tripla™Elite User Guide
Tap Assembly

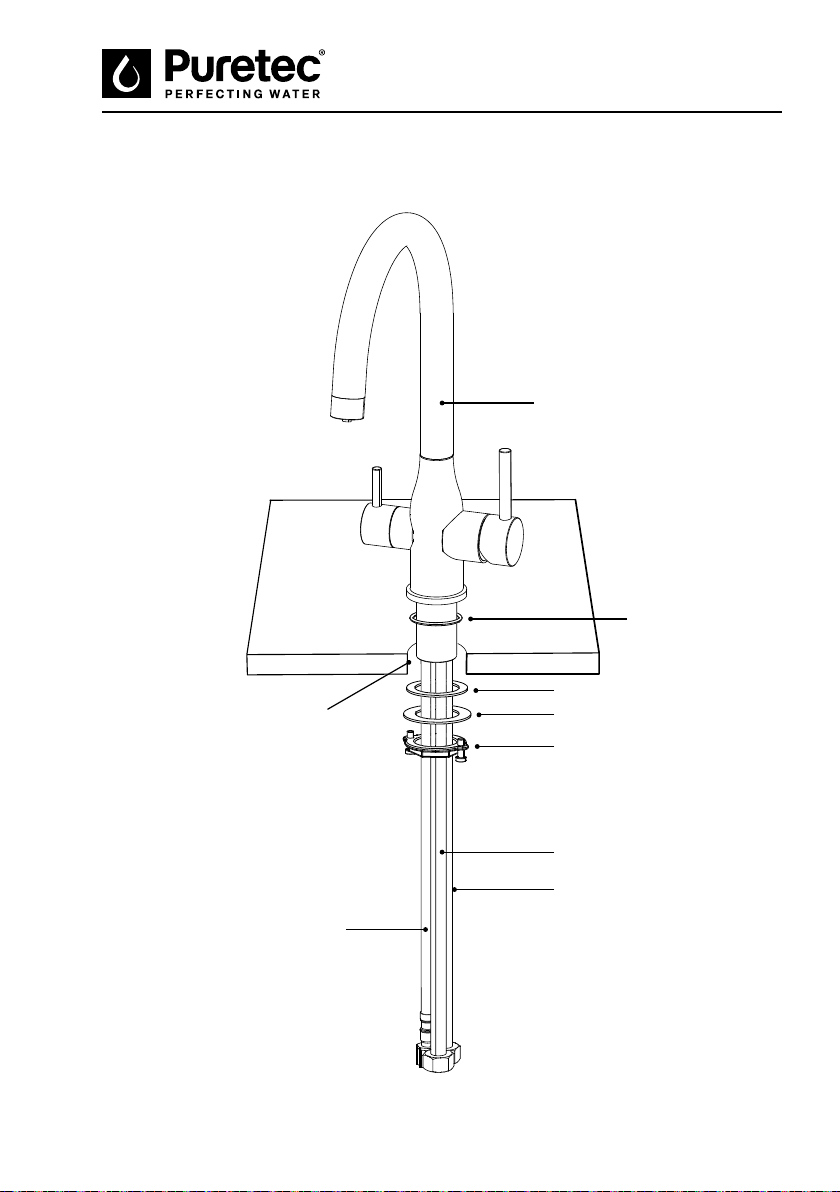

Fig. 3 - Tap Assembly
Model Code Colour
Z1-E20-CH Chrome
Z1-E20-BN Brushed Nickel
Z1-E20-BG Brushed Gold
Z1-E20-GM Gunmetal
Z1-E20-MB Matt Black
HOT
Mixer Tap
Rubber O-ring
Sink Faucet
Hole (Ø35mm)
FILTER/RAIN
COLD
Metal Washer
Rubber Washer
Retaining Plate & Screws

8 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023

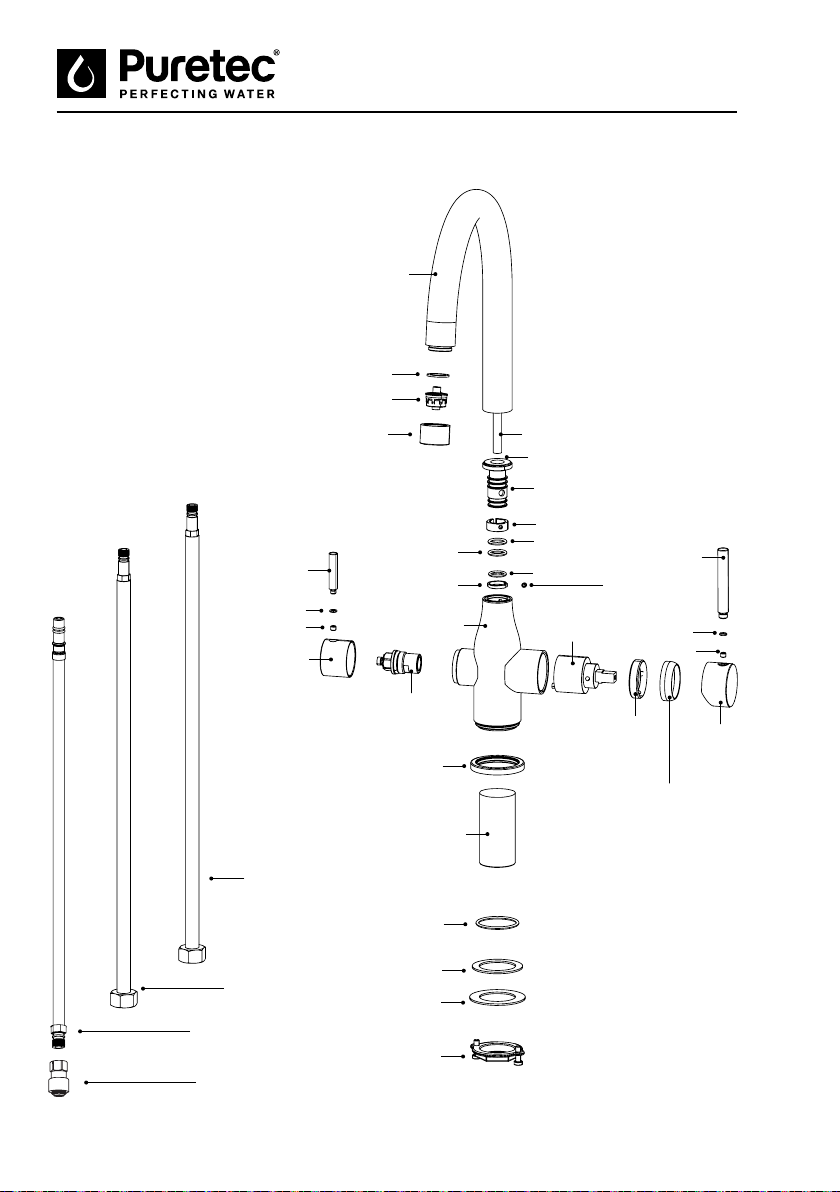

Fig. 9 Parts Description - Tripla Elite 10 Models
2. Washer
3. Aerator Insert
4. Aerator Cap
1. Spout
8. Inner Tube
10. Spout Spigot Assembly
9. Gasket
11. Washer
12. O-ring
13. O-ring
16. Washer 15. O-ring 17. Screw
14. Handle
2O. O-ring
21. Grub Screw
18. Body
28. Handle
Cap
27. Grub Screw
26. O-ring
25. Handle
30. Base
31. Threaded Tube
32. O-ring
33. Rubber Washer
34. Metal Washer
35. Retaining
Plate &
Screws
7. Filtered Water
Hose
6. Cold Water
Hose
5. Hot Water Hose
22.
Retaining
Plate
23.
Dome
Cap
24.
Handle
Cap
19. Cartridge
29. Filter
Spindle
36. Tap Adaptor
Parts Diagram

9
Z1 Tripla™Elite User Guide
Fig. 10 Parts Diagram - Tripla Elite 20 Models
2. Washer
3. Aerator Insert
4. Aerator Cap
1. Spout
5. Washer
6. Filter Insert
7. Aerator Cap
8. Inner Tube
10. Spout Spigot Assembly
9. Gasket
11. Washer
12. O-ring
13. O-ring
16. Washer 15. O-ring 17. Screw
14. Handle
2O. O-ring
21. Grub Screw
18. Body
28. Handle
Cap
27. Grub Screw
26. O-ring
25. Handle
30. Base
31. Threaded Tube
32. O-ring
33. Rubber Washer
34. Metal Washer
35. Retaining
Plate &
Screws
38. Filtered Water
Hose
37. Cold Water
Hose
36. Hot Water Hose
22.
Retaining
Plate
23.
Dome
Cap
24.
Handle
Cap
19. Cartridge
29. Filter
Spindle
39. Tap Adaptor
Parts Diagram

10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023
1. Cut the tube square and push in to
the tube stop. For metal tube remove
burrs and chamfer tube end to prevent
O-Ring seal being damaged.
DISCONNECTION PROCEDURE
4. Push collet against body and slide tube out of fitting.
2. Fitting grips before it seals. Ensure
tube is pushed in to tube stop.
3. Tube is secured in position.
Fig. 12 - How To Use Quick Connect Fittings

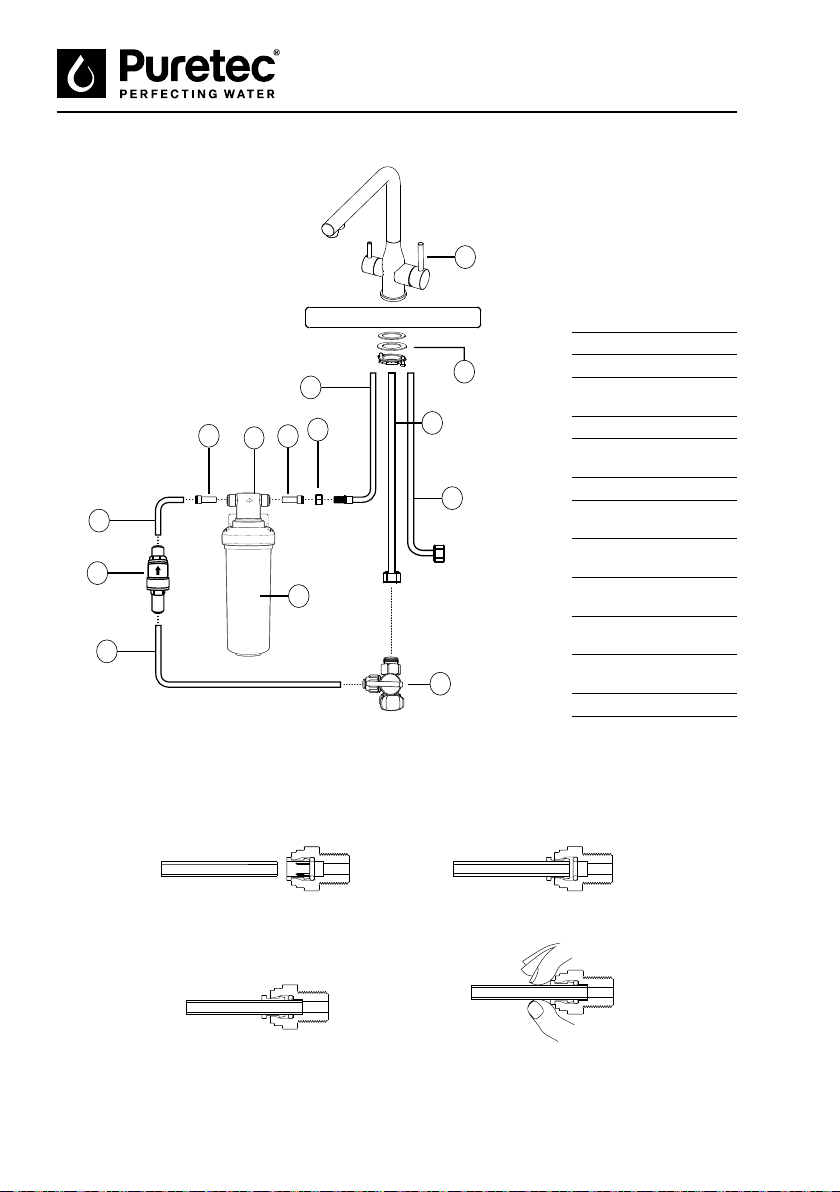

Fig. 11 - Installation Diagram
No. DESCRIPTION
1 SmartTee™
2 White Tubing
3Pressure Limiting
Valve (Multivalve)
4 Z1-R Filter Cartridge
5Mounting Bracket
& Head
6 Tap Adaptor
7⅜" Stem to ½" Tube
Reducer
8Filtered Water
Flexible Hose - Plain
9Cold Water Flexible
Hose - Blue Streak
10 Hot Water Flexible
Hose - Red Streak
11 Lock Nut and
Washer
12 Mixer Tap
2
3
4
9
10
2
6
1
11
8
COLD
WATER
LINE
FILTERED
WATER
LINE
HOT
WATER
LINE
57
7
12
Installation Diagram

11
Z1 Tripla™Elite User Guide

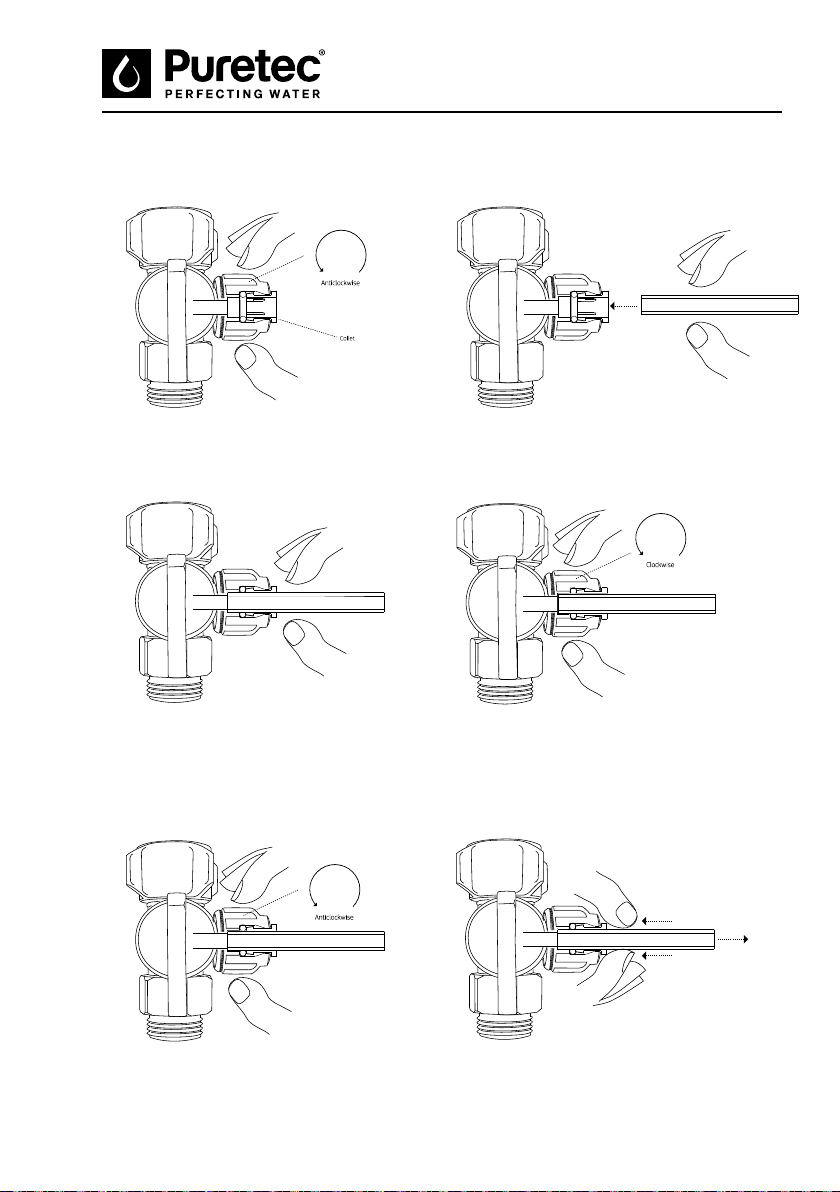

Figure 13 - SmartTee™ Quick Connect Fitting
2. Cut the tube square and push into into the tube stop (inside
the collet). For metal tube; remove burrs and chamfer tube
end to prevent O-ring seal being damaged.
6. Push the collet against the quick connect nut and slide tube
out of fitting.
3. The fitting grips before it seals. Ensure the tube is
pushed all the way into the tube stop.
4. Once the tube is secured in position, turn the quick connect
nut clockwise to secure.
Note: Hand tighten only. Do not overtighten.
1. Turn the quick connect nut on the SmartTee™ anticlockwise
to release the collet.
5. Turn the quick connect nut on the SmartTee™
anticlockwise to release the collet.
DISCONNECTION PROCEDURE
SmartTee™

12 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023
Water Connections
HOT Water Hose
Connection
Fig. 4 - Water Connection Patterns
COLD Water Hose
Connection
Filtered/Rain Water Hose
Connection
Installation Requirements
1. 15 mm (1/2” BSP) X 1/4" tube cold water line - mains only.
2. Supply pressure: 172 - 500 kPa (when pressure exceeds 500 kPa, a pressure limiting
valve must be installed).
3. Supply temperature 0° - 38°C (protect from freezing).
4. Suitable location for the mixer tap.
Alternative fittings may be required if being connected to anything other than an
existing 15 mm (½”) copper pipe (copper pipe NOT included). No electrical or drainage
requirements needed.

13
Z1 Tripla™Elite User Guide
Use Guidelines
Use Guidelines
• Minimum operating pressure 172 kPa.
• Maximum operating pressure 500 kPa.
• Do not allow exposure to temperatures below 0°C, protect from freezing.
• Maximum operating temperature 38°C.
• Nominal flow rate 5.5 Lpm.
• This system must be installed according to local plumbing codes on the cold water
line.
• Replacement Cartridges: See Installation/Changeout
• This system requires regular replacement of the filter cartridge to maintain proper
operation. Varying chlorine, sediment, or organic substance levels may affect
replacement frequency.
• Be sure to change the filter cartridge at least every 30,000 litres or 6 months which
ever occurs first; or whenever you detect a change in taste, odour, or decrease in flow.
Preparing Your System
Please read all instructions carefully as failures caused by incorrect installation or operation
are not covered by warranty.
On removing your Z1 Tripla™Elite system from its carton, you should check all the
components to ensure all are present and have not been damaged in transportation.
You should have:
• Z1 Filter Kit with fittings needed for typical installation (see installation diagram for
details).
• Tripla™Elite Mixer Tap
• User Guide & Warranty Card
Remove all the packing materials prior to use. As a responsible manufacturer we care about
the environment. We urge you to follow the correct disposal procedure for your product and
packaging materials. You must dispose of this product and its packaging according to local
laws and regulations.

14 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023
4. Slip the rubber washer and the
metal washer over the hoses as
shown in Fig. 3. followed by the
retaining plate.
5. Screw the retaining plate up hand
tight to secure the tap into position.
6. Finally, tighten each retaining plate
screw against the metal washer to
secure tap firmly into place.
Tap Installation
1. Unscrew and remove the threaded
tube. Connect each of the hoses
to the faucet and tighten them
as shown in Fig. 3. Screw the tap
adaptor to the bottom of the filter
hose. Screw the threaded tube back
onto the faucet.
Note: Only tighten the flexible
hoses by hand. Do not overtighten.
Don't use any tools.
2. Ensure the O-ring is seated
correctly in the groove at the base
of the tap.
3. Put the hoses through the Basin or
Sink. Required through hole size is
Ø35 mm.
Fig.5
Rubber O-ring
Filter/Rain
Water Hose
Cold Water Hose
Hot Water Hose
Drill Ø35 mm hole.
Washers & Retaining
Plate
Fig.6
Fig.7
Threaded Tube
Tap Adaptor
Tap Installation

15
Z1 Tripla™Elite User Guide
Filter Installation
Filter Installation
This system comes complete with an installation kit enabling it to be connected to 15 mm
(½”) male thread.
Installation Note: A water filter system/tap, like any product, has a limited life and may
eventually fail. Also sometimes failure happens early due to unforeseen circumstances. To
avoid possible property damage, this product should be regularly examined for leakage and/
or deterioration and replaced when necessary. A drain pan, plumbed to an appropriate drain
or outfitted with a leak detector, should be used in those applications where any leakage
could cause property damage, and/or the water supply should be turned off if no one is home/
present.
INSTALLATION MUST BE COMPLETED BY A LICENCED PLUMBER. FAULTY
OPERATION DUE TO UNQUALIFIED PERSONS WILL RESULT IN VOIDED
WARRANTY COVERAGE.
1. Select suitable location that is close to the point of filtered water delivery (eg. sink).
Remember to allow access room for changing filters and a suitable place where water
spillage will not cause damage. Location should not be in direct sunlight.
2. Isolate water supply and cut existing copper pipe (copper pipe NOT included) ready to
install the SmartTee™.
3. Connect the SmartTee™to the multivalve with a piece of white tubing.
4. Install filter cartridge by positioning it in the desired location, marking the position of
fixing hole and fixing with bracket screw. The Z1 Series can be mounted horizontally
or vertically. Allow room for the connecting tubes. Ensure flow arrow on cartridge is in
direction of water flow.
5. Fit the stem to tube reducers into either side of the filter head assembly by pushing
the fittings into the 3/8"quick-connect fittings already installed on the filter head (for
quick-connect fittings see Fig. 12).
6. Fit tubing into 1/4" connectors (stem to tube reducers). Allow slack in the tubing.
Connect the tubing into the filtered water flexible hose securing with the nut found on
the flexible hose (plain).
7. Connect cold water flexible hose (blue streak) to cold mains water supply and the hot
water flexible hose (red streak) to the hot water supply.
8. Restore water supply & check for leaks, rectifying them, if any, before leaving the unit.
9. Run the system for at least 5 minutes to remove carbon fines. Water may appear
milky, but this is normal and is only tiny air bubbles that will clear aer a short period.
Fig.5
Fig.6
Fig.7

16 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023
Cartridge Installation/Changeout
Cartridge Installation/Changeout
This system requires regular replacement of the filter cartridge to maintain proper operation.
Varying chlorine, sediment, or organic substance levels may affect replacement frequency.
Be sure to change the filter cartridge at least every 30,000 litres or 6 months which ever
occurs first; or whenever you detect a change in taste, odour, or decrease in flow.
1. Turn off the water supply.
2. Rotate the old cartridge counterclockwise 1/4 turn, pull it out and dispose of it.
3. Remove all packaging from the new cartridge, including any wraps or caps (if
applicable).
Replacement cartridge: Z1-R
4. Insert the new cartridge into the filter head and rotate clockwise 1/4 turn.
5. Turn on the water and check for leaks. If leaks occur, repeat step 4. If leaks persist,
discontinue use and call your supporting dealer.
6. Flush filter for 5 minutes before use or until water runs clear.

17
Z1 Tripla™Elite User Guide
Replacements
Replacement of Ceramic Disc Cartridge & Filter Spindle
Hot/Cold Ceramic Disc Cartridge
• Unscrew and remove the hot/cold water handle. Unscrew and remove the cartridge
grub screw with an Allen key.
• Remove the handle cap. Unscrew and remove the dome cap.
• Using a pair of needle pliers, grip the inside of the hot/cold cartridge retaining plate to
unscrew and remove it.
• Li out old cartridge and clean the inside making sure no old O-rings are still stuck
inside cartridge housing.
• Insert new cartridge making sure O-rings on bottom of new cartridge have not fallen
off and lugs in bottom of cartridge line up with holes in cartridge housing.
• Seat the cartridge retaining cap back into position and tighten with the pliers. Reinstall
the dome and handle caps, securing with the grub screw with the Allen key.
• Replace the handle (hand tighten only).
Filtered/Rain Spindle
• Unscrew and remove the filter handle. Unscrew and remove the filter grub screw with
an Allen key.
• Li out the old filter spindle by loosening the nut with a wrench and clean the inside of
the spindle housing.
• Insert the new spindle, tightening with the wrench. DO NOT OVERTIGHTEN.
• Seat the handle cap back into position and secure the grub screw with the Allen key.
• Replace the handle (hand tighten only).

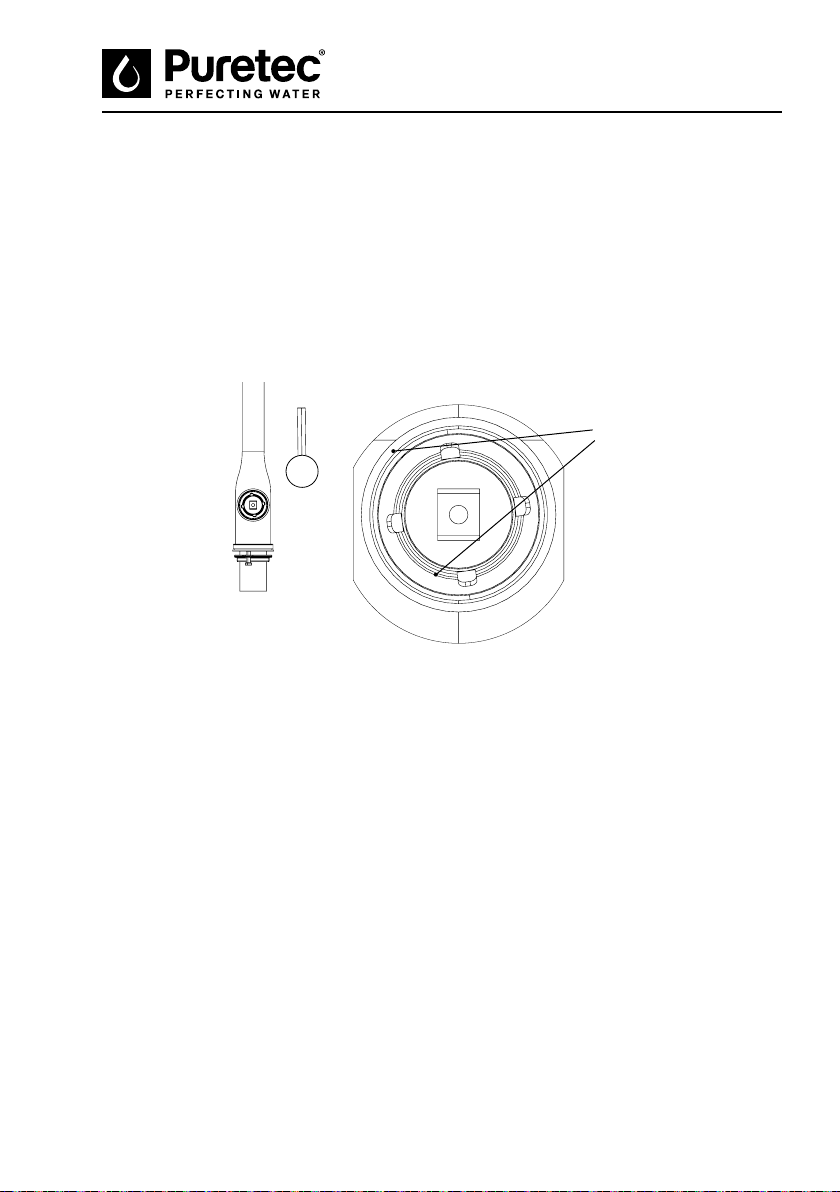

Use pliers to apply pressure
on the tabs inside the
retaining plate & unscrew.
Fig.8

18 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023
Notes
The complete range of Puretec products are developed, refined and made to meet and exceed
stringent specifications for the worldwide market.
Important Note: Sales of products are subject to our Terms & Conditions which are available upon
request. All specifications, prices and photos are a guide only and are subject to change without
notice. Please ring to confirm details. Do not use products with microbiological unsafe water without
adequate disinfection. Under normal circumstances a pressure limiting valve is not required. If
incoming water pressure is excessive it may however be necessary to install an approved pressure
limiting valve. Maximum flow depends on cartridge, vessel, pressure, impurities etc.
Installation Note: A water filter system/tap, like any product, has a limited life and may eventually
fail. Also sometimes failure happens early due to unforeseen circumstances. To avoid possible
property damage, this product should be regularly examined for leakage and/or deterioration and
replaced when necessary. A drain pan, plumbed to an appropriate drain or outfitted with a leak
detector, should be used in those applications where any leakage could cause property damage,
and/or the water supply should be turned off if no one is home/present.
Warranty
This warranty commences from the date of purchase. Puretec is renowned for its quality and aer-
sales support so if you have any issues please call 1300 140 140 (AU) or 0800 130 140 (NZ). To
make a warranty claim, contact us directly or the place of original purchase. All costs relating to a
warranty claim must be approved by Puretec prior to any work being carried out.
Residential 15 Year Warranty: Tap warranty is 2 years parts and labour, plus 13 years parts
only. Finish warranty is 2 years. Flexible mixer tails are 5 Years warranty. Warranty excludes normal
wear and tear and any misuse according to the user guide.
Commercial 2 Year Warranty: Warranty is 2 year parts and labour. Finish warranty is 1 year.
Warranty excludes normal wear and tear and any misuse according to the user guide. Commercial
installations are all non-residential installations including hotels, motels, schools, hospitals,
restaurants and aged care facilities.
Filter Warranty: Warranty is 1 years parts and labour plus 9 years parts only. Excludes cartridges.
Puretec will pay your reasonable, direct expenses of claiming under this warranty. You may submit
details and proof of your expense claim to place of purchase for consideration.
The warranty only applies if the product was used and/or installed in accordance with the user
guide and/or installation instructions. This warranty is given in lieu of all other express or implied
warranties and manufacturer shall in no circumstance be held liable for damages consequential or
otherwise or delays caused or faulty manufacturing except as excluded by law.
Applicable to all above, is that the warranties need to be approved by Puretec to ensure product
was not incorrectly used, installed or claimed. False and incorrect claims will be pursued at
Puretec’s discretion, including chargeable inspection and labour costs incurred.
All installation and service work should be completed by qualified tradespeople. Faulty operation
due to unqualified persons will result in voided warranty coverage.
Warranty

19
Z1 Tripla™Elite User Guide
Warranty
Warranty/Australia
This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road, Lonsdale SA
5160, telephone no. 1300 140 140 and email at [email protected].
This warranty is provided in addition to other rights and remedies you have under law: Our goods
come with guarantees which cannot be excluded under the Australian Consumer Law. You are
entitled to replacement or refund for a major failure and to compensation for other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a major failure.
Warranty/New Zealand
This warranty is given by Puretec NZ LP, Reg. No 50081773, PO Box 875 Cambridge 3450 NZ,
telephone no. 0800 130 140 and email at [email protected].
This warranty is provided in addition to other rights and remedies you have under law: Our goods
come with guarantees which cannot be excluded under the Consumer Guarantees Act. You are
entitled to replacement or refund for a major failure and to compensation for other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a major failure.
Register Your Warranty Online
In order to register your warranty online you must do so within 30 days of your product
purchase.
Follow these 3 simple steps:
1. Go to puretecgroup.com/warranty
2. Enter the required details and hit submit.
3. You will receive an email confirming your warranty.
Terms and conditions apply. Proof of purchase must be retained.
Go to puretecgroup.com for full details.

DEC2023
Simply scan the QR code or visit
puretecgroup.com/warranty & complete the form.
Register your warranty online within 30 days of your
product purchase.
Terms and conditions apply. Proof of purchase must be retained.
Go to puretecgroup.com for full details.
Simply scan the QR code or visit
puretecgroup.com/warranty
& complete the form.
Register your warranty online within
30 days of your product purchase.
Terms and conditions apply. Proof of purchase must be
retained. Go to puretecgroup.com for full details.
