Puretec QT12-TRIPLA User manual

For correct operation & installation it is essential to observe these instructions.
User Guide
Quick Twist Filter System
with Tripla LED Mixer Tap

AS/NZS 3497
Licence No. WM 74617
Australian Certication
Services
JUL2018

2
Installation & Operation Manual Copyright © Puretec Pty Ltd 2018
What's Inside
What's inside
Operation ............................................................................................................................................... 3
Cartridge Replacement................................................................................................................... 3
Servicing................................................................................................................................................. 4
Technical Information ..................................................................................................................... 4
Recommended Working Pressures .......................................................................................... 4
PART 1 Mixer Tap Assembly
Mixer Tap Installation Guide........................................................................................................ 5
Assembly................................................................................................................................................ 6
Water Connection Patterns ...............................................................................................................7
Battery Installation ................................................................................................................................9
Replacement of Ceramic Disc Cartridge(s)...................................................................... 10
PART 2 Filter Cartridge Installation
Installation Requirements ......................................................................................................... 11
Installation Procedure.................................................................................................................. 11
Cartridge Installation/Changeout .......................................................................................... 12
Assembly............................................................................................................................................. 14
WELS Ratings....................................................................................................................................15
Tripla T1 Parts Description........................................................................................................ 16
Tripla T2 Parts Description........................................................................................................ 17
Tripla T3 Parts Description........................................................................................................ 18
Tripla T4 Parts Description........................................................................................................ 19
Tripla T5 Parts Description........................................................................................................ 20
Tripla T6 Parts Description........................................................................................................ 21
Performance Data.......................................................................................................................... 22
Warranty....................................................................................................................................................23

3
Quick Twist Water Filter System with Tripla LED Mixer Tap
Installation

Thank you for purchasing Puretec QT12-Tripla water lter system. Your system is a proven
performer manufactured from only quality materials and components and will give years of
‘spring fresh’ water free of impurities if maintained properly.
The Puretec QT12 system cartridges need replacing regularly to maintain optimum
performance. This is a simple procedure when following instructions. For cartridge
replacements contact your nearest Puretec stockist.
The system is designed for metropolitan supply water but can be used in other situations.
For other types of water supply please contact your local Puretec stockist or call our Puretec
Customer Service Helpline prior to installing the tap.
Customer Service Helpline 1300 140 140 (Australia) 0800 130 140 (New Zealand)
Caution: Do not use with water that is microbiologically unsafe or with water of unknown
quality without adequate disinfection before or aer the system. This product must be
installed in accordance with local plumbing regulations by a licensed plumber.

The Puretec QT12-Tripla system is designed to run economically for many years and this is
dependant on the initial installation and periodical maintenance.
Flush systems for 10 minutes aer any period of non-use more than 2 days. For a period of
non-use of 2 weeks or more, it may be necessary to replace cartridge.
Chrome Plated Surface - should only be cleaned with liquid detergent or soap and water.
Under no circumstance should any abrasive or acid base cleaning agents be used.

To maintain the high quality of the puried water the cartridges need changing every 6
months (this is dependant on water quality and usage).
‘When replacing cartridge, ensure you reset the LED reminder light by removing/replacing the
battery from the rubber seat. Please refer to page 8 for a detailed diagram.
Order  for a replacement cartridge to suit your QT12 system.

4
Installation & Operation Manual Copyright © Puretec Pty Ltd 2018
Installation Guide

Periodically clean the aerator for any lodged sediment that may restrict ow. A Puretec water
lter is highly recommended on all incoming lines for product longevity.
Should it be necessary to have your mixer serviced while under warranty, please carry out the
following procedure:
1. Firstly call the plumber, preferably the one that has installed it, (most problems are
caused by the supply lines not being cleaned out properly, prior to connecting the
mixers).
2. Make sure that the plumber has installed your mixer according to the Instruction Guide.
3. If the plumber is satised that he cannot rectify the problem then contact your
plumbing supply store or your local Puretec stockist.
: We do not recommend the dismantling of any internal part of the mixer
purely to see what is inside as this will breach your warranty.

Puretec mixers can be used in conjunction with:
• Pressure storage hot water system
• Any mains water pressure not exceeding 500 kPa
• Maximum hot water temperature of 60°C
• Instantaneous hot water system
• Any ltered water supply

• Minimum working pressure 50 kPa (7.5 psi)
• Maximum working pressure 500 kPa (72.5 psi)
It should be noted that water mains pressure builds up during o peak periods, mainly at
night, sometimes doubling or trebling normal daytime pressures.
: Not suitable for unequal pressure. On high pressure areas where the pressure exceeds
the recommended working pressure as indicated above pressure limiting valves must be
installed or warranty is voided.

5
Quick Twist Water Filter System with Tripla LED Mixer Tap
Mixer Tap Assembly
HOT
Mixer Tap
Rubber Washer
Sink Faucet
Hole (Ø33mm)
Water Fiter
COLD
Metal Washer
Rubber Washer
Locking Nut
Retainer Screw
Metal Pipe


Note: It is important to ush out the supply pipes to the mixer
before connecting the exible hoses, with the initial installation, so
no foreign matter can enter into the cartridges.
A Puretec Water Filter is highly recommended for product longevity.

6
Installation & Operation Manual Copyright © Puretec Pty Ltd 2018

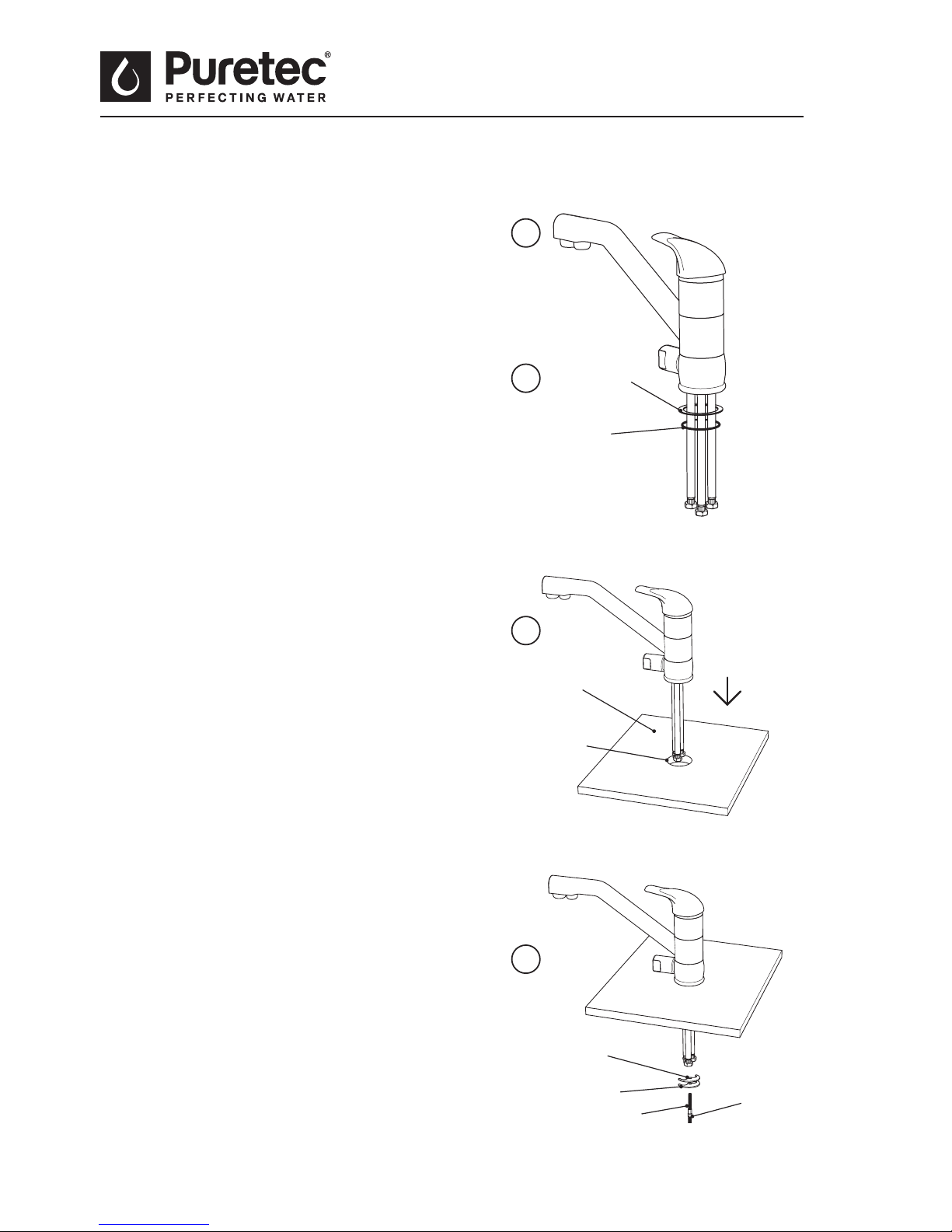

Mixer Tap Assembly
Step 4. Place the retainer screw
through the hole in each spacer and
screw to the hole on the bottom of
the faucet.
Then, use a wrench to lock the
retainer nut.
Rubber Spacer
Locking
Nut
Retainer Screw
Zinc Spacer

O-Ring
Brass Base
1
2
Step 1. Connect the hoses to the
faucet and tighten them. Refer to
page 7 for connection patterns.
Only use hand to screw the exible
hose. Do not over tight. Don't use
any tools.
Step 2. Put brass base with o-ring to
the bottom of the faucet.
Basin or Sink
33mm dia.
Hole
Step 3. Put the hoses through the
basin or sink. Required through hole
size is Ø33mm. 3
4

7
Quick Twist Water Filter System with Tripla LED Mixer Tap

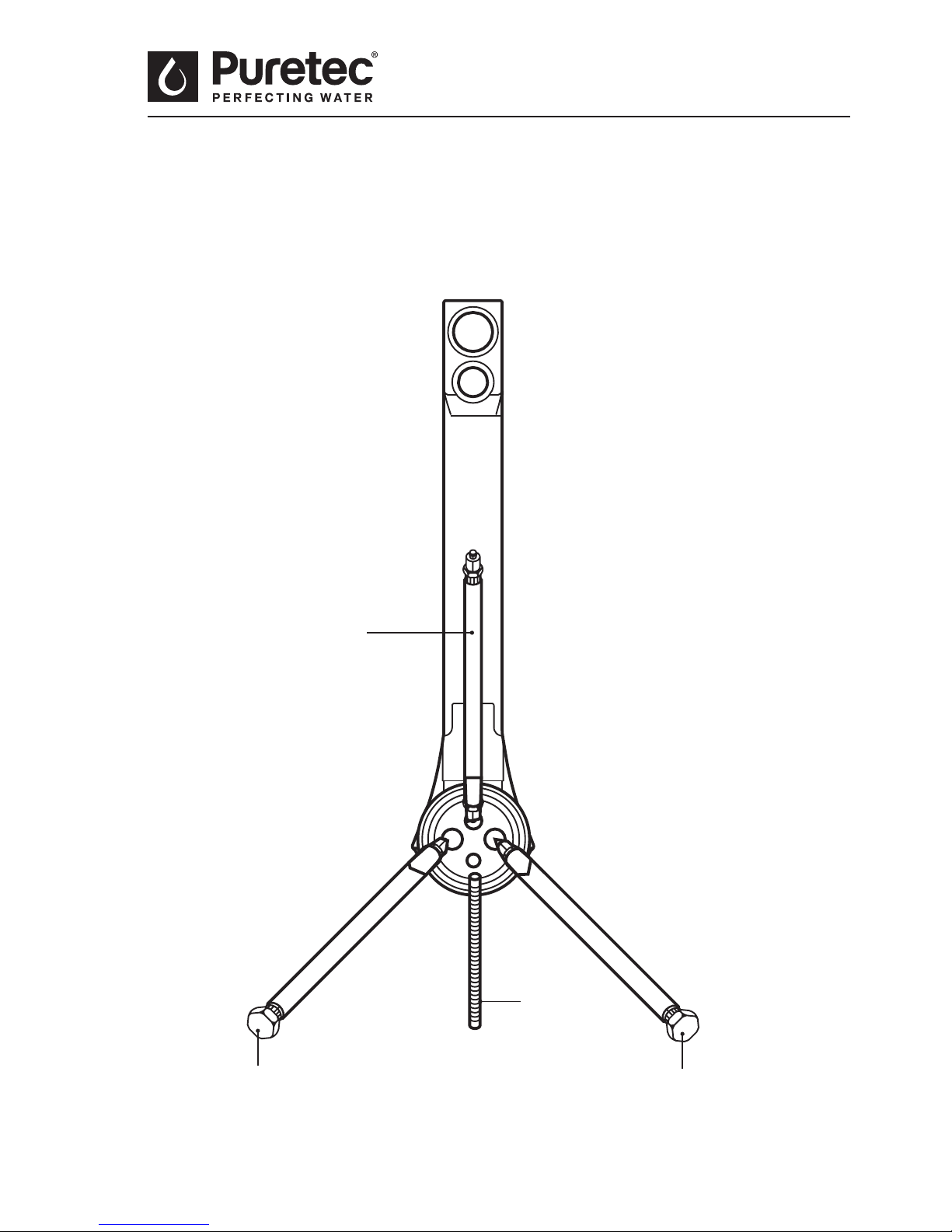

Retainer
Screw
HOT Water
Connection
COLD Water
Connection
Water Filter
Connection
T1 & T2

Mixer Tap Connections

8
Installation & Operation Manual Copyright © Puretec Pty Ltd 2018
Retainer
Screw
HOT Water
Connection
COLD Water
Connection
Water Filter
Connection
T6
Retainer
Screw


9
Quick Twist Water Filter System with Tripla LED Mixer Tap
Mixer Tap Maintenance

1. Remove the black battery seat from the
faucet canopy
2. Install battery into the battery seat,
positive side up.
Note: red light ashes
twice and then followed
by the blue light
3. Reinstall battery seat assembly into the
faucet canopy
Important note: Battery must be replaced when changing cartridges.
5. Red light ashes indicates your cartridges
are due to be changed (usage has
exceeded 3,000 minutes or 12 months).
Please change the battery when
changing the lter cartridge(s).
Positive
side up
Negative on
the PCB
4. Blue light ashes during
normal operation.
This product contains a button battery. Accidental ingestion may occur and can
be fatal. Please keep out of reach from infants. If you suspect an accidental
ingestion please contact emergency services.

10
Installation & Operation Manual Copyright © Puretec Pty Ltd 2018

1. Hot/Cold Outlet
• Remove hot and cold water indicator then release screw in lever and li lever o, now
you can unscrew dome cap and loosen the cartridge lock nut.
• Li out old cartridge and clean inside making sure no old O-rings are still stuck inside
cartridge housing.
• Insert new cartridge making sure O-rings on bottom of new cartridge have not fallen
o and lugs in bottom of cartridge line up with holes in cartridge housing.
• Now you can tighten lock nut with a torque wrench to 14 newton meters, then reinstall
dome cap, lever screw and hot and cold water indicator.
2. Filtered/Rain Ancillary Outlet
• Remove front button cover using ne-edged 1.2mm screwdriver.
• Unscrew handle then remove cartridge by unscrewing it anti-clockwise, using 5/8”
socket. Install cartridge by completing removal instructions as above, in reverse order.
• Ensure cartridge is rmly tightened not over tightened.

11
Quick Twist Water Filter System with Tripla LED Mixer Tap


This system comes complete with an installation kit enabling it to be connected to 15mm
(½”) male thread.

1. 15mm (½”) Cold water line - mains only
2. Supply pressure: 100-500 kPa.
3. Supply temperature 3° - 38°C.
4. Suitable location for faucet.
Alternative ttings may be required if being connected to anything other than 15mm
(½”) copper pipe. No electrical or drainage requirements needed.

1. Select suitable location that is close to the point of ltered water delivery (eg. sink).
Remember to allow access room for changing lters and a suitable place where water
spillage will not cause damage. Location should not be in direct sunlight.
2. Isolate water supply and cut copper pipe ready to install the tee adaptor and ballvalve.

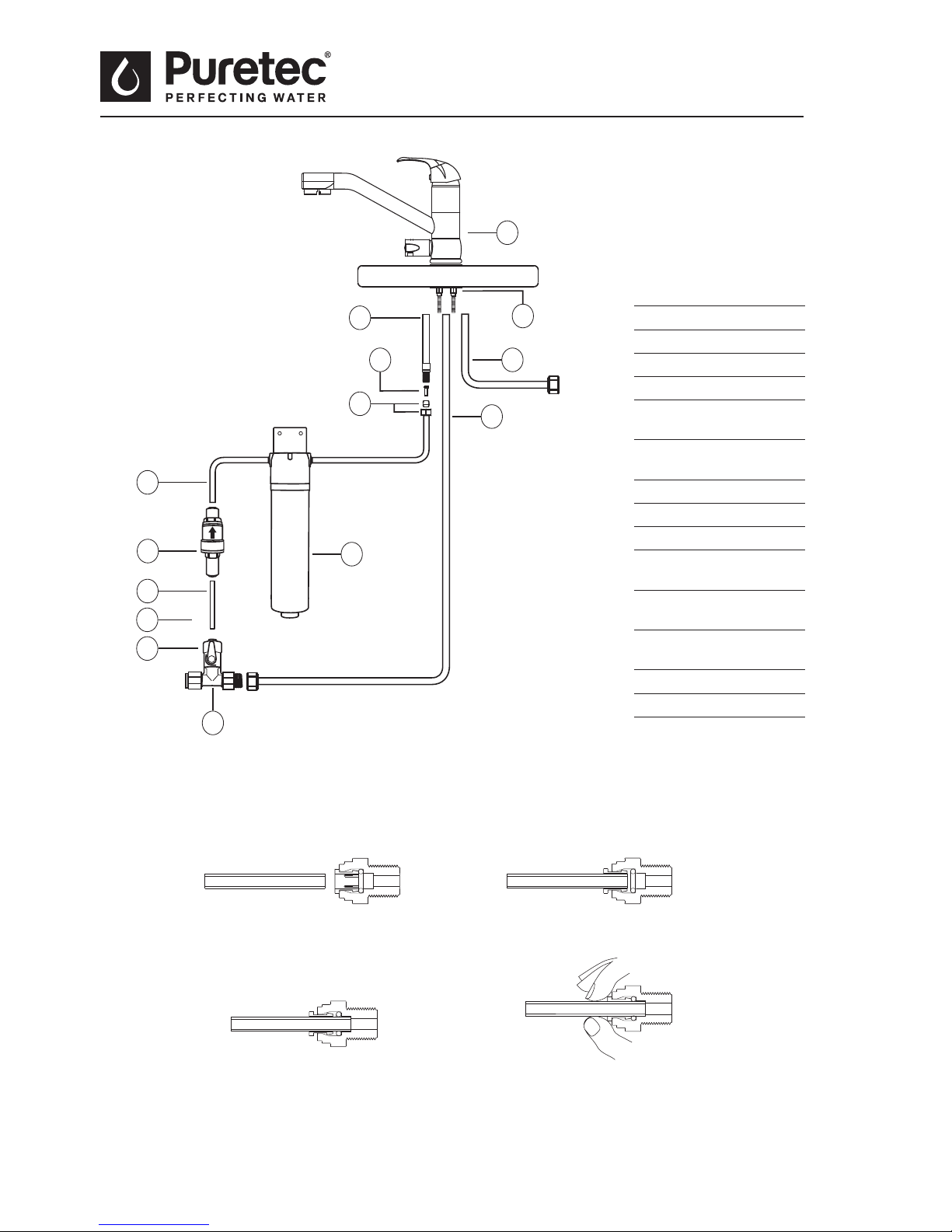

Filter Cartridge Installation

12
Installation & Operation Manual Copyright © Puretec Pty Ltd 2018
3. Connect the ballvalve to the multivalve with a piece of white tubing (see g 1).
4. Install lter cartridge by positioning it in the desired location, marking the position of
xing hole and xing with bracket screw. (QT12 Series can be mounted horizontally
or vertically) Allow room for the connecting tubes. Ensure ow arrow on cartridge is in
direction of water ow.
5. Fit tubing into connectors (for quick-connect ttings see g 2). Allow slack in the
tubing. Connect the tubing into the ltered water exible hose (plain).
6. Connect cold water exible hose (blue streak) to cold mains water supply and the hot
water exible hose (red streak) to the hot water supply.
7. Restore water supply & check for leaks, rectifying them, if any, before leaving the unit.
8. Run the system for at least 5 minutes to remove carbon nes. Water may appear
milky, but this is normal and is only tiny air bubbles that will clear aer a short period.

1. Place container under lter in case of drips.
2. Twist out old cartridge. Discard old cartridge.
3. Remove packaging from the new cartridge including the yellow cap on top of the
cartridge. Twist in the new cartridge. Ensure rm seal to head.
Replacement cartridge code:  
4. Reset LED indicator by following instructions on page 6.
5. Restore water supply.

13
Quick Twist Water Filter System with Tripla LED Mixer Tap
Filter Cartridge Installation
6. Check for leaks, rectifying them, if any, before leaving the unit.
Aer installing cartridges ush unit for 5 - 10 minutes.

• Minimum operating pressure 100 kPa.
• Maximum operating pressure 500 kPa.
• Do not allow exposure to temperatures below 3°C.
• Maximum operating temperature 38°C.
• Maximum ow rate 5 Lpm.
• This system must be installed according to local plumbing codes on the cold water
line.
• Replacement Cartridges: See Cartridge Changeout section
• This system requires regular replacement of the lter cartridge to maintain proper
operation. Varying chlorine, sediment, or organic substance levels may aect
replacement frequency.
• Be sure to change the lter cartridge at least every 11,355 litres or 6 months which
ever occurs rst; or whenever you detect a change in taste, odour, or decrease in ow.

14
Installation & Operation Manual Copyright © Puretec Pty Ltd 2018
Assembly
1. Cut the tube square and push in to
the tube stop. For metal tube remove
burrs and chamfer tube end to prevent
O-Ring seal being damaged.
DISCONNECTION PROCEDURE
4. Push collet against body and slide tube out of tting.
2. Fitting grips before it seals. Ensure
tube is pushed in to tube stop.
HOW TO USE QUICK CONNECT FITTINGS
3. Tube is secured in position.


No. DESCRIPTION
1 compression tee, ½”
2 bush, ½"m x ¼"f
3shuto ball valve
4exible tubing
5pressure limiting
valve
6QT12R lter
cartridge
7 mounting bracket
8 nut and olive
9 tube insert
10 ltered water
exible hose - plain
11 cold water exible
hose - blue streak
12 hot water exible
hose - red streak
13 lock nut and washer
14 mixer tap
2
3
4
56
11
14
12
4
8
1
9
13
10
COLD
WATER
LINE
FILTERED
WATER LINE
HOT
WATER
LINE

15
Quick Twist Water Filter System with Tripla LED Mixer Tap
TRIPLA-T1

TRIPLA-T2
TRIPLA-T3 TRIPLA-T4
TRIPLA-T5 TRIPLA-T6

16
Installation & Operation Manual Copyright © Puretec Pty Ltd 2018


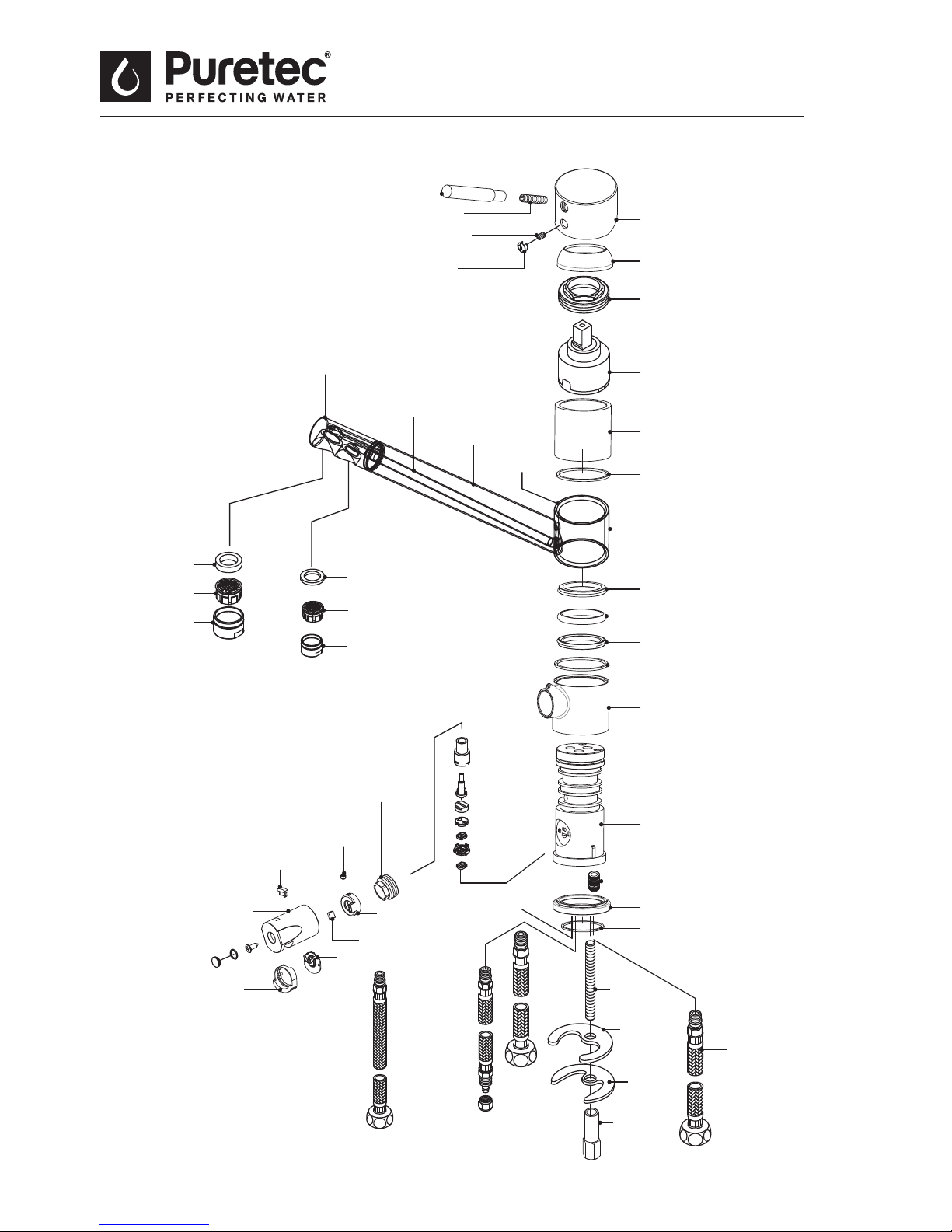

2. Screw
3. Screw
5. Handle
1. Handle
10. Teflon Washer
10. Teflon Washer
28. Washer
34. Regular Seat
38. Handle Cap
41. Battery Seat
31. EPDM Washer 12. EPDM Washer
12. EPDM Washer
13. EPDM Washer
29. Aerator Insert 32. Aerator Insert
30. Aerator Cap
33. Aerator Cap
16. Rubber Washer
15-2 Nut
19. Rubber
Washer
20.
Stainless
Washer
21. Brass
Nut
18. Screw
35. Screw
39. Display
9. Cover Stem
7. Plunger
11. Spout
11-1 Body
14. Body Stem
15-1 Body
11-2 Tube
11-3 Inner Tube
11-4 Connector
4. Cap 6. Cap
8. Stem / Cartridge
45. Flexible
Tube ½"
Inlet/Outlet
Hose
Parts Description
17. Housing
36. Magnetic Seat
40. Circuit Board
37. Magnet
38. O-Ring

17
Quick Twist Water Filter System with Tripla LED Mixer Tap


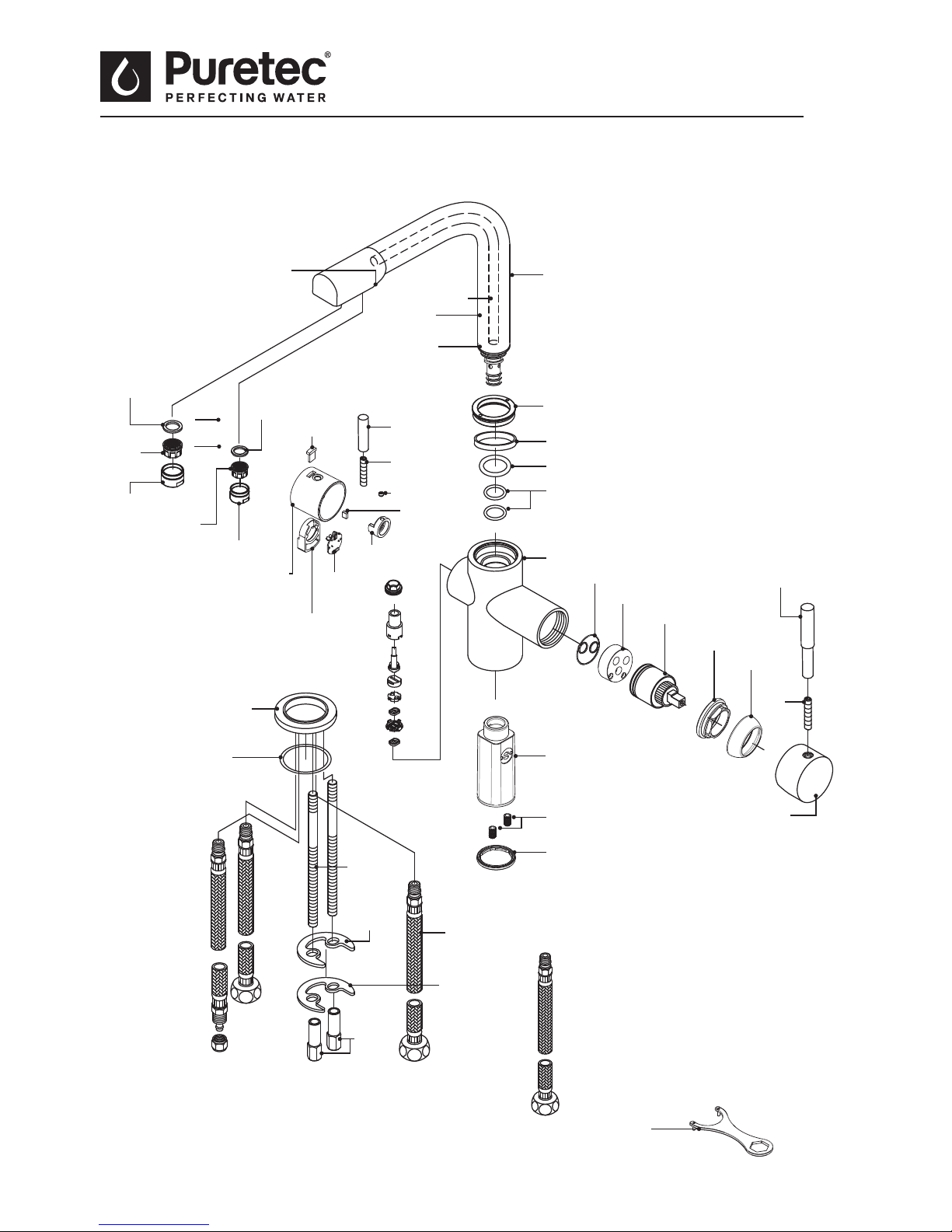

18. Brass Nut
17. Stainless Washer
1. Screw
3. Handle
8. Teflon Washer
8. Teflon Washer
10. EPDM Washer
25. EPDM
Washer 28. EPDM
Washer
11. EPDM Washer
10. EPDM Washer
14. EPDM Washer
16.
Rubber
Washer
15. Screw
9-1. Body
39.
Handle
Cap
37.
Screw
36. Display
32. Screw
31. Plunger
33. Magnet Seat
34. Strong Magnet
35.
Handle
Cap
7. Cover Stem
12. Body Stem
38. O-Ring
41. Battery Seat
40. Circuit Board
5. Plunger
9. Spout
2. Cap 4. Cap
6. Stem / Cartridge
42. Flexible Tube ½"
44. Flexible Tube ½"
44. Flexible
Tube ½"
Parts Description
13-1. Body Stem
13-2. Body Stem
9-2. Brass Tube
9-4. C onnector
9-3. Inner Tube
26. Aerator
Insert 29. Aerator
Insert
27. Aerator
Cap 30. Aerator
Cap

18
Installation & Operation Manual Copyright © Puretec Pty Ltd 2018


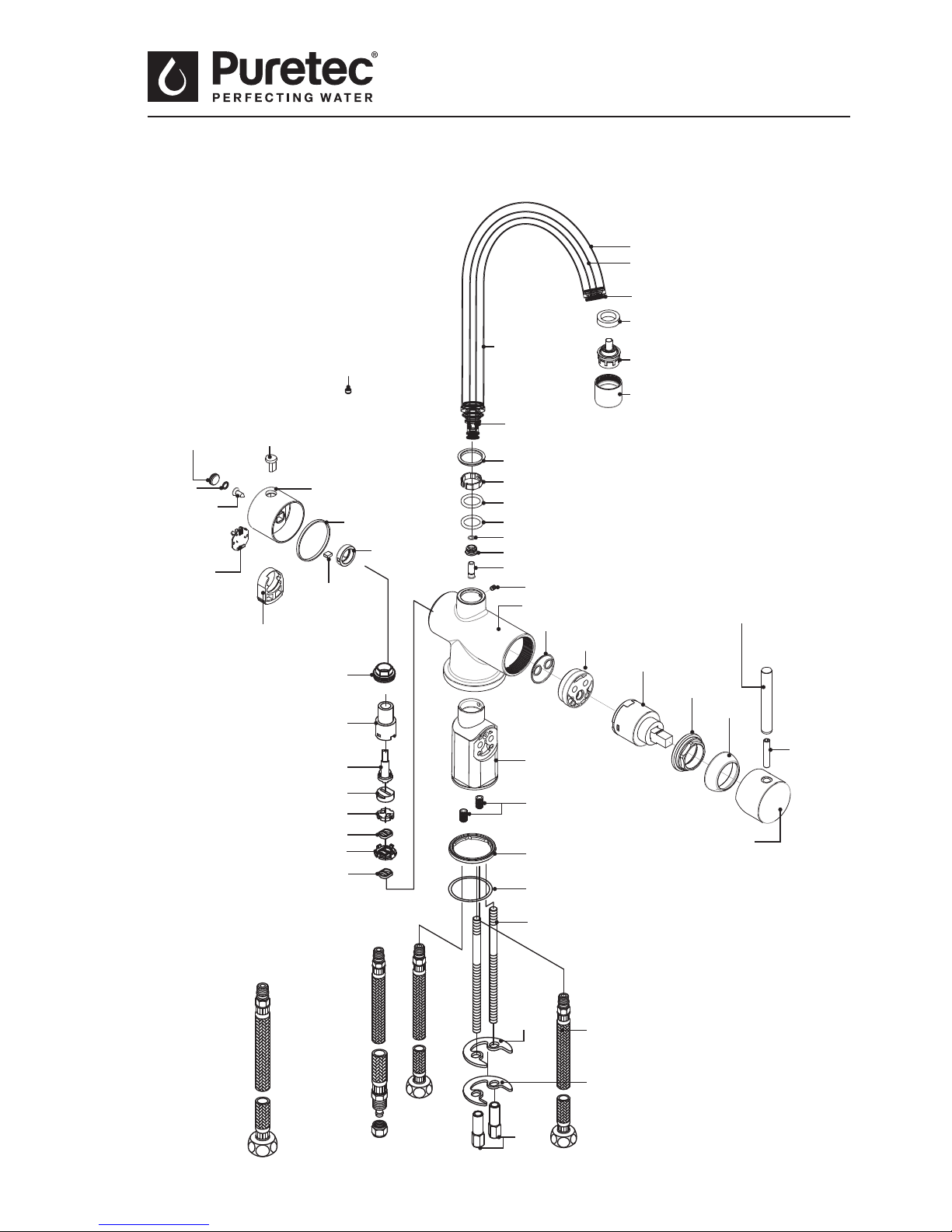

Parts Description
7. Handle
10. Handle Cap
23-4 Connector
33. Handle
8.
Screw
34. Canopy
47. Wrench
4. Washer
25. Washer
38. Housing
5. Aerator Insert
39. O-Ring
6. Aerator Cap
9. Display
41.
washer

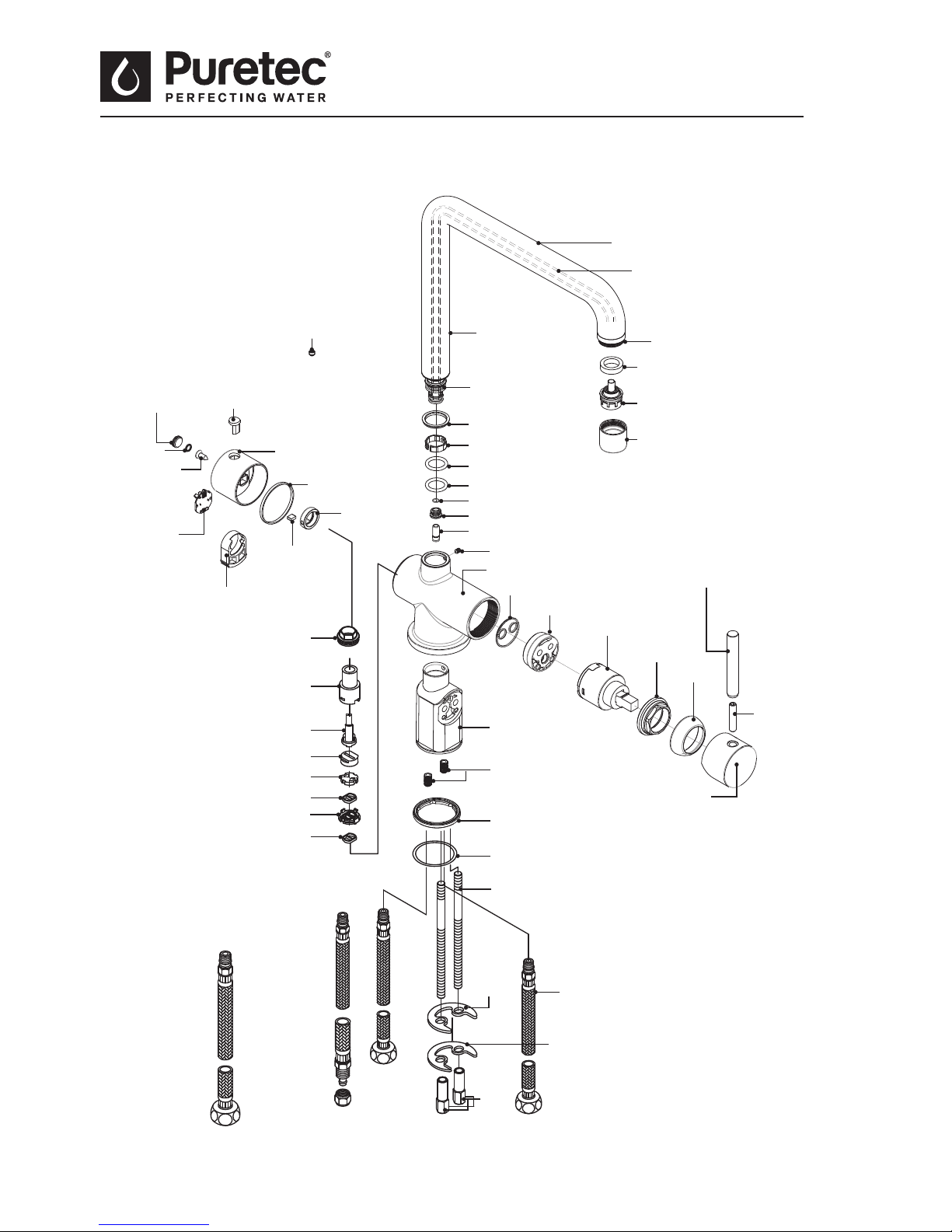

42.
Washer
43. B
rass
Nut
8. Screw
40. Screw
26. O-Ring
23. Spout
28. Body
35. Body
36. Nut
23-3 Inner Tube
23-2 Tube
11. Screw
24. Cap
44. Flexible Tube
1. W asher
2. Aerator
Insert
3. Aerator Cap
23-1 Body
27. O-Ring
29. O-Ring
30. Connector
30-2. Cartridge
31. Plunger
32. Cap
37. Stopper
12. Strong
Magnet
14. Battery
Seat
15. Circuit
Board
13. Magnet Seat

19
Quick Twist Water Filter System with Tripla LED Mixer Tap
42.
Washer
43.
Washer
44.
Brass
Nut
41. Screw
45. Flexible Tube

1. Spout
1-3. Inner Tube
1-4. Connector
2. Washer
3. Aerator Insert
1-2. Tube
1-1. Body
5. Gasket
4. Aerator Cap
6. Washer
7. O-Ring
8. O-Ring
9-1. Washer
9-2. Gasket
9-3. Gasket
28. Screw
35. Handle
36. Screw
37. Handle Cap
29. Body
38-1. Body
38-2. Nut
30. O-Ring
31. Connector
32. Stem
33. Plunger
34. Cap
39. Stopper
40. Washer
17. Circuit
Board
10. Cap 13. Display
16. Screw
11. O-R ing
12. Screw
15. Washer
21. Plunger
22. Turn Stem Body
23. Stem Post
24. Upper
25. Lower
14. Handle Cap
18. Battery
Seat
20. Magnet
Seat
19. Strong
Magnet
26. Seat
27. Stopper
26. Seat
Parts Description

20
Installation & Operation Manual Copyright © Puretec Pty Ltd 2018

Parts Description
42.
Washer
43.
Washer
44.
Brass
Nut
41. Screw
45. Flexible Tube
1. Spout
1-3. Inner Tube
1-4. Connector
2. Washer
3. Aerator Insert
1-2. Tube
1-1. Body
5. Gasket
4. Aerator Cap
6. Washer
7. O-Ring
8. O-Ring
9-1. Washer
9-2. Gasket
9-3. Gasket
28. Screw
35. Handle
36. Screw
37. Handle Cap
29. Body
38-1. Body
38-2. Nut
30. O-Ring
31. Connector
32. Stem
33. Plunger
34. Cap
39. Stopper
40. Washer
17. Circuit
Board
10. Cap 13. Display
16. Screw
11. O-Ring
12. Screw
15. Washer
21. Plunger
22. Turn Stem Body
23. Stem Post
24. Upper
25. Lower
14. Handle Cap
18. Battery
Seat
20. Magnet
Seat
19. Strong
Magnet
26. Seat
27. Stopper
26. S eat
