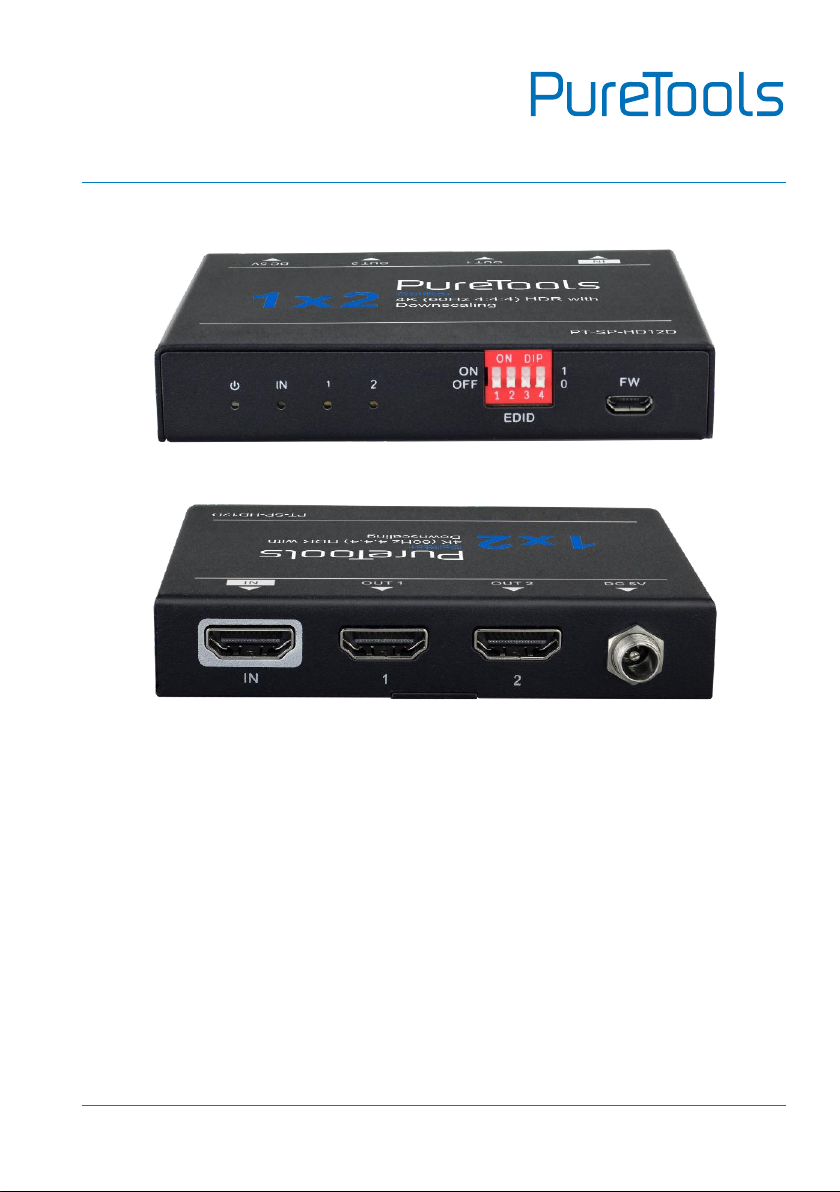

PureTools PT-SP-HD12D User manual

User Manual
PT-SP-HD12D
User Manual
HDMI Splitter 1x2 4K (60Hz 4:4:4) HDR with Downscaling
Model PT-SP-HD12D
Designed in Germany
© 2018 PureLink GmbH All rights reserved. V1.0

User Manual
PT-SP-HD12D
Preface
Read this user manual carefully before using this product. Pictures shown in this
manual are for reference only. Different model layouts and specifications are subject
to the physical product.
This manual is for operation instructions only, not for any maintenance usage.
In the constant effort to improve our product, we reserve the right to make changes in
functions or parameters without prior notice or obligation.
Trademarks
Product model and logo are trademarks. Any other trademarks mentioned in this
manual are acknowledged as the properties of the trademark owner. No part of this
publication may be copied or reproduced without the prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. It has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in
a commercial installation.
Operation of this equipment in a residential area is likely to cause interference, in
which case the user at their own expense will be required to take whatever measures
may be necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

User Manual
PT-SP-HD12D
REACH | 1907/2006/EU
ROHS | 2011/65/EU
PureLink hereby declares that this product PureTools PT-SP-HD12Dcomplies with
Directives 1907/2006/EU und 2011/65/EU.
EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive)
PureLink GmbH hereby declares that this product PureTools PT-SP-HD12D complies
with Directives 2014/30/EU and 2014/35/EU. The full text of the EU Declaration of
Conformity is available at the following Internet address:
http://www.purelink.de/ce/4251364718254_CE.pdf

User Manual
PT-SP-HD12D
SAFETY PRECAUTIONS
To ensure the best from the product, please read all instructions carefully before
using the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material
for possible future shipment
Follow basic safety precautions to reduce the risk of fire, electrical shock and
injury to persons.
Do not dismantle the housing or modify the module. It may result in electrical
shock or burn.
Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install
this product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage.
If an object or liquid falls or spills on to the housing, unplug the module
immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power
to the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

User Manual
PT-SP-HD12D
1
Product Introduction
Thanks for choosing the HDMI 2.0 1x2 Splitter, which can distribute one HDMI input
to two outputs. The splitter supports HDMI video resolution up to 4K@60Hz 4:4:4,
1080P 3D, and multichannel audio formats. Besides passing EDID information from
the display, there are multiple built-in EDID settings can be selected by the 4-pin
DIP switch on the front panel. Moreover, the splitter supports convenient firmware
upgrade through Micro-USB port.
Features
Supports HDMI 2.0 and the video resolution up to 4K@60Hz 4:4:4.
HDMI input supports HDCP 2.2 and the outputs support HDCP Active or HDCP
Passive mode.
Supports video resolution down-scaling, the 4K input can be automatically
degraded to 1080P output for compatibility with 1080P display.
18Gbps high bandwidth.
Advanced EDID management: multiple built-in EDID settings can be selected.
Built-in equalizer for signal enhancement to avoid signal attenuation in
transmission.
Supports CEC pass-through.
Provides LEDs to indicate the current operating status.
Firmware upgrade by Micro-USB port.
Packing List
1x HDMI 2.0 1x2 Splitter
4x Plastic Cushions
1x Power Adapter (5V DC 1A)
1x User Manual
Note: Please contact your distributor immediately if any damage or defect in the
components is found.

User Manual
PT-SP-HD12D
2
Panel Description
Front Panel
①POWER LED: The LED illuminates red when power is applied.
②INPUT LED: The LED illuminates blue when there is HDMI input.
③OUTPUT LEDs: The LED illuminates blue when there is HDMI output on the
corresponding channel.
④EDID: 4-pin DIP switch for EDID setting and HDCP mode selection. Please refer
to the EDID Management for more details.
⑤FW: Micro-USB port for firmware upgrade.
Rear Panel
①INPUT: Type-A female HDMI input port to connect a HDMI source.
②OUTPUTS: Two type-A female HDMI output ports to connect HDMI displays.
③DC 5V: DC barrel port to connect an AC power adapter.
IN FW
1 2
1 2 3 4
EDID
ON
OFF 1
0
12345
1 2
IN
DC 5V IN
123

User Manual
PT-SP-HD12D
3
DIP Switch Operation
EDID Management
The Extended Display Identification Data (EDID) is used by the source device to
match its video resolution with the connected display. By default, the source device
obtains its EDID from the first connected display. Meanwhile, since the displays
with different capabilities are connected to the splitter, the DIP switch on the front
panel can be used to set the EDID to a fixed value to ensure the compatibility in
video resolution.
The switch represents “0” when in the lower (OFF) position, and it represents “1”
while putting the switch in the upper (ON) position.
Switch 1~3 are used for EDID setting. The DIP switch status and its corresponding
setting are shown at the back of the product.
1 2 3 4
EDID Setting
1080p DTS/Dolby
4K/30Hz LPCM
4K/60Hz LPCM
4K/60Hz DTS/Dolby
Default
1 2 3 4
ON
OFF 1
0ON
OFF
ON
OFF
1 2 3 Priority OUT 1 > 2
ON
OFF
1 2 3 Priority OUT 2 > 1
ON
OFF
1 2 3
ON
OFF
1 2 3
1080p LPCM
ON
OFF
1 2 3
ON
OFF
1 2 3
ON
OFF
1 2 3
ON
OFF
1 2 3
4K/30Hz DTS/Dolby

User Manual
PT-SP-HD12D
4
Switch Status
Video Resolution
Audio Format
000
Obtains EDID from the first detected display starting at HDMI output 1>2.
001
Obtains EDID from the first detected display starting at HDMI output 2>1.
010
1080P
LPCM
011
1080P
DTS/Dolby
100
3840x2160@30Hz HDR
LPCM
101
3840x2160@30Hz HDR
DTS/Dolby
110
3840x2160@60Hz HDR
LPCM
111
3840x2160@60Hz HDR
DTS/Dolby
HDCP Mode
Put the switch 4 on the “ON” position to select HDCP Active mode, or on the “OFF”
position for HDCP Passive mode.
Switch Status
Mode
HDCP
OFF (0)
Passive
(Default)
Automatically follows the display’s HDCP version.
ON (1)
Active
Automatically removes the HDCP content of HDMI output for
broader video solution.
Video Resolution Down-scaling
The product supports video resolution down-scaling, the 4K input can be
automatically degraded to 1080P output for compatibility with 1080P display, shown
in the below chart.
Input
Output
#
Resolution
Refresh
Color Space
Downscale
1080P Specs
1
3840x2160
60
4:4:4
Support
1080P@60Hz 4:4:4
2
3840x2160
30
4:4:4
Support
1080P@30Hz 4:4:4
3
3840x2160
24
4:4:4
Support
1080P@24Hz 4:4:4
4
3840x2160
60
4:2:0
Support
1080P@60Hz 4:2:0

User Manual
PT-SP-HD12D
5
#
Resolution
Refresh
Color Space
Downscale
1080P Specs
5
3840x2160
30
4:2:0
Support
1080P@30Hz 4:2:0
6
3840x2160
24
4:2:0
Support
1080P@24Hz 4:2:0
7
3840x2160
60
4:2:2
Not Support
N/A
8
3840x2160
30
4:2:2
Not Support
N/A
9
3840x2160
24
4:2:2
Not Support
N/A
Firmware Upgrade
Please follow the below steps to upgrade firmware by the Micro-USB port:
1) Connect the splitter to the PC with USB cable.
2) Power on the splitter, and then the PC will automatically detect a U-disk named
of “BOOTDISK”.
3) Double-click to open the U-disk, a file named of “READY.TXT” will be showed.
4) Copy the latest upgrade file (.bin) to the “BOOTDISK” U-disk directly.
5) If the filename “READY.TXT” automatically turns to “SUCCESS.TXT”, the firmware
was upgraded successfully. If the firmware upgrade failed, please check the file
(.bin) and then follow the above procedure to operate again.
6) Remove the USB cable after firmware upgrade.
System Connection
The following diagram illustrates the typical input and output connection of the
splitter:
1 2 IN
4K/60 Blu-ray
1080p Display
4K/60 Display
Down Scaling
4K@60 4:4:4 HDR
4K/60 Display

User Manual
PT-SP-HD12D
6
Technical Specification
Video Input
Input
(1) HDMI
Input Connector
(1) Type-A female HDMI
HDMI Input Resolution
Up to 4Kx2K@60Hz 4:4:4 8bit
HDMI Standard
2.0
HDCP Version
2.2, 1.4 compliant
CEC
Supported
Video Output
Output
(2) HDMI
Output Connector
(2) Type-A female HDMI
HDMI Output Resolution
Up to 4Kx2K@60Hz 4:4:4 8bit
HDMI Standard
2.0
HDCP Version
2.2, 1.4 compliant
CEC
Supported
Control
Control Part
(1) EDID 4-pin DIP switch, (1) Micro-USB port
General
Bandwidth
18Gbps
HDMI 2.0 Cable Length
4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m,
1080P ≤ 20m
Operation Temperature
-10℃~ +55℃
Storage Temperature
-25℃~ +70℃
Relative Humility
10%-90%
Power Supply
Input:100V~240V AC; Output: 5V DC 1A
Power Consumption
1.5W (Max)
Dimension (W*H*D)
96.0mm x 17.6mm x 70.4mm
Net Weight
185g
Note: Please adopt high-qualified HDMI cable fully compliant with HDMI 2.0 for
reliable transmission and connection.

User Manual
PT-SP-HD12D
7
After-Sales Service
If there appear some problems when running the product, please check and deal
with the problems referring to this user manual. Any transport costs are borne by
the users during the warranty.
1) Product Limited Warranty: The product will be free from defects in materials
and workmanship for two years (The purchase invoice shall prevail).
Proof of purchase in the form of a bill of sale or receipted invoice which is
evidence that the unit is within the Warranty period must be presented to obtain
warranty service.
2) What the warranty does not cover (servicing available for a fee):
Warranty expiration.
Factory applied serial number has been altered or removed from the product.
Damage, deterioration or malfunction caused by:
Normal wear and tear.
Use of supplies or parts not meeting our specifications.
No certificate or invoice as the proof of warranty.
The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
Damage caused by force majeure.
Servicing not authorized by distributor.
Any other causes which does not relate to a product defect.
Delivery, installation or labor charges for installation or setup of the product.
3) Technical Support: For any questions or problems, contact your distributor or
reseller and tell them the respective product name and version, the detailed
failure situation as well as the formation of the cases.

User Manual
PT-SP-HD12D
Asking for Assistance
Technical Support:
Phone: [phone] - 0
Fax: [phone]
Technical Support Hours:
8:30 AM to 5:00 PM Monday thru Thursday
8:30 AM to 4:00 PM Friday
Write to:
PureLink GmbH
Von-Liebig-Straße 10
D - 48432 Rheine
www.purelink.de
[email protected]
