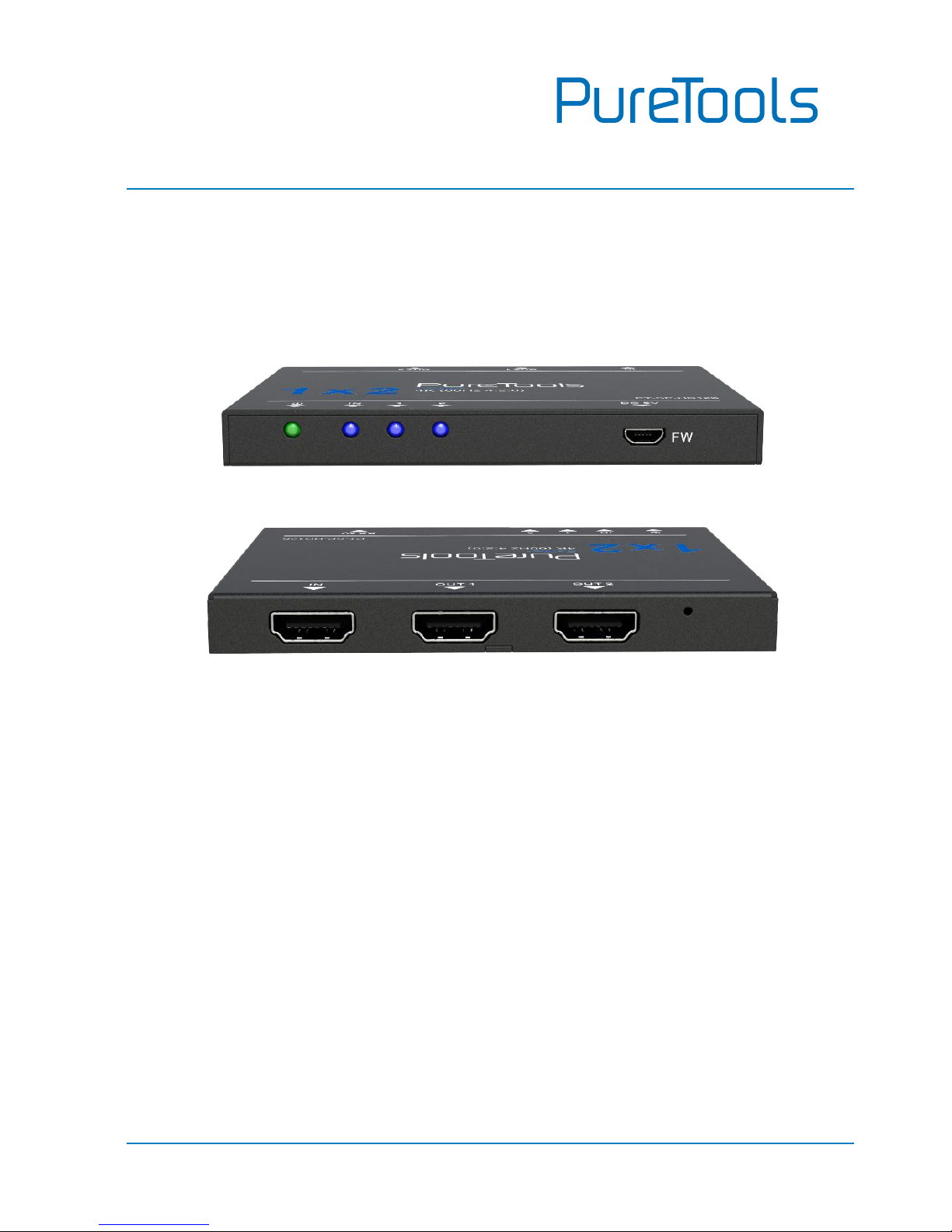

PureTools PT-SP-HD12S User manual

User Manual
PT-SP-HD12S
User Manual
HDMI Splitter 1x2 4K (60Hz 4:2:0)
Model PT-SP-HD12S
Designed in Germany
© 2017 PureLink GmbH All rights reserved. VersionV1.0

User Manual
PT-SP-HD12S
Preface
Read this user manual carefully before using this product. Pictures shown in this
manual are for reference only. Different model layouts and specifications are subject
to the physical product.
This manual is for operation instructions only, not for any maintenance usage.
In the constant effort to improve our product, we reserve the right to make changes in
functions or parameters without prior notice or obligation.
Trademarks
Product model and logo are trademarks. Any other trademarks mentioned in this
manual are acknowledged as the properties of the trademark owner. No part of this
publication may be copied or reproduced without the prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. It has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in
a commercial installation.
Operation of this equipment in a residential area is likely to cause interference, in
which case the user at their own expense will be required to take whatever measures
may be necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

User Manual
PT-SP-HD12S
REACH | 1907/2006/EU
ROHS | 2011/65/EU
PureLink hereby declares that this product PureTools PT-SP-HD12S complies with
Directives 1907/2006/EU und 2011/65/EU.
EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive)
PureLink GmbH hereby declares that this product PureTools PT-SP-HD12S
complies with Directives 2014/30/EU and 2014/35/EU. The full text of the EU
Declaration of Conformity is available at the following Internet address:
http://www.purelink.de/ce/4251364706923_CE.pdf

User Manual
PT-SP-HD12S
SAFETY PRECAUTIONS
To insure the best from the product, please read all instructions carefully before
using the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing
material for possible future shipment
Follow basic safety precautions to reduce the risk of fire, electrical shock and
injury to persons.
Do not dismantle the housing or modify the module. It may result in electrical
shock or burn.
Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or
install this product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment
damage. If an object or liquid falls or spills on to the housing, unplug the
module immediately.
Do not twist or pull by force ends of the optical cable. It can cause
malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the
power to the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

User Manual
PT-SP-HD12S
1
Introduction to PT-SP-HD12S
The PT-SP-HD12S is an ultra slim splitter. It provides a cost-effective mean of lossless
duplication and distribution of a single HDMI source to 2 connected displays for
simple, flexible and reliable content replication to multiple display devices
supporting resolutions up to 4K@60Hz 4:2:0.
Automatic HDCP and EDID management continuously negotiates and authenticates
communication between connected devices, ensuring simultaneous distribution of
source content to all outputs, while also maintaining signal integrity via internal
equalization and amplification to output devices.
Feature
11mm ultra-slim design
2 simultaneous HDMI outputs
Supports HDMI 1.4, 4Kx2K/60Hz 4:2:0
Powered by Micro USB
Smart EDID management
Package Content
Please take an inventory of the package contents to ensure you have all the items
listed below. If anything is missing or damaged, please contact your distributor for a
replacement.
1 x PT-SP-HD12S
1 x Power Adaptor (5VDC,1A)
1 x Velcro Tape
1 x User Manual

User Manual
PT-SP-HD12S
2

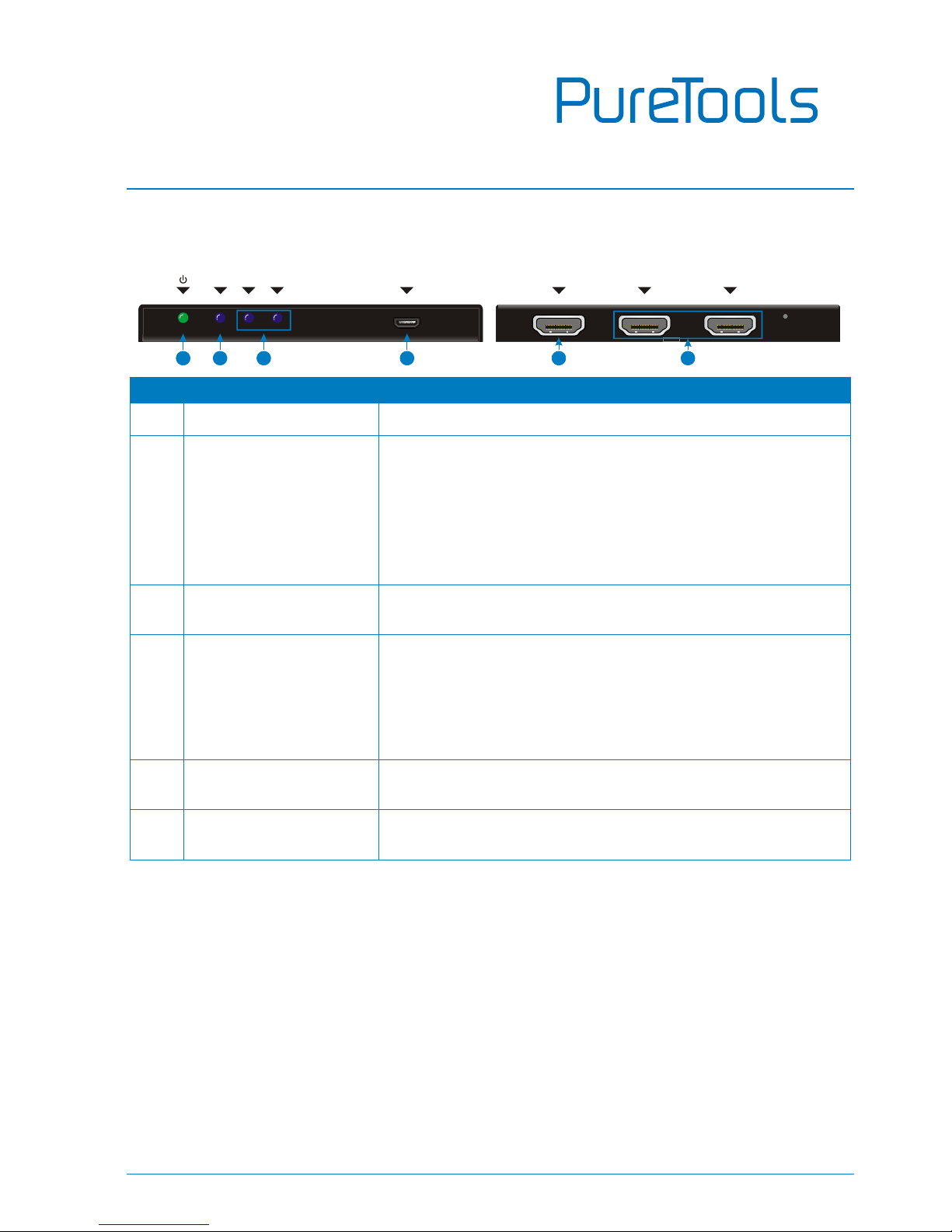

Panel Description
No.
Name
Description
①
Power LED
Illuminate green once powered on.
②
HDCP LED
Indicate the HDCP compliant status of the input
signal
OFF: No HDMI traffic (no emage) or abnormal link.
BLUE: Traffic with HDCP
Blinking BLUE: Traffic without HDCP
③
Output LED
Illuminate blue when there is HDMI output,
correspond to HDMI OUTPUT 1~2 separately
④
DC 5V
Micro USB port, plug the included power adapter for
power supply or plug a U-disk to update firmware.
Note: Firmware updated need auxiliary equipment,
please contact with our after-sales department for
more details.
⑤
IN
HDMI input port, connect with source device such as
Blu-ray DVD.
⑥
OUT1& OUT2
HDMI output ports, connect to HDMI displays,
automatically capture the input resolution.
EDID Management
The Extended Display Identification Data (EDID) is used by the source device to match
its video resolution with that of the connected display. The EDID setting for the PT-
SP-HD12S is defined by the first detected display.
For example, the display on Out 1 supports 4K video. When the source plays 4K
content, it will pass to all displays. If a display does not support the video content,
there will be no video output on the display.
OUT 2 OUT 1 IN
IN 21 DC 5V
FW
123 4 5 6

User Manual
PT-SP-HD12S
3
Specification
Video Input
Input
(1) HDMI
Input Connector
(1) female type A HDMI 1.4
Video Output
Output
(2) HDMI
Output Connector
(2) female type A HDMI 1.4
Video General
Max data rate
10.2Gbit/s
Max Resolution
4Kx2K@60Hz 4:2:0
HDCP
Compliant with HDCP1.4
EDID
In-built EDID management
HDMI Embedded Audio
Support Dolby D (True HD)/ DTS (HD-Master Audio)/
PCM
General
Temperature
-10~ 55℃
Reference Humidity
10% ~ 90%
Power Consumption
2.5 W (Max)
Power Supply
Input: 100VAC~240VAC, 50/60Hz; Output: 5VDC 1A
Dimension (W*H*D)
102.4mm x11.0mm x 70.4mm
Net Weight
175g

User Manual
PT-SP-HD12S
4
System Diagram
4K Blu-ray HDTV
Projector
Screen
HDMI IN:
HDMI OUT:

User Manual
PT-SP-HD12S
5
After-Sales Service
If there appear some problems when running the product, please check and deal with
the problems referring to this user manual. Any transport costs are borne by the users
during the warranty.
1) Product Limited Warranty: This product will be free from defects in materials and
workmanship for two years (The purchase invoice shall prevail).
Proof of purchase in the form of a bill of sale or receipted invoice which is
evidence that the unit is within the Warranty period must be presented to obtain
warranty service.
2) What the warranty does not cover (servicing available for a fee):
Warranty expiration.
Factory applied serial number has been altered or removed from the product.
Damage, deterioration or malfunction caused by:
Normal wear and tear.
Use of supplies or parts not meeting our specifications.
No certificate or invoice as the proof of warranty.
The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
Damage caused by force majeure.
Servicing not authorized by distributor.
Any other causes which does not relate to a product defect.
Delivery, installation or labor charges for installation or setup of the product.
3) Technical Support: For any questions or problems, contact your distributor or
reseller and tell them the respective product name and version, the detailed
failure situation as well as the formation of the cases.

User Manual
PT-SP-HD12S

User Manual
PT-SP-HD12S

User Manual
PT-SP-HD12S
Asking for Assistance
Technical Support:
Phone: [phone] - 0
Fax: [phone]
Technical Support Hours:
8:30 AM to 5:00 PM Monday thru Thursday
8:30 AM to 4:00 PM Friday
Write to:
PureLink GmbH
Von-Liebig-Straße 10
D - 48432 Rheine
www.purelink.de
[email protected]
