PURPLE LEAF ZY04BY1013-GY User manual

PURPLE LEAF 10' ×13' PERGOLA
ZY04BY1013-GY
www.purpleleafgarden.com
©Copyright 2016-2021 Purple Leaf Inc. All Rights Reserved
PURPLE LEAF PRODUCTS
Take the screw out from NO.5 screw kit
After assebling all zip blinds,
test to make sure that all manual blinds can go up and down smoothly
Tighten the screw and fix the plastic cap
Attach the zip blinds to the 2 posts Putting the cover of zip blinds clip into the gap on
the post top
11 12
Repeat to assemble all zip blinds Clip the post head into the post
Make a slight adjustment if there is any difficulty to put the zip blind in
Hard ground like mattess
Recommended accessories
(Manufacturer do not supply)
Recommended specifications: 10*100mm

Questions, problems, missing parts with this product?
Do not hesitate to contact us at
[email protected]
Warnings and Cautions
Please retain this instruction for future usage and read carefully
before assembly.
Make sure you have all the parts & hardware as item list shows.
2 adults or more are recommended to install your gazebo.
Do not discard any of the packaging until you have checked that
you have all the parts and pack of ttings.
Check all bolts for tightness before use, and periodically check and
tighten bolts ensure your gazebo works properly.
Some parts might have sharp edges/corners. Please follow basic
safety precautions to reduce the risk of hurts.
It is essential to place the gazebo on level ground and not less than
6 feet from any obstruction such as fences, garages, the house,
overhanging branches, laundry lines, or electrical wires.
Ladder is required for the installation.
Never fully tighten the screws until you nish the installation.
CHOKE HAZARD
THIS ITEM CONTAINS SMALL PARTS WHICH CAN BE
SWALLOWED BY CHILDREN.
PLEASE KEEP IT AWAY FROM CHILDREN UNDER 3
YEARS OLD and PETS DURING INSTALLATION.

The blinds is locked when pulled down to the bottom
DO NOT pull up the blind directly.
The hook in the middle of the middle beam can be
used to hang lamp or other decoration
Control the louvers (open or close) by the hand crank
First you need to unlock the spring by pressing
the spring-lock button, then you can open the zip
blinds.
13 14
Wooden floor
Recommended accessories
(Manufacturer do not supply)
Recommended specifications: 10*100mm

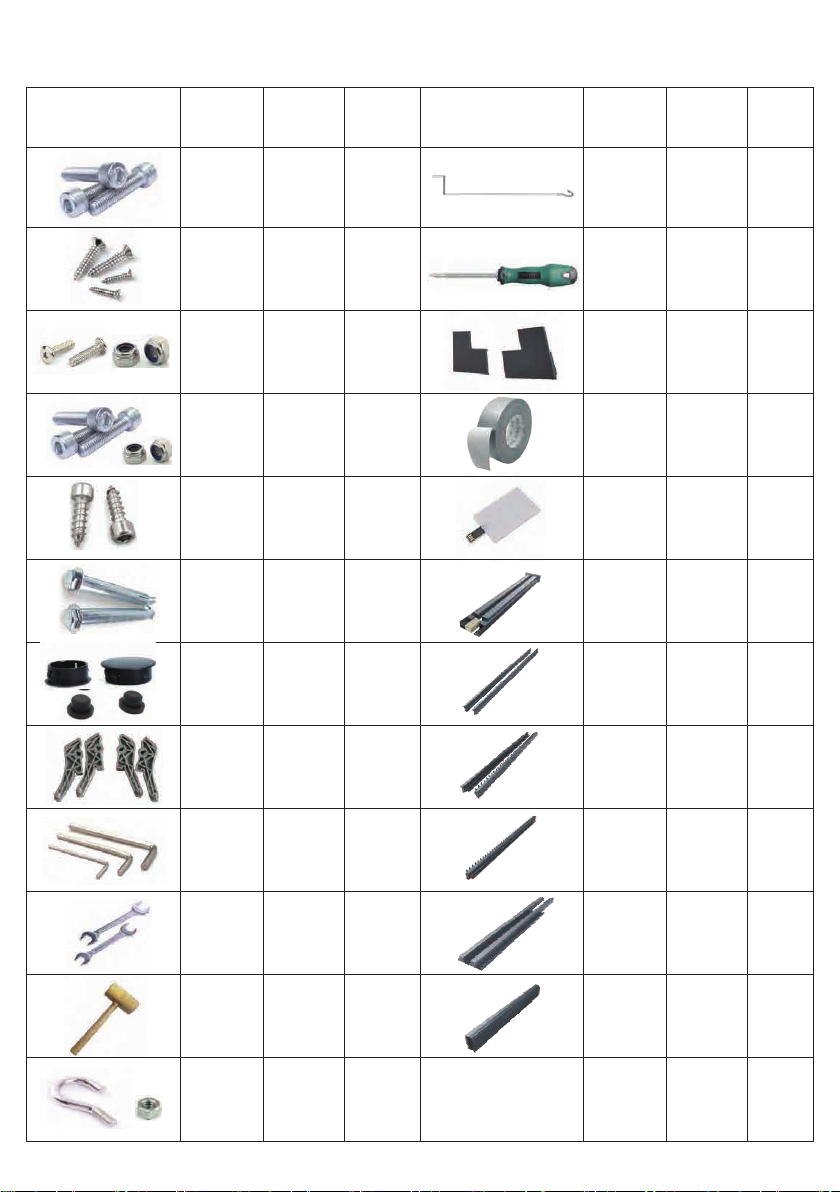

List
Picture Description
（mm)
8*35mm
hex bolts 16 No1
4*40mm
slotted
screws
8 No2
8*65mm
hex bolst
+nuts
16 No3
8*70mm
hex bolst
+nuts
4 No4
4*35mm
hex screws 32 No5
10*100mm
expansion
bolts
16 No6
16mm caps+
7mm caps
Spare blade
brackets
13-16mm
spanner
wood
hammer
6mm
5mm
3mm
4+32 No7
4
3
1
1 /
1.2M crank 1 /
screwdriver 1 /
waterproof
adhesive
tape
1 /
assembly
guide USB
+manual
post 4
1+1 /
/
side beam 2 /
side beam
with blade
bracket
2 /
middle
beam 1 /
zip screen 4 /
blade 82/98/110 /
post cap 4 /
M6 hook
+nut 1 /
/
/
/
Q'ty
(PC) Part No. Picture Description （mm)
Q'ty
(PC) Part No.

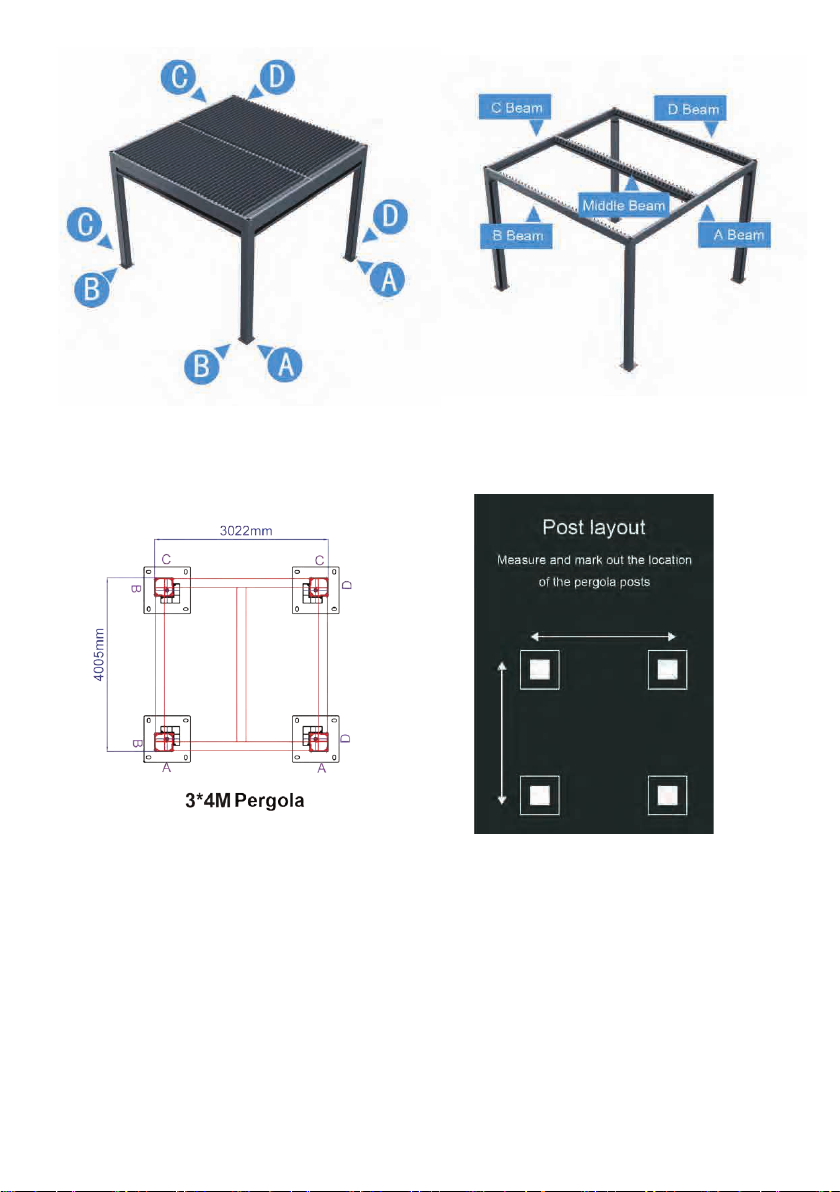

Posts are labeled with lettered stickers
"AB","BC","CD" and "DA"
Beams are labeled with lettered stickers
"A","B","C","D"
Critical note: plain and
solid ground, if it is soft
like grassland, hardening
the posts location is
necessary
Tools You Will Need
Tape Measure
Percussion Drill
Allen Wrench
Step Ladders
Match column A with base bracket A, column B
with base bracket B
Tighten 4 hexagon socket screws

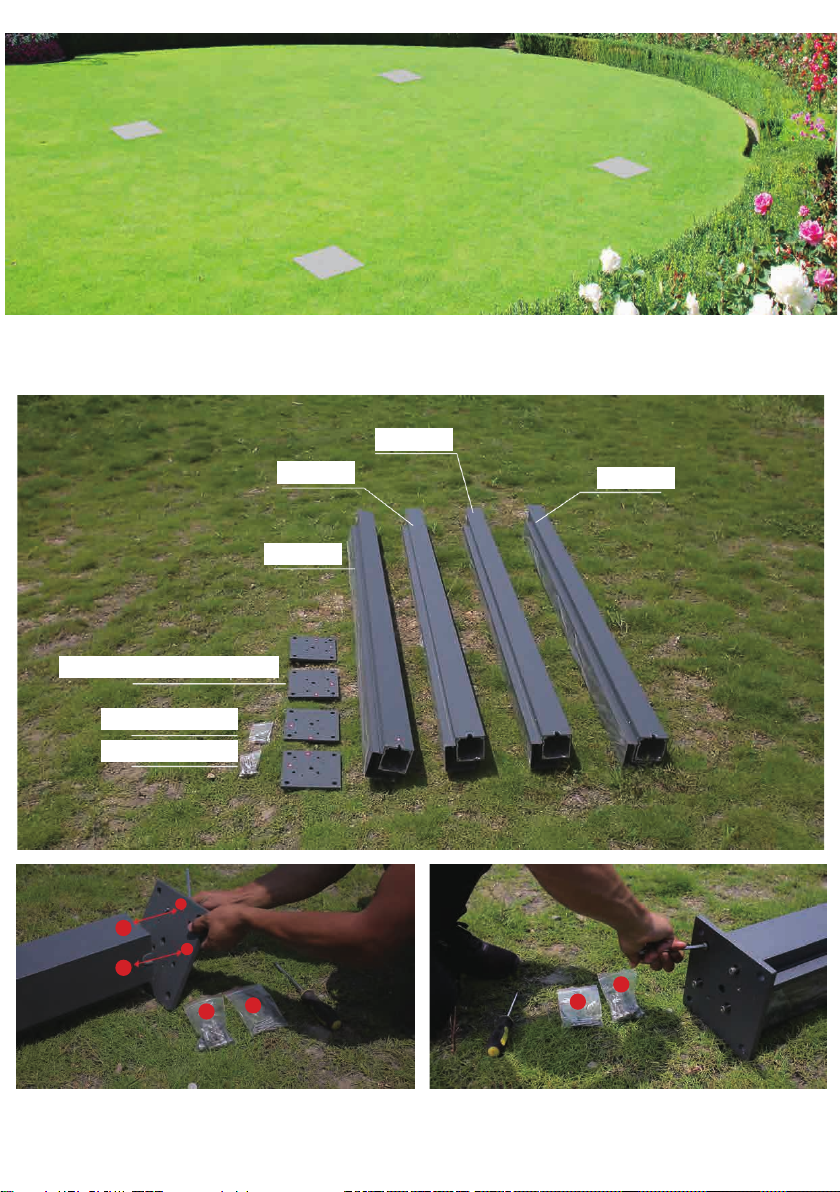

STEP ONE: framework assembly
1
2
Posts are labeled with lettered stickers
"AB","BC","CD" and "DA"
Beams are labeled with lettered stickers
"A","B","C","D"
Critical note: plain and
solid ground, if it is soft
like grassland, hardening
the posts location is
necessary
Tools You Will Need
Tape Measure
Percussion Drill
Allen Wrench
Step Ladders
Match column A with base bracket A, column B
with base bracket B
Tighten 4 hexagon socket screws
STEP ONE: framework assembly
1 2

Posts are labeled with lettered stickers
"AB","BC","CD" and "DA"
Beams are labeled with lettered stickers
"A","B","C","D"
Critical note: plain and
solid ground, if it is soft
like grassland, hardening
the posts location is
necessary
Tools You Will Need
Tape Measure
Percussion Drill
Allen Wrench
Step Ladders
Match column A with base bracket A, column B
with base bracket B
Tighten 4 hexagon socket screws
STEP ONE: framework assembly
1
2
Post BC
Post CD
Post AB
Post DA
Base bracket of the post *4
No.2 screw kit *1
No.1 screw kit *1
A
B
B
A
1
1
22

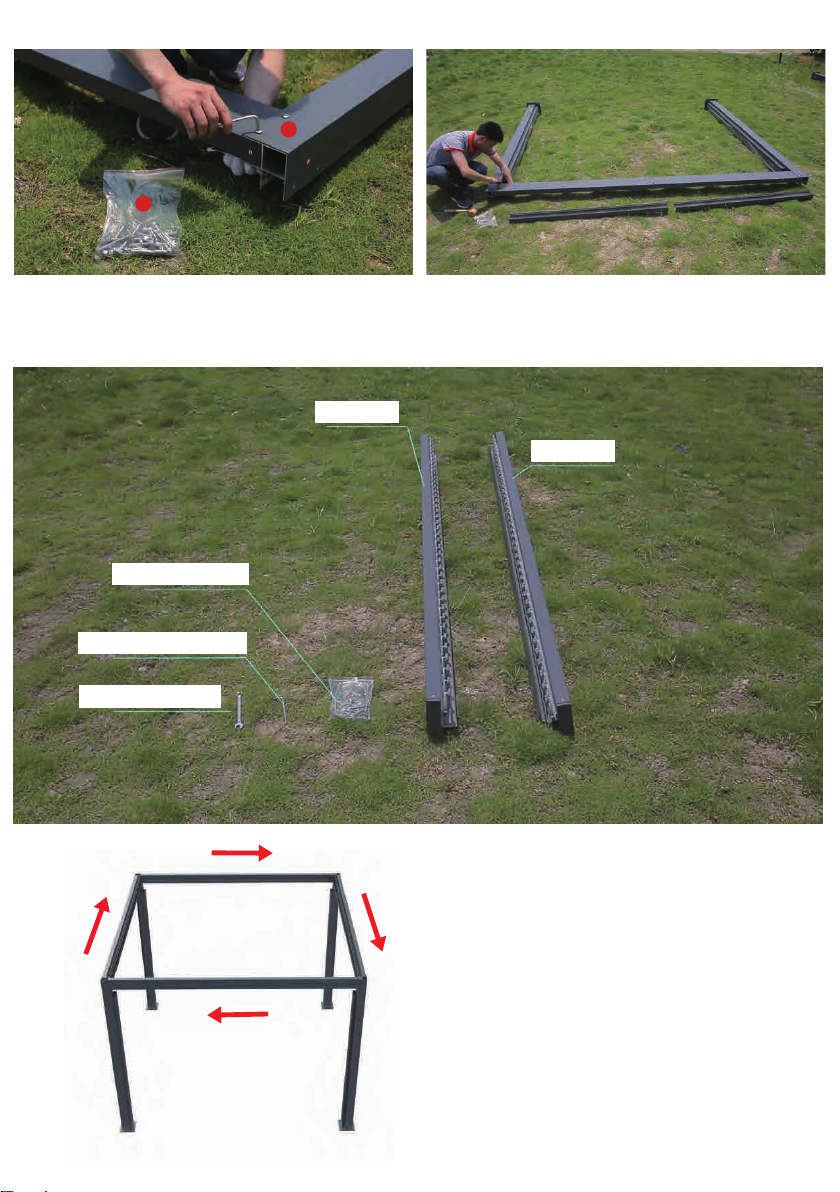

STEP TWO: beam assembly
Tighten 2 cross tapping screws Repeat for all posts
Assemble the beams as per the demonstration
Take the gutters down from Beam A and C
Fix the bolts and nuts in turn and tighten them Repeat to connect beam A with Post DA ,fasten
the joiners，Make sure beam A side matches
the A side of the 2 posts
Insert beam A into the rabbet of the post
Ctritical note:match beam side A with post side A
3
4
Beam A*1
Gutters
Beam C*1
No.3 screw kit *1
Wrench 13mm *1
Allen wrench 5mm *1
A
3
A

STEP TWO: beam assembly
Tighten 2 cross tapping screws Repeat for all posts
Assemble the beams as per the demonstration
Take the gutters down from Beam A and C
Fix the bolts and nuts in turn and tighten them Repeat to connect beam A with Post DA ,fasten
the joiners，Make sure beam A side matches
the A side of the 2 posts
Insert beam A into the rabbet of the post
Ctritical note:match beam side A with post side A
3
4
Beam B*1
Beam D*1
No.3 screw kit *1
Allen wrench 5mm*1
Wrench 13mm *1
3
A

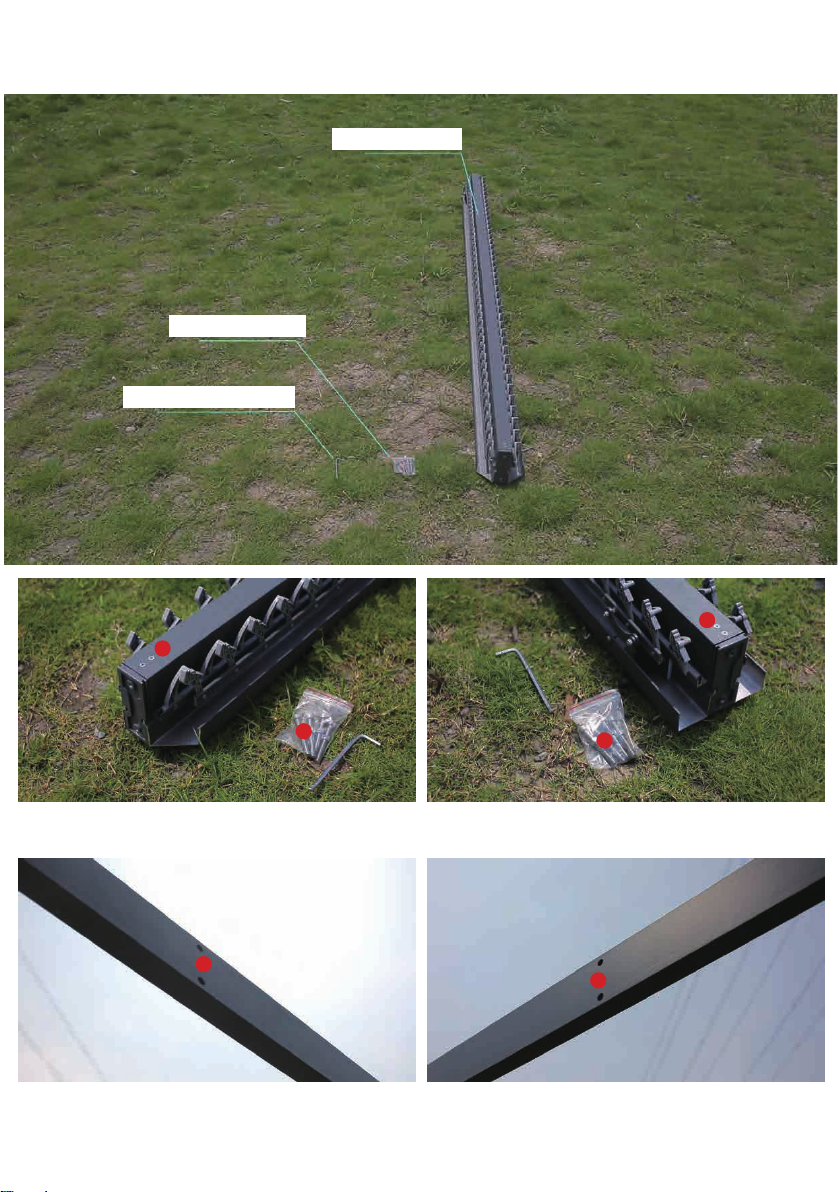

STEP THREE : assemble the middle Beam
The 2 ends of Middle Beam are labeled with stickers "A"and "C"
Match Middle Beam end A with Beam A
Match Middle Beam end C with Beam C

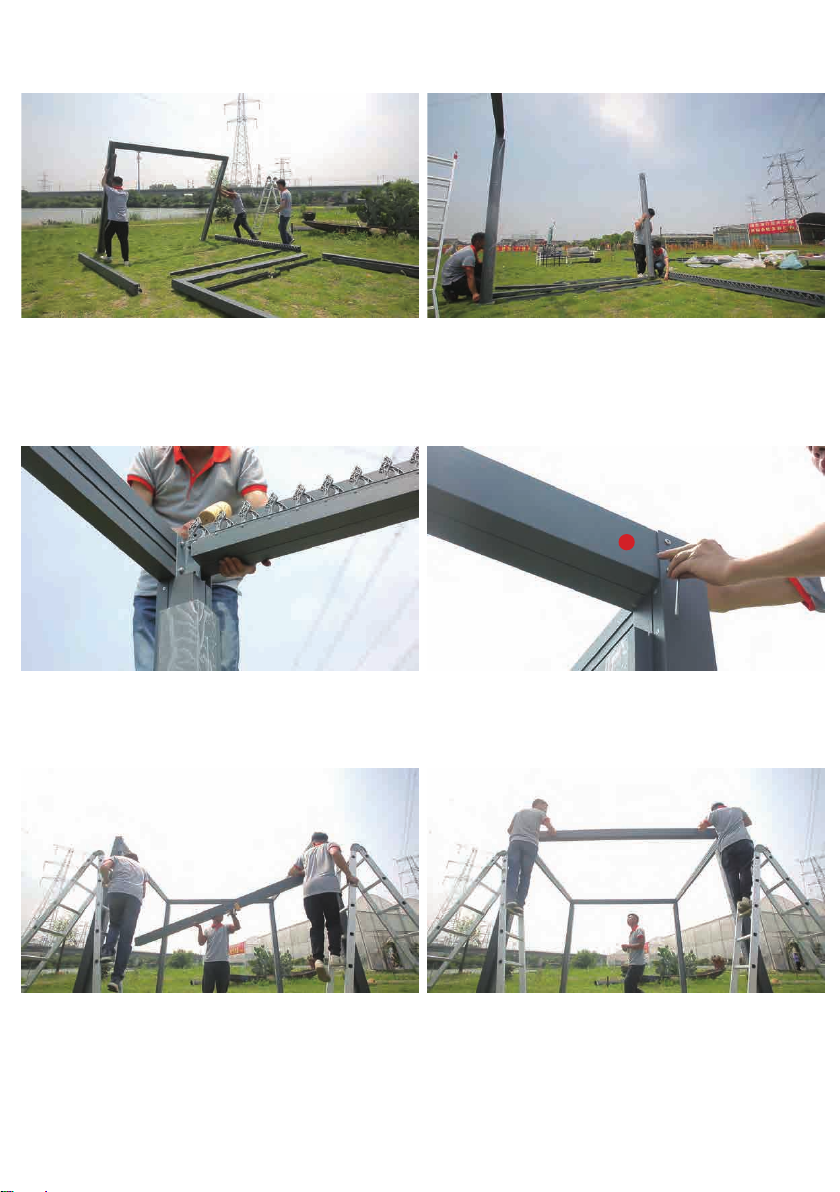

Confirm the installation location,stand up the
assembled parts(post AB+post DA+beam A)
Connect Post AB and Post BC with Beam B,fasten the joiners
Connect Post BC and Post CD with Beam C
Connect Post CD and Post DA with Beam D
fasten the joiners
Confirm the installation location，stand up the
assembled parts(post AB+post DA+beam A)
5
6
B

STEP THREE : assemble the middle Beam
The 2 ends of Middle Beam are labeled with stickers "A"and "C"
Match Middle Beam end A with Beam A
Match Middle Beam end C with Beam C
Confirm the installation location,stand up the
assembled parts(post AB+post DA+beam A)
Connect Post AB and Post BC with Beam B,fasten the joiners
Connect Post BC and Post CD with Beam C
Connect Post CD and Post DA with Beam D
fasten the joiners
Confirm the installation location，stand up the
assembled parts(post AB+post DA+beam A)
5
6
Middle Beam *1
No.4 screw kit *1
Allen wrench 5mm *1
A
A
44
C
C

STEP FOUR : Assemble the gutter
Use the provided screws and fasten the joiners
Cover both ends with plastic protection caps
Assemble all the gutter

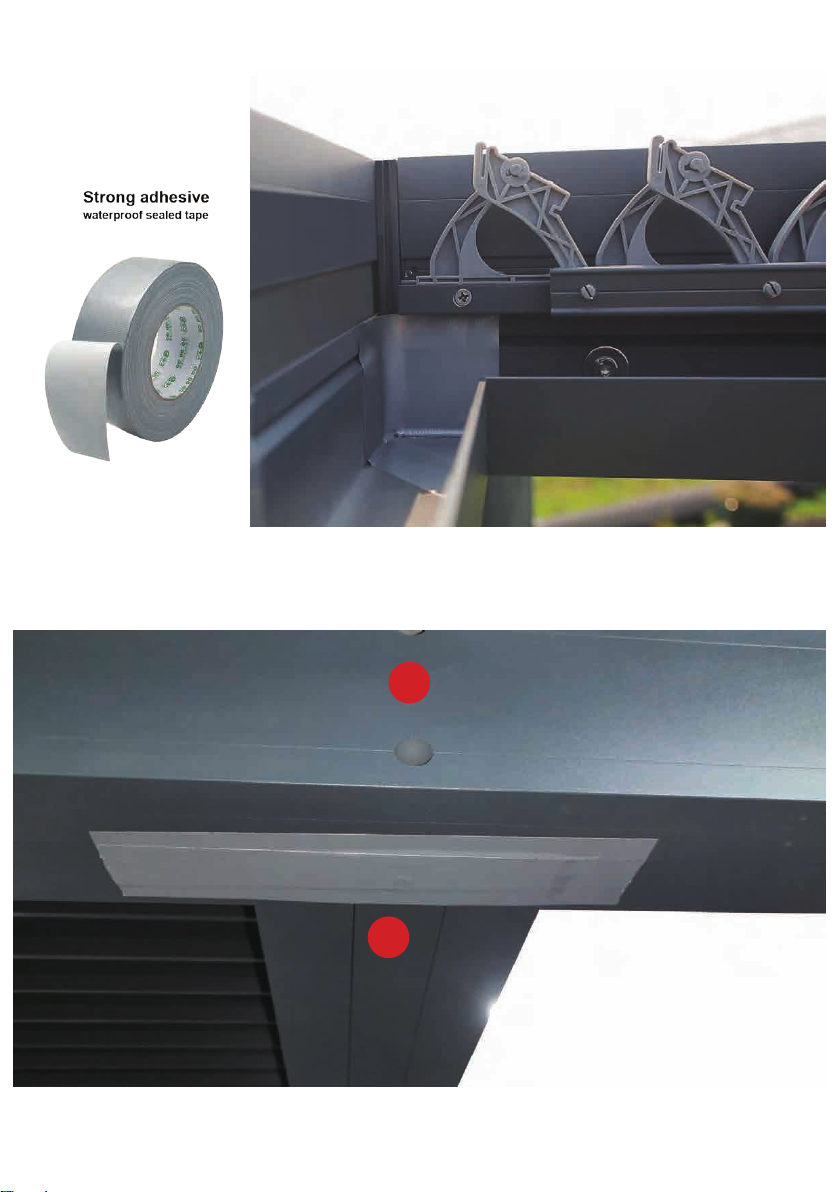

Using waterproof sealing tape on the joint of gutter
Paste adhesive tape at the joints of middle beam and side beam
7
8
AC

STEP FOUR : Assemble the gutter
Use the provided screws and fasten the joiners
Cover both ends with plastic protection caps
Assemble all the gutter
Using waterproof sealing tape on the joint of gutter
Paste adhesive tape at the joints of middle beam and side beam
7
8
C
C

Louver blades

Zip blinds *4
The guiding rails *8
No.5
screw kit *1

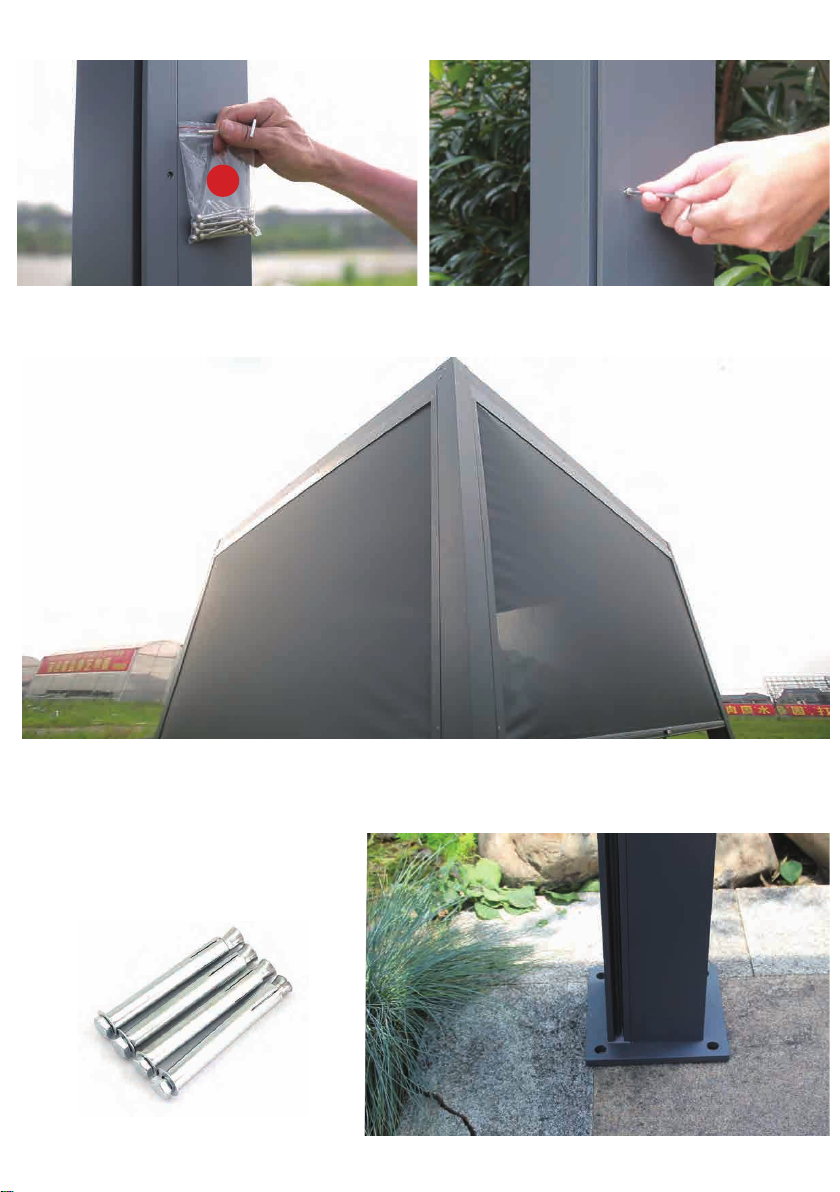

Take the screw out from NO.5 screw kit
After assebling all zip blinds,
test to make sure that all manual blinds can go up and down smoothly
Tighten the screw and fix the plastic cap
Attach the zip blinds to the 2 posts Putting the cover of zip blinds clip into the gap on
the post top
11
12
Repeat to assemble all zip blinds Clip the post head into the post
Make a slight adjustment if there is any difficulty to put the zip blind in
Hard ground like mattess
Recommended accessories
(Manufacturer do not supply)
Recommended specifications: 10*100mm

Take the screw out from NO.5 screw kit
After assebling all zip blinds,
test to make sure that all manual blinds can go up and down smoothly
Tighten the screw and fix the plastic cap
Attach the zip blinds to the 2 posts Putting the cover of zip blinds clip into the gap on
the post top
11
12
Repeat to assemble all zip blinds Clip the post head into the post
Make a slight adjustment if there is any difficulty to put the zip blind in
Hard ground like mattess
Recommended accessories
(Manufacturer do not supply)
Recommended specifications: 10*100mm
5

The blinds is locked when pulled down to the bottom
DO NOT pull up the blind directly.
The hook in the middle of the middle beam can be
used to hang lamp or other decoration
Control the louvers (open or close) by the hand crank
First you need to unlock the spring by pressing
the spring-lock button, then you can open the zip
blinds.
13
14
Wooden floor
Recommended accessories
(Manufacturer do not supply)
Recommended specifications: 10*100mm
List
Picture Description
（mm)
8*35mm
hex bolts 16 No1
4*40mm
slotted
screws
8 No2
8*65mm
hex bolst
+nuts
16 No3
8*70mm
hex bolst
+nuts
4 No4
4*35mm
hex screws 32 No5
10*100mm
expansion
bolts
16 No6
16mm caps+
7mm caps
Spare blade
brackets
13-16mm
spanner
wood
hammer
6mm
5mm
3mm
4+32 No7
4
3
1
1 /
1.2M crank 1 /
screwdriver 1 /
waterproof
adhesive
tape
1 /
assembly
guide USB
+manual
post 4
1+1 /
/
side beam 2 /
side beam
with blade
bracket
2 /
middle
beam 1 /
zip screen 4 /
blade 82/98/110 /
post cap 4 /
M6 hook
+nut 1 /
/
/
/
Q'ty
(PC) Part No. Picture Description （mm)
Q'ty
(PC) Part No.

Frames
Frames constructions are warranted to be free from defects in
material and worksmanship for 1 year from item purchased. Damage
to frame from negligence won’t be covered by this warranty.
Canvas
Canvas is warranted to be free from defects in material and
worksmanship for 1 year from item purchased. Damage from
exposure to chemicals (including but not only oils ,spills, uids) won't
be covered by this warranty.
Bolts & nuts
Bolts and nuts are warranted to be free from defects in material and
worksmanship for 1 year from item purchased. Damage from
exposure to chemicals (including not only oils ,spills, uids) won't be
covered by this warranty.
Warranty Limitation
This warranty is for the original purchase order only. (Order
number required). This warranty is non-transferable. Purple Leaf is
responsible for the free replacement part including shipping charges
for the 1 year warranty.
Warranty Exclusion
This warranty does not cover products subject to negligence, abuse
usage, inappropriate installation. Purple leaf reserves the right to
explain warranty exclusions. When the replacement item is applied,
the 1 year warranty automatically expires. Please feel free to contact
us for applying warranty.
Warranty

SOCIAL MEDIA
Follow us on Instagram and Facebook
www.purpleleafgarden.com/fb
www.purpleleafgarden.com/ins
Purple Leaf Inc.
1820 E Locust St, Ontario
CA, 91761, US
©Copyright 2016-2021 Purple Leaf Inc.
All Rights Reserved
SUPPORT
www.purpleleafgarden.com
[email protected]
