PVI VuMATRIX 4K60-POE User manual

VuMATRIX 4K60-POE
HDMI OVER IP FULL 4K60 MATRIX
MANUAL

Important Safety Instructions
1. Please read the user manual carefully before use this product,
and keep these instructions.
2. Do not mix up transmitter and receiver before installation.
3. Channel of the transmitter(TX) must be different, otherwise, the system
would be breakdown (including transmitter, receiver, IGMP switch etc.).
4. It is advised to set channel of transmitter before access to network.
5. Follow all instructions.
6. This extender must be installed and operated within the limits of
specified operating temperature and humidity.
7. Do not place objects on top of the unit.
8. Do not position the matrix extender near any heating source such
as heater, radiator, or direct exposure to sun.
9. Prevent entering of water and moisture into the unit. If necessary,
use dehumidifier to reduce humidity.
10. Use DC5V/3A power supply only. Make sure the specification matched
if using 3rd party DC adapters.
Product Introduction
This KIT includes a transmitter unit(TX)
and a receiver unit(RX). It allows for the distribution and switching
of high definition video/audio signal by this product and off-the-shelf
IGMP POE switch. It applied advanced HDbitT technology, the resolution
supported is up to 4K@60Hz full HD. It can also used in a
point-to-point connection, the distance is up to 120 meters. It is
widely applied in digital signage advertisement, control room,
command centers, entertainment and exhibition center, safety
monitoring system, etc.
Features
1. Resolution supported is up to 4Kx2K@60Hz ultra HD.
2. Transmission distance is up to 120 meters via CAT6.
3. Support IR pass back function to control source device from RX location.
4. Offer scalable and flexible input-output matrix configuration, allows
100 input to infinite output.
5. Support computer control software to select and switch source
device input.
6. Plug and play.
7. Support to select and switch source device input from receiver via
remote control and hard button.
8. Support APP control, user can scan, preview, build up their
configuration by using a phone/tablet easily.

Package Content
Transmitter unit ×1pcs Receiver unit ×1pcs User manual ×1pcs
IR blaster extension IR receiver extension DC5V/3A power
cable x1pcs cable ×1pcs adapter x2pcs
Remote control ×1pcs Wall-mount kit ×4pcs Screws ×8pcs
Installation Requirements
1. HDMI source devices: with HDMI OUTPUT interface, DVD, PS3, STB, PC etc.
2. Display devices：With HDMI INPUT port, SDTV, HDTV, projector etc.
3. Network cables：
UTP/STP CAT5/5E/6 network cables, which following the standard of IEEE-568B.
Transmission length: CAT5 80m/CAT5E 100m/CAT6 120m.

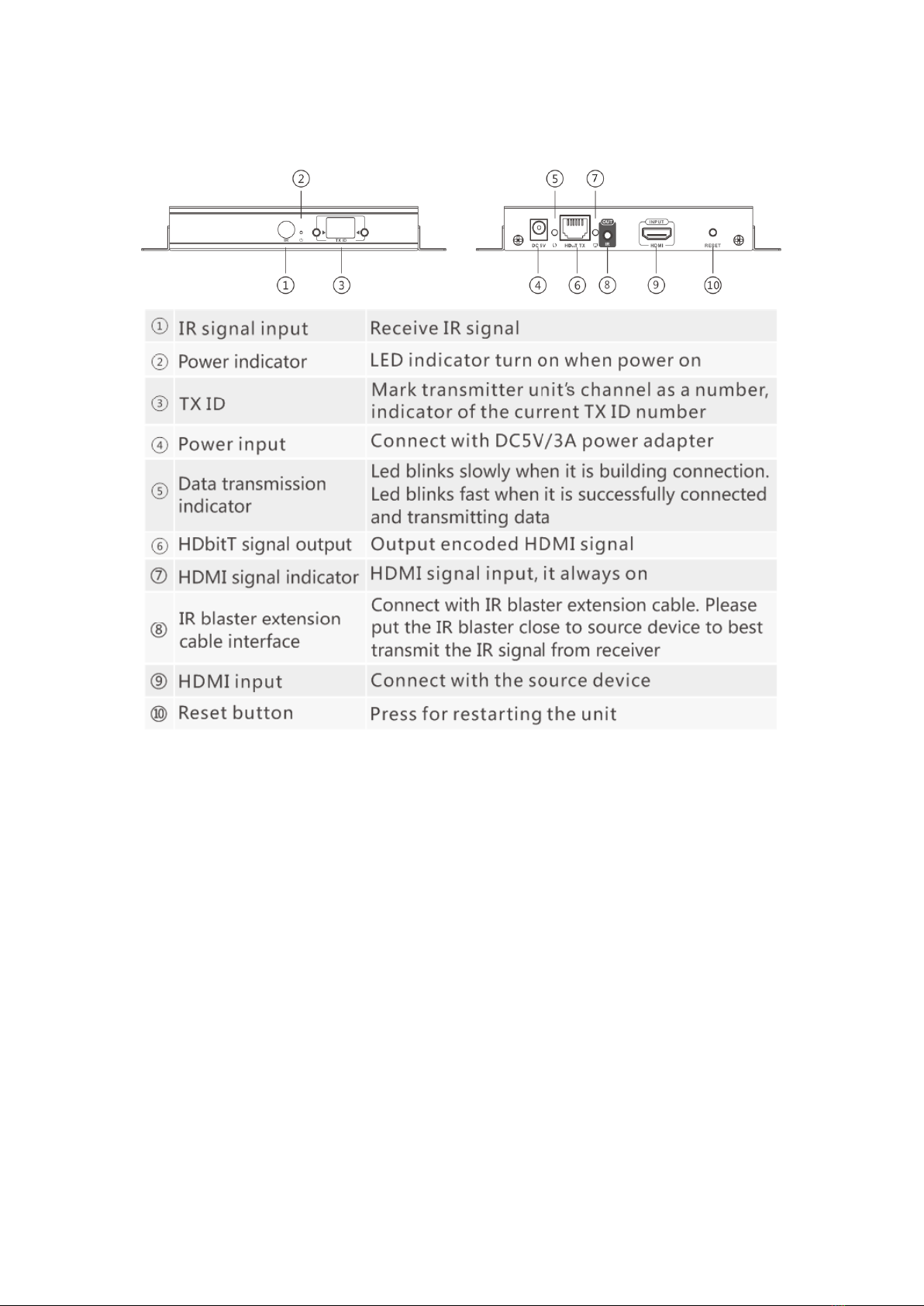

Panel Description
1.Transmitter unit

2.Receiver unit
Installation and Connection
1. How to make a CAT5/5E/6 network cable
Follow the standard of IEEE-568B:
1. white and orange; 2. orange; 3. white and green;
4. blue; 5. white and blue; 6. green;
7. white and brown; 8. brown.

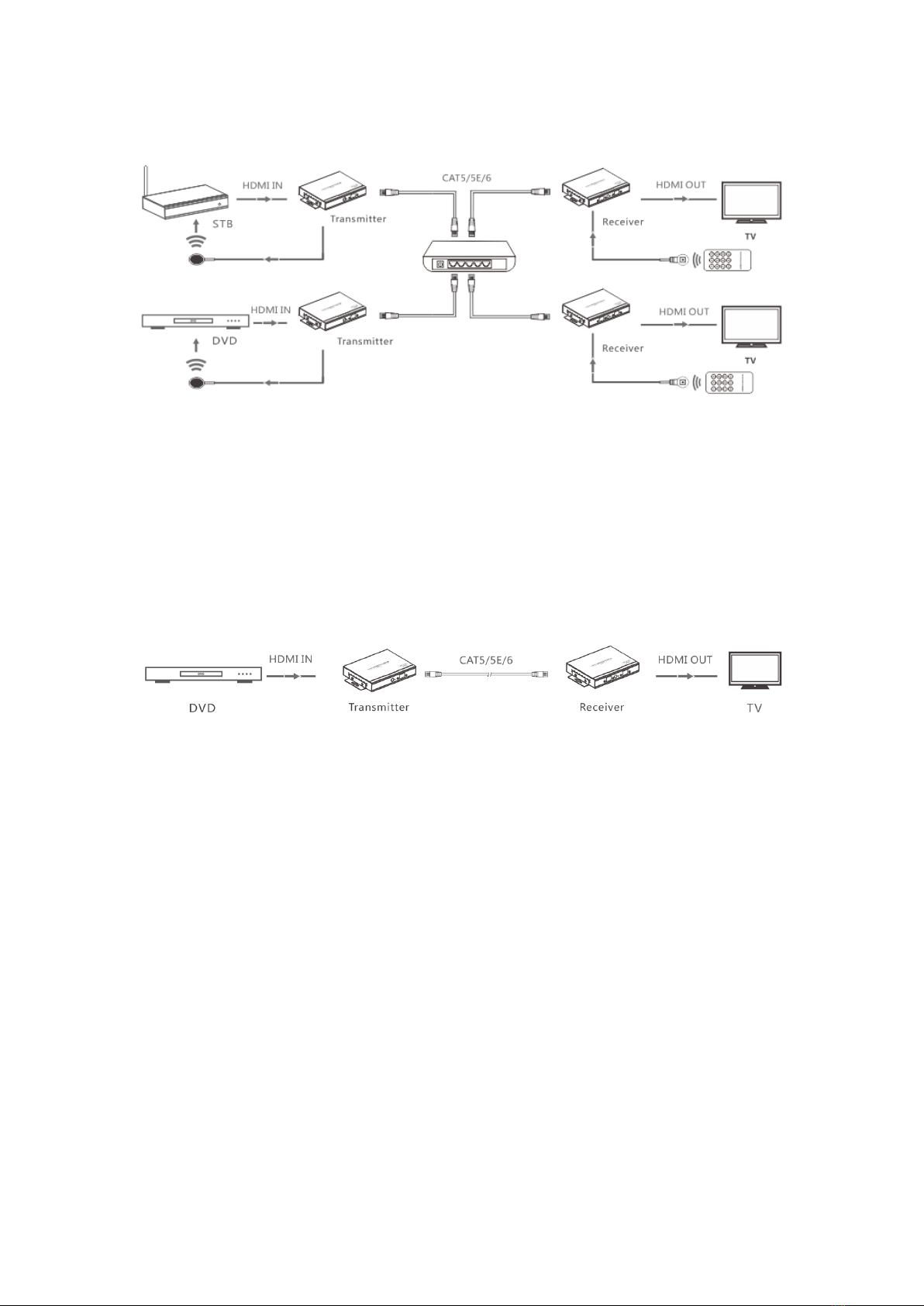

2. Connection Drawing
2.1 Matrix configuration
IGMP POE switch
【NOTE】: The POE switch has to support IGMP function
2.2 Point-to point configuration
3. IR use guide
3.1 IR passback
IR blaster extension cable should plug into the IR-out port of TX
(Transmitter) of this extender matrix, and the IR receiver extension
cable should plug into the IR-in port of the RX (Receiver) of this
matrix extender. The emitter of IR blaster should as close as possible
to the IR receiver window of the signal source device.
3.2 IR remote control
Using the IR remote controller to set/select the channel of this
HDMI Extender Matrix.

4. APP control use guide
4.1 Android User: Download the App from our pvisupport site by searching VUMATRIX APP
ANDROID
IOS User: Download the APP"Matrix Controller" from the APP Store.
.
4.2 Firstly, connect the video matrix controller to the IGMP switch.
Then, connect mobile phone/tablet and the video matrix controller via
hotspot“MATRIX”with each other (as figure 1 ). At this time, open the
downloaded APP“matrix control”, will enter to the interface as figure 2,
and APP control starts.
4.3 APP function
4.3.1 Preview
Click ”play”button to preview the content of the source device.

4.3.2 Edit
Click the frame under the TX/RX button to edit device name.
4.4 Drag and drop
Drag ”TX”button to the RX side and drop, to set up new connection.
Note: Please do not use more than one mobile phone/tablet to control
the system simultaneously.

5. Computer software control use guide
The WINDOWS APP can be downloaded from our support site www.pvisupport.com searching for
VUMATRIX WINDOWS APP
5.1 Access to network
Connect your PC/computer with the off-the-shelf IGMP Ethernet
switch via a single network cable
5.2 PC/computer setting
Change the PC/computer's IP to 192.168.1.xxx (xxx can be 0 to 255) ,
which as same as the IP segment of TX unit and RX unit.

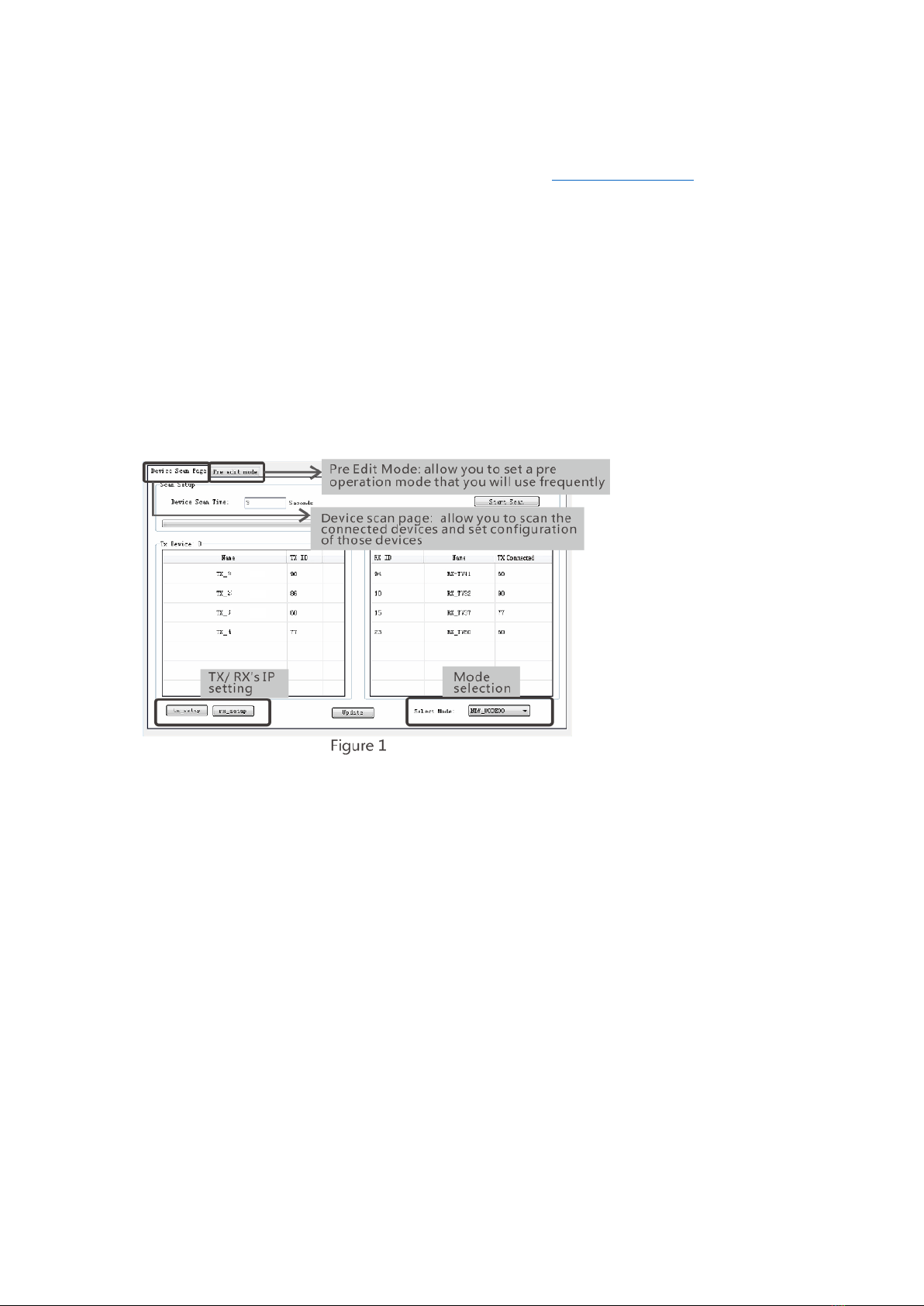

5.3 Web operation
Open application program “HDbitT E-Matrix Control center”,
it displays the interface as Figure 1
IP setting
TX and RX have their own default IP address, TX's IP is 192.168.1.238,
and RX's IP is 192.168.1.239. Generally, it is no need to change the
device IP address, as the system can work normally even though
multiple TX units and multiple RX units connected into the system
with their default IP address.

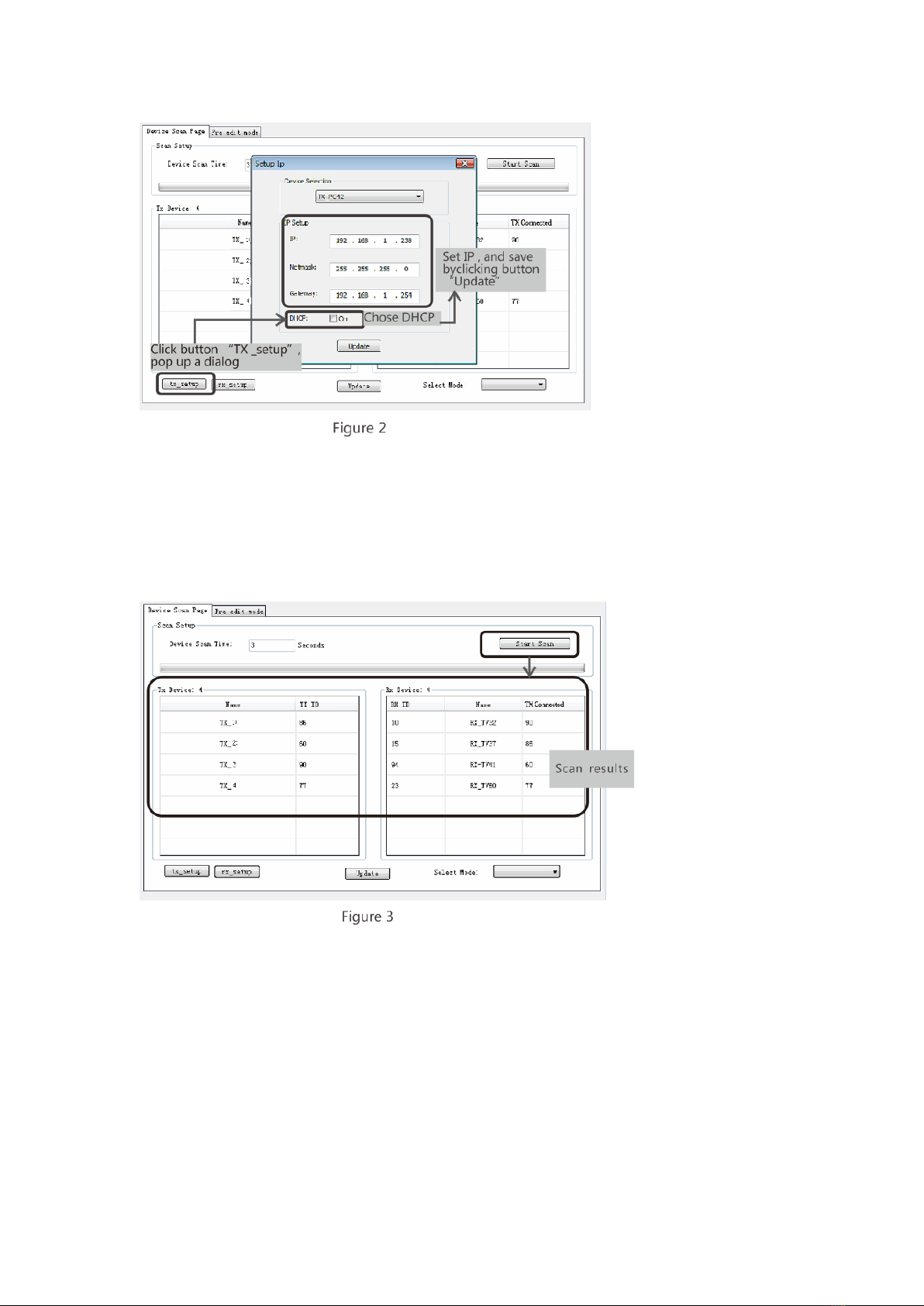

If IP setting is really needed, please follow up the operation as Figure 2
(here make an example of TX's IP setting only, RX's setting is the same
as TX's )

Device scanning and setting (here make an example of TX's setting
only, RX's setting is same as TX's)
* Click button “Start Scan”， the scanned result shows as Figure 3
* Device Name setting as Figure 4

* Device channel (TX ID) setting as Figure 5
Click button “Update”, new configuration saved

Pre-operation mode editing , show as Figure 6
Operation mode selection setting
Follow up Figure 7, Click button “Select Mode”, to choose the
mode needed.

6. Button control
There is a “TX ID”on TX unit, and there are both ”RX ID”and “TX connected”
on the RX unit. Each of them consists of two Nixie tubes and two buttons
(beside the Nixie tube), the left button controls the value of the left Nixie tube, and the right one
to control the value of the right Nixie tube. The value of each Nixie tube is from 0 to 9, each
button is pressed at a time, the number is added one value. For example, the existing value of TX
ID is “00”, and press the left button once, also press the right button once, then the value of TX
ID is changed to”11”. When the value of “TX connected”on the RX unit is as same as the
value of “TX ID”on the TX unit, a connection built between the TX and RX units.
Short press: Press to set IGMP group and display the setted value. Product switches
automatically to the corresponding IGMP group 5 seconds after the press.
Long press: Press and keep 3 seconds to reset the product.

FAQ
Q: TV display “Waiting for connection”on the right corner？
A: 1) Please check if the power supply of transmitter and switcher
(if used)is connected, and make sure all connection is correct and well.
2) Please check and make sure receiver 's channel number is within
transmitter's channel list.
3) Please check and make sure all of the transmitter's channel are different.
Q: TV display “Please check the transmitter input signal”？
A: 1) please check if there is a HDMI signal input of transmitter;
2) Try to connect the signal source directly to display device to see
if there is signal output from source device, or change the signal
source, HDMI wire and try again.
Q: Display is not fluent, not stable?
A: 1) Please check and make sure your switch is with IGMP function,
and the IGMP function is open.
Q: Black screen or no image on displays?
A: 1) Cut off the input of source device, if TV displays “Please check
the transmitter input signal”after about 10 seconds, please
connect the source again, change and try another resolution.

Tech Support
This product is covered with 24/7 online tech support using our Tech Support Center
www.pvisupport.com
Here you can find all software, guides, help
If you cannot find your specific answer, please open a ticket so our team can take care of you as
soon as possible
You can also call +1.407.720.6101 extension #2 Mon-Fri 9:30am –4Pm for your free premium
tech support
