PYI SEAVIEW CG20P-G User manual

1/8” (3.2mm)
CABLE GLAND
INSTRUCTIONS
For Cable Gland Part #
CG20P-G CG30P-G CGM17P-G
CG20A-B CG30A-B CGM17A-B
CG20-SS CG30-SS CGM17-SS
Tools Needed
2mm
Place the plastic base onto
the rubber base gasket.
Be sure to line up the four
screw holes.
Line up the Cable Gland
cover with the four holes in
the plastic base and screw
the bolts in with a allen
wrench.

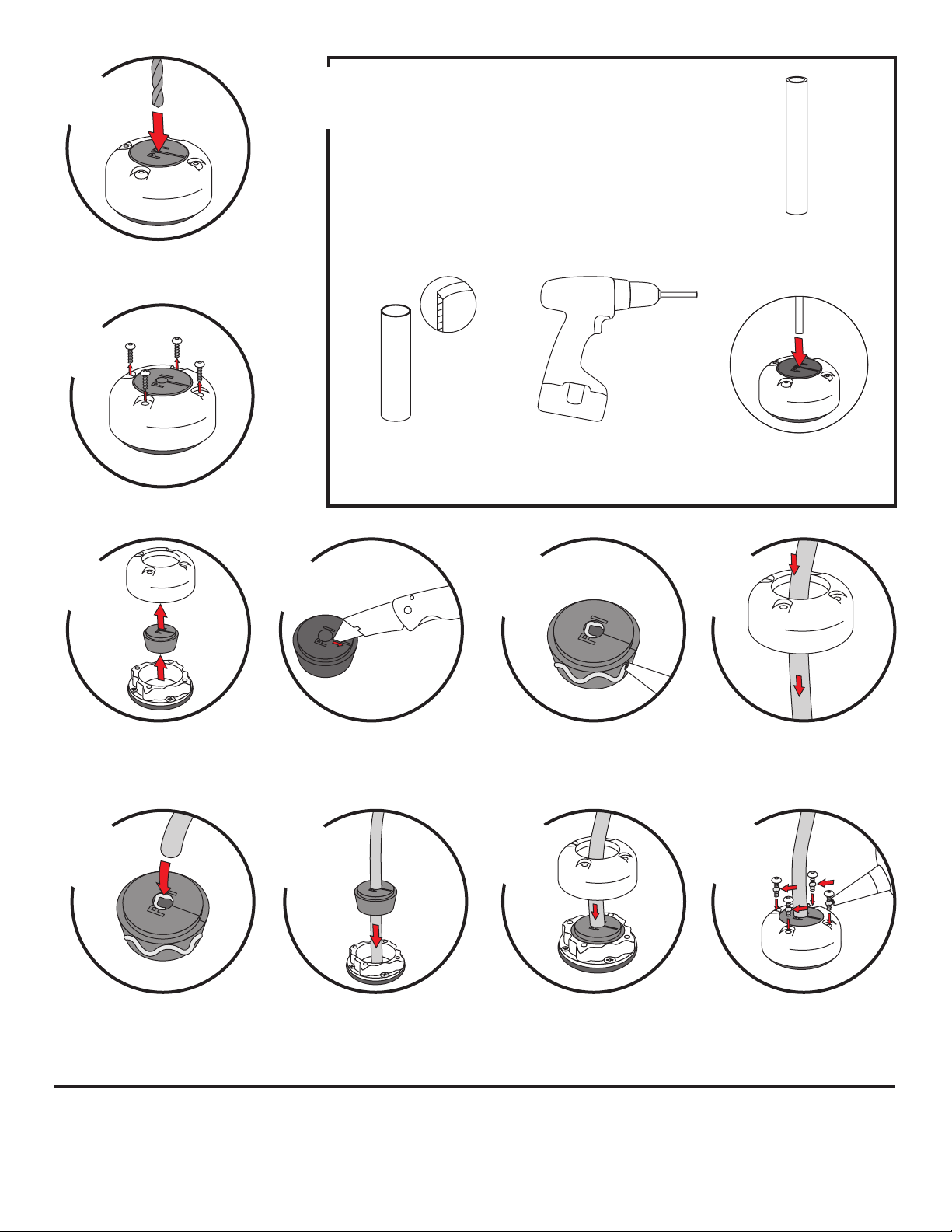

Measure your cable diameter and select the
appropriate drill bit.
Apply some marine
sealant to the threads of
the screws. Screw in the
four screws using a philips
head screw driver.
Insert the rubber gromet
into the plastic base.
Petroleum Jelly
1 2 4
5
3
Make sure that you
do not drill within
1/8” (3.2mm) from
the edge of the
rubber grommet.
TIP

PYI Inc.
12532 Beverly Park Road
Lynnwood, WA 98087
425-355-3669
www.pyiinc.com 05050217
Apply a petroleum jelly
such as Vaseline into the
center cable hole and
along the outer edge of
the rubber grommet.
10
Slide the Cable Gland
cover onto the plastic base
making sure that all four
bolt holes line up.
14
Slide the Cable Gland
cover over the electronic
cable.
11
Apply marine sealant
to the threads of the
four bolts. Using a allen
wrench fasten the four
bolts down tightly.
15
Wrap the rubber grommet
around the electronic
cable.
12
Insert the electronic cable
and rubber grommet into
the plastic base.
13
Remove the Cable
Gland cover and rubber
grommet.
8
Using a sharp knife cut the
rubber grommet from the
cable hole outward.
9
Drill the rubber grommet
using the appropriate size
drill bit.
Get a tube with a proper
diameter for your cables.
For a cleaner cut try this method for
drilling your Cable Gland.
File the end of the tube so
that there’s a sharp edge.
Put the sharpened tube
into a drill.
Apply small amount of
soapy water to the tube
and drill the Cable Gland.
6
Remove the four screws
using a allen wrench.
7
TIP 1
2 3 4
