PYLE Audio PLCMTR7250 User manual

USER
MANUAL
PLCMTR7250
PLCMTR7250
Waterproof Rearview Backup Camera & Video Monitor
System Kit, Angle Adjustable Night Vision Cam, 7" Display,

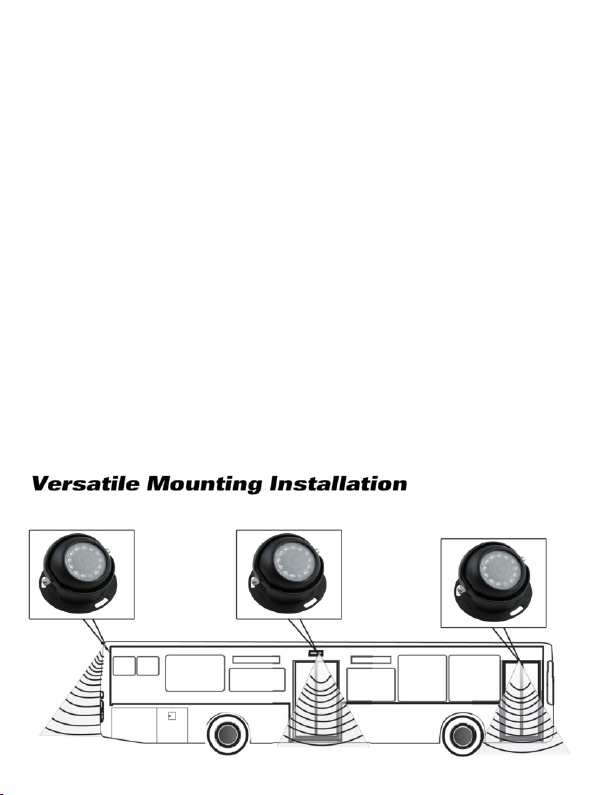

Front and Rear Vehicle Mounting

Please read instructions carefully before installation and use. Installation
should be performed by a professional installer. To ensure your safety, the
driver should not watch videos or operate features on the monitor while
driving. There are no serviceable parts in this unit, do not disassemble or
try to repair this unit. If the unit malfunctions please return to your vendor
or send to a Pyle repair facility. Please observe and obey the local laws and
regulations when installing the unit.
Upon Installation, please make sure as to not to interfere with any of the
vehicle's safety features, wiring, components, etc. We are not responsible
for any damages, injury, malfunctions or otherwise noted due to faulty or
non-professional installation.
Connection
Connect the camera's threaded locking 4-pin cable connectors into the female
receiving connection of the included 4-pin extension cables. The extension
cables then connect to your compatible video monitors with 4-pin receiving
connectors. The threaded locking cable connectors of the camera serve to
provide power and video for all cameras.
Please remember to disconnect your vehicle's battery prior to any connection /
installation. Use the included wiring harness to provide power and video signals
to your monitor. There are colored wires to assist in the video camera system setup.
See the wiring diagram for connections between cameras, monitor and your vehicle.

Wiring & Connection
The Reverse trigger cable is for the Ch1 and Ch2, connect the front view camera
to the Ch2,connect the reverse backup camera to the Ch1, when the truck in reverse
status, the reverse camera would be priority.
(V1 front view image)

Monitor Buttons:
1. V1/V2: change the mode, 1 ch, 2ch display
2. This button for reverse the picture image left and right
3. Menu: Adjust the color, brightness, etc.
4. Power button
5. Increase/Decrease
Monitor Stand Mounting：
Cut for Reverse View: Connect for Front View:

1. Set the mount stand in the desired location, then use screws to secure the
mount stand into location. Please make sure as to set a location free from
vehicle obstruction including any wiring, or location where it may obstruct
the driver's view, driving conditions, etc.
2. Attach the metal buckle piece on top of the fan shaped mount stand, and slide
it into the receiving slot in back of the display monitor assembly. This metal
buckle should slide in and up to the monitor assembly.
3. Set the desired position/height of the buckle into the monitor assembly.
4. Tighten the clamp-style knob in the back of the stand mount to secure the
monitor in the desired position.
5. The angle / tilt position of the stand mount is also adjustable. Located toward
the base of the stand mount is another clamp-style knob.
