Pyle Sports PSWHRL34 User manual

IMPORTANT: Pack carefully in original package if possible. We are not responsible for damage incurred in returning items for repair.
A letter stating your
exact street addres, daytime phone number, and the problem
you
are experiencing should be included. You must also enclose a copy of the original receipt a sproof of date of purchase
Brooklyn,
NY 11204
1-800-444-5671
Monday Through Thursday.
gAM to 5PM
Friday
gAM to 1 PM Eastern.

Table of Content Page
1.0 Welcome 1
2.0 Functions of Operating Keys 2
3.0 Functions of the chest belt 2
4.0 Wear the Chest Belt 3
5.0 Functions Mode 4
6.0 Activate or Deactivate the Key tone and Heart rate zone alert 5
7.0 Language, Clock, Date and Pairing with chest belt 5
7.1 Set Language 5
8.0 Dual Time 6
8.1 Set Dual Time 6
8.2 View Dual Time 7
9.0 Stopwatch 7
9.1 Use the Stopwatch 7
9.2 Take Lap Time 8
9.3 Review Lap Time 8
9.4 Reset Stopwatch and Lap Time 9
10.0 Set Your Personal Data for Your Personal Heart Rate Mode 9
10.1 Set Gender, Birthday and Height 9
10.2 Set Weight and Sport Type 10
10.3 Set Target Heart Rate Zone Setting Type 10
11.0 View Target Heart Rate Zone Indications 10
11.1 Use Heart rate and Revise the Training Record 11
7.2 Set Clock and Date 5 - 6
7.3 Pairing the Watch with chest belt 6
12.0 Alarm 12
12.1 Select Alarm 1 or Alarm 2 12
12.2 Set Daily Alarm 12
12.3 Activate or Deactivate the Alarm 12
13.0 SOS Mode 13
13.1 Set Name for SOS 13
13.2 Set Blood type for SOS 13
13.3 Set Phone number for SOS 14
13.4 View Name, Blood type, Phone number for SOS 14
14.0 View Scan Mode 15
15.0 Birthday Reminder 15
16.0 Low Battery Indication 16
17.0 Reset the Watch and Power Saving Mode 16
18.0 Potential Causes for NO Heart Rate Reading or Long Response Time 16
19.0 Chest Belt Battery Replacement 17
20.0 Watch Battery Replacement 17

1.0 Welcome
Congratulations on your purchase of a heart rate monitor from Pro Touch. It
is designed for ease of use during following sport activities: jogging,
walking, cycling, fitness training and cross training. In order to learn and
apply the various functions of your new heart rate monitor, please read this
user manual carefully.
1.1 General
It’s important that you know your maximum heart rate (MHR), training zone,
upper heart rate limit and lower heart rate limit before you begin. This
information helps you to achieve the maximum health benefits out of your
workout. We recommend consulting a medical practitioner or registered
physician before setting your personal training-schedule and target. Or you
can set your own upper and lower limit using the following as a reference
guide. You may estimate your MHR using the following formula:
220 – age = MHR.
WARNING ! Care and Maintenance
!This product set, like most electronic or
magnetic de vices, may i nterfere with
pacemakers. We recommend patients with
pacemakers to consult with their doctor
before using this product set.
!Make sure that you fully understand the
functions and limitations of this product set
before using it.
!This product set is a supplementary device
for measuring heart rate; it is NOT a
substitute for any medical devices. You
should periodically compare the heart rate
reading provided by this product set with the
reading from a doctor.
!
!
!
!
Avoid rough usage or severe
impacts to this product set.
Store this product set in a dry
place when it is not in use.
C l e a n y o u r p r o d u c t s e t
o c c a s i o n a l l y w i t h a s o f t
moistened cloth.
DO NOT expose this product
set to chemicals such as
gasoline and alcohol; these
chemicals will damage this
product set.
1

(MODE)
!To change modes among
the different main function
modes.
!To change modes among
different setting sub-
modes.
(+)
!To increase the value in
setting mode.
!To shift from DUAL Clock to
Home Time in Time mode.
(SET / SOS)
!To e n t e r ( h o l d f o r 2
seconds) or quit the setting
mode.
!To take lap time and reset
stopwatch.
!To enter SOS mode.
( - )
!To decrease the value in
setting mode.
!To trigger the k e y to n e
ON/OFF.
!To trigger the stopwatch
START/STOP.
!To trigger the Alarm
ON/OFF.
!Press and Hold for 2 sec. to
turn ON the Backlight.

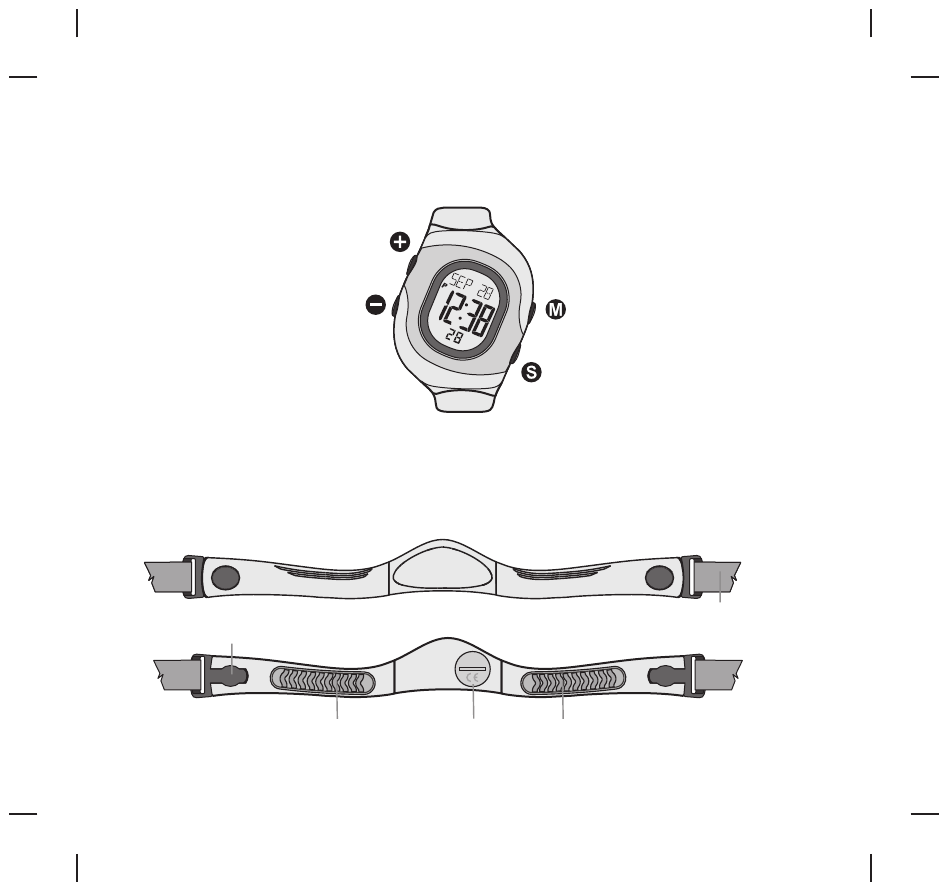

2.0 Functions of the Operating Keys
3.0 Functions of the chest belt
Battery coverContact
Front
Back
(contact with the skin)
Contact
Elastic Band
Connector
2

IMPORTANT: This Chest Belt must be worn directly on your skin. DO NOT wear the chest belt on the top of your
clothes, otherwise the chest belt CANNOT get the heart rate signal.
NOTE: In dry seasons, wet the contacts with water to make the signal transmission normal.
1 2 3
6
45
Extend the elastic band for
allowing a loose fitting the
chest belt on your chest.
Connect the opposite
connector to the chest belt
with the another hand.
Connect one connector
with the chest belt. Ensure
t h at th e co n ne c to r i s
completely lodged into the
chest belt.
Fasten the elastic band
until it is fitted on your
chest comfortably.
Fit the chest belt on your
chest with one hand.
Move the chest belt until
the two contacts are firmly
contacted with the skin of
your chest.
4.0 Wear the Chest Belt
Precautions / Tips
+
+
+
+
+
+
+
+
There are two contacts located on the back of the Chest Belt. These two contacts must
make firm contact with the user's skin during measurement.
DO NOT take heart rate measurement when diving or under water.
Clean the contacts occasionally by applying a few drops of water, and wipe it dry with a
paper towel to remove any residual grease.
DO NOT use hand cream; it will insulate the signal between the skin and the contacts.
Clean your skin with soap and water for a better signal transmission.
For those with extremely dry skin, apply some conductive gel or water to increase
conductivity.
Adjust the Chest Belt with the supplied elastic band until it holds on your chest firmly to
avoid loosening when exercising.
Avoid doing any awkward motion during measurement, it will create an inaccurate heart
rate reading. 3

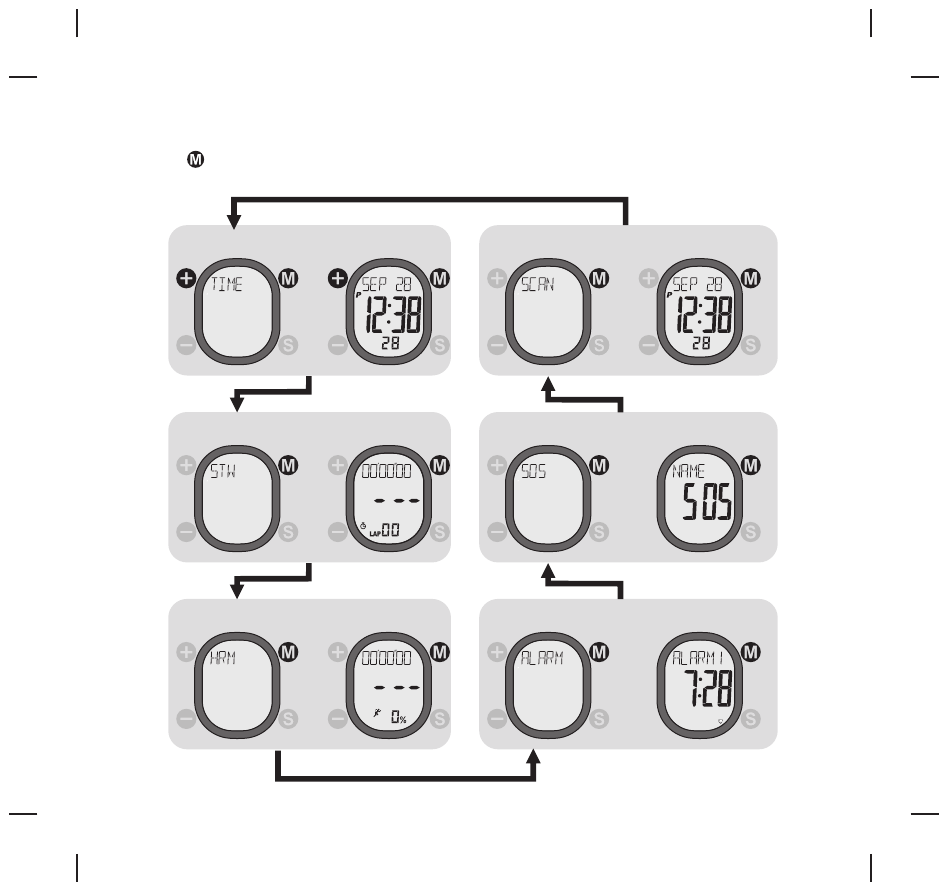

5.0 Functions Mode
Time Mode Time Mode
(2 seconds later)
Stopwatch Mode
(2 seconds later)
Heart Rate Mode
(2 seconds later)
Scan Mode Scan Mode
(2 seconds later)
SOS Mode
(2 seconds later)
Alarm Mode
(2 seconds later)
Stopwatch Mode SOS Mode
Heart Rate Mode Alarm Mode
4
!Press any button to resume the display if is activated - Blank display.
!Press
Power Saving Mode
to next menu.

!Press to activate ( appears) or deactivate the Key tone and Heart rate Zone Alert .( disappears)
6.0 Activate or Deactivate the Key Tone and Heart Rate Zone Alert

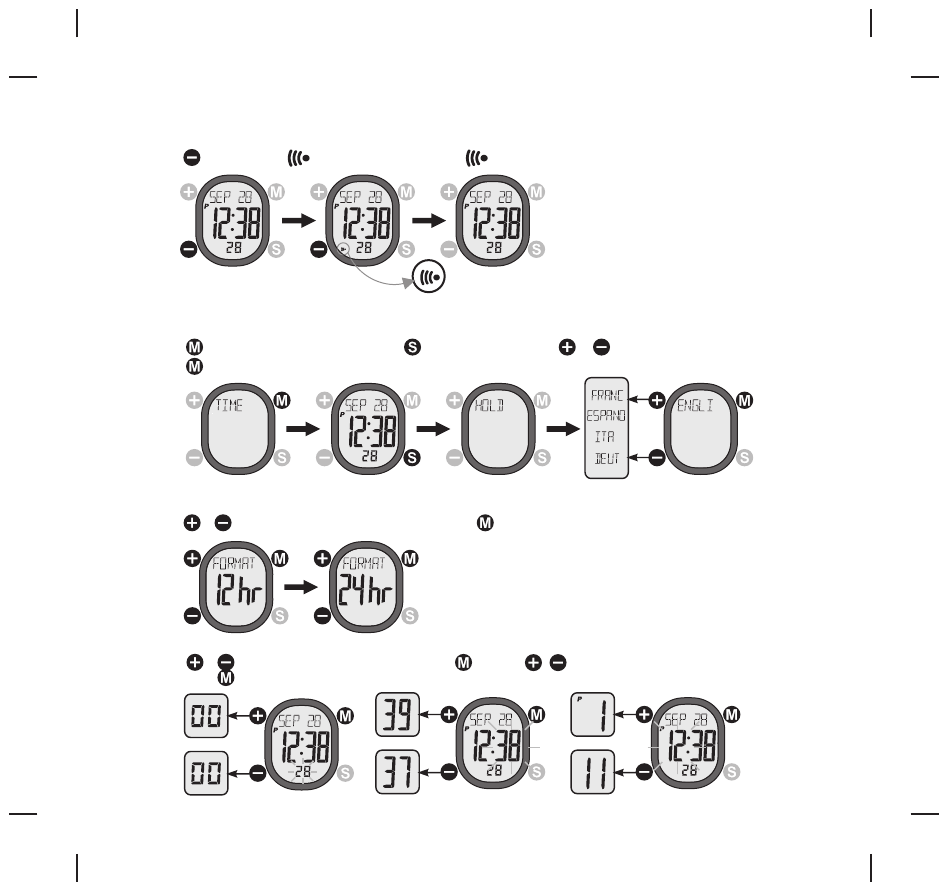

!Press until "TIME" appears and hold for 2 seconds. Press / to select a language and confirm
with .
7.0 Language, Clock, Date, and Pairing with the chest belt
7.1 Set Language
5
!Press / to select "12" or "24" and confirm with .
7.2 Set Clock and Date
!Press / to reset second, and confirm with . Press / to select hour and minute, and confirm
each with .

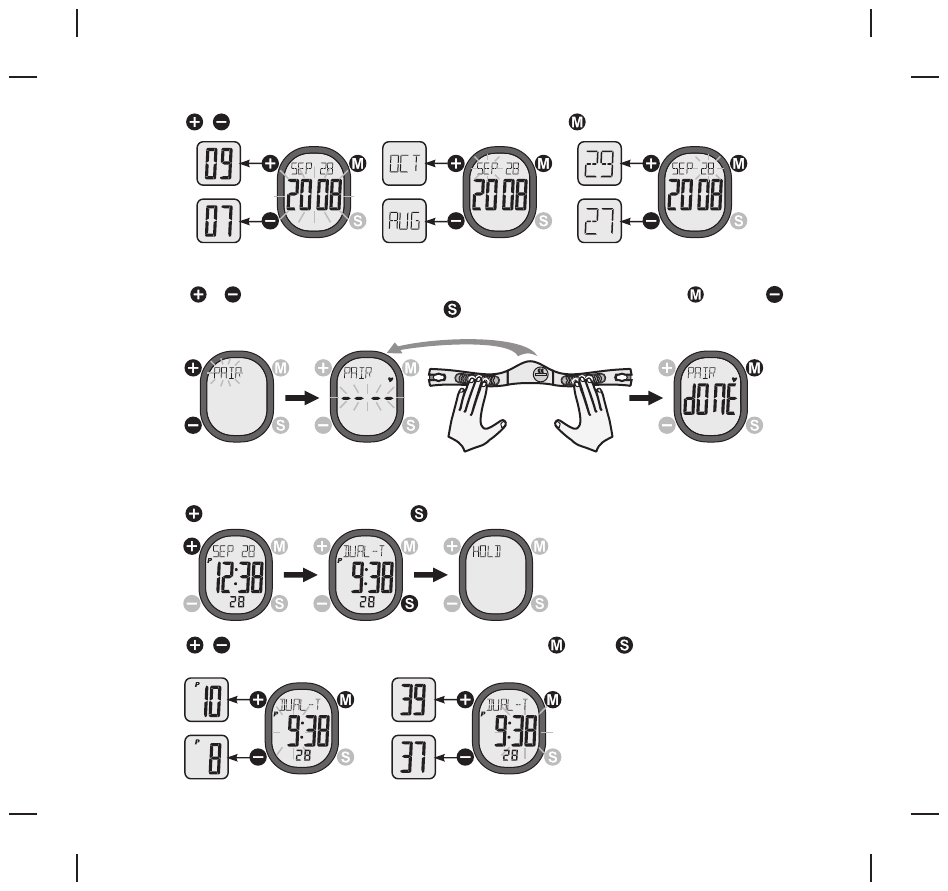

!Press / to select year, month and day, and confirm each with .
6
!Press / to start pairing (pair the chest belt with the watch) and confirm with .
!
Press can
terminate the process during the pairing. Press to return to Time Mode.
NOTE: Pairing will need to do once only when it is the first time using the chest belt.
7.3 Pairing the Watch with the Chest Belt
!Press / to select hour and minute, and confirm each with . Press to return to Dual Time Mode.
!Press until "DUAL-T" appears and hold for 2 seconds.
8.1 Set Dual Time
8.0 Dual Time

!Press until "TIME" appears and press .
8.2 View Dual Time
7
Heart Rate
Zone Indicator
current
heart rate
current lap time
NOTE:
!Please wear the chest belt in advance b
!
efore using the Stopwatch with heart rate function, otherwise it
functions as a normal stopwatch.
!The Total Lap Time, Maximum (MAX) and Average (AVG) heart rate, Up (U), In (I) and Below(L) Zone Exercise
Time, Calorie (KCAL), and Fat Burn (FATB) are recorded if the chest belt is worn. These records can be
reviewed on Heart Rate Mode.
Press to resume the connection if the watch loses connection with chest belt during running,
!Check the chapter 11.0 for the implications of Heart Rate Zone Indicator.
running running
!
!Press to start or stop the stopwatch.
Press until STW appears. The heart rate function will be activated automatically.
9.1 Use the Stopwatch
9.0 Stopwatch

!Press to take a lap time when the stopwatch is running.
running running
9.2 Take Lap time
lap time (lap 1) lap time (lap 2)
8

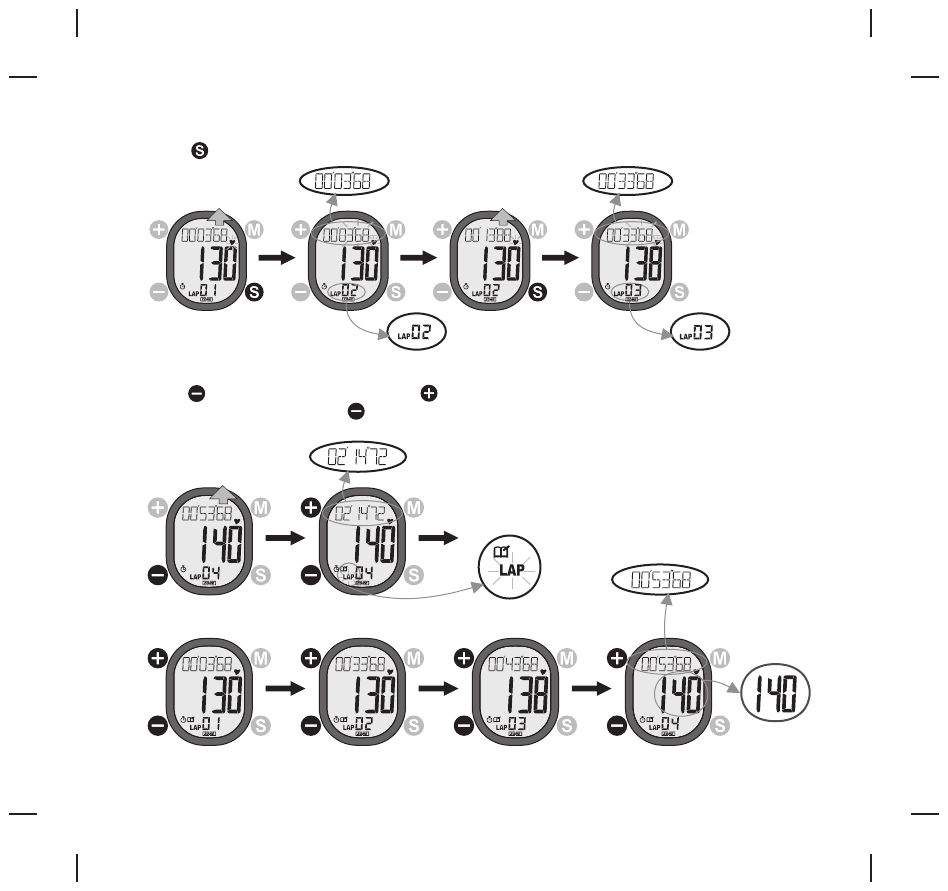

!Press to stop the stopwatch and press to review total lap time, lap time of each lap and the average
lap heart rate of each lap. Press to quit the review.
running
9.3 Review Lap time
total
lap time
lap time
( )lap 4
lap average
heart rate

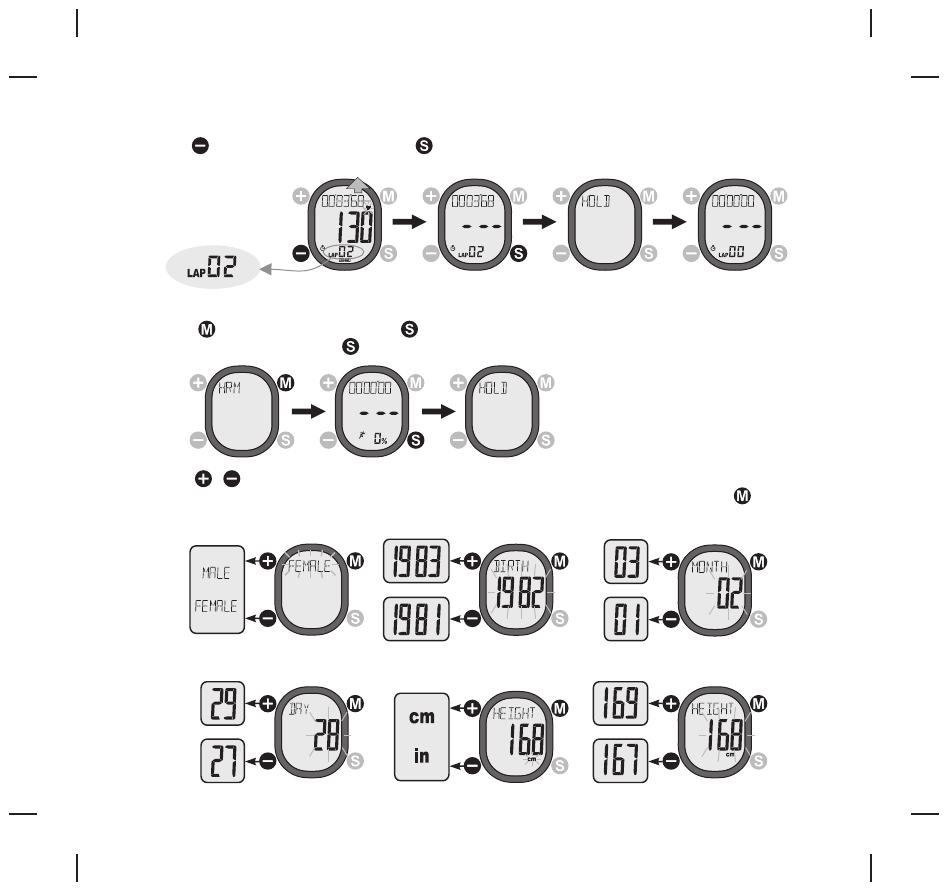

!old to reset the stopwatch and lap time. Press to stop the stopwatch and h
9.4 Reset Stopwatch and Lap time
running
9
!Press until "HRM" appears and hold for 2 seconds. Any Heart Rate sub-mode can enter the Heart Rate
Setting mode too by holding for 2 seconds.
!Press / to set gender, birthday, height, weight, sport type, heart rate zone setting type ( )
and your upper and lower heart rate (for manual setting). Confirm each with .
auto/manual
heart rate zone
10.0 Set Your Personal Data for Your Personal Heart Rate Mode.
10.1 Set Gender, Birthday And Height

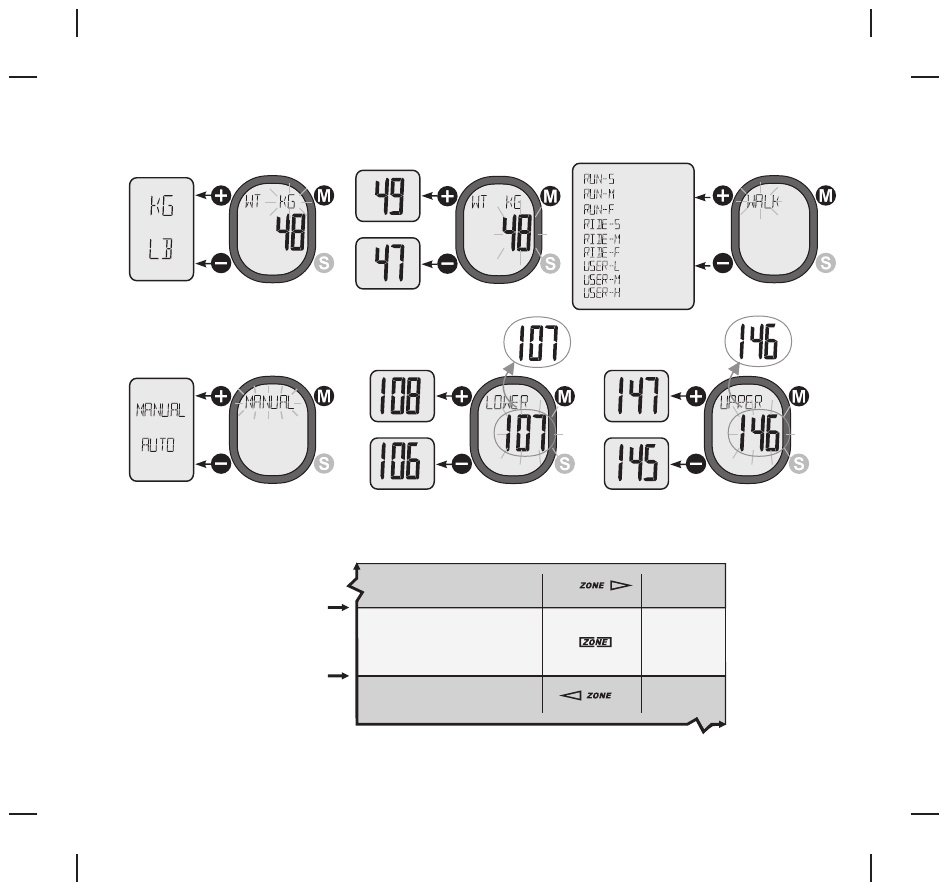

10.2 Set Weight and Sport Type.
(slow)
(middle)
(fast)
(slow)
(middle)
(fast)
(low)
(middle)
(high)
10.3 Set Target Heart Rate Zone Setting Type Lower
Limit
(Manual)
Upper
Limit
(Manual)
Choose your sport type
NOTE:
!When the heart rate exceeds the upper or lower limits, the audible signal warning will go ON if key-tone is ON.
Below Zone
Heart Rate Zone Indication
Visual
Indication
Audible
Indication
Zone Heart Rate
In-Zone
(the target heart rate zone)
Above Zone
Upper Limit
(Auto or Manual)
Lower Limit
(Auto or Manual)
11.0 View the Target Heart Rate Zone Indications
Beep!
Beep!
10

!Press until "HRM" appears.
!The heart rate function will be activated automatically when Heart Rate Mode is selected.
NOTE:
!Please wear the chest belt in advance before using the Heart Rate function.

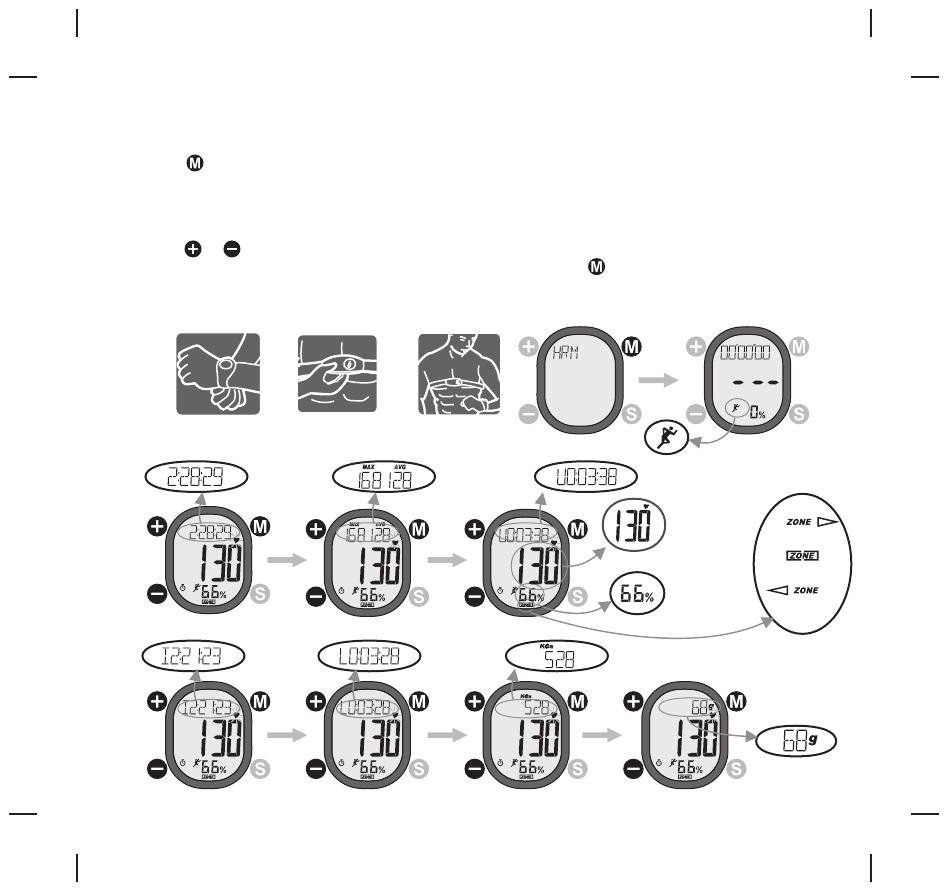

11.1 Use Heart Rate and Review the Training Record
Put on the
Watch
1. Put on the
chest belt
2. Get your
heart rate
3.
l
total lap
time
(stopwatch)
Max. & Avg.
heart rate
Up-zone
exercise
time
Calorie
Expenditure
Below-zone
exercise
time
In-zone
exercise
time
Fat Burn
the current
heart rate
in term of %
of the
maximum
heart rate
l
current
heart rate
Heart Rate Zone
Indicator (Refer to
Chapter 11.0)
Above-zone
In-zone
Below-zone
!Press / to see t
Press to move to Alarm Mode.
he Total Lap Time, Maximum (MAX) and Average (AVG) heart rate, Up (U), In (I) and
Below(L) Zone Exercise Time, Calorie (KCAL), and Fat Burn (FATB)
NOTE:
!The Total Lap Time, Maximum (MAX) and Average (AVG) heart rate, Up (U), In (I) and Below(L) Zone Exercise
Time, Calorie (KCAL), and Fat Burn (FATB) are recorded in Stopwatch Mode only .
Use the Heart Rate function
Review the Training Record
11

!Press / to select hour and minute, and confirm each with . Press to return to Alarm Mode.
!Press until "ALARM" appears and hold for 2 seconds.
12.2 Set Daily Alarm
!Press to select Alarm 1 or Alarm 2. Press until "ALARM" appears.
12.1 Select Alarm 1 or Alarm 2
12.0 Alarm
12
!Press to activate ( appears) or deactivate the alarm.( appears)
12.3 Activate or Deactivate the Alarm

13.0 SOS Mode
13
13.1 Set Name for SOS.
!Press once. for 2 seconds.Press / until "NAME" appears and hold
!User's personal infomation for emergency.
Space Space
(Space)
!Press / to select the alphabet, and confirm each with . Press to return to SOS Mode.
13.2 Set Blood type for SOS.
!Press once. for 2 seconds. Press / until "BLOOD" appears and hold Press / to select a blood
type and confirm with . Press to return to SOS Mode.

!Press once. for 2 seconds.Press / until "PHONE" appears and hold
13.3 Set Phone number for SOS.
!Press / to select the digit, and confirm each with . Press to return to SOS Mode.
14
!Press once. Press / to view the Name, Blood type, and phone number. Press to return to SCAN Mode.
13.4 View Name, Blood type, Phone number for SOS
Phone no: 12345678
Name: PETER Blood type: O+

!Press until "SCAN" appear.
!Without pressing any key the watch starts to show the following displays one by one cyclically: TIME, STW,
AVGHR, KCAL and FATB.
14.0 View Scan mode: Current Time Mode, Stopwatch Mode and Heart Rate Mode cyclically.
The Scan Mode shows all training results after a training.
l
15
Time Display
Time Display ...
Stopwatch Display Average Heart Rate
Display
Calorie Burnt Display Fat Burnt Display
!When the date is the same as the birthday set by the user, the watch will beep for 1 minute to remind the
user, after the watch is being woke up from sleep mode.
15.0 Birthday Reminder

!When the battery of the watch drops to a low level, the Low Battery Indicator will be ON to remind user.
!In any Modes, hold all the 4 buttons for more than 5 seconds will reset all the settings of the watch. After
reset, all parameters and pairing of chest belt need to be set again.
!In Time Mode, press and hold for 5 seconds to go into Power Saving Mode (turning off the LCD).
Timekeeping function is still running under Power Saving Mode. Press any key to resume from this mode.
16.0 Low Battery Indication
17.0 Reset the Watch and Power Saving Mode
16
1) Cause: Dry Skin.
Solution: Apply conductive gel or saliva thoroughly to chest area. (Even water will help if conductive gel is
not available).
2) Cause: Chest belt is not placed firmly over the chest.
Solution: Make sure the Chest belt is placed firmly over the chest by tightening elastic band.
3) Cause: Muscle tremors caused by holding the Chest belt too hard on your chest.
Solution:
This will ensure good and consistent readings even while walking or jogging with arms swung naturally.
4) Cause: Dead skin on chest.
Solution: Usually rubbing your chest with a towel will help.
5)Cause: A thin layer of body grease can insulate the ECG signal-basically prevents the back sensor on
the Chest belt from picking up one's ECG.
Solution: Wipe chest and the contacts on the back of Chest belt with a tissue or soft towel.
6) Cause: Hairy chest.
Solution: Apply conductive gel to chest area.
7)Cause: Irregular heartbeats.
Solution: N/A. It is difficult to consistently pick up a reading for those with irregular heart beats.
Inconsistent response times are expected for those with arrhythmia.
8)Cause: Low Battery.
Solution: It might be due to the battery level of the Chest belt is low. Replace the battery of the Chest belt.
The contacts must make firm contact (NOT too hard) with the user's skin during measurement.
18.0 Potential Causes for NO Heart Rate Reading or Long Response Time
Power Saving ModeReset Display (Full Segment ON) (5 seconds later)(5 seconds later)

1
13
14
2
19.0 Chest Belt Battery Replacement
1 . Tu r n t h e b a t t e r y c o v e r w i t h a c o i n
counterclockwise until the arrow pointing to
arrow.
2.Turn the cover further gently to pop it out.
3.Put aside the battery cover.
4.Remove the empty battery.
5.Insert a new CR2025 battery with the (+) side
of the battery touch with the 'L' shape metal
contact.
6.IMPORTANT: Make sure that the sealing rubber
o-ring is placed correctly in its slot before the
battery cover is closed.
7.Put the battery cover back with the arrow on the
cover pointing to the arrow, and then press the
cover down gently until it is on the same level
with the surface.
8.Turn the cover with the coin clockwise until the
arrow pointing to dot.
CR2025
CR2025
CR2025
6
4
5
17
20.0 Watch Battery Replacement
4
3
3
4X
1. Insert the tip of a flathead screw-driver into the
notch of the spring bar.
2. Push the notch and lift the wrist strap to dislodge
the spring bar. Dislodge the lower strap similarly.
3. Unscrew the case-back with a crosshead screw-
driver.
4. Put aside the case-back.
5. Insert one end of the pinchers into the notch of the
battery contact plate.
6. Push the notch outward GENTLY.
7. Put aside the empty battery.
8. Insert a NEW CR2025 battery with (+) upward.
9. A ‘click’ will sound when the buckle is locked.
10.IMPORTANT: Make sure that the rubber ring is
sitting in the slot properly before screw the case-
back, otherwise water will leak into the Watch.
11.Put the case-back back to its original position.
12.Screw the case-back to the case.
13.Insert one end of the spring bar into the lodge on
the watch.
14.Insert the tip of a flathead screw-driver into the
notch of the spring bar. Push the notch and lower
the wrist strap onto the watch until the spring bar
is COMPLETELY lodged. Lodge the lower strap
similarly.
3
12
8
7
CR2025
7
5
6
8
CR2025
10
9
4X
11
12
