Pyle Pure Clean SLPRWAS58 User manual

SLPRWAS58
YLQ27SC-130B

www.PyleUSA.com
SAVE THESE INSTRUCTIONS
Please read and comply with these original instructions prior to the initial operation of your
appliance and store them for later use or subsequent owners.
Apart from the notes contained herein the general safety provisions and rules for the prevention of
accidents of the legislator must be observed.
Warnings and notes that are attached on the appliance provide important notes for the safe operation.
Hazard levels
DANGER
Pointer to immediate danger, if not avoided, which leads to severe injuries or death.
WARNING
Pointer to a possibly dangerous situation, if not avoided, which can lead to severe injuries or death.
CAUTION
Pointer to a possibly dangerous situation, if not avoided, which can lead to minor injuries.
ATTENTION
Pointer to a possibly dangerous situation, which can lead to property damage.

Electric Components
DANGER
Risk of electric shock.
Never touch the main plug and the socket with wet hands.
Check the power cord with main Plug for damage prior to every use. Do not use the machine if the
supply cord or important parts of the machine are damaged, e.g. safety devices, high pressure hoses,
trigger gun.
All current-conducting parts in the working area must be protected against jet water.
The main plug and the coupling of an extension cable must be watertight and must never lie in water.
Moreover, the coupling may never lie on the ground. The use of cable reels that ensure that the sock-
ets are at least 60 mm above the ground is commended.
Make sure that the power cord or extension cable is not damaged by running over, pinching, dragging
or the like. Protect the power cords from heat, oil, and sharp edges.
Always switch off the main switch when leaving the appliance unattended.
WARNING
The appliance may only be connected to an electric supply that has been installed by an electrician in
accordance with IEC 60364.
The appliance may only be connected to alternate current. The voltage must correspond with the type
plate of the appliance.
For safety reasons, we recommend that you operate the appliance only via a residual current device
(max. 30mA).
An unsuitable electrical extension cable can be hazardous. Only use an electrical extension cable
which has been approved and labeled for this purpose and has an adequate cable cross-section
outdoors: 1 - 10 m: 1.5 mm 2;10 - 30 m: 2.5 mm2
Always fully unreel the extension cable from the cable drum.
Substandard electrical extension cable can be hazardous.
www.PyleUSA.com

www.PyleUSA.com
Safe Handling
DANGER
The user must use the appliance as intended. The person must consider the local conditions and must
pay attention to other people in the vicinity when working with the appliance.
Check important components, such as high pressure hose, hand spray gun and safety installations,
for damage prior to every operation. Immediately replace damaged components. Do not operate
appliance with damaged components.
The appliance has been designed for use with the cleaning agent supplied or recommended by the
manufacturer. The use of the other cleaning agents or chemicals may adversely affect the safety of the
appliance.
High-pressure jets can be dangerous if subject to misuse. The jet must not be directed at people, live
electrical equipment or the machine itself.
Do not direct the jet against yourself or others in order to clean clothes or foot-wear.
Do not use the appliance within range of people unless they wear protective clothing.
Wear appropriate Personnel Protection Equipment (PPE) while operating the appliance.
WARNING
The appliance must not be operated by children or untrained personnel.
This appliance is not intended for use by people (including children) with reduced physical, sensory or
mental capacities, or lacking experience and knowledge.
Children must not play with this appliance.
Supervise children to prevent them from playing with the appliance.
Create stability for the appliance prior to any work on or with the appliance to prevent accidents or
damage.
The water jet that is emitted from the high pressure nozzle results in a repulsion power acting on the
hand spray gun. Make sure that you have a firm footing and are also holding the hand spray gun and
spray lance firmly.
Never leave the appliance unattended as long as it is in operation.
ATTENTION
In case of extended breaks, turn the main switch off or pull the main plug.
Do not operate the appliance at temperatures below 0ºC

www.PyleUSA.com
Other Risks
Even if you are operating this product in accordance with all the safety requirements, potential risks of
injury and damage remain. The following dangers can arise in connection with the structure and
design of this product:
•Health defects resulting from vibration emission if the product is being used over long periods of
time or not adequately managed and properly maintained.
•Danger of injury and property damage caused by flying objects.
•Injuries and damage to property due to broken accessories or the sudden impact of hidden
objects during use.
Safety Devices
CAUTION
Safety installations serve the protection of the user and may not be modified or by past.
GROUND FAULT CIRCUIT INTERRUPTER
The appliance is provided with a ground-fault circuit-interrupter (GFCI) built into the plug of the pow-
er-supply cord. This device provides additional protection from the risk of electric shock. Should
replacement of the plug or cord become necessary, use only identical replacement parts that include
GFCI protection.
Power switch
The appliance switch prevents unintentional operation of the appliance.
Lock trigger gun
This locks the lever of the trigger gun and prevents the inadvertent start of the appliance. Overflow
valve with water that has flowed through backflow preventers is considered to be non-potable.
Pressure switch
If the lever on the trigger gun is released the pressure switch turns off the pump, the high pressure jet
is stopped. If the lever is pulled the pump is turned on again.
Motor protection switch
The motor protection switches off the device if the power consumption is high.

www.PyleUSA.com
Even if you are operating this product in accordance with all the safety requirements, potential risks of
injury and damage remain. The following dangers can arise in connection with the structure and
design of this product:
•Health defects resulting from vibration emission if the product is being used over long periods of
time or not adequately managed and properly maintained.
•Danger of injury and property damage caused by flying objects.
•Injuries and damage to property due to broken accessories or the sudden impact of hidden
objects during use.
Safety Devices
CAUTION
Safety installations serve the protection of the user and may not be modified or by past.
GROUND FAULT CIRCUIT INTERRUPTER
The appliance is provided with a ground-fault circuit-interrupter (GFCI) built into the plug of the pow-
er-supply cord. This device provides additional protection from the risk of electric shock. Should
replacement of the plug or cord become necessary, use only identical replacement parts that include
GFCI protection.
Power switch
The appliance switch prevents unintentional operation of the appliance.
Lock trigger gun
This locks the lever of the trigger gun and prevents the inadvertent start of the appliance. Overflow
valve with water that has flowed through backflow preventers is considered to be non-potable.
Pressure switch
If the lever on the trigger gun is released the pressure switch turns off the pump, the high pressure jet
is stopped. If the lever is pulled the pump is turned on again.
Motor protection switch
The motor protection switches off the device if the power consumption is high.
CAUTION
Mind the weight of the appliance when selecting the storage location and during transport to prevent
accidents or injuries.
Several hours of continuous use of the appliance can lead to numbness in the hands in rare cases.
→Wear gloves.
→Keep hands warm.
→Take breaks at regular intervals. Working with detergent.
WARNING
The improper use of detergents can cause severe injuries or oxidation.
Store cleaning agent away out of children’s reach.
Discharge residual pressure before disconnecting the hose from the product.
Check before each use, and at regular intervals, that all metal fasteners are tight and the product’s
components are in good condition; inspect for broken or worn parts.
Be aware of kick-back: Hold with Both Hands.
SERVICING OF A DOUBLE-INSULATED APPLIANCE
In a double-insulated product, two systems of insulation are provided instead of grounding.
Grounding means are not provided for a double - insulated product, nor should grounding means be
added to the product. Servicing a double-insulated product requires extreme care and knowledge of
the system, and should only be done by qualified service personnel. Replacement parts for a dou-
ble-insulated product must be identical to the original parts. A double-insulated product is marked with
the words “Double Insulation” or “Double Insulated”.

www.PyleUSA.com
CAUTION
Wear protective clothing and safety goggles to protect against splash back containing water or dirt.
During the use of high-pressure cleaners aerosols can develop. Inhaling aerosols can cause health
damage.
—Depending on the application, completely shielded nozzles (e.g. surface cleaner) that significantly
reduce the emission of aqueous aerosols can be used for high-pressure cleaning.
—The use of such shielding is not possible with all applications.
Symbols on the machine
The high pressure jet must not be directed at persons, animals, live electrical equipment
or at the appliance itself.
The appliance must not be directly connected to the public drinking water network.
For protection against injury, wear ear defenders and safety goggles.
Wear safety gloves during use to protect hands
Wear non-slip footwear that will protect your feet and improve your footing on slippery
surfaces.
Personal Protective Equipment

www.PyleUSA.com
Proper Use
Use this pressure washer for private households only:
If connection is made to a potable water system, the system shall be protected against backflow.
This high pressure cleaner is designated with a rated input current. The intended use of this product
covers the cleaning of vehicles, buildings, terraces, facades and garden equipment using clean water
and biodegradable chemical detergents. Likewise the product can be used to clean paving slabs or
rain gutters.
This product may not be used to clean clothing, shoes and other textiles. The water jet should not be
directed against persons, animals, any electrical equipment or on the product itself. Do not flush any
objects which contain health hazardous materials. The product must not be run with inflammable,
explosive and toxic liquids.
For safety reasons it is essential to read the entire instruction manual before first operation and to
observe all the instructions there in.
Description of the Appliance

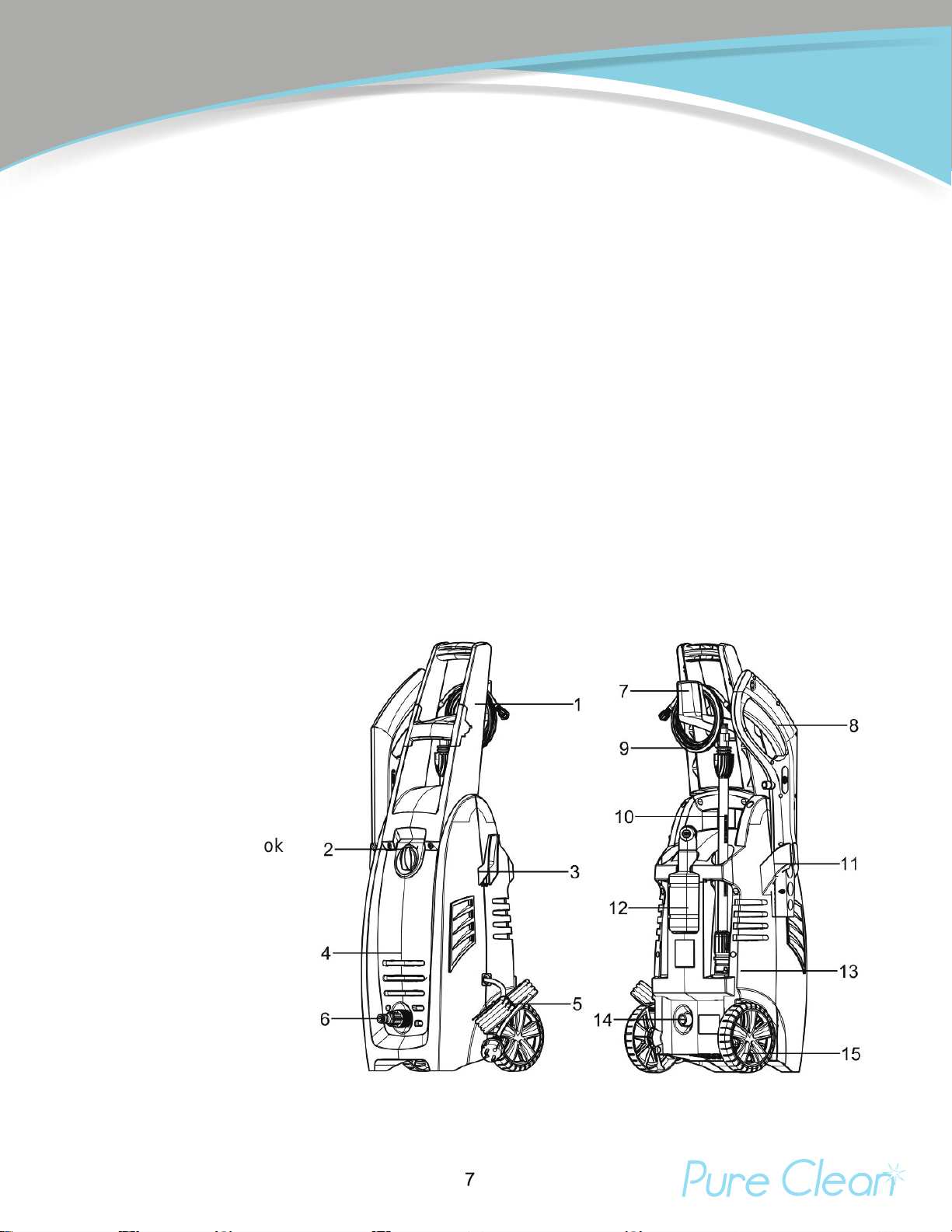

1. Handle
2. Adjust switch OFF/ON
3. Power cord hook
4. Front case
5. Power cord
6. Water inlet
7. High-pressure hose hook
8. Trigger gun
9. High-pressure hose
10. Spray wand
11. Trigger gun holder
12. Detergent bottle
13. Rear case
14. Water outlet
15. Wheel

www.PyleUSA.com
Technical Specifications
Voltage
Frequency
Input Current
Protection Class
Degree of protection
Rated pressure
Max. permissible pressure
Max. rate flow
Max. inlet pressure:
Weight
120V 〜
60Hz
14A
Double insulation
IPX5
1400PSI
1900PSI
1.76GPM
0.7MPa
18.95 lbs.
Assembly
Mount loose parts delivered with appliance prior to start-up.
1. Install the handle into position with screws.
2. Install the high-pressure hose hook into position with screws.

www.PyleUSA.com
3. Slide the power cord hook into the right position of the unit.
4. Install the spray wand.
• Fit the spray wand into the gun and rotate it until the two parts are completely locked.
5. Connect the high pressure hose to the trigger gun.
• Connect the sliver end of the high-pressure hose to the trigger gun and twist the nut as indicated to
secure the connection.

www.PyleUSA.com
6. Connect the high-pressure hose to the water outlet.
Connect the other end of the high-pressure hose to the water outlet on the washer and twist the black
rotatable end-piece as indicated to secure the connection.
7. Connect the garden hose to the water inlet.
Connect the garden hose adaptor (female coupler) to the water inlet of the pressure washer, and then
thread your garden hose (male end) into the garden hose adaptor.
5. Connect the high pressure hose to the trigger gun.
• Connect the sliver end of the high-pressure hose to the trigger gun and twist the nut as indicated to
secure the connection.

www.PyleUSA.com
Start Up
Park the appliance on an even surface.
Insert the main plug into the socket.
Water supply
For connection values, see type plate.
ATTENTION
Impurities in the water can damage the high-pressure pump and the accessories.
This high-pressure cleaner is suited to work with the YILI suction hose with backflow vale to draw in
surface water from water butts or ponds.
Fill the suction hose with water.
Screw the suction hose into the water connection of the appliance and insert it into the water source
(e.g. rainwater drum).
Bleed the device as follows prior to operation:
• Turn on the appliance “OFF/ON”
• Unlock the lever of the trigger gun.
• Push the lever of the trigger gun, the device will switch on.
• Let the device run (max. 2 minutes) until the water exits the trigger gun without bubbles.
• Release the lever of the trigger gun.
• Lock the lever of the trigger gun.
Operation
ATTENTION
Dry running of more than 2 minutes leads to damage of the high-pressure pump. If the appliance does
not build up pressure within 2 minutes, switch the appliance off and proceed in accordance with the
instructions in Chapter “Troubleshooting”

www.PyleUSA.com
High Pressure Operation
CAUTION
Keep a distance of at least 30 cm when using the jet for cleaning painted surfaces to avoid damage.
CAUTION
Make sure the switch is set to “OFF/ON” and insert the plug into a properly installed socket.
ATTENTION
• The washer must be used on a secure and stable surface in a standing, upright position.
Connect the product to power and water supply as described.
• Open the water supply
• Hold the spray gun with both hands.
• Direct the nozzle of the chosen accessory away from you towards the surface to be cleaned.
• Unlock the trigger and press it until a constant amount of water flows through the nozzle, to allow air
trapped in the hose to escape.
• Release the trigger.
• Turn on the switch “OFF/ON”.
• Hold the spray gun with both hands. Direct the water jet to the object to be cleaned and press the
trigger.
Release the lever of the trigger gun; the device will switch off again and stop the water jet. High pres-
sure remains in the system.
WARNING! Beware of kickback when pressing the trigger!

www.PyleUSA.com
Operation with Detergent
Detergent can only be added when the device is operated in low pressure mode.
DANGER
When using detergents, the material data safety sheet issued by the detergent manufacturer must be
adhered, especially the instructions regarding personal protective equipment.
Remove the cap of the clean detergent bottle. Gently pull the onboard detergent tank out of its storage
position.
Fill the tank with detergent designed specifically for use with pressure washers.
Push the detergent bottle with the opening pointing downwards into the connection for the hose clean
detergent.
Recommended cleaning method
• Spray the detergent sparingly on the dry surface and allow it to react, but not to dry.
• Spray off loosened dirt with the high pressure Met.
After operation with detergent
• Remove the hose clean detergent bottle from the intake and close it with the lid.
• For storage, put the detergent bottle into the retainer with the cap pointing up.
Interrupting operation
• Release the lever of the trigger gun.
• Lock the lever of the trigger gun.
• Put the trigger gun with the spray lance into the parking position.
• During longer breaks (more than 5 minutes), turn the appliance off using the “OFF/ON” switch.
Finish operation
• Release the lever of the trigger gun.
• Turn off the appliance “OFF/ON”.
• Disconnect the main plug from the socket.
Only separate the high-pressure hose from the trigger gun or the device when there is no pressure in
the system.
TURN OFF TAP
• Pressure the lever of the trigger gun to release any remaining pressure in the system.
• Release the lever of the trigger gun.
• Lock the lever of the trigger gun.
ATTENTION
• When disconnecting the supply or high pressure hose, warm water may leak from the connection
after operation.
• Detach the appliance from the water supply.

www.PyleUSA.com
Transportation
CAUTION
Risk of personal injury or damage!
Mind the weight of the appliance during transport.
When transporting by hand
• Switch the product off and disconnect it from the water and power supply.
• Pull out the transport handle until it audibly snaps into place. Attach transportation guards, if
applicable.
• Pull the appliance by its transport handle.
When transporting in vehicles
• Prior to horizontal transport: close the cap of clean detergent bottle.
• Tilt the product towards you until it balances on the wheels. Then move it by its transportation
handle.
• Protect the product from any heavy impact or strong vibrations which may occur during
transportation in vehicles.
• Secure the appliance against shifting and tipping over.
Storage
CAUTION
Risk of personal injury or damage!
Consider the weight of the appliance when storing it.
Storing the appliance
• Park the machine on an even surface.
• Detach spray lance from the trigger gun.
• Push the disconnect button on the trigger gun and pull the high-pressure hose out of the trigger gun.
• Place the trigger gun into the storage for the trigger gun.
• Put both spray lances into the storage for the spray lance.
• Dirt grinder spray lance: Nozzle towards the bottom.
• Coil the high-pressure hose and hang it over the hose storage.
• Store the main connection in the accessory compartment.
• Prior to extended storage periods, as during the winter, also observe the instructions in the care
section.
• Always store the pressure cleaner, parts, and accessories in a place that is inaccessible to children.
The ideal storage temperature is between 10 °C and 30 °C. Store the power washer indoors to
prevent the water in the unit from expanding under freezing conditions.
• We recommend using the original package for storage or covering the product with a suitable cloth or
enclosure to protect it against dust.

www.PyleUSA.com
CAUTION
Risk of personal injury or damage!
Mind the weight of the appliance during transport.
When transporting by hand
• Switch the product off and disconnect it from the water and power supply.
• Pull out the transport handle until it audibly snaps into place. Attach transportation guards, if
applicable.
• Pull the appliance by its transport handle.
When transporting in vehicles
• Prior to horizontal transport: close the cap of clean detergent bottle.
• Tilt the product towards you until it balances on the wheels. Then move it by its transportation
handle.
• Protect the product from any heavy impact or strong vibrations which may occur during
transportation in vehicles.
• Secure the appliance against shifting and tipping over.
Storage
CAUTION
Risk of personal injury or damage!
Consider the weight of the appliance when storing it.
Storing the appliance
• Park the machine on an even surface.
• Detach spray lance from the trigger gun.
• Push the disconnect button on the trigger gun and pull the high-pressure hose out of the trigger gun.
• Place the trigger gun into the storage for the trigger gun.
• Put both spray lances into the storage for the spray lance.
• Dirt grinder spray lance: Nozzle towards the bottom.
• Coil the high-pressure hose and hang it over the hose storage.
• Store the main connection in the accessory compartment.
• Prior to extended storage periods, as during the winter, also observe the instructions in the care
section.
• Always store the pressure cleaner, parts, and accessories in a place that is inaccessible to children.
The ideal storage temperature is between 10 °C and 30 °C. Store the power washer indoors to
prevent the water in the unit from expanding under freezing conditions.
• We recommend using the original package for storage or covering the product with a suitable cloth or
enclosure to protect it against dust.
Frost Protection
ATTENTION
Appliance and accessories that are not completely drained can be destroyed by frost.
Completely drain appliance and accessories and protect them against frost.
To avoid damage:
• Detach the appliance from the water supply.
• Detach spray lance from the trigger gun.
• Turn on the appliance “ON/OFF”.
• Push the lever of the trigger gun until no more water is escaping.
• Release the lever of the trigger gun.
• Lock the lever of the trigger gun.
• Turn off the appliance “ON/OFF”.
• Store the appliance and the entire accessories in a frost free room.
Care and maintenance
DANGER
Risk of electric shock
Prior to all work on the appliance, switch off the appliance and pull the power plug.
High pressure hose
The high pressure hose is specially constructed with reinforced walls than can be easily damaged and
should be stored carefully.
• Do not kink.
• Do not drive vehicles over the hose.
• Do not expose the hose to sharp edges or corners. Misuse will lead to ballooning or premature
failure and will invalidate warranty.
Clean the sieve in the water connection
Clean the sieve in the water connection regularly.
Remove coupling from the water connection, and rinse with warm water to prevent any foreign matter
from clogging the pump.
Clean the nozzle with the needle clean-out tool provided. Remove the spray wand from the gun.

www.PyleUSA.com
ATTENTION
Appliance and accessories that are not completely drained can be destroyed by frost.
Completely drain appliance and accessories and protect them against frost.
To avoid damage:
• Detach the appliance from the water supply.
• Detach spray lance from the trigger gun.
• Turn on the appliance “ON/OFF”.
• Push the lever of the trigger gun until no more water is escaping.
• Release the lever of the trigger gun.
• Lock the lever of the trigger gun.
• Turn off the appliance “ON/OFF”.
• Store the appliance and the entire accessories in a frost free room.
Care and maintenance
DANGER
Risk of electric shock
Prior to all work on the appliance, switch off the appliance and pull the power plug.
High pressure hose
The high pressure hose is specially constructed with reinforced walls than can be easily damaged and
should be stored carefully.
• Do not kink.
• Do not drive vehicles over the hose.
• Do not expose the hose to sharp edges or corners. Misuse will lead to ballooning or premature
failure and will invalidate warranty.
Clean the sieve in the water connection
Clean the sieve in the water connection regularly.
Remove coupling from the water connection, and rinse with warm water to prevent any foreign matter
from clogging the pump.
Clean the nozzle with the needle clean-out tool provided. Remove the spray wand from the gun.
Remove any dirt from the nozzle hole and rinse.
ATTENTION
• The sieve must not be damaged.
• Pull the sieve out using flat pliers.
• Clean the sieve under running water.
• Reinsert the sieve into the water connection.
Troubleshooting
DANGER
Risk of electric shock.
Turn off the appliance and remove the main plug prior to performing any care and maintenance work.
Repair work on the electrical components may not only be performed by an authorized customer
service. You can rectify minor faults yourself with the help of the following overview. If in doubt, please
consult the authorized customer service.

www.PyleUSA.com
Symptom Cause Recommended action
Machine refuses to start Machine not plugged in
Defective socket
Fuse has blown
Defective extension cord
Plug in machine
Try another socket.
Replace fuse. Switch off
other machines.
Try without the extension
cord.
Check the hoses and
connections are airtight.
Clean and replace valves
or refer to local distributor
Pump sucking air
Valves dirty, worn out or stuck
Pump seals worn out
Fluctuating pressure
Machine pulsating Air in inlet hose
Inadequate supply of water
Nozzle partially blocked
Water filter blocked
Hose kinked
Wait for pump/hoses or
accessory to thaw.
Connect inlet water.
Clean the filter /Clean
the nozzle
Pump/hoses or accessory frozen
No water supply
Water filter blocked /Nozzle
blocked
Machine starts, but no water
comes out
Machine stops Incorrect main voltage
Thermal sensor activated
Nozzle partially blocked
Check that the main
voltage corresponds to
specification on the model
tag.Leave the washer for 5
minutes to cool down.
Clean the nozzle
Allow machine to run with
open trigger until regular
working pressure resumes.
Check that the water supply
corresponds to specifica-
tions required
NB! Avoid using long, thin
hoses (min. 1/2").Clean the
nozzle /Clean the filter
Straighten out hose.

www.PyleUSA.com
Accessories
A choice of accessories is supplied in the scope of the delivery of this product. Please check the
technical specification of any accessories that you purchase to ensure they are compatible with this
product.
Warranty
1. This product has been manufactured with high quality standard. The warranty period is 3 months
from date of purchasing.
2. For warranty service, please contact and present the warranty card with the original invoice for the
warranty service.
3. This warranty DOES NOT apply to: O-rings, seals, valves, nozzles, filters, damages to high pres-
sure hose, gun, pump, motor, housing shells due to misuse, operation errors, or exposure to natural
elements.
4. Transportation damages after sales.
5. Services not provided by our authorized service centers.
6. Accessories and spare parts, if any, provided in the package.
7. Damage resulted from commercial or industrial use, as this product is intended for DIY use only.
