Pynamite 55 Gallon Deluxe System User manual


Page1of655galDeluxeSLAPN11345





















DeluxeMistingSystem‐55gallon


Page2of655galDeluxeSLAPN11345

CONTENTS:

55GallonDeluxeSystem
OutdoorCover
RemoteControl
BatteryCharger

==================================================================================================
PROGRAMMINGTHETIMER
ButtonsonTimer
1.LED:ToindicateON/OFFstatus
2.CLOCK:ToadjustcurrentDAYandTIME
3.TIMER:ToReview&SetPrograms
4.DAY:ToadjustDayofWeek
5.HOUR:ToadjustHour
6.MIN:ToadjustMinute
7.MANUAL:ToselectON,AUTOorOFF
(seemoreonMANUALbuttonbelow)
8.P:ResetTimer’sSettings

NOTE:PressPbuttontoresetTimerbeforeprogramming
1. AdjustingCLOCK
PressandholdCLOCKandthenpressDAY,HOUR,MIN,respectivelytoadjustclockofTimertoaccurateDAY,
HOUR&MINUTE.The24‐HourFormatLCDscreenshallindicate0:00‐23:59.

2. ProgrammingtheTimer
A. PressTIMER.LCDscreenshows1‐‐:‐‐.
B. PressDAYtoselectanyofthepreset15‐combinations.ContinuingtopressDAY,theLCDalternatesbetweenthe
15‐combinations.
C. PressHOUR,MINrespectivelytosetdesiredHourandMinutefor10N.
D. Afterfinishedsetting10N,PressTIMERagain,1‐‐:‐‐willappearonLCDscreentoset1OFF.
E. PressDAYtoselectthesameDaycombinationas1ON.
NOTE:DAY‐combinationschosenineachofON/OFFprogram‐periodmustbeconsistent
F. PressHOUR,MINrespectivelytosetdesiredHourandMinutefor1OFF.
CAUTION:AN“OFF”SETTINGOF1MINUTELATERMUSTBEPROGRAMMEDFOREVERY“ON”
SETTING.Forexample,if8:00isscheduledforON,then8:01mustbescheduledforOFF.IFTHISIS
NOTDONE,SCHEDULEDMISTINGCYCLESWILLNOTINITIATEANDREMOTEWILLNOTWORK.Atany
timeentireclockcanberesetbypressingthegreybuttonnexttoP.
G. Whenfinishedsetting10N&10FF,PressTIMER2‐‐:‐‐willappearontheLCDscreen.
H. RepeatprogrammingprocedureabovetocompleteadditionalON/OFFmistingcyclesifdesired.
I. Whenfinishedprogrammingmistcycles,pressCLOCK.
NOTE:Todisableascheduledmistingcycle,settheOFFtimetothesameastheONtimeandthesystemwill
notmistthatcycle.

AtanytimeentireclockcanberesetbypressingthegreybuttonnexttoP


on
‐‐
off‐‐
on
Ifyoushouldexperienceanydifficulties,issuesorproblemswhile
assemblingoroperatingyoursystem,pleasedonotreturnyoursystemto
placeofpurchase.
Contactcustomerserviceat[email protected]or
713‐955‐2101or866‐986‐5586.


Page3of655galDeluxeSLAPN11345

MANUALButtononTimer–istoselecttheON,AUTOorOFFmodeofthetimer,nottoinitiateamist.The
recommendedmodeisAUTO.
WheninAUTOmode,thetimerwillfunctionasprogrammedabove.
WheninOFFmode,theprogrammedmistingcycleswillnotinitiate.HoweverpressingtheSTARTMISTbutton
onthecontrollerwhilethetimerisinOFFmodewillinitiateamanualmistingcycle.Additionally,theRemote
ControlStart/Stopbuttonswillinitiate/stopamistcyclewhilethetimerisOFFmode.NOTE:Holdtheremote
controlstopbuttondownfor2secondstostopthecurrentmist.
WheninONmode,amistcyclewillinitiateaftera2seconddelay.TimermustbereturnedtoAUTOmodefor
theprogrammedmistcyclestocontinue.NOTE:TheSTARTMISTbuttononthecontrollerandremotecontrol
arethepreferredmethodsforinitiatinganunprogrammedmist.
==================================================================================================

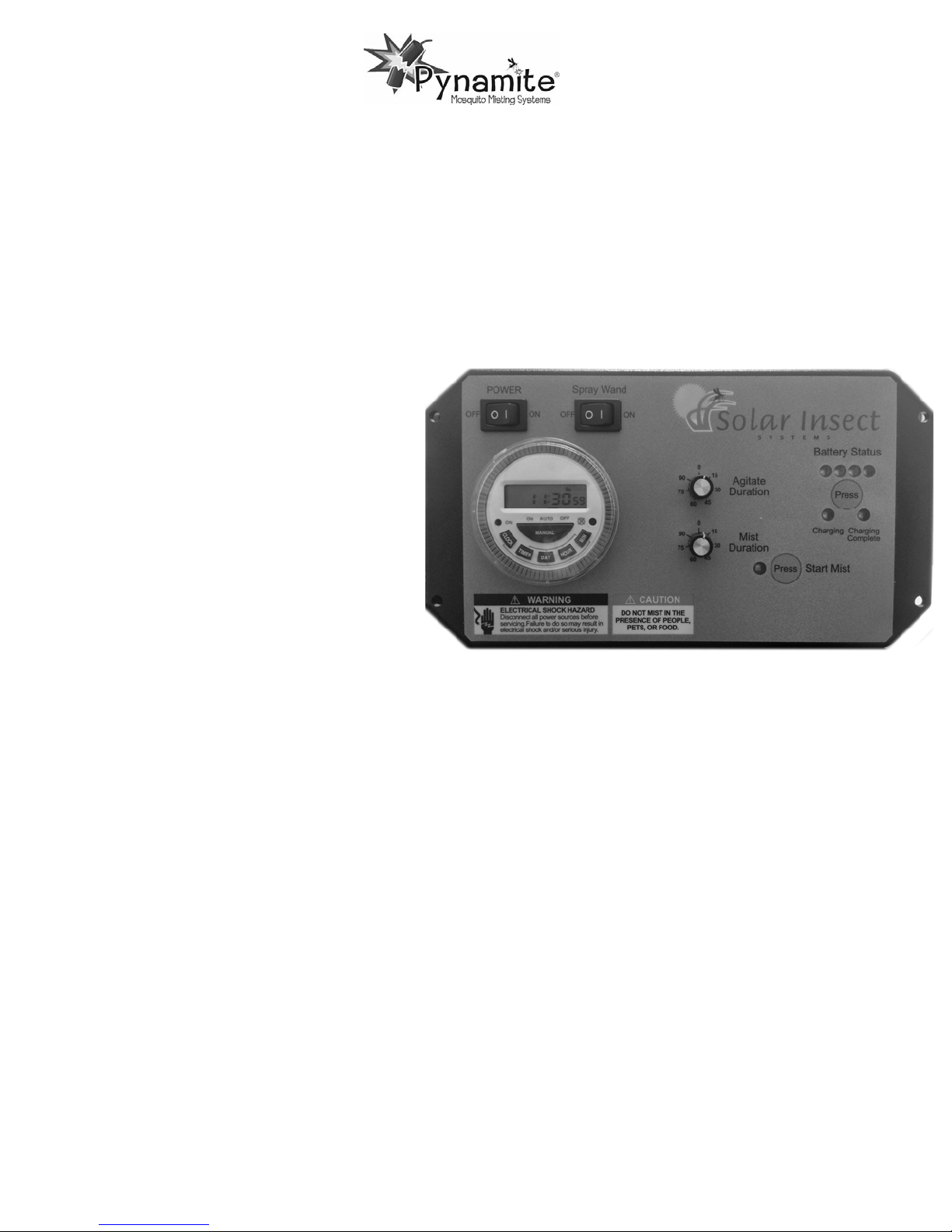

CONTROLLERFUNCTIONS
1.POWERTOGGLE‐Mainpowerbutton.Theunit
willonlyoperateifthisisintheONposition.
NOTE:Whenchargingthesystemeitherthough
theBatteryChargerorSolarPanel,power
doesnotneedtobeon.
2.SPRAYWANDTOGGLE‐Thisisonlyutilizedwith
anOPTIONALSprayGun.Intheabsenceofthe
OPTIONALSprayGunfeatureithasno
functionalityandcanbeineithertheONorOFF
position.
3.AGITATIONDURATION‐Purgestrappedairfromthepumpheadandagitatesthesolutioninthetankpriortoamist
cycle.Therecommendedamountofagitationdurationfora55gallontankis15seconds.NOTE:Theminimum
amountoftimetopurgetrappedairfromthepumpheadis5seconds.

4.MISTDURATION–Isusedtosetthelengthofthemistcycle.Thesuggestedlengthofeachmistcycleisbetween30‐
45seconds.Eachnozzleisdesignedtomist1.5ouncesofsolutionperminute.

5.STARTMISTBUTTON–Isusedtoinitiateanunprogrammed(ormanual)mistcycle.PressingtheStartMistButton
doesnotalteranyoftheprogrammedmistcycles.
6.BATTERYSTATUSBUTTON–IsusedtocheckthebatterystatuswhenunitisNOTplugged‐inandisutilizingstored
batterypower.
Allfourlightslit(2red,1yellow,1green)–systemisfullyfunctioning.NOTE:All4lightsilluminateddoesnot
meanthatsystemisfullycharged.
Threelightslit(2red,1yellow)–batteryisgettinglowandneedstoberechargedsoon.Systemwillmistupto2
moretimeswiththeselightsilluminated,butbatteryshouldberechargedsoon.
Onelightlit(1red)‐lowvoltagedisconnectwillinitiatecausingsystemtonolongermistuntilbatteryis
recharged.
Nolightsareilluminated–systemwillnotmist.NOTE:Itisimportanttorechargebatteryoncealllightsgoout
tomaintainbatterylife.

BATTERYMAYBEPLUGGEDINCONTINUOUSLYWITHOUTLOSINGBATTERYCAPACITYORHARMINGTHEBATTERY
NOTE:Donotuseanextensioncordwiththissystem.

12
3
4
5
6
7


Page4of655galDeluxeSLAPN11345
5

Whensystemispluggedincontinuously,seetheLEDontheplug‐inBatteryChargerforbatterystatus.
RED‐chargerispluggedintoa120voutletandischarging
YELLOW‐batteryis1/2charged
GREEN‐batteryisfullycharged
NOLED‐notpluggedintoa120voutlet,reversepolarity,orblownfuseonpositivesideofthebattery
7.CHARGING/CHARGINGCOMPLETELEDs–showschargingstatusofthebatteryonlywhentheOPTIONALSolarPanel
isbeingused.IfChargingLEDissolid,batteryischarging.IfChargingandChargingCompleteLEDsarealternating,
batteryisfullycharged.
OPTIONALSolarPanelmaybeusedcontinuouslywithoutcausingdamagetothebattery.

NOTE:Whenunitisbeingstoredornotinuseforperiodslongerthan6months,topreservebatterycapacity,keep
BatteryChargerpluggedincontinuouslyifnotutilizingasolarpanelandturnmainpowertoggletoOFF.
==================================================================================================
BACKOFENCLOSURE

1.PLUGorSPRAYWANDFITTING‐Thisfittingisusedtoconnectan
OPTIONALSprayWand.IfSprayWandisnotutilizedaplugwillbe
usedasshown.

2.PLUGorSOLARPANELFITTING–Thisfittingisusedtoconnectan
OPTIONALSolarPaneltochargethebattery.IfSolarPanelisnot
utilizedaplugwillbeusedasshown.

3.REMOTECONTROLANTENNA‐Antennaforthesuppliedremote
control.

4.BATTERYCHARGER‐Usedtocharge/maintainthesystembattery.
Plugtheincludedbatterychargerintotheendofthiscord.CAUTION:DONOTyankoncord.
NOTE:OnlyusetheSLABatteryChargersuppliedwiththeunittochargethebattery.

TheLEDsonthechargershowtheChargingStatus.
RED‐chargerispluggedintoa120voutletandischarging
YELLOW‐batteryis1/2charged
GREEN‐batteryisfullycharged
NOLED‐notpluggedintoa120voutlet,reversepolarity,orblownfuseonpositivesideofthebattery
NOTE:BatteryChargermaybepluggedinto120voutletcontinuouslywithoutcausingdamagetothebattery.
NOTE:Donotuseanextensioncordwiththissystem.

5.PRESSURECONTROLVALVE‐Usethistoadjustthenozzlecircuitpressureupanddown.Turnclockwiseto
increasepressureandcounterclockwisetodecreasepressure.Operatemistingsystembetween200‐250PSI.
=================================================================================================
RIGHTSIDEOFENCLOSURE
1.PRESSUREGAUGE‐Readsthepressureinthenozzlecircuit.Pressureiscontrolledwiththe
PressureControlValveonthebackoftheenclosure.NOTE:Suggestedpressureisbetween 
200‐250PSI.
2.NOZZLECIRCUITFITTING–Insert¼”tubingintothisfittingtobeginthenozzlecircuit.
123
45


Page5of655galDeluxeSLAPN11345

==================================================================================================
SYSTEMSETUP
Oncethenozzlecircuithasbeeninstalledandconnectedtothesystem,thesystemneedstobepurgedandtested
beforefillingitwithinsecticide.
Fillthetankabouthalfwaywithtapwater.DONOTADDINSECTICIDE
TurnthePressureControlValveonthebackoftheenclosure(#5inphotoabove)allthewayclockwise.
Gotothelastnozzleinthecircuit(ornozzlesifyouTee’doffintodifferentruns)andremovethenozzletip(s)by
unscrewingitfromtheadapter.
Topurgetheairoutofthesystem,settheAgitateDurationto15secondsandtheMistDurationto90seconds.
PresstheStartMistbutton.Aftertheagitationperiodthesystemwillstartmisting.Waterandairwillcomeout
oftheopennozzle(s).PresstheStartMistbuttonasmanytimesasittakestogettheairoutofthelinessothat
thewaterrunsfreelywithoutsputtering.
Oncethewaterisrunningwithoutairsputteringandthecurrentmistcyclehasended,screwthenozzletip(s)
backon.
AtthesystemturnthePressureControlValveabouthalfwaybetweenopenandclosed.
Pressthestartmistbuttonandaftertheagitationcycleends,beginturningthePressureControlValveclockwise
toincreasepressure.
Stopwhenthepressuregetsbetween200‐250psi.
Ifthepressuredoesnotgetthathigh,therecouldbeseveralreasons:
oTubingisloose–checkeveryconnectionwheretubinggoesintoafittingandmakesurewaterisnot
leakingoutorairisnotbeingsuckedin.Itisimperativethatthetubingispushedinandswiftlypulled
outtolockitinplace.
oToomanynozzlesonalinearrun–themostoptimumrunisaloopedrun,itstartsattheNozzleCircuit
QuickConnectfittingontheenclosureandloopsbackaroundtoteeintothesameconnection.ATee’d
circuitworkswelltoo,justmakesurethereisanequalnumberofnozzlesoneachofthemainruns.A
linearruncancausethepressuretogodowniftherearetoomanynozzlesontoolongofrunoftubing.
Oncethepressureisset,pourintheinsecticideandcontinuefillingthetankwithtapwater.
================================================================================================
MISTINGTIMES
Onatypicalinstallation,setAgitateDurationfor15secondsandtheMistDurationfor45seconds.Mistatduskandat
dawn,andthenanadditionalmistaround10pm.Itwilltakeacoupledaystogetcontrolofyouryardinitiallyand
sometimesafterabigrainandbreedingcycle.Usetheremotecontroltomistinbetweenscheduledmists.

================================================================================================
WARRANTY
LovettIndustries,LLCdbaSolarInsectSystems(SIS)warrantsthisProduct,tobefreefromdefectsinmaterialand
workmanshipasfollows:
Foraperiodofthree(3)yearsfromthedateofpurchase(whetherornotactualusebeginsonthatdate),SISwill
repairorreplacedefectiveelectronicparts,andforaperiodofone(1)yearSISwillrepairorreplacedefective
batteryand/orbatterychargerwithneworrefurbishedparts,atitsoption,atnocharge.Thiswarrantydoesnot
includelabororothercostsincurredfordiagnosing,removing,installing,shipping,servicingorhandlingofeither
defectivepartsorreplacementparts.Additionallywarrantydoesnotapplytonozzlecircuitorfittings.
ThiswarrantyappliessolelytoequipmentsuppliedbySISandisinlieuofallotherwarranties,expressedor
implied.Noperson,agent,dealer,ordistributorisauthorizedorempoweredtogiveanyotherwarrantyorto
assumeanyotherliabilityonbehalfofSolarInsectSystems.


Page6of655galDeluxeSLAPN11345


WarrantyConditions:
ThiswarrantyisextendedonlytotheoriginalPurchaserandisnontransferable.
Apurchasereceiptorotherproofofdateofpurchasewillberequiredbeforewarrantyserviceisrendered.
Installation,use,careandmaintenancemustbenormalandinaccordancewithinstructionscontainedinthe
operatingmanualandSolarInsect’sserviceinformation.Failuretodososhallvoidthiswarranty.
Allclaimsforfailuretoconformtospecificationsordefectsinmaterialorworkmanshipunderthiswarranty
mustbemadepromptlyafterdiscoveryand,inanyevent,mustbereceivedbySolarInsectSystemsnotmore
thanoneyearaftertheoriginalpurchasedate.
SISreservestherighttoinspecttheequipmentpriortoanydecisioninvolvingawarrantyclaim.
SISreservestherighttomakewarrantedrepairsateithertheinstalledsiteoratSIS'slocationinRichmond,TX.If
SISoptsforrepairatitsownlocation,PurchaserisresponsibleforshippingtheitemtoSISatitsexpense.

Manufacturer’sobligationunderthewarrantyshallnotapplyto:
Anyequipment,whichhasbeendamagedbynegligence,misuse,abuse,neglectand/orimproperadjustment,
accident,vandalism,actsofGod,actsofwar,whetherdeclaredorundeclared,improperapplication,orany
othercontingencybeyondthecontrolofSolarInsectSystem
Cosmeticdamage
Damageintransit
FailurescausedbyproductsnotsuppliedbySIS
Failures,whichresultfromfaultyinstallation,set‐upadjustments,improperoperation,powerlinesurge,
impropervoltagesupplyordamagefromlightning
AnyequipmentthathasbeenrepairedoralteredwithoutauthorizationfromSISorinamannerinconsistent
withsuchauthorization
Normalwearonanyitemorpieceofequipment
Lostitems




