Qiagen QIAsphere Base User manual

Sample to Insight__
August 2022
QIAsphere Base
Update Installation
Guide

QIAsphere Base Update Installation Guide 08/2022
2
Contents
1Introduction .............................................................................................................3
2External Features of QIAsphere Base (Q-Base) .............................................................4
3Before you start .......................................................................................................5
3.1 Required material.......................................................................................5
3.2 Checking the jumper settings........................................................................5
3.3 Checking the QIAsphere Base software version ..............................................5
4Updating QIAsphere Base Software 2.x.x ...................................................................8
5Updating Q-Base Software 1.1.0..............................................................................10
5.1 Finish network connection..........................................................................10
5.1.1 Wired Ethernet network connection.........................................................11
5.1.2 Wireless network connection..................................................................14
5.2 Installing the software update ....................................................................15
6Optional: QIAsphere Base Factory Reset....................................................................19
7Version History ......................................................................................................20

QIAsphere Base Update Installation Guide 08/2022
3
1Introduction
In December 2020, QIAGEN´s new connectivity solution QIAsphere was launched.
QIAsphere-ready Instruments, for example, QIAcube Connect, can be connected via the QIAsphere
Base to the new QIAsphere App which is now available in local and cloud-connected mode to be
network independent.
Existing QIAsphere ready instruments with QIAsphere Base can connect to QIAsphere as well.
You only have to update the respective QIAsphere Base device (formerly known as Q-Base) to the
latest software version 2.4.0.
This installation guide provides detailed instructions on how to update the QIAsphere Base software
to version 2.4.0. In addition, it provides instructions on how to set up QIAsphere in cloud or local
mode. If you need detailed installing information, refer to the QIAsphere user manual.
(www.qiagen.com/qiasphere).

QIAsphere Base Update Installation Guide 08/2022
4
2External Features of QIAsphere Base (Q-Base)
Front View of QIAsphere Base
Rear View of QIAsphere Base
1
Status LEDs: User1, User 2,
User 3, and User 4
5
Two USB ports
2
Power LED: Blue LED indicator
for power On/Off
6
Service panel (includes microSD card slot, factory reset
button, and backup battery)
3
ETH1 Ethernet port: Connect
QIAsphere Base to local
network
7
Power cord socket
4
ETH0 Ethernet port: Connect
QIAsphere Base to personal
computer
For more details regarding hardware features, refer to the user manual provided by Eurotech:
https://www.eurotech.com/en/products/iot/multi-service-iot-edge-gateways/reliagate-10-12.

QIAsphere Base Update Installation Guide 08/2022
5
3Before you start
3.1 Required material
QIAsphere Base update package downloaded as a ZIP file (and extracted)from
www.qiagen.com/qiasphere.
QIAsphere Base and power cord received with QIAcube Connect or Connectivity Package.
Personal computer
1x Ethernet cable to connect the QIAsphere Base to personal computer.
Network connection: 1x Wi-Fi/Bluetooth dongle (received with QIAcube Connect or Connectivity
Package) or 1x Ethernet cable
1x USB drive (1 GB or more)
3.2 Checking the jumper settings
Before you start, open the service panel of your QIAsphere Base and check the two jumpers as
marked in the figures below, and make sure that they are in the correct orientation. If not, unplug
the left jumper by pulling it out and plug it in again as demonstrated on the left figure.
Correct Wrong
Open service panel with jumpers in correct and wrong
orientation
3.3 Checking the QIAsphere Base software version
The software update procedure of QIAsphere Base can differ depending on the initial QIAsphere
Base software version.

QIAsphere Base Update Installation Guide 08/2022
6
To check the software version and to update the software, your QIAsphere Base needs to be
connected to your local network. QIAsphere Base can be connected to Wi-Fi or wired Ethernet
networks.
1. If you are using QIAsphere Base already and it is connected to a local network, continue with
step 5.
2. For wired Ethernet connection, connect the QIAsphere Base ETH1 port to a wired network.
For wireless network connection, insert the Wi-Fi/Bluetooth dongle into one of the QIAsphere
Base USB ports.
3. Power up the QIAsphere Base by plugging in the power cord into an appropriate power
socket.
4. Wait until USER 1 or USER 2 LED is switched on.
Note:Depending on the QIAsphere Base Software version, this can take up to 15 minutes.
5. Connect your PC to the QIAsphere Base ETH0 port using an Ethernet cable and wait a few
seconds until your PC detects the new network.
6. Open a web browser (for example, Chrome™ or Mozilla®Firefox) on your PC and enter this
URL: https://172.16.0.1.
Note:Use a recent browser. Older browsers (like Internet Explorer®) may not correctly display
all features of the QIAsphere Base Configuration Interface.
Note:QIAsphere Base uses a self-signed certificate for the https connection. Therefore, the
browser may issue a security warning. Ignore the warning or add an exception to enter the
page.
7. Compare the appearing screen with the following screenshots:
a) QBSP

QIAsphere Base Update Installation Guide 08/2022
7
b) Q-Base Administration Portal
Important: If your screen is similar to Screenshot A), then your QIAsphere Base Software
version is 2.0.0 or higher, continue with chapter 4.
If your screen is similar to Screenshot B), then your QIAsphere Base Software version is 1.1.0,
continue with chapter 5.

QIAsphere Base Update Installation Guide 08/2022
8
4Updating QIAsphere Base Software 2.x.x
To update your QIAsphere Base Software 2.x.x to 2.4.0, continue as follows:
1. Log in to QBSP with the user name admin.
Note:The default password is Qiagen@123.
Note:If you have forgotten your previously set password, you can perform a factory reset as
described in chapter 6.
2. If you are asked to change the password, set up a password according to the displayed rules.

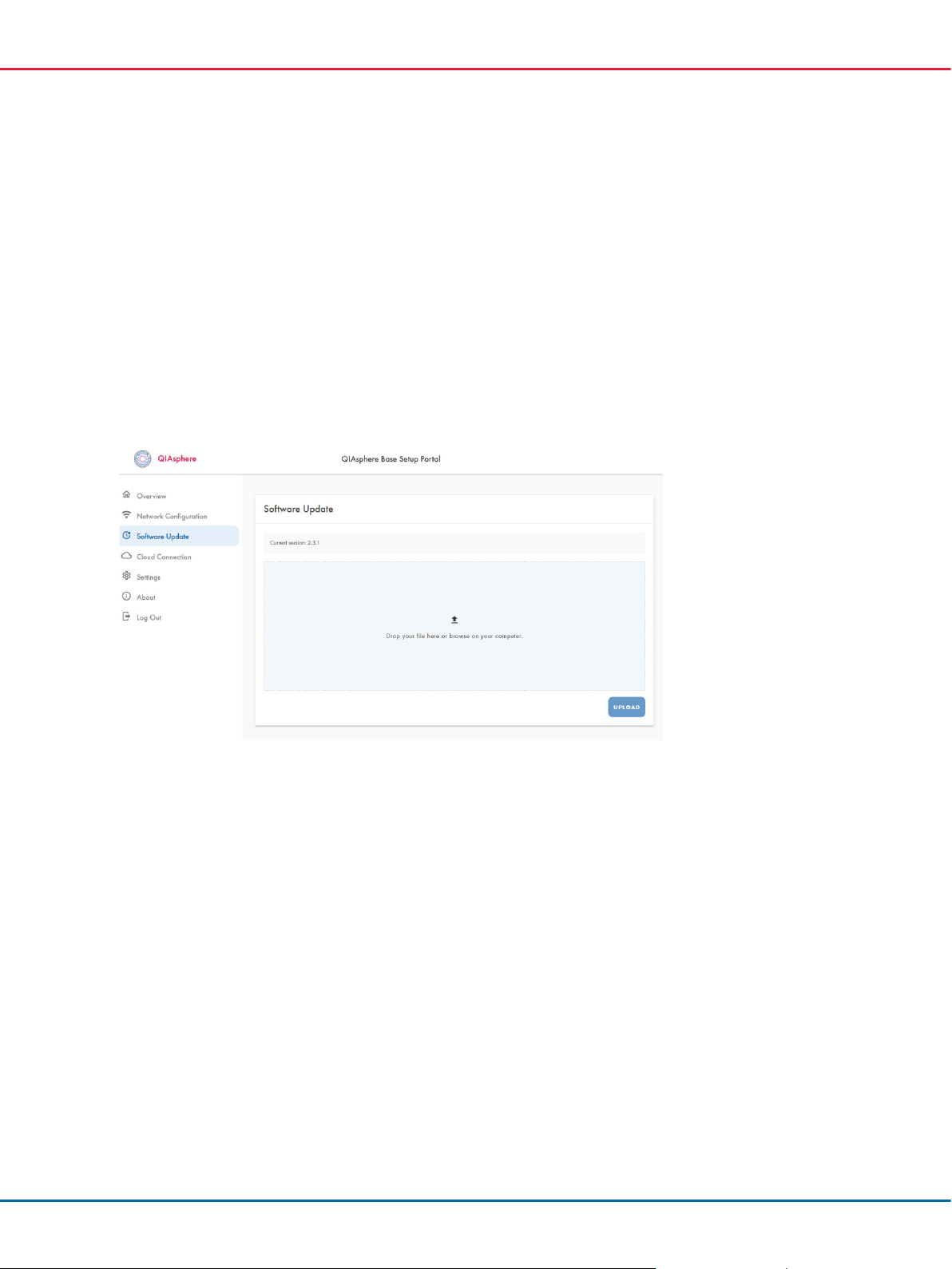

3. Select Software Update from the sidebar:
4. Check the Current version information.
5. Click on the arrow in the upload field.
6. If current version is 2.0.0, select the file QIAsphereBase_Update_200-235.zip from the
QIAsphere Base Software Update 2.x.x to 2.4.0 folder of the extracted software update
package and click open.
If current version is higher than 2.0.0, select the file QIAsphereBase_Update_2XX-235.zip
from the QIAsphere Base Software Update 2.x.x to 2.4.0 folder of the extracted software
update package and click open.
7. Click Upload.

QIAsphere Base Update Installation Guide 08/2022
9
8. Click OK on the pop up message.
9. Wait for the update to succeed, and click OK again.
10. Check the Current version information again. It should now be version 2.3.5.
11. Proceed to upload the update package QIAsphereBase_Update_235-240.zip from the
QIAsphere Base Software Update 2.x.x to 2.4.0folder of the extracted software update
package, similar to steps 5 to 8.
12. After uploading the file successfully, the update process will be started. Pop-up appears, click
OK and close the browser window.
Note:This update requires a complete restart of the QIAsphere Base.
13. After step 12, wait for 15 to 20 minutes. Then check the LEDs on your QIAsphere Base.
14. When the USER 1 or USER 2 LED are switched on, the QIAsphere Base Software has been
updated and the restart has finished. You can continue to configure your QIAsphere Base.
Note:Refer to the Quick start guide or QIAsphere User Manual for more information.
Note:If the QBSP appears misaligned after the update, try clearing your browser cache.

QIAsphere Base Update Installation Guide 08/2022
10
5Updating Q-Base Software 1.1.0
5.1 Finish network connection
To update your QIAsphere Base Software 1.1.0 to 2.4.0, the network connection of the QIAsphere
Base has to be completed first.
Note:If you have already configured your QIAsphere Base network connection, proceed with
section 5.2.
1. On the QBAP login screen, enter the default user name admin and password Qiagen123,
then click Sign in.
Note:If you have forgotten your previously set password, you can perform a factory reset as
described in chapter 6.
2. Change the password as prompted according to the provided password guidelines, then click
Change password.

QIAsphere Base Update Installation Guide 08/2022
11
3. The QBAP home screen is displayed. Select the Network settings menu and proceed with
section 5.1.1 or 5.1.2 to set up wired or wireless network connection.
5.1.1 Wired Ethernet network connection
Most Ethernet networks support automated IP address assignment using DHCP. In some special
cases, networks do not support DHCP. In this case, static IP settings can be configured.
Ethernet connection with DHCP
1. Select the LAN tab of the Network Settings screen.

QIAsphere Base Update Installation Guide 08/2022
12
2. Select DHCP in the LAN Settings tab.
Note:The network settings for QIAsphere Base will be obtained automatically from the DHCP
server. No further input is required. It takes some seconds to get configured and connected.

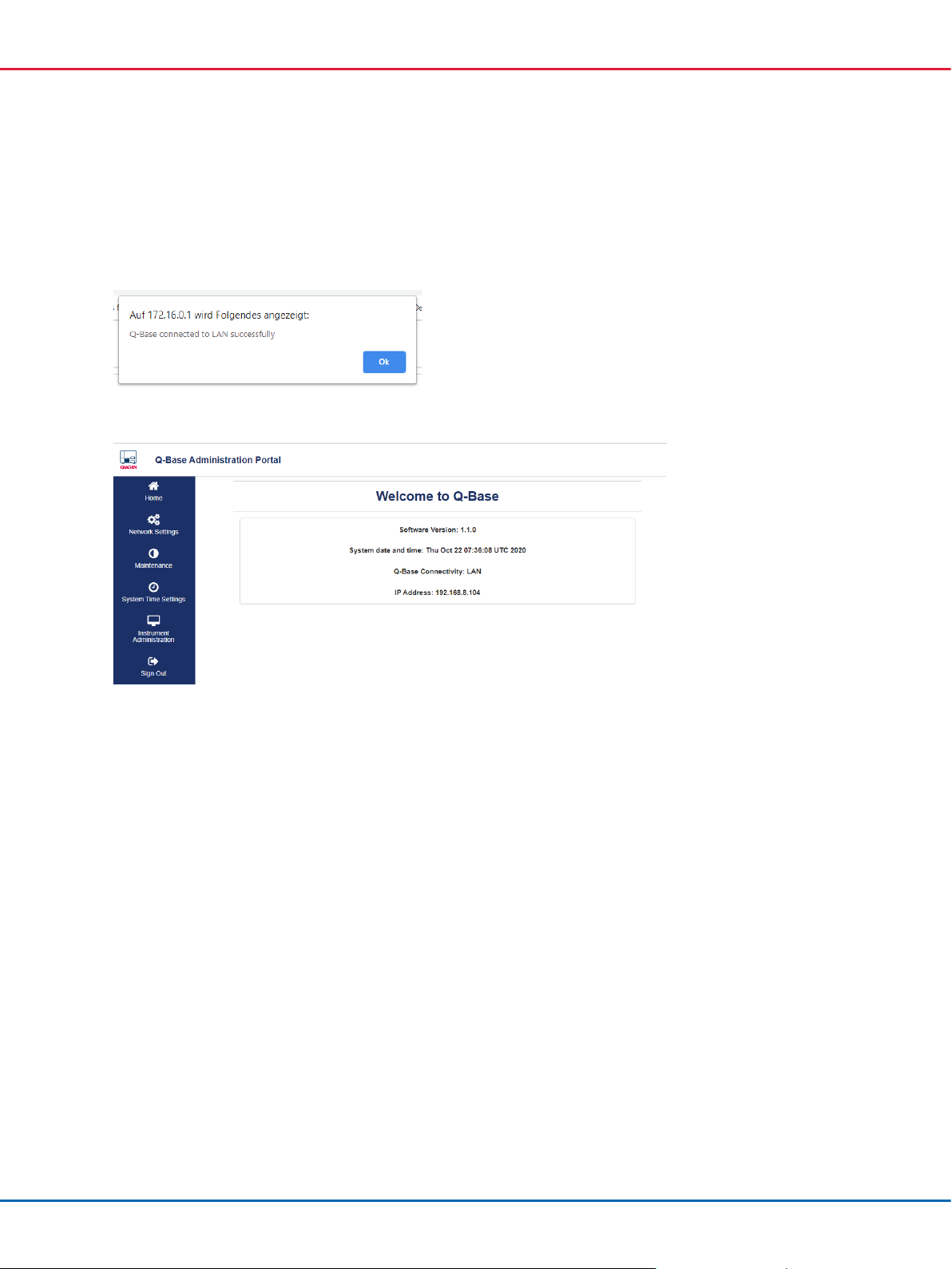

3. A confirmation about successful Q-Base connection appears. Click Ok.
4. You are automatically directed to the QBAP home screen. Note down the QIAsphere Base IP
address, for example, 192.168.8.104.
5. Click Sign out and close the web browser window.
6. Remove the Ethernet cable between PC and QIAsphere Base ETH0 port and proceed with
section 5.2.
Ethernet connection with static IP
If you intend to connect QIAsphere Base to a LAN that does not support automatic assignment of
IP addresses (for example, does not support DHCP), you might consult your IT service desk to
provide additional support and information on IP address, subnet mask, default gateway, and DNS
server for QIAsphere Base.

QIAsphere Base Update Installation Guide 08/2022
13
1. Select the LAN tab of the Network Settings screen.
2. Select Static IP Manual in the LAN Settings tab.
3. Enter the IP address in the IP address field that should be used for the QIAsphere Base.
4. Enter the Subnet mask in the Subnet mask field that should be used for the QIAsphere Base.
5. Optional: Enter the DNS server in the DNS server field.
6. Optional: Enter the IP address of the default gateway in the Default Gateway field.
7. Click Connect.
8. Click Sign out and close the web browser window.
9. Remove the Ethernet cable between PC and QIAsphere Base ETH0 port and proceed with
section 5.2.

QIAsphere Base Update Installation Guide 08/2022
14
5.1.2 Wireless network connection

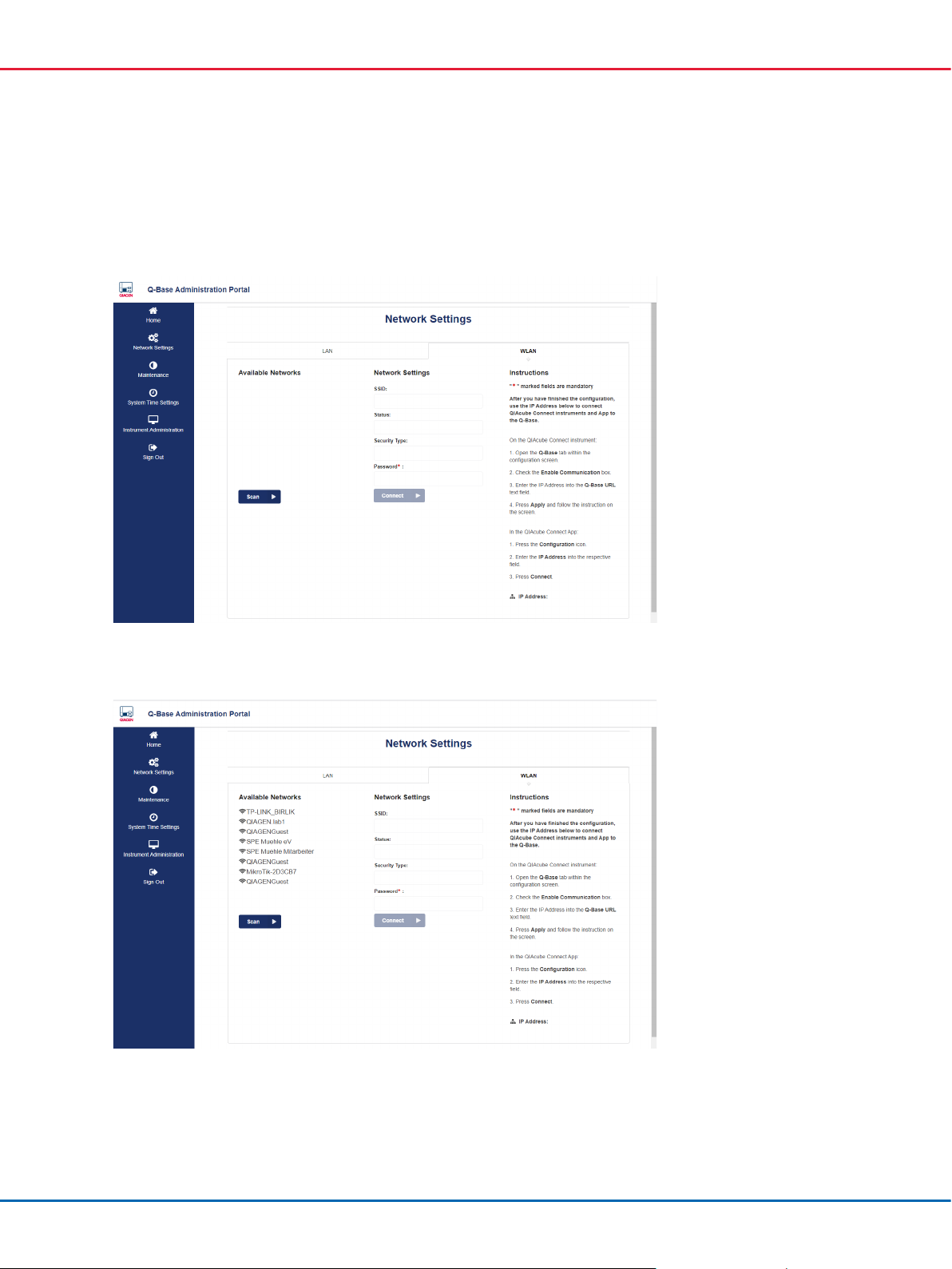

1. To search for available Wi-Fi networks, select the WLAN tab of the Network Settings screen
then click Scan.
2. Select the desired Wi-Fi network from the list of Available networks and enter the Wi-Fi
password in the password field. Click Connect.
Note:The server, SSID, and security type details will be automatically filled.

QIAsphere Base Update Installation Guide 08/2022
15
3. A confirmation about successful Q-Base connection appears. Click Ok.
4. You are automatically directed to the QBAP home screen. Note down the QIAsphere Base IP
address.
5. Click Sign out and close the web browser window.
6. Remove the Ethernet cable between PC and QIAsphere Base ETH0 port and proceed with
section 5.2.
5.2 Installing the software update
When you have connected your QIAsphere Base successfully, proceed with the instructions below.
You need the QIAsphere Base IP Address that was displayed in the QBAP main screen after the
QIAsphere Base has been successfully connected.
In case your QIAsphere Base was already connected before and you are using QIAcube Connect
App, look up the QIAsphere Base IP Address in the bottom-left corner of the QIAcube Connect App
screen.
1. Copy the file Q-Base_Pkg_11_07_2022.zip from the QIAsphere Base Software Update 1.1.0
to 2.4.0 folder of the extracted software update package to an empty USB stick.
Note:The file system of the USB stick must be FAT or FAT32. To check the file system, connect
your USB stick to your PC and open windows file explorer.

QIAsphere Base Update Installation Guide 08/2022
16
Right-click on the USB drive and choose Format. If the File system does not show FAT or
FAT32, select it from the file system dropdown list and click Start. You may want to save your
installed files before, because data on the USB stick will be erased.
2. Make sure your PC is connected to the same local network as the QIAsphere Base is
connected to.
3. Open a web browser (for example, Chrome™ or Mozilla®Firefox) and launch the QBAP by
entering https:// followed by the QIAsphere Base IP address into the address field (example:
https://192.168.8.104).
Note:Use a recent browser. Older browsers (like Internet Explorer®) may not correctly display
all features of QBAP.
Note:QIAsphere Base uses a self-signed certificate for the https connection. Therefore, the
browser may issue a security warning. Ignore the warning or add an exception to access
QBAP.
4. The QBAP login screen appears. Enter user name admin and your self-defined password and
click Sign in.

QIAsphere Base Update Installation Guide 08/2022
17
5. In QBAP, click the System Time Settings menu.
6. Set the correct date, time, and time zone then click Update System Date & Time.
7. A confirmation about successful time and date update appears. Click Ok.
8. If you have been logged out, log in to QBAP again.
9. Click the Maintenance menu.
10. Insert USB stick with the downloaded ZIP file into an available USB port of your QIAsphere
Base.
11. Click Mount USB.
12. A confirmation that USB drive is successfully mounted appears. Click Ok.
13. Click Update System.

QIAsphere Base Update Installation Guide 08/2022
18
14. The software is now updating. This will take about 10 minutes.
15. When message appears that the update was successful, click Ok.
16. Close the browser.
17. Remove the USB stick.
18. QIAsphere Base will automatically restart.
19. When the USER 1 or USER 2 LED are switched on, the QIAsphere Base Software has been
updated and the restart has finished. You can continue to configure your QIAsphere Base.
Note:Refer to the QIAsphere Quick-Start Guide or QIAsphere User Manual for more
information.

QIAsphere Base Update Installation Guide 08/2022
19
6Optional: QIAsphere Base Factory Reset
In case you have used the QIAsphere Base before and you do not remember the self-defined
password, you can set the QIAsphere Base back to factory settings.
1. Make sure no dongle is attached to the QIAsphere Base.
2. Plug in the QIAsphere Base power cord to turn it on.
3. Wait for at least one minute
4. Open the service panel and press and hold the Factory Reset button for 10 seconds.

QIAsphere Base Update Installation Guide 08/2022
20
7Version History
Document Date Description
HB-2847-002 August 2022 Update to QIAsphere Base
Version 2.4.0
HB-2847-001 December 2020 Initial Release of QIAsphere
Base Update Installation Guide
