1Installation And Operation Manual For DTPO610VC
Forward this manual to all operators. Failure to operate this equipment as directed may cause injury.
INSTALLATION AND OPERATION MANUAL
TWO POST LIFT
MODEL NO.
DTPO610VC
Lifting Capacity：4.5T/10000lbs
Lifting Height：71in/1800mm
Motor：2.2kw./3hp
Keep this operation manual near the machine at all times. Make sure
that ALL USERS read this manual.
SHIPPING DAMAGE CLAIMS
When this equipment is shipped, title passes to the
purchaser upon receipt from the carrier. Claims for
the material damaged in shipment must be made by
the purchaser against the transportation company at
the time shipment is received.
BE SAFE
Your new lift was designed and built with safety in
mind. However, your overall safety can be increased
by proper training and thoughtful operation on the
part of the operator. DO NOT operate or repair this
equipment without reading this manual and the
important safety instructions shown inside.

2Installation And Operation Manual For DTPO610VC
TWO POST HYDRAULIC LIFT
This instruction manual has been prepared especially for you.
Your new lift is the product of many years of our continuous research, testing and development
and is the most technically advanced lift on the market today.
READ THIS ENTIRE MANUAL BEFORE OPERATION BEGINS
RECORD HERE THE FOLLOWING INFORMATION
WHICH IS LOCATED ON THE NAMEPLATE
FOR OUR FOLLOW-UP SERVICE
Serial No.
Model No.
Manufacturing Date
WARRANTY
Your new lift is warranted for one years on equipment structure; one year on all operating components
to the original purchaser, to be free of defects in material and workmanship.
The manufacturer shall repair or replace at their option for this period those parts returned to the
factory freight prepaid which prove upon inspection to be defective.
This warranty does not extend to defects caused by ordinary wear, abuse, misuse, shipping damage,
or lack of required maintenance.

3Installation And Operation Manual For DTPO610VC
This warranty is exclusive and in lieu of all other warranties expressed or implied. In no event shall
the manufacturer be liable for special, consequential or incidental damages for the breach or delay in
performance of the warranty. The manufacturer reserves the right to make design changes or add
improvements to its product line without incurring any obligation to make such changes on product
sold previously.
Warranty adjustments within the above stated policies are based on the model and serial number of
the equipment. This data must be furnished with all warranty claims.
PARTS INVENTORY
PART(S)
DESCRIPTION
QTY.
WHERE USED
CHECK
Lift Pads
4
Lift Pads for Arms
3″Lift Pads
Adapters
4
For Lift Pad Extensions
6″Lift Pads
Adapters
4
For Lift Pad Extensions
Fixing Pin
4
To link the Lifting Arm and
Carriage
Balancing Cables
2
Equalize Carriages
Expansion Bolt
12
To concrete Columns
Tee
1
Fixed on the Oil Cylinder
Thread connected
inside
1
Fixed on the Oil Cylinder
Varying-thread
1
Fixed on the Power Unit
Limit Switch (with wire)
1
Fixed on the Overhead Beam
Enclosure
2
Lock the Switch
Plastic Lid
2
Fixed on the Sliding Carriage
B-Type Clap
8
Used for the Safety Shaft and
Steel
Cable Pulley
Locking Block（with
handle）
1
Fixed on Powerside
Column
Locking Block
（without handle）
1
Fixed on Offside Column
3/8″Hex Bolts And
Hex
Nuts
4
To concrete Enclosure

4Installation And Operation Manual For DTPO610VC
3/8″Hex Nuts
4
To fix Release Steel
Cable
Pulley
3/8″Hex Bolts And
Hex
Nuts
4
To fix Columns and
Overhead
Beam
5/8″Hex Nuts
2
To equalize the cable
5/16″Hex Bolts and
Nuts
4
To fix Power Unit
Oil pipe with 90 degree
elbow
2
Connect the power unit and
oil cylinder
Long, short
each
respectively
3/4″Pin
2
To fix Unlock Block
Spring
2
To fix Unlock Block
Oil cylinder
2
Fixed inside the column
3/8″Hex Nuts
4
To fix Release Cable
φ2.5 Cable
1
For release
Instruction Manual
1
Instruct operation
Packing List
Hydraulic Power
Unit
1
Powerside Column
1
Power side Column with
Carriage,
Cable, and Cylinder
Offside Column
1
Offside Column with
Carriage
Cable, and Cylinder
Coverplate / Floorplate
1
With limit switch and wire
Lift Arms
4
Before installation, first check whether every element is in perfect condition.

5Installation And Operation Manual For DTPO610VC
INTRODUCTION
1. Carefully remove the crating and
packing materials. CAUTION! Be careful when
cutting steel banding materials as items may
become loose and fall causingpersonal harm and
injury.
2. Inspect the lift for any signs of concealed
shipment damage or shortages. Remember to
report any shipping damage to the carrier and
make a notation on the delivery receipt.
3. Check the voltage, phase and proper amperage
requirements for the motor shown on the motor
plate. Wiring should be performed by a certified
electrician only.
IMPORTANT SAFETY INSTRUCTIONS
Read these safety instructions entirely
1. READ AND UNDERSTAND all safety
warning procedures before operating lift.
2. KEEP HANDS AND FEET CLEAR.
Remove hands and feet from any moving parts.
Keep feet clear of lift when lowering. Avoid
pinch points.
3. KEEP WORK AREA CLEAN.
Cluttered work areas invite injuries.
4. CONSIDER WORK AREA
ENVIRONMENT. Do not expose equipment to
rain. DO NOT use in damp or wet locations.
Keep area well lighted.
5. ONLY TRAINED OPERATORS
should operate this lift. All non-trained
personnel should be kept away from
work area. Never let non-trained
personnel come in contact with, or
operate lift.
operator from electric shock. Never connect the
green power cord wire to a live terminal. This is
for ground only.
13. DANGER! The power unit used on this lift
contains high voltage. Disconnect power at
the receptacle before performing any
electrical repairs. Secure plug so that it
cannot be accidentally plugged in during
service.
14. WARNING! RISK OF EXPLOSION.
This equipment has internal arcing or sparking
parts which should not be exposed to flammable
vapors. This machine should not be located in a
recessed area or below floor level. 15.
MAINTAIN WITH CARE. Keep lift clean for
better and safe performance. Follow manual for
proper lubrication and maintenance instructions.
Keep control handles and/or
6. USE LIFT CORRECTLY. Use lift in the
proper manner. Never use lifting adapters other
than what is approved by the manufacturer. 7.
DO NOT override self-closing lift controls. 8.
REMAIN CLEAR of lift when rising or
lowering vehicle.
9. CLEAR AREA if vehicle is on danger of
falling.
10. ALWAYS ENSURE that the safeties are
engaged before any attempt is made to
work on or near vehicle.
11. DRESS PROPERLY. Non-skid steel -
toe footwear is recommended when
operating lift.
12. GUARD AGAINST
ELECTRIC
SHOCK. This lift must be grounded while in use
to protect the
buttons dry, clean and free from grease and oil.
16. STAY ALERT. Watch what you are doing.
Use common sense. Be aware.
17. CHECK FOR DAMAGED PARTS.
Check for alignment of moving parts, breakage
of parts or any condition that may affect its
operation. Do not use lift if any component is
broken or damaged.
18. NEVER remove safety related components
from the lift. Do not use lift if safety related
components are damaged or missing.

6Installation And Operation Manual For DTPO610VC
THIS SYMBOL POINTS OUT IMPORTANT SAFETY INSTRUCTIONS，
WHICH，IF NOT FOLLOWED，COULD ENDANGER THE PERSONAL
SAFETY AND/OR PROPERTY OF YOURSELF AND OTHERS AND MAY
CAUSE PERSONAL INJURY OR DEATH. READ AND FOLLOW ALL
INSTRUCTIONS IN THIS MANUAL BEFORE ATTEMPTING TO OPERATE
THIS MACHINE.
TOOLS REQUIRED
● Percussion Drill
● Monkey Wrench (350mm)
● Masonry Bit(16mm)
● Crow Bar
● Hammer
● Chalk Line
● Gradienter
● Flat Screwdriver
● Open-End Wrench Set(8mm ～25mm)
● Tape Measure(5m)
● Square
● Needle Nose Pliers
IMPORTANT NOTICE
Do not attempt to install this lift if you have never been trained on basic automotive lift installation
procedures. Never attempt to lift components without proper lifting tools such as forklift or cranes.
Stay clear of any moving parts that can fall and cause injury. These instructions must be followed to
ensure proper installation and operation of your lift. Failure to comply with these instructions can
result in serious bodily harm and void product warranty. Manufacturer will assume no liability for
loss or damage of any kind, expressed or implied resulting from improper installation or use of this
product.
PLEASE READ ENTIRE MANUAL PRIOR TO INSTALLATION.

7Installation And Operation Manual For DTPO610VC
STEP 1
( Selecting Site)
Before installing your new lift, check the following:
1. LIFT LOCATION: Always use architects plans
when available. Check layout dimension against
floor plan requirements making sure that
adequate space is available.
2. OVERHEAD OBSTRUCTIONS: The area
where the lift will be located should be away
from overhead obstructions such as heaters,
building supports, electrical lines etc.
3. DEFECTIVE FLOOR: Visually inspect the site
where the lift is to install and check for cracked
or defective concrete.
STEP 2
( Floor Requirements )
This lift must be installed on a solid, even concrete
floor with less than 3-degrees of slope, consider a
survey of the site and/or the possibility of pouring a
new level concrete slab
WARNING
"DO NOT install this lift on any asphalt surface or
any surface other than concrete.
"DO NOT install this lift on expansion seams or
on cracked or defective concrete.
"DO NOT install this lift on a second / elevated
floor without first consulting building architect.
"DO NOT install this lift outdoors unless special
consideration has been made to protect the
power unit from climate weather conditions.
NOTE
All models MUST be installed on 2500 PSI
concrete only conforming to the minimum
requirements shown above. New concrete must
be adequately dried by at least 28 days.

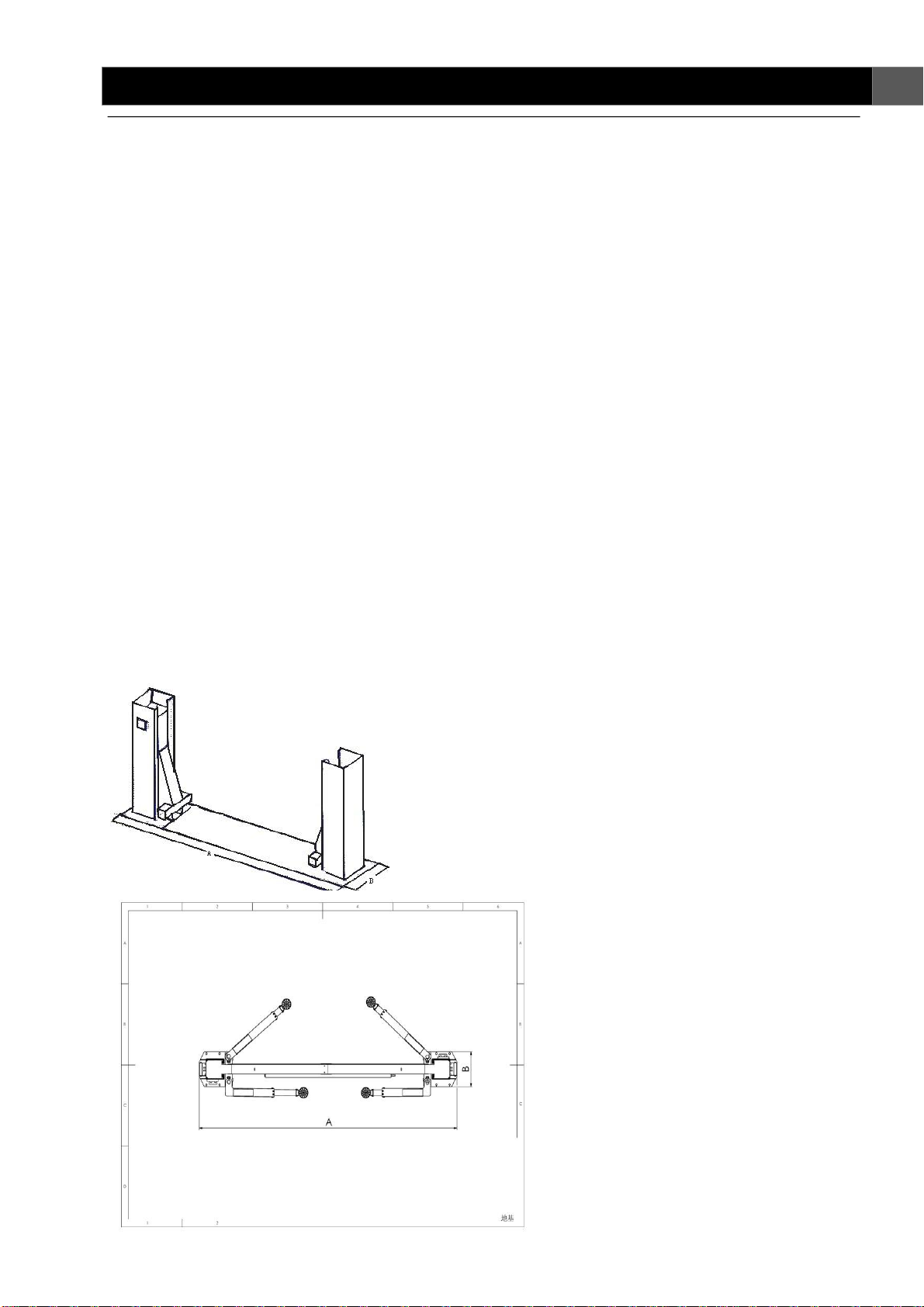

Model No.: DTPO610VC
A145″/3686mm
B17″ /432mm
STEP 3
(Site Layout)
1. Determine which side will be the approach site.
2. Now determine which side you prefer the power
unit to be located on. The POWERSIDE column
has the power-unit mounting bracket attached to
the side. (See diagram above for power unit
location)
3. Once a location is determined, use a carpenter’s
chalk line to layout a grid for the post locations.
Keep all dimensions and squareness within
1/8”or malfunctioning of the lift will occur.
4. After the post locations are properly marked, use
a chalk or crayon to make an outline of the posts
on the floor at each location using the post
baseplates as a template.
5. Check all dimensions twice and make sure that
the layout is perfectly correct.
6. Before continuing with the installation it is
helpful to stand the posts up at their respective
locations and get a visual of the shop, aisles and
other clearances. Also, this is a good time to
drive a vehicle into position and check for
adequate clearance
STEP 4
( Installing The POWERSIDE Column )
1. Before proceeding, double check measurements
and make certain that the bases of each column
are square and in line with the chalk line.
SOLEPLATE LAYOUT

8Installation And Operation Manual For DTPO610VC
2. Using the baseplate on the POWERSIDE column
as a guide, drill each anchor hole on the concrete
approximately 7-1/2” deep using a Percussion
Drill and 3/4” concrete drill-bit. To assure full
holding power, do not ream the hole or allow the
drill to wobble. ( See Fig. 1 )
3. After drilling, remove dust thoroughly out of
each hole using compressed air and/or wire
brush. Make certain that the column remains
anchor bolts are tightened, the columns will be
plumb. ( See Fig. 3 )
aligned with the chalk line during this process.
4. Assemble the washers and nuts on the anchors
then tap into each hole with a hammer until the
washer rests against the baseplate. Be sure that
if shimming is required that enough threads are
left exposed. ( See Fig. 2 )
5. If shimming is required, insert the shims as
necessary under the baseplate so that when the

9Installation And Operation Manual For DTPO610VC

10Installation And Operation Manual For DTPO610VC
6. With the shims and anchor bolts in place, tighten
by securing the nut to the base then turning 2 -3
full turns clockwise. DO NOT use an impact
wrench for this procedure. ( See Fig.
4 )
STEP 5
(Mounting The OFFSIDE column)
Position the OFFSIDE column at the designated
chalk locations and secure to the floor following the
same procedures as outlined in STEP FOUR.
NOTE:
To ease installation of the top beam on
CLEARFLOOR models, it helps to keep the
anchor bolts loose on one of the columns until
the top beam is mounted.
STEP 6
(Mounting the OVERHEAD BEAM.)
Using a lifting device, raise the OVERHEAD beam
in position ontop of the columns. Bolt to the columns
using the 3/8” x 40 Hex Bolts, Nuts and Washers. (
See Fig. 5 ) NOTE: Limit Switch is on side of
the Powerside Column.
STEP 7
( Mounting The HYDRAULIC POWER UNIT )
Attach the power unit to the POWERSIDE
COLUMN using four 5/16" hex bolts and lock nuts
supplied. Fill the reservoir with 3.5 gallons 10 L.
HYDRAULIC OIL OR DEXRON TYPE III ATF.
Make sure the funnel used to fill the power unit is
clean. (NOTE：The hydraulic oil must be clean, if
not ,the filtrated oil is needed. Or it may cause
damage to power unit and jam to hydraulic cylinder.
( See Fig. 6 )

11Installation And Operation Manual For DTPO610VC
are fully engaged before attempting to route equalizer
cables. Carriages must be equal height from the floor
before proceeding.
3. With the carriages in equal position from the floor,
route the equalizer cables as shown below. ( See Fig.
10&11)
4. After the equalizer cables have been routed. Adjust
each cable so that they are of equal tension
STEP 8
( Routing The EQUALIZER CABLES )
Route the equalizer cables on each column(See
Fig. 7 & 8 ). Adjust each cable so that they are of
equal tension.

12Installation And Operation Manual For DTPO610VC
1. Raise and lock each carriage approximately 28” above
the ground. ( See Fig.9)
2. Make sure that the safety locks on each column

13Installation And Operation Manual For DTPO610VC
STEP 9
(Installing The Hydraulic Lines)
Install the hydraulic lines as shown below, paying
careful attention to keep the hoses clean and free of
impurities. (See Fig. 12~15)

14Installation And Operation Manual For DTPO610VC
NOTE
1. When routing the hydraulic hose through the
columns, make sure to route through the retaining
rings welded inside each column.
2. Make sure that the hose is clear of any moving
parts.
3. It may be necessary to tie hose clear by using
Nylon tie straps or wire. Failure to keep
hydraulic lines clear may result in hydraulic
line failure which may further result in
damage or personal harm.
IMPORTANT NOTE:
When installing hydraulic fittings and hoses
it is not necessary to use Teflon tape or other
sealant. Teflon tape and other sealing
compounds can contaminate the system and
cause malfunctioning of lift.
STEP 10
(Installing Overhead Limit Switch)
Install the overhead Limit switch as shown below.
AQUALIFIED ELECTRICIAN. ( See Fig. 16)
STEP 11
(Installing the Power Unit)
The standard power unit for your lift is 220 volt,
50HZ and single phase. All wirings must be
performed by qualified electricians only. SEE
WIRING INSTRUCTIONS ATTACHED ON
MOTOR FOR PROPER WIRING

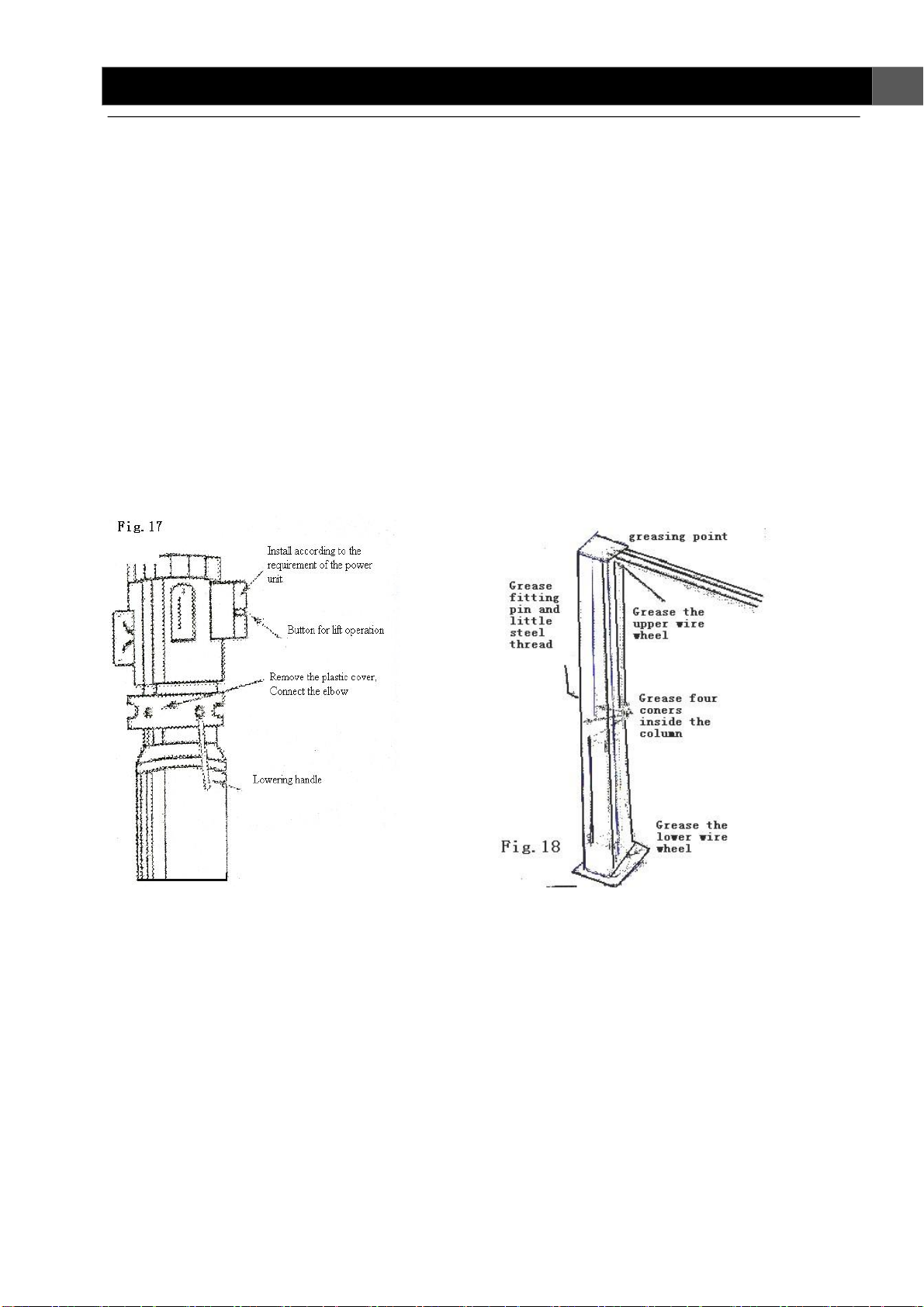

INSTRUCTIONS. ( See Fig. 17)
IMPORTANT INSTALLATION NOTES
●DO NOT run power unit without oil.
Damage to pump can occur.
●The power unit must be kept dry.
Damage to power unit caused by water or
other liquids such as detergents, acid etc.,
is not covered under warranty.
●Improper electrical hook-up can damage
motor and will not be covered under
warranty.
●Motor can not run on 50HZ without a
physical change in motor.
●Use a separate breaker for each power
unit.
Protect each circuit with time delay fuse or
circuit breaker.
Be sure to keep wire clear of moving parts.
WIRING MUST BE PERFORMED BY

15Installation And Operation Manual For DTPO610VC
WARNING
RISK OF EXPLOSION!! This equipment has
internal arcing or sparking parts that should not be
exposed to flammable vapors. Motor should not be
located in a recessed area or below floor level.
TRIAL RUNNING AND EXHAUSTING AIR
1. Connect circuit, fill up with lubricate, press down
power unit button. The lift raises and cylinder
begins to work.
2. Let the lift climb to the maximum height. DO
NOT press the button if the lift rises to the
maximum height, or it may result in power unit
damage.
3. Keep 5-6 seconds after the maximum height.
4. Withdraw the release cable; press the lowering
handle to lower the lift.
5. Repeat the following course.
WARNING
During the whole lifting operation, observe all the
operational units to check the correctness of
operation. DO NOT lift vehicle when there is
improperness.
GREASING
After trial run, grease (using supramoly) the lift as
described below. (See Fig. 18)

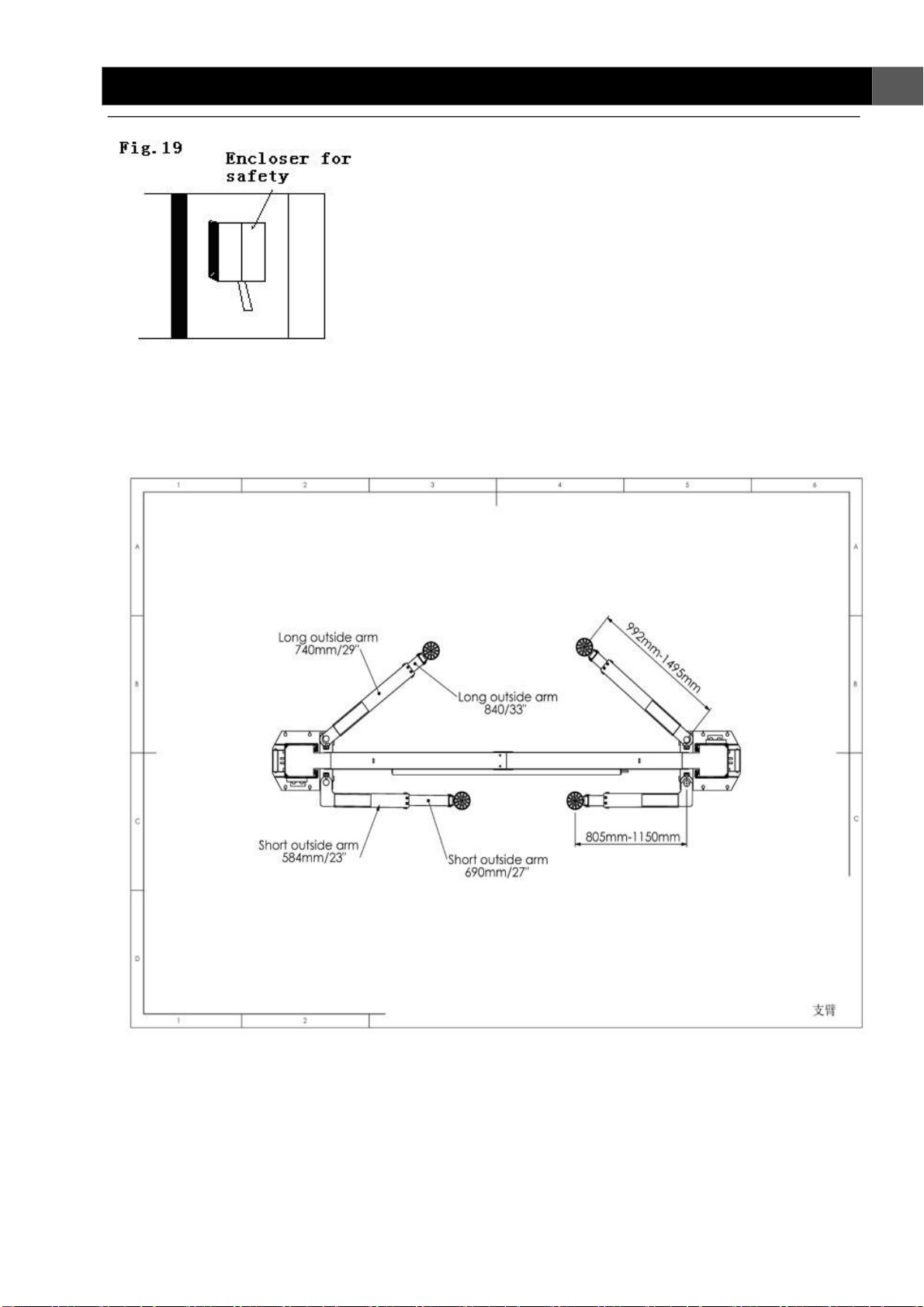

following figure. (See Fig.19)
STEP 12
(Installing the Encloser)
After installing of Locks and Release Device, fit
the shield (encloser) according to the

16Installation And Operation Manual For DTPO610VC
STEP 13
(Installing Swing Arms.)
1. Install swing arms as described below.
Lubricate the carriage tube and all pivot point
and pins prior to installation.

17Installation And Operation Manual For DTPO610VC

18Installation And Operation Manual For DTPO610VC
WARNING

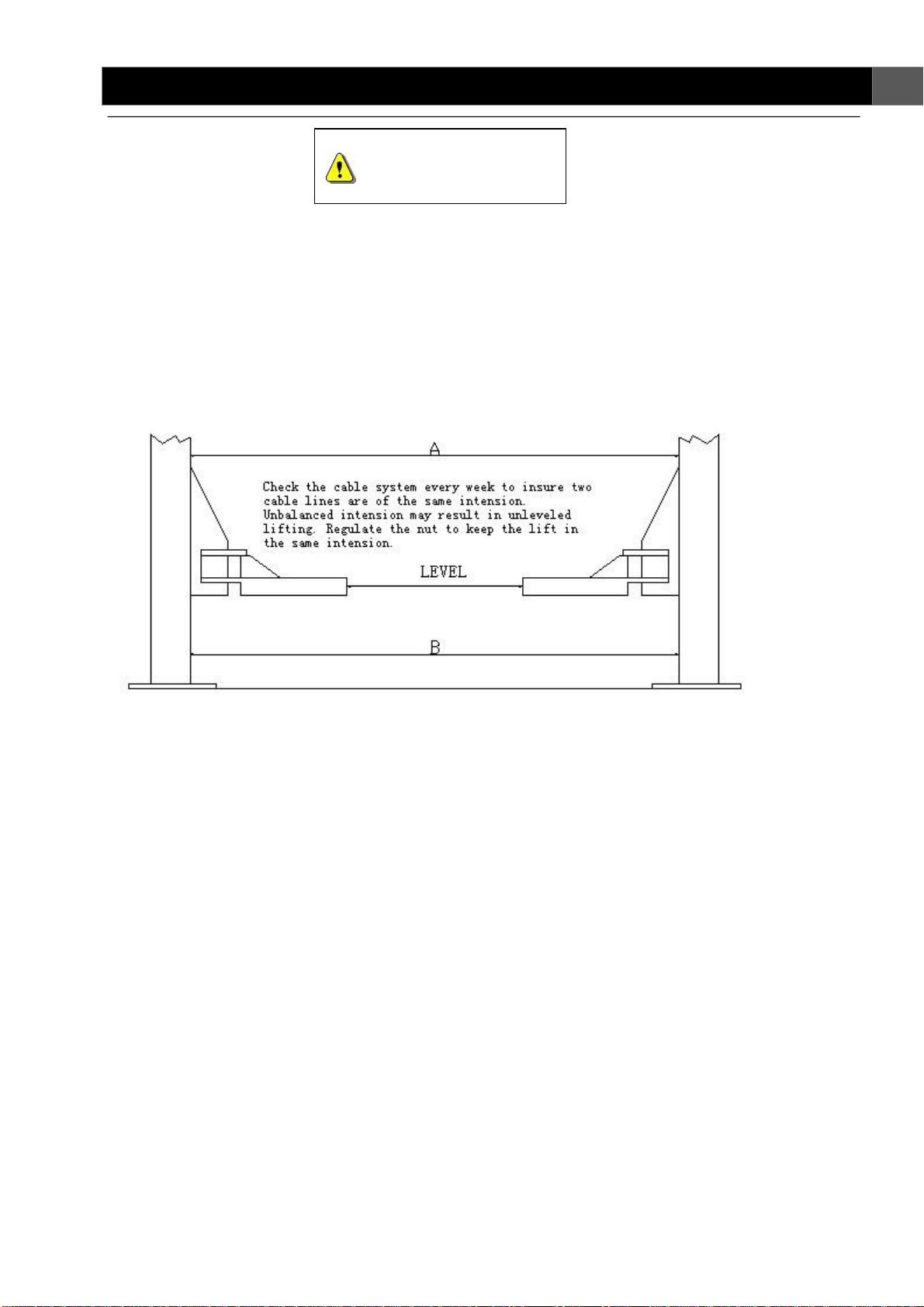

IMPORTANT LEVELING INSTRUCTIONS
Before operating your lift, Make sure that both “A” and “B” measurements are EQUAL The
swing arms must be Level before operation
Maximum of tolerance is 5mm. If your swing arms are not leveled,
Wedge the columns as required.
TO RAISE LIFT
●Read Installation and operating manuals (this manual) before using the lift.
●Always lift a vehicle according to the manufacturer’s recommended lifting points.
●Position vehicles between columns.
●Adjust swing arms so that the vehicle is positionedwith the center-of-gravity midway between pads.
●Use truck adapters as needed. Never exceed 9″ of pad height.
●Raise lift by pressing down button until supports contact the bottom of the vehicle. Re-check to
make sure that the vehicle is secure.
●Raise vehicle to desired working height. Lower the vehicle into the safest position.
TO LOWER LIFT
●First, raise the lift to the clear safeties.
●Raise safeties by pulling handles on each column.

19Installation And Operation Manual For DTPO610VC
●Make sure that tool trays, stands or persons are removed or evacuated from under vehicle. ●
Lower vehicle by activating lowering handle.
●Before removing vehicle from lift area, position the lift arms and the supports to provide an
unobstructed exit. ●NEVER, drive over lift arms.
REQUIRED MONTHLY UPKEEP
●Check arm restrains for proper operation.
●Check all chain/cable connections, bolts and pins to ensure proper mounting.
●Visually inspect safeties for proper operation.
●Lubricate columns with grease.
●Inspect all anchor bolts and retighten if necessary.
●Check columns for squareness and erectness.
●Inspect all arm pivot pins to make sure that they are all properly secured.
●Check the tensions of equalizer cables, adjust if necessary.
●Inspect all lift pads, replace if necessary.
●If lift is equipped with overhead cut-off switch, check for proper operation.
WARNING
1. If cement anchor bolts are loose, or any component of the lift is found to be defective, DO NOT USE
LIFT.
2. Never operate the lift with any person or equipment below.
3. Never exceed rated capacity.
4. Always ensure that safeties are engaged before any attempt to work on or near the lift.
5. Never leave lift in an elevated position unless the safeties are engaged.
6. Do not permit electric motor to be damp! Motor damage caused by dampness is not covered under
the warranty.
NEVER LIFT ANY VEHICLE IN ANY MANNER WITH LESS THAN FOUR (4) ARMS.
RATED CAPACITY OF EACH LIFT ARM IS NOT GREATER THAN ONE FOURTH (1/4)
OF THE OVERALL LIFTING CAPACITY.

20Installation And Operation Manual For DTPO610VC
LIFT WILL NOT RAISE
