Qiyang QY-RK3288S User manual

QY-RK3288S Hardware Manual
Ver.: 1.0
2017.10
Qiyang Intelligent Technology Co., Ltd
Copyright Reserved

QY-RK3288S Embedded Mainboard Hardware Manual
Any question, please send E-mail :[email protected] Page 2 of 21
Sales E-mail :[email protected]om; [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
Version Update
Version
Hardware
Description
Date
Reviser
1.0
QY-RK3288S
Internal release
2017-10
wwx

QY-RK3288S Hardware Manual
Any question, please send E-mail :[email protected] Page 3 of 21
Sales E-mail :[e-mail]; [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
Catalogue
Notice: This manual mainly introduce hardware interface of the mainboard.........4
I. Preface........................................................................................................................4
1.1 Company Profile................................................................................................4
1.2 Suggestion for using QY-RK3288S mainboard................................................4
Ⅱ. System Composition................................................................................................5
2.1 Chip Summary...................................................................................................5
2.2 Mainboard Resource..........................................................................................8
III. Interface Functions...............................................................................................9
3.1 Basic Interface Function Description:.............................................................10
3.2 Interface pin definition.................................................................................... 11
IV. Mainboard Function Illustraion ........................................................................18
V. Structure & Size Chart.........................................................................................18
Ⅵ. Software Description...........................................................................................19
Ⅶ. Remark.................................................................................................................19

QY-RK3288S Hardware Manual
Any question, please send E-mail :[email protected] Page 4 of 21
Sales E-mail :[e-mail]; [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
Notice: This manual mainly introduce hardware interface of the mainboard
I. Preface
1.1 Company Profile
Zhejiang Qiyang Intelligent Technology Co., Ltd. locates at the bank of the
beautiful West Lake. It is a high and new technology enterprise which is specializing
in R&D, manufacture and sell embedded computer main board with high
performance, low power consumption, low cost, small volume, and provides
embedded hardware solutions.
We Offer:
◆Research & develop, manufacture and sell embedded module products which
have independent intellectual property rights, and cooperate with TI, ATMEL, Cirrus
Logic, Freescale, and other famous processor manufacturers. It has launched a series
of hardware products, such as ARM development board, ARM core module, ARM
industrial board, sound/video decoding transmission platform, supporting tools and
software resources which support user for their next embedded design.
◆We give full play to the technical accumulation in ARM platform and Windows
CE, Linux, Android operating system for many users providing custom service
(OEM/ODM), to realize embedded products into the market stably, reliably and
quickly.
1.2 Suggestion for using QY-RK3288S mainboard
1. Please read the instructions firstly before using the single board computer;
2. Before using, please check the packing list and see whether there is a missing
file in the CD;

QY-RK3288S Hardware Manual
Any question, please send E-mail :[email protected] Page 5 of 21
Sales E-mail :[e-mail]; [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
3. Please understand the basic structure and composition of QY-RK3288S,
including the hardware resource allocation etc.;
4. If you need to develop on Android system and burn program into the
development board, in addition to this document, we also suggest reading another
document QY-RK3288S Android User Manual;
5. QY-RK3288S is available for batch order.
Ⅱ. System Composition
2.1 Chip Summary
QY-RK3288S embedded mainboard, adopts RockChip RK3288 processor,
Cortex-A17 Quad Core with 1.8G Hz and integrates Mali-T764 GPU to support
AFBC(Frame Buffer Compression). And also support OpenGL ES1.1/2.0/3.0;
OpenVG1.1; OpenCL; Directx11, which could achieve the Video Hard Decoding for
H.264(4K*2K) and H.265(10 bits) Videos.
QY-RK3288S embedded mainboard not only has the powerful RockChip
RK3288 processor with 1.8GHz, but also has the high-speed storage of 2GB DDR3
and 8GB eMMc. Meanwhile, QY-RK3288S adopts the independent power
management unit; has the rich display interface; and completely support Android 5.1
OS.

QY-RK3288S Hardware Manual
Any question, please send E-mail :[email protected] Page 6 of 21
Sales E-mail :[e-mail]; [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
QY-RK3288S embedded mainboard has abundant extended interfaces, and the
PCB adopts 8-layer immersion gold processor, with excellent electrical
characteristics, antijamming capability and well stability.

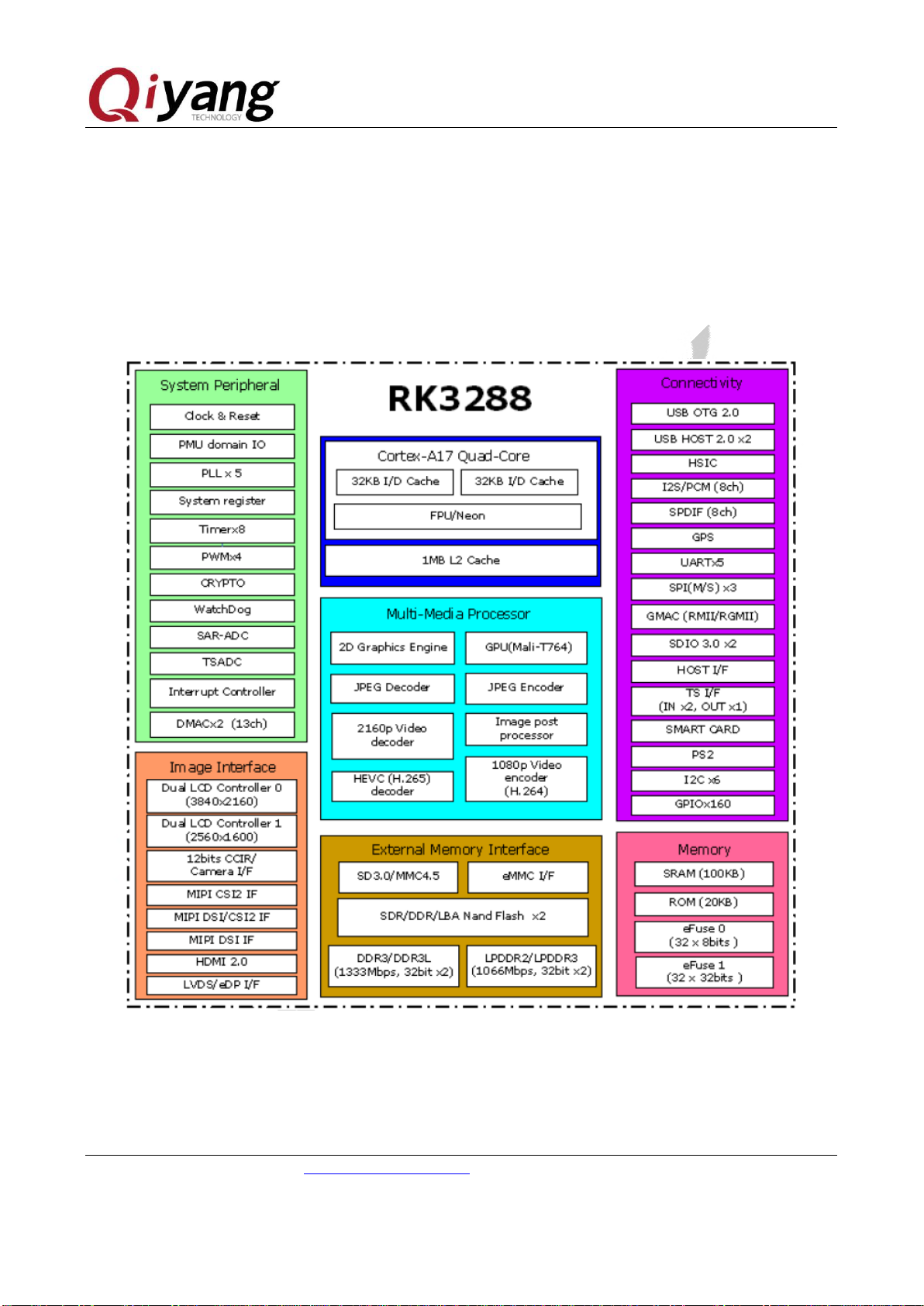

Function diagram is as shown:
◆Quad Core Cortex-A17, CPU frequency reaches 1.8GHz;
◆Mali-T764 GPU, support AFBC(Frame Buffer Compression);

QY-RK3288S Hardware Manual
Any question, please send E-mail :[email protected] Page 7 of 21
Sales E-mail :[e-mail]; [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
◆Support OpenGL ES 1.1/2.0/3.1, OpenCL, DirectX9.3;
◆Built-in the high-performance 2D acceleration hardware;
◆Dual-channel 64bit DDR3-1333/DDR3L-1333/LPDDR2-1066;
◆Support MLC NAND Flash, eMMC 4.51;
◆Support 4K 10bits VP9/H265/H264 video decoding, speed reaches 60fps;
◆1080P Multi-format video decoding (VC-1, MPEG-1/2/4, VP8)；
◆1080P video coding, support H.264, VP8 format;
◆Video post-processor: anti-cross, de-noising, edge/detail/color optimization;
◆Support RGB, Dual LVDS, Dual MIPI-DSI, eDP display interfaces, resolution
reaches 3840*2160;
◆ARM TrustZone (TEE), Secure Video Path, Cipher Engine, Secure boot;
◆Built-in 13M ISP, support MIPI CSI-2 and DVP interface;
◆Dual-channel SDIO 3.0 interface;
◆TS in/CSA2.0, support DTV function;
◆Integrate with HDMI、Ethernet MAC 、S/PDIF、USB,I2C,I2S ,UART,SPI,PS2;
◆28nm integrated circuits technology;
◆Independent power management unit;

QY-RK3288S Hardware Manual
Any question, please send E-mail :[email protected] Page 8 of 21
Sales E-mail :[e-mail]; [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
2.2 Mainboard Resource
Hardware Resources
CPU
RockChip RK3288 processor, Cortex-A17 Quad Core,
Frequency reaches 1.8GHz
GPU
Mali-T764 GPU, Support AFBC(Frame Buffer Compression)
RAM
DDR3 SDRAM，4*256MB, Total 2GB.
Flash
8GB EMMC
Network
AR8035 Network Chip, adopts RGMII mode, perfectly support
10M/100M/1000M, ethernet interface adaptable
Communicati
on
5-ch RS232, 1 port as the debug UART, 4 ports as RS232
1-ch high speed USB OTG, 4-ch USB HOST
1-ch 10/100/1000Mbps industrial Ethernet port, with
ACT/LINK indicator
onboard WIFI&BT module
Display
1-ch dual channel LVDS interface, support 30Bit HDMI
interface,
support HDMI2.0, resolution reaches 4Kx2K@60Hz
Input
Standard I2C Capacitive panel interface
Expansion
Interface
SIM card slot
Memory
Interface
1-ch TF card slot
Others
Reset circuit, RTC
Power Input
+12V power supply, can support +9V~+16V wide range voltage
supply
resources
Development
Tools
Development environment: Virtual Machine
VM9.0.2+ubuntu14.04
Application layer development debug tool
Cross-compiler
Common terminal development debugging tool
Image File
Provide OS image burning file, support multiple resolution
display
Test Program
Interface using demo test program APK
Source Code
Android 5.1 source code, test APP source code
Manual
Mainboard User Manual, mainboard Device Manual
Mechanical
mainboard’s Structure & Size

QY-RK3288S Hardware Manual
Any question, please send E-mail :[email protected] Page 9 of 21
Sales E-mail :[e-mail]; [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
Chart
Electrical specification
Size
156mm*106mm
Layer
8-layer high precision immersion gold process
Power
Consumption
≤3W
Operation
Temperature
-20℃~ +70℃(Could be customized to industrial level
temperature)
Operation
Humidity
5%~95%, Non-Condensing
III. Interface Functions
Picture 2

QY-RK3288S Hardware Manual
Any question, please send E-mail :[email protected] Page 10 of 21
Sales E-mail :[e-mail]; [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
3.1 Basic Interface Function Description:
Lable
Function
J1
Power switch interface
J2
+12V power input interface
J6
4pin USB
J7
4pin USB
J8
mini USB
J9
Gigabit Ethernet
J11
Loudspeaker output
J12
MIC audio input
J13
standard HDMI
J15
MINI-PCIE
J16
LVDS
J17
Backlight power supply interface
J21
MIPI camera interface
J30
Capacitive touch(I2C&GPIO)
J31
2*6 GPIO
J35
KEY
J40
UART 3（3PIin RS232）
J41
UART 1（3PIin RS232）
J42
UART 0（3PIin RS232）
J43
UART 4（3PIin RS232）
J44
Debug UART（3PIin RS232）
J45
Reserved power supply interface

QY-RK3288S Hardware Manual
Any question, please send E-mail :[email protected] Page 11 of 21
Sales E-mail :[e-mail]; [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
J47
Antenna interface
U21
TF card slot
BT1
RTC power supply(+3.0V)
SW1
Restore( for burning)
SW2
System reset button
SW5
Power reset button
3.2 Interface pin definition
J6: 4Pin USB interface
PIN
Signal Name
1
+5.0VD
2
USB3_D-
3
USB3_D+
4
GND
J7: 4Pin USB interface
PIN
Signal Name
1
+5.0VD
2
USB4_D-
3
USB4_D+
4
GND
J11: Loudspeaker output
PIN
Signal Name
1
VO-
2
VO+

QY-RK3288S Hardware Manual
Any question, please send E-mail :[email protected] Page 12 of 21
Sales E-mail :[e-mail]; [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
J12: MIC audio input
PIN
Signal Name
1
MIC_IN1P
2
MIC_IN1N
J15: MINI_PCIE interface
Signal Name
PIN
PIN
Signal Name
4G_WAKEUP_HOST
1
2
VCC_PCIE
NC
3
4
GND
NC
5
6
NC
NC
7
8
SIM_VDD
GND
9
10
SIM_DATA
NC
11
12
SIM_CLK
NC
13
14
SIM_RST
GND
15
16
NC
NC
17
18
GND
NC
19
20
PCIE_DISEN
GND
21
22
PCIE_RST
NC
23
24
VCC_PCIE
NC
25
26
GND
GND
27
28
NC
GND
29
30
NC
NC
31
32
NC
NC
33
34
GND
GND
35
36
HOST1_DM

QY-RK3288S Hardware Manual
Any question, please send E-mail :[email protected] Page 13 of 21
Sales E-mail :[e-mail]; [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
GND
37
38
HOST1_DP
VCC_PCIE
39
40
GND
VCC_PCIE
41
42
GLED
GND
43
44
NC
NC
45
46
NC
NC
47
48
NC
NC
49
50
GND
NC
51
52
VCC_PCIE
J16: LVDS
Signal Name
PIN
PIN
Signal Name
LVDS_D0-
1
2
LVDS_D0+
LVDS_D1-
3
4
LVDS_D1+
LVDS_D2-
5
6
LVDS_D2+
GND
7
8
VDS_CLK0-
LVDS_CLK0+
9
10
LVDS_D3+
LVDS_D3+
11
12
GND
LVDS_D5-
1
2
LVDS_D5+
LVDS_D6-
3
4
LVDS_D6+
LVDS_D7-
5
6
LVDS_D7+
GND
19
20
LVDS_CLK1-
LVDS_CLK1+
21
22
LVDS_D8-
LVDS_D8+
23
24
GND
LVDS_PWM
25
26
LVDS_BLEN
VCC_LVDS
27
28
GND
VCC_LVDS
29
30
VCC_LVDS

QY-RK3288S Hardware Manual
Any question, please send E-mail :[email protected] Page 14 of 21
Sales E-mail :[e-mail]; [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
J17: Backlight power supply interface
PIN
Signal Name
1
VCC_12V0
2
VCC_12V0
3
GDN
4
GND
5
VCC_5V0
6
BL_PWM
J21: MIPI camera interface（30Pin FPC）
PIN
Signal Name
1
NC
2
VCC_28_DVP
3
VCC_12_DVP
4
VCC_18_DVP
5
NC
6
GND
7
AVDD28_DVP
8
GND
9
MIPI_SDA
10
MIPI_SCL
11
MIPI_RST
12
MIPI_PDN
13
GND
14
MIPI_MCLK0

QY-RK3288S Hardware Manual
Any question, please send E-mail :[email protected] Page 15 of 21
Sales E-mail :[e-mail]; [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
15
GND
16
MIPI_RX_D3P
17
MIPI_RX_D3N
18
GND
19
MIPI_RX_D2P
20
MIPI_RX_D2N
21
GND
22
MIPI_RX_D1P
23
MIPI_RX_D1N
24
GND
25
MIPI_RX_CLKP
26
MIPI_RX_CLKN
27
GND
28
MIPI_RX_D0P
29
MIPI_RX_D0N
30
GND
J30: Capacitive touch interface
PIN
Signal Name
1
VCC_IO
2
I2C4_SDA_TP
3
I2C4_SCL_TP
4
TP_RST
5
TP_INT
6
BL_PWM

QY-RK3288S Hardware Manual
Any question, please send E-mail :[email protected] Page 16 of 21
Sales E-mail :[e-mail]; [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
J31: 2*6 GPIO
Signal Name
PIN
PIN
Signal Name
GPIO5_B2_U
1
2
GPIO5_B3_U
GPIO5_B4_U
3
4
GPIO5_B5_U
GPIO5_C0_U
5
6
GPIO5_C1_U
GPIO5_C2_U
7
8
GPIO5_C3_U
GPIO8_A0_U
9
10
GPIO8_A1_U
GPIO8_A2_U
11
12
GPIO8_A3_U
GND
13
14
GND
J35: KEYIO interface
PIN
Signal Name
1
SWLED_PWR
2
KEY_IO
3
GND
J40: UART3 (3Pin RS232)
PIN
Signal Name
1
COM3_TXD
2
COM3_RXD
3
GND
J41: UART1 (3Pin RS232)
PIN
Signal Name
1
COM1_TXD

QY-RK3288S Hardware Manual
Any question, please send E-mail :[email protected] Page 17 of 21
Sales E-mail :[e-mail]; [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
2
COM1_RXD
3
GND
J42: UART0 (3Pin RS232)
PIN
Signal Name
1
COM0_TXD
2
COM0_RXD
3
GND
J43: UART4 (3Pin RS232)
PIN
Signal Name
1
COM4_TXD
2
COM4_RXD
3
GND
J44: Debug UART (3Pin RS232)
PIN
Signal Name
1
DBG_TXD
2
DBG_RXD
3
GND

QY-RK3288S Hardware Manual
Any question, please send E-mail :[email protected] Page 18 of 21
Sales E-mail :[e-mail]; [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
IV. Mainboard Function Illustration
To be completed later.
V. Structure & Size Chart

QY-RK3288S Hardware Manual
Any question, please send E-mail :[email protected] Page 19 of 21
Sales E-mail :[e-mail]; [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
Ⅵ. Software Description
QY-RK3288S provides the software support for Android OS.
The QY-RK3288S User Manual will introduce the QY-RK3288S mainboard’s
setting up and using in Android developing environment. The detailed content could
refer to the relative documentation.
Ⅶ. Remark
1. Before connecting to LCD, please confirm the power specification of LCD
module.
2. Please use the original connecting accessories to avoid damaging the main
board.
3. We ensure offering communication technology support through E-mail,
telephone for lifelong technical support service.
4. We ensure offering 6 months repair service for free, if malfunction occurs in
warranty because of quality problem, contact our retailer or our company with
purchase receipt in warranty period, we will repair or replace it.
5. Under these circumstances, we do not offer repair for free:
●Over warranty time;
●Do not have purchase receipt;

QY-RK3288S Hardware Manual
Any question, please send E-mail :[email protected] Page 20 of 21
Sales E-mail :[e-mail]; [email protected]
Website:http://www.qiytech.com
©2012 Qiyangtech Copyright
●Liquid inlet, Damp or Mold;
●Malfunction and damage is not due to product quality but drops, intense
sharking, arbitrarily modify, disoperation after purchase;
●Damage of force majeure.
6. We reserve intellectual property for the software and hardware technical data of
QY-RK3288S; users can only use them for teaching, testing, researching. Shall not be
engaged in any commercial purpose. Shall not distribute them on the Internet. Shall
not intercept, modify them to tamper copyright.
7. We accept batch order; we can offer comprehensive technical support and
service.
