Qlogic SBPSFANBF Parts list manual

SN0054679-00 A 1
*SN0054679-00 A*
Replacement Guide
Fibre Channel Switch Power Supply
5000 Series, Dual Power Supply Models
CAUTION
Both power supplies must have the same air flow direction to prevent the switch from
overheating.
To avoid overheating, do not operate the switch with one power supply any longer than
necessary.
!WARNING
This is a class A product. In a domestic environment, this product may cause radio interference, in
which case, the user may be required to take adequate measures.
Para una traducción al español de este documento, vaya a http://driverdownloads.qlogic.com/ y
buscar power supply replacement.
China Compulsory Certification (CCC) Warnings
For safety, use this switch only at altitudes below 2000m.
为了安全，请只在海拔2000米以下使用此交换机。
For safety, use this switch only in nontropical regions.
为了安全，请只在非热带地区使用此交换机。
Tools Required
Cross-head screw driver, medium
1. Power supply (SBPSFANBF, SBPSFANFB, SBPSFAN2BF, SBPSFAN2FB)

QLogic 5000 Series Fibre Channel Switch Power Supply
Replacement Guide
Corporate Headquarters QLogic Corporation 26650 Aliso Viejo Parkway Aliso Viejo, CA 92656 949.389.6000 www.qlogic.com
International Offices UK | Ireland | Germany | France | India | Japan | China | Hong Kong | Singapore | Taiwan
Preparation
The power supplies are hot pluggable and
interchangeable. When removing or replacing a
power supply on an operating switch, be sure the
Heartbeat LED is showing the normal one blink
per second. This allows the switch to continue
operating correctly while removing and replacing
power supplies.

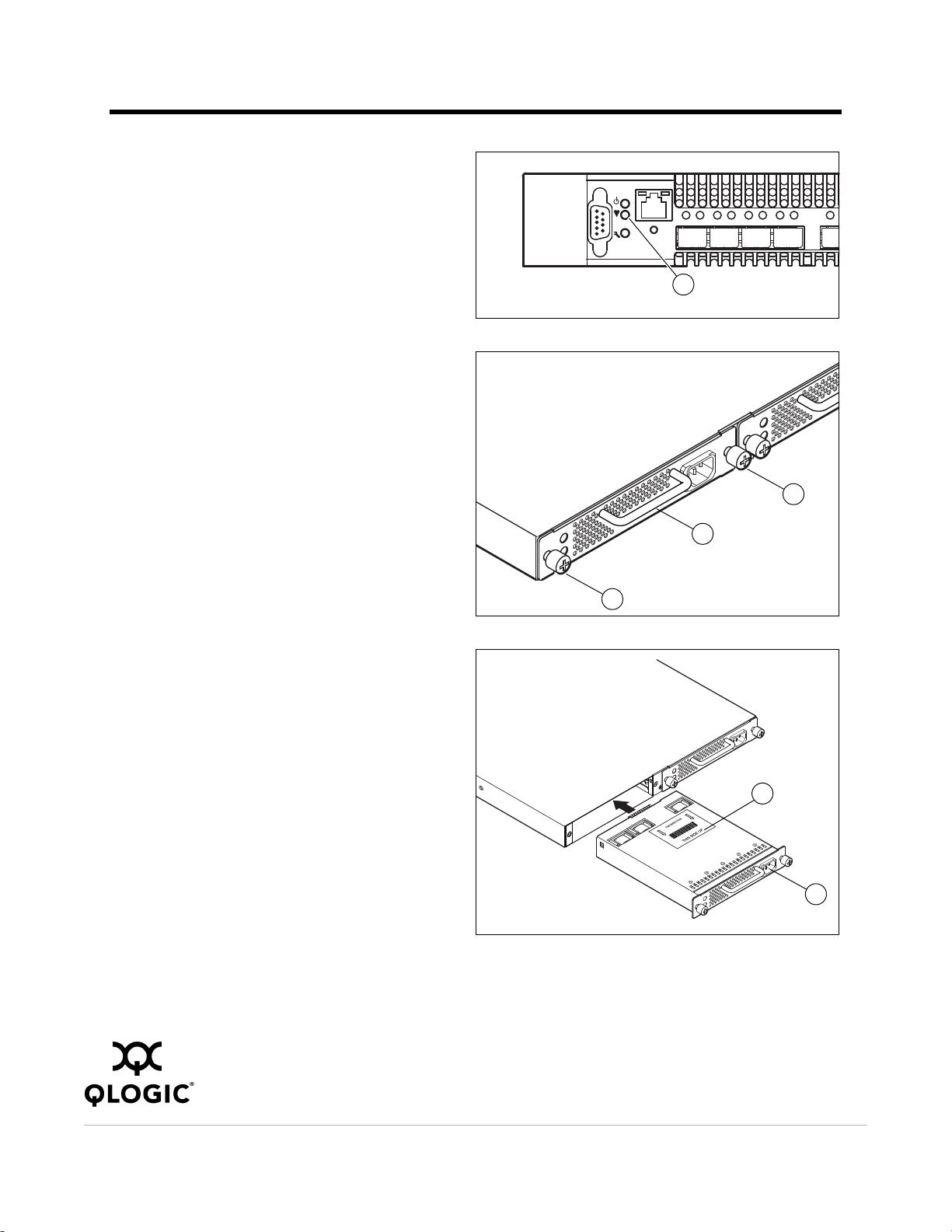

1. Heartbeat LED
Removing a Power Supply
Unplug the power supply.
Loosen the two knurled fasteners with a cross-
head screw driver.
Grasp the power supply handle and pull firmly to
disengage the modular connector.
Slide the power supply out of its bay.
1. Knurled fastener 2. Handle
Installing a Power Supply
Confirm that the new power supply air flow
direction is compatible with the old power supply.
The air flow direction is noted on the part number
label.
With the AC receptacle on the right, slide the
power supply into the bay until it is firmly seated.
Secure the knurled fasteners by hand.
Plug the power cord into the AC receptacle and
confirm that the air flow direction is correct.
1. Part number label 2. AC receptacle
LAL A L AL AL
01234
1
1
1
2
1
2
