QNAP TS-219P+ User manual

QNAP Turbo NAS
Hardware User Manual
©Copyright 2011. QNAP Systems, Inc. All Rights Reserved.

Thank you for choosing QNAP products! This user manual provides description of the
hardware of the Turbo NAS and relevant guideline of certain functions. Please read
carefully and strictly adhere to the instructions of the manual.
This user manual is applicable to the following Turbo NAS models:
TS-110, TS-210, TS-410, TS-410U, TS-112, TS-212, TS-412, TS-412U, TS-119, TS-219P,
TS-419P, TS-419U, TS-119P+, TS-219P+, TS-419P+, TS-419U+, TS-119P II, TS-219P II,
TS-419P II, TS-239 Pro, SS-439 Pro, TS-439 Pro, TS-439U-RP, TS-439U-SP, TS-239 Pro II,
TS-439 Pro II, TS-239 Pro II+, TS-439 Pro II+, TS-639 Pro, SS-839 Pro, TS-509 Pro,
TS-809 Pro, TS-809U-RP, TS-259 Pro, TS-459 Pro, TS-459U-RP/SP, TS-559 Pro,
TS-659 Pro, TS-859 Pro, TS-859U-RP, TS-259 Pro+, TS-459 Pro+, TS-459U-RP/SP+,
TS-559 Pro+, TS-659 Pro+, TS-859 Pro+, TS-859U-RP+, TS-459 Pro II, TS-559 Pro II,
TS-659 Pro II, TS-879 Pro, TS-1079 Pro, TS-879U-RP, TS-1279U-RP, TS-EC879U-RP,
TS-EC1279U-RP.
NOTE
The “Turbo NAS” is hereafter referred to as “NAS”.
The product you purchased may not support certain functions dedicated to specific
models.
All features, functionality, and other product specifications are subject to change
without prior notice or obligation.
Information presented is subject to change without notice.
No part of this publication may be reproduced, stored in a retrieval system, or
transmitted, in any form or by any means, mechanical, electronic, photocopying,
recording, or otherwise, without prior written permission of QNAP Systems, Inc.
QNAP and the QNAP logo are registered trademarks of QNAP Systems, Inc. Other
products and company names mentioned herein may be the trademarks of their
respective companies.
2

DISCLAIMER
In no event shall the liability of QNAP Systems, Inc. (QNAP) exceed the price paid for the
product from direct, indirect, special, incidental, or consequential software, or its
documentation. QNAP makes no warranty or representation, expressed, implied, or
statutory, with respect to its products or the contents or use of this documentation and all
accompanying software, and specifically disclaims its quality, performance, merchantability,
or fitness for any particular purpose. QNAP reserves the right to revise or update its
products, software, or documentation without obligation to notify any individual or entity.
Note:
1. Back up your system periodically to avoid any potential data loss. QNAP disclaims
any responsibility of all sorts of data loss or recovery.
2. Should you return any components of the NAS package for refund or maintenance,
make sure they are carefully packed for shipping. Any form of damages due to
improper packaging will not be compensated.
3

Regulatory Notice
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Shielded interface cables, if any, must be used in order to comply with the emission limits.
CE NOTICE
Class B only.
4

Symbols in this document
Warning
T
his icon indicates the instructions must be strictly followed.
Failure to do so could result in injury to human body or death.
Caution
This icon indicates the action may lead to disk clearance or loss OR
failure to follow the instructions could result in data damage, disk
damage, or product damage.
5

Table of Contents
Table of Contents .................................................................................................................................................. 6
Safety Warnings ................................................................................................................................................... 7
Chapter 1. CPU and Memory Specifications ............................................................................................ 8
Chapter 2. Power Button and Reset Button Behavior ........................................................................... 18
Chapter 3. USB One Touch Copy ............................................................................................................20
Chapter 4. LED and Alarm Buzzer Specifications ................................................................................. 21
Chapter 5. Upgrade Memory on QNAP Turbo NAS (RAM Module Installation) .............................. 24
5.1 TS-X59 PRO II SERIES (4/5/6-BAY) ..................................................................................................... 24
5.2 TS-879U-RP, TS-1279U-RP, TS-EC879U-RP, TS-EC1279U-RP ..................................................... 27
Chapter 6. Network Expansion Card Installation.................................................................................. 30
6.1 TS-879 PRO,TS-1079 PRO................................................................................................................. 30
6.2 TS-879U-RP, TS-1279U-RP.............................................................................................................. 35
Chapter 7. Hot-swap Hard Drives ........................................................................................................... 38
Chapter 8. RAID Recovery ...................................................................................................................... 41
Chapter 9. Use the LCD Panel ................................................................................................................. 43
Chapter 10. Install Power Supply Unit ..................................................................................................... 50
10.1 1U TURBO NAS .................................................................................................................................50
10.2 2U TURBO NAS (TS-1279U-RP AND TS-EC1279U-RP ONLY).......................................................... 52
10.3 2U TURBO NAS (EXCEPT TS-1279U-RP AND TS-EC1279U-RP) ...................................................... 54
Technical Support ............................................................................................................................................... 58
GNU GENERAL PUBLIC LICENSE .............................................................................................................. 59
6

Safety Warnings
1. The NAS can operate normally in the temperature of 0ºC–40ºC and relative humidity
of 0%–95%. Please make sure the environment is well-ventilated.
2. The power cord and devices connected to the NAS must provide correct supply voltage
(100W, 90–264V).
3. Do not place the NAS in direct sunlight or near chemicals. Make sure the temperature
and humidity of the environment are in optimized level.
4. Unplug the power cord and all connected cables before cleaning. Wipe the NAS with
a dry towel. Do not use chemical or aerosol to clean the NAS.
5. Do not place any objects on the NAS for the server’s normal operation and to avoid
overheat.
6. Use the flat head screws in the product package to lock the hard disks in the NAS when
installing hard disks for proper operation.
7. Do not place the NAS near any liquid.
8. Do not place the NAS on any uneven surface to avoid falling off and damage.
9. Make sure the voltage is correct in the location where the NAS is installed. Contact
the distributor or the local power supply company for the information.
10. Do not place any object on the power cord.
11. Do not attempt to repair the NAS in any occasions. Improper disassembly of the
product may expose the users to electric shock or other risks. For any enquiries,
please contact the distributor.
12. The chassis NAS models should only be installed in the server room and maintained by
the authorized server manager or IT administrator. The server room is locked by key
or keycard access and only certified staff is allowed to enter the server room.
Warning:
Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type recommended by the manufacturer. Dispose of used batteries according
to the manufacturer’s instructions.
Do NOT touch the fan inside the system to avoid serious injuries.
7

Chapter 1. CPU and Memory Specifications
Caution: Modifying the hardware, software, or firmware of the QNAP products will
void the warranty. QNAP is not responsible for any form of damage or loss of data caused
by modding the QNAP products. Users should bear their own risks of all sorts of possible
data loss or system instabilities due to changing the hardware parts, modifying the default
system firmware or installing any unauthorized third party applications on QNAP products.

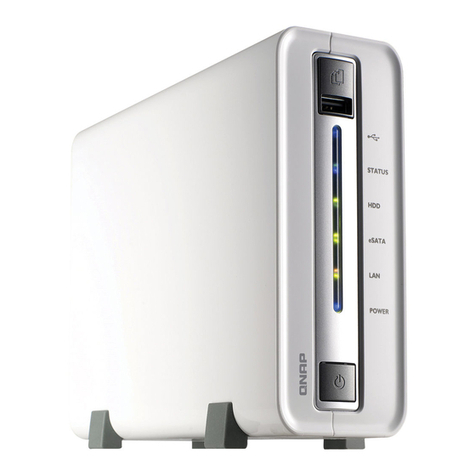

System TS-110 TS-210 TS-410 TS-410U
CPU Marvell 800MHz Marvell 800MHz Marvell 800MHz Marvell 800MHz
Memory 256MB DDR2 256MB DDR2 256MB DDR2 512MB DDR2
Flash 16MB 16MB 16MB 16MB
CPU replaceable No No No No
Memory
replaceable
No No No No
Number of
SODIMM slots
0 0 0 0
Number of hard
drive slots
1 2 4 4
8

System TS-112 TS-212
CPU Marvell 1.2GHz Marvell 1.2GHz
Memory 256MB DDR2 256MB DDR2
Flash 16MB 16MB
CPU replaceable No No
Memory replaceable No No
Number of SODIMM slots 0 0
Number of hard drive slots 1 2
System TS-412 TS-412U
CPU Marvell 1.2GHz Marvell 1.2GHz
Memory 256MB DDR2 256MB DDR2
Flash 16MB 16MB
CPU replaceable No No
Memory replaceable No No
Number of SODIMM slots 0 0
Number of hard drive slots 4 4
9

System TS-119 TS-219P TS-419P, TS-419U
CPU Marvell 1.2GHz Marvell 1.2GHz Marvell 1.2GHz
Memory 512MB DDR2 512MB DDR2 512MB DDR2
Flash 16MB 16MB 16MB
CPU replaceable No No No
Memory replaceable No No No
Number of SODIMM
slots
0 0 0
Number of hard drive
slots
1 2 4
System TS-119P+ TS-219P+ TS-419P+, TS-419U+
CPU Marvell 1.6GHz Marvell 1.6GHz Marvell 1.6GHz
Memory 512MB DDR3 512MB DDR3 512MB DDR3
Flash 16MB 16MB 16MB
CPU replaceable No No No
Memory replaceable No No No
Number of SODIMM
slots
0 0 0
Number of hard drive
slots
1 2 4
10

System TS-119P II TS-219P II TS-419P II
CPU Marvell 2.0GHz Marvell 2.0GHz Marvell 2.0GHz
Memory 512MB DDR3 512MB DDR3 512MB DDR3
Flash 16MB 16MB 16MB
CPU replaceable No No No
Memory replaceable No No No
Number of SODIMM
slots
0 0 0
Number of hard drive
slots
1 2 4
11

System TS-239 Pro
SS-439 Pro,
TS-439 Pro,
TS-439U-RP,
TS-439U-SP
TS-239 Pro II TS-439 Pro II
CPU
Intel Atom
processor
(1.60 GHz)
Intel Atom
processor
(1.60 GHz)
Intel Atom
processor
(1.66 GHz)
Intel Atom
processor
(1.66 GHz)
Memory 1GB DDR2 1GB DDR2 1GB DDR2 1GB DDR2
Flash 128MB (IDE DOM) 128MB (IDE DOM) 512MB (USB DOM) 512MB (USB DOM)
CPU replaceable No No No No
Memory
replaceable
Compatible with
DDR2 667 DRAM
Can be upgraded
to max 2GB
Compatible with
DDR2 667
DRAM
Can be
upgraded to
max 2GB
Compatible with
DDR2 667 DRAM
Compatible with
DDR2 667 DRAM
Number of
SODIMM slots
1 1 1 1
Number of hard
drive slots
2 4 2 4
System TS-239 Pro II+ TS-439 Pro II+
CPU
Single core Intel Atom processor
(1.80 GHz)
Single core Intel Atom processor
(1.80 GHz)
Memory 1GB RAM 1GB RAM
Flash 512MB (USB DOM) 512MB (USB DOM)
CPU replaceable No No
Memory replaceable Yes Yes
Number of SODIMM slots 1 1
Number of hard drive slots 2 4
12

System TS-639 Pro SS-839 Pro
CPU
Intel Atom processor
(1.60 GHz)
Intel Atom processor
(1.60 GHz)
Memory 1GB DDR2 2GB DDR2
Flash 128MB (IDE DOM) 128MB (IDE DOM)
CPU replaceable No No
Memory replaceable
Compatible with DDR2 667
DRAM
Can be upgraded to max
2GB
Compatible with DDR2 667
DRAM
Can be upgraded to max 2GB
Number of SODIMM slots 1 1
Number of hard drive slots 6 8
System TS-509 Pro
TS-809 Pro,
TS-809U-RP
CPU
Intel Celeron processor
(1.60 GHz)
Intel Core 2 Duo processor (2.80
GHz)
Memory 1GB DDR2 2GB DDR2
Flash 128MB (IDE DOM) 128MB (IDE DOM)
CPU replaceable Yes Yes
Memory replaceable
Compatible with DDR2 667
DRAM
Can be upgraded to max 4GB
Compatible with DDR2 667
DRAM
Can be upgraded to max 4GB
Number of SODIMM slots 2 2
Number of hard drive slots 5 8
13

System TS-259 Pro TS-459 Pro TS-459U-RP/SP
CPU
Dual core Intel Atom
processor (1.66 GHz)
Dual core Intel Atom
processor (1.66 GHz)
Dual core Intel Atom
processor (1.66 GHz)
Memory 1GB DDR2 1GB DDR2 1GB DDR2
Flash 512MB (USB DOM) 512MB (USB DOM) 512MB (USB DOM)
CPU replaceable No No No
Memory replaceable
Compatible with DDR2
667 DRAM
Compatible with DDR2
667 DRAM
Compatible with DDR2
667 DRAM
Number of SODIMM
slots
1 1 1
Number of hard drive
slots
2 4 4
System TS-559 Pro TS-659 Pro TS-859 Pro TS-859U-RP
CPU
Dual core Intel
Atom processor
(1.66 GHz)
Dual core Intel
Atom processor
(1.66 GHz)
Dual core Intel
Atom processor
(1.66 GHz)
Dual core Intel
Atom processor
(1.66 GHz)
Memory 1GB DDR2 1GB DDR2 1GB DDR2 1GB DDR2
Flash 512MB (USB DOM) 512MB (USB DOM) 512MB (USB DOM) 512MB (USB DOM)
CPU replaceable No No No No
Memory
replaceable
Compatible with
DDR2 667 DRAM
Compatible with
DDR2 667 DRAM
Compatible with
DDR2 667 DRAM
Compatible with
DDR2 667 DRAM
Number of
SODIMM slots
1 1 1 1
Number of hard
drive slots
5 6 8 8
14

System TS-259 Pro+ TS-459 Pro+ TS-459U-RP/SP+
CPU
Dual core Intel Atom
processor (1.80 GHz)
Dual core Intel Atom
processor (1.80 GHz)
Dual core Intel Atom
processor (1.80 GHz)
Memory 1GB RAM 1GB RAM 1GB RAM
Flash 512MB (USB DOM) 512MB (USB DOM) 512MB (USB DOM)
CPU replaceable No No No
Memory
replaceable
Yes Yes Yes
Number of SODIMM
slots
1 1 1
Number of hard
drive slots
2 4 4
System TS-559 Pro+ TS-659 Pro+ TS-859 Pro+ TS-859U-RP+
CPU
Dual core Intel
Atom processor
(1.80 GHz)
Dual core Intel
Atom processor
(1.80 GHz)
Dual core Intel
Atom processor
(1.80 GHz)
Dual core Intel
Atom processor
(1.80 GHz)
Memory 1GB RAM 1GB RAM 1GB RAM 1GB RAM
Flash
512MB (USB
DOM)
512MB (USB
DOM)
512MB (USB
DOM)
512MB (USB
DOM)
CPU
replaceable
No No No No
Memory
replaceable
Yes Yes Yes Yes
Number of
SODIMM slots
1 1 1 1
Number of hard
drive slots
5 6 8 8
15

System TS-459 Pro II TS-559 Pro II TS-659 Pro II
CPU
Dual core Intel Atom
processor (1.80 GHz)
Dual core Intel Atom
processor (1.80 GHz)
Dual core Intel Atom
processor (1.80 GHz)
Memory
1GB DDR3 (Expandable
RAM, up to 3GB)
1GB DDR3 (Expandable
RAM, up to 3GB)
1GB DDR3 (Expandable
RAM, up to 3GB)
Flash 512MB (USB DOM) 512MB (USB DOM) 512MB (USB DOM)
CPU replaceable No No No
Memory replaceable
Compatible with DDR3
800 DRAM
Compatible with DDR3
800 DRAM
Compatible with DDR3
800 DRAM
Number of SODIMM
slots
2 2 2
Number of hard drive
slots
4 5 6
16

System TS-879 Pro TS-1079 Pro TS-879U-RP
CPU
Intel Core i3 Dual Core
(3.30 GHz)
Intel Core i3 Dual Core
(3.30 GHz)
Intel Core i3 Dual Core
(3.30 GHz)
Memory 2GB DDR3 RAM 2GB DDR3 RAM 2GB DDR3 RAM
Flash 512MB (USB DOM) 512MB (USB DOM) 512MB (USB DOM)
CPU replaceable No No No
Memory replaceable No No Yes
Number of
LONG-DIMM slot
2 2 2
Number of hard drive
slots
8 10 8
Number of expansion
slots
1 1 2
System TS-1279U-RP TS-EC879U-RP TS-EC1279U-RP
CPU
Intel Core i3 Dual Core
(3.30 GHz)
Intel Xeon Quad Core
(3.10 GHz)
Intel Xeon Quad Core
(3.10 GHz)
Memory 2GB DDR3 RAM 4GB DDR3 ECC RAM 4GB DDR3 ECC RAM
Flash 512MB (USB DOM) 512MB (USB DOM) 512MB (USB DOM)
CPU replaceable No No No
Memory replaceable Yes Yes Yes
Number of
LONG-DIMM slot
2 2 2
Number of hard drive
slots
12 8 12
Number of expansion
slots
2 2 2
17

Chapter 2. Power Button and Reset Button Behavior
Power button: Press to turn on or turn off.
System Power button
(Turn on)
Power button
(Hardware turn
off)
Power button
(Force turn off)
All models Press once 1.5 sec 5 sec
Reset button: Press to reset the system settings.
System Basic system reset
(1 beep)
Advanced system reset
(2 beeps)
All models 3 sec 10 sec
Basic system reset (3 sec)
Press the reset button for 3 seconds, a beep sound will be heard. The following settings
are reset to default:
System administration password: admin
TCP/IP configuration: Obtain IP address settings automatically via DHCP
TCP/IP configuration: Disable Jumbo Frame
TCP/IP configuration: If port trunking is enabled (dual LAN models only), the port
trunking mode will be reset to “Active Backup (Failover)”.
System Port: 8080 (system service port)
Security Level: Low (Allow all connections)
LCD panel password: (blank)*
VLAN will be disabled
*This feature is only provided by the NAS models with LCD panels. Please visit
http://www.qnap.com for details.
18

Advanced system reset (10 sec)
Press the reset button for 10 seconds; you will hear two beeps at the third and the tenth
seconds. The NAS will reset all the system settings to default as it does by web-based
system reset in “Administration” > “Restore to Factory Default” except all the data are
reserved. The settings such as the users, user groups, and the network share folders
previously created will be cleared. To retrieve the old data after the advanced system
reset, create the same network share folders on the NAS and the data will be accessible
again.
19

Chapter 3. USB One Touch Copy
System Number of seconds (press the one touch copy button to
trigger data copy)
All NAS models 0.5 sec
Data Copy by the Front USB Port
The NAS supports instant data copy backup from the external USB device to the NAS or the
other way round by the front one touch copy button. To use this function, follow the steps
below:
1. Make sure a hard drive is installed and formatted on the NAS. The default network
share Qusb or Usb is created.
2. Turn on the NAS.
3. Configure the behavior of the Copy button on “Backup” > “USB one touch copy” page.
4. Connect the USB storage device to the front USB port of the NAS.
5. Press the Copy button. The USB LED will flash. The data will be copied to or from the
USB device according to the NAS settings.
Note: This feature adopts incremental backup. After the first time data backup, the NAS
only copies the changed files since the last backup.
20
