QS-8120-P01 IQ Hardwire Translator™
Hardwire-to-Qolsys Wireless Translator™
Features
•Converts hardwire zones into Qolsys-compatible wireless signals.
•8 Hardwire loops with end-of-line resistor detection.
•Unique wireless ID for each zone, plus 1 for main device.
•Transmit diversity for long reliable range.
•PI /Glassbreak powering (via external supply).
•3 year operation on batteries (monitoring contacts only).
•Complete supervision of zone tampers and low battery.
Key Instructions
•DO NOT MOUNT IN A METAL CAN.
•Use with normally closed contacts in-line with 4.7 K-ohms resistors (mandatory).
•Not for use with life safety devices, such as Smoke or CO sensors.
•External supply requirements:
Contacts-only installations may use wall plug power supply (see specifications)
Installations with PI s or Glassbreaks (powered devices) require battery-
backed external power supply (see diagram).
Without backed-up power, PI s or Glass Breaks could alarm when
power is lost.
Translator AA batteries drive contacts only, and do not drive
powered devices.
Ensure that external supply has sufficient current to supply all
powered devices including Translator.
4-wire powered devices only. Not for use with 2-wire powered
devices.
If using old panel as the battery-backed 12V DC supply, verify supply
and battery operation. DO NOT MOUNT T ANSLATO IN OLD CAN… the
wireless will not get out!
Installation
•Hook up PI and Glass Break power lines to external power supply.
•Alarm contact hook-up:
Works only with normally-closed contacts (alarm = open).
emove any existing end-of-line resistors.
Connect 4.7K end-of-line resistor (included) IN-LINE with contact.
esistor should NOT be across (between) terminals.
•Enrollment:
Put Qolsys Panel in Add Sensor mode.
Each zone:
•Select the behaviors you want the sensor to have.
•When panel asks to “Trip Sensor”, short (tamper) each loop
to enroll it. You can use a piece of wire or needle nose
pliers between the terminal screws.
Translator itself (necessary to monitor the Translator’s health):
•Select Translator Group 13.
•When panel asks to “Trip Sensor”, trip the Translator tamper.
POWERED BY
QS-8120-P01 IQ Hardwire Translator.doc
Page 2 of 4 9/18/2013
www. esolutionProducts.com
•Application Diagram
•Connection Diagram
New Wireless
Syste
Existing Hardwire Sensors
New
Qolsys
Self-Contained Syste in
living area
Taking over o
ld Hardwire
panel,
usually ounted in utility area
Qolsys Wireless
4.7K
Contact
(Normally Closed)
Loop
x
PIR
To Enroll zone,
short the two terminals with
a wire.
This sends a wireless
tamper signal.
Translator AA
Batteries DO NOT
power external
devices
Altronix AL100UL
12VDC Supply
With Lead-acid
battery
Old Panel may be used,
if operation fully verified
+12 VDC GND
PIR
Power
Input
PIR Contact
Output
(Normally
Closed)
4.7K
Loop
y
Altronix TP1620
16.5VAC, 20VA
Transformer
with securing screw
Resolution
RE012
12 VDC
Power Supply
NON-Switched
Outlet
Use Battery-Backed 12VDC
if powering
PIRs or Glass Breaks
Use Non-Battery-Backed
Supply ONLY if installation is
all non-powered contacts
Power Supply polarity
DOES NOT matter!
End of Line
Resistor
May use GE 60
-
89
8
-
ITI
supply
here,
if securing screw is desired

QS-8120-P01 IQ Hardwire Translator.doc
Page 3 of 4 9/18/2013
www. esolutionProducts.com
Operation
•8 Hardwire 4.7K-ohm Zones – transmit 8 unique wireless IDs:
Alarm, when device sees open circuit.
Tamper, when device sees short circuit.
Supervisories, every hour for each zone.
•Translator Main Zone wireless transmission (9
th
unique ID):
Tamper, when cover opened.
Low battery, when either low AA batteries, O loss of 12V DC external.
Supervisory every hour.
•LED Operation
Green LED: On if AC power present.
ed LED: When 12V DC is present: “Blinks” on transmit to panel;
“on” if device tamper or device low battery.
Specifications
Device Type: Same as Std DWS (all 8 zone ID’s and device ID)
Zone sensing duration: State sensed if held more than 600ms.
End-of-line esistors: 4.7k-ohm, 10%.
Max wire run: 1000 feet.
Backup batteries: Two AA Alkaline.
External supply: 8.5 to 13 VDC or 6-9 VAC
Standard: esolution E012: 12VDC, 50mA.
Optional: GE 60-898-ITI, for securing screw
Wire connection polarity DOESN’T matter!
Current draw with supply: 4mA, normal operation.
PI usage: PI may need tight voltage tolerance. Add PI and
device current requirements together to get total
current need.
AC Fail Indication: Translator ID sends Low Battery signal if its external
12V is gone for 15 minutes. estores on external 12V
restore.
AA Low Battery Conditions: Low battery for 1 minute. estores on device
tamper, external 12V restore.
AA Battery Life on AC Fail: 3-5 years, when monitoring contacts.
Housing dimensions: 4x6x1 inches
Design & Manufacture: esolution Products, Inc.
Specifications subject to change without notice.

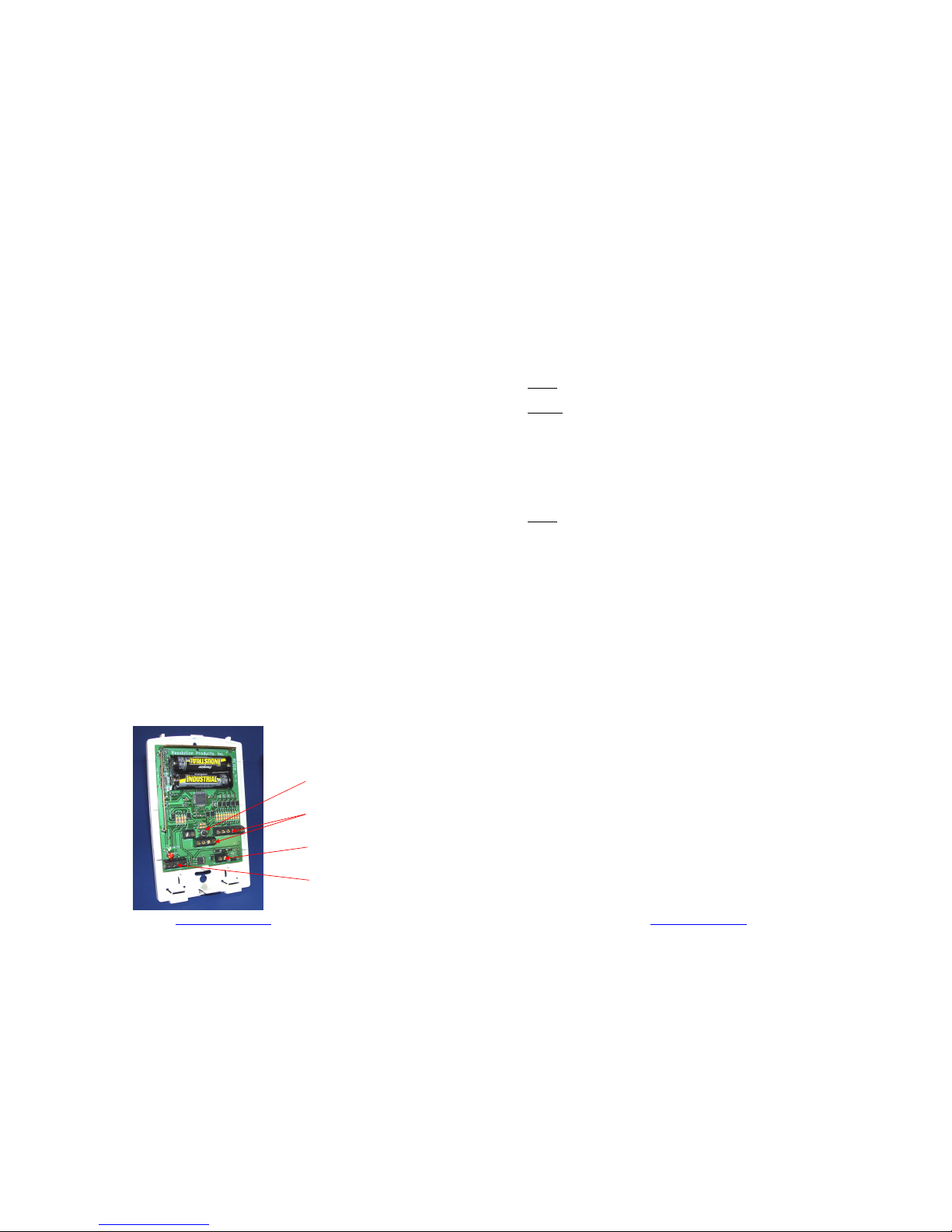

Internal Picture
Terminals for Zones 1, 2
Terminals for Zones 3
-
8
Power Terminals
Tamper / Enroll Switch
