QOMOTOP GFP02T User manual

28
SRGF11626
GFP02T

1
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or fire department.
DANGER WARNING: For Outdoor Use
Only.
CAUTION:
Installer: Leave the instruction manual
to the user for future use.
Consumer: Please keep this manual
for future reference.
Do not store or use gasoline or
other flammable vapors and liquids
in the vicinity of this or any other
appliance.
WARNING
An LP-cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance.
Read the instructions before use. This appliance must be installed in accordance with such
regulations as are enforced.
Do not try to light the appliance.
Do not touch any electrical switch; do not use any phone in the vicinity of this product.
Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
If you cannot reach your gas supplier, call the fire department.
WARNING:
CARBON MONOXIDE HAZARD
Improper installation, adjustment, alteration, service or maintenance can
cause injury or property damage. Read the installation, operation and
maintenance instructions thoroughly before installing or servicing this
equipment.
WHAT TO DO IF YOU SMELL GAS?
Installation and service must be performed by a qualified installer, service agency or gas
supplier.
This appliance can produce carbon monoxide which
has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such
as a camper, tent, car or home.
WARNINGS AND CAUTIONS

2
WARNINGS AND CAUTIONS
NOTE: PLEASE READ THE FOLLOWING SAFETY RULES
WARNING:
Installation and repair should be done by a qualified service person. The appliance should
be inspected before use and at least annually by a qualified service person. More frequent
cleaning may be required as necessary. It is imperative that control compartment, burners,
and circulating air passageways of the appliance be kept clean.
Alert children and adults to the hazards of high surface temperatures and keep them away
to avoid burns or clothing ignition.
Carefully supervise children and pets when they are near the appliance.
Replace guard or other protective device removed for servicing.
Do not hang clothing or other flammable materials on or near the appliance.

3
REMINDER
BEFORE ASSEMBLY
Verify that all parts are included with your gas fire pit BEFORE you begin assembly by checking the Parts and
Hardware List. For your convenience, some parts may be pre-assembled or attached to fire pit components.
If all parts are not included, do not attempt to assemble fire pit. Call the toll free number on the cover
page for replacement parts.
Leave hardware installed HALF-TIGHTENED on the gas fire pit during assembly until unit is completely
assembled, then finish tightening all hardware installed.
YOUR OWNER’S MANUAL
Keep and store this Owner's Manual for future reference – it contains important instructions and
procedures for safety and maintenance.
NOTE: PLEASE READ THE FOLLOWING SAFETY RULES:
WARNINGS AND CAUTIONS
WARNING:
SPECIFICATION

4
TOOLS NEEDED: (NOT INCLUDED)
Screwdriver
Estimated time for assembly: 30-45 minutes.

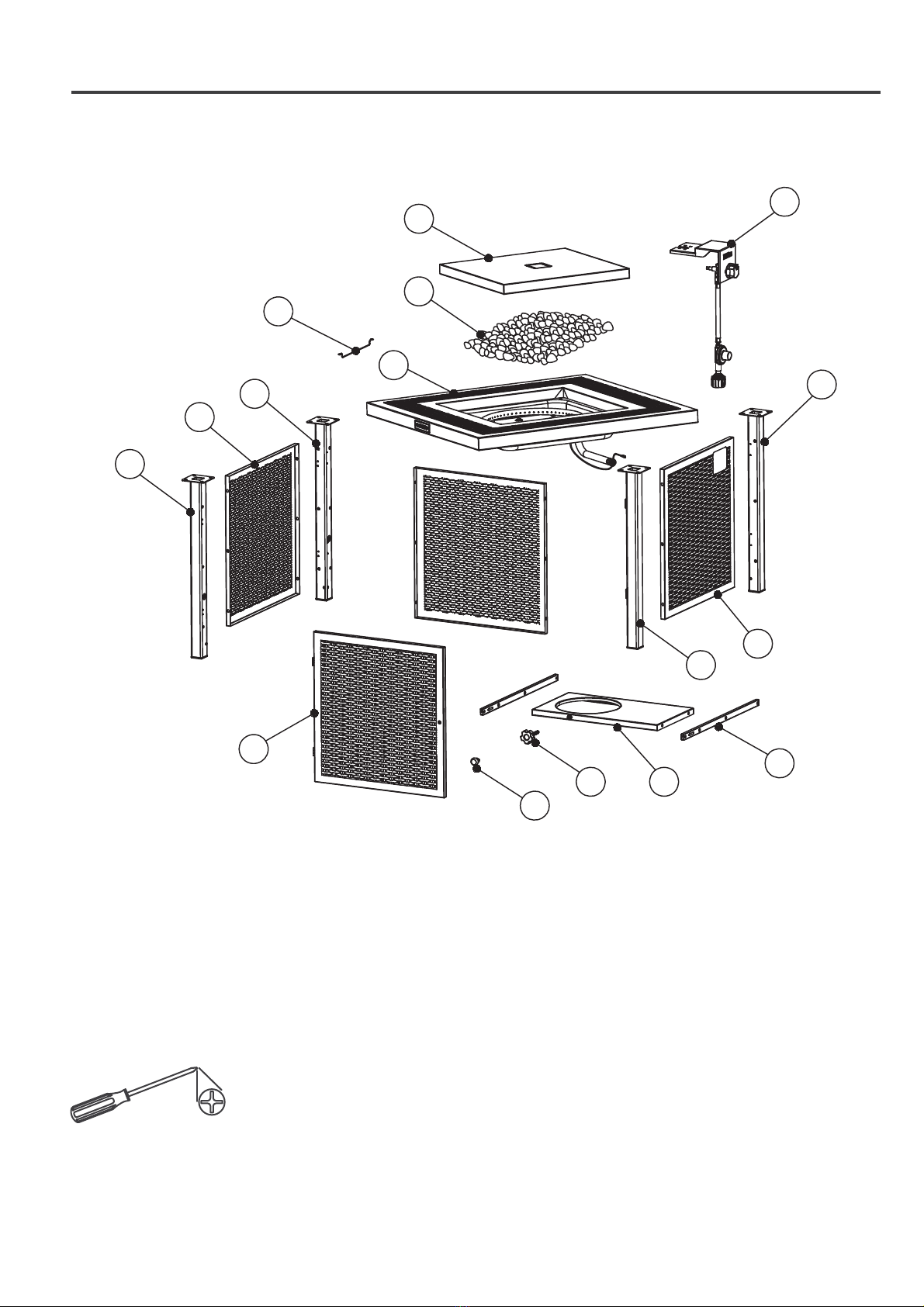

PACKAGE CONTENTS
G
L
N
A
D
D
H
IKJF
CD
M
EB

5
Table Top
Side Panel A
Side Panel B
Leg
Leg with Door Magnet
Cylinder Holder Pole
PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY
1A
1
B2
C
3D
E
F
G
H
I
J
K
L
M
N
1
2
1
1
1
1
Gas Valve Panel
Door
Door Handle
Cylinder Holder
Cylinder Locking Bolt
Cover Lid
Protecting Wire
Lava Rock
1
1
PACKAGE CONTENTS
HARDWARE CONTENTS (shown actual size)
M5 x 12 Bolt Assembly M5 x 12 Bolt M5 x 20 Bolt M6 x 12 Bolt ST4.2 x 9.5 Bolt
Qty. 4 Qty. 20 Qty Qty. 16 Qty. 4.4
AA CC DD EE
BB
1
1

6
Choose a good, cleared assembly area and get a friend to help y ou put your gas fire pit together.
Lay cardboard down to protect gas fire pit finish and assembly area.

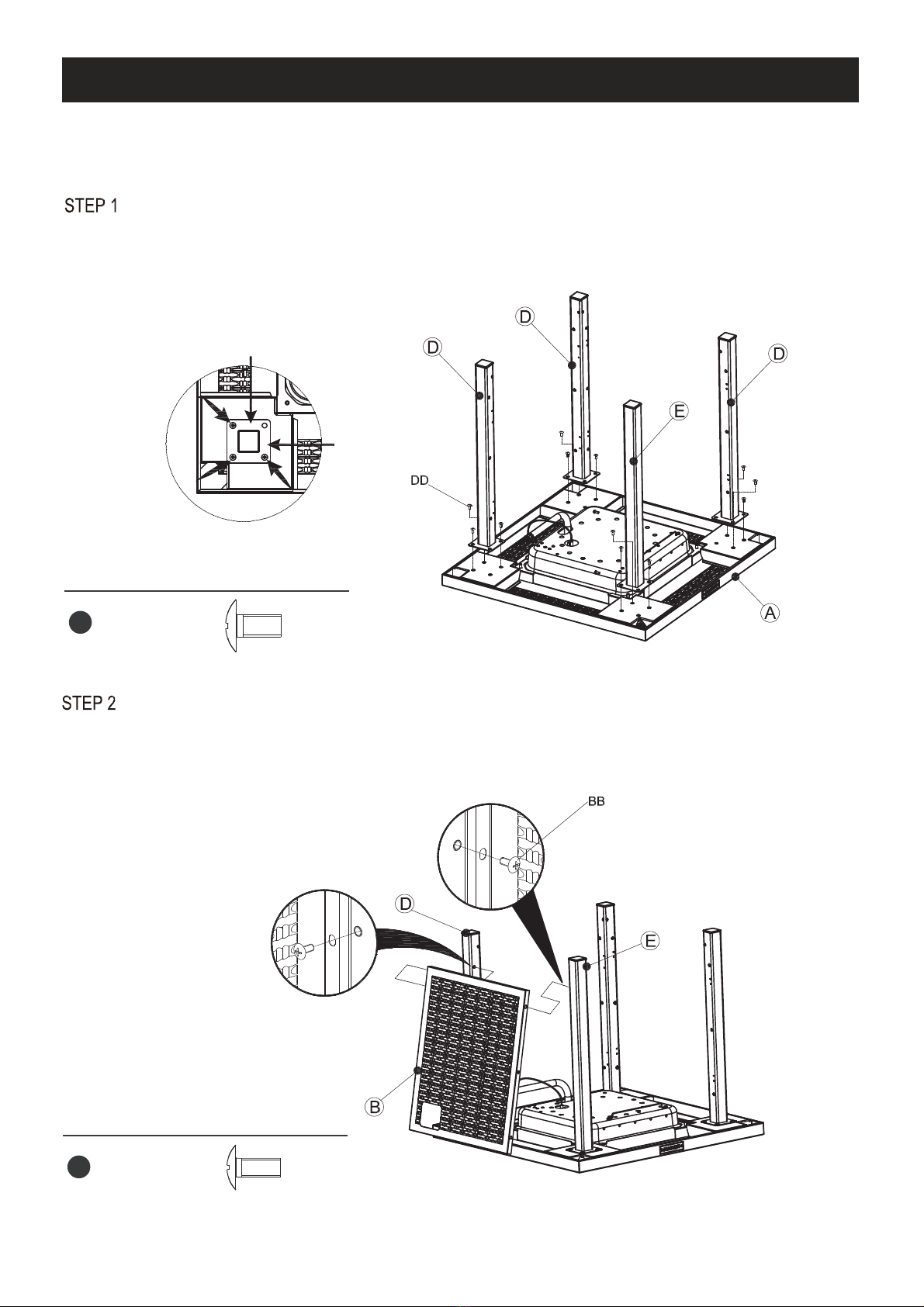

Attach 3 legs (D) and 1 leg with door magnet (E) to the table top (A) with (12) M6x12 bolts (DD) as Fig. 1.
Attach side panel A (B) to leg with door magnet (E) and leg (D) with (2) M5x12 bolts (BB) as Fig. 2.
Hardware Used
DD M6 x 12 Bolt x 12
Hardware Used
BB M5 x 12 Bolt x 2
Fig. 1
Fig. 2
ASSEMBLY INSTRUCTIONS
-&("44&.#-:4*%&
-&("44&.#-:4*%&

ASSEMBLY INSTRUCTIONS
Attach gas valve panel() onto side panel A(B), connect it with the fire bowl with (4) M5x12 bolts
assembly(AA) Insert valve into the injection pipe of burner as illustrated.Insert the end of
electrode wire into valve as illustrated.
Fully attach the side panel A(B) to the legs(D&E) with (4) M5x12 bolts(BB) as Fig.4.
Hardware Used
BBM5 x 12 Bolt x 4
Hardware Used
AA M5 x 12 Bolt Assembly x 4
Fig. 3
Fig. 4
G

8
ASSEMBLY INSTRUCTIONS

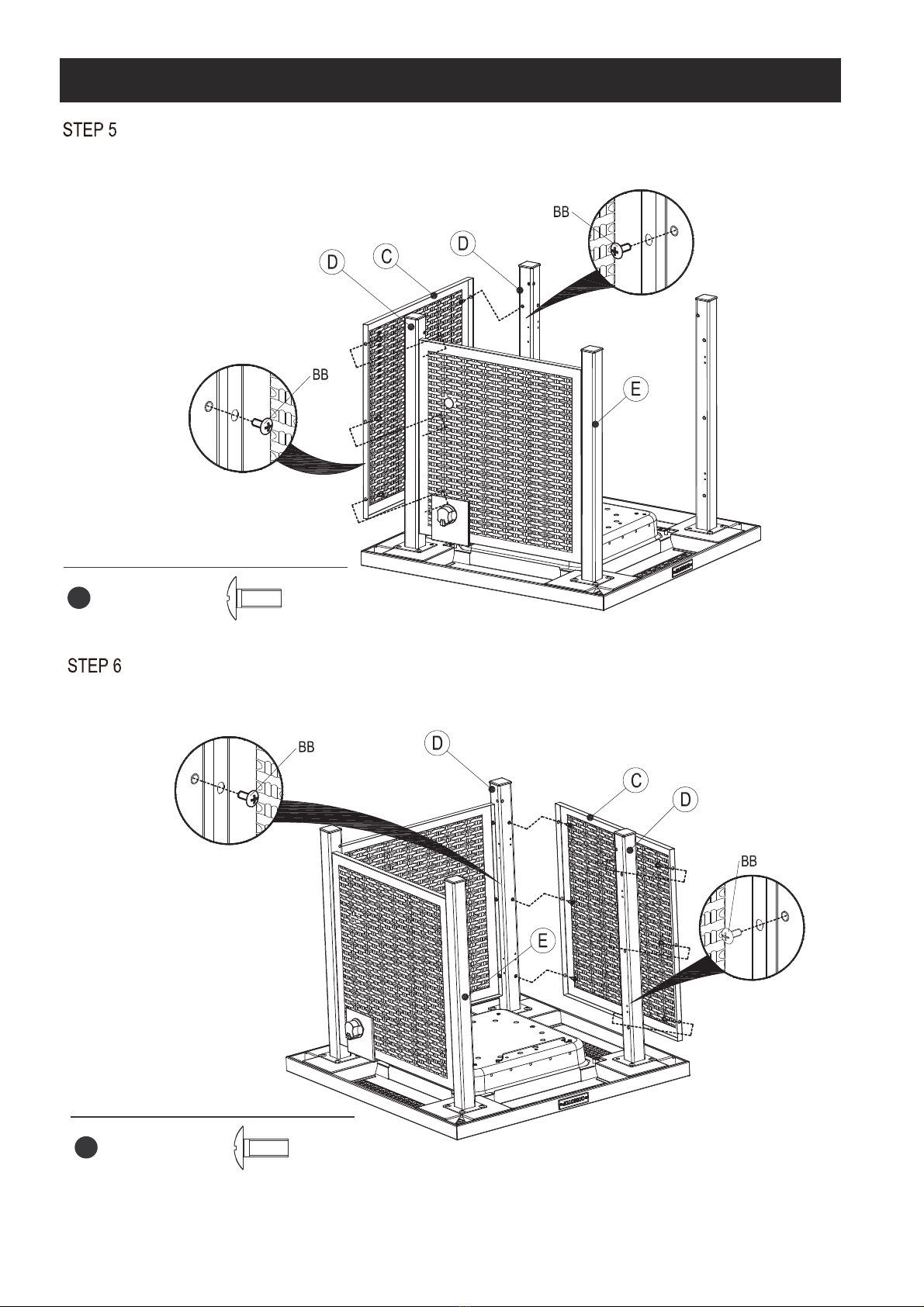

Attach side panel B2 (C) to legs (D) with (6) M5x12 bolts (BB) as Fig. 6.
Hardware Used
BBM5 x 12 Bolt x 6
Hardware Used
BBM5 x 12 Bolt x 6
Attach side panel B1 (C) to legs (D) with (6) M5x12 bolts (BB) as Fig. 5.
Fig. 6
Fig. 5

9
Attach cylinder holder poles (F) to cylinder holder (J) with (4) M6x12 bolts (DD) and then screw cylinder
locking bolt (K) to cylinder holder (J) as Fig. 7.
K
DD
Hardware Used
DD M6 x 12 Bolt x 4
Fig. 7
Cylinder Holder Assembly
Attach the cylinder holder assembly to 4 legs with (4) M5x20 bolts (CC) as Fig. 8.
Note: Make sure the cylinder locking bolt (K) plastic head is facing outwards.
Fig. 8
Hardware Used
CC M5 x 20 Bolt x 4
J
ASSEMBLY INSTRUCTIONS

10

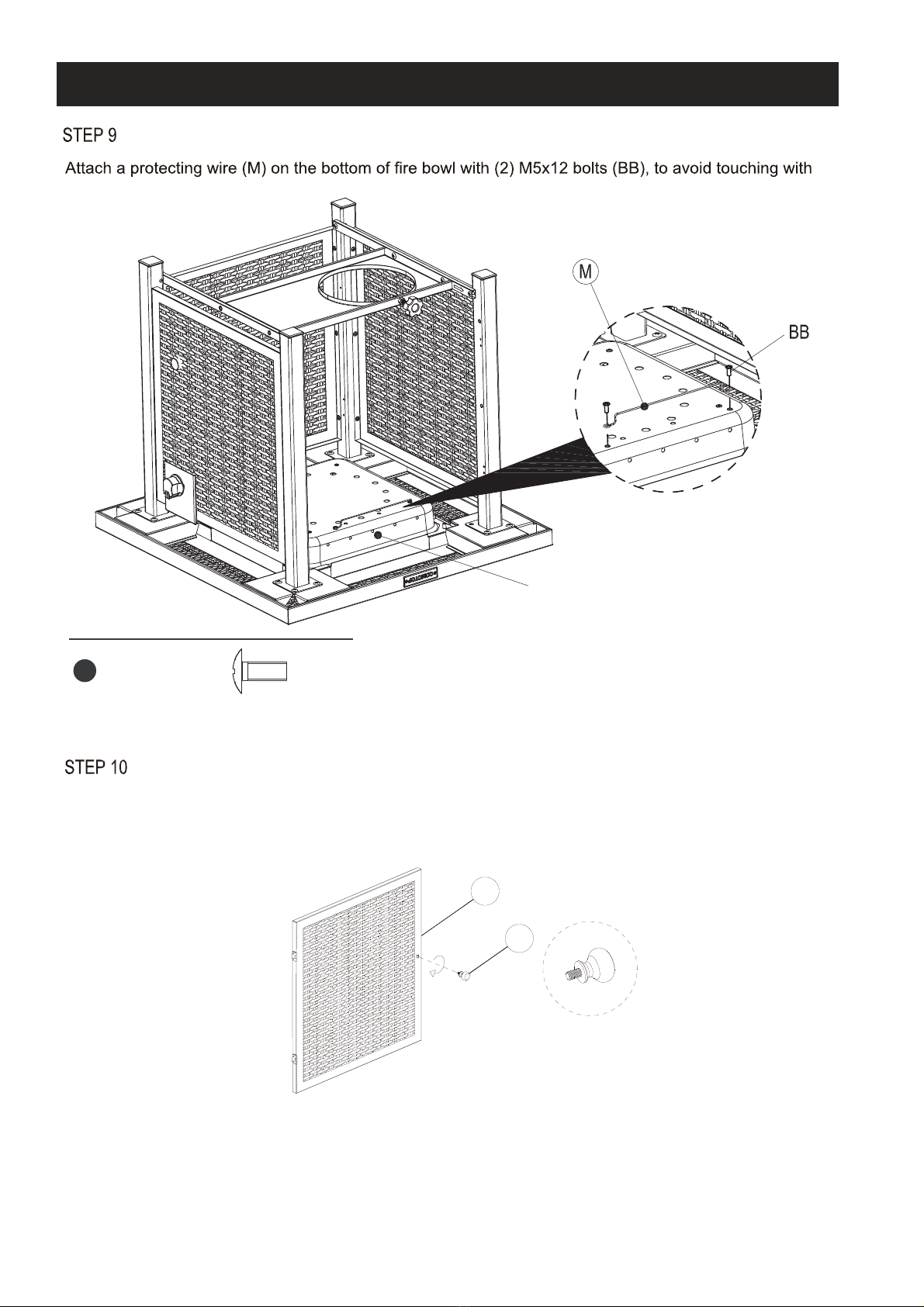

hot fire bowl as Fig. 9.
H
I
Fire Bowl
Hardware Used
BB M5 x 12 Bolt x 2
Fig. 9
Screw door handle (I) to door (H)as Fig.10.
Fig. 10
ASSEMBLY INSTRUCTIONS

11
Attach door (H) to front right leg(D) assembly with (4) ST4.2x9.5 bolts (EE) as Fig.11.
Note: With the help of a friend, turn the gas fire pit into upright position after this step finished.
Hardware Used
EE ST4.2 x 9.5 Bolt x 4
Fig. 11
ASSEMBLY INSTRUCTIONS

12
Put the lava rocks (N) into the burning area of the table top (A).
Place the cover lid (L) onto the table top (A) when the gas fire pit is not in use.
Note: to avoid ignition failure, do not cover the flame orifice with lava rocks.
Flame Orifice
Fig. 12
ASSEMBLY INSTRUCTIONS

J
INSTALLATION INSTRUCTIONS
13
contact customer
service: [email protected]

WARNING: DO NOT ATTEMPT TO OPERATE THE APPLIANCE UNTIL YOU HAVE READ AND
UNDERSTAND ALL PRECAUTIONS. FAILURE TO DO SO CAN RESULT IN PROPERTY
DAMAGE, SERIOUS INJURY, OR DEATH.
WARNING
WARNING
WARNING
FOR YOUR SAFETY:
DO NOT touch or move gas appliance
for at least 45 minutes after use.
Lighting operations should comply
with Lighting Instruction section.
Improper lighting operations will
cause serious injury and explosion.
Before turning gas supply ON
Your fire pit was designed and approved for OUTDOOR
USE ONL Y. DO NOT use it inside a building or any other
enclosed area.
Make sure surrounding areas are free of combustible
materials, gasoline, and other flammable vapors or liquids.
Ensure that there is no obstruction to air ventilation.
Be sure all gas connections are tight and there are no leaks.
Be sure the access panel is clear of debris.
Be sure any component removed during assembly or
servicing is replaced and fastened prior to starting.
FOR YOUR SAFETY:
WARNING!!!
Do not use an open flame to check for leakage.
Do not smoke during testing.
Do not test indoors.
A leak check must be performed whenever the gas
cylinder is replaced.
NOTE:
U se only the pressure regulator supplied with this fire pit.
Replace them with those specified by the manufacturer
only.
OPERATION
If at any time you are unable to
light burner and smell gas, wait 5
minutes to allow gas to dissipate
before attempting to light gas
appliance. If after 1 minute, you
are unable to light burner, wait 5
minutes and allow flammable
vapors to dissipate before
attempting to light gas appliance.
14

Before Lighting
The gas fire pit should be thoroughly inspected before each
use, and by a qualified service person at least annually.
If relighting a hot gas fire pit, always wait at least 5 minutes.

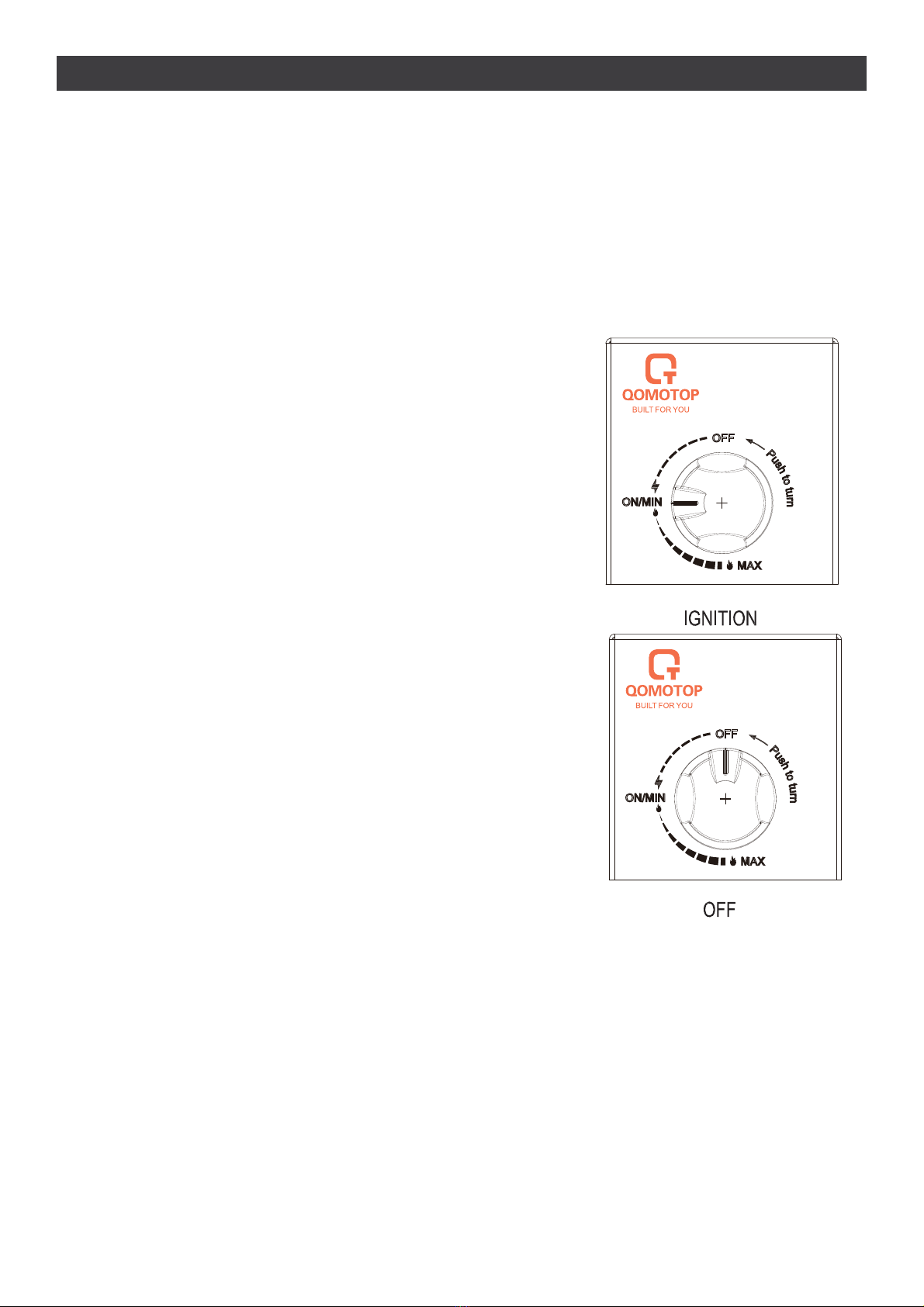

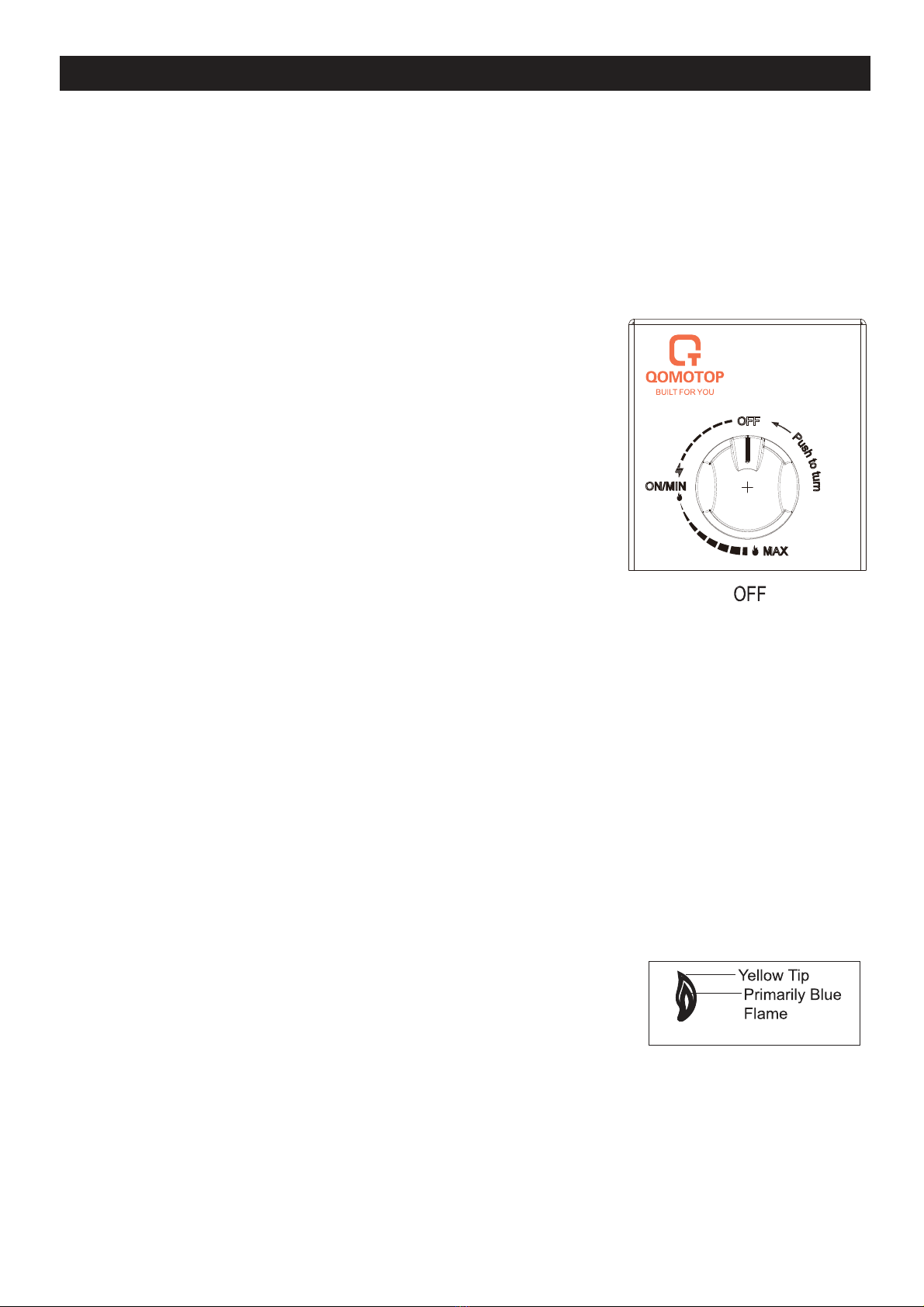

Lighting Instructions
1. Make sure control knob is in the “OFF” position.
2. Turn LP cylinder gas valve to fully open position.
3. Press down control knob and turn it counter clockwise
to "MIN" position, this will light the burner. (You will hear 1
clicking noise.)
4. If the burner is not lit immediately (within 5 seconds), press
down the control knob and turn clockwise to "OFF" position,
repeat from step 3 after 5 minutes.
5. When burner is lit, turn the control knob to desired heat output position between "MIN"
and "MAX".
Flame Characteristic
Normally the burner flame is yellow.
If the burner flame is blue and very small, please check the
gas cylinder, as it may be low gas pressure or empty. If there
is enough gas in the cylinder, please contact customer service
to change the burner of the gas fire pit.
If flames lift away from burner or backfire happens, or produce
thick black smoke, the fire pit should be turned off immediately.
The fire pit should not be operated again until the unit is serviced
and/or repaired by a qualified service technician.
WARNING: DO NOT ATTEMPT TO OPERATE THE APPLIANCE UNTIL YOU HAVE READ AND
UNDERSTAND ALL PRECAUTIONS. FAILURE TO DO SO CAN RESULT IN PROPERTY
DAMAGE, SERIOUS INJURY, OR DEATH.
15
P
u
s
h
t
o
t
u
r
n
OFF
MAX
ON/MIN
OPERATION

CAUTION: AVOID INHALING FUMES EMITTED FROM THE GAS APPLIANCE'S FIRST USE.
SMOKE AND ODOR FROM THE BURNING OF OILS USED IN MANUFACTURING WILL
APPEAR. BOTH SMOKE AND ODOR WILL DISSIPATE AFTER APPROXIMATELY 30
MINUTES. THE GAS APPLIANCE SHOULD NOT PRODUCE THICK BLACK SMOKE.
NOTE:
The burner may be noisy when initially turned on. To eliminate
excessive noise from the burner, turn the control knob to the
“MIN” position. Then, turn the knob to the level of heat desired.
Operation pressure checked:
If the flame is very small, this is because the supply
pressure is not enough. Please refill gas cylinder.
Re-light:
1) Turn the control knob to "OFF"position.
2)
3) Repeat steps beginning with step 3 of the lighting
instruction.
Shut down instructions:
1) Push in and turn control knob clockwise to "OFF"
position.
2)
2) Turn LP cylinder valve to "OFF" position.
The Event of Gas Leakage:
1) Turn the control knob to "OFF" position.
3) Wait 5 minutes to allow gas to dissipate.
4) If odor continues, immediately call gas supplier.
WARNING : Gas appliance will be hot after use.
Handle with extreme care.
Wait five (5) minutes before attempting to relight appliance.
Turn LP cylinder gas valve clockwise to "OFF" position
when appliance is not in use.
OPERATION
16
P
u
s
h
t
o
t
u
r
n
OFF
MAX
ON/MIN
P
u
s
h
t
o
t
u
r
n
OFF
MAX
ON/MIN

CAUTION: WHEN CERTAIN MATERIALS OR ITEMS ARE LEFT ABOVE, BESIDE OR UNDER
THIS APPLICANCE WHILE IN USE, THEY WILL BE SUBJECT TO RADIANT HEAT AND
COULD BE SERIOUSLY DAMAGED.
This gas fire pit is primarily used for the heating
of outdoor patios, decks, spas, pools and open
working areas.

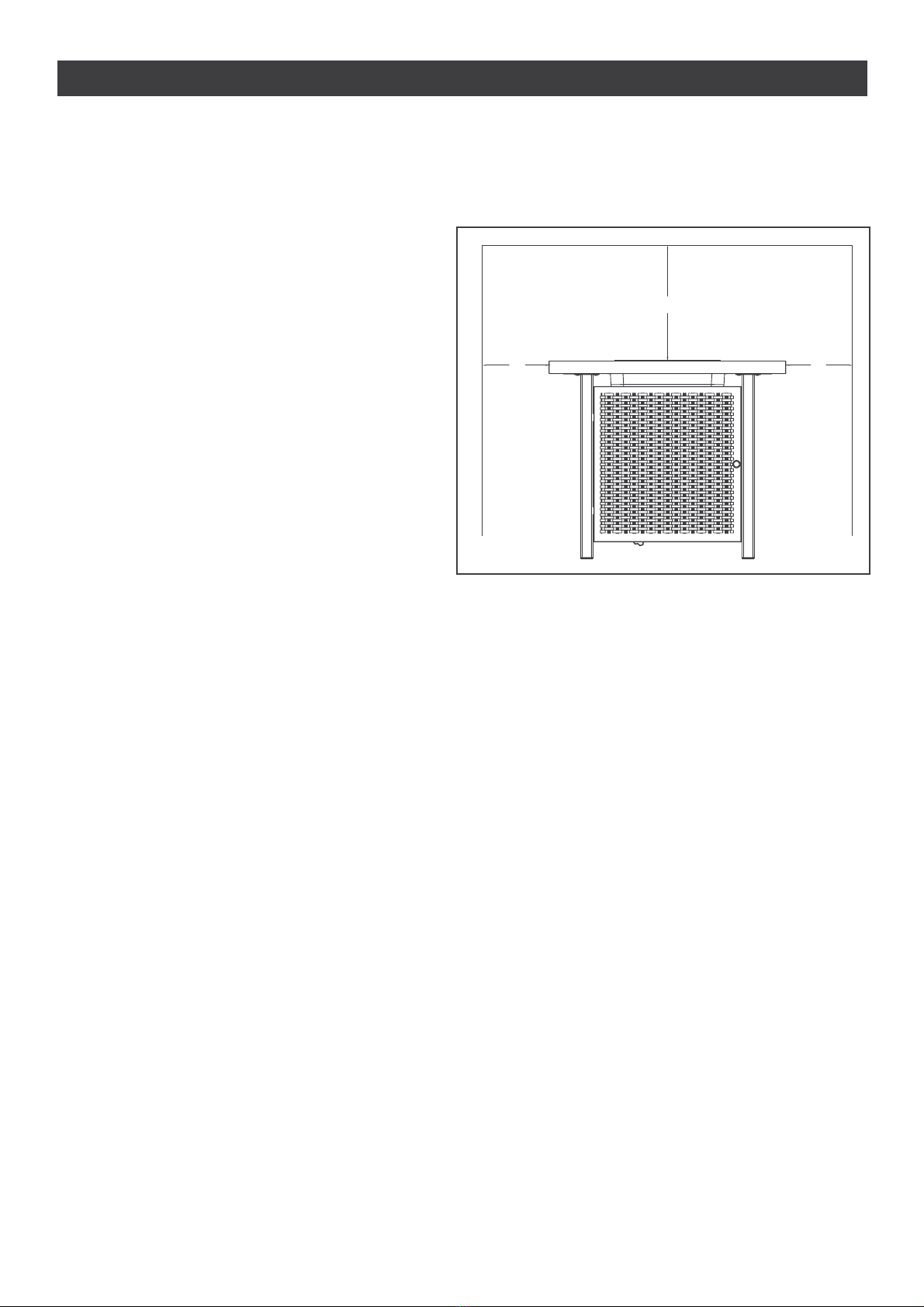

Always make sure that adequate fresh air
ventilation is provided. Follow the spacing
tolerances shown in Fig. 17 at all times.
This gas fire pit must be placed on level, firm
ground.
Never operate in an explosive atmosphere.
Keep away from areas where gasoline or other
flammable liquids or vapors are stored or used.
LOCATING FIRE PIT FOR USE
36”36”
58”
Fig
17

DO NOT touch or move gas appliance
for at least 45 minutes after use.
Allow all burner elements to cool
before touching.
FOR YOUR SAFETY ;
WARNING:
NOTE:
In a salt-air environment such as
near an ocean, corrosion occurs
more quickly than normal.
Frequently check for corroded
areas and repair them promptly.
NOTE:
Wait until gas appliance is cool before
covering.
CLEANING AND MAINTENANCE :
To enjoy years of outstanding performance from your
gas fire pit, make sure you perform the following
maintenance activities on a regular basis:
Keep exterior surfaces clean.
Use warm soapy water for cleaning. Never use
flammable of corrosive cleaning agents.
While washing your unit, be sure to keep the area
around the burner dry at all times. If the gas control is
exposed to water in any way, do NOT try to use it. It
must be replaced.
Keep the appliance area free and clean from combustible
Check if there are cracks or worn sections on the hose. If
yes, please call our customer service to replace hose.
materials, gasoline and other flammable vapors and
liquids; not obstructing the flow of combustion and
ventilation air; keeping the ventilation opening(s) of the
cylinder enclosure free and clear from debris.
Gas fire pit does NOT reach the desired temperature.
Gas fire pit glow is excessively uneven.
Gas fire pit makes popping noises.
At least once a year, the unit should be inspected for
the presence of spiders, spider webs or other insects.
Air flow must be unobstructed. Keep controls, burner,
and circulating air passageways clean. Signs of possible
blockage include:
Spiders and insects can nest in burner or orifices. This
dangerous condition can damage gas fire pit and render
it
unsafe for use. Clean burner holes by using a heavy-duty
pipe cleaner. Compressed air may help clear away smaller
particles.
MAINTENANCE AND STORAGE
18

NOTE:
Wait until the appliance is
cool before covering.
Store the fire pit indoors during the winter if it will be subjected to
freezing temperatures.
Disconnect and remove the cylinder from the appliance before
the appliance can be stored indoors.
STORAGE
Turn the control knob to "OFF" position.
Allow at least 45 minutes for the fire pit to cool down after use, and then
turn regulator counterclockwise to disconnect the regulator from cylinder,
turn the cylinder clamp screw counterclockwise to loose the cylinder and
remove the cylinder.
Turn LP cylinder to OFF position.
Cylinder must be stored outdoors in a well-ventilated area out of
the reach of children. When the cylinder is disconnected, tightly
install the threaded valve plugs, and do not store it in a building,
garage or any other closed area.
You may store product indoors ONLY if the cylinder
is disconnected and removed.
,slairetamelbitsubmocmorfeerfdnaraelcaerafire pitehtpeeK
gasoline and other flammable vapors and liquids.
If you do not use a cover, store this outdoor fire pit in a dry location to
maximize product life.
Store gas fire pit in an area sheltered from direct contact with
sleet, hail, snow, dust and debris).n,iarsahcus(rehtaewtnemelcni
A qualified service person should install and repair the fire pit and
inspect it annually.
It might be necessary to clean this fire pit frequently. You must
passageways clean.
MAINTENANCE AND STORAGE
keep the control compartment, burner and circulating air
19
