QPIX MDFC-1400 User manual

MDFC-1400
DIGITA L
110 / 135 / 126KPK / Super 8
NEGATIVE & SLIDE CONVERTER
User's manual

User Manual
For correct usage please read these instructions carefully and keeps in
a safe place for future reference!
Contents
1.Preface........................................................................................1
2.Safety Precautions......................................................................1
3.Package contents........................................................................2
4.Description of parts......................................................................3
5.Negative holder loading method..................................................4
6.Loading Slide............................................. ................................ 5
7.Operation Guided .......................................................................6
8.Product Specication.................................................................14
9.Declaration.................................................................................15

1
Thank you for purchasing this product! Please read this user's manual
carefully before using this product.
Please retain this manual for future reference.
Please use this product correctly
•
•
•
•
•
•
•
•
•
•
1: Preface
2.Safety Precautions
Do not disassemble this unit.
Do not touch inner part of the scanner after dropping or other damage
suffering.
Do stop using it if there is any problem with the scanner, such as
smoke or smell while using.
Do not clean the scanner with alcohol, gasoline, diluent and other
organic solvent.
Do not use it in many dusts with the damp environment.
Do not overload the USB connections on your computer to avoid poor
working of the scanner for overloading.
Please use films of standard size.
Cleaning: Please make sure the scanner is clean before using so as to
produce a clean image.
Non use period: The USB cord or adapter should be unplugged from
the computer or plug seat when the unit is left unused for a long period
of time.
The device can support 32GB SD, but we recommend you use 16GB
or less SD card, as the device needs to pre-read and calculate
capacity of the inserted SD card to get the number of how many
images can be stored,large capacity SD might slow the response
speed of the device or even freeze the system, when this occurs,
please disconnect the power cable to re-open the device.
To protect the machine and save energy, 30 minutes without
continuous operation will automatically shut down in the state of
power-on .Press the power button to turn again to normal use.

2

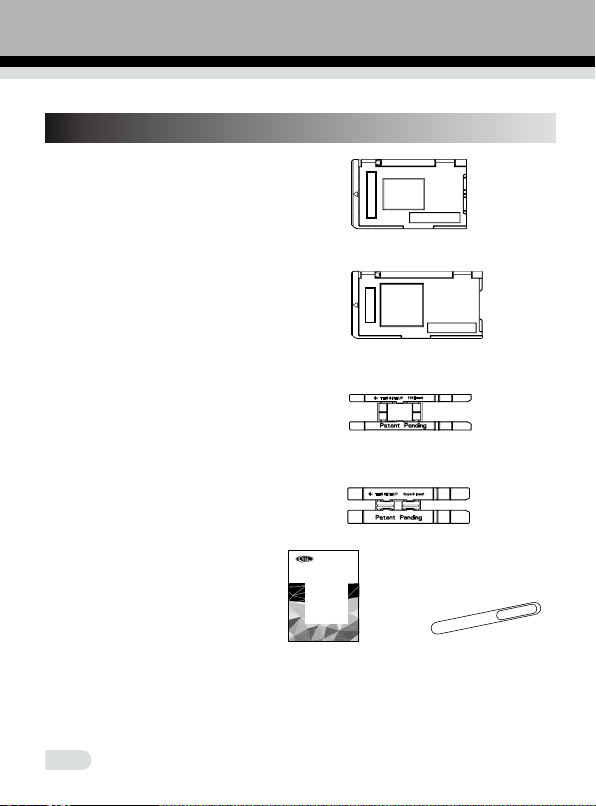

• Film scanner
• Negative Film Holder
• Positive Slide Holder
• 110 Film Holder
• Super 8
• AC/DC adapter
• USB cable
• Cleaning brush
• TV cable
• User Manual
3: Package contents

3
4: Description of parts
Slide Adapter Negative Adapter
THIS SIDE UP 110 Insert
THIS SIDE UP Super8 Insert

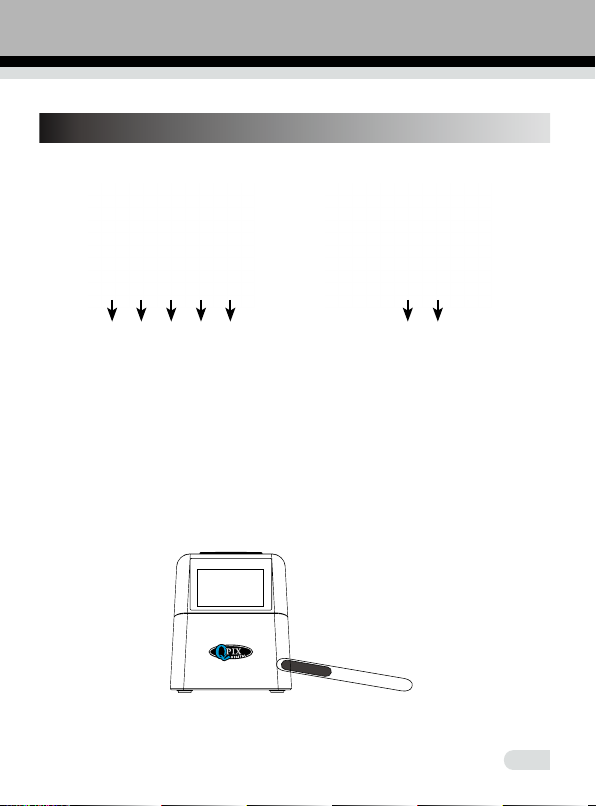

Please stretch into clean from product side,when you use cleaning
brush to clean backlight.
•
Negative Film Holder
Slide Holder
110
TV cable
USB cable
Adapter
Film scanner
Super 8
Brush
User Manual
MDFC-1400
DIG ITAL
110/ 135 / 126KPK / Sup er 8
NEGATIVE& SLIDE CONVE RTER
User's manual

4
5: Negative holder loading method
a.Hold up the negative toward the light.
Face the right side of the negative to
yourself.
b.Take out negative holder out. Let the side
with “open” logo face yourself, and let the
side with “ ◄ ”logo face down. Open the
negative holder, then place negative into
recessed area in the holder.Close the
negative holder and press the edges so
that it locks in place
c. Insert the negative holder into the slot on
the right side of the lm scanner .

5
6: Loading Slides
a.Hold up the slide toward the light. Face
the righ side of the slide to yourself. (we
don't provide white small holder)
b.Take out slide holder out. Let the side with
“open” logo face yourself, and let the side
with “ ◄ ”logo face down.
Open the slide holder, then place slides
into recessed area in the holder.(films
also could be loaded as a strip into the
slide holder, forming drawer type as
below picture)
Close the slide holder and press the
edges so that it locks in place
c. Insert the slide holder into the slot on the
right side of the lm scanner as shown.
• Handle lms with care to avoid scrathesor nger prints(for the best
use cotton gloves when handling films)It is recommended to use
compressed cotton to remove any dust on the lms.

6
7: Operation Guided
1. Introduction of Menu
① ② ③ ④ ⑤ ⑥ ⑦
① Language mode ④Format
② USB mode ⑤Playback mode
③Capture mode ⑥Film Type ⑦Resolution
2. Capture Picture
2.1 Before scanning please make sure the inner backlight panel is
clean.
Note: You can use the provided brush to clean the screen.

7
2.2 In main Menu mode press OK/ENTER enter capture mode, then
press Convert/Mode then press OK/Enter the picture would be
captured.
2.3 Before pressing to capture picture, you can press left button to
mirror and press right button to ip the current picture. And you can
press OK button to set Exposure.
OK/Enter
OK/Enter
Convert/Mode

8
Then press Convert/Mode button again back to main menu.
Press left key ,the image position be altered from left to right
Press right key,the image position be altered from up to down
Press ENTER to set exposure compensation
Mirror
Filp
ENTER

9
3. Operation Guide
In main menu, press ◄ or ►, until lm mode ,then press OK/ENTER you
can chose negative(110, 135, 126KPK), slide(110, 135, 126KPK or Super8),
B&W(110, 135, 126KPK)
4.How to playback captured picture
In main menu, press ◄ or ►, until playback mode, press OK/ENTER to the
picture auto-playback mode press again to stop auto playback and you can
view captured pictures manually, you can press ◄ or ► to view.
press OK/ENTER again enter picture editing mode, you can rotate, delete,
exit, save, and "home" back to main menu.
ENTER
ENTER

10
①The current picture rotate 90 digree clockwisely
②The current picture rotate 90 digree anticlockwisely
③Deleting the current picture from memory card
④Exit the submenu edit mode,back
⑤Saving the current edited picture
⑥Exit the submenu edit mode,back to scan
ENTER
ENTER
①
②
③
④
⑤
⑥

11
5. Setting Language
Under main menu mode, press ◄ or ► until language mode, press OK/
ENTER to chose language, then press ◄ or ► and OK/ENTER, one of
following 8 language can be set: English, Franch, German, Italian, Spanish,
T-Chinese, S-Chinese, Japanese.
6. Resolution Choosing
Under main menu mode , press ◄ or ► until Resolution mode, press OK/
ENTER to enter into Resolution choosing Mode, you can choose 14M or
22M(interpolation)
ENTER
ENTER

12
7. Formatting
In the main menu, press ◄ or ► to Format mode, press OK/ENTER button
to enter.
Note: After using this function, all the information in the Micro SD card will be
deleted, please note it !

13
8. Connect to computer
Under main menu mode, press ◄ or ► until USB MSDC, press OK/ENTER
after successfull connectting to computer, you can view and edit captured
pictures.

14
Function : Film scanner/USB MSDC
Interface: USB 2.0
Image Sensor : 14.0 Mega pixels(4416*3312) 1/2.3” CMOS sensor
Display: Color 2.4" TFT LCD
Exposure Control : Automatic / Manual (-2.0 EV~ +2.0EV)
White Balance : Automatic
Resolution : 14.0 Mega pixels/ 22Mega pixels(interpolation)
Film type : 135 Film(36*24mm) / 126KPK Film(27*27mm)
110 Film(17*13mm)/Super8 Film(4.01*5.79mm)
Monochrome, Slide
Picture E󰀨ects : B&W,Slides,Negatives
File format : Picture:JPEG
TV-OUT type: NTSC/PAL
Built-in memory : 128M
External memory card: SD card up to 32GB
Power Supply: DC 5V Adapter/ USB Port
Language: English, French, German, Italian, Spanish,
Traditional Chinese, Simplied Chinese, Japanese
Support system: Windows XP/vista/Windows7/ Mac10.7.3
Product Size: L91 x W104 x H105mm
Weight: 272g
MADE IN CHINA
8: Product Specication

15
9: Declaration
Please note products spec is subject to improvement .Any changes of
product will not make additional specify.
Please Note: We reserve the right to change the appearance of
the product, specications, performance, parameters and design
without prior notice. The pictures of color box and manual are for
reference only. Brochure with pictures for reference,actual product
and picture may be slightly di󰀨erent,specic please in kind prevail!
