Quadra-Fire Castile Insert Pellet 810-02901 (MBK) User manual

R
www.quadrafire.com 250-7251F September 1, 2008
CASTILE PELLET INSERT
O-T L
Tested and
Listed by Portland
Oregon USA
OMNI-Test Laboratories, Inc.
CUS
Owner’s Manual
Installation and Operation
810-02901 (MBK)
810-03201 (PMH)
CASTINS-CSB
CASTINS-CWL
Models:
HOT! DO NOT TOUCH.
SEVERE BURNS MAY RESULT.
CLOTHING IGNITION MAY RESULT.
WARNING
• Keep children away.
• CAREFULLY SUPERVISE children in same room as
appliance.
• Alert children and adults to hazards of high
temperatures.
• Do NOT operate with protective barriers open or
removed.
• Keep clothing, furniture, draperies and other
combustibles away.
Glass and other surfaces are hot
during operation and cool down.
DO NOT DISCARD THIS MANUAL
CAUTION
• Important operating and
maintenance instruc-
tions included.
• Leave this manual
with party respon-
sible for use and
operation.
• Read, understand and
follow these instruc-
tions for safe installa-
tion and operation.
WARNING
Please read this entire manual
before installation and use of this
pellet fuel-burning room heater.
Failure to follow these instructions
could result in property damage,
bodily injury or even death.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
• Do not overfire - If any external part starts
to glow, you are overfiring. Reduce feed rate.
Overfiring will void your warranty.
• Comply with all minimum clearances to com-
bustibles as specified. Failure to comply may
cause house fire.
Check building codes prior to installation.
• Installation MUST comply with local, regional, state
and national codes and regulations.
• Consult local building, fire officials or authorities
having jurisdiction about restrictions, installation
inspection, and permits.
CAUTION
Tested and approved for wood pellets and shelled
field corn fuel only. Burning of any other type of fuel
voids your warranty.
CAUTION
DO NOT
DISCARD

Page 2 250-7251F September 1, 2008
R
Castile Pellet Insert
Hearth & Home Technologies welcomes you to our
tradition of excellence! In choosing a Quadra-Fire
appliance, you have our assurance of commitment
to quality, durability, and performance.
This commitment begins with our research of the
market, including ‘Voice of the Customer’ contacts,
ensuring we make products that will satisfy your
needs.
Our Research and Development facility then
employs the world’s most advanced technology
to achieve the optimum operation of our stoves,
inserts and fireplaces. And yet we are old-fash-
ioned when it comes to craftsmanship. Each unit
is meticulously fabricated and are hand-finished for
lasting beauty and enjoyment.
Our pledge to quality is completed as each model
undergoes a quality control inspection. From
design, to fabrication, to shipping: We wish you
and your family many years of enjoyment in the
warmth and comfort of your hearth appliance.
Thank you for choosing Quadra-Fire.
SAMPLE OF CLEARANCE TO COMBUSTIBLES LABEL
LOCATION: On beaded chain behind right access
panel. Panel hinges open.
Report No.
#061-S-42-2
7014-143
SAFETY LABEL
R
Castile Pellet Insert
Listed Solid Fuel Room Heater/Pellet Type Insert. Also suitable for Mobile Home Installation. This
appliance has been tested and listed for use in Manufactured Homes in accordance with OAR
814-23-9000 through 814-23-909.
Tested to: ASTM E-1509-95, ULC S628-93, ULC /ORD-C1482-M1990 Room Heating Pellet Burning Type,
(UM) 84-HUD FOR USE ONLY WITH PELLETIZED WOOD OR SHELLED FIELD CORN FUEL.
Route power cord away from unit. Do not route cord under or in front of appliance.
Input Rating: 30,000 BTU/HR.
Electrical Rating: 115 VAC, 60 Hz, Start 4.1 Amps, Run 1.1 AMPS.
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS
AS A BUILT-IN UNIT
Masonry or Zero Clearance
DO NOT REMOVE THIS LABEL
AInsert side to combustible 0 in. 0mm
B Insert top to mantel 12 in. 305mm
CInsert top to face trim 0 in. 0mm
D
Insert side face trim 0 in. 0mm
EHearth extension from door opening 6 in. 152mm
F Hearth extension from side of door opening 6 in. 152mm
B
D
C
C
A
B
E
0 in. Clearance To Exposed Section and Face Trim
ATop of Hopper Top/Rear Vent 0 in. (0mm)
B Side of Outside Skin Top/Rear Vent 0 in. (0mm)
CBack of Hopper Rear Vent 0 in. (0mm)
Top Vent 2.5 in. (64mm)
D Vent Pipe to Combustible Rear Vent 3.0 in. (76mm)
EFrom Panel Edge 0 in. (0mm)
SIDE WALL
MANTEL
B
A
C
E
D
F
Face Trim
1445 Highway North, Colville, WA 99114
Manufactured by:
www.quadrafire.com
O-T L
Tested and
Listed by Portland
Oregon USA
OMNI-Test Laboratories, Inc.
CUS
SAMPLE
This model is exempt from EPAcertification
under 40 CFR 60.531 by definition [Wood
Heater (A) "Air-to-Fuel Ratio"].
AN FEB MAR APR MAY UNE ULY AU SEPT OCT NOV DEC
0-7 F
CASTILE PELLET INSERT
R
SERIAL NO. /NUM RO DU S RIE
DO NOT REMOVE THIS LABEL
Made in U.S.A.
Report /Rapport
#061-S-42-2
CT
TTE T
T E ER T T T C EE C RE C T F R T RE . C T CT C SE S
R S. SEE E TE
STR CT S. perate t is nit it el opper lid closed. Fail re to do so ma
res lt in emissions prod cts com stion rom t e opper nder certain conditions. aintain opper seal in
ood condition. o not o er ill opper.
C RS E R T . E S T C ER. R E ES E F TS ET ES TE E TS E
ES CE S E ST T . E C T CT E T C SER ES R RES E . R
T ETTE ET ES STR CT S.
p re cet appareil a ec le co ercle de la tr mie erm . e d a t de ne pas s i re les instr ctions
pe tr s lter so scertainesconditions en ne com stion des missionsdesprod its enant delatr mie. epasremplir la tr mie troppleine.
007
00 00 010 U.S. ENVIRONMENTAL
PROTECTION A ENCY
NE PAS ENLEVER L TI UETTE
Fait A tats-Unis
O-T L
Tested and
Listed by Portland
Oregon USA
OMNI-Test Laboratories, Inc.
CUS
Test Lab &
Rpt Nbr. Mfg Date Model
Name Serial No.
SAMPLE OF SERIAL NUMBER & DATE OF MANUFACTURE LABEL
LOCATION: Inside hopper on the top

R
September 1, 2008 250-7251F Page 3
Castile Pellet Insert
Section 1: Listing and Code Approvals
A. Appliance Certifications ......................4
B. Mobile Home Approved ......................4
C. Glass Specifications............................4
D. Electrical Rating ..................................4
E. BTU & Efficiency Specifications..........4
Section 2: Getting Started
A. Design, Installation & Location
Considerations....................................5
B. Fire Safety ..........................................5
C. Tools & Supplies Needed ...................6
D. Measuring Standards..........................6
E. Inspect Appliance, Components
and Pre-Check List .............................6
Section 3: Dimensions & Clearances
A. Appliance Dimensions ........................7
B. Clearances to Combustibles
As A Built-In, UL and ULC ..................8
C. Clearances to Combustibles,
Masonry & Zero Clearance.................9
D. Floor Protection ..................................9
E. Minimum Opening for Factory
Built Fireplace .....................................9
F. Removing Floor of Factory Built
Fireplace .............................................10
Section 4: Vent Information
A. Chimney & Exhaust Connections ........11
B. Venting Termination Requirements ....11
C. Equivalent Feet of Pipe.......................12
D. Pipe Selection Chart...........................12
Section 5: Venting Systems
A. Direct Connect with Outside Air ..........13
B. Direct Connect without Outside Air .....13
C. Full Reline with Outside Air.................14
Section 6: Mobile Home..................................15
Section 7: Appliance Set-Up
A. Reverse Top or Rear Flue Adapter.....16
B. Leveling System .................................16
C Outside Air Kit.....................................17
D. Zero Clearance Trim Support .............17-18
E. Panel Set & Cast Trim Set ..................19
F. Panel & Trim Set, Econo.....................19
G. Log Set Placement..............................20
H. Thermostat Installation ........................21
Section 8: Operating Instructions
A. Fuel Size & Material............................22
B. General Operation Information ...........22
C. Before Your First Fire .........................23
D. Starting Your First Fire........................23
E. Fire Characteristics.............................23
F. Feed Rate Adjustment .......................23
G. Ignition Cycles ....................................24
H. Frequently Asked Questions...............24
Section 9: Troubleshooting ............................25-27
Section 10:Maintaining & Servicing Appliance
A. Proper Shutdown Procedures.............28
B. Quick Reference Maintenance Chart..28
C. General Maintenance & Cleaning .......28-32
D. High Ash Content Maintenance ..........32
E. Igniter Replacement............................33
F. Glass Replacement.............................33
G. Baffle & Brick Removal & Replace......34-35
Section 11: Reference Material
A. Component Functions.........................36-37
B. Component Locations.........................38
C. Exploded Drawings.............................39-40
D. Service Parts & Accessories...............41-42
E. Service & Maintenance Log ................43-44
F. Homeowner’s Notes............................45
F. Warranty Policy...................................46-47
G. Contact Information.............................48
TABLE OF CONTENTS

Page 4 250-7251F September 1, 2008
R
Castile Pellet Insert
1Listing and Code Approvals
A. Appliance Certification
C. Glass Specifications
E. BTU & Efficiency Specifications
This appliance is equipped with 5mm ceramic glass. Replace
glass only with 5mm ceramic glass. Please contact your
dealer for replacement glass.
This appliance is approved for mobile home installations
when not installed in a sleeping room and when an outside
combustion air inlet is provided.
The structural integrity of the mobile home floor, ceiling, and
walls must be maintained. The appliance must be properly
grounded to the frame of the mobile home and use only listed
pellet vent, Class “L” or “PL” connector pipe. A Quadra-Fire
Outside Air Kit must be installed in a mobile home installa-
tion.
B. Mobile Home Approved
NOTE: This installation must conform with local codes.
In the absence of local codes you must comply with the
ASTM E1509-95, ULC S628-93, ULC/ORD-C-1482
and (UM) 84-HUD
D. Electrical Rating
115 VAC, 60 Hz, Start 4.1 Amps, Run 1.1 Amps
*BTU output will vary, depending on the brand of fuel you
use in your appliance. Consult your Quadra-Fire dealer
for best results.
NOTE: Hearth & Home Technologies, manufacturer of
this appliance, reserves the right to alter its products,
their specifications and/or price without notice.
MODEL: Castile Pellet Insert
LABORATORY: OMNI Test Laboratories, Inc
REPORT NO. 061-S-42-2
TYPE: Solid Fuel Room Heater/Pellet Fuel
Burning Type Insert
STANDARD: ASTM E1509-95, ULC S628-93 and
ULC/ORD-C1482-M1990 Room
Heater Pellet Fuel Burning Type and
(UM) 84-HUD, Mobile Home Approved
Colorado: Approved 11-15-02
Particulate Emis-
sions Rating: .7 grams/hr
*BTU Output: 8,000 - 30,000 / hr
Heating Capacity: up to 1,500 sq. ft. depending
on climate zone
Hopper Capacity: 45 lbs
Fuel: Wood Pellets or Shelled Corn
Shipping Weight: 260 lbs

R
September 1, 2008 250-7251F Page 5
Castile Pellet Insert
2Getting Started
A . Design, Installation & Location
Considerations
CAUTION
• Do NOT connect this unit to a chimney flue servicing
another appliance.
• Do NOT connect to any air distribution duct or system.
Fire Risk.
WARNING
• Do not operate appliance before reading
and understanding operating instructions.
• Failure to operate appliance properly may
cause a house fire.
1. Appliance Location
Consideration must be given to safety, convenience, traffic
flow, and the fact that the appliance will need a chimney and
chimney connector. It is a good idea to plan your installation
on paper, using exact measurements for clearances and floor
protection, before actually beginning the installation.
If you are not using an existing chimney, place the appliance
in a location to maintain a clear passage for the installation
of any listed and approved pellet venting system. This appli-
ance may be vented vertically or horizontally.
Maintain specified vent clearance to comubstible require-
ments listed by the pellet manufactures venting instructions
and all clearance to combustivles listed in this manual.
Check with your local building code agency before you begin
your installation. Be sure local building codes do not super-
sede UL specifications and always obtain a building permit
so that insurance protection benefits cannot be unexpectedly
cancelled. If any assistance is required during installation,
please contact your local dealer.
We recommend that a qualified building inspector and your
insurance company representative review your plans before
and after installation.
2. Thermostat Location
The thermostat’s location will have some effect on the
appliance’s operation. When the thermostat is located close
to the appliance, it may require a slightly higher temperature
setting to keep the rest of the house comfortable. If the
thermostat location is in an adjacent room or on a different
floor level, you will notice higher temperatures near the
appliance.
B. Fire Safety
Maintain the designated clearances to combustibles. Insu-
lation must not touch the chimney. You must maintain the
designated air space clearance around the chimney. This
space around a chimney is necessary to allow natural heat
removal from the area. Insulation in this space will cause
a heat buildup, which may ignite wood framing. NOTE:
Clearances may only be reduced by means approved
by the regulatory authority having jurisdiction.
To provide reasonable fire safety, the following should be
given serious consideration:
1. Install at least one smoke detector on each floor of
your home to ensure your safety. They should be
located away from the heating appliance and close
to the sleeping areas. Follow the smoke detector
manufacturer’s placement and installation instructions,
and be sure to maintain regularly.
2. A conveniently located Class A fire extinguisher
to contend with small fires resulting from burning
embers.
3. A practiced evacuation plan, consisting of at least 2
escape routes.
4. A plan to deal with a hopper fire as follows:
In the event of a hopper fire:
a. Evacuate the house immediately.
b. Notify fire department.

Page 6 250-7251F September 1, 2008
R
Castile Pellet Insert
D. Inspect Appliance & Components and
Pre-Use Check List
Reciprocating Saw
Hammer
Phillips Screwdriver
Tape Measure
Plumb Line
Level
Framing Material
Hi-temp Caulking Material
Gloves
Safety Glasses
Framing Square
Electric Drill & Bits (1/4”)
1/4” Self-Tapping Screws
May also need:
Vent Support Straps
Venting Paint
Tools and building supplies normally required
for installation, unless installing into an existing
masonry fireplace:
C. Tools And Supplies Needed
Inspect appliance and components for
damage. Damaged parts may impair safe
operation.
WARNING
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
1. Place the appliance in a location near the
final installation area and follow the proce-
dures below:
2. Open the appliance and remove all the parts
and articles packed inside the Component
Pack. Inspect all the parts and glass for ship-
ping damage. Contact your dealer if any irregu-
larities are noticed.
3. All safety warnings have been read and fol-
lowed.
4. This Owner’s Manual has been read.
5. Floor protection requirements have been met.
6. Venting is properly installed.
7. The proper clearances from the appliance and
chimney to combustible materials have been
met.
8. The masonry chimney is inspected by a profes-
sional and is clean, or the factory built metal
chimney is installed according to the manufac-
turer’s instructions and clearances.
9. The chimney meets the required minimum
height.
10.
All labels have been removed from the glass
door.
11. Plated surfaces have been wiped clean, if
applicable.
12. Thermostat or remote has been installed.
13. A power outlet is available nearby.
• Installation and use of any damaged appliance.
• Modification of the appliance.
• Installation other than as instructed by Hearth & Home
Technologies.
• Installation and/or use of any component part not approved
by Hearth & Home Technologies.
• Operating appliance without fully assembling all
components.
• Do NOT Overfire.
Or any such action that may cause a fire hazard.
WARNING
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
Fire Risk.

R
September 1, 2008 250-7251F Page 7
Castile Pellet Insert
3Dimensions and Clearances
A. Appliance Dimensions
Figure 7.2- Front ViewFigure 7.1 - Top View
Figure 7.3 -Side View
13-1/16"
(332mm)
10-3/16"
(259mm)
24-3/4"
(629mm)
9-13/16"
(249mm)
2.0" (51mm)
24-3/16"
(3614mm)
19.0"
(483mm)
12-3/4"
(324mm)
9-3/16"
(234mm)
30-3/8"
(772mm)
30"
(762mm)
43-1/2"
(1105mm)
42-1/2"
(1080mm)
NOTE: All views are shown with Panel
& Cast Trim Set installed.
32-5/16"
(821mm)
28-1/16"
(713mm)
23-7/16"
(595mm)
11-1/16"
(281mm)
8"
(203mm)
Panel Size inch mm inch mm
Small Cast 30 762 42-1/2 1078
Large Cast 34 864 48 1219
Small Econo 30 762 40 1016
Height Width

Page 8 250-7251F September 1, 2008
R
Castile Pellet Insert
A
C
BB
C
E
D
Fire Risk.
Comply with all minimum clearances
to combustibles as specified.
WARNING
Failure to comply may cause house
fire.
NOTE:
•Illustrations reflect typical installations
and are FOR DESIGN PURPOSES
ONLY.
•I
llustrations/diagrams are not drawn to
scale.
•Actual installation may vary due to
individual design preference.
B. Clearance To Combustibles, UL and ULC
Inches Millimeters
A Top of Hopper Top or Rear Vent 0 0
B Side of Outside Skin Top or Rear Vent 0 0
C Back of Hopper Top Vent 2.5 64
Rear Vent 0 0
D Vent Pipe to Combustible Top or Rear Vent 3.0 76
E Front Panel Edge Top or Rear Vent 0 0
INSTALLED AS A BUILT-IN UNIT
Shown Optional Outside Air
Figure 8.1
Figure 8.2
AS A BUILT-IN
0” (0mm) Clearance To Exposed Section And Face Trim
12 in
(305mm)
6 in
(153mm)
Outside
Air

R
September 1, 2008 250-7251F Page 9
Castile Pellet Insert
A
BC
D

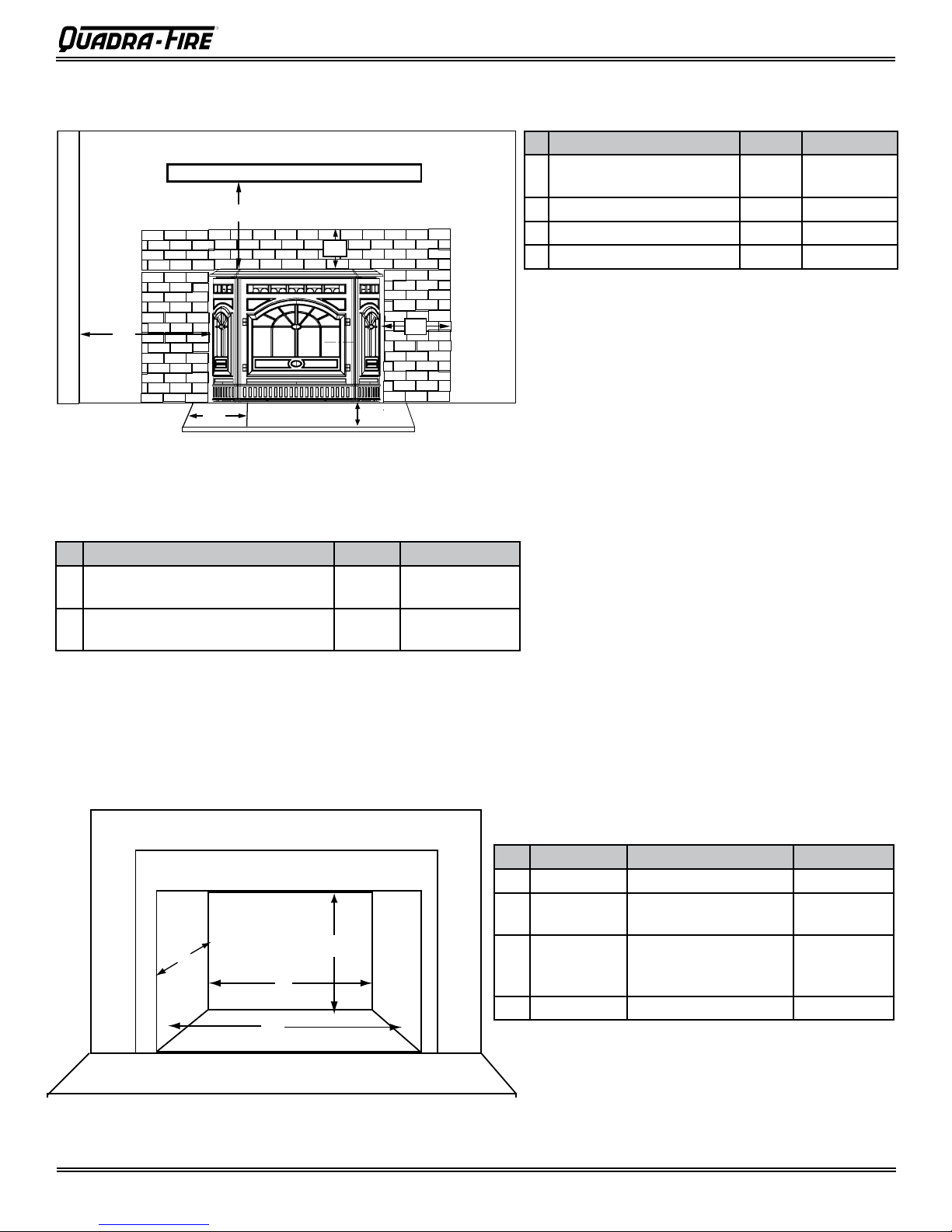

E. Minimum Opening for Masonry and Zero
Clearance Fireplaces
Inches Millimeters
A Insert side to combustible
side wall 00
B Insert top to mantel 12 305
C Insert top to face trim 0 0
D Insert side to face trim 0 0
Location Inches Millimeters
A Rear Width 23-7/16 595
B Depth 18 for Zero Clearance
14 for Masonry
457
356
C Height 19-1/4 if drop down
21-1/4 if flush or
hearth mount
489
540
D Front Width 28-1/4 718
Figure 9.1
Figure 9.2
C. Masonry and Zero Clearance Fireplaces
Inches Millimeters
E Floor protection hearth extension
from door opening 6 152
F Floor protection to the side of door
opening
6 152
D. Floor Protection
SIDE WALL
MANTEL
FE
D
C
B
A

Page 10 250-7251F September 1, 2008
R
Castile Pellet Insert
Mark area of
floor to cut
Starter hole
Use 2 x 4 from insert
packaging to support insert
Keep sharp edge of
metal floor away from
power cord
F. Removing Metal Floor of Factory-Built Firebox
• The firebrick (refractory), glass doors, screen rails, screen
mesh and log grates can be removed from a factory-built
firebox in order to gain minimum insert opening require-
ments.
• Any smoke shelves, shields and baffles may be removed
from a factory-built firebox if attached with mechanical fas-
teners.
• The metal floor of the factory-built firebox may be removed
to facilitate the installation of the insert only when a 1/4
(6mm) inch airspace is provided between the insert and
the floor of outer wrap.
Figure 10.1. Measure and mark the metal
floor for cutting. With a drill, make a starter
hole in each corner.
Figure 10.2. Using a saws-all, cut out the
floor
Figure 10.3. If the floor is made of thin metal,
we recommend using the 2 x 4 from the insert
packaging to support the insert. The 2 x 4
may need to be cut to the appropriate size.
Figure 10.4. Place the insert into the fac-
tory-built firebox. Ensure that the power
cord can not be damaged by the sharp metal
edge. You may need to cut out a notch to
accommodate the cord.
The following is only one example as there are many dif-
ferent models of factory-built fireplaces.
NOTE: Ensure that the leveling leg is posi-
tioned over the 2 x 4 before leveling the
insert. See page 16, for detailed instructions
on how to adjust the leveling legs.

R
September 1, 2008 250-7251F Page 11
Castile Pellet Insert
Do not terminate vent in any enclosed or semi-enclosed
area such as a carport, garage, attic, crawl space, under a
sun deck or porch, narrow walkway or closely fenced area,
or any location that can build up a concentration of fumes
such as a stairwell, covered breezeway, etc.
CAUTION
Vent surfaces get HOT, can cause burns
if touched. Non-combustible shielding or
guards may be required.
WARNING
4Vent Information
A. Chimney and Exhaust Connection
1. Chimney & Connector: Use 3 or 4 inch (76-102mm)
diameter type "L" or "PL" venting system. It can be vented
vertically or horizontally.
2. Mobile Home: Approved for all Listed pellet vent. Use
Listed double wall flue connector. A Quadra-Fire outside
air kit must be used with manufactured home installa-
tions.
3. Residential: Use 24 gauge single wall flue connector
or a Listed double wall flue connector to Class A Listed
metal chimneys, or masonry chimneys meeting national
and/or local codes for solid fuel appliances.
4. INSTALL VENT AT CLEARANCES SPECIFIED BY THE
VENT MANUFACTURER.
5. Secure exhaust venting system to the appliance with at
least 3 screws. Also secure all connector pipe joints with
at least 3 screws through each joint.
NOTE: All pipe must be welded seam pipe whenever pos-
sible. Seal pipe joints with high temperature silicone (500°F
[260°C] minimum rated only).
NOTE: If burning shelled field corn, you must use approved
venting specifically designed for corn. Follow the instruc-
tions from the venting manufacturer.
Fire Risk.
• Only LISTED venting components may be
used.
• NO OTHER vent components may be used.
Substitute or damaged vent components may
impair safe operation.
WARNING
B. Venting Termination Requirements
1.Termination must exhaust above air inlet elevation. It is
recommended that at least 60 inches (1524mm) of verti-
cal pipe be installed when appliance is vented directly
through a wall. This will create a natural draft, which
will help prevent the possibility of smoke or odor venting
into the home during a power outage. It will also keep
exhaust from causing a nuisance or hazard by exposing
people or shrubs to high temperatures. The safest and
preferred venting method is to extend the vent vertically
through the roof.
2.Distance from doors and opening windows, or gravity or
ventilation air inlets into building:
a. Not less than 48 inches (1219mm) below;
b. Not less than 48 inches (1219mm) horizontally
from;
c. Not less than 12 inches (305mm) above.
3. Distance from permanently closed windows:
a. Not less than 12 inches (305mm) below, horizontally
from or above.
4.Distance between bottom of termination and grade
should be 12 inches (305mm) minimum. This is con-
ditional upon plants in the area, and nature of grade
surface. The grade surface must be a non-combustible
material (i.e., rock, dirt). The grade surface must not be
lawn. Distance between bottom of termination and public
walkway should be 84 inches (2134mm) minimum.
5.Distance to combustible materials must be 24 inches
(610mm) minimum. This includes adjacent buildings,
fences, protruding parts of the structure, roof overhang,
plants and shrubs, etc.
6. Termination Cap Location (Home Electrical Service)
• Side-to-side clearance is to be the same as minimum
clearance to vinyl inside corners.
•
Clearance of a termination cap below electrical service
shall be the same as minimum clearance to vinyl soffits.
• Clearance of a termination cap above electrical service
will be 12 inches (305mm) minimum.
• Location of the vent termination must not obstruct or
interfere with access to the electrical service.

Page 12 250-7251F September 1, 2008
R
Castile Pellet Insert
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. Refer
to the owner’s information manual provided with this appli-
ance. For assistance or additional information consult a
qualified installer, service agency or your dealer.
WARNING
3 in. or 4 in. (76mm or 102mm) Diameter Pipe
Equivalent Pipe
Length In Feet
ALTITUDE IN THOUSANDS OF FEET
0
20
30
1 2 3 4 5 6 7 8 9 10
4 in. (102mm) Diameter Pipe Only
10
The chart will help you in determing proper venting
size according to the equivalent feet of pipe calcuated
above and the altitude above sea level of this installa-
tion. Figure 12.2.
Locate the calculated equivalent feet of pipe on
the vertical left side of the chart. Move to the right
horizontally on the chart until you reach your altitude
above sea level.
If you fall below the diagonal line, 3 or 4 inch (76 to
102mm) pipe may be used. If it is anywhere above
the diagonal line, a 4 inch (102mm) diameter pipe is
required.
The chart reveals that a 90° elbow is 5 times as restric-
tive to the flow of exhaust gases under positive pres-
sure as 1 foot of horizontal pipe, and a foot of horizontal
pipe is twice as restrictive as a foot of vertical pipe.
D. Pipe Selection Chart
The table below can help you calculate the equivalent feet
of pipe which is a method used to determine pellet vent size.
Figure 12.1.
C. Equivalent Feet of Pipe
2 ft.
2 ft.
3 ft.
2 ft.
Example of 3 Elbow-Rear Vent Termination Calculation
Figure 12.1
Figure 12.2
Pellet Venting
Component
# of
Elbows
Feet of
Pipe
Multiplied
By
Equivalent
Feet
Components
Equivalent Feet
90oElbow or Tee 3X515
45oElbow X3
Horizontal Pipe 7X 17
Vertical Pipe 2X 0.5 1
Total Equivalent Feet 23
Note: This is a generic example and is not
intended to represent any specific fuel type.

R
September 1, 2008 250-7251F Page 13
Castile Pellet Insert
5Venting Systems
Figure 13.2
A. Direct Connect With Outside Air B. Direct Connect Without Outside Air
NOTE:
In Canada, where passage through a wall or partition of
combustible construction is desired, the installation shall
conform to CAN/CSA-B365.
Outside Air
through
Rear Wall
Figure 13.1
Fire Risk.
Inspection of Chimney:
• Masonry chimney must be in good condition.
• Meets minimum standard of NFPA 211
•
Factory-built chimney must be 6 inch (152mm)
UL103 HT.
WARNING
CAUTION
Never draw outside combustion air from:
• Wall, floor or ceiling cavity
• Enclosed space such as an attic or garage
NOTE:
•Illustrations reflect typical installations and are FOR
DESIGN PURPOSES ONLY.
•I
llustrations/diagrams are not drawn to scale.
•Actual installation may vary due to individual design
preference.
NOTE; Use metal plate
around exhaust vent pipe
and seal all edges with
non-flammable insulation
such as fiberglass, mineral
wool or ceramic material.
Do not use high tempera-
ture caulking materials to
seal any edge to prevent
future serviceability.
NOTE: In Canada, only a full reline is
allowed per ULC S-628, ORD ULC C1482.

Page 14 250-7251F September 1, 2008
R
Castile Pellet Insert
C. Full Reline With Outside Air
Outside Air
Termination
at
Chimney Top
Outside Air
through
Rear Wall
Exit through the
Ash Clean-Out of
Masonry Chimney
12” (305mm)
min. below
12” (305mm)
min. above
NOTE; Use metal
plate around
exhaust vent pipe
and seal all edges
with non-flammable
insulation such as
fiberglass, mineral
wool or ceramic.
Do not use high
temperature caulk-
ing materials to
seal any edge to
prevent furture
serviceability.
NOTE: Check clearances carefully for this
type of installation to ensure adequate room
for outside air venting.
Check building codes prior to installation.
• Installation MUST comply with local, regional,
state and national codes and regulations.
• Consult local building, fire officials or authori-
ties having jurisdiction about restrictions,
installation inspection, and permits.
CAUTION
Figure 14.2
NOTE: In Canada, only a full reline is
allowed per ULC S-628, ORD ULC C1482.

R
September 1, 2008 250-7251F Page 15
Castile Pellet Insert
6Mobile Home
1. An outside air inlet must be provided for the combustion
air and must remain clear of leaves, debris, ice and/or
snow. It must be unrestricted while the appliance is
in use to prevent room air starvation which causes
smoke spillage. Smoke spillage can also set off smoke
alarms.
2. The combustion air duct system must be made of
metal. It must permit zero clearance to combustible
construction and prevent material from dropping into
the inlet or into the area beneath the dwelling and
contain a rodent screen.
3. The appliance must be secured to the mobile home
structure by bolting it to the floor (using lag bolts). Use
the same holes that secured the appliance to the ship-
ping pallet.
4. The appliance must be grounded with #8 solid copper
grounding wire or equivalent, terminated at each end
with an NEC approved grounding device.
5. Refer to clearances to combustibles and floor protection
requirements on pages 8 & 9 for listings to combus-
tibles and appropriate chimney systems.
6. Use silicone to create an effective vapor barrier at
the location where the chimney or other component
penetrates to the the exterior of the structure.
7. Follow the chimney manufacturer’s instructions when
installing the vent system for use in a mobile home.
8. Installation shall be in accordance with the Manufactur-
ers Home & Safety Standard (HUD) CFR 3280, Part
24.
CAUTION
Maintain structural integrity of mobile home:
• Floor, wall, ceiling and/or roof.
Do NOT cut through:
• Floor joist, wall studs or ceiling trusses.
• Any supporting material that would affect the structural
integrity.
Never install in a sleeping room.
WARNING
Installation must comply with Manufactured Home and
Safety Standard (HUD), CFR 3280, Part 24.
WARNING
You must use a Quadra-Fire Outside Air Kit for instal-
lation in a mobile home.
A. Mobile Home Installation
Spar rrestor ap
Roof las i g
Storm ollar
oist S ield irestop ppro ed lass L
or L ellet e t
Figure 15.1

Page 16 250-7251F September 1, 2008
R
Castile Pellet Insert
7Appliance Set-Up
B. Leveling System
Figure 16.4
A. Reversible Top or Rear Flue Adapter
The back legs are adjustable to allow for customized fit
into zero clearance boxes.
1. Loosen 2 top screws and remove 2 bottom screws.
2. Adjust leg to desired height. Leg can slide up (shorter)
or down (longer) to level the insert.
3. Tighten 2 top screws.
4. Drill 2 holes for the bottom 2 screws and re-install
screws. Figure 16.5.
Loosen top 2 screws and remove
bottom 2. Adjust leg to desired height.
Drill 2 holes and
re-install bottom 2
screws
Ammo Can Latches
Top Vent Installation
1. Release ammo can latches on each side. Figure 16.1.
2. Place the reversible adapter in the correct position for your
installation.
3. Make sure BOTH latches are in position before securing
them.
Rear Vent Installation
1. Remove the 90oadapter and installation screws from the
packaging.
2. Attach the 90oadapter onto the vent adapter, using the 3
screws provided. You will need to pre-drill the holes for screw
placement. Be sure to adjust the 90oadapter to the desired
position for venting before drilling.
3. Silicone the pipe joints according to the Note below.
screw
Figure 16.5
Figure 16.1 - Top Vent
Figure 16.2 - Rear Vent Figure 16.3 - Rear Vent
NOTE: All pipe must be sealed using welded
seam pipe whenever possible. Seal pipe joints
with high temperature silicone, minimum rate of
5000F (2600C).

R
September 1, 2008 250-7251F Page 17
Castile Pellet Insert
C. Outside Air Kit Instructions
Parts Included in Kit: 1 piece of 2 inch x 3 ft. flex hose, 2
hose clamps, 1 collar assembly, 1 termination cap assem-
bly, 1 trim ring, fasteners.
1. Attach collar assembly to appliance. Figure 17.1.
Measure distance from floor to air vent opening in
appliance and mark location on wall.
3. Use saw to cut opening in wall. Cut a 2-1/2 to 3 inch
(64-76mm) opening on inside wall and a 3 to 3-1/2
inch (76-89mm) opening on outside of house.
4. Use hose clamp to secure flex pipe to collar assem-
bly.
5. Slide trim ring over flex pipe and run pipe through
pre-cut hole in back of appliance and through the
wall.
6. Attach hose to outside termination cap with second
hose clamp.
7. Secure termination cap to outside surface.
8. Secure trim ring to interior wall.
Tools Needed: Phillips head screwdriver; wire cutters;
hole saw or jig saw.
CAUTION
Never draw outside combustion air from:
• Wall, floor or ceiling cavity
• Enclosed space such as an attic or garage
Figure 17.1
Figure 17.3
1
23
4
5
6
7
8
D. Zero Clearance Trim Support Instructions
Figure 17.2 - Assembled View
Item Description
1 Front, 3 inch
2 Front, 5 inch
3 Cast Ring, Top & Bottom, Interchangeable
4 Side, 5 inch
5 Side, 3 inch
6 Panel Extension, 5 inch
7 Panel Extension, 3 inch
8 Panel Extension, Base Plate Only
NOTE: Only for use on small size panels.
Flex Hose
Hose Clamp
Collar
Assembly
Trim Ring Termination
Cap Assembly
Hose Clamp

Page 18 250-7251F September 1, 2008
R
Castile Pellet Insert
Install Sides
First
Install Front Last
Bend top and bottom tabs toward inside
OT
-
Turn right side up and attach top cast rin g
Zero Clearance Panel Extension
Alignment
Hole
T
L
Base Plate Only Installation
Kit Includes: See Page 17
Tools Needed: Phillips head screwdriver
Parts Needed: (1) cast ring (2) base zero clearance panel
extensions. Discard balance of parts.
Tools Needed: Phillips head screwdriver
1. Attach base zero clearance panel extensions to cast
ring.
2. Place assembly under appliance.
1. Remove contents from box and lay on protective surface
to avoid scratching the paint.
2. Lay zero clearance front and sides face down. Bend the
tab down toward the inside.
3. The side pieces are shipped flat. It is much easier to manually
flex the sides into a bowed position before installing.
4. Lay 1 cast ring face up, which will become the bottom ring
when installed. Attach the 2 sides FIRST and then the front
piece. Figure 18.1.
5. Now turn the cast ring right side up
and attach the top cast
ring . Figure 18.2.
6. Attach the zero clearance panel extensions. Figure 18.3
7. Attach cast footers. Figure 18.4.
8. Place the assembled zero clearance trim support under
the insert. Figure 18.5.
Zero Clearance
Panel Extension
Panel Leg
Cast Trim Footer
D. Zero Clearance Trim Support (Cont’d)
Figure 18.1
Figure 18.2
Figure 18.3
Figure 18.4
Figure 18.5
Figure 18.6

R
September 1, 2008 250-7251F Page 19
Castile Pellet Insert
E. Panel Set And Cast Trim Set
1. Screw panels
together
2. Bend tabs down
1. Screw panels
together
3. Install Cast Trim Header
2. Bend tabs
down
Mounting tabs on each panel leg
to match up with slots on insert.
Included in Panel Kit: (2) side panels, left and right; (1)
panel top; (1) fastener package.
Included in Cast Trim Kit:
(2) cast trim legs, left and right; (1)
cast trim header; (2) cast trim footers, left and right; (1) fastener
package.
Tools Needed: Powered Phillips head screw driver
F. Panel & Trim Set, Econo
1. Secure the top panel to the panel sides with the
screws provided. Figure 19.3.
2. Assemble the gold trim with the (2) corner brackets
provided. Figure 19.4.
3. Slide the assembled trim over the assembled panel
set.
4. Slide panel and trim over the top of the insert into
place matching the mounting tabs on the panel with
the slots on the insert.
Back of Top Panel
Back of Side Panel
Screws
1. Remove contents from box being careful not to scratch or
damage the cast trim pieces.
2. Lay the panel set face down on protective covering to prevent
scratching the painted surface.
3. Secure the panels legs to top panel with the screws provided.
4. Now bend the tabs down toward the backside of the panel set,
5 on top and 2 on each leg. Leave the panel set face down.
5. Place the corresponding cast trim pieces ( 2 cast trim legs and
1 cast trim header) underneath the panel set, also face down.
6. Place washer provided over tab and secure the trim and panel
together with screw. Continue for all tabs.
7. Secure cast footers with screws.
8. Remove both left and right cast sides from insert, See Figures
28A, 28B and 28C on page 28.
9. Slide panel and trim over the top of the insert into place matching
the mounting tabs on the panel with the slots on the insert.
Included in Panel & Trim Kit: (2) corner brackets and set
screws; (1) trim set, 3 piece; (2) side panels; (1) top panel;
(4) screws;
Tools Needed: Powered Phillips head screw driver
•Do NOT pick up assembled unit by corners.
•It is too heavy and may damage the panels.
•Pick up from center.
CAUTION
Figure 19.1
Figure 19.2 - Completed View
of Panel Set & Cast Trim Set
Figure 19.3
Figure 19.4
View of "L" Bracket
installed

Page 20 250-7251F September 1, 2008
R
Castile Pellet Insert
1. Open the hinged cast face and open the glass door
assembly.
2. Positioning the logs.
Place the right rear log as shown. There is a notch in
the bottom of the log for clearance for the thermocou-
ple and thermocouple cover (ceramic protection tube).
Figure 20.1
Continue placing the last 3 logs around the firepot as
show in Figures 20.2, 20.3 and 20.4.Be careful not to
block the drop tube in the back of the firebox where pel-
lets feed into the firepot.
Four Piece Log Set Installation
Place the log over the firepot. The charred
area on the log is turned toward the back, not
the front.
The log will be about 2-1/2 inches (64mm)
above the firepot when in place. It must rest
on the 3 logs in a stable position to prevent it
from falling into the firepot. Figure 20.5.
G. Optional Log Set Placement Instructions
Notch
Thermocouple
Cover
Drop Tube
Figure 20.1
CAUTION
Logs are FRAGILE. Use extreme care when handling or
cleaning logs.
NOTE:
Due to the abrasive nature of a pellet appliance fire, the
logs are not covered under warranty. Any placement varia-
tion other than shown here can cause excessive heat and
shall void the appliance warranty.
Figure 20.2
Figure 20.3
Figure 20.4
Top Log Installation
Figure 20.5
