QUADRA-FIRE 5700 STEP TOP ACC WOOD BURNER INSTALLATION INSTRUCTIONS
INSTALLATIONS TO COMPLY WITH AS/NZS2918:2001
AND WILL REQUIRE A BUILDING CONSENT
IMPORTANT: Read all instructions carefully before starting installation. Failure to follow these
instructions may result in a re hazard and will void the warranty.
• Fig.3,4,5andTable1&2relatetoinstallationswithtesteduesystems;asperAS/NZS 2918:2001 -
Appendix F,withaceilinganglebetween0°-30°inclusive.
• For installations with a ceiling angle greater than 30°, refer to Fig. 6 & 7 and AS/NZS 2918:2001 4.6.3(b)
• CeilingPlatemayvaryinsizedependingonceilingangle.Pleasespecifyceilingpitchpriortoorderingthe
ceilingplate.
• Quadra-Fire5700StepTopACCwoodburner’saretestedandapprovedtotheN.Z.NationalEnvironmen-
talStandards;
57ST-ACC-AU -5700 Step Top ACC Hardwood Certied
ParticulateEmissions=2.9g/kgSpaceHeatingEfciency=65%
Model:
57ST-ACC-AU

Page 2 7038-201 July 19, 2012
R
5700 Step Top ACC Wood Burner
Hearth & Home Technologies welcomes you to our tradition
of excellence! In choosing a Quadra-Fire appliance, you
have our assurance of commitment to quality, durability, and
performance.
This commitment begins with our research of the market,
including ‘Voice of the Customer’ contacts, ensuring we
make products that will satisfy your needs. Our Research
and Development facility then employs the world’s most
advanced technology to achieve the optimum operation of
our stoves, inserts and replaces. And yet we are old-fash-
ioned when it comes to craftsmanship. Each unit is meticu-
lously fabricated and surfaces are hand-nished for lasting
beauty and enjoyment. Our pledge to quality is completed
as each model undergoes a quality control inspection.
We wish you and your family many years of enjoyment in
the warmth and comfort of your hearth appliance. Thank
you for choosing Quadra-Fire.
5700 STEP TOP ACC
JAN FEB MAR APR MAY JUN JUL AUG SEP OCT NOV DEC
2012 2013 2014
INSTALLATION
DATE
MILLENNIUM ACC WOODFIRE COMPLIANCE LABEL
R
SERIAL NO.
007049
7039-148
This appliance has been TESTED TO AS/NZS4013 for Hardwood by HRL Technology Report # HCMG/12/026 Date tested: May 2012
MODEL QUADRA-FIRE 5700 STEP TOP ACC FREESTANDING WOOD STOVE
65%
2.9 g/kg
7.6 kW
BURN ONLY HARDWOOD WITH A MOISTURE CONTENT LESS THEN
25% (dry basis).
Wetbacks are NOT an approved option and must not be tted.
Hearth & HomeTechnologies, 1445 North Highway, Colville,WA
99114, United States of America.
OVERALL AVERAGE EFFICIENCY BURNING HARDWOOD
WHENTESTED IN ACCORDANCETO AS/NZS 4012
AVERAGE PARTICULATE EMISSION FACTOR BURNING HARDWOOD
WHEN TESTED IN ACCORDANCE TO AS/NZS 4013
MAXIMUM AVERAGE HEAT OUTPUT BURNING HARDWOOD
APPROVED FUEL
WETBACK - ALL MODELS
MANUFACTURED BY
PERFORMANCE MAY VARY FROMTESTVALUES DEPENDING ON ACTUAL
OPERATING CONDITIONS.
U.S. ENVIRONMENTAL PROTECTION AGENCY
Export stove. May not be operated within the United States.

July 19, 2012 7038-201 Page 3
R
5700 Step Top ACC Wood Burner

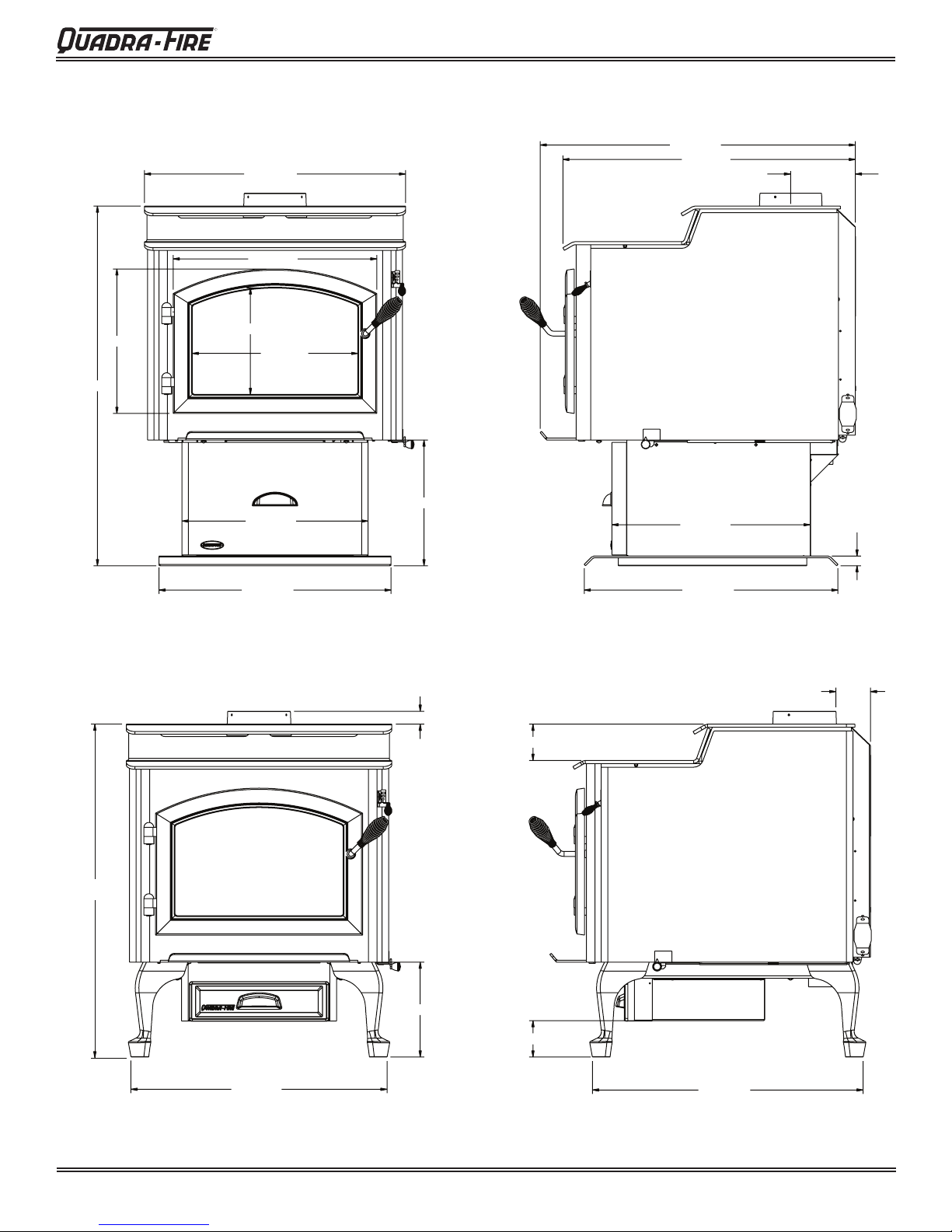

Quadra-Fire 5700 STEP TOP ACC Wood Burner Dimensions Pedestal Model
Quadra-Fire 5700 STEP TOP ACC Wood Burner Dimensions Leg Model
33 mm
245 mm
662 mm
945 mm
89 mm
94 mm
699 mm
94 mm
686 mm
535 mm
280 mm
435 mm
379 mm
945 mm
489 mm
330 mm
610 mm
822 mm
769 mm
170 mm
522 mm
664 mm
25 mm

Page 4 7038-201 July 19, 2012
R
5700 Step Top ACC Wood Burner
DESCRIPTION
Pioneer Double Flue Mounted Shield Universal
Shall be Fitted
With Double Flue
Shield Fitted

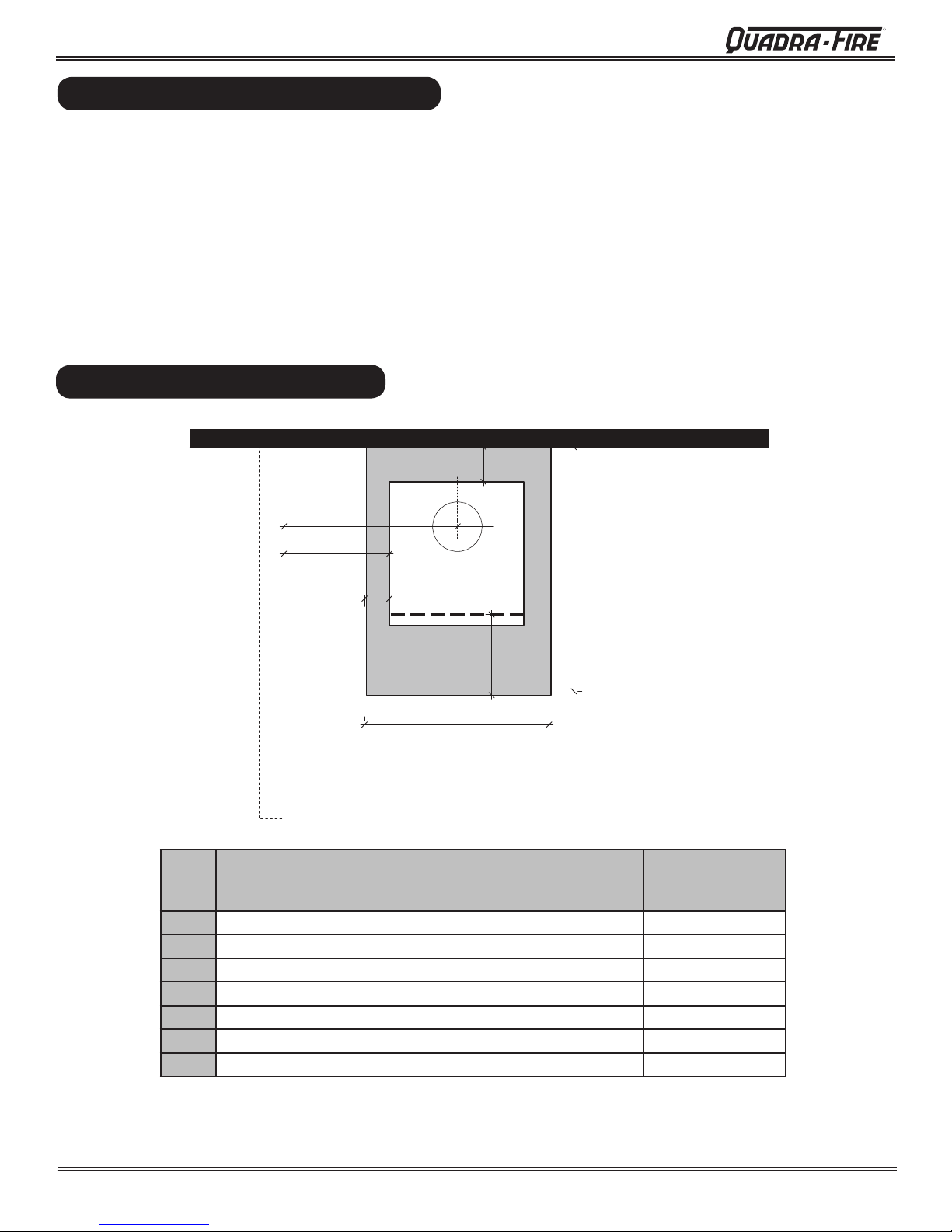

AMin. Clearance from rebox to rear wall 150
BMin. clearance from rebox to side wall 300
CMin. distance from rebox opening to oor protector front 450
DMin. distance from rebox to oor protector side 76
EMin. distance from ue centre to side wall 847
FMin. distance from rear wall to front of oor protector 1034
GWidth of oor protector 746
Quadra-re 5700 Step Top ACC does not require a insulating Floor Protector, as they are tested and
comply with the minimum Floor Protector requirements of AS/NZS 2918:2001.
Note:
▪ The minimum Floor Protector sizes are specied in the clearance chart, see Table 1 & 2.
▪ A Floor Protector can include ceramic tiles with grouted joints xed directly onto a wooden oor or
a sheet of toughened glass, panel steel or any other non combustible material laid directly onto a
wooden oor.
▪ If installed directly onto a concrete slab, the concrete slab can be considered as the oor
protector,but must maintain the minimum measurement listed.
FLOOR PROTECTOR
PARALLEL POSITIONING
NOTE: HEAT SHIELD REQUIREMENTS FOR HEAT SENSITIVE WALLS
Clearances may be reduced by provision of an appropriately located heat shield refer to
AS/NZS 2198:2001 3.2.3 TABLE 3.1
Table 1
Fig. 3
Drawing not to scale
A
E
B
F
D
C
G

July 19, 2012 7038-201 Page 5
R
5700 Step Top ACC Wood Burner
CORNER POSITIONING (45°)
DESCRIPTION
Pioneer Double Flue Mounted Shield Universal
Shall be Fitted
With Double
Flue Shield
Fitted
AMin. clearance from rebox to corner walls 100
BMin. distance from rebox to oor protector front 450
CMin. distance from rear wall to oor protector front 1443
DMin. oor protector projection from wall 841
EMin. overall oor protector depth 1615
FMin. oor protector front width 850
CORNER POSITIONING (45°)
Drawing not to scale
Table 2
Fig. 4
FIREBOX INSTALLATION
1. If a separate oor protector is being used position now. Place the rebox on the oor protector to
suit the minimum installation clearances. (See Fig 3 or 4).
2. Seismically restrain the rebox and the oor protector to the oor.
3. Fit 2 x 6mm xings suitable for the oor material. DO NOT over tighten.
4. Fit timber trim pedestal edging to front and back of base (optional).
C
A
D
CA
B
E
F
D

Page 6 7038-201 July 19, 2012
R
5700 Step Top ACC Wood Burner
▪ Flue pipe installed crimp/narrow end down
▪ Outer casings installed crimped/narrow end up. (Critical when exposed above the roof)
▪ Inner casings - direction not critical
▪ Flue pipes - seal all joints including rebox spigot.
- x with a minimum of 3 stainless steel rivets
▪ Flue pipe spacers - afx to ue pipe
▪ Flue system termination point - Refer to AS/NZS 2918:2001 4.9.1, see Fig. 9.
▪ Flue pipe shall extend not less than 4.6m above top of the oor protector as per
AS/NZS 2918:2001 4.9.1(a)
▪ Façade or chase systems - same rule applies as above.
▪ Roof penetration and ashing method refer to NZ Building Code E2.(From 01/07/05)
Note: These instructions apply to 150mm diameter ue pipe systems as tested to
AS/NZS 2918:2001
1. Either locate the appliance in position or by measuring at the ceiling mark the ue pipe centre position.
Check that the outer casing is unobstructed through the attic space or roof area.
2. Spike the centre with a nail. Transfer this position to the next surface above. Plumb bob/laser.
3. Cut out the ceiling penetration hole – square or rectangle – short axis equals outer casing diameter
plus 50mm, long axis as required. See Table 5 . Perform the same at the roof penetration.
4. Frame out the hole with minimum 75 x 50 timber or as required for roong material. Minimum
requirement at roof penetration see NZ Building Code E2 Acceptable Solution (from 01/07/05).
5. Install the outer casing so that :-
(i) lower end is ush with the underside of the ceiling material and
(ii) with the addition of metal “L” brackets, afx to the outer casing at 90 degrees secure the outer
casing centrally to the ceiling and roof nogs. Alternatively substitute the “L” brackets for 25mm thick
non heat sensitive packers. Secure the outer casing through the packers with horizontal xings to
the nogs. Refer to the General Instruction for termination height. The option of outer casing slips to
be taken into account.
6. Flash the outer casing to the roof material with the appropriate approved ashing.
7. If using an outer/inner casing combination, now install the inner casing ensuring it extends a minimum
200mm above the high side of the roof penetration. If not using a combination see ‘11’ below.
8. Refer to Firebox Installation, points 1 & 2.
9. Prepare the ceiling plate and place upside down over the ue spigot.
10. Install the ue pipes by preferred method – either up or down the outer casing. Afx each length
per the notes in General Instructions (above). Extend the ue pipe above the outer
casing to suit the casing cover/cowl assembly.
11. If the inner casing has not been installed, install now. Refer to 7 above for minimum height.
12. Install the cowl assembly, i.e. Top spacer, casing cover and cowl.
13. Position and secure the ceiling plate with the screws and spacers.
14. Wipe the ue pipe to remove nger marks.
15. Refer to Firebox Installation, point 3.
16. If ue offset is required, refer to AS/NZS 2918:2001 4.1
GENERAL INSTRUCTIONS FOR FLUE SYSTEM

July 19, 2012 7038-201 Page 7
R
5700 Step Top ACC Wood Burner
C
L
Drawing not to scale
12
Tested flue systems, as per AS/NZS 2918:2001
Fig. 5 ADD Cowl
Casing Cover
Spider Bracket
oversized casing cover
is necessary
minimum 25mm gap
between flue pipe casing &
combustible material
Non combustible material
Hebel block or 12mm
Promina board or similar
under the flashing
25 25
Approved Flashing
Roof Line
Inner Casing 200mm
above roof line
Outer Casing
Inner Casing
25 Internal Swage
25 25
12.5
V ented
Ceiling Plate
Pioneer
Double Flue
Shield
Flue Pipe
C
L
C L
Quadra-fire Millennium
Floor
Protector
The flue crimp must be cut so the swage
(half-moon bulge after the crimp) fits
tightly into the spigot.
FLUE PENETRATION

Page 8 7038-201 July 19, 2012
R
5700 Step Top ACC Wood Burner

150
FLUE PENETRATION 1.QF.1F



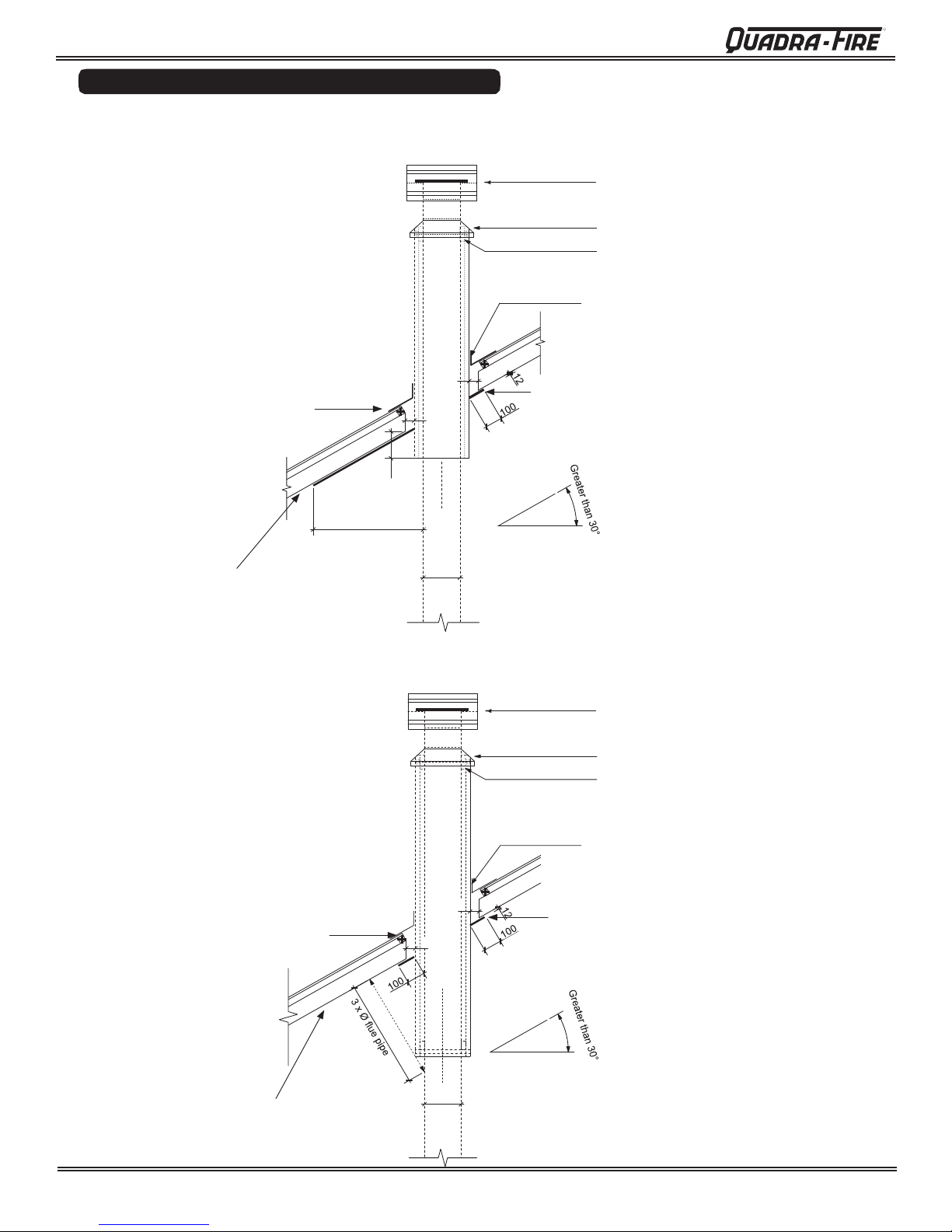

Un-tested flue systems, as per AS/NZS 2918:2001, 4.6.3(b)



Fig. 6


AS/NZS2918:2001

Un-tested flue with sloped ceiling
penetration greater than 30° from
horizontal

A = 25mm

4.6.3(b)
Fig 4.6 = downward distance of
casing and 3 x ø flue distance of
the ceiling plate
ADD Cowl


Casing Cover

Spider Bracket



Approved Flashing





A
Ceiling Plate

Batten
A







3 x Ø flue pipe

Ceiling

flue pipe
Ø







Fig. 7
ADD Cowl
AS/NZS2918:2001

Un-tested flue with sloped ceiling
penetration greater than 30° from
horizontal

A = 25mm

4.6.3(b)
Fig 4.6 = 3 x ø flue from active flue
to heat sensitive surface

Casing Cover

Spider Bracket




Approved Flashing



A
Ceiling Plate

Batten
A










Ceiling
flue pipe
Ø

July 19, 2012 7038-201 Page 9
R
5700 Step Top ACC Wood Burner
1. Unpack the Flue Mounted Shield, detach the three brackets and familarize yourself with the illustra-
tions.
2. Using a sharp knife or razor blade, carefully cut through the plastic lm on the “inside face” where
it meets the outer shield (refer sketch). Cut along the full length of the Flue Mounted Shield on both
side, then peel off and fully remove the plastic lm from the stainless steel inner shield.
3. Peel back and fully remove the plastic lm from the outer shield.
4. Fit the top bracket to the Flue Mounted Shield as illustrated ensuring the rear mid section of the
bracket ts “outside” while the two outer sections of the bracket t “inside”.
5. Fit the appropriate lower bracket to your woodre.
Lower Bracket “5B suitable for all other woodres without an inner rear heatshield. On certain model
woodres without a raised ue spigot it will be necessary to cut off both the lower outer legs from the
bracket “5B” leaving the entral tongue to locate inside the ue outlet only.
Two tabs are provided and if folded back at 90 degrees the bracket and Flue Mounted Shield will
mount lower onto the appliance.
The Flue Mounted Shield then locates into the two notches provided n bracket “5B” as illustated.
6. Once the Flue Mounted Shield is tted in position onto either of the two lower mounting brackets,
check to ensure a large gap is not present between the top of the woodre and the base of the Flue
Mounted Shield, as this may result in a hot spot on the rear wall directly behind the ue outlet. If your
woodre has a lift off top grill the Flue Mounted Shield should be raised sufciently to enable the top
grill to be removed.
7. Using the pre-punched holes in the two tabs provided on the top bracket as guides, drill into the
ue pipe and secure the top bracket to the ue pipe with two stainless steel rivets (not supplied).
GENERAL INSTRUCTIONS FOR FLUE SYSTEM
MINIMUM HEIGHT OF FLUE SYSTEM EXIT
Fig. 8
3000
3000
or less
More than
3000
600 min.
3000
increase as necessary
until nothing within
3000mm of flue
top
Any nearby
structure
increase from 1000mm
minimum until clear within
3000mm of flue top

Page 10 7038-201 July 19, 2012
R
5700 Step Top ACC Wood Burner
WARNINGS:
WARNING: THE APPLIANCE AND FLUE SYSTEM SHALL BE INSTALLED IN ACCORDANCE
WITH AS/NZS 2918 AND THE APPROPRIATE REQUIREMENTS OF THE RELEVANT BUILDING
CODE OR CODES.
WARNING: APPLIANCES INSTALLED IN ACCORDANCE WITH THIS STANDARD SHALL
COMPLY WITH THE REQUIREMENTS OF AS/NZS 4013 WHERE REQUIRED BY THE REGULA-
TORY AUTHORITY, I.E. THE APPLIANCE SHALL BE IDENTIFIABLE BY A COMPLIANCE PLATE
WITH THE MARKING ‘TESTED TO AS/NZS 4013’.
ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN APPROVED IN WRITING BY
THE TESTING AUTHORITY IS CONSIDERED TO BE IN BREACH OF THE APPROVAL GRANTED
FOR COMPLIANCE WITH AS/NZS 4013.
CAUTION: MIXING OF APPLIANCE OR FLUE SYSTEM COMPONENTS FROM DIFFERENT
SOURCES OR MODIFYING THE DIMENSIONAL SPECIFICATION OF COMPONENTS MAY
RESULT IN HAZARDOUS CONDITIONS. WHERE SUCH ACTION IS CONSIDERED, THE MAN-
UFACTURER SHOULD BE CONSULTED IN THE FIRST INSTANCE.
CAUTIONS: CRACKED AND BROKEN COMPONENTS, e.g. GLASS PANELS OR CERAMIC TILES,
MAY RENDER THE INSTALLATION UNSAFE.
WARNING: ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN APPROVED IN
WRITING BY THE TESTING AUTHORITY IS CONSIDERED AS BREACHING AS/NZS 4013.
WARNING: DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS TO START OR REKIN-
DLE THE FIRE.
WARNING: DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS IN THE VICINITY OF THIS
APPLIANCE WHEN ITS OPERATING.
WARNING: DO NOT STORE FUEL WITHIN HEATER INSTALLATION CLEARANCES.
WARNING: FOR OPTIMUM PERFORMANCE FUEL MUST BE LOADED SO THE LOGS LAY
“FRONT TO REAR” IN PREFERENCE TO LAYING ACROSS THE WIDTH OF THE FIREBOX.
SPACES SHOULD BE LEFT BETWEEN THE LOGS TO ENABLE OXYGEN TO GET TO AS MUCH
OF THE SURFACE OF THE FUEL AS POSSIBLE.
CAUTION: THIS APPLIANCE SHOULD BE MAINTAINED AND OPERATED AT ALL TIMES IN
ACCORDANCE WITH THESE INSTRUCTIONS.
CAUTION: THE USE OF SOME TYPES OF PRESERVATIVE-TREATED WOOD AS A FUEL CAN BE
HAZARDOUS.
AS/NZS 2918:2001 General Notes

July 19, 2012 7038-201 Page 11
R
5700 Step Top ACC Wood Burner
Service And Maintenance Log
Date of Service Performed By Description of Service

Page 12 7038-201 July 19, 2012
Date purchased/installed:
Serial Number: Location on appliance:
Dealership purchased from: Dealer phone:
Notes:
We recommend that you record the following pertinent
information for your 5700 Step Top ACC STOVE
DO NOT DISCARD THIS MANUAL
CAUTION
• Important operating and
maintenance instruc-
tions included.
• Leave this manual with
party responsible for use
and operation.
• Read, understand and
follow these instruc-
tions for safe installa-
tion and operation.
DO NOT
DISCARD
Please contact your Quadra-Fire dealer with any questions or concerns.
For the number of your nearest Quadra-Fire dealer
logo onto www.quadrare.com
CONTACT INFORMATION:
