CASTILE PELLET INSERT
O-T L
Tested and
Listed by Portland
Oregon USA
OMNI-Test Laboratories, Inc.
CUS
Owner’s Manual
Installation and Operation
810-02901 (MBK)
810-03201 (PMH)
CASTINS-CSB
CASTINS-CWL
Models:
WARNING
Please read this entire manual
before installation and use of this
pellet fuel-burning room heater.
Failure to follow these instructions
could result in property damage,
bodily injury or even death.
• Do not store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• Do not over re - If any external part starts to
glow, you are over ring. Reduce feed rate.
Over ring will void your warranty.
• Comply with all minimum clearances to com-
bustibles as speci ed. Failure to comply may
cause house re.
Check building codes prior to installation.
• Installation MUST comply with local, regional, state
and national codes and regulations.
• Consult local building, re of cials or authorities having
jurisdiction about restrictions, installation inspection,
and permits.
CAUTION
Tested and approved for wood pellets and shelled
eld corn fuel only. Burning of any other type of fuel
voids your warranty.
CAUTION
• Important operating and
maintenance instruc-
tions included.
• Leave this manual
with party respon-
sible for use and
operation.
• Read, understand and
follow these instruc-
tions for safe installa-
tion and operation.
DO NOT DISCARD THIS MANUAL
CAUTION
DO NOT
DISCARD
WARNING
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
replace.
• Alert children and adults to hazards of high
temperatures.
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other fl ammable
materials away.
HOT SURFACES!
Glass and other surfaces are
hot during operation AND
cool down.

Page 2 250-7251G August 20, 2009
R
Castile Pellet Insert
Hearth & Home Technologies welcomes you to our
tradition of excellence! In choosing a Quadra-Fire
appliance, you have our assurance of commitment
to quality, durability, and performance.
This commitment begins with our research of the
market, including ‘Voice of the Customer’ contacts,
ensuring we make products that will satisfy your
needs.
Our Research and Development facility then
employs the world’s most advanced technology
to achieve the optimum operation of our stoves,
inserts and replaces. And yet we are old-fash-
ioned when it comes to craftsmanship. Each unit
is meticulously fabricated and are hand- nished for
lasting beauty and enjoyment.
Our pledge to quality is completed as each model
undergoes a quality control inspection. From
design, to fabrication, to shipping: We wish you
and your family many years of enjoyment in the
warmth and comfort of your hearth appliance.
Thank you for choosing Quadra-Fire.

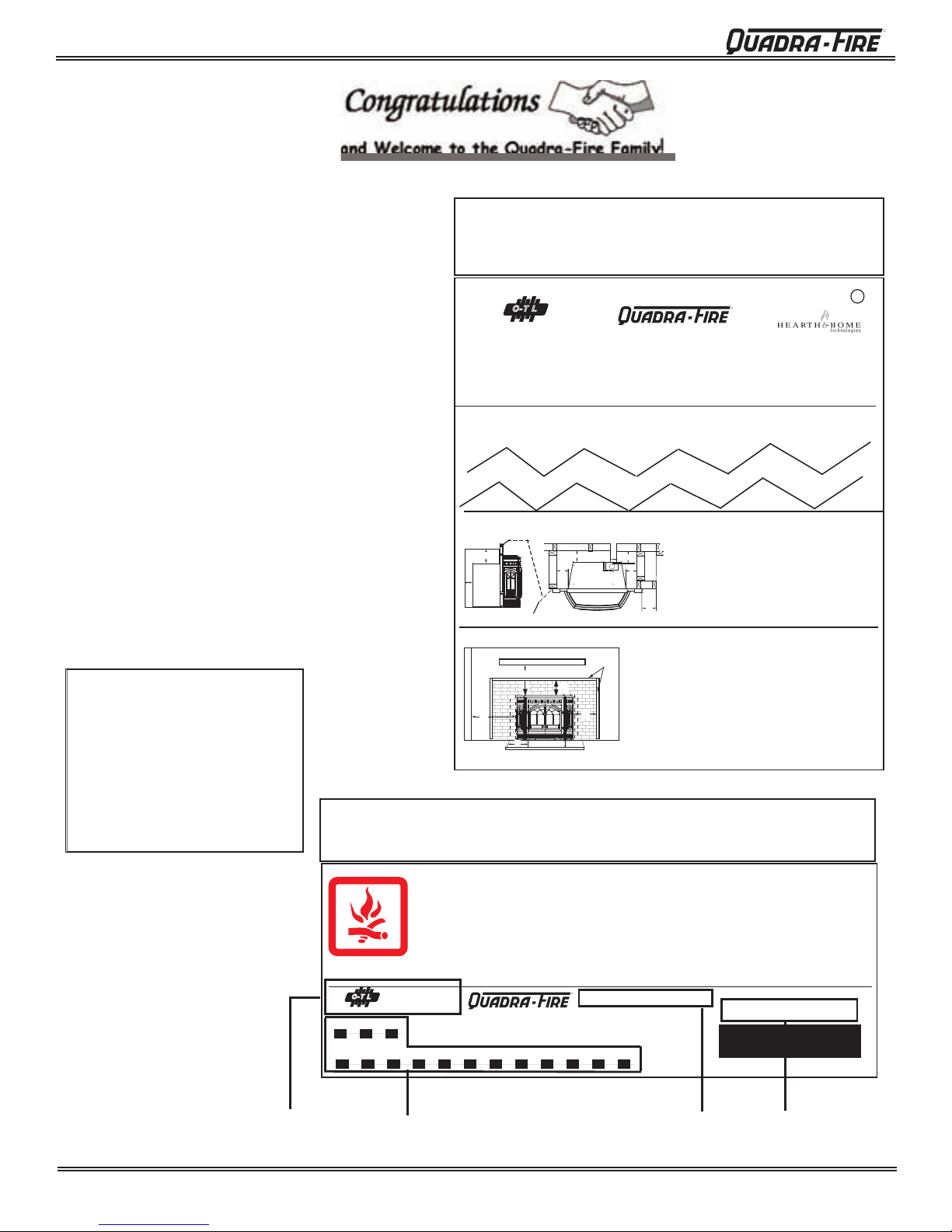

SAMPLE OF CLEARANCE TO COMBUSTIBLES LABEL
LOCATION: On beaded chain behind right access
panel. Panel hinges open.
Report No.
#061-S-42-2
7014-143
SAFETY LABEL
R
Castile Pellet Insert
Listed Solid Fuel Room Heater/Pellet Type Insert. Also suitable for Mobile Home Installation. This
appliance has been tested and listed for use in Manufactured Homes in accordance with OAR
814-23-9000 through 814-23-909.
Tested to:ASTM E-1509-95, ULC S628-93, ULC /ORD-C1482-M1990 Room Heating Pellet BurningType,
(UM) 84-HUD FOR USE ONLY WITH PELLETIZED WOOD OR SHELLED FIELD CORN FUEL.
Route power cord away from unit. Do not route cord under or in front of appliance.
Input Rating: 30,000 BTU/HR.
Electrical Rating: 115 VAC, 60 Hz, Start 4.1 Amps, Run 1.1 AMPS.
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS
AS A BUILT-IN UNIT
Masonry or Zero Clearance
DO NOT REMOVE THIS LABEL
AInsert side to combustible 0 in. 0mm
B Insert top to mantel 12 in. 305mm
CInsert top to face trim 0 in. 0mm
D Insert side face trim 0 in. 0mm
EHearth extension from door opening
6 in. 152mm
F Hearth extension from side of door opening 6 in. 152mm
B
D
C
C
A
B
E
0 in. Clearance To Exposed Section and Face Trim
ATop of Hopper Top/Rear Vent 0 in. (0mm)
B Side of Outside Skin Top/Rear Vent 0 in. (0mm)
CBack of Hopper Rear Vent 0 in. (0mm)
Top Vent 2.5 in. (64mm)
D Vent Pipe to Combustible Rear Vent 3.0 in. (76mm)
EFrom Panel Edge 0 in. (0mm)
SIDE WALL
MANTEL
B
A
C
E
D
F
Face Trim
1445 Highway North, Colville, WA 99114
Manufactured by:
www.quadrafire.com
O-T L
Tested and
Listed by Portland
Oregon USA
OMNI-Test Laboratories, Inc.
CUS
SAMPLE
This model is exempt from EPA certification
under 40 CFR 60.531 by definition [Wood
Heater (A) "Air-to-Fuel Ratio"].
JAN FEB MAR APR MAY JUNE JULY AUG SEPT OCT NOV DEC
250-7262F
CASTILE PELLET INSERT
R
SERIAL NO. /NUMÉRO DU S É RIE
DO NOT REMOVE THIS LABEL
Made in U.S.A.
Report /Rapport
#061-S-42-2
CAUTION :
ATTENTION:
H OT WHILE IN OPERATION DO NOT TOUCH, KEEP CHILDREN, CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE SKIN
BURNS. SEE NAMEPLATEAND INSTRUCTIONS. Operate this unit with fuel hopper lid closed. Failure to do so may
result in emissions products’ combustion from the hopper under certain conditions. Maintain hopper seal in
good condition. Do not overfill hopper.
CHAUD LORS DE L'OPÉRATION. NE PAS TOUCHER. GARDEZ LES ENFANTS ET LES VÊTEMENTS LOIN DE
L'ESPACE DÉSIGNÉ DE L'INSTALLATION. LE CONTACT PEUT CAUSER DES BRÛLURES À LA PEAU. VOIR
L'ÉTIQUETTEETLESINSTRUCTIONS. Opérezcet appareilaveclecouvercledelatrémiefermé.Ledéfautdenepassuivrelesinstructions
peutrésulter,souscertainesconditions,enunecombustiondesémissionsdesproduitsvenantdelatrémie.Nepasremplirlatrémietroppleine.
007
2009 2010 2011 U.S. ENVIRONMENTAL
PROTECTION AGENCY
NE PAS ENLEVER L'ÉTIQUETTE
Fait Aux États-Unis
O-T L
Tested and
Listed by Portland
Oregon USA
OMNI-Test Laboratories, Inc.
CUS
Test Lab &
Rpt Nbr. Mfg Date Model
Name Serial No.
SAMPLE OF SERIAL NUMBER & DATE OF MANUFACTURE LABEL
LOCATION: Inside hopper on the top
NOTE: Consult
insurance carrier, local
building inspector, fire
officials or authorities
having jurisdiction over
restrictions, installation
inspection and permits.

R
August 20, 2009 250-7251G Page 3
Castile Pellet Insert
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Indicates practices which may cause damage to the replace or to property.
Section 1: Listing and Code Approvals
A. Appliance Certi cations ......................4
B. Mobile Home Approved ......................4
C. Glass Speci cations ............................4
D. Electrical Rating ..................................4
E. BTU & Ef ciency Speci cations ..........4
Section 2: Getting Started
A. Design, Installation & Location
Considerations ....................................5
B. Locating Your Appliance & Chimney ..6
C. Draft ....................................................6
D. Negative Pressure ..............................6
E. Fire Safety ..........................................7
F. Tools & Supplies Needed ...................7
G. Inspect Appliance, Components
and Pre-Use Check List ......................7
Section 3: Dimensions & Clearances
A. Appliance Dimensions ........................8
B. Clearances to Combustibles
As A Built-In, UL and ULC ..................9
C. Clearances to Combustibles,
Masonry & Zero Clearance .................10
D. Floor Protection ..................................10
E. Minimum Opening for Factory-
Built Fireplace .....................................10
F. Removing Floor of Factory-Built
Fireplace .............................................11
G. Prefabricated Metal Chimney ..............12
H. Altering Factory-Built Fireplace ...........12
Section 4: Vent Information
A. Chimney & Exhaust Connections ........13
B. Venting Termination Requirements ....13
C. Equivalent Feet of Pipe.......................14
D. Pipe Selection Chart ...........................14
Section 5: Venting Systems
A. Full Reline with Outside Air-Horizontal 15
B. Full Reline with Outside Air-Vertical ....16
Section 6: Mobile Home ..................................17
Section 7: Appliance Set-Up
A. Reversible Top & Rear Flue Adapter ....18
B. Leveling System .................................18
C. Outside Air Kit .....................................19
D. Zero Clearance Trim Support .............19-20
E. Panel Set & Cast Trim ........................21
F. Panel & Trim Set Econo .....................21
G. Log Set Placement ..............................22
H. Thermostat Installation ........................23
Section 8: Operating Instructions
A. Fuel Size, Material & Storage .............24
B. General Operation Information ...........25
C. Before Your First Fire .........................25
D. Starting Your First Fire ........................25
E. Fire Characteristics .............................25
F. Feed Rate Adjustment .......................26
G. Ignition Cycles ....................................26
H. Frequently Asked Questions...............27
Section 9: Troubleshooting ............................28-30
Section 10: Maintaining & Servicing Appliance
A. Proper Shutdown Procedures .............31
B. Quick Reference Maintenance Chart ..31
C. General Maintenance & Cleaning .......32-35
D. High Ash Content Maintenance ..........35
E. Igniter Replacement ............................36
F. Glass Replacement .............................36
G. Baffl e & Brick Removal .......................37-38
Section 12: Reference Material
A. Component Functions.........................39-40
B. Component Locations .........................41
C. Exploded Drawing...............................42
D. Service Parts & Accessories ...............43-47
E. Service & Maintenance Log ................48-49
F. Warranty Policy ...................................50-51
G. Contact Information .............................52
TABLE OF CONTENTS

Page 4 250-7251G August 20, 2009
R
Castile Pellet Insert
1Listing and Code Approvals
A. Appliance Certifi
cation
C. Glass Specifications
E. BTU & Efficiency Specifications
This appliance is equipped with 5mm ceramic glass. Replace
glass only with 5mm ceramic glass. Please contact your
dealer for replacement glass.
NOTE: This installation must conform with local codes.
In the absence of local codes you must comply with the
ASTM E1509-95, ULC S628-93, ULC/ORD-C-1482-
M1990 and (UM) 84-HUD
D. Electrical Rating
115 VAC, 60 Hz, Start 4.1 Amps, Run 1.1 Amps
*BTU output will vary, depending on the brand of fuel you
use in your appliance. Consult your Quadra-Fire dealer
for best results.
NOTE: Hearth & Home Technologies, manufacturer of
this appliance, reserves the right to alter its products,
their speci
cations and/or price without notice.
MODEL: Castile Pellet Insert
LABORATORY: OMNI Test Laboratories, Inc
REPORT NO. 061-S-42-2
TYPE: Solid Fuel Room Heater/Pellet Fuel
Burning Type Insert
STANDARD: ASTM E1509-95, ULC S628-93 and
ULC/ORD-C1482-M1990 Room
Heater Pellet Fuel Burning Type and
(UM) 84-HUD, Mobile Home Approved
Colorado: Approved 11-15-02
Particulate Emis-
sions Rating: 0.7 grams/hr
*BTU Output: 8,000 - 30,000 / hr
Heating Capacity: up to 1,500 sq. ft. depending
on climate zone
Hopper Capacity: 45 lbs
Fuel: Wood Pellets or Shelled Corn
Shipping Weight: 260 lbs
WARNING! Risk of Fire! Hearth & Home Technologies dis-
claims any responsibility for, and the warranty and agency
listing will be voided by the above actions.
DO NOT:
• Install or operate damaged appliance
• Modify appliance
• Install other than as instructed by Hearth & Home
Technologies
• Operate the appliance without fully assembling all
components
• Overfire
• Install any component not approved by Hearth &
Home Technologies
• Install parts or components not Listed or approved.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
For assistance or additional information, consult a qualified
installer, service agency or your dealer.
Quadra-Fire is a registered trademark
of Hearth & Home Technologies.
This appliance is approved for mobile home installations
when not installed in a sleeping room and when an outside
combustion air inlet is used.
The structural integrity of the mobile home fl oor, ceiling, and
walls must be maintained.
The appliance must be properly grounded to the frame of
the mobile home and use only Listed pellet vent Class “L”
or “PL” connector pipe.
A Quadra-Fire Outside Air Kit must be installed in a mobile
home installation. You must order the Outside Air Kit sepa-
rately.
B. Mobile Home Approved
Note: The appliance is also approved for installation
into a shop.

R
August 20, 2009 250-7251G Page 5
Castile Pellet Insert
2Getting Started
A
. Design, Installation & Location Considerations
Warning! Risk of Fire Damaged parts could impair safe
operation.DoNOTinstall damaged,incompleteorsubstitute
components.
1. Appliance Location
NOTICE: Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Consult insurance carrier, local building inspector, re
of cials or authorities having jurisdiction over restrictions,
installation inspection and permits.
It is a good idea to plan your installation on paper, using
exact measurements for clearances and fl oor protection,
before actually beginning the installation
Consideration must be given to:
• Safety, convenience, traf c fl ow
• Placement of the chimney and chimney connector.
• If you are not using an existing chimney, place the appli-
ance where there will be a clear passage for a factory-
built listed chimney through the ceiling and roof.
• Installing an optional outside air kit would affect the loca-
tion of the vent termination.
CAUTION! If burning shelled field corn, you must use ap-
provedventingspecificallydesignedfor corntopreventcorro-
sion or degradation. Follow the instructions from the venting
manufacturer.
Since pellet exhaust can contain ash, soot or sparks, you
must consider the location of:
• Windows
• Air Intakes
• Air Conditioner
• Overhang, sof ts, porch roofs, adjacent walls
• Landscaping, vegetation
When locating vent and venting termination, vent above
roof line when possible.
Marginal Location:
• Below peak
Location NOT recommended:
• Not the highest point of the roof
• Wind loading possible
Multi-level Roofs
Windward
Leeward
Recommended:
Outside Air Intake
on windward side
NOT recommended:
Outside Air Intake
on leeward side
Recommended Location:
• Above peak
Recommended:
• Insulated exterior chase
in cooler climates
Recommended Location:
• Above peak
• Inside heated space
Location NOT recommended:
• Too close to tree
• Below adjacent structure
• Lower roof line
• Avoid outside wall
Marginal Location:
• Wind loading possible
NOTICE: Locating the appliance in a location of
considerable air movement can cause intermittent smoke
spillage from appliance. Do not locate appliance near:
• Frequently open doors
• Central heat outlets or returns
Figure 5.1

Page 6 250-7251G August 20, 2009
R
Castile Pellet Insert
Location of the appliance and chimney will affect
performance.
• Install through the warm airspace enclosed by the building
envelope. This helps to produce more draft, especially
during lighting and die-down of the re.
• Penetrate the highest part of the roof. This minimizes the
effects of wind loading.
• Locate termination cap away from trees, adjacent
structures, uneven roof lines and other obstructions.
• Minimize the use of chimney offsets.
• Consider the appliance location relative to fl oor and ceiling
and attic joists.
B. Locating Your Appliance & Chimney D. Negative Pressure
WARNING! Risk of Asphyxiation! Negative pressure can
cause spillage of combustion fumes and soot.
Negative pressure results from the imbalance of air avail-
able for the appliance to operate properly. It can be stron-
gest in lower levels of the house.
Causes include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustion air requirements for furnaces, water heaters
and other combustion appliances
• Clothes dryers
• Location of return-air vents to furnace or air conditioning
• Imbalances of the HVAC air handling system
• Upper level air leaks such as:
- Recessed lighting
- Attic hatch
- Duct leaks
To minimize the effects of negative air pressure:
• Install the outside air kit with the intake facing prevailing
winds during the heating season
• Ensure adequate outdoor air for all combustion appliances
and exhaust equipment
• Ensure furnace and air conditioning return vents are not
located in the immediate vicinity of the appliance
• Avoid installing the appliance near doors, walkways or
small isolated spaces
• Recessed lighting should be a “sealed can” design
• Attic hatches weather stripped or sealed
• Attic mounted duct work and air handler joints and seams
taped or sealed
C. Draft
Draft is the pressure difference needed to vent appliances
successfully. When an appliance is drafting successfully, all
combustion byproducts are exiting the home through the
chimney.
Considerations for successful draft include:
• Preventing negative pressure
• Location of appliance and chimney
NOTICE: Hearth & Home Technologies assumes no
responsibility for the improper performance of the chimney
system caused by:
• Inadequate draft due to environmental conditions
• Downdrafts
• Tight sealing construction of the structure
• Mechanical exhausting devices
CAUTION
• DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE
SERVICING ANOTHER APPLIANCE.
• DO NOT CONNECT TO ANY AIR DISTRIBUTON DUCT
OR SYSTEM.

R
August 20, 2009 250-7251G Page 7
Castile Pellet Insert
G. Inspect Appliance & Components and
Pre-Use Check List
Reciprocating Saw
Hammer
Phillips Screw driver
Tape Measure
Plumb Line
Level
Framing Material
Hi-temp Caulking Material
Gloves
Safety Glasses
Framing Square
Electric Drill & Bits (1/4”)
1/4” Self-Tapping Screws
May also need:
Vent Support Straps
Venting Paint
Tools and building supplies normally required
for installation, unless installing into an existing
masonry fireplace:
F. Tools And Supplies Needed
Inspect appliance and components for
damage. Damaged parts may impair safe
operation.
WARNING
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
1. Place the appliance in a location near the
nal installation area and follow the proce-
dures below:
2. Open the appliance and remove all the parts
and articles packed inside the Component
Pack. Inspect all the parts and glass for ship-
ping damage. Contact your dealer if any irregu-
larities are noticed.
3. All safety warnings have been read and fol-
lowed.
4. This Owner’s Manual has been read.
5. Floor protection requirements have been met.
6. Venting is properly installed.
7. The proper clearances from the appliance and
chimney to combustible materials have been
met.
8. The masonry chimney is inspected by a profes-
sional and is clean, or the factory built metal
chimney is installed according to the manufac-
turer’s instructions and clearances.
9. The chimney meets the required minimum
height.
10.
All labels have been removed from the glass
door.
11. Plated surfaces have been wiped clean, if
applicable.
12. Thermostat or remote has been installed.
13. A power outlet is available nearby.
14. A good quality surge protection is highly recom-
mended to protect the electronics.
• Installation and use of any damaged appliance.
• Modi
cation of the appliance.
• Installation other than as instructed by Hearth & Home
Technologies.
• Installation and/or use of any component part not approved
by Hearth & Home Technologies.
• Operating appliance without fully assembling all
components.
• Do NOT Over re.
Or any such action that may cause a fire hazard.
WARNING
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
Fire Risk.
E. Fire Safety
To provide reasonable re safety, the following should be
given serious consideration:
• Install at least one smoke detector on each fl oor of your
home.
• Locate smoke detector away from the heating appliance
and close to the sleeping areas.
• Follow the smoke detector manufacturer’s placement and
installation instructions and maintain regularly.
• Conveniently locate a Class A re extinguisher to contend
with small res.
• In the event of a hopper re:
• Evacute the house immediately.
• Notify re department.

Page 8 250-7251G August 20, 2009
R
Castile Pellet Insert
3Dimensions and Clearances
A. Appliance Dimensions
Figure 8.2- Front ViewFigure 8.1 - Top View
Figure 8.3 -Side View
13-1/16 in.
(332mm)
10-3/16 in.
(259mm)
24-3/4 in.
(629mm)
9-13/16 in.
(249mm)
2.0 in. (51mm)
24-3/16 in./
(614mm)
19.0 in.
(483mm)
12-3/4 in.
(324mm)
9-3/16 in.
(234mm)
30-3/8 in.
(772mm)
30 in.
(762mm)
43-1/2 in.
(1105mm) 42-1/2 in.
(1080mm)
NOTE: All views are shown with Panel
& Cast Trim Set installed.
32-5/16 in.
(821mm)
28-1/16 in.
(713mm)
23-7/16 in.
(595mm)
11-1/16 in.
(281mm)
8 in.
(203mm)
Panel Size inch mm inch mm
Small Cast 30 762 42-1/2 1078
Large Cast 34 864 48 1219
Small Econo 30 762 40 1016
Height Width

R
August 20, 2009 250-7251G Page 9
Castile Pellet Insert
A
C
BB
C
E
D
Fire Risk.
Comply with all minimum clearances
to combustibles as speci ed.
WARNING
Failure to comply may cause house
re.
NOTE:
• Illustrations refl ect typical installations
and are FOR DESIGN PURPOSES
ONLY.
• Illustrations/diagrams are not drawn to
scale.
• Actual installation may vary due to
individual design preference.
B. Clearance To Combustibles, UL and ULC
Inches Millimeters
A Top of Hopper Top or Rear Vent 0 0
B Side of Outside Skin Top or Rear Vent 0 0
C Back of Hopper Top Vent 2.5 64
Rear Vent 0 0
D Vent Pipe to Combustible Top or Rear Vent 3.0 76
E Front Panel Edge Top or Rear Vent 0 0

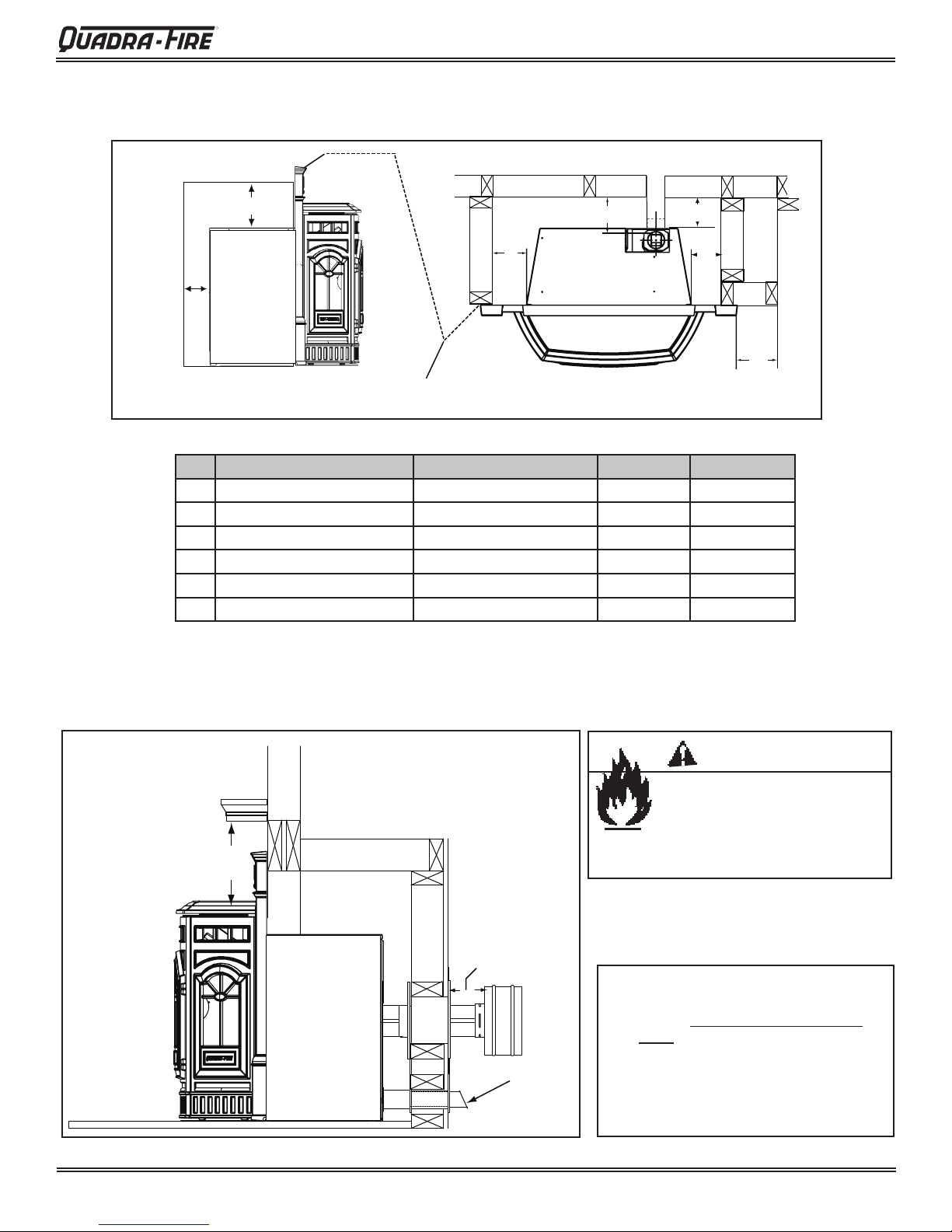

INSTALLED AS A BUILT-IN UNIT
Shown Optional Outside Air
Figure 9.1
Figure 9.2
AS A BUILT-IN
0” (0mm) Clearance To Exposed Section And Face Trim
12 in
(305mm)
6 in
(153mm)
Outside
Air

Page 10 250-7251G August 20, 2009
R
Castile Pellet Insert
A
BC
D
E. Minimum Opening for Masonry and Zero
Clearance Fireplaces
Inches Millimeters
A Insert side to combustible
side wall 00
B Insert top to mantel 12 305
C Insert top to face trim 0 0
D Insert side to face trim 0 0
Location Inches Millimeters
A Rear Width 23-7/16 595
B Depth 18 for Zero Clearance
14 for Masonry 457 356
C Height 19-1/4 if drop down
21-1/4 if fl ush or
hearth mount
489
540
D Front Width 28-1/4 718
Figure 10.1
Figure 10.2
C. Masonry and Zero Clearance Fireplaces
Inches Millimeters
E Floor protection hearth extension
from door opening 6152
F Floor protection to the side of door
opening 6 152
D. Floor Protection
SIDE WALL
MANTEL
FE
D
C
B
A

R
August 20, 2009 250-7251G Page 11
Castile Pellet Insert
Mark area of
floor to cut
Starter hole
Use 2 x 4 from insert
packaging to support insert
Keep sharp edge of
metal floor away from
power cord
F. Removing Metal Floor of Factory-Built Firebox
• The rebrick (refractory), glass doors, screen rails, screen
mesh and log grates can be removed from a factory-built
rebox in order to gain minimum insert opening require-
ments.
• Any smoke shelves, shields and baffl es may be removed
from a factory-built rebox if attached with mechanical fas-
teners.
• The metal fl oor of the factory-built rebox may be removed
to facilitate the installation of the insert only when a 1/4
(6mm) inch airspace is provided between the insert and
the fl oor of outer wrap.
Figure 11.1. Measure and mark the metal
fl oor for cutting. With a drill, make a starter
hole in each corner.
Figure 11.2. Using a saws-all, cut out the
fl oor
Figure 11.3. If the fl oor is made of thin metal,
we recommend using the 2 x 4 from the insert
packaging to support the insert. The 2 x 4
may need to be cut to the appropriate size.
Figure 11.4. Place the insert into the fac-
tory-built rebox. Ensure that the power
cord can not be damaged by the sharp metal
edge. You may need to cut out a notch to
accommodate the cord.
The following is only one example as there are many dif-
ferent models of factory-built replaces.
NOTE: Ensure that the leveling leg is posi-
tioned over the 2 x 4 before leveling the
insert. See page 18, for detailed instructions
on how to adjust the leveling legs.

Page 12 250-7251G August 20, 2009
R
Castile Pellet Insert
• The fireplace must not be altered, except for the
exceptions listed below. Do not removal the bricks and
mortar from the existing replace.
The following modi cations are premissible:
• Removal of damper or locked in open position
• Removal of smoke shelf or baffl e
• Removal of ember catches
• Removel of re grate
• Removal of view screen/curtain
• Removal of doors
• External trim pieces which do not affect the operation
of the
replace may be removed providing they can be
stored on or within the replace for reassembly if the insert
is removed.
• The permanent metal warning label provided must be
attached to the back of the replace, with screws or
nails, stating that the replace may have been altered to
accommodate the insert, and must be returned to original
condition for use as a conventional replace. Figure
11.1
• If the hearth extension is lower than the replace opening,
the portion of the insert extending onto the hearth must
be supported.
• Manufacturer designed adjustable support kit can be
ordered from your dealer.
• Final approval of this installation type is contingent upon
the authority having jurisdiction.
H. Altering the Factory-Built Fireplace
WARNING! Risk of Fire!
Follow venting manufacturer’s clearances and instructions
when installing venting system.
NOTICE: In Canada when using a factory-built chim-
ney it must be safety listed, Type UL103 HT (2100
o
F)
[1149oC] CLASS “A” or conforming to CAN/ULC-
S629M, STANDARD FOR 650oC FACTORY-BUILT
CHIMNEYS.
NOTE: Refer to chimney liner manufacturer for recom-
mendations on supporting the liner. Installation into
fireplaces without a permit will void the listing
250-2061
WARNING
THIS FIREPLACE MAY HAVE BEEN ALTERED
TO ACCOMMODATE AN INSERT. IT MUST BE
RETURNED TO ITS ORIGINAL CONDITION
BEFORE USE AS ASOLID FUEL BURNING
FIREPLACE. 250-2061
Figure 121
G. Prefabricated Metal Chimney
The chimney can be new or existing, masonry or prefabricated
and must meet the following minimum requirements:
• Must be minimum 6 inch (152mm) inside diameter of
high temperature chimney listed to UL 103 HT (2100oF)
or ULC-S628.
• Must use components required by the manufacturer for
installation.
• Must maintain clearances required by the manufacturer
for installation.
• Refer to manufacturers instructions for installation
•This insert is listed to UL 1482 Standard and is approved
for installation into listed factory-built zero
clearance re-
places listed to UL 127 conforming to the following speci-
cations and instructions:
•The original factory-built clearance replace chimney
cap must be re-installed after installing the approved
chimney liner meeting type UL 103 HT requirements
(2100°F) per UL 1777.
•If the chimney is not listed as meeting HT requirements,
or if the factory built replace was tested prior to 1998, a
full height listed chimney liner must be installed from the
appliance fl ue collar to the chimney top.
•The liner must be securely attached to the insert fl ue collar
and the chimney top.
•The air fl ow of the factory-built zero-clearance replace
system must not be altered. The fl ue liner top support
attachment must not reduce the air fl ow for the existing
air-cooled chimney system.
•No dilution air is allowed to enter the chimney.
1. Secure the replace damper in the open position. If
this cannot be accomplished, it will be necessary to
remove the damper
2. Seal damper area of chimney around chimney
connector with a high temperature sealant or seal
insert against the face of the replace.
3. Both methods must be removable and replaceable
for cleaning and re-installation.

R
August 20, 2009 250-7251G Page 13
Castile Pellet Insert
Do not terminate vent in any enclosed or semi-enclosed
area such as a carport, garage, attic, crawl space, under a
sun deck or porch, narrow walkway or closely fenced area,
or any location that can build up a concentration of fumes
such as a stairwell, covered breezeway, etc.
CAUTION

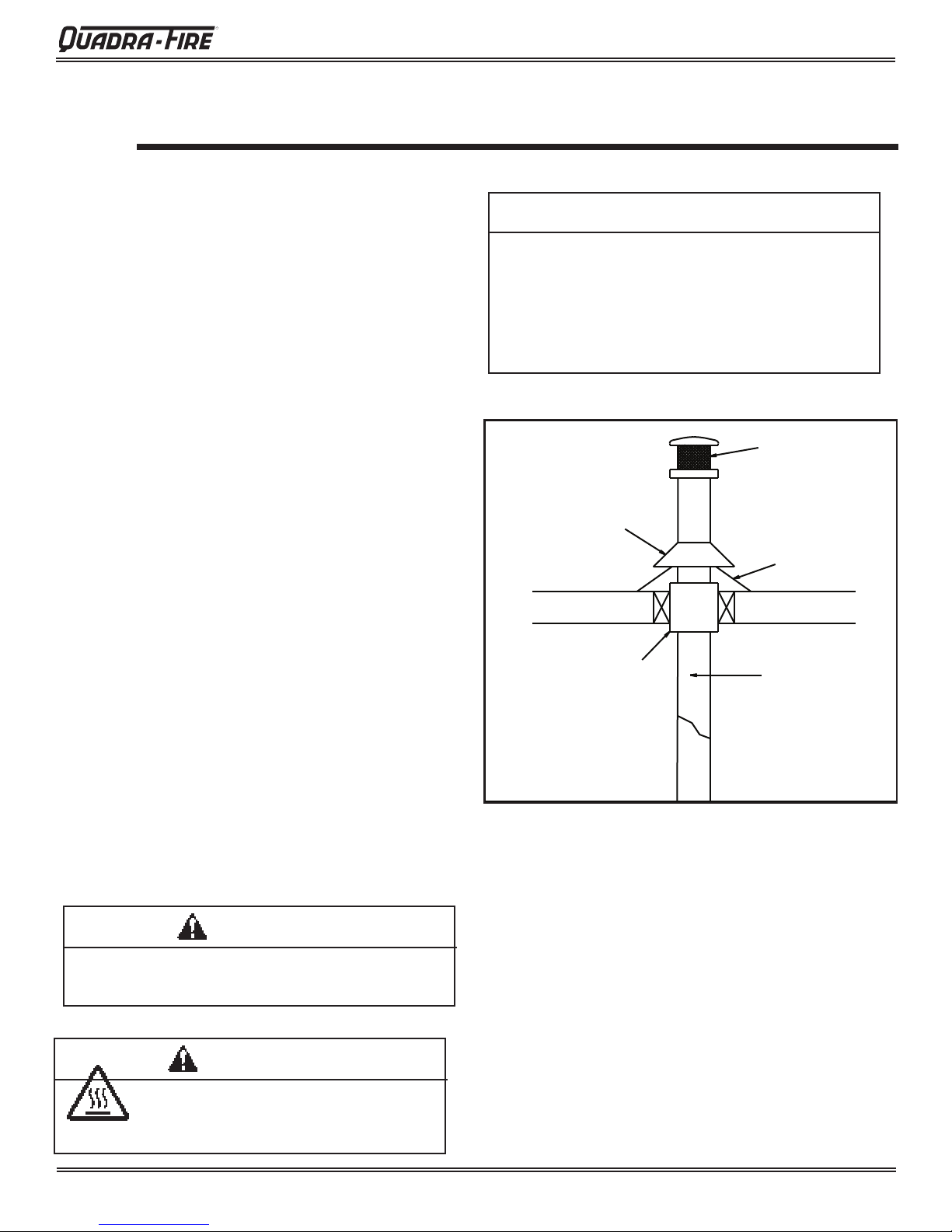

4Vent Information
A. Chimney and Exhaust Connection B. Venting Termination Requirements
1. Termination must exhaust above air inlet elevation. It
is recommended that at least 60 inches (1.5m) of verti-
cal pipe be installed when appliance is vented directly
through a wall. This will create a natural draft, which
will help prevent the possibility of smoke or odor venting
into the home during a power outage. It will also keep
exhaust from causing a nuisance or hazard by exposing
people or shrubs to high temperatures. The safest and
preferred venting method is to extend the vent vertically
through the roof.
2. Distance from doors and opening windows, or gravity or
ventilation air inlets into building:
a. Not less than 48 inches (1.2m) below;
b. Not less than 48 inches (1.2m) horizontally from;
c. Not less than 12 inches (305mm) above.
3. Distance from permanently closed windows:
a. Not less than 12 inches (305mm) below, horizontally
from or above.
4. Distance between bottom of termination and grade
should be 12 inches (305mm) minimum. This is con-
ditional upon plants in the area, and nature of grade
surface. The grade surface must be a non-combustible
material (i.e., rock, dirt). The grade surface must not be
lawn. Distance between bottom of termination and public
walkway should be 84 inches (2.13m) minimum.
5. Distance to combustible materials must be 24 inches
(610mm) minimum. This includes adjacent buildings,
fences, protruding parts of the structure, roof overhang,
plants and shrubs, etc.
6. Termination Cap Location (Home Electrical Service)
• Side-to-side clearance is to be the same as minimum
clearance to vinyl inside corners.
•
Clearance of a termination cap below electrical service
shall be the same as minimum clearance to vinyl sof ts.
• Clearance of a termination cap above electrical service
will be 12 inches (305mm) minimum.
• Location of the vent termination must not obstruct or
interfere with access to the electrical service.
1. Chimney & Connector: Use 3 or 4 inch (76-102mm)
diameter type "L" or "PL" venting system. It can be vented
vertically or horizontally.
2. Mobile Home: Approved for all Listed pellet vent. If using
the 3 inch (76mm) vertical Top Vent Adapter Kit or the 3
to 6 inch (76-152mm) Top Vent Offset Adapter, use Listed
double wall fl ue connector. A Quadra-Fire Outside Air Kit
must be used with manufactured home installations.
3. Residential: The 3 inch (76mm) vertical Top Vent Adapter
Kit and the 3 to 6 inch (76-152mm) Top Vent Offset Adapter
are tested to use 24 gauge single wall fl ue connector or
Listed double wall fl ue connector to Class A Listed metal
chimneys, or masonry chimneys meeting International
Conference of Building Of cials (ICBO) standards for solid
fuel appliances.
4. INSTALL VENT AT CLEARANCES SPECIFIED BY THE
VENT MANUFACTURER.
5. Secure exhaust venting system to the appliance with at
least 3 screws. Also secure all connector pipe joints with
at least 3 screws through each joint.
6. DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST
VENTING SYSTEM OF THIS UNIT.
7. DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE
SERVING ANOTHER APPLIANCE.
NOTE: All pipe must be welded seam pipe whenever pos-
sible. Sealpipejointswithhightemperaturesilicone(500°F
[260°C] minimum rated only). Do not put silicone inside
of pipe.
NOTE: Ifburningshelledfieldcorn,youmustuseapproved
venting specifically designed for corn. Follow the instruc-
tions from the venting manufacturer.
Fire Hazard.
• Only LISTED venting components may be
used.
• NO OTHER vent components may be used.
Substitute or damaged vent components may
impair safe operation.
WARNING
Vent surfaces get HOT, can cause burns if
touched. Noncombustible shielding or guards
may be required.
WARNING

Page 14 250-7251G August 20, 2009
R
Castile Pellet Insert
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. Refer
to the owner’s information manual provided with this appli-
ance. For assistance or additional information consult a
quali ed installer, service agency or your dealer.
WARNING
The chart will help you in determing proper vent-
ing size according to the equivalent feet of pipe
calcuated above and the altitude above sea level
of this installation. Figure 14.2.
Locate the calculated equivalent feet of pipe on
the vertical left side of the chart. Move to the
right horizontally on the chart until you reach your
altitude above sea level.
If you fall below the diagonal line, 3 or 4 inch (76
to 102mm) pipe may be used. If it is anywhere
above the diagonal line, a 4 inch (102mm) diameter
pipe is required.
The chart reveals that a 90° elbow is 5 times as
restrictive to the fl ow of exhaust gases under posi-
tive pressure as 1 foot of horizontal pipe, and a
foot of horizontal pipe is twice as restrictive as a
foot of vertical pipe.
D. Pipe Selection Chart
The table below can help you calculate the equivalent feet
of pipe which is a method used to determine pellet vent size.
Figure 14.1.
C. Equivalent Feet of Pipe
2 ft.
2 ft.
3 ft.
2 ft.
Example of 3 Elbow-Rear Vent Termination Calculation
Figure 14.1
Pellet Venting
Component # of Elbows Feet of Pipe Multiplied By Equivalent Feet Components
Equivalent Feet
90o Elbow or Tee 3 X 515
45o Elbow X3
Horizontal Pipe 7 X 17
Vertical Pipe 2 X 0.5 1
Total Equivalent Feet 23
Note: This is a generic example and is not
intended to represent any speci c fuel type.
Figure 14.2
3 in. or 4 in. (76mm or 102mm) Diameter Pipe
Equivalent Pipe
Length In Feet
ALTITUDE IN THOUSANDS OF FEET
0
20
30
1 2 3 4 5 6 7 8 9 10
4 in. (102mm) Diameter Pipe Only
10
Example 1
Example 2
Example 1: If the equivalent length of pipe is 23 feet with altitude of
8,000 feet you must use 4 inch (102mm) diameter type “L” or “PL”
vent.
Example 2: If the equivalent length of pipe is 12 feet with altitude of
6,000 feet you may use 3 or 4 inch (76 to 102mm) diameter type “L”
or “PL” vent

R
August 20, 2009 250-7251G Page 15
Castile Pellet Insert
5Venting Systems
NOTE:
In Canada, where passage through a wall or partition of
combustible construction is desired, the installation shall
conform to CAN/CSA-B365.
Figure 15.1
Fire Risk.
Inspection of Chimney:
• Masonry chimney must be in good condition.
• Meets minimum standard of NFPA 211
•
Factory-built chimney must be a minimum 6 inch
(152mm) UL103 HT.
WARNING
CAUTION
Never draw outside combustion air from:
• Wall, fl
oor or ceiling cavity
• Enclosed space such as an attic or garage
NOTE:
• Illustrations refl ect typical installations and are FOR
DESIGN PURPOSES ONLY.
• Illustrations/diagrams are not drawn to scale.
• Actual installation may vary due to individual design
preference.
A. Full Reline With Outside Air - Horizontal
Outside Air through Rear
Wall (Horizontal)
NOTE; Use metal plate around
exhaust vent pipe and seal all
edges with non-flammable insu-
lation such as fiberglass, mineral
wool or ceramic.
Do not use high temperature
caulking materials to seal any
edge to prevent furture service-
ability.

Page 16 250-7251G August 20, 2009
R
Castile Pellet Insert
NOTE: Check clearances carefully for this type of instal-
lation to ensure adequate room for outside air venting.
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Consult local building, re of cials or authorities having
jurisdiction about restrictions, installation inspection, and
permits.
CAUTION
NOTE: In Canada only a full reline is allowed per ULC
S628, ORD ULC C1482-M1990.

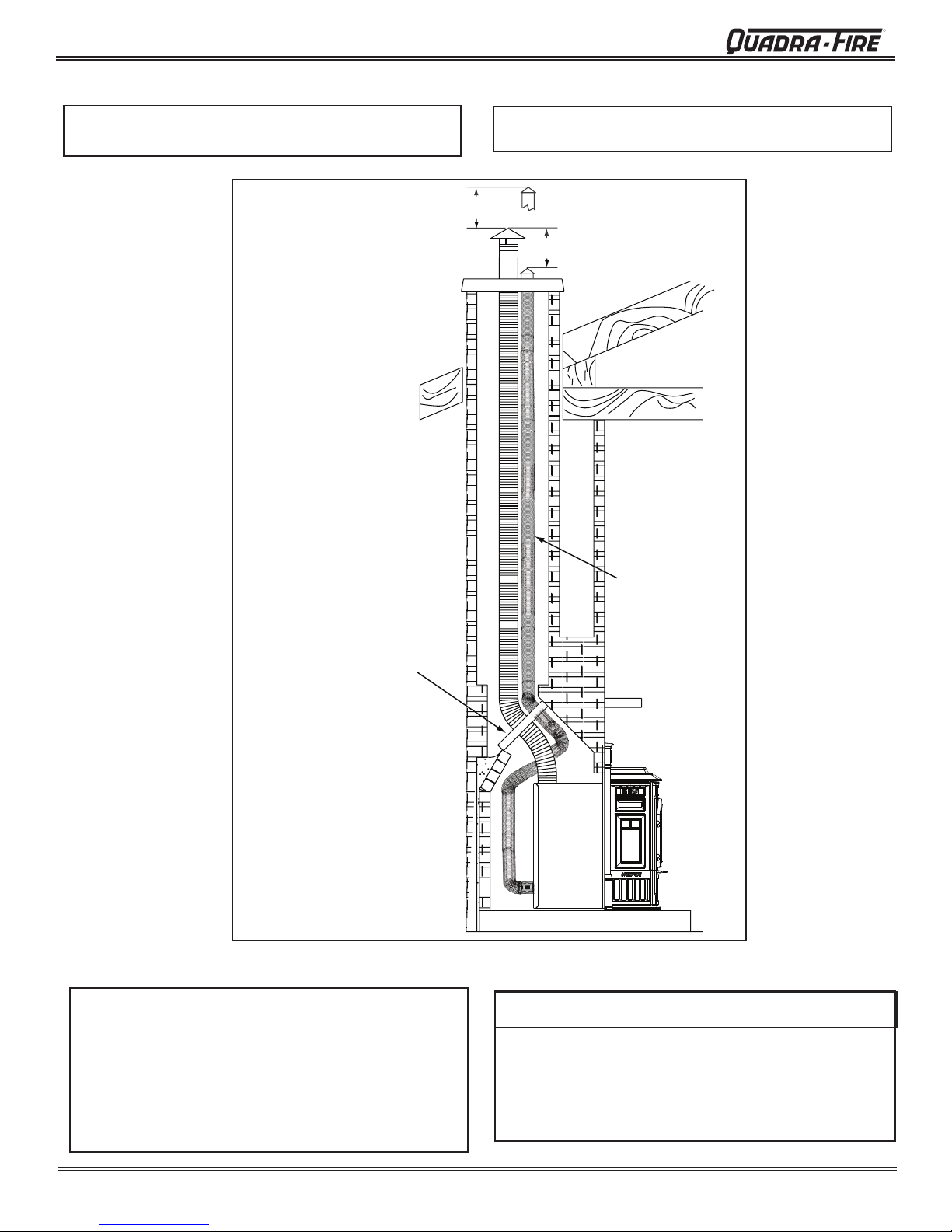

B. Full Reline With Outside Air - Vertical
Figure 16.1
Outside Air
Termination
at
Chimney Top
(Vertical)
305mm min.
below
305mm min.
above
NOTE; Use metal plate around
exhaust vent pipe and seal all
edges with non-flammable insula-
tion such as fiberglass, mineral
wool or ceramic.
Do not use high temperature caulk-
ing materials to seal any edge to
prevent furture serviceability.
NOTE: In Canada this replace insert must be installed
with a continous chimney liner a 6 inch (152mm) in diam-
eter extending from the replace insert to the top of the
chimney. The chimney liner must conform to the Class
3 requirments of CAN/ULC-S635, Standard for Lining
Systems for Extising Masonry or Factory-Built Chimneys
and Vents, or CAN/ULC-S640, Standard for Lining Sys-
tems for New Masonry Chimneys.

R
August 20, 2009 250-7251G Page 17
Castile Pellet Insert
6Mobile Home
1. An outside air inlet must be provided for the combustion
air and must remain clear of leaves, debris, ice and/or
snow. It must be unrestricted while the appliance is
in use to prevent room air starvation which causes
smoke spillage. Smoke spillage can also set off smoke
alarms.
2. The combustion air duct system must be made of
metal. It must permit zero clearance to combustible
construction and prevent material from dropping into
the inlet or into the area beneath the dwelling and
contain a rodent screen.
3. The appliance must be secured to the mobile home
structure by bolting it to the fl oor (using lag bolts). Use
the same holes that secured the appliance to the ship-
ping pallet.
4. The appliance must be grounded with #8 solid copper
grounding wire or equivalent, terminated at each end
with an NEC approved grounding device.
5. Refer to clearances to combustibles and fl oor protection
requirements on pages 9 & 10 for listings to combus-
tibles and appropriate chimney systems.
6. Use silicone to create an effective vapor barrier at
the location where the chimney or other component
penetrates to the the exterior of the structure.
7. Follow the chimney manufacturer’s instructions when
installing the vent system for use in a mobile home.
8. Installation shall be in accordance with the Manufactur-
ers Home & Safety Standard (HUD) CFR 3280, Part
24.
Installation must comply with Manufactured Home and
Safety Standard (HUD), CFR 3280, Part 24.
WARNING
You must use a Quadra-Fire Outside Air Kit for instal-
lation in a mobile home.
A. Mobile Home Installation
Spark Arrestor Cap
Roof Flashing
Storm Collar
Joist Shield/Firestop Approved Class “L”
or “PL” Pellet Vent
Figure 17.1
CAUTION
THE STRUCTURAL INTEGRITY OF THE MOBILE HOME
FLOOR, WALL AND CEILING/ROOF MUST BE MAIN-
TAINED
Do NOT cut through:
• Floor joist, wall, studs or ceiling trusses.
• Any supporting material that would affect the structural
integrity.
NEVER INSTALL IN A SLEEPING ROOM.
Consumes oxygen in the room.
WARNING
Asphyxiation Risk.

Page 18 250-7251G August 20, 2009
R
Castile Pellet Insert
7Appliance Set-Up
B. Leveling System
Figure 18.4
A. Reversible Top or Rear Flue Adapter
The back legs are adjustable to allow for customized t
into zero clearance boxes.
1. Loosen 2 top screws and remove 2 bottom screws.
2. Adjust leg to desired height. Leg can slide up (shorter)
or down (longer) to level the insert.
3. Tighten 2 top screws.
4. Drill 2 holes for the bottom 2 screws and re-install
screws. Figure 18.5.
Loosen top 2 screws and remove
bottom 2. Adjust leg to desired height.
Drill 2 holes and
re-install bottom 2
screws
Ammo Can Latches
Top Vent Installation
1. Release ammo can latches on each side. Figure 18.1.
2. Place the reversible adapter in the correct position for your
installation.
3. Make sure BOTH latches are in position before securing
them.
Rear Vent Installation
1. Remove the 90o adapter and installation screws from the
packaging.
2.
Attach the 90o adapter onto the vent adapter, using the 3
screws provided. You will need to pre-drill the holes for screw
placement. Be sure to adjust the 90o adapter to the desired
position for venting before drilling.
3. Silicone the pipe joints according to the Note below.
screw
Figure 18.5
Figure 18.1 - Top Vent
Figure 18.2 - Rear Vent Figure 18.3 - Rear Vent
NOTE: All pipe must be sealed using welded
seam pipe whenever possible. Seal pipe joints
with high temperature silicone, minimum rate of
5000F (2600C).

R
August 20, 2009 250-7251G Page 19
Castile Pellet Insert
C. Outside Air Kit Instructions
Parts Included in Kit: 1 piece of 2 inch x 3 ft. fl ex hose, 2
hose clamps, 1 collar assembly, 1 termination cap assem-
bly, 1 air intake channel, 1 trim ring, fasteners. NOTE:
Discard air intake channel, it is not used on this appliance.
1. Attach collar assembly to appliance. Figure 19.1.
Measure distance from fl oor to air vent opening in
appliance and mark location on wall.
3. Use saw to cut opening in wall. Cut a 2-1/2 to 3 inch
(64-76mm) opening on inside wall and a 3 to 3-1/2
inch (76-89mm) opening on outside of house.
4. Use hose clamp to secure fl ex pipe to collar assem-
bly.
5. Slide trim ring over fl ex pipe and run pipe through
pre-cut hole in back of appliance and through the
wall.
6. Attach hose to outside termination cap with second
hose clamp.
7. Secure termination cap to outside surface.
8. Secure trim ring to interior wall.
Tools Needed: Phillips head screwdriver; wire cutters;
hole saw or jig saw.
CAUTION
Never draw outside combustion air from:
• Wall, fl
oor or ceiling cavity
• Enclosed space such as an attic or garage
Figure 19.1
Figure 19.3
123
4
5
678

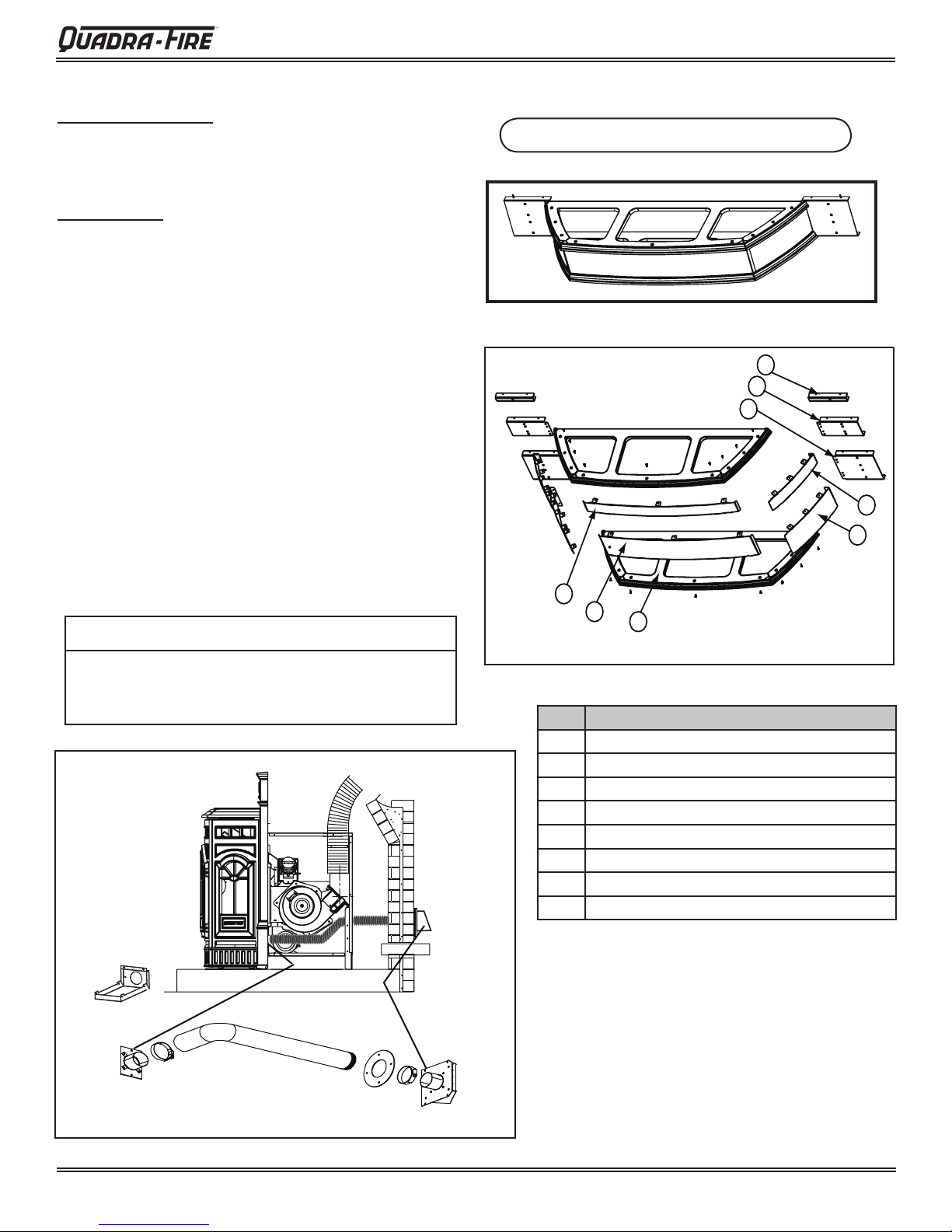

D. Zero Clearance Trim Support Instructions
Figure 19.2 - Assembled View
Item Description
1 Front, 3 inch
2Front, 5 inch
3 Cast Ring, Top & Bottom, Interchangeable
4 Side, 5 inch
5 Side, 3 inch
6 Panel Extension, 5 inch
7 Panel Extension, 3 inch
8 Panel Extension, Base Plate Only
NOTE: Only for use on small size panels.
Flex Hose
Hose Clamp
Collar
Assembly
Trim Ring Termination
Cap Assembly
Hose Clamp
Air Intake Channel
(Discard)

Page 20 250-7251G August 20, 2009
R
Castile Pellet Insert
Install Sides
First
Install Front Last
Bend top and bottom tabs toward inside
NOTE: Manually
pre-shape sides before
installing
Turn right side up and attach top cast ring
Zero Clearance Panel Extension
Alignment
Hole
Cast Trim
Footer
Panel Leg
Base Plate Only Installation
Parts Needed: (1) cast ring (2) base zero clearance panel
extensions. Discard balance of parts.
Tools Needed: Phillips head screwdriver
1. Attach base zero clearance panel extensions to cast
ring.
2. Place assembly under appliance.
1. Remove contents from box and lay on protective surface
to avoid scratching the paint.
2. Lay zero clearance front and sides face down. Bend the
tab down toward the inside.
3.
The side pieces are shipped fl at. It is much easier to
manually fl ex the sides into a bowed position before
installing.
4.
Lay 1 cast ring face up, which will become the bottom ring
when installed. Attach the 2 sides FIRST and then the
front piece. Figure 20.1.
5. Now turn the cast ring right side up and attach the top cast
ring . Figure 20.2.
6. Attach the zero clearance panel extensions. Figure
20.3
7. Attach cast footers. Figure 20.4.
8. Place the assembled zero clearance trim support under
the insert. Figure 20.5.
Zero Clearance
Panel Extension
Panel Leg
Cast Trim Footer
D. Zero Clearance Trim Support (Cont’d)
Figure 20.1
Figure 20.2
Figure 20.3
Figure 20.4
Figure 20.5
Figure 20.6
