Quadra-Fire • Hudson Bay Insert • 7008-115 Rev. H • 10/08 1
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• What to do if you smell gas
- Do not try to light any appliance.
- Do not touch any electrical switch. Do not
use any phone in your building.
- Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli-
er’s instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
bya qualifiedinstaller,serviceagency,orthe
gas supplier.
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury, or death.
Installation and service of this appliance should be
performed by qualified personnel. Hearth & Home
Technologies suggests NFI certified or factory trained
professionals, or technicians supervised by an NFI
certified professional.
• Leave this manual with
party responsible for use
and operation.
DO NOT
DISCARD
• Important operating
and maintenance
instructions included.
• Read,understandandfollow
these instructions for safe
installation and operation.
In the Commonwealth of Massachusetts:
• installation must be performed by a licensed plumber or gas
fitter;
• a CO detector shall be installed in the room where the
appliance is installed.
R
HUDSON BAY INSERT
DIRECT VENT GAS APPLIANCE
Owner’s Manual
Installation and Operation
Model:
HUDBAY-INS
O-T L
Tested and
Listed by Portland
Oregon USA
OMNI-Test Laboratories, Inc.
CUS
ThisappliancemaybeinstalledasanOEMinstallationinmanufactured
home(USAonly)ormobilehomeandmustbeinstalledinaccordance
withthemanufacturer'sinstructionsandthemanufacturedhomecon-
structionandsafetystandard,Title24CFR,Part3280orStandardfor
Installation in Mobile Homes, CAN/CSAZ240MH.
This appliance is only for use with the type(s) of gas indicated on the
rating plate.
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other flammable
materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
CAUTION
DO NOT DISCARD THIS MANUAL

Quadra-Fire • Hudson Bay Insert • 7008-115 Rev. H • 10/082
APPROVED FOR CANADA AND USA TO:
ANSI Z21.88b-2003 / CSA 2.33b-2003 Vented Gas Fireplace Heater, and applicable sections of UL307b Gas Burning
Heating Appliances for Manufactured Homes and Recreational Vehicles, CAN/CG A 2.17-M91 “Gas Fired Appliances
for use at High Altitudes.”
This appliance is manufactured for operation with Natural Gas. For conversion to propane the Manufacturer’s kit
provided with the stove must be used in conjuntion with the instructions in the owner's manual.
This vented gas fireplace heater is not for use with air filters.
This appliance may be installed in a bedroom or bedsitting room; in Canada remote thermostat installation is
required.
FAN TYPE VENTED CIRCULATOR Blower Electrical Rating115 V., 1.5 Amps, 60 Hz, 150 Watts
For use with Natural Gas For use with Propane
"0-2000’ "0-2000’
Input Rate on “HI” (BTU/Hr) 30,000 28,000
Input Rate on “LO” (BTU/Hr) 22,500 22,650
Main Burner Orifice (DMS) 36 52
Minimum Inlet Pressure (Inches W.C.) 4.5” 11”
Maximum Inlet Pressure (Inches W.C.) 7.0” 14”
Manifold Pressure on “HI” (Inches W.C.) 3.5” 10”
Efficiency up to 82.5% 81%
AFUE 71% 72.5%
2005 2006 2007 Feb Mar Apr May Jun Jul Aug Sep Oct Nov DecJan
DO NOT REMOVE THIS LABEL
MADE IN U.S.A.
Date of Manufacture / Date du Manufacturier
MINIMUM CLEARANCES TO COMBUSTIBLES
This appliance equipped for altitudes 0-2000’ (0-610m) in USA; and in Canada for altitudes of 0-4500’ (0-1370m). In USA for
Altitudes above 2000’, the vent configuration, orifice, or combination of both may need to be changed. See Owner’s Manual for
information onmaking these changes.
This appliance must be installed in accordance with local codes, if any (and Commonwealth of Massachusetts approved); if
none, followThe National Fuel Gas Code,ANSI Z223.1 and NFPA 54; or Canadian Installation Codes CAN/CGA-B149.
NOTE: Have the gas supply line installed in accordance with local building codes by a qualified installer approved and/or
licensed as required by the locality. (In the Commonwealth of Massachusetts, installation must be performed by a licensed
plumber or gas fitter.)
Manufactured by:
7031-221
P.4.1-02 Canada Minimum Pipe 69% NG / 71% LP
Report No. / Rapport Numero
061-S-63-5
MODEL: XXXXXXX
VENTED GAS APPLIANCE
NOT FOR USE WITH SOLID FUEL
SERIAL
NO. XXX
Tested and
Listed by Beaverton
Oregon USA
OMNI- Test Laboratories, Inc.
C
R
and Welcome to the Quadra-Fire Family!
Hearth & Home Technologies welcomes you to our tradi-
tion of excellence! In choosing a Quadra-Fire appliance,
you have our assurance of commitment to quality, durabil-
ity, and performance.
This commitment begins with our research of the market,
including ‘Voice of the Customer’ contacts, ensuring we
make products that will satisfy your needs. Our Research
and Development facility then employs the world’s most
advanced technology to achieve the optimum operation of
our stoves, inserts and fireplaces. And yet we are old-fash-
ioned when it comes to craftsmanship. Each appliance
is meticulously fabricated and gold and nickel surfaces
are hand-finished for lasting beauty and enjoyment. Our
pledge to quality is completed as each model undergoes
a quality control inspection. From design, to fabrication,
to shipping: Our guarantee of quality is more than a word,
it’s Quadra-Fire tradition, and we proudly back this tradition
with a Limited Lifetime Warranty.
We wish you and your family many years of enjoyment in
the warmth and comfort of your hearth appliance. Thank
you for choosing Quadra-Fire.

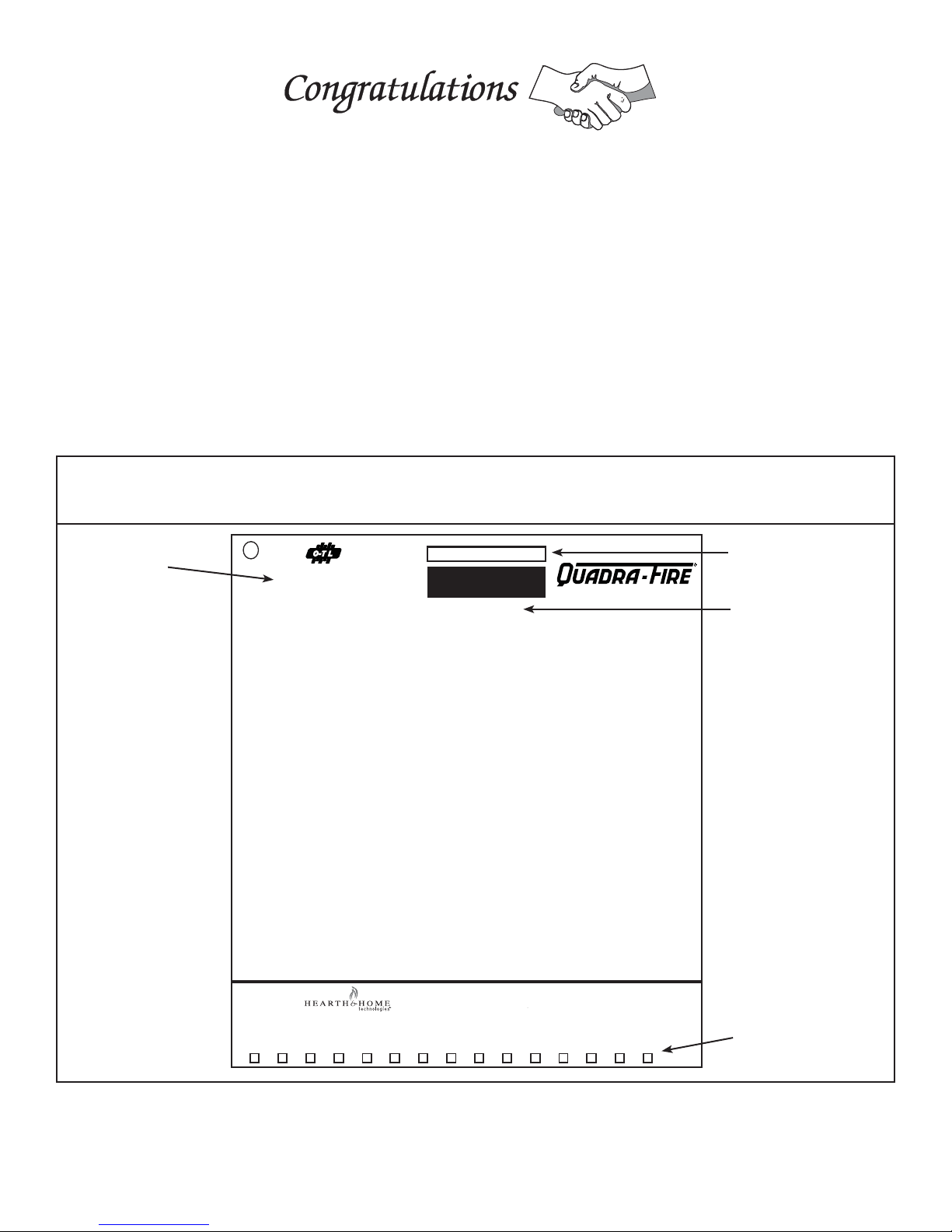

SAMPLE OF SERIAL NUMBER / SAFETY LABEL
LOCATION: HANGING ON A CHAIN ON BACK OF APPLIANCE
Manufactured
Date
Serial Number
Model Name
Test Lab &
Report No.
SAMPLE

Quadra-Fire • Hudson Bay Insert • 7008-115 Rev. H • 10/08 3
Table of Contents
1 Listing and Code Approvals
A. Appliance Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
B. Glass Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
C. BTU Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
D. High Altitude Installations. . . . . . . . . . . . . . . . . . . . . . . . . . 4
E. Non-Combustible Materials Specification. . . . . . . . . . . . . . 4
F. Combustible Materials Specification . . . . . . . . . . . . . . . . . 4
G. Electrical Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Getting Started
A. Design and Installation Considerations . . . . . . . . . . . . . . . 5
B. Tools and Supplies Needed . . . . . . . . . . . . . . . . . . . . . . . . 5
C. Inspect Appliance and Components. . . . . . . . . . . . . . . . . . 5
3 Framing and Clearances
A. Selecting Appliance Location . . . . . . . . . . . . . . . . . . . . . . . 6
B. Clearances to Combustibles . . . . . . . . . . . . . . . . . . . . . . . 6
4 Termination Locations
A. Vent Termination Minimum Clearances . . . . . . . . . . . . . . . 7
5 Vent Information
A. Venting and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6 Gas Information
A. Fuel Conversions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
B. Converting to LP Gas. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
C. Valve Regulator Replacement . . . . . . . . . . . . . . . . . . . . . .11
D. Gas Pressures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
E. Gas Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
7 Electrical Information
A. Recommendation for Wire . . . . . . . . . . . . . . . . . . . . . . . . 14
B. Connecting to the Appliance. . . . . . . . . . . . . . . . . . . . . . . 14

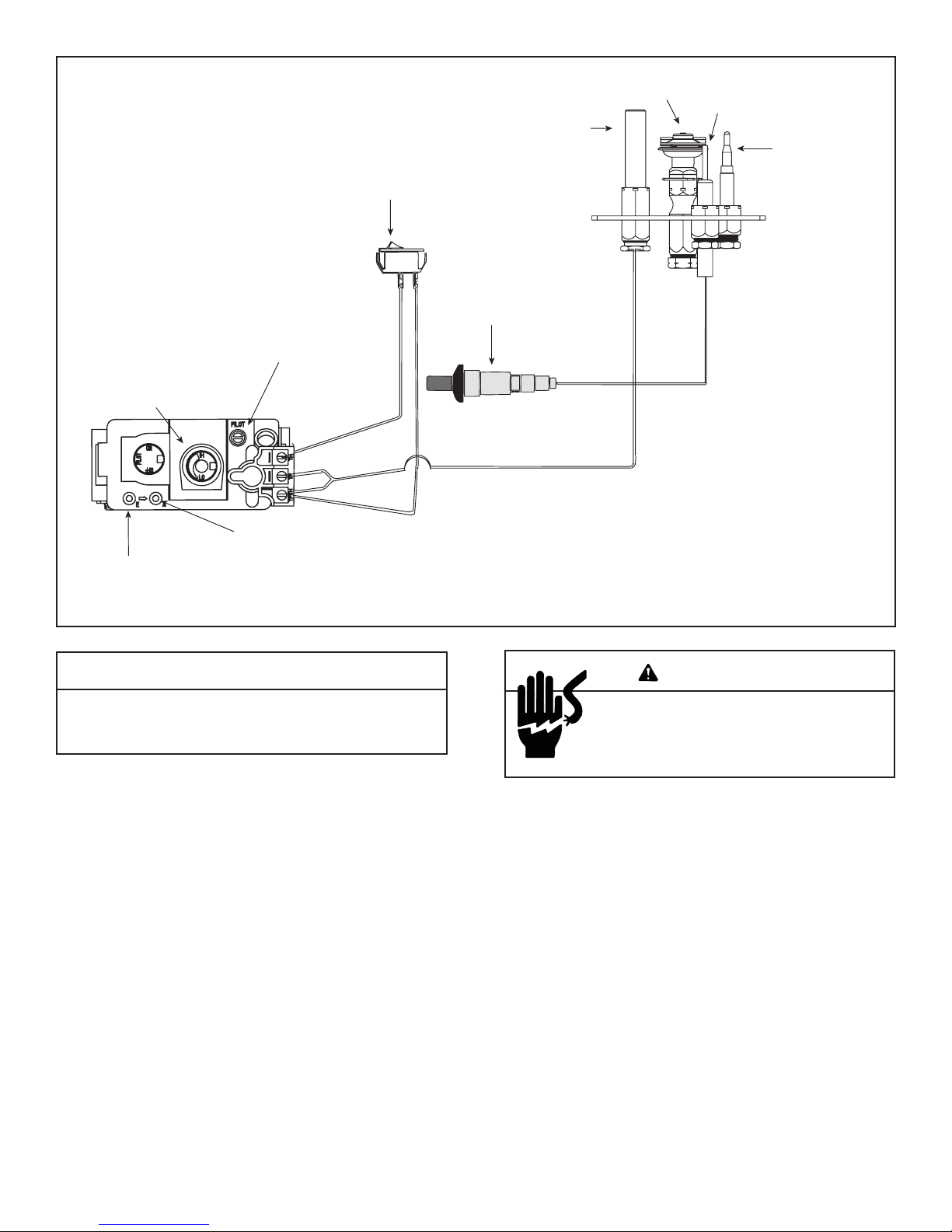

C. Standing Pilot Ignition System Wiring . . . . . . . . . . . . . . . 14
8 Appliance Setup
A. Remove Shipping Materials . . . . . . . . . . . . . . . . . . . . . . . 16
B. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
C. Door Crown Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 16
D. Grille Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
E. Panel Set Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
F. Brick Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
G. Positioning the Logs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
H. Mineral Wool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
I. Blower Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
J. Air Shutter Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
9 Operating Instructions
A. Before Lighting Appliance. . . . . . . . . . . . . . . . . . . . . . . . . 23
B. Lighting Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
C. After Appliance is Lit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
D. Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . 25
10 Troubleshooting
A. Standing Pilot Ignition System . . . . . . . . . . . . . . . . . . . . . 26
11 Maintaining and Servicing Appliance
A. Glass Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
B. Maintenance Tasks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
12 Reference Materials
A. Appliance Dimension Diagram. . . . . . . . . . . . . . . . . . . . . 30
B. Vent Components List . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
C. Service Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
D. Limited Lifetime Warranty. . . . . . . . . . . . . . . . . . . . . . . . . 35
E. Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
= Contains updated information.

Quadra-Fire • Hudson Bay Insert • 7008-115 Rev. H • 10/084
Manufactured Home or Mobile Home installation may
occuronlyafter thehomeis sitelocatedand mustconform
with the Manufactured Home Construction and Safety
Standard, Title 24 CFR, Part 3280, or, when such a
standard is not applicable, the Standard for Manufactured
Home Installations, ANSI/NCSBCS A225.1, or Standard
for Gas Equipped Recreational Vehicles and Mobile
Housing, CSA Z240.4.
Wheninstalled,theappliancemustbeelectricallygrounded
in accordance with local codes or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70,
or the Canadian Electrical Code, CSA C22.1.
*Maximum Vent Blower On
**Canada Only
Model
(US or Canada)
Maximum
Input
BTU/h
Minimum
Input
BTU/h
Orifice
Size
(DMS)
*Steady
State
Efficiency %
**P.4
%
Hudson Bay
Insert (NG) 42,000 28,000 .125 83.56 71.41
Hudson Bay
Insert (LP) 40,500 31,000 .076 85.39 74.45
B. Glass Specifications
This appliance is equipped with 5 mm ceramic glass.
Replace glass only with 5 mm ceramic glass. Please con-
tact your dealer for replacement glass.
Note: This installation must conform with local codes. In the
absence of local codes you must comply with the National
Fuel Gas Code, ANSI Z223.1-latest edition in the U.S.A. and
the CAN/CGA B149 Installation Codes in Canada.
1
1 Listing and Code Approvals
C. BTU Specifications
MODELS: Hudson Bay Insert
LABORATORY: Omni Test Laboratories, Inc. 061-S-51-5
TYPE: Direct Vent Gas Fireplace Heater
STANDARD: ANSI Z21.88-2002 • CSA 2.33-2002 • UL307B
CAN/CBA 2.17-M91
Do NOT use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and
any gas control which has been under water.
This product is listed to ANSI standards for “Vented Gas
Appliance Heaters” and applicable sections of “Gas Burn-
ing Heating Appliances for Manufactured Homes and
Recreational Vehicles”, and “Gas Fired Appliances for
Use at High Altitudes”.
A. Appliance Certification
E. Non-Combustible Materials Specification
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750ºC, shall be considered
non-combustible materials.
F. Combustible Materials Specification
Materials made of or surfaced with wood, compressed
paper, plant fibers, plastics, or other material that can ig-
nite and burn, whether flame proofed or not, or whether
plastered or unplastered shall be considered combustible
materials.
G. Electrical Codes
NOTICE: This appliance must be electrically wired and
groundedin accordancewithlocalcodesor, inthe absence
of local codes, with National Electric Code ANSI/NFPA
70-latest edition or the Canadian Electric Code CSA
C22.1.
• A 110-120 VAC circuit for this product must be protected
withground-faultcircuit-interrupterprotection,incompliance
with the applicable electrical codes, when it is installed in
locations such as in bathrooms or near sinks.
WARNING
D. High Altitude Installations
Omni-Test Laboratories, Inc. listed gas appliances are
tested and approved without requiring changes for
elevations from 0 to 2000 feet in the U.S.A. and 0 to 4500
feet in Canada.
When installing this appliance at an elevation above 2000
feet, it may be necessary to decrease the input rating
by changing the existing burner orifice to a smaller size.
Input rate should be reduced by 4% for each 1000 feet
above a 2000 foot elevation in the U.S.A. If the heating
value of the gas has been reduced, these rules do not
apply. To identify the proper orifice size, check with the
local gas utility.
If installing this appliance at an elevation above 4500 feet
(in Canada), check with local authorities.


Quadra-Fire • Hudson Bay Insert • 7008-115 Rev. H • 10/08 5
A. Design and Installation Considerations
Quadra-Fire direct vent gas appliances are designed to
operate with all combustion air siphoned from outside of
the building and all exhaust gases expelled to the outside.
No additional outside air source is required.
2
2 Getting Started
C. Inspect Appliance and Components
When planning an appliance installation, it’s necessary to
determine the following information before installing:
• Where the appliance is to be installed.
• The vent system configuration to be used.
• Gas supply piping.
• Electrical wiring.
• Framing and finishing details.
• Whether optional accessories—devices such as a fan,
wall switch, or remote control—are desired.
B. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Reciprocating saw Framing material
Pliers Hi temp caulking material
Hammer Gloves
Phillips screwdriver Framing square
Flat blade screwdriver Electric drill and bits (1/4 in.)
Plumb line Safety glasses
Level Wrenches
Ratchets/Sockets Allen Wrench Set
Manometer Voltmeter
Tape measure 1/2 - 3/4 inch length, #6 or #8 Self-drilling screws
One 1/4 inch female connection (for optional fan)
Noncorrosive leak check solution or combustible gas detector
• Carefully remove the appliance and components from
the packaging.
• Removecastdoorandglass, andset asideonprotective
surface.
• Remove log set and component pack from firebox.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
• Read all of the instructions before starting the insta-
llation. Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Consultlocalbuilding,fireofficialsorauthoritieshavingjurisdic-
tion about restrictions, installation inspection, and permits.
CAUTION
Keep appliance dry.
• Mold or rust may cause odors.
• Water may damage controls.
Inspectapplianceand components for damage.
Damaged parts may impair safe operation.
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
Hearth & Home Technologies disclaims any
responsibilityfor, and thewarranty willbevoided
by, the following actions:
• Installation and use of any damaged appliance or vent
system component.
• Modification of the appliance or vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installationand/oruseofanycomponentpartnotapproved
by Hearth & Home Technologies.
Any such action may cause a fire hazard.
WARNING
WARNING
WARNING

Quadra-Fire • Hudson Bay Insert • 7008-115 Rev. H • 10/086
Figure 3.1
Model A B C D
Hudson Bay Insert Inches 14 11 12 7
Millimeters 356 279 305 178
B. Clearances to Combustibles
3
3 Framing and Clearances
Note:
•Illustrations reflect typical installations and are FOR
DESIGN PURPOSES ONLY.
•Illustrations/diagrams are not drawn to scale.
•Actual installation may vary due to individual design
preference.
Fire Risk
Provide adequate clearance:
• Around air openings
• To combustibles
• For service access
Locate appliance away from traffic areas.
A. Selecting Appliance Location
Whenselectingalocationforyour applianceitisimportantto
consider the required clearances to walls (see figure 3.1). NOTE: For actual appliance dimensions refer to Sec-
tion 12.
WARNING
Underneath bottom of appliance to combustibles: 3/8 in. (10 mm)
16 in. (406 mm) front floor protection required 0 in. to 2-1/2 in. (64 mm) below bottom of appliance. (1/2 in. of "k" = .84)
No floor protection needed if 2-1/2 in. (64 mm) or greater from bottom of appliance.
To 8 in. (203 mm ) Deep mantel:
14 in. (356 mm) From top of insert
A
BD
C
SIDE WALL
HEARTH 1-1/2 in. (38 mm)
16 in. (406 mm)

Quadra-Fire • Hudson Bay Insert • 7008-115 Rev. H • 10/08 7
Fire Risk.
Asphyxiation Risk.
• Terminations MUST meet minimum clearances.
• Exhaust gases are hot.
• Nearby vents may draw fumes into house.
A. Vent Termination Minimum Clearances
Figure 4.1 specifies minimum vent heights for various
pitched roofs.
Roof Pitch H (Min.) Ft.
Flat to 6/12...........................................................1.0*
Over 6/12 to 7/12.................................................1.25*
Over 7/12 to 8/12.................................................1.5*
Over 8/12 to 9/12.................................................2.0*
Over 9/12 to 10/12...............................................2.5*
Over 10/12 to 11/12.............................................3.25
Over 11/12 to 12/12.............................................4.0
Over 12/12 to 14/12.............................................5.0
Over 14/12 to 16/12.............................................6.0
Over 16/12 to 18/12.............................................7.0
Over 18/12 to 20/12.............................................7.5
Over 20/12 to 21/12.............................................8.0
Figure 4.1 Minimum height from roof to lowest discharge
opening
4
4 Termination Locations
* 3 foot minimum in snow regions
Figure 4.2 Multiple Vertical Termination
Gas Termination Wood & Fuel Oil Termination
A6 in. 20 in.
18 IN.
A
2 FEET
(MINIMUM) TO
PERPENDICULAR
WALL (GAS ONLY)
GAS OR WOOD
TERMINATION
GAS
TERMINATION
WARNING
HORIZONTAL
OVERHANG
VERTICAL
WALL
GAS DIRECT VENT
TERMINATION CAP
12
X
ROOF PITCH
IS X/ 12
LOWEST
DISCHARGE
OPENING
2 FT.
MIN.
20 INCHES MIN.
H (MIN.) - MINIMUM HEIGHT FROM ROOF
TO LOWEST DISCHARGE OPENING

Quadra-Fire • Hudson Bay Insert • 7008-115 Rev. H • 10/088
TERMINATION CAP
ADAPTER
FLEX PIPE
TRANSITION ASSEMBLY
SHIPPING BRACKETS ATTACHED
TO REAR OF APPLIANCE FOR
USE AS LEVELING LEGS

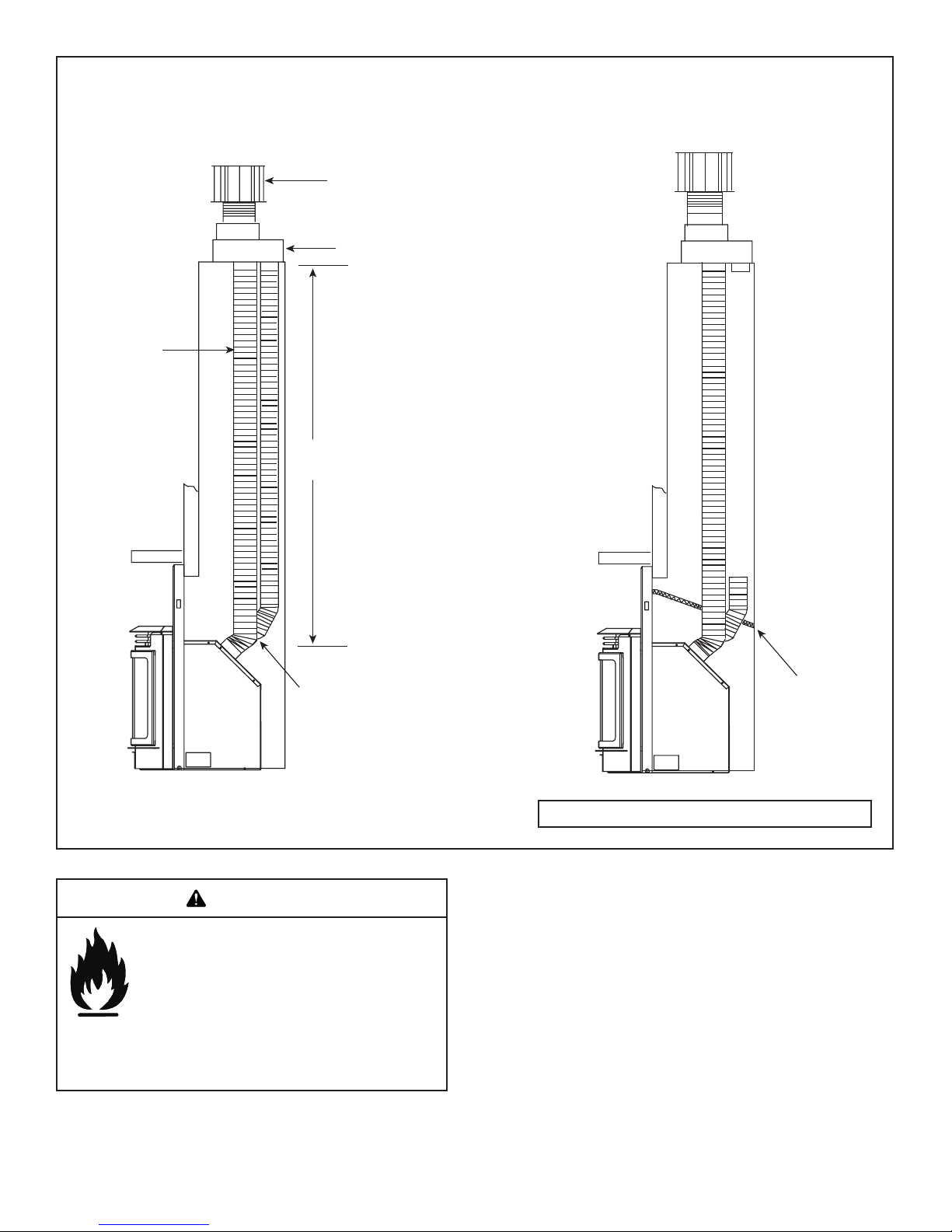

A. Venting and Installation
Tools and supplies needed: Pliers; Phillips screwdriver;
Tape measure; Level; Electrical drill and bits; Square; and
High Temperature Sealant Material.
Minimum fireplace opening requirements are shown on
section 12 of this manual. The firebrick (refractory) can
be removed from a factory built fireplace in order to gain
minimum gas insert opening requirements.
Before installing the 3 in. (76 mm) flex vent pipe, mark or
label the exhaust pipe at both ends.
Attach the pipe-to-cap adapter to the termination cap and
to the top of the flexible vent pipe and set the cap in place
at the top of the chimney. Attach the labeled vent pipe to
the labeled collar on the termination.

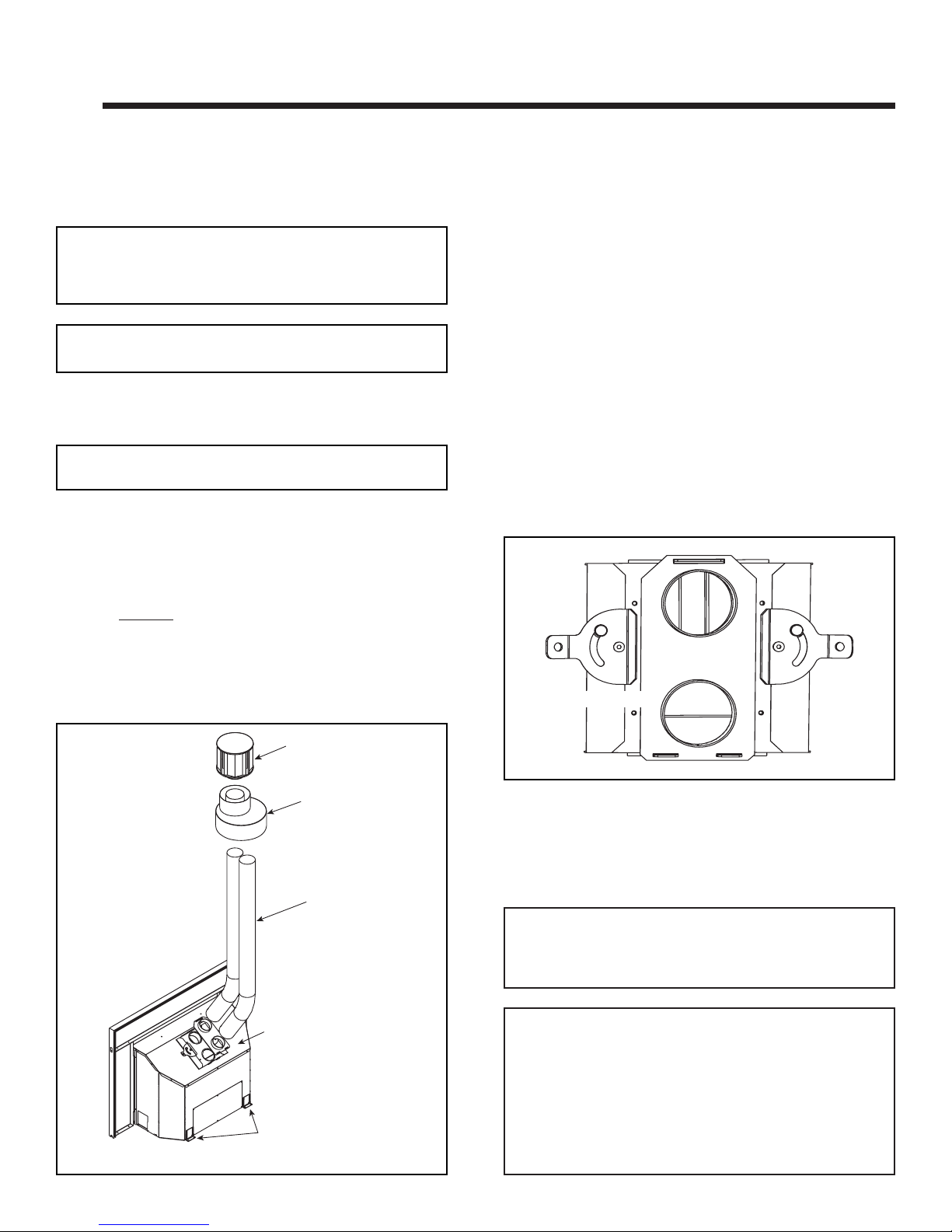

Figure 5.1
Install the 3 in. (76 mm) flexible vent pipes down through
the chimney. Attach and secure the bottom ends of the
flex pipes to the starting collar bracket with set screws on
each collar. Attach the labeled pipe to the exhaust collar
on the starter collar bracket.
Place the insert on the hearth and carefully slide it into the
fireplace. Be sure the gas line enters the heater through
the gas access opening and that the electrical cord is
extending out the right. (Cord may be re-routed to the left
if necessary. A notch will be needed in the trim piece for
the cord restraint.)
Position any excess flex vent pipe back up into the
chimney.
Install LP conversion, brick set and panel and trim at
this point in accordance with your installation plans. See
instructions in this manual to do so.
Slide the unit back into the fireplace.
Attachtransitionassemblytotheappliance. Rotatetransi-
tion assembly latches and lock with the 7/16 in. wrench.
Figure 5.2
AIR INTAKE
Note: Quadra-Fire gas inserts are designed for recessed
installations into solid fuel Masonry or Factory Built Non-
combustible fireplaces that have been installed in accordance
with the National, Provincial, State and Local building codes.
Note: Shipping brackets used to attach appliance to pallet can
be used as leveling legs when attached to back of appliance.
The damper of the masonry or factory-built chimney must
be removed or fixed open to install the appliance.
Note: In the Commonwealth of Massachusetts, the word
damper shall be replaced with the words flue restrictor.
High Temperature Sealant Material. Sealants that will
withstand high temperatures (at least 350 degrees Fahr-
enheit); General Electric RTV103 (Black), or equivalent.
Rutland, Inc. Fireplace Mortar #63, or equivalent; Dow
Corning 732 or equivalent.
Note: To avoid down drafts and/or cold air problems, it is
recommended to seal off the area between the termination
cap and the top of the solid-fuel chimney opening into which
the vent cap has been installed.
Note:the metal floorofthesolid fuel fireboxmaybe removed
to facilitate the installation of the insert. Clearance to
combustible material under the insert is 3/8 in. (1 mm). You
must use the leveling legs to raise the insert a minimum of
3/8 in. (10 mm) if the insert is to sit on combustible material.
The side walls and top structure of the firebox may not be
alteredwith the exception ofremovablebafflesand dampers.
The original fireplace may never be returned to solid fuel in
this condition.
5
5 Vent Information

Quadra-Fire • Hudson Bay Insert • 7008-115 Rev. H • 10/08 9
INSULATION
V=10 FT. (3 M) MINIMUM
40 FT. (12 M) MAXIMUM
TERMINATION CAP
ADAPTOR
INLET AIR
VENT PIPE
EXHAUST
AIR VENT
PIPE
Figure 5.3 Note: Insulation is not included with the venting kit.
THIS OPTION SHOWS THE AIR INLET
TERMINATING IN THE CHIMNEY.
Fire Hazard.
Asphyxiation Risk.
• The exhaust pipe must only be connected to
the exhaust starting collar of the unit and the
center collar of the termination cap.
• Theinletairpipemustonly be connected to the
inlet air collar of the unit and either attached
to the inlet air collar of the termination cap or
terminated in the chimney.
WARNING

Quadra-Fire • Hudson Bay Insert • 7008-115 Rev. H • 10/0810
Figure 6.2
Kit contents: Replacement orifice; replacement pilot
injector; valve regulator; conversion label.
Tools required: Ratchet with 7/16 in. (11 mm) socket
and 2 in. - 4 in. (51-102 mm) extension: power drill (a 90°
handle is helpful); #2 Phillips bit; 5/32 in. (4 mm) Allen
wrench; 5/8 in. (16 mm) open end wrench.
Remove right and left twigs and right and left rear logs
from the burner pan, if installed. Remove the two nuts
that secure the burner pan to the burner support with the
ratchet and socket.
Figure 6.3
Figure 6.4
Note: Gas conversions should only be performed by a
qualified service person, and/or where required by state
and local codes, licensed installer/service technician. In
the Commonwealth of Massachusetts, installation must be
performed by a licensed plumber or gas fitter.
B. Converting to LP Gas
A. Fuel Conversions
Before making gas connections ensure that appliance be-
ing installed is compatible with the available gas type.
Any natural or propane gas conversions necessary to
meet the appliance and locality needs must be made by
a qualified technician using Hearth & Home Technologies
specified and approved parts.
6
6 Gas Information
Figure 6.1
2 NUTS HOLDING
2 NUTS HOLDING
BURNER PAN
BURNER PAN
Lift the burner up and out of the firebox opening.
Remove the three screws on the front of the burner sup-
port. Set screws aside.
3 SCREWS
3 SCREWS
Slide the burner support to the left to access the orifice.
BURNER SUPPORT SCREWS
BURNER SUPPORT SCREWS

Quadra-Fire • Hudson Bay Insert • 7008-115 Rev. H • 10/08 11
Figure 6.5
Figure 6.6
Figure 6.7
A
B
C
Figure 6.8
C. Valve Regulator Replacement
Remove upper and lower back shield. Loosen the set col-
lars on the extension rods with the 3/32 in. Allen wrench.
Remove the rods and adapter cap.
Turn control knob to the OFF position, ensure that gas
supply to the valve has been turned off. Using a Torx
TH20, or slotted screwdriver, remove the three pressure
regulator mounting screws (A), pressure regulator tower
(B), and diaphragm (C).
Note: Do not remove retaining clip from the pilot hood.
Note: Ifinstallingbrickalso,doso nowbeforereassembling.
If not installing brick, reassemble burner in reverse order of
removal.
With a 5/8 in. wrench remove the orifice retaining nut.
Replace with the appropriate orifice (.076 LP / .125 NG).
Remove the pilot hood and set aside.
Using a 5/32 in. (4 mm) Allen wrench, remove the pilot
injector and replace with an appropriate injector (#35 LP
/ #62 NG).
Fire Risk.
Explosion Risk.
• Disconnect any electrical cords and turn
off gas supply to unit before proceeding if
converting fuel on an appliance already fully
installed.
WARNING

Quadra-Fire • Hudson Bay Insert • 7008-115 Rev. H • 10/0812
Ensure that the rubber gasket (D) is properly positioned
and install the new HI/LO pressure regulator assembly to
the valve using the new screws (E) supplied with the kit.
Tighten screws securely. (Reference torque = 25 in./lb.)
Install the enclosed identification label (F) to the valve
body where it can be seen.
Fill out the conversion label and attach it to the valve
cover.
Figure 6.9
WARNING
Fire Risk.
Explosion Risk.
•If the information in these instructions is
not followed exactly, a fire, explosion or
production of carbon monoxide may result
causing property damage, personal injury or
loss of life.
• The qualified service agency is responsible
for the proper installation of this conversion
kit. Theinstallationisnotproperandcomplete
until the operation of the converted appliance
is checked as specified in the manufacturer’s
instructions supplied with the kit.
WARNING
Fire Risk.
Explosion Risk.
Gas Leak Risk.
• Rubber gasket must be seated properly on
valve face.
• Do no install a valve or regulator that has
been dropped.
If the pressure is not sufficient, ensure:
• The piping used is large enough.
• The supply regulator is adequately adjusted.
• That the total gas load for the residence does not
exceed the amount supplied.
The supply regulator (the regulator that attaches directly
tothe residenceinletortothe propanetank)shouldsupply
gas at the suggested input pressure listed above. Contact
the local gas supplier if the regulator is at an improper
pressure.
D. Gas Pressures
Proper input pressures are required for optimum appli-
ance performance. Gas line sizing requirements need to
be made following NFPA54.
Fire Risk.
Explosion Hazard.
High pressure will damage valve.
• Disconnect gas supply piping BEFORE
pressure testing gas line at test pressures
above 1/2 psig.
• Close the manual shutoff valve BEFORE
pressure testing gas line at test pressures
equal to or less than 1/2 psig.
Verify inlet pressures.
• High pressure may cause overfire condition.
• Low pressure may cause explosion.
• Verify minimum pressures when other
household gas appliances are operating.
Install regulator upstream of valve if line
pressure is greater than 1/2 psig.
Pressure requirements for appliance are shown in the
table below. Minimum pressures must be met when other
household gas appliances are operating.
WARNING
WARNING
Pressure Natural Gas Propane
Minimum inlet pressure 4.5 inches
w.c. 11.0 inches w.c.
Maximum inlet gas pressure 7.0 inches
w.c. 14.0 inches w.c.
Manifold pressure 3.5 inches
w.c. 10.0 inches w.c.
E
D
F


Quadra-Fire • Hudson Bay Insert • 7008-115 Rev. H • 10/08 13
Leak test all gas line joints and the gas control valve prior
to and after starting the appliance.
Before making the gas connection, ensure that the
appliance you are installing is designed for the type of
gas being supplied. This information can be found on the
ratings label under the appliance. If the appliance has
been converted to propane (LP), the valve cover should
havealabel statingthat theappliancehas beenconverted
to propane.
Connect the gas line at the 3/8 in. (10 mm) pipe connector
on the valve at the back of appliance. We recommend
connecting the appliance with an approved flex gas line.
If flex gas lines are not approved in your area, you must
connect a hard pipe to the gas hookup.
You must supply a manual shut-off valve in a visible
location within 3 ft. (914 mm) of the appliance.
Ensure that gas line does not come in contact with outer
wrap of appliance. Follow local codes.
Incoming gas line should be piped into the valve
compartment and connected to the 1/2 inch connection
on the manual shutoff valve.
Note: Have the gas supply line installed in accordance
with local building codes, if any. If not, follow ANSI
223.1. Installation should be done by a qualified installer
approved and/or licensed as required by the locality. (In
the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fitter).
E. Gas Connection
Note: A listed (and Commonwealth of Massachusetts ap-
proved) 1/2 inch (13 mm) T-handle manual shut-off valve and
flexible gas connector are connected to the 1/2 inch (13 mm)
control valve inlet.
• If substituting for these components, please consult
local codes for compliance.
Gas Leak Risk
• Support control when attaching pipe to
prevent bending gas line.
Note: The gap between supply piping and gas access hole
may be caulked with high temperature caulk or stuffed with
non-combustible, unfaced insulation to prevent cold air
infiltration.
WARNING
Fire hazard.
Do NOT change the valve settings.
• This valve has been preset at the factory.
• Changing valve settings may result in fire
hazard or bodily injury.
CHECK FOR GAS LEAKS
Explosion Risk
Fire Risk
Asphyxiation Risk
• Check all fittings and connections.
• Do not use open flame.
• Afterthegaslineinstallationiscomplete,all
connectionsmustbetightenedandchecked
for leaks with a commercially-available,
non-corrosive leak check solution. Be sure
to rinse off all leak check solution following
testing.
Fittings and connections may have loosened
during shipping and handling.
Fire or Explosion Hazard
• Gas buildup during line purge may ignite.
• Purge should be performed by qualified technician.
• Ensure adequate ventilation.
• Ensure there are no ignition sources such as
sparks or open flames.
• A small amount of air will be in the gas supply lines.
When first lighting appliance it will take a short time for
air to purge from lines. When purging is complete the
appliance will light and operate normally.
Air only needs to be purged again if gas valve has been
turned to the OFF position.
WARNING
WARNING
WARNING
HIGH ALTITUDE INSTALLATIONS
Omni-TestLaboratories,Inc.listedgasappliancesaretested
and approved without requiring changes for elevations from
0 to 2000 feet in the U.S.A. and 0 to 4500 feet in Canada.
When installing this appliance at an elevation above 2000
feet, it may be necessary to decrease the input rating by
changing the existing burner orifice to a smaller size. Input
rate should be reduced by 4% for each 1000 feet above a
2000 foot elevation in the U.S.A. If the heating value of the
gas has been reduced, these rules do not apply. To identify
the proper orifice size, check with the local gas utility.
If installing this appliance at an elevation above 4500 feet
(in Canada), check with local authorities.

Quadra-Fire • Hudson Bay Insert • 7008-115 Rev. H • 10/0814
C. Standing Pilot Ignition System Wiring
This appliance DOES NOT require 110 VAC supply for
operation. A wiring diagram is shown in Figure 7.2 on the
next page.
This appliance is equipped with a millivolt control valve.
Do not connect this appliance to a thermostat serving
any other appliance.
Bedroom installation inCanada requires thisappliance
to be connected to a thermostat.
6. Keep wire lengths as short as possible by removing
any excess wire length.
7. Low voltage and 110 VAC voltage cannot be shared
within the same wall box.
8. Ensure the thermostat is mounted level for accurate
readings.
9. The thermostat should be mounted on an inside wall
and not in direct line with the appliance convection air.
10. If the thermostat is located too close to the appli-
ance, you may need to set the temperature setting
slightly higher to maintain the desired temperature
in your home.
Wire Size Max. Length
16 gauge 65 feet
18 gauge 40 feet
20 gauge 25 feet
22 gauge 18 feet
A. Recommendation for Wire
See Figure 7.1 for recommended maximum lead length
(two wire) when using wall thermostat/switch.
7
7 Electrical Information
NOTE:This appliance must beelectricallywiredandgrounded
in accordance with local codes or, in the absence of local
codes, with National Electric Code ANSI/NFPA 70-latest
edition or the Canadian Electric Code, CSA C221.1.
B. Connecting to the Appliance
1. This appliance may be used with a wall switch, wall
mounted thermostat and / or a remote control
2. If using thermostat, use one compatible with a millivolt
gas valve system.
3. Follow parameters for locating thermostat (see individ-
ual thermostat instructions) to ensure proper operation
of appliance.
4. Use low resistance thermostat wire for wiring from
ignition system to the wall switch and thermostat.
5. Use the following chart for wire sizing.
WARNING
Shock hazard.
•
This appliance is equipped with a three
This appliance is equipped with a three
pronged (grounding) plug for your protection
pronged (grounding) plug for your protection
againstshockhazard and shouldbe plugged
againstshock hazard and shouldbeplugged
directly into a prop
directly into a properly grounded three prong
receptacle.Do not cutorremove the ground-
ing prong from this plug.
Figure 7.1
• A110-120 VAC circuit for this product must be protected
with ground-fault circuit-interrupter protection, in
compliance with the applicable electrical codes, when
it is installed in locations such as in bathrooms or near
sinks.


Quadra-Fire • Hudson Bay Insert • 7008-115 Rev. H • 10/08 15
Figure 7.2
ROCKER SWITCH / WALL THERMOSTAT / REMOTE
VARIABLE REGULATOR
PILOT ADJUSTMENT CAP
MANIFOLD PRESSURE
INLET PRESSURE
PUSH BUTTON IGNITOR
THERMOPILE
IGNITOR
PILOT
THERMOCOUPLE
CAUTION
Label all wires prior to disconnection when servicing controls.
Wiring errors can cause improper and dangerous operation.
Verify proper operation after servicing.
Shock hazard.
• Replace damaged wire with type 105º C rated
wire.
• Wire must have high temperature insulation.
WARNING

Quadra-Fire • Hudson Bay Insert • 7008-115 Rev. H • 10/0816

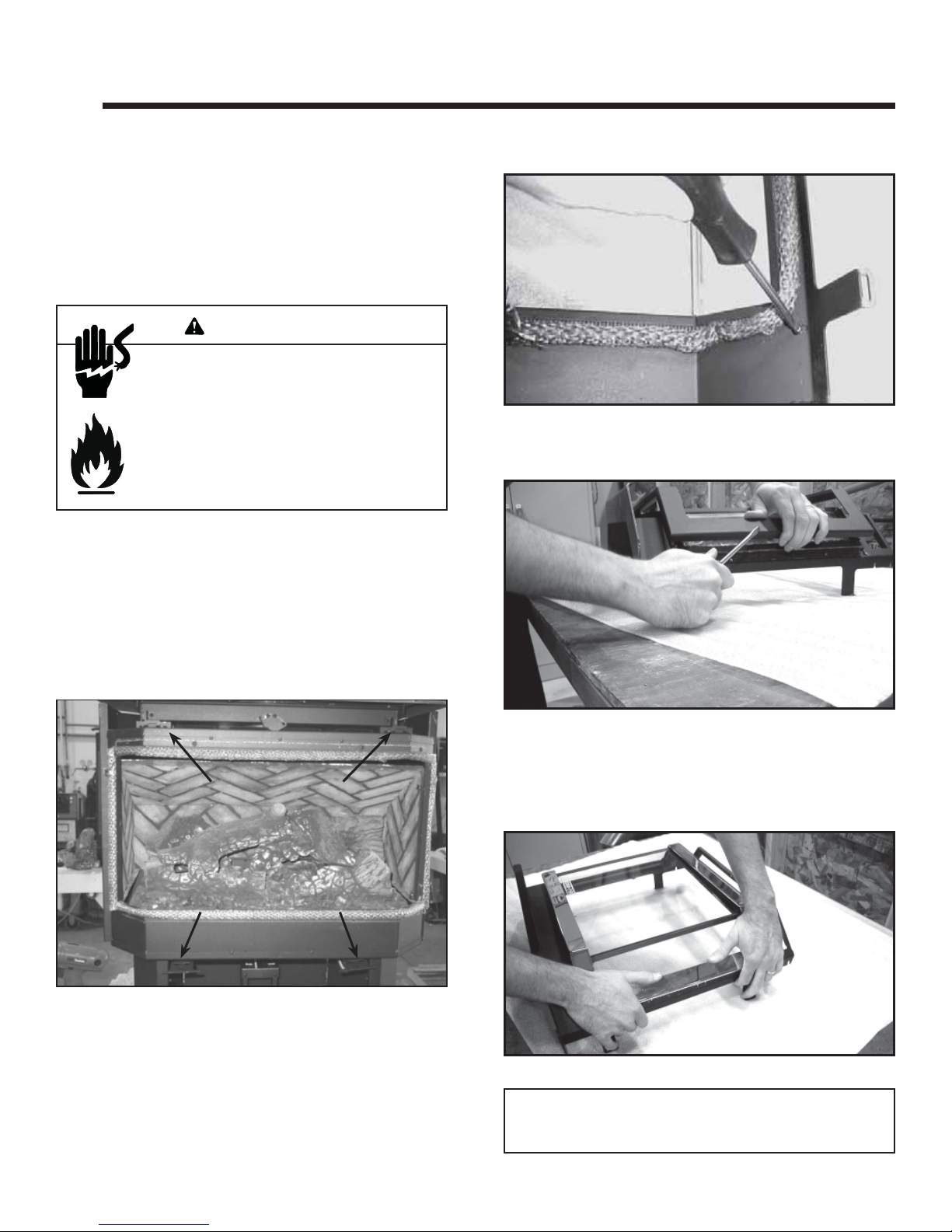

C. Door Crown Installation
Open lower access panel. Pull out and unhook the two
spring latches on the bottom of the appliance that secure
the door.
Rotate the door forward approximately 1-1/2 in. (38 mm).
Holding the ashlip, lift the door up off of the stationary
latches and away from the appliance.
Note: Use a soft cloth and a window cleaning solution to
clean all fingerprint oils from the gold or nickel surface of
crown PRIOR to lighting the appliance.
Figure 8.1
Figure 8.2
Figure 8.3
Figure 8.4
8
8 Appliance Setup
A. Remove Shipping Materials
Remove shipping materials from inside or underneath the
firebox.
B. Accessories
Install approved accessories per instructions included
with accessories. See Service Parts List for appropriate
accessories.
Shock or fire risk.
Use ONLY optional accessories approved for
this appliance.
• Using non-listed accessories voids warranty.
• Using non-listed accessories may result in a
safety hazard.
• Only Hearth & Home Technologies approved
accessories may be used safely.
WARNING
STATIONARY LATCHES
STATIONARY LATCHES
SPRING LOADED LATCHES
SPRING LOADED LATCHES
Uninstall the existing crown by removing the four screws
on the back side of the door. Retain the screws.
Use a flat-head screwdriver to pry the black crown free on
the right side. Remove the crown and discard.
Carefully align the left side of the crown into place, and
wrap it across the face of door, finally snapping it into
place on the right hand side. Reinsert and tighten the
screws previously removed.

Quadra-Fire • Hudson Bay Insert • 7008-115 Rev. H • 10/08 17

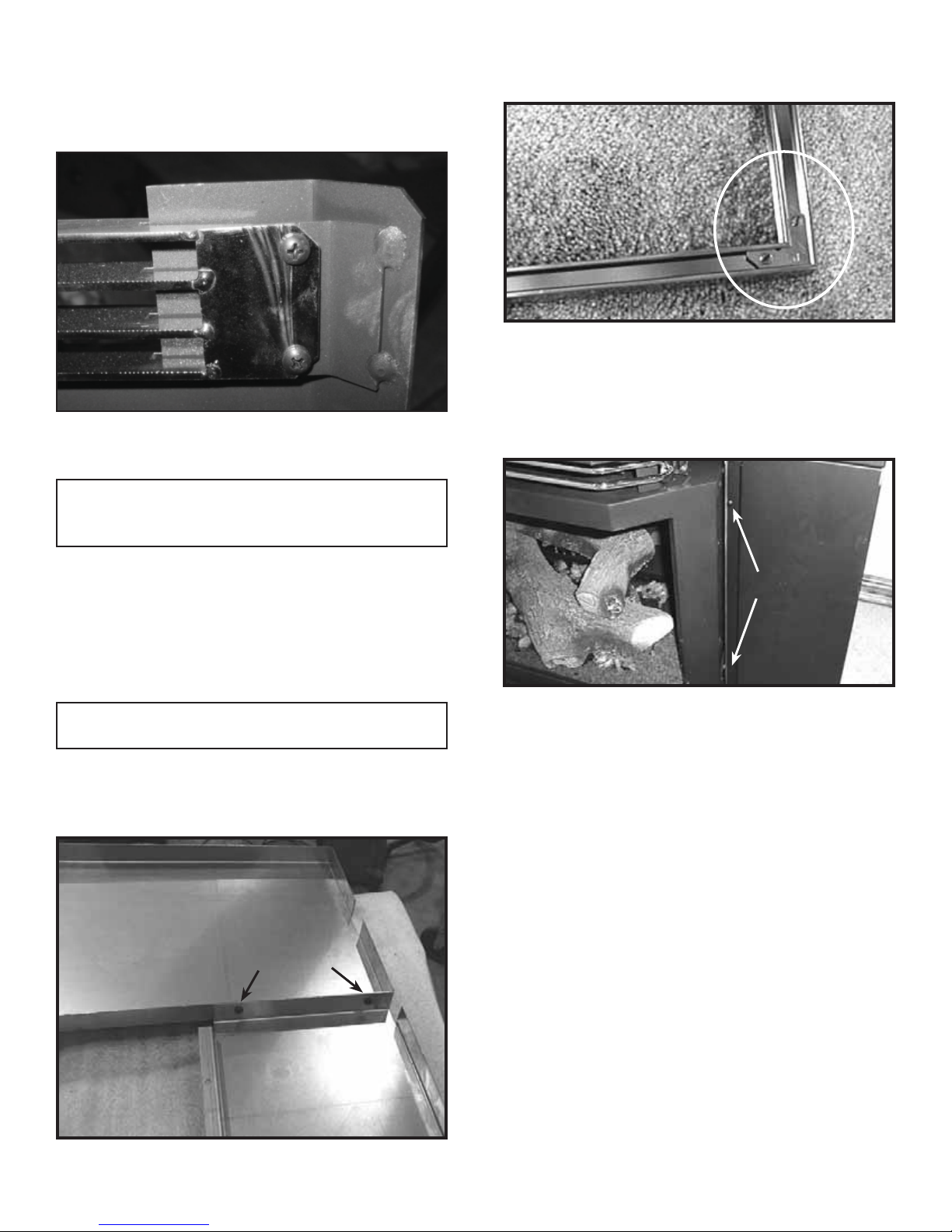

D. Grille Installation
Remove the door of appliance. Remove the four screws
(two at each end) holding grille in place. Lift up to
remove.
Figure 8.5
Determine your desired placement of the rocker switch.
1 If you wish to place it on the control panel in the "Main
Burner" opening: Disconnect the "ON/OFF" switch
from the low voltage wire leads. Pull the wires through
the control panel, attach the wires to the "ON/OFF"
rocker switch and push the rocker switch into the
"Main Burner opening on control panel. Place the plug
provided in empty opening on the panel and trim.
OR
2. If you wish to place it on the side of appliance in the
knock out provided on the panel and trim: Carefully
reposition the wiring beneath the firebox to the RIGHT
side of appliance.Disconnect the "ON/OFF" switchfrom
the low voltage wire leads. Pull the wires through the
knockout plate on the panel and trim, attach the wires
to the "ON/OFF" rocker switch and push the rocker
switch into the opening on the panel and trim. Place
plug provided with panel set in empty switch location.
Installthepowercordrestraint foundinthe appliancecom-
ponent bag. (Cord is shipped exiting the right side of the
appliance, but can be routed in either direction.) A notch
will be needed in the trim piece for the cord restraint.
Slide the appliance back until the panel is tight to the fireplace.
E. Panel Set Installation
Included in kit: (2) Angle Brackets and set screws; (1)
3 piece Trim; (2) Side Panels; (1) Top Panel; (1) Switch
plug; and (8) screws.
Tools required: Philips head screwdriver.
Note: Remove the door from the insert before beginning the
panel installation.
Figure 8.6
Figure 8.7
Figure 8.8
Install the new grille by reversing removal instructions.
Note: Clean glass and gold or nickel with glass cleaner and a
soft cloth, wiping off all fingerprints prior to first fire to prevent
permanent staining.
Assemble the panel top to the panel sides with the screws
provided.
SCREWS
SCREWS
BACK OF TOP PANEL
BACK OF TOP PANEL
BACK OF SIDE PANEL
BACK OF SIDE PANEL
Assemble the trim with the two corner brackets provided.
Slide the assembled trim over the assembled panel set.
Slide the panel/trim down over the face of the unit, behind
the top, aligning the holes in the upper and lower, right
and left corners, and secure the panel and trim set to the
appliance with the attachment screws using four screws,
two per side.
SCREWS
SCREWS

Quadra-Fire • Hudson Bay Insert • 7008-115 Rev. H • 10/0818
F. Brick Installation
The pilot shield has to be removed to install or remove the
brick refractory. Removal of the bracket requires remov-
ing two screws.
Figure 8.10
Figure 8.11
Figure 8.12
Figure 8.13
Figure 8.14
Figure 8.9
PILOT
BRACKET
PILOT
SHIELD
To install the baffle, slide it in at an angle and rotate
upward, parallel with the firebox. Place baffle up against
theheatexchangersintopofthefirebox.Holdingthebaffle
against the heat exchangers, slide the baffle towards the
front of the appliance.
Note: To aid in brick installation, the burner may be removed.
Keeping the baffle elevated with your free hand, put the
right side brick into position. Rest the baffle on the right
side brick.
Still holding the baffle in place, install the left brick into
position.
Install the rear brick. Slide it in at an angle and place it over
the rear brick retainer. Hand bend retaining tabs up to hold
brick in place. Slide baffle back until touching rear brick.
Bend retaining tabs on the left and right sides inward to
hold brick in place.
RETAINING TABS
RETAINING TABS

Quadra-Fire • Hudson Bay Insert • 7008-115 Rev. H • 10/08 19
G. Positioning the Logs
While still breakable, the logs do not become fragile until
after the appliance is burned and they have cured. After
curing, any handling must be done with care as breakage
can easily occur.
Figure 8.16
Figure 8.19
Figure 8.17
Figure 8.20
Figure 8.18
Figure 8.15
Note: Logs have been designed to work specifically with the
burner of this appliance. Exact placement will ensure proper
operation of your gas appliance and reduce sooting.
Note: For the Hudson Bay Insert the lower brick retainer is
used.
REAR BRICK
REAR BRICK
RETAINING TABS
RETAINING TABS
Complete log installation.
4
4
5
5
6
6
3
3
Logs installed in firebox. Logs #1 and #2 are part of the
burner pan and are numbered for reference only.
6
6
3
3
1
1
2
2
4
4
5
5
Install the left rear log (#3) over the locator pins in the
burner pan.
Install the right rear log (#4) over the locator pins in the
burner pan.
Install the right twig (#5) over the locator pins in the right
rear log and right front log.
Note: Locator pins are included in the log component
package.

Quadra-Fire • Hudson Bay Insert • 7008-115 Rev. H • 10/0820
H. Mineral Wool
I. Blower Installation
Included in kit: Blower.
Tools required: Powered Phillips head screwdriver.
Figure 8.23
Figure 8.24
Figure 8.25
Figure 8.21
I nstall the left twig (#6) over the locator pins in the right
rear log and the left front log.
Explosion Risk.
• Follow ember placement instructions in manual.
• Do NOT place embers directly over burner ports.
• Replace ember material annually.
Improperly placed embers interferes with proper burner
operation.
WARNING
Placeindividual piecesofembersinfront ofand aroundthe
gas log where they can be seen. Space them so that gas
can contact them on all sides. Avoid stacking the embers
on top of each other.
Figure 8.22
Note: Do not block gas ports.
Turn off gas and disconnect appliance from electricity.
Remove logs and burner from appliance. Remove blower
access cover in bottom of firebox by removing the screws.
Retain screws for reassembly.
Disconnect wires from the snap disk on back of access
cover.
Lift blower off of studs and pull through opening.
