Quadra-Fire DVI-32 User manual

WARNING
If the information in this manual is not followed exactly a fire or explosion may result, causing property damage,
personal injury or loss of life.
FOR YOUR SAFETY
DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
Extinguish any open flame.
Open windows.
Do not try to light any appliance.
Do not touch any electric switch.
Do not use any telephone in your building.
Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency, or the gas supplier.
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.
Refer to this manual for correct installation and operational procedures. For assistance or additional
information consult a qualified installer, service agency, or the gas supplier.
DIRECT VENT GAS INSERT (DVI-32)
INSTALLATION, OPERATION, VENTING AND MAINTENANCE
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
1445 North Highway
Colville,WA 99114 www.aladdinhearth.com
[email protected]
(Revised 11/00)
Part #250-3692 / #842-2620
North America’s Best
PRIOR TO FIRST FIRE:
Clean gold door with a glass cleanser and soft cloth, as fingerprint oils will cause discoloration on gold when heated.
fire-parts.com

2
250-3692 (11/2000) DVi32 Gas Insert
TABLE OF CONTENTS
PAGE
Safety label.................................................................................................................................. 3
Safety notices .............................................................................................................................. 4
Specifications............................................................................................................................... 5
Gas line connection ..................................................................................................................... 5
Pressure testing........................................................................................................................... 5
Dimensions.................................................................................................................................. 6
Listings ........................................................................................................................................ 7
High altitiude operation ................................................................................................................ 7
Clearances to combustibles......................................................................................................... 7
Door installation ........................................................................................................................... 8
Log set installation ....................................................................................................................... 8
Glowing ember nuggets installation ............................................................................................. 8
Thermostat installation................................................................................................................. 9
Remote control ............................................................................................................................ 9
Blower power cord ....................................................................................................................... 9
Installation procedures................................................................................................................. 9
Front brick shutoff plate adjustment ............................................................................................. 9
Gas connections.......................................................................................................................... 9
Venting instructions...................................................................................................................... 10
Installation precautions ................................................................................................................ 10
Safety precautions ....................................................................................................................... 10
Venting parts list .......................................................................................................................... 11
Venting system maintenance ....................................................................................................... 11
Planning your installation ............................................................................................................. 12
Vertical terminations
Using GS series pipe ............................................................................................................. 12
Installing into an existing masonry or factory-built metal chimney........................................... 15
Lighting instructions ..................................................................................................................... 17
First fire ....................................................................................................................................... 18
Maintenance
Cleaning and inspection......................................................................................................... 18
Burner tube cleaning.............................................................................................................. 18
Glass cleaning ....................................................................................................................... 18
Troubleshooting ........................................................................................................................... 18
Zero clearance fireplace kit.......................................................................................................... 19
Accessories/service parts ............................................................................................................ 19
Warranty...................................................................................................................................... 20
Warranty card .............................................................................................................................. Insert
fire-parts.com

3
250-3692 (11/2000) DVi32 Gas Insert
SAFETY LABEL
(found behind gas supply access panel
on left-hand side of stove)
1445 North HIghway
Colville, WA 99114
Report #061-S-16-5
October 1999
ANSI Z21.88a-1998
CSA 22.33a-M98 and CAN1 2.17-M91
MODEL: DVI-32 NG
DVI-32 LP VENTED GAS FIREPLACE HEATER
SERIAL NO.
DVI-32 DVI-32
For use with Natural Gas For use with Propane
†0-2000' †0-2000'
Manifold Pressure 3.5"WC 10.0"WC
Minimum Inlet Gas Supply Pressure 4.5"WC 11.0"WC
Maximum Inlet Gas Supply Pressure 7.0"WC 14.0"WC
BTU Input Rating (High) 32,000BTUH 32,000BTUH
BTU Output Rating (High)* 26,800BTUH 27,808BTUH
BTU Input Rating (Low) 20,000BTUH 25,000BTUH
BTU Output Rating (Low)* 16,800BTUH 21,725BTUH
Minimum Efficiency** 78.8% 82.9%
Orifice Size #33 #51
*Minimum Vent, Blower Off
**Maximum Vent, Blower On
†This appliance equipped for altitudes 0-2000' (0-610M) in USA: and in Canada for altitudes of 0-4500' (0-1370M).
This appliance must be installd in accordance with local codes, if any, if , not follow ANSI Z223.1/
CAN 1-149.
This vented gas fireplace is not for use with air filters.
Install and use only in accordance with manufactaurer’s installation and operating instructions.
Not for use with solid fuel.
Keep burner and control compartment clean. See installation and operating instructions accom-
panying this appliance.
Due to high surface temperatures, keep children, clothing and furniture away.
ELECTRICAL SUPPLY: 120 Volts, 1.2 Amps, 60 Hz
WARNING: Operation of this appliance when not connected to a properly installed and main-
tained venting system can result in carbon monoxide (CO) poisoningand possible death.
G
H
J
C
I
A
B
NOTE: When installing in a zero clearance
fireplace, the top edge of the panel
set cannot contact combustibles

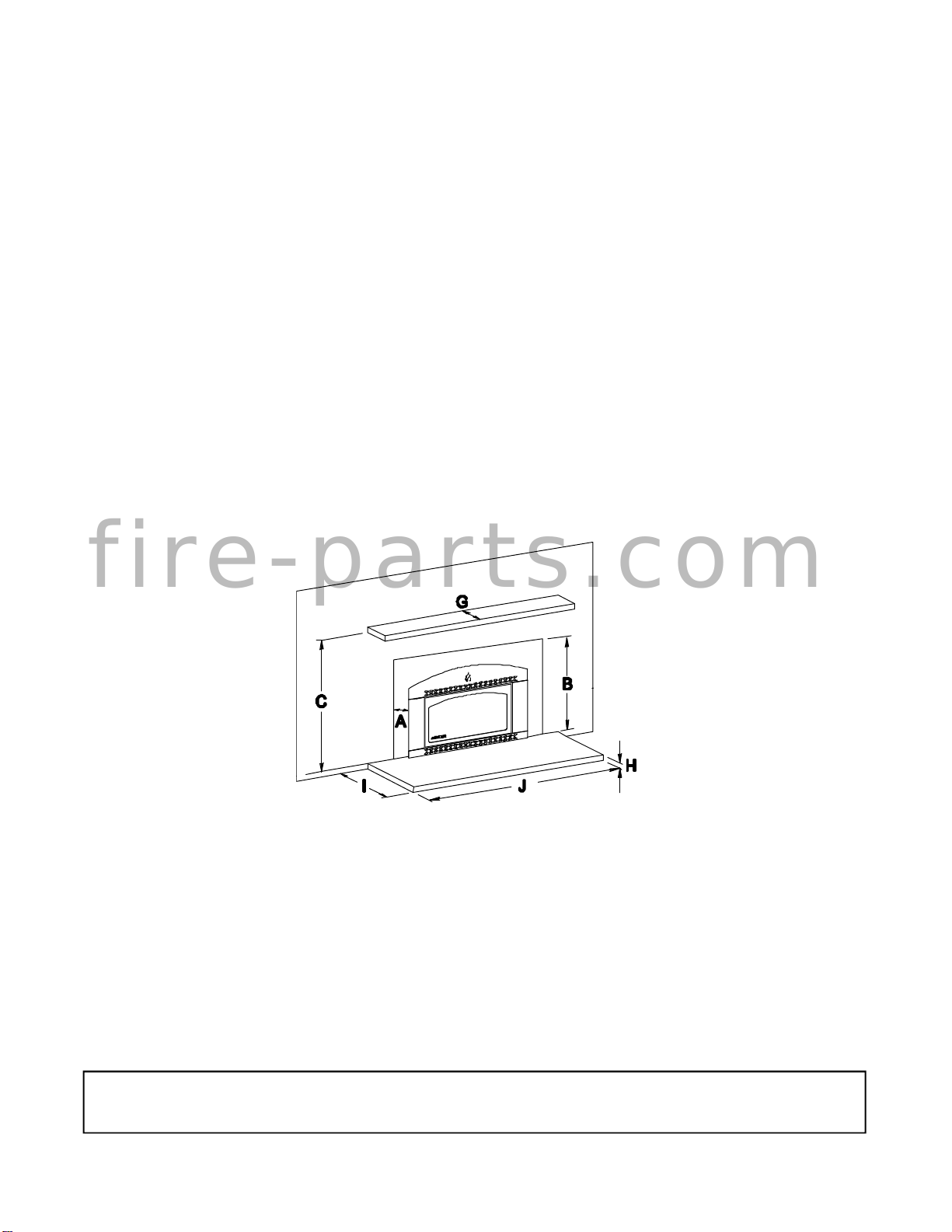

Minimum clearances to combustible materials from stove body:
ASide wall to combustibles 9” (229mm)
BHeight of combustible above bottom of insert 29 1/2” (749mm)
CHeight of mantel above bottom of insert 35 1/2” (902mm)
GWidth of mantel 14” (356mm)
NOTE: For every 1" of mantel depth, add 1" to clearance “C”.
NON COMBUSTIBLE HEARTH EXTENSION
HHeight of hearth 0” 1” 2” 3” 5”
IDepth of hearth 24” 23” 22” 15” 0”
JWidth of hearth 30”
MANUFACTURED
AS A:
DVI-32 NG
DVI-32 LP
fire-parts.com

4
250-3692 (11/2000) DVi32 Gas Insert
SAFETY NOTICES
This appliance should only be installed by a qualified installer. It is approved for installation in a bedroom. The
appliance must be electrically grounded in accordance with local codes, or the latest edition of the National Electric
Code. If no local codes exist, this appliance should be installed following the current codes:
CAN/CGA-B149.1..........................................................................Natural Gas Installation Code
CAN/CGAB149.2...........................................................................Liquid Propane Installation Code
CSA-C22.1.....................................................................................Canadian Electrical Code
ANSI Z223.1 ..................................................................................National Fuel Gas Code
ANSI NFPA-70...............................................................................National Electrical Code
The control compartment, burner, and circulating air passageways MUST be kept clean and clear to allow for
adequate combustion and proper operation. Provide adequate clearances around air openings and adequate
accessibility clearance for service and operation. NEVER obstruct the openings of the appliance or the vent
termination on the exterior of the building. NEVER vent the appliance to other rooms or buildings; this appliance
must be vented ONLY to the outside, with a vertical termination. During installation, be sure to maintain minimum
clearances to combustibles, as shown on page 7. Always contact your local building department or fire department
prior to installing this appliance. If required, obtain a permit before installing, and have the completed installation
inspected. Failure to do this could jeopardize your homeowner’s insurance.
The area around the appliance MUST be kept free from combustible materials, gasoline and other flammable
vapors and liquids.
This appliance is hot during operation, and should be located out of heavy traffic areas and away from furniture and
draperies. Clothing or other flammable material should not be placed on or near the appliance. Children and adults
should be alerted to the hazards of high surface temperatures and should stay away to avoid burns or clothing
ignition. Children should not be left unsupervised in the room when this appliance is in operation.
DO NOT USE THISAPPLIANCE: If any part has been under water. Immediately call a qualified service technician
to inspect the appliance, and to replace any part of the control system or any gas control which has been under
water.
This appliance should NOT be modified under any circumstances.Any parts removed for servicing must be replaced
before operating this appliance. Installation and repair should only be done by a qualified service technician. The
appliance and its venting system should be inspected and cleaned annually by a qualified service technician. More
frequent cleaning may be necessary due to excess lint and dust from carpeting, bedding material, etc. Be sure to
turn off gas valve and pilot before cleaning this appliance.
Install at least one smoke detector on each floor of your home to ensure your safety. They should be located away
from the gas appliance and close to the sleeping areas. Follow the smoke detector manufacturer’s placement and
installation instructions, and be sure to maintain regularly. Your local fire department may provide assistance in
selecting smoke detectors, or contact the Consumer Product Safety Commission, Washington, D.C. 20207.
fire-parts.com

5
250-3692 (11/2000) DVi32 Gas Insert
SPECIFICATIONS
NG LP
Manifold pressure 3.5” WC 10.0” WC
Minimum inlet gas supply pressure 4.5” WC 11 0” WC
Maximum inlet gas supply pressure 7.0” WC 14.0” WC
BTU input rating (high) 32,000 32,000
BTU output rating (high)* 26,800 27,808
BTU input rating (low) 20,000 25,000
BTU output rating (low)* 16,800 21,725
Minimum efficiency* 78.8% 82.9%
Maximum efficiency** 84.0% 86.9%
*Minimum vent, blower off
**Maximum vent, blower on GAS LINE CONNECTION
Gas line connection can be made behind the left side fascia of the appliance (3/8” gas hookup) or through gas
supply access door behind left-hand side fascia. You must supply a shutoff valve installed in a visible location
within 3’ (914mm) of the stove, or on left-hand side fascia access door.
CAUTION
IN SOME AREAS, GAS LINE PRESSURE MAY BE MORE THAN 1/2 PSIG (14” WC). IF YOU BELIEVE THAT
THIS MIGHT BE THE CASE IN YOUR LOCALITY, CONTACT YOUR GAS SUPPLIER OR LOCAL UTILITY
COMPANY. LINE PRESSURE GREATER THAN 1/2 PSIG WILL DAMAGE THEAPPLIANCE VALVE. YOU MUST
INSTALL A REGULATOR UPSTREAM FROM THE APPLIANCE IF LINE PRESSURE IS GREATER THAN 1/2
PSIG.
OUTPUT
SIDE TEST
PRESSURE
INPUT
SIDE TEST
PRESSURE
PRESSURE TESTING
If the gas supply piping system exceeds pressures of 1/2 PSIG during
testing, this appliance and its individual shutoff valve must be
disconnected from the piping system. If test pressure is less than or
equal to 1/2 PSIG, then this appliance must be isolated from the piping
system by closing its individual shutoff valve. The gas valve is supplied
with pressure test ports for checking input and output pressures. These
are located just above the on/off knob and can be found inside the left-
hand side fascia access door. The port on the bottom is for output
pressure and the port on the top for input. Pressure can be checked by
turning the captured screw counterclockwise two or three turns and
then placing the manometer tubing over the test port. BE SURE TO
CLOSE CAPTURED SCREWSAFTER TESTINGBY TURNING THEM
CLOCKWISE. DO NOT OVERTIGHTEN SCREWS.

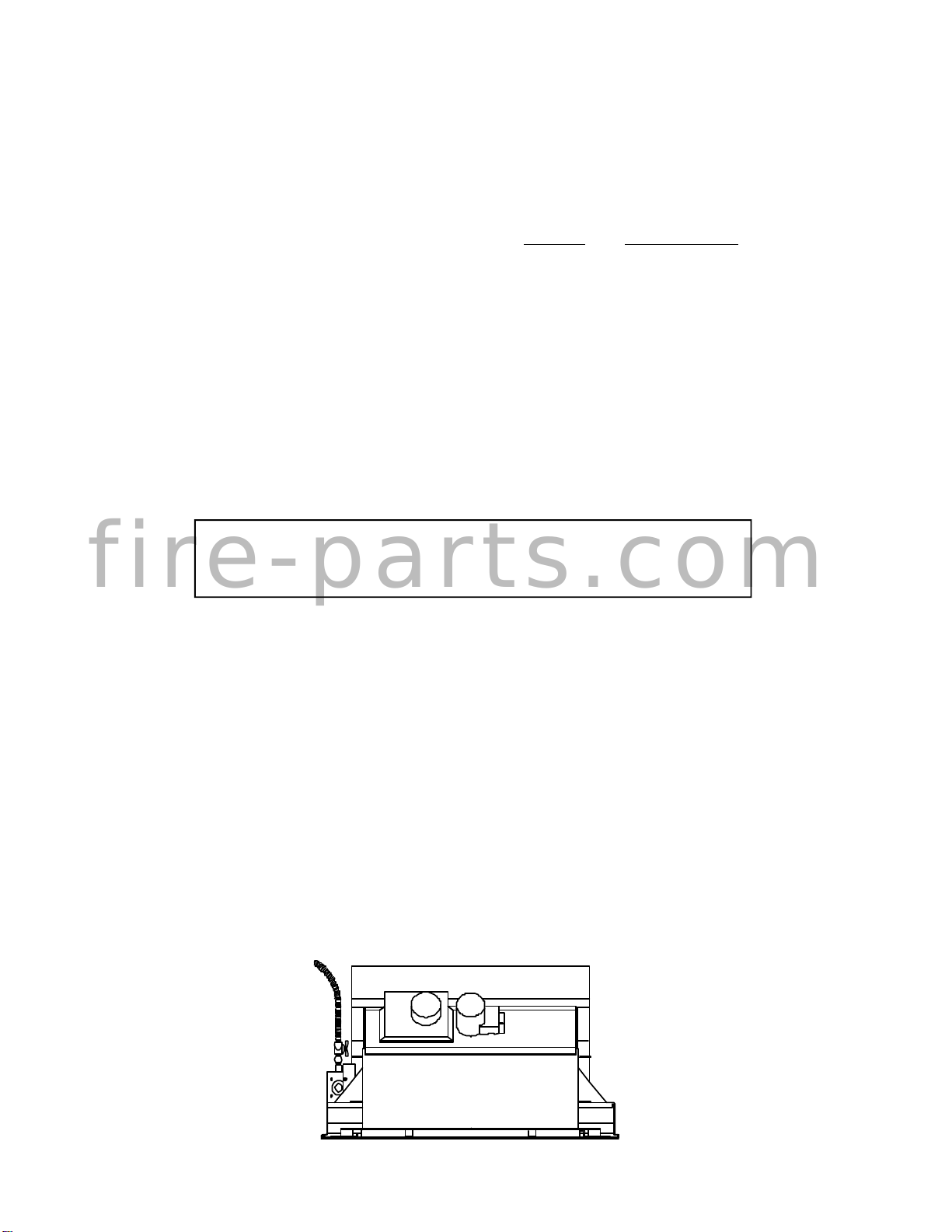

NOTE: To make flame and heat output adjustments, turn the HI-LO
knob located on the center of the valve (as seen in diagram at right).
Turn counterclockwise for a higher flame and clockwise for a lower
flame.
fire-parts.com

6
250-3692 (11/2000) DVi32 Gas Insert

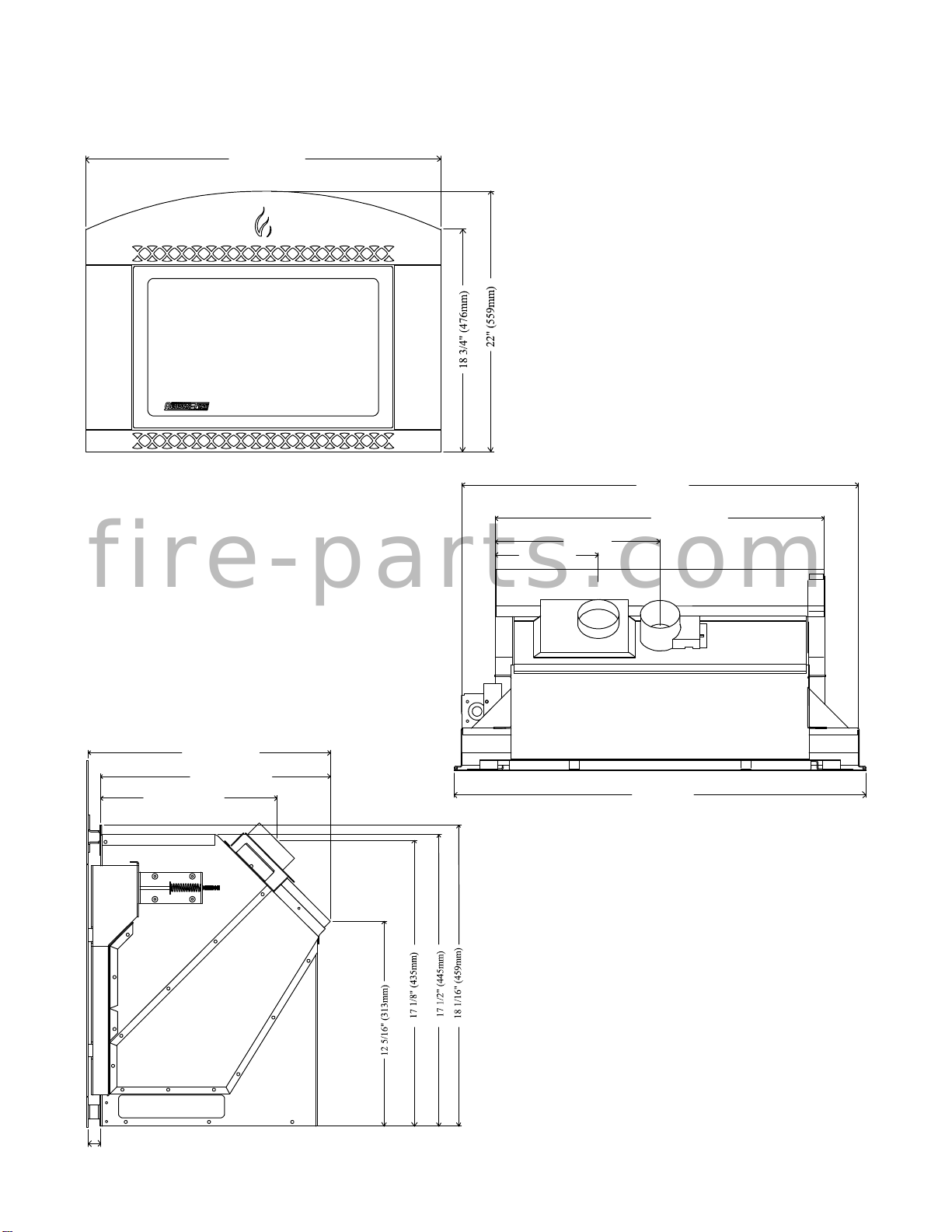

DIMENSIONS
7 1/2" (190mm)
23 15/16" (680mm)
12" (305mm)
29" (737mm)
30" (762mm)
30" (762mm)
14 1/2" (368mm)
13 13/16" (351mm)
10 9/16" (268mm)
11/16" (18mm)
fire-parts.com

7
250-3692 (11/2000) DVi32 Gas Insert
HIGH ALTITUDE OPERATION
In Canada, this unit is approved from 0 to 4500 feet above sea level. Installation of this appliance at altitudes above
4500 feet are subject to field test of the individual installation and approval by the local authority having jurisdiction.
In the United States, input ratings of this unit are based on sea level operation, and are not needed to be changed
for operation at elevations up to 2000 feet. For operation at elevations above 2000 feet, this appliance shall be
reduced at the rate of 4% for each 1000' over the 2000' level.
Exception: As permitted by the authority having jurisdiction.
LISTINGS
The Quadra-Fire DVI-32 is listed to ANSI Z21.88a-1998, CSA 22.33a-M98 and CAN1 2.17-M91NFPA-70 by
OMNI-Test Laboratories, Inc., Beaverton, Oregon.
CLEARANCES TO COMBUSTIBLES
Minimum clearances to combustible materials from stove body:
ASide wall to combustibles 9” (229mm)
BHeight of combustible above bottom of insert 29 1/2” (749mm)
CHeight of mantel above bottom of insert 35 1/2” (902mm)
GWidth of mantel 14” (356mm)
HHeight of hearth 0” (0mm) 1” (25mm) 2” (51mm) 3” (76mm) 5” (127mm)
IDepth of hearth 24” (610mm) 23” (584mm) 22” (559mm) 15” (381mm) 0” (0mm)
JWidth of hearth 30” (762mm)
NOTE: When installing in a zero clearance fireplace, the top edge of the panel set cannot
contact combustibles
fire-parts.com

8
250-3692 (11/2000) DVi32 Gas Insert
DOOR INSTALLATION
The DVI-32 is shipped from the factory with the door installed. To remove the door:
1. Turn eye bolts on each side of door, one-quarter turn to allow the door to slide forward.
It will slide forward to a stop (Figure 1).
2. Lift door up and pull out from front of stove (Figure 2).

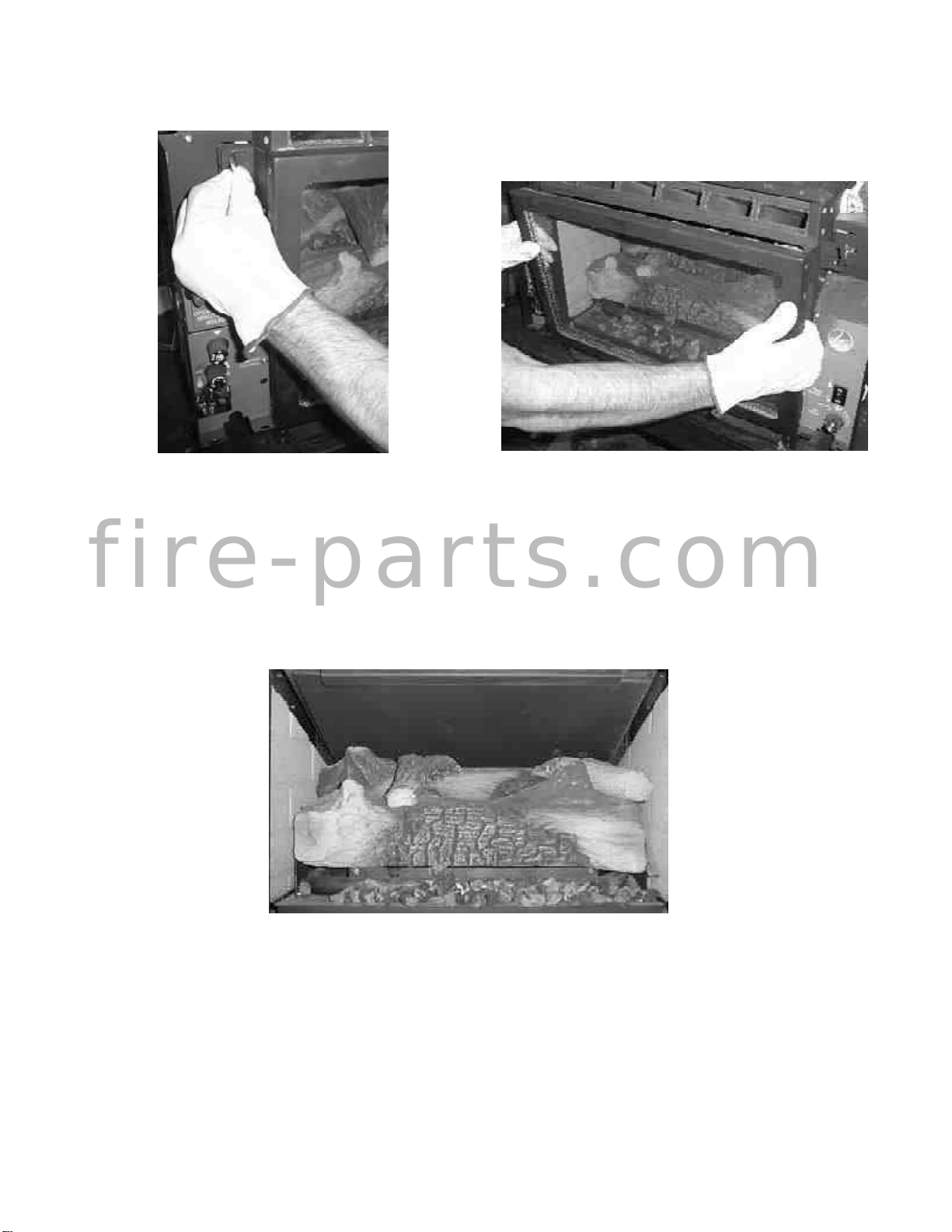

Figure 1 Figure 2
LOG SET INSTALLATION
GLOWING EMBER NUGGETS INSTALLATION
Place nuggets in a single layer across the burner tube. Make sure that nuggets do not fall behind
the tube. If more than one layer of nuggets is placed across the burner tube, flame impingement
and tall, sooty flames can result. If the flames on one side are too high, adjust the nuggets until the
flame is the same height on both sides of the stove.
The log set is installed at the factory. To remove log set:
1. Remove the glowing ember nuggets.
2. Unscrew the two nuts located on the studs at the left and right front of the firebox.
3. The log set can then be lifted up and removed as one piece.
fire-parts.com

9
250-3692 (11/2000) DVi32 Gas Insert
THERMOSTAT INSTALLATION
If desired, a thermostat may be installed to regulate the Quadra-Fire DVI-32. It is important to use a thermostat designed for
millivolt operation. Do not connect this appliance to a thermostat serving any other appliance.
Connect the thermostat wires to the outer two screw terminals on the gas control valve, located behind the left side fascia access
panel. Turn off the manual switch located behind the right side fascia access panel.
REMOTE CONTROL
A remote control or a wall switch may be wired to the thermostat terminals. Contact your Quadra-Fire dealer or service person
for details (see page 19 for part number). BLOWER POWER CORD
The blower cord is located at the rear of the stove, and needs to be routed to a three-prong outlet with correct
polarity. Be sure that the stove is electrically grounded in accordance with local codes, with a current version of CSA
C22 (in Canada), or in the absence of local codes, with the National Electric Code ANSI/NFPA 70-1987.
OPTIONAL THERMOSTATS
Manual Thermostat
Part #812-2880
Anticipator Setting 1.2
Electronic Setback
Part #811-0520
RECOMMENDED MAXIMUM LEAD
LENGTH (TWO WIRE) WHEN USING
WALL THERMOSTAT/SWITCH
Wire Size Maximum Length
16 gauge 65’ (19.8m)
18 gauge 40’ (12.2m)
20 gauge 25’ (7.6m)
22 gauge 18’ (5.5m)
WARNING
Do not cut the grounding terminal off under any circumstances.
Do not route the power cord under the body of the appliance due to high temperatures.
INSTALLATION PROCEDURES
The following procedures show some of the basic installation applications. Remember that every installation is
different, and the installer should adjust to insure that the appliance is installed properly.
FRONT BRICK SHUTOFF PLATE ADJUSTMENT
The front brick shuttoff plate controls the secondary air supply to the burner tube. For NG stoves, it should be slid
all the way against the burner tube. For LP stoves, the front brick shutoff plate should be slid all the way to the front
of the stove. GAS CONNECTIONS
Before hooking up the stove to the gas supply, be sure that the appliance you are installing is designed for the type
of gas being supplied to it. There is a serial number and listing label behind the gas supply access door behind the
left side fascia that will indicate which type of gas it is designed to utilize. The gas valve also has a label telling the
type of fuel for which it is set up.
There is a 3/8” gas hookup located behind the left side fascia access panel, at the valve. We recommend connecting
the stove with an approved flex gas line, as shown below. If flex gas lines are not approved in your area, you can
connect a hard pipe to the gas hookup. Be sure to comply with all local codes.
FLEX LINE
GAS CONNECTION
FRONT
fire-parts.com

10
250-3692 (11/2000) DVi32 Gas Insert
VENTING INSTRUCTIONS
PLEASE NOTE: In order to comply with applicable codes and product warranties, only Simpson Dura-Vent venting
components may be used. DO NOT USE FIELD-FABRICATED VENTING COMPONENTS.
The Quadra-Fire DVI-32 is approved to be vertically terminated in a masonry fireplace or a zero clearance fireplace
with Simpson Dura-Vent GS series and flex pipe. Only Simpson Dura-Vent components labeled and listed in this
section may be used. IMPORTANT
Read all these instructions carefully before starting the installation. Failure to follow instructions
may create a fire or other safety hazard, and will void the warranty. Be sure to follow these
installation instructions for venting and clearance to combustible requirements, which may vary
from one installation to another.
INSTALLATION PRECAUTIONS
The Quadra-Fire DVI-32 is an engineered product that has been designed and tested. The warranty will be voided,
and serious fire, health, or other safety hazards may result from any of the following actions: installation of any
damaged venting component, unauthorized modification of the venting system, installation of any component part
not approved byAladdin Hearth Products, or installation other than as instructed by these instructions. Consult your
local building codes before beginning this installation.
WARNING: Always maintain the required clearances (air space) to nearby combustibles to avoid creating a fire
hazard. Do not fill air space with insulation. Minimum clearance between vent pipes and combustible surfaces is
1”, except where stated otherwise. Use only a Simpson Dura-Vent flex system in masonry fireplaces or metal zero-
clearance fireplaces. Be sure to check the vent termination clearance requirements from decks, windows soffits,
gas regulators, air supply inlets and public walkways, as specified in these installation instructions and local building
codes.
The gas appliance and vent system must be vented vertically to the outside of the building, and never be attached
to a chimney serving a separate solid fuel or gas-burning appliance. This direct vent gas appliance must use its
own separate vent system. Common vent systems are prohibited.
SAFETY PRECAUTIONS FOR THE INSTALLER
Wear gloves and safety glasses for protection when installing this appliance. Exercise extreme electrical caution
when using ladders or on rooftops. Be aware of electrical wiring locations in walls and ceilings.
fire-parts.com

11
250-3692 (11/2000) DVi32 Gas Insert
VENTING PARTS LIST
Simpson Dura-Vent offers a complete line of component parts for installation in both horizontal and vertical
applications. Many items are offered in decorative black, as well as galvanized finish. The galvanized pipe and
fittings are used for concealed locations such as attics, or spaces where corrosion is a factor, such as above the
roofline. Decorative brass and chrome trim kits are available for ceiling support boxes. The following components
have been approved for use with the Quadra-Fire DVI-32:
Number Description
790 3” (76mm) flex puller
902 48” (1219mm) pipe length
903 36” (914mm) pipe length
904 24” (610mm) pipe length
906 12” (305mm) pipe length
923F Co-linear flex connectors
923GK Direct vent chimney liner termination kit
(baseplate and co-linear to co-axial adaptor)
940 Round support box
943 Flashing, 0/12 to 6/12 roof pitch
943S Flashing, 7/12 to 12/12 roof itch
945 45° elbow (two maximum)
953 Storm collar
963 Ceiling firestop
988 Wall strap
991 High wind termination cap
2280 3” (76mm) chimney flex liner
923GCL Co-linear to co-axial adaptor
VENTING SYSTEM MAINTENANCE
Conduct an inspection of the venting system semiannually. Recommended areas to inspect are as follows:
1 . Check areas of the venting system which are exposed to the elements for corrosion. These will appear as rust
spots or streaks and in extreme cases, holes. These components should immediately be replaced.
2. Remove the cap, and shine a flashlight down the vent. Remove any bird nests, or other foreign material.
3. Check for evidenced of excessive condensation, such as water droplets forming in the inner liner, and
subsequently dripping out at joints. Continuous condensation can cause caps, pipe and fittings to corrode. It
may be caused by having excessive lateral runs, or too many elbows.
4. Inspect joints to verify that no pipe sections or fittings have been disturbed and consequently loosened. Also
check mechanical support such as wall straps, or plumbers tape for rigidity.
fire-parts.com

12
250-3692 (11/2000) DVi32 Gas Insert
It is very important to maintain a balance between the com-
bustion air intake and the flue gas exhaust venting system.
The DVI-32 must be vented vertically, using Simpson Dura-
Vent direct vent systems through a masonry fireplace or metal
zero-clearance fireplace or can be installed using Simpson
Dura-Vent GS series pipe in conjunction with Quadra-Fire zero
clearance can.
NOTE: Certain limitations as to vent and vertical termina-
tion configuration apply, and must be strictly adhered to.
When planning your installation, it will be necessary to select
the proper length of vent pipe for your particular requirements.
To determine the length of your pipe required for vertical
installations, measure the distance from the application flue
outlet to the ceiling, the ceiling thickness, the vertical rise in
an attic or second story, and allow for sufficient vent height
above the roofline (2’ above 10’ [610mm above 3048mm] is
standard). For two-story applications, fire stops are required
at each floor level. If an offset is needed in the attic, additional
pipe and elbows will be required.
When installing this appliance into an existing masonry
chimney or zero clearance chimney, it is important to carefully
measure the length of flex needed to reach from the appliance
outlet to the termination cap. If the flex length is too short, a
flex coupler will be needed to attach an additional length of
flex liner to make up the difference. If the flex length is too
long, the liner could sag below the appliance outlet, which
could result in a potential fire hazard and restriction of
combustion air needed by the appliance.
When dropping the flex venting, be sure to label the line to be
used for exhaust at the top and bottom. If the venting is
attached incorrectly, flame lift and flow reversal may occur.
NOTE: For installation into a zero clearance chimney, using
two flex liners, you must have at least a 7” (178mm) ID in
order to run the two lines of flex liner needed.
MASONRY INSTALLATION
PLANNING YOUR INSTALLATION
VERTICAL TERMINATIONS
USING GS SERIES PIPE IN CONJUNCTION WITH
QUADRA-FIRE ZC CAN
Step 1. Check the installation instructions for required
clearances (air space) to combustibles when
passing through ceilings, walls, roofs, enclosures,
attic rafters, or other nearby combustible surfaces.
Do not pack air space with insulation.
NOTE:Maximum vertical rise allowable is 30’ (9144mm)
(Figure 1). Maximum number of 45° elbows
permitted for a vertical installation is two. These
elbowsdo notdecrease allowablemaximum vertical
rise.

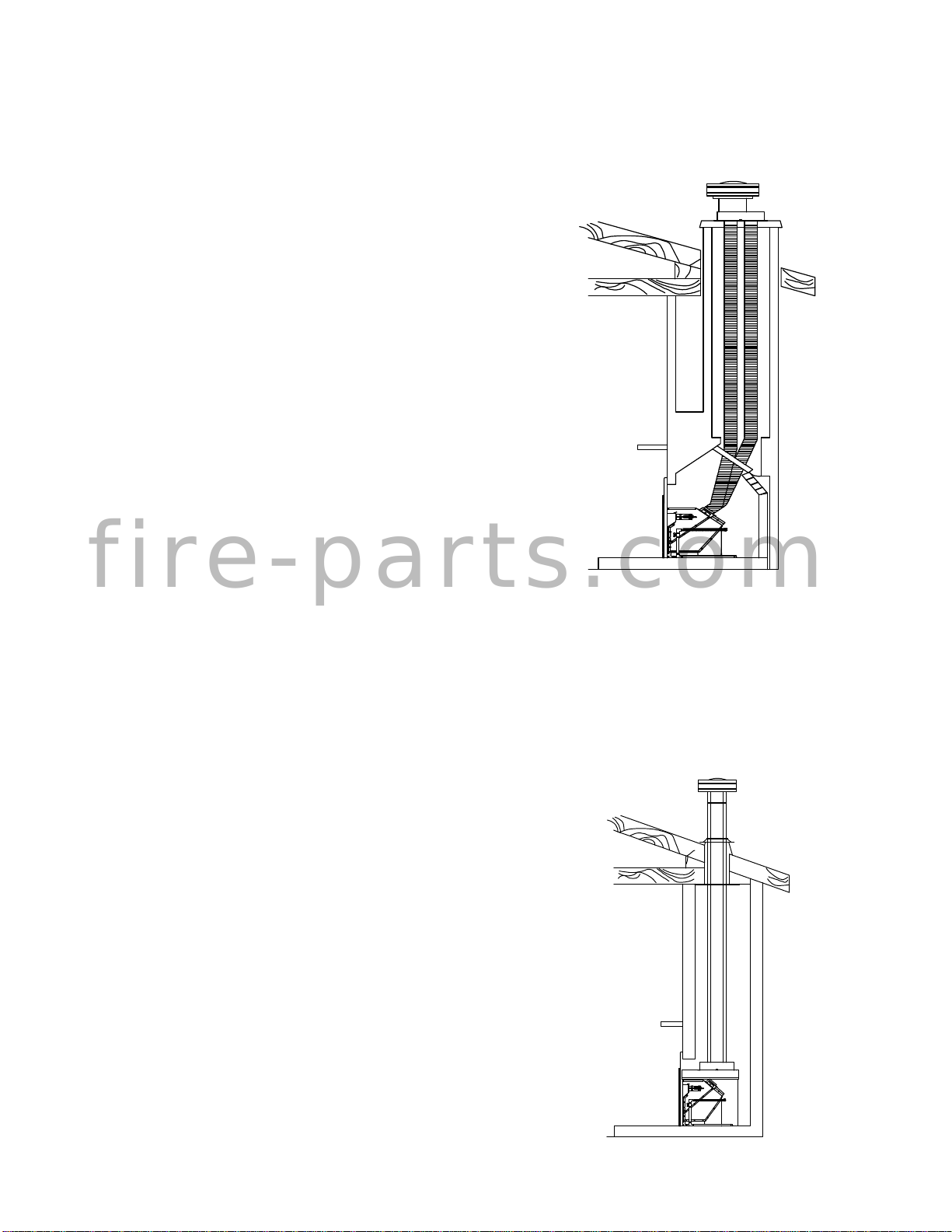

FIG. 1
fire-parts.com

13
250-3692 (11/2000) DVi32 Gas Insert
FIG. 2
Plumber’s Tape
Connected to Wall
Strap
Wall Strap
(2) 45 Degree
Elbows
VERTICAL TERMINATIONS, CONT.
USING GS SERIES PIPE (cont.)
Step 2.Set the gas appliance in its desired location. Drop
a plum bob down from the ceiling to the position of
theappliance flueexit, and markthe locationwhere
the vent will penetrate the ceiling. Drill a small hole
at this point. Next, drop a plumb bob from the roof
tothe hole previouslydrilled in theceiling, and mark
the spot where the vent will penetrate the roof.
Determine if ceiling joists, roof rafters, or other
framing will obstruct the venting system. You may
wish to relocate the appliance, or to offset, as
shown in Figure 2, to avoid cutting loadbearing
members.
Step 3. To install the round support box in a flat ceiling, cut
a 10” x 10” (254mm x 254mm) square hole in the
ceiling, centered on the hole drilled in step 2. Frame
the hole as shown in Figure 3.
Step 4. Assemble the desired lengths of black pipe and
elbows necessary to reach from the appliance up
through the round support box. Insure that all pipe
and elbow connections are in their fully twist-locked
position.
Step 5. Cut a hole in the roof centered on the small drill hole
placed in the roof in step 2. The hole should be of
sufficient size to meet the minimum requirements
forclearanceto combustibles,asspecified. Continue
to assemble lengths of pipe and elbows necessary
to reach from the ceiling support box up through the
roofline. Galvanizedpipe and elbowsmay beutilized
in the attic, as well as above the roofline. The
galvanized finish is desirable above the roofline, due
to its higher corrosion resistance
NOTE:
(1) If an offset is necessary in the attic to avoid
obstructions, it is important to support the vent pipe
every 3’ (914mm), to avoid excessive stress on the
elbows, and possible separation. Wall straps are
available for this purpose (Figure 3).
(2) Always use 45° elbows. The 45° elbow offers less
restriction to the flow of flue gases and intake air.
FIG. 3
Framing
1 - 1/2"
Long
Wood
Screws
Ceiling Joists
fire-parts.com

14
250-3692 (11/2000) DVi32 Gas Insert
Figure
TABLE 1
MINIMUM HEIGHTROOF PITCH FEET METERS
FLAT TO 7/12 10.3
OVER 7/12 TO 8/12 1.5 0.46
OVER 8/12 TO 9/12 20.61
OVER 9/12 TO 10/12 2.5 0.76
OVER 10/12 TO 11/12 3.25 0.99
OVER 11/12 TO 12/12 41.22
OVER 12/12 TO 14/12 51.52
OVER 14/12 TO 16/12 61.83
OVER 16/12 TO 18/12 72.13
OVER 18/12 TO 20/12 7.5 2.29
OVER 20/12 TO 21/12 82.44
The height of the Vent Cap must meet the minimum
building code requirements described above.
H
DIMENSION “H”
OBTAINED
FROM TABLE 1
VERTICAL TERMINATIONS (cont.)
USING GS SERIES PIPE (cont.)

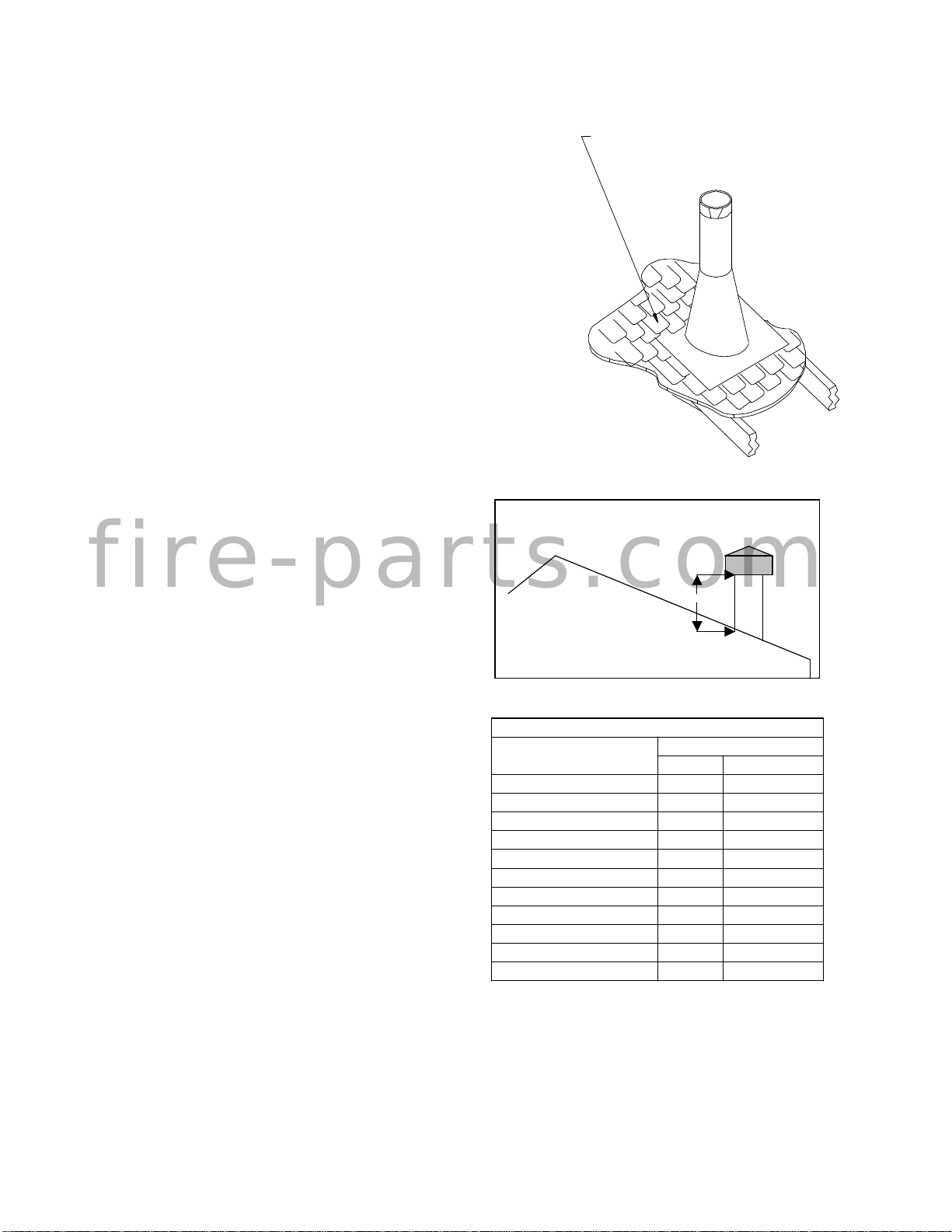

Step 6. Slip the flashing over the pipe section(s)
protruding through the roof. Secure the base
of the flashing to the roof with roofing nails.
Insure the roofing material overlaps the top
edge of the flashing (Figure 4). Verify that you
have at least the minimum clearance to
combustibles at the roofline.
Step 7. Continue to assemble pipe sections and seal
with silicone until the height of the vent cap
(H) (Figure 5) meets the minimum building
coderequirementsdescribedin Table 1(Figure
5), and outlined in the current CANGA-Bl49
Installation Codes (in Canada), the National
Fuel Gas Code NFPA 54/ANSI Z223.1 (in
USA), or local codes. Note that for steep roof
pitches, the vent height must be increased. In
high wind conditions nearby trees, adjoining
rooflines,steep pitchedroofs, and othersimilar
factors can result in either poor draft or down
drafting. In these cases increasing the vent
height may solve this problem. If in doubt,
follow the 2-10-3 rule as shown below: FIG. 5
FIG. 4
Shingles overlap top edge
of flashing.
fire-parts.com

15
250-3692 (11/2000) DVi32 Gas Insert
VERTICAL TERMINATIONS (cont.)
USING GS SERIES PIPE (cont.)
Step 8. Twist-lock the vent cap and seal.
NOTE:
(1) For multi-story vertical installations, a ceiling
firestop (SDV part #963) is required at the second
floor, and any subsequent floors (Figure 6). The
opening should be framed to 10” x 10” (254mm x
254mm) inside dimensions.
(2) Any occupied areas above the first floor, including
closetsand storagespaces,which thevertical vent
passed through must be enclosed. The enclosure
may be framed and sheetrocked with standard
construction materials; however, refer to these
installation instructions for the minimum allowable
clearance between the outside of the vent pipe
and the combustible surfaces of the enclosure. Do
not fill any of the required air space with insulation.
INSTALLING INTO AN EXISTING MASONRY OR
FACTORY-BUILT METAL CHIMNEY
(see Masonry Installation Diagram on page 12)
Step 1. Inspect the chimney to ensure there are no holes,
etc. in structure. Vacuum any ash or dirt from the
fireplace to avoid it being sucked into blower on
stove.
Step 2. Insert a rope through the end of the flex puller and
tie a knot at the end of the rope. Attach the flex
puller to the flex liner using four sheet metal
screws. Be sure to label one liner “exhaust” and
other “intake”. Carefully feed the liner down the
chimney and out through the damper.
NOTE: Ifadditionallengths offlexliner are needed
to span the chimney height, use a flex coupler to
connect the pieces of flex liner together. Connect
the flex to the coupler with four sheet metal screws
on each end.
Step 3. After carefully feeding the liner down the chimney
to the bottom, line up the flex liner with the vent
opening on the appliance.
NOTE: Do not let the flex liner sag below the level
at which it will connect to the appliance. This could
allow hot gas to become trapped and potentially
become a fire hazard. The flex liner path should
always be sloped up toward the termination cap.
Step 4. Remove the flex puller from the flex liner and
temporarily secure the liner to the top of the
chimney. Be sure to leave 2”-3” (51-76mm) of flex
above the existing chimney to allow for connection
to the top adaptor.
Step 5. Repeatsteps 2-4for the secondlength offlex liner,
if applicable.
CEILING FIRESTOP
MINIMUM 1"
CLEARANCE
MINIMUM 1"
CLEARANCE
FIG. 6
MINIMUM 1"
CLEARANCE
NAILS
MINIMUM 1"
CLEARANCE
fire-parts.com

16
250-3692 (11/2000) DVi32 Gas Insert
Highwind
Termination Cap
VERTICAL TERMINATIONS (cont.)
INSTALLING INTO AN EXISTING MASONRY OR
FACTORY-BUILT METAL CHIMNEY, (cont.)
(see Masonry Installation Diagram on page 12)
Step 6. MASONRY CHIMNEY:
At the top of the chimney, slide the baseplate over
the flex liner and secure it to the surrounding
masonry using masonry anchor bolts. Before
installing baseplate, run a bead of non-hardening
sealant between the baseplate and the masonry to
prevent moisture from entering the chimney (see
Figure 7).
NOTE: You must have a level surface in order to
install the baseplate properly.
FACTORY-BUILT METAL CHIMNEY:
At the top of the chimney, slide the baseplate over
theflex liner. Cutand fold theedges of thebaseplate
into flanges so that it folds over the top of the metal
chimney. Secure baseplate with screws to metal
chimney. Before installing baseplate, run a bead of
non-hardening sealant between the baseplate and
the chimney to prevent moisture from entering the
chimney (Figure 7).
Step 7. Attach the flex liner at the top of the chimney to the
co-linear to co-axial adaptor. Use four sheet metal
screws to connect each flex liner run to the adaptor.
Mount the adaptor to the baseplate using sheet
metal screws, as shown (see Figure 8).
Step 8. Twist lock the high wind termination cap (SDV part
#991) to the top adaptor (see Figure 9).Do not use
any other termination cap.
Step 9. Attach the flex lines to the appliance, using hose
clamps provided.
FIG. 7
FIG. 8
FIG. 9
We strongly recommend the use of two flex liners to properly install the DVi-32.
NOTE: THE FOLLOWING INSTALLATION IS APPROVED FOR APPLICATIONS IN THE UNITED STATES
ONLY. IT IS NOT APPROVED FOR INSTALLATIONS IN CANADA.
The DVI-32 has been tested using the chimney for the outside air source, but only under these conditions:
1. Do not use the co-axial to co-linear adaptor when using a single exhaust liner and the chimney as the outside
air source. Use only a Class-A GS series pipe adaptor, connected to a 4”(102mm) flex, a 4” (102mm) to 3”
(76mm) conversion, and then 3” (51mm) flex for the length of the chimney.
2. Some type of baseplate must be manufactured to seal off the top of the chimney, as any Simpson Dura-Vent
Class-A adaptor will probably not cover factory-built fireplace pipes or a masonry flue.
3. Two3” (76mm)flex liners mustpass throughthe damper and/orsmoke shield,one (exhaust) runningcontinuously
to the top and one (intake) extending past the damper.
4. The damper must be completely sealed. Insulation alone is not adequate. There must be an airtight seal around
both flex liners where they pass through the damper.
5. You must install a Simpson Dura-Vent high wind termination cap (SDV part #991).
Sheet metal
Screws Co-Linear
to Co-axial
Adapter
Flex Liners
Baseplate
Baseplate
Non-
Hardening
Sealant
Existing
Chimney
fire-parts.com

17
250-3692 (11/2000) DVi32 Gas Insert
MILLIVOLT
GENERATOR THERMOCOUPLE
PILOT
HOOD
FFOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
A. This appliance has a pilot that must be lit manually. When lighting the pilot, follow these instructions exactly
B. BEFORE LIGHTING, smell around the appliance area for gas. Be sure to smell next to the floor because
some gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electric switch; do not use any phone in your building.
•Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
•If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in or turn the gas control knob. Never use tools. If the knob will not push in or
turn by hand, don’t try to repair it, call a qualified service technician. Force or attempted repair may result in
a fire or explosion.
D. Do not use this appliance if any part has been under water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of the control system and any gas control which has been
under water. LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above on this label.
2. Set the thermostat to the lowest setting (if applicable) and turn off the switch on the right side of the appli-
ance.
3. Disconnect power from appliance.
4. Open the left hand side fascia access door to expose the gas control.
5. Push in gas control knob slightly and turn clockwise to “OFF”.
NOTE: Knob cannot be turned from “PILOT” to “OFF” unless knob is
pushed in slightly. Do not force.
6. Wait five (5) minutes to clear out any gas. Smell for gas, including near the floor. If you smell gas, STOP!
Follow “B” of the safety information above. If you don’t smell gas go to the next step.
7. The pilot should be visible through the door glass in the lower left-hand corner under the front log.
8. Push in knob on gas control, and turn counterclockwise to “PILOT”.
9. Push in controlk nob all the way and hold in. Immediately light the pilot by repeatedly depressing the piezo
igniter until a flame appears. Continue to hold the control knob in for about one (1) minute after the pilot is
lit. Release knob and it will pop back up. Pilot should remain lit. If it goes out, repeat steps 5 through 9.
*If the knob does not pop up when released, stop and immediately call your service technician or gas
supplier.
*If the pilot will not stay lit after several tries, turn the gas control knob to “OFF” and call your service techni-
cian or gas supplier.
10. Turn gas controlknob counterclockwise to “ON”.
11. Close access panel and turn on switch (located behind
right-hand side fascia access door).
12. Turn on all electric power to the appliance.
13. If applicable, set thermostat to desired setting and turn off
switch behind right-hand side fascia access door.
TO TURN OFF GAS TO APPLIANCE
1. Set the thermostat to lowest setting.
2. Turn off all electric power to the appliance if service is to be performed.
3. Open left-hand side fascia access door.
4. Push in gas control knob slightly and turn clockwise to “OFF”. Do not force.
5. Close access door.
fire-parts.com

18
250-3692 (11/2000) DVi32 Gas Insert
FIRST FIRE
NOTE: Never operate this appliance with the door open.
NOTE: No electrical power supply is required for the gas
control to operate. Standing pilot allows the valve
to operate with manual switch or millivolt
thermostat.
WARNING: WHEN THE APPLIANCE IS EQUIPPED
WITH A 24 KARAT GOLD-PLATED DOOR, YOU MUST
CLEANALL THE FINGERPRINTSAND OILS FROM THE
GOLD SURFACE BEFORE FIRING THE APPLIANCE
FOR THE FIRST TIME. USE A GLASS CLEANER OR
VINEGAR AND A TOWEL TO INSURE THAT THE OIL IS
REMOVED. IF NOT CLEANED PROPERLY BEFORE
FIRING, FINGERPRINTS OR OIL CAN CAUSE
PERMANENT MARKINGS ON THE GOLD PLATING.
AFTER THE GOLD PLATING IS CURED, THE OILS WILL
NOT AFFECT THE FINISH AND LITTLE MAINTENANCE
IS REQUIRED; JUST WIPE CLEAN AS NEEDED.
Before first firing the insert, read this owner’s manual to be
familiar with the stove’s features, controls, and cautions for
operation.
Remove all labels from glass before operating this insert
for the first time.
Plug power cord into a properly installed outlet for blower
operation.
The blower system has an on/off thermo snap disc that will
turn the blower on automatically when the proper
temperature is reached, and will turn the blower off when it
cools down in order not to blow cool air after shut down.
The rheostat to control the blower speed is located on the
right side of the appliance, behind the fascia.
Manual on/off switch for control valve is located on the right
side of the applaince, behind the fascia.
Follow the lighting instructions on page 17 of this manual,
or metal lighting instructions located behind gas supply
access panel behind left side fascia.
During your first fire in the appliance, you may notice an
odor and steam coming from the insert. This is normal; it is
the high temperature paint finishing the curing process.
Open the door and/or windows in the home or structure for
ventilation.
We recommend that you cycle the insert to heat for several
minutes until it reaches the curing stage, and then turn to
off to cool for five minutes. Then turn the insert back on,
and burn until the steam and/or odor no longer appears.
If odor persists, turn off the gas supply to the insert, and call
your local dealer or authorized service person to inspect
the appliance.
MAINTENANCE
CLEANING AND INSPECTION
At least once yearly, preferably before the heating season,
have the insert and venting system cleaned and inspected
by a qualified service person. This will insure proper and
safe operation throughout the year.
CLEANING THE BURNER TUBES
1. Turn off pilot light.
2. Open door by turning eye bolt and releasing door.
3. Remove log set (see page 8).
4. Vacuum burner compartment, especially around orifice
and
primary air openings.
5. Relight pilot. Check to insure flames are touching milli-
volt generator
(see diagram at right).
6. Reinstall log set.
7. Close front door and lock it in place.
8. Recheck pilot and main burner to insure they are oper-
ating correctly.
GLASS CLEANING
WARNING: DO NOT CLEAN GLASS WHEN HOT.
1. Turn off pilot.
2. Open door by turning bolt.
WARNING: DO NOT USE ABRASIVE CLEAN-
ERS ON GLASS OR GOLD SURFACES.
3. Using regular glass cleaner, spray the glass surface
and wipe with soft cloth or clean paper towel until sur-
face is dry.
4. Close door and tighten bolt to prevent opening of the
door while in operation.
5. Relight pilot and check main burner’s operation.
NOTE: If you observe a white film on the door glass, use a
hard water deposit glass cleaner or contact your dealer.
NOTE: Do not use abrasive materials or chemical clean-
ers.
Pilot Hood
Flame
Millivolt
Generator
Flame
Thermocouple
fire-parts.com

19
250-3692 (11/2000) DVi32 Gas Insert
TROUBLESHOOTING
A. Pilot won’t light
1. Make sure valve setting is in the pilot position.
2. Check for spark at igniter.
a. If no spark:
1. Check the wiring between the piezo and
the igniter. If bad, fix wiring; if good, you
mayhave a faultypiezo or crackedceramic
on the electrode.
2. Call your Quadra-Fire dealer.
b. If there is a spark:
1. Try to light the pilot with a match. The flame
should either light or flutter.
a. If the flame flutters but does not light the
pilot,thereprobably is airintheline. Hold
flame to pilot hood, then bleed the line
until gas comes through.
b. If the match flame does not flutter, make
sure the gas is turned on and be sure
you are pushing the knob in all the way.
If this still doesn’t help, you may be
dealing with a bad valve, a blocked pilot
orifice, or a kinked pilot line.
3. Call your dealer or authorized service person.
B. Pilot goes out when knob is released
1. Wait five minutes and try again. If the pilot still goes
out, try again and hold the knob in longer.
2. If the problem persists, call your dealer or authorized
service person.
C. Pilot lights but burner won’t ignite
1. Make sure the knob is turned to the “on” position.
2. Turn the thermostat up.
3. If there is no thermostat, flip the manual switch on the
right side panel of the insert. If the burner does not
light, short out the thermostat screws on the face of
valve marked TH and TPTH. If the burner lights, you
may have a problem in the wiring of the stove, and it
should be checked.
4. Check the thermostat and thermopile connections at
the valve, and tighten or reconnect if needed.
5. If the burner still will not ignite, you may have a bad
valve; call your dealer or authorized service person.
Check the pilot and burner flames periodically. When properly
adjusted,theyshould look like theflamesin the illustration below.
Call your dealer or authorized service person to have the pilot
properly adjusted.
Pilot Hood
Flame
Millivolt
Generator
Flame
Thermocouple
Pilot assembly showing flame properly adjusted.
ACCESSORIES
These may be ordered through your Quadra-Fire dealer.
812-2880 Thermostat, manual
811-0520 Thermostat, electronic set back
841-0320 Remote control
841-0620 Zero clearance fireplace box
842-2571 Gold fascia
842-2561 Black fascia
842-2590 Gold door crown, arched
842-2610 Gold door crown, rectangle
842-2580 Black door crown, arched
842-2600 Black door crown, rectangle
841-0561 Panel and trim, arched, standard
841-0571 Panel and trim, arched, OTS
841-0581 Panel and trim, standard
841-0591 Panel and trim, OTS
841-0601 Panel, inside fit, standard
841-0611 Panel, inside fit, OTS
SERVICE PARTS
842-2630 Baffle
842-2860 Blower, 170 cfm
842-0380 Blower cord, 6 foot
842-2750 Brick, Front Piece
842-2760 Brick Set
842-0250 Millivolt generator (thermopile)
842-0390 Thermocouple
842-1660 Rocker switch, high temperature
842-2620 Owner’s manual
842-0360 Piezo igniter
842-2700 Log set
842-2670 Door glass
842-2660 Wire harness
842-0370 Speed control with knob
832-2970 Blower snap disc, ceramic, 125 degree
842-2650 LP conversion kit
842-2640 NG conversion kit
ZERO CLEARANCE FIREPLACE KIT
fire-parts.com

20
250-3692 (11/2000) DVi32 Gas Insert
GAS APPLIANCE LIMITED LIFETIME WARRANTY
Aladdin Hearth Products, warrants this gas heating appliance to the original purchaser for the lifetime of the appliance, to be
free from defects in material and workmanship. This warranty gives you specific legal rights; you may have other rights which
may vary from state to state.
This limited Lifetime Warranty covers items such as but not limited to combustion chambers, burners, gas logs, and gold
plating.
Allpartsto be replaced must bereturnedtoan authorized Aladdin HearthProductsdealerat purchaser’s expense for inspection
and approval byAladdin Hearth Products prior to repair or replacement. No repair or replacement costs will be honored without
approval of Aladdin Hearth Products.
ThisnewQuadra-Fire product must be installedbya competent, authorized service contractor.Itmustbe installed and operated
atalltimesinaccordancewiththe Installation, Operation and Maintenance Instructions in this manual, as well as any applicable
local and national codes. Any alteration, willful abuse, accident, or misuse of the product shall void this warranty.
Anyinstallation, construction,transportation,or otherrelatedcosts orexpensesarising fromdefectivepart(s), repair,replacement,
etc., will not be covered by this warranty, nor will Aladdin Hearth Products assume responsibility for them. Further, Aladdin
Hearth Products will not be responsible for any incidental, indirect, or consequential damages, except as provided by law.
All electrical components such as but not limited to blowers, wiring, thermodisc switches and gas valves are covered by
Aladdin’s one year warranty program.
Aladdin Hearth Products will not be responsible for any alteration to the unit which causes sooting that results in damage to the
interior of the building in which this appliance is installed.
This warranty is void if the stove has been operated in atmospheres contaminated by chlorine, fluorine, or other damaging
chemicals, or the stove is subjected to prolonged periods of dampness or condensation.
This limited Lifetime Warranty does not extend to or include paint or ceramic insulating materials. It does not cover installation
or operational related problems such as overfiring, or negative air pressures caused by mechanical systems such as furnaces,
fans, clothes dryers, etc.
ThislimitedLifetimeWarranty does not apply tohearthcomponentsorother accessories used in conjunctionwiththeinstallation
of this product not manufactured by Aladdin Hearth Products.
ThislimitedLifetimeWarranty is effective on all gasstovessoldafterSeptember 1, 1996, and supersedes anyandallwarranties
currently in existence. IMPORTANT
This warranty is not valid unless the warranty registration card has been properly completed in full and returned within 10 days
from the date of purchase to Aladdin Hearth Products, 401 North Wynne Street, Colville, WA 99114-2153. Proof of purchase is
required to secure warranty.
FOR YOUR RECORDS
Date of Purchase__________________________________ Model # __________________________________________
Authorized Dealer ________________________________ Serial # ___________________________________________
Copyright Aladdin Hearth Products, August 1997 (842-2620)
North America’s Best
fire-parts.com
