Quadro APERTO CUBE User manual

APERTO CUBE
ASSEMBLY INSTRUCTIONS
© Quadro Concepts International 2021
September 2021

© Quadro Concepts International 2021QBE | Assembly Instructions September 2021
IMPORTANT INFORMATION
WARNINGS
1. Estimated installation time is between 45 and 60 minutes.
2. Handle porcelain stone with extreme care. Do not drop sharp or heavy objects onto the
surface.
3. Handle steel elements with care to avoid scratching and denting.
4. A minimum of 2 adults required for assembly of the product.
5. Follow instructions for correct assembly. Printed or video assembly instructions available
through the website. Please contact Quadro Concepts International through the website for
support.
6. Ensure that all parts are included before starting to assemble. Please contact Quadro
Concepts International through the website with any issues or enquiries.
7. Assembly on flat, level surface using a soft underlay to avoid damage.
8. Do not use product until all parts are installed correctly
9. Do not use any other tools than the ones provided or recommended in the assembly
instructions. Incorrect assembly will lead to product damage and is not covered under the
limited warranty.
10. Do not use power tools for assembly. Risk of damage to product.
11. During assembly, hand tighten all bolts first, then adjust and align parts that are being
assembled, then tighten bolts with hand tools only (allen key). Check and retighten bolts
periodically as required.
12. A spare parts oder form is available online.
13. All documents, information and products produced and provided by Quadro Concepts
International Pty Ltd are subject to copyright and may be subject to change without notice.
CARE
1. Only use warm, soapy water with a soft cloth for cleaning of steel components. Harsh
cleaners and abrasive materials may damage the powder coated surface.
2. Use natural or alkaline detergents to maintain the porcelain stone surfaces. Make sure you
rinse the surface thoroughly after cleaning. The surface is sealed and requires no additional
maintenance.
3. Avoid cleaners with wax, sealing or polishing additives.
4. Ascale porcelain stone is highly scratch resistant. Brushes and pads can be used for
cleaning. Do not use ceramic or steel based tools to remove dirt build-up as this could
damage the surface of the porcelain stone
5. Please recycle all packaging materials appropriately.
LIMITED WARRANTY
1. Warranty Period: All Quadro products hold a general 12 month limited warranty against
material or functional defects.
2. In addition, the Ascale porcelain stone holds a 25 year factory warranty backed by Tau,
Spain.
3. The limited warranty on the Tau Ascale porcelain stone is a factory warranty and only
applies to discolouring and damage to the surface during intended use. Damages due to
incorrect handling are not covered under this warranty.
4. Installation and handling damage is not covered under this warranty.
5. The product warranty is valid for Australian customers only, and applies only to the
original customer.
6. If the product has any defects or does not work as intended during the Warranty Period,
Quadro Concepts International Pty Ltd will at its election and at its expense repair or
replace the product.
7. The Warranty does not apply:
-to cosmetic damage sustained during or after initial assembly;
-to damage caused by consumables used in connection with the product (such as
cleaning products);
-where the product has not been used in accordance with all provided instructions;
-where the Warnings in this document have not been adhered to;
-to damage arising from fair wear and tear;
-where the product has not been subject to reasonable use;
-where the product has been intentionally or negligently damaged; and /or
-if the customer has attempted to repair the product.
8. This warranty is provided in addition to any rights you may be entitled to under the
Competitions & Consumer Act 2010.
9. Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
10. To make a warranty claim, please use the form on the website at www.quadroconcepts.com
or email [e-mail]

© Quadro Concepts International 2021QBE | Assembly Instructions September 2021
Box Content
Cube Top
(inlay)
Crown
NOTE:
*Side Panels are
identical and
interchangeable. Hinge
plates have been pre-
mounted on one panel.
Rear panel
Side Panel 1 Side Panel 2
NOTE:
*Door is reversible, i.e. can be
left or right opening. Hinge
cups have been pre-mounted.
A
9x Bolt- M6
B
9x Washer- Small
D
1x Allen key for M6
C
4x Adjustable shelf bracket
E
1x Allen key for M4
Door
Shelf
Base
Hardware

© Quadro Concepts International 2021QBE | Assembly Instructions September 2021

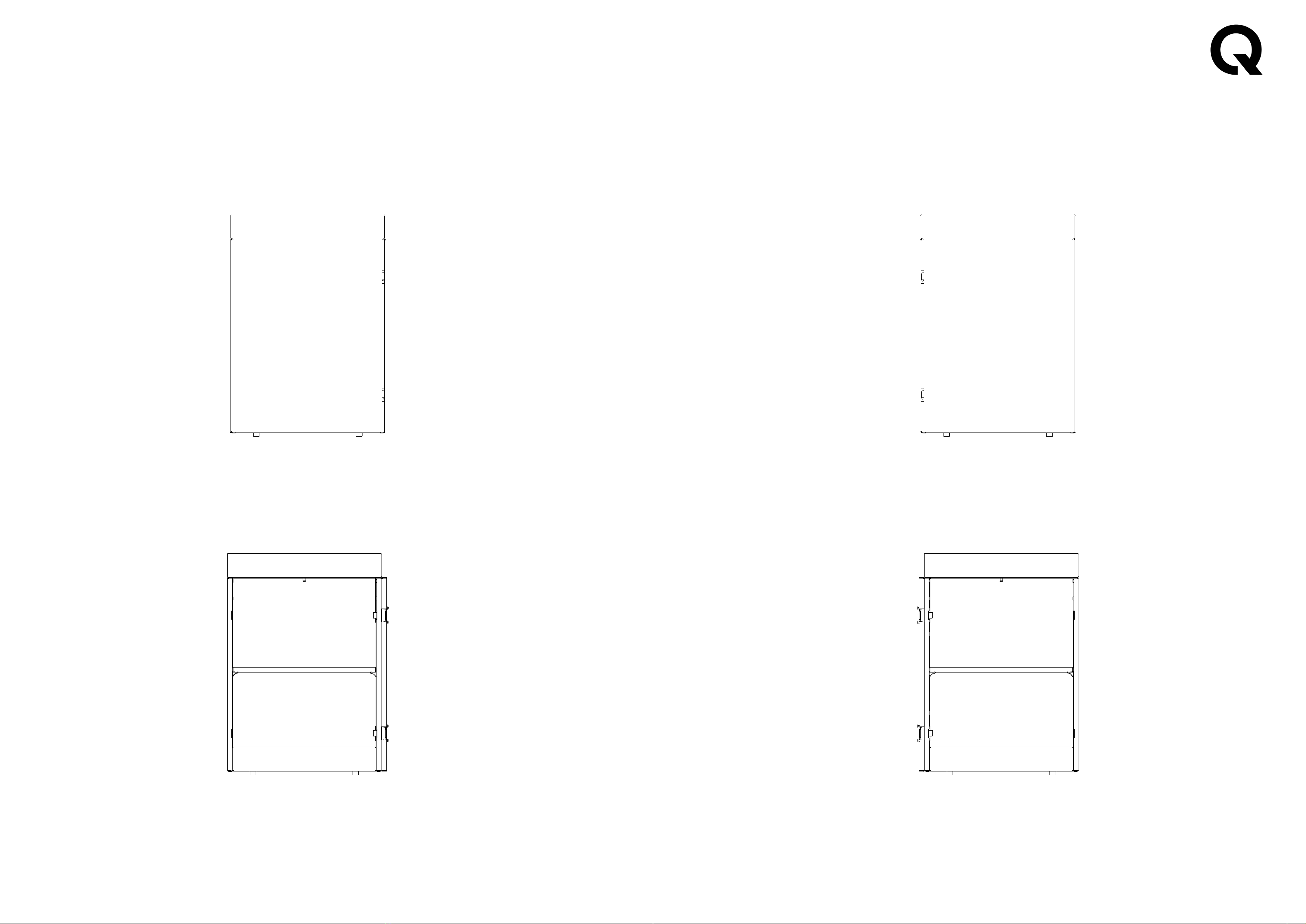

Set-Up Options
Right Hinged Left Hinged
Open (270 dear. hinge)
Closed
Open (270 dear. hinge)
Closed

© Quadro Concepts International 2021QBE | Assembly Instructions September 2021
Step 1:Panel & Base Assembly
d2
d1
d3
d1
d2
NOTE:
*Ensure that tabs
are straight and
adjust if needed.
NOTE:
*Assemble on
soft underlay to
avoid damage.
d3
NOTE:
*Push down firmly until
holes align.
NOTE:
*Carefully guide Base
into position in the
front first. Then slide
forward and push the
back down, being
careful not to scratch
the coating.

© Quadro Concepts International 2021QBE | Assembly Instructions September 2021
Step 2:Base Fixings
DB
B
B
D
d4
d4
d5
d5
NOTE:
*Space is limited. If
needed, remove the
wheels for better
access. A round head
allen key will make it
easier to fasten bolts.

© Quadro Concepts International 2021QBE | Assembly Instructions September 2021
Step 3:Crown Fixing
d6
d6
NOTE:
*Ensure that tabs
are straight and
adjust if needed.
D
B
C
D
B
C
NOTE:
*A round head allen
key will make it easier
to fasten bolts.
d7
d7 d8
d8

© Quadro Concepts International 2021QBE | Assembly Instructions September 2021

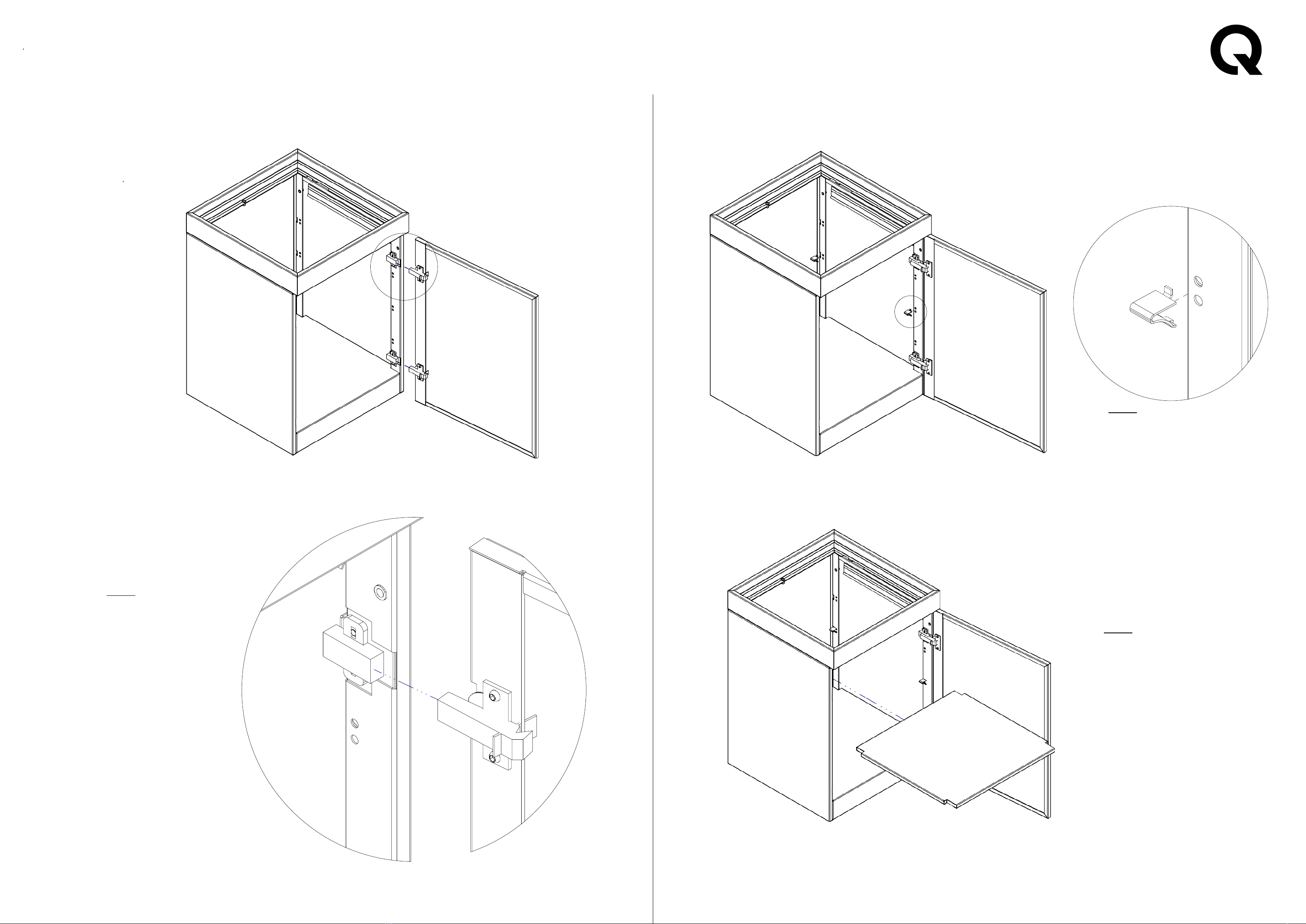

Step 4:Door Installation
d8
d8
NOTE:
*Ensure door sits on
a set underlay to
avoid scratching.
*Slide both hinge
arms under fixing
screw and tighten
using screwdriver.
*Use adjustment
screw to align door
with outer edge of
Side Panel and
underside of Crown.
Step 5:Shelf Installation
d9
d9
NOTE:
*The side with the
two larger cutouts
faces forward. Insert
shelf at an angle
and carefully lower
onto the brackets;
push firmly into
place.
NOTE:
*There are three
optional shelf
positions.

© Quadro Concepts International 2021QBE | Assembly Instructions September 2021
Step 6:Inlay & Complete
NOTE:
*The cube top simply
drops into place.
*Do not install Top if
a gas bottle is stored
inside the Cube!

© Quadro Concepts International 2021QBE | Assembly Instructions September 2021
