Quadrox WebCCTV User manual

W
ebCCTV
Installation Manual
Let’s make things safer!

WebCCTV Installation Manual 2
Contents
CONTENTS .............................................................................................................................................................................................................2
1INTRODUCTION.......................................................................................................................................................................................5
1.1 EQUIPMENT CHECKLIST ............................................................................................................................................................................. 6
1.1.1 Hardware........................................................................................................................................................................................... 6
1.1.2 Hardware........................................................................................................................................................................................... 6
1.1.3 Documentation .................................................................................................................................................................................. 6
1.2 HARDWARE OVERVIEW.................................................................................................................................................................................... 7
1.3 THE GRAND TOUR ...................................................................................................................................................................................... 8
1.3.1 Front side........................................................................................................................................................................................... 8
1.3.2 Back Side………………………………………………………….. ..........................................................................................................9
2GETTING STARTED ..............................................................................................................................................................................10
2.1 WORK SPACE CONDITIONS.......................................................................................................................................................................10
2.1.1 General conditions.......................................................................................................................................................................... 10
2.1.2 Placement conditions ...................................................................................................................................................................... 11
2.2 PHYSICAL CONNECTIONS.........................................................................................................................................................................12
2.2.1 Connecting power cord................................................................................................................................................................... 12
2.2.2 Connecting monitor......................................................................................................................................................................... 12
2.2.3 Connecting keyboard and mouse.................................................................................................................................................... 13
2.2.4 Connecting Ethernet cable.............................................................................................................................................................. 13
2.3 STARTING UP FOR THE FIRST TIME...........................................................................................................................................................14
2.3.1 Turning power on/off....................................................................................................................................................................... 14
2.3.1.1 Turning power on....................................................................................................................................................................14
2.3.1.2 Turning power off or restarting...............................................................................................................................................15
2.3.2 Logging on to the XPe system......................................................................................................................................................... 15
2.3.3 Desktop icons overview................................................................................................................................................................... 16
2.3.4 Changing password......................................................................................................................................................................... 17
2.3.5 Setting time...................................................................................................................................................................................... 19
2.3.5.1 Through WebCCTV Web Application...................................................................................................................................19
2.3.5.2 Through XPe OS..................................................................................................................................................................... 20
2.3.5.2.1 Changing time zone...........................................................................................................................................................20
2.3.5.2.2 Time synchronization........................................................................................................................................................20
2.3.6 Changing keyboard settings............................................................................................................................................................ 21
2.3.7 Adjusting screen resolution............................................................................................................................................................. 23
2.4 WEBCCTV IN THE NETWORK..................................................................................................................................................................24
2.4.1 Network overview............................................................................................................................................................................ 24
2.4.2 Connecting WebCCTV to the local network................................................................................................................................... 25
2.4.3 Assigning IP address....................................................................................................................................................................... 26
2.4.4 Firewall configuration .................................................................................................................................................................... 26
2.4.5 Connecting a client.......................................................................................................................................................................... 29
2.4.5.1 Minimum client requirements.................................................................................................................................................29
2.4.5.2 Client configuration.................................................................................................................................................................29
2.4.6 Connecting WebCCTV to the Internet ............................................................................................................................................ 32
2.4.6.1 Creating a network connection................................................................................................................................................32
2.4.6.2 Router and firewall.................................................................................................................................................................. 33
2.4.6.2.1 Configuring router............................................................................................................................................................33
2.4.6.2.2 Configuring firewall..........................................................................................................................................................35
2.5 TESTING WEBCCTV................................................................................................................................................................................37
2.5.1 Local client test ............................................................................................................................................................................... 37
2.5.2 Connection test................................................................................................................................................................................ 37
2.5.3 Remote client test............................................................................................................................................................................. 38
2.6 OPERATOR MODE ....................................................................................................................................................................................39
2.6.1 Locking WebCCTV.......................................................................................................................................................................... 39
2.6.2 Switching to Operator mode........................................................................................................................................................... 39
Version 4.3 Series
©
Q
uadrox 1997
–
2005©
Q
uadrox 1997
–
2005

WebCCTV Installation Manual 3
Version 4.3 Series
2.6.3 Automatic logon as Operator.......................................................................................................................................................... 40
3UPGRADING AND RESTORING WEBCCTV....................................................................................................................................41
3.1 UPGRADING WEBCCTV SOFTWARE ....................................................................................................................................................... 41
3.2 SAVING &RESTORING CONFIGURATION.................................................................................................................................................. 41
3.3 RESTORING PREINSTALLED SOFTWARE................................................................................................................................................... 41
4ADVANCED TOPICS ..............................................................................................................................................................................43
4.1 EXTENDING STORAGE SPACE ................................................................................................................................................................... 43
4.1.1 Adding hard disk ............................................................................................................................................................................. 43
4.1.2 Configuring added hard disk .......................................................................................................................................................... 44
4.1.2.1 Multiple Logical Disks............................................................................................................................................................ 46
4.1.2.2 Single Disk Extension.............................................................................................................................................................48
4.2 VIDEO CLIENT COMPONENT (ACTIVEX)................................................................................................................................................. 53
4.3 CHANGING NETWORK PORTS ...................................................................................................................................................................55
4.3.1 Changing WebCCTV video ports.................................................................................................................................................... 55
4.3.2 Changing TCP port......................................................................................................................................................................... 55
4.3.3 Changing remote desktop port........................................................................................................................................................ 56
4.4 WEBCCTV POWER ON AFTER POWER FAILURE....................................................................................................................................... 56
4.5 CONFIGURING AUDIO OVER THE INTERNET.............................................................................................................................................56
5STORAGE / BANDWIDTH CONSIDERATIONS...............................................................................................................................58
5.1 TERMINOLOGY AND BASIC VIDEO TECHNOLOGY ....................................................................................................................................58
5.2 FACTORS THAT INFLUENCE BIT RATE AND VIDEO QUALITY.................................................................................................................... 60
5.2.1 Compression technique (codec)...................................................................................................................................................... 60
5.2.2 Resolution........................................................................................................................................................................................ 61
5.2.3 Frame rate....................................................................................................................................................................................... 62
5.2.4 “Differential” live streaming.......................................................................................................................................................... 63
5.2.5 Activity detection for storage.......................................................................................................................................................... 63
6SECURITY POLICY................................................................................................................................................................................64
6.1 PROPER USE OF WEBCCTV.....................................................................................................................................................................65
6.2 SECURITY POLICY .................................................................................................................................................................................... 66
6.2.1 Password policy .............................................................................................................................................................................. 66
6.2.2 Operator mode ................................................................................................................................................................................ 68
6.2.3 Windows security updates............................................................................................................................................................... 68
6.2.4 Network security.............................................................................................................................................................................. 68
6.2.4.1 Dedicated network versus integration with the corporate network........................................................................................ 69
6.2.4.2 Internet Connection................................................................................................................................................................. 69
6.2.4.3 Limiting the number of protocols...........................................................................................................................................69
6.2.4.4 Firewall.................................................................................................................................................................................... 70
6.2.4.5 Allowing only known clients.................................................................................................................................................. 70
6.2.4.6 Securing the applications ........................................................................................................................................................ 70
6.2.4.7 VPN......................................................................................................................................................................................... 71
6.2.5 Other types of access....................................................................................................................................................................... 71
6.2.6 3rd party security tools..................................................................................................................................................................... 71
6.3 ERROR RECOVERY MECHANISMS.............................................................................................................................................................72
7TROUBLESHOOTING............................................................................................................................................................................ 73
7.1 PROBLEM SOLVING PROCESS ...................................................................................................................................................................73
7.1.1 Preliminary checklist....................................................................................................................................................................... 73
7.1.2 Analyzing the problem..................................................................................................................................................................... 74
7.2 SOLUTIONS FOR COMMON PROBLEMS ..................................................................................................................................................... 75
7.2.1 Start up problems............................................................................................................................................................................ 75
7.2.2 Monitor problems............................................................................................................................................................................ 77
7.2.3 Windows logon problems................................................................................................................................................................ 77
7.2.4 Remote connection problems.......................................................................................................................................................... 78
7.2.5 Camera problems............................................................................................................................................................................ 79
7.2.6 WebCCTV software problems......................................................................................................................................................... 79
7.3 IF YOU NEED FURTHER ASSISTANCE ........................................................................................................................................................ 81
7.3.1 Before you call................................................................................................................................................................................. 81
7.3.2 Collecting the necessary information ............................................................................................................................................. 81

WebCCTV Installation Manual 4
Version 4.3 Series
7.3.3 How to contact Quadrox................................................................................................................................................................. 82
7.3.4 How to allow remotely access to your WebCCTV by Quadrox support ........................................................................................ 82
8APPENDICES............................................................................................................................................................................................83

WebCCTV Installation Manual 5
1Introduction
WebCCTV is a unique digital video surveillance solution, which combines three major
functions in one Network Video Recorder (NVR) or Digital Video Recorder (DVR): local
digital recording, multiplexing and simultaneous transmission of the video via existing
networks (TCP/IP). To a standard WebCCTV, up to 20 cameras can be permanently recorded
while multiple operators at different locations on the network are accessing the WebCCTV
device.
Being a networked device, WebCCTV utilizes two basic principles of the
Internet/Intranet technology:
WebCCTV works over the TCP/IP network protocol, which provides maximum
connectivity. This means that the existing computer network infrastructure can be
used eliminating extra installation expenses.
WebCCTV uses a web-based user interface to view live images, recordings, etc.
More specific it uses Microsoft Internet Explorer.
Remote and Local Monitoring
To remotely monitor the connected cameras, the
WebCCTV uses Web Browser technology. To
locally monitor video, the WebCCTV also
provides a local interface via a PC monitor
directly connected to the WebCCTV. This local
interface allows an operator to see live video
from the connected cameras without the need for
additional client computers on a network.
Continuous Activity-Based Recording
By default, a WebCCTV continuously records all images from all the connected cameras
based on activity detection. In this case, only movement is recorded. If there is no movement,
no recording takes place. If necessary, the WebCCTV can be set to record continuously.
Intelligent Storage Option
WebCCTV uses a first-in/first-out (FIFO) overwrite principle. Once the disk is full, the oldest
images are overwritten.
Semi-Continuous recording (recording based on activity detection) allows a WebCCTV to
store pre- and post-alarm video. Pre- and Post-alarm images are often more important than the
Version 4.3 Series

WebCCTV Installation Manual 6
images at the time of the alarm event itself. Up to 5 minutes of pre- and post-alarm video can
be stored per event.
WebCCTV makes a distinction between common activity recordings and pre/post alarm
recordings. In the way that, alarm recordings have a higher storage priority and will not be
overwritten by non-alarm recordings.
The WebCCTV is operational even when no live monitoring occurs. While the
WebCCTV continuously records images from all the cameras, video is transmitted
from the server to the client only when an Internet browser is connected to
WebCCTV and someone is live-viewing images from one or more cameras.
1.1 Equipment checklist
Carefully unpack your WebCCTV and check for the presence of all items listed below.
1.1.1
1.1.2
1.1.3
Hardware
Check to make sure you have all following items:
1 x WebCCTV
1 x Power cord
1 x WebCCTV Recovery DVD
1 x empty DVD for “Save Settings”
1 x USB or PS/2 mouse
1 x Keyboard
Hardware
The following software is preinstalled:
Microsoft®Windows XP Embedded Operating system
WebCCTV4 Video security software suite
Adobe Acrobat Reader 8.0 or higher
Documentation
WebCCTV Installation manual in PDF format
WebCCTV User manual in PDF format
Alarm Component Installation manual in PDF format
Remote POS Monitor manual in PDF format
WebCCTV NVS400 Guide
WebCCTV NVS1000/2000/4000 Guide
Version 4.3 Series

WebCCTV Installation Manual 7
1.2 Hardware overview
Typically a WebCCTV system is based on the HP DC7900 Workstation and is equipped with
the following components. If a newer model is available in your region, this model will be
shipped.
Processor
Intel Core2Duo E7400 @ 2.80GHz or higher
Memory
2 GB RAM
Storage
500 GB standard hard disk drive
It is possible to add a second hard disk to the unit if requested to extend the storage
space.
DVD/CD-ROM drive
HP DVD RW-unit
Interfaces
1x LAN/Ethernet Interface (10/100/1000 Mbit), RJ45
1x Serial communication port RS-232, 9 pin D-SUB
1 x Parallel port, 25 pin D-SUB
1 x VGA output connection for VGA/TFT monitor
6 x USB 2.0 ports
1x PS/2 for mouse, 1 x PS/2 for keyboard
Version 4.3 Series

WebCCTV Installation Manual 8
1.3 The grand tour
This chapter helps you to become familiar with all components of the WebCCTV before
you begin to operate.
Version 4.3 Series
1.3.1 Front side
The figure below shows the front side of the WebCCTV:
WebCCTV Front Side Screen
Power button. Press the power button to turn WebCCTV ‘s power on and off
Power indicator. Glows green when the WebCCTV is turned on.
Hard disk indicator. Glows when the Hard disk is used.
Audio IN jack. Enables connection to the WebCCTV for audio input purposes
(12-K ohm Input Impedance).
Audio OUT jack. Enables connection of external speakers or stereo headphones
(less than 800 ohms Output Impedance). When you connect speakers or
headphones internal speakers are automatically disabled.
Universal Serial Bus (USB) 2.0 ports. Two USB 2.0 ports are on the front side.
The ports comply with the USB 2.0 standard which enables data transfer speed 40
times faster than the USB 1.1 standard (The port also supports USB1.1 standard)
DVD-RW drive. Enables reading of the CD/DVDs as well as recording on
rewritable CD/DVDs.

WebCCTV Installation Manual 9
Version 4.3 Series
1.3.2 Back Side
The figure below shows the back side of the WebCCTV:
WebCCTV Back Side Screen
AC In 115V/230V. AC power cord is connected to this socket. Use only the
power cord that is supplied with WebCCTV. Using the wrong power cord may
damage your WebCCTV.
Cooling fan. It is used for WebCCTV power supply cooling.
PS/2 keyboard port. Enables keyboard connection.
PS/2 mouse port. Enables mouse connection.
VGA output port. Enables VGA/TFT monitor connection. In newer models it
may be that an additional graphic card is installed which has to be used for the
VGA/TFT monitor output.
25 pin D-SUB parallel port. Enables PC printer or another optional devices
connection.
9 pin D-SUB RS-232 serial communication port. Enables PC printer or another
optional devices connection.
Universal Serial Bus (USB) 2.0 ports. Four USB 2.0 ports are on the back side.
The ports comply with the USB 2.0 standard which enables data transfer speed 40
times faster than the USB 1.1 standard (The port also supports USB1.1 standard)
RJ45 LAN/Ethernet connection port. Enables LAN connection. It has built-in
support for Ethernet LAN (10 Mbit/sec, 10BASE-T), Fast Ethernet (100 Mbit/sec,
100BASE-Tx) and Gigabit Ethernet (1000 Mbit/sec, 1000BASE-T)
Audio OUT jack. Enables connection of external speakers or stereo headphones
(less than 800 ohms Output Impedance). When you connect speakers or
headphones internal speakers are automatically disabled.
Audio IN jack. Enables connection to the WebCCTV for audio input purposes
(12-K ohm Input Impedance).

WebCCTV Installation Manual 10
Version 4.3 Series
2.1.1
2Getting started
This chapter provides basic information to get you started installing and using your
WebCCTV.
2.1 Work space conditions
Establishing a comfortable and appropriate work site and placement of the WebCCTV is
important to you and your WebCCTV. Proper ambient conditions should also be maintained
for the WebCCTV’s operation. This section discusses the following topics:
General conditions
Placement conditions
General conditions
Carefully read the following guidelines:
Make sure there is adequate space around the WebCCTV for proper ventilation. Leave
ample ventilation room for the cooling fan. Do not block the vents. If your unit is
placed in a lockable enclosure, be sure to use only enclosures that are fan cooled and
ensure that the fan is operational. It is also a good practice to place the WebCCTV in
the middle of the cabinet to maximize air flow.
Make sure the AC power cord connects to an outlet that is close to the WebCCTV and
easily accessible.
Make sure the Ethernet cable is correctly connected and is laid properly, without strain.
The temperature should be 5 to 40 °C (41 to 104 °F) and the relative humidity should
be 5 to 95 %.
Avoid areas where rapid or extreme changes in temperature or humidity may occur.
Keep the WebCCTV free of dust, moisture and exposure to direct sunlight
Keep the WebCCTV away from heat sources, such as electric heaters.
Do not use the WebCCTV near liquids or corrosive chemicals.
Some components in the unit, including data storage media, can be damaged by
magnets. Do not place the WebCCTV near magnetic objects or bring magnetic objects
close to the WebCCTV. Be careful of objects, such as stereo speakers, that produce
strong magnetic fields during operation.

WebCCTV Installation Manual 11
Version 4.3 Series
2.1.2 Placement conditions
Position the WebCCTV and peripheral devices to provide comfort and safety.
Set the WebCCTV on a flat surface at a comfortable height and distance. If the monitor
is connected it should be no higher than eye level to avoid eyestrain.
Do not place any liquid containers on the WebCCTV system, such as water, coffee, or
beverage. If liquid is poured onto the WebCCTV, it can cause a system malfunction or
fire.
Prevent the power cable from being severely bent by a heavy object. This may cause
fire.
Clean the dust around the WebCCTV on a regular basis. When cleaning the system,
always use a dry cloth. Do not use wet cloth or other organic solvents. This may
damage the surface of the WebCCTV and may cause system malfunction or electric
shock.
When pulling the power cable from the plug, do so gently. Do not touch the plug with
wet hands and avoid using the plug if the holes on the outlet are too loose. This may
cause fire or an electric shock.
Do not attempt to disassemble, repair, or modify the WebCCTV yourself. It is
extremely dangerous due to high voltage running through the WebCCTV. This may
cause fire, electric shock, or serious injuries.
Keep at least 15cm (6inches) between the back of the WebCCTV and a wall for the
cables connected into the WebCCTV. Otherwise, cables may be bent, damaged, or cut.
This may cause fire, electric shock, or injuries.
The power outlet must be grounded, and the voltage range must be within 10% of the
voltage rate. Do not use the same outlet with a hair dryer, iron, refrigerator, or any
heating appliances. This may cause fire, heating, and an electric shock.
Do not place any heavy object on the WebCCTV system. This may cause system
malfunction.
The WebCCTV can be damaged from a strong impact or vibration. Avoid throwing
objects within the vicinity of the WebCCTV.

WebCCTV Installation Manual 12
2.2 Physical connections
Version 4.3 Series
2.2.1 Connecting power cord
To connect your WebCCTV to the AC network, you need to connect the power cord that is
supplied with WebCCTV.

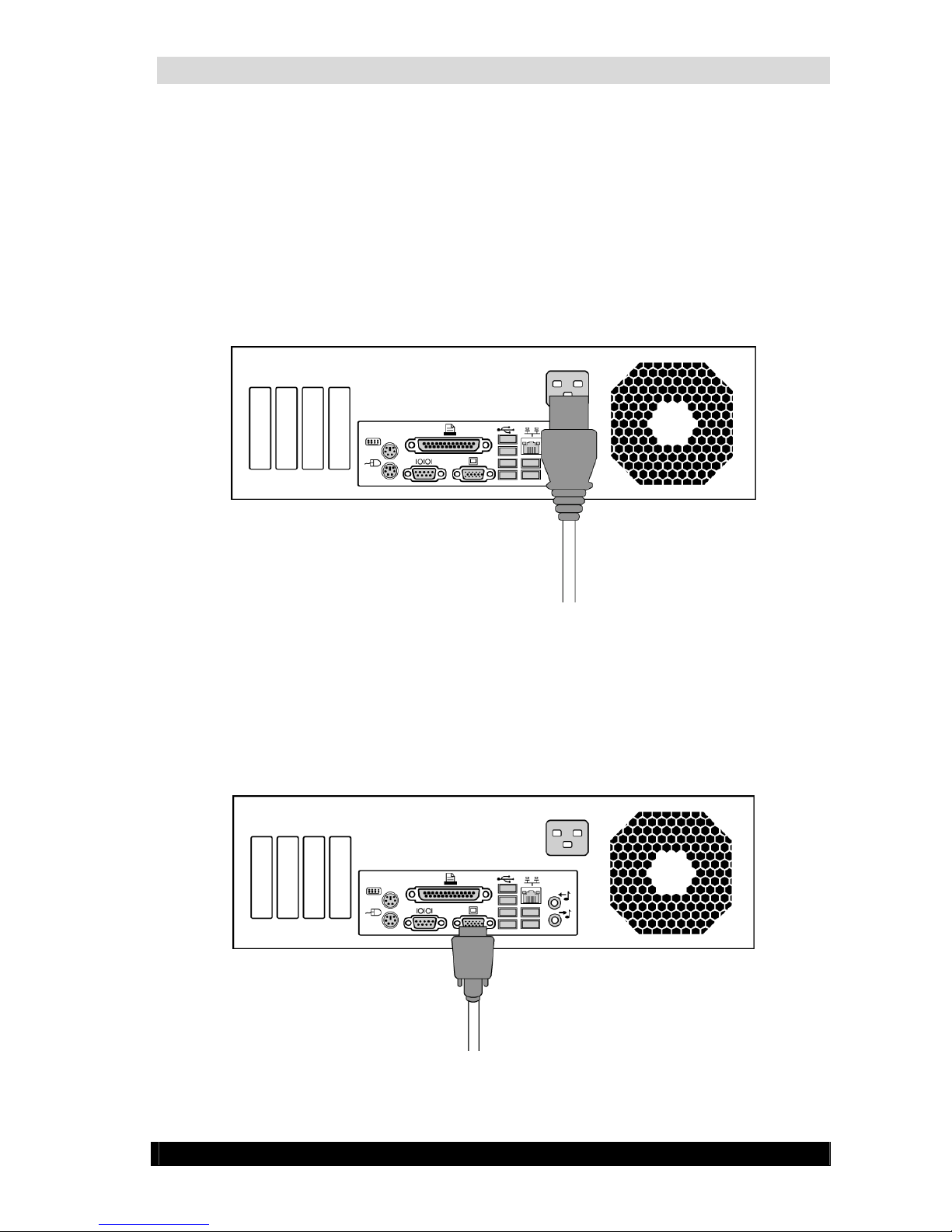

Connect the power cord as shown in the figure below:
Connecting Power Cord Screen
2.2.2 Connecting monitor
You may connect a PC-monitor to the WebCCTV to make its configuration easier.
Connect a monitor as shown in the figure below:
Connecting Monitor Screen

WebCCTV Installation Manual 13
Version 4.3 Series
2.2.3 Connecting keyboard and mouse
You may connect a keyboard and mouse to the WebCCTV to make its configuration easier.
Connect a mouse and keyboard as shown in the figure below:
Connecting Keyboard and Mouse Screen
2.2.4 Connecting Ethernet cable
To add your WebCCTV to the local network (LAN) you need to connect an Ethernet (LAN)
cable.
Connect the Ethernet cable as shown in the figure below:
Connecting Ethernet Cable Screen

WebCCTV Installation Manual 14
2.3 Starting up for the first time
This chapter provides information on the following procedures:
Turning the power on and off
Logging on to the XPe system
Desktop icons overview
Changing the password

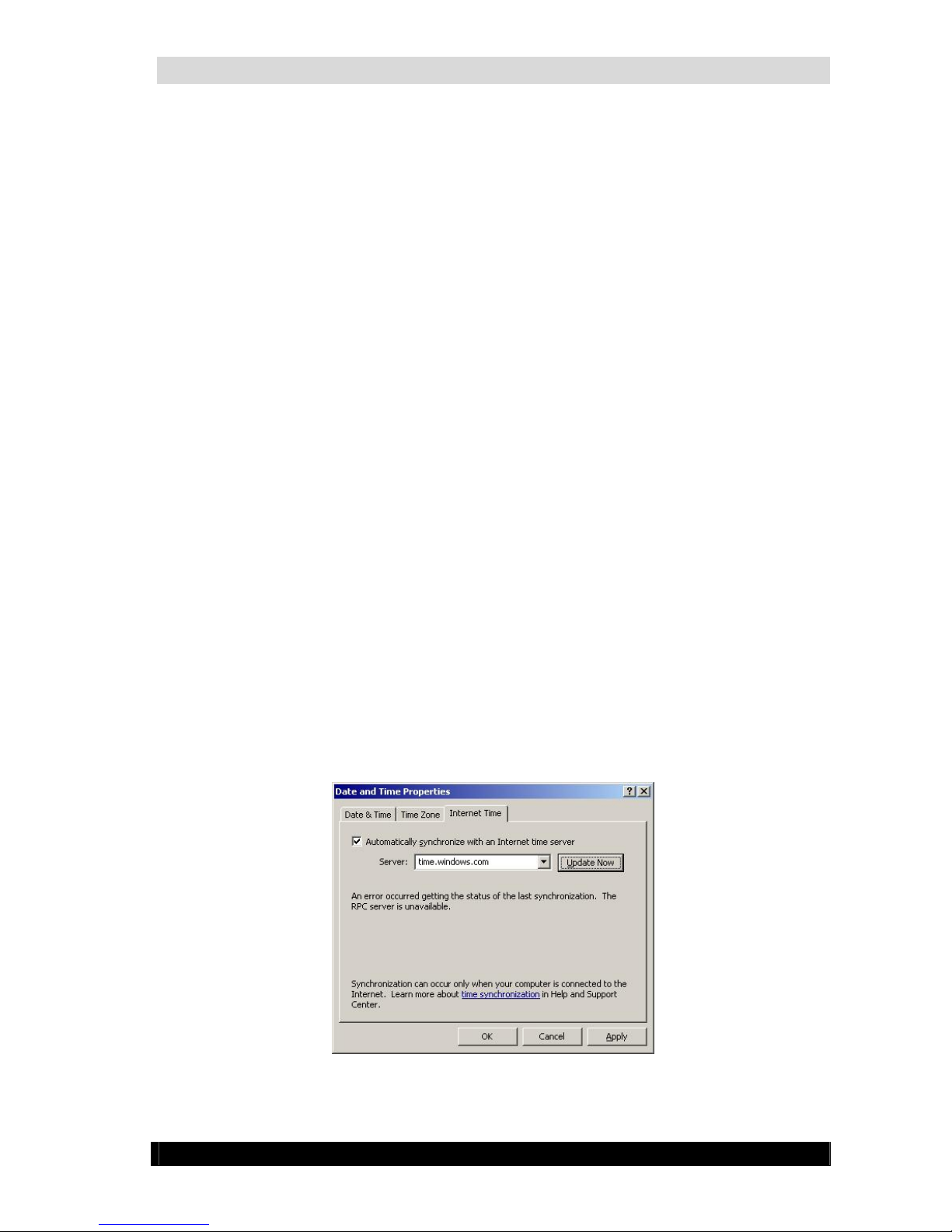

Setting the time
Changing keyboard language
Adjust screen resolution
Connect monitor, keyboard and mouse before turning on the power and configuring
WebCCTV.
2.3.1 Turning power on/off
2.3.1.1 Turning power on
To turn the power on, follow the steps below:
1. On the front side of your WebCCTV, you’ll find an On/Off button. This is a one-touch
button. When pressing it briefly, WebCCTV will begin its start-up procedure. You can
verify the correct start-up sequence by checking the following:
The fans are turning and make a humming noise.
The power indicator is illuminated.
The hard disk indicator is flashing.
2. When you have a monitor connected, you can see that:
First it lists all the hardware components.
Second it starts loading the Windows XPe operating system
3. After about 1.5 to 2 minutes, the WebCCTV should be fully started.
The first time you turn on the power of your WebCCTV, its initial screen will be the Windows
XPe logon screen.
WebCCTV does not logon automatically by default.
Version 4.3 Series

WebCCTV Installation Manual 15
2.3.1.2 Turning power off or restarting
Before shutting down or restarting a WebCCTV, there are some important precautions to make
note of. Because a WebCCTV is constantly recording (24h) activity video on the disk, the hard
disk is used very frequently. If a user shuts down the WebCCTV while it is writing to the hard
disk, there is always a danger of damaging the hard disk. This may result in having an
unbootable WebCCTV afterwards. There are two options:
Restart or shutdown WebCCTV through the normal Windows interface:
1. On the taskbar at the bottom of your screen, click the Start button in the lower left
corner.
2. On the start menu, in the lower right corner, click Shut Down.
3. On the Shut Down Windows dialog box, select the Restart or Shut Down tab.
4. Click OK to shutdown or restart.
5. Wait until the WebCCTV completely has shut down before unplugging the power
cord.
Restart or shutdown WebCCTV by using the shutdown button on the unit itself:
1. On the front of the unit there is a button to shut down the WebCCTV.
2. Because our WebCCTV is ACPI enabled, clicking this button once for a brief
moment will initiate a graceful shutdown. This is handled by the MS Windows XP
embedded Operating System, because it detects the click on the shutdown button
and will shutdown automatically.
3. Please be patient because it can take nearly a minute before the WebCCTV actually
shuts down completely. The WebCCTV has stopped when the green power
indicator has gone out.
4. Wait until the WebCCTV completely has shut down before unplugging the power
cord.
Version 4.3 Series
2.3.2 Logging on to the XPe system
For access to the WebCCTV’s operating system, you have to specify a Username and
Password.
The first time you turn on the power of a WebCCTV, after its boot sequence (see above) has
completed, its initial screen will be the Windows XPe logon prompt:
The default Administrative username is: Administrator
The default Administrative password is: webcctvnvr
It is highly recommended to change the Administrative password as soon as possible.
If you use an ‘AZERTY’ keyboard, this becomes zebcctvnvr. See Chapter 2.3.6 how
to change this to Azerty settings.

WebCCTV Installation Manual 16
Version 4.3 Series
2.3.3 Desktop icons overview

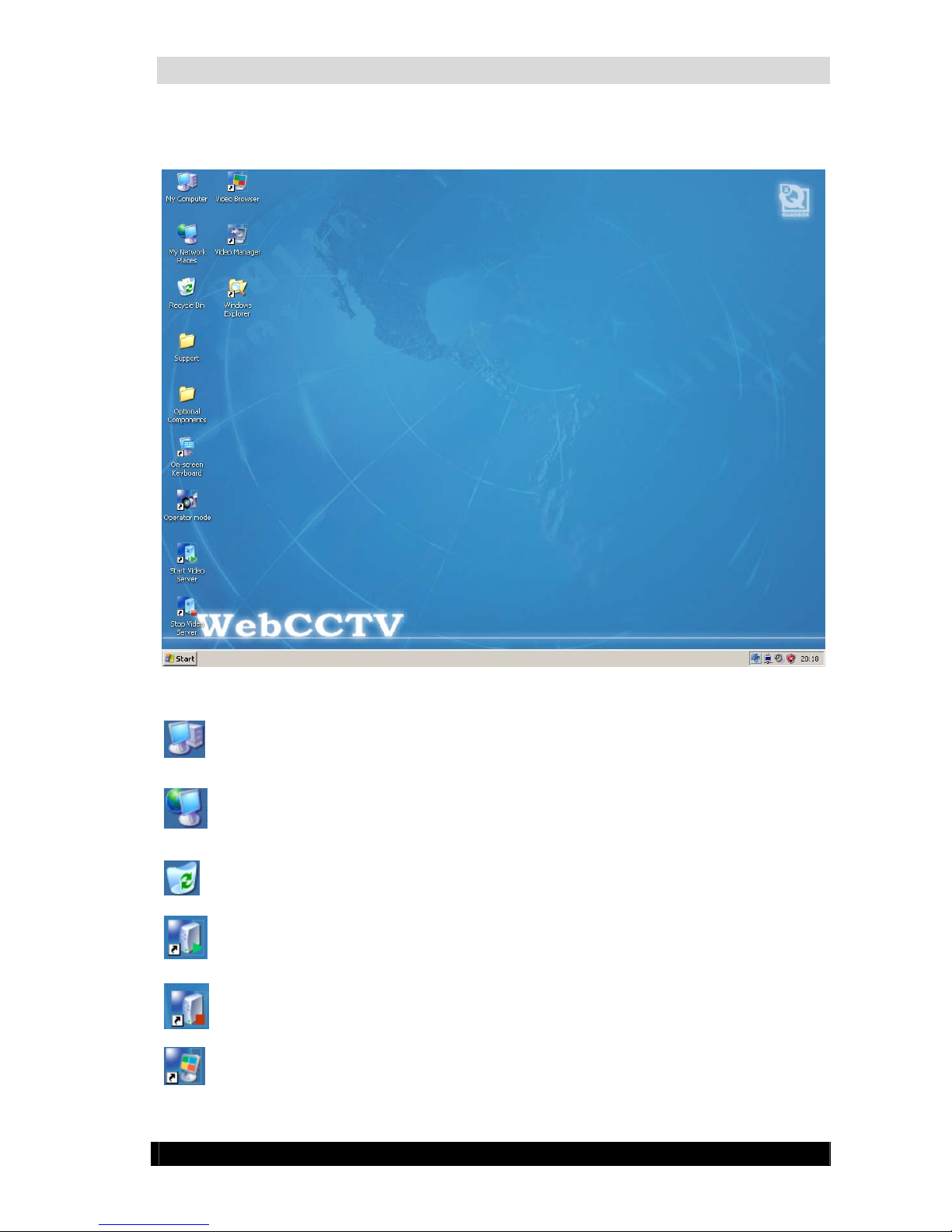

WebCCTV’s Desktop Screen
My Computer. By double-clicking this icon, the user can see an overview of all
configured disk drives/partitions on the WebCCTV.
My Network Places. By double-clicking this icon, the user can see an overview of
all Network places visited. By right clicking and then choosing ‘Properties’, the user
can see an overview of all network connections possible and can adjust the TCP/IP
settings of the WebCCTV.
Recycle Bin. Temporarily stores all deleted files and folders prior to permanent
deletion.
Start Video Server. By double-clicking this icon, the user can start the
WebCCTV’s video server. If the video server is already started, double-clicking
doesn’t change anything.
Stop Video Server. By double-clicking this icon, the user can stop the WebCCTV’s
video server. If the video server is already stopped, double-clicking doesn’t change
anything.
Video Browser. By double-clicking this icon, the user starts the WebCCTV web-
application on the local WebCCTV.

WebCCTV Installation Manual 17
Video Manager. By double-clicking this icon, the user starts WebCCTV web-
application on the local WebCCTV. The system can be managed and configured
here
Optional Components. This folder contains links to the setup files for the Alarm
Component, Remote POS monitor, etc.
Support. A folder that contains a few support tools to administer the WebCCTV
server application such as the Event Viewer, Registry editor, etc.
Operator mode toggle. This switch enables the user to switch back and forth
between Operator mode (a restricted operational mode where only the local
interface is present) and Administrator mode (a non-restricted mode where all
system manipulations are allowed).
On screen keyboard. This on screen keyboard can be used as a virtual keyboard
when no physical keyboard is present and connected to the WebCCTV.
Windows Explorer. The user can use this application to browse through the
contents of the local hard disks.
2.3.4 Changing password
To change the Administrative password, follow the steps below:
Go to Start->Control Panel.
When in Control Panel, select User Accounts from the right-hand list.
User Accounts Screen
In the User Accounts screen, select the Administrator user.
Version 4.3 Series

WebCCTV Installation Manual 18
Click Change my password link.
Changing Password Screen
Enter your current password.
The default Administrator password is webcctvnvr.
Enter a new password and confirm it.
Click Change Password button to save new Administrator account password.
When you change the Administrator password in Windows, the Administrator
password of the WebCCTV application is automatically changed to this password.
This means also that when you change your password in the WebCCTV application,
that your Windows password will be changed automatically!
Version 4.3 Series

WebCCTV Installation Manual 19
Version 4.3 Series
2.3.5 Setting time
For the WebCCTV to function properly, it is very important to use the applicable Time Zone
setting. This can be done in two ways, or by the WebCCTV application configuration (See
WebCCTV User Manual Chapter 3.3.10 Time Synchronisation), or by the Windows XPe
OS configuration.
We strongly advise you to use the WebCCTV application way as this is the easiest
way to configure your time settings.
2.3.5.1 Through WebCCTV Web Application
Time synchronization allows you to synchronize time on all devices connected to your unit
(e.g. cameras) and synchronize your server with a specific time server. This can be done by
going to the Settings menu in the Video Manager Web Application and selecting the Time
Synchronisation link in the top bar

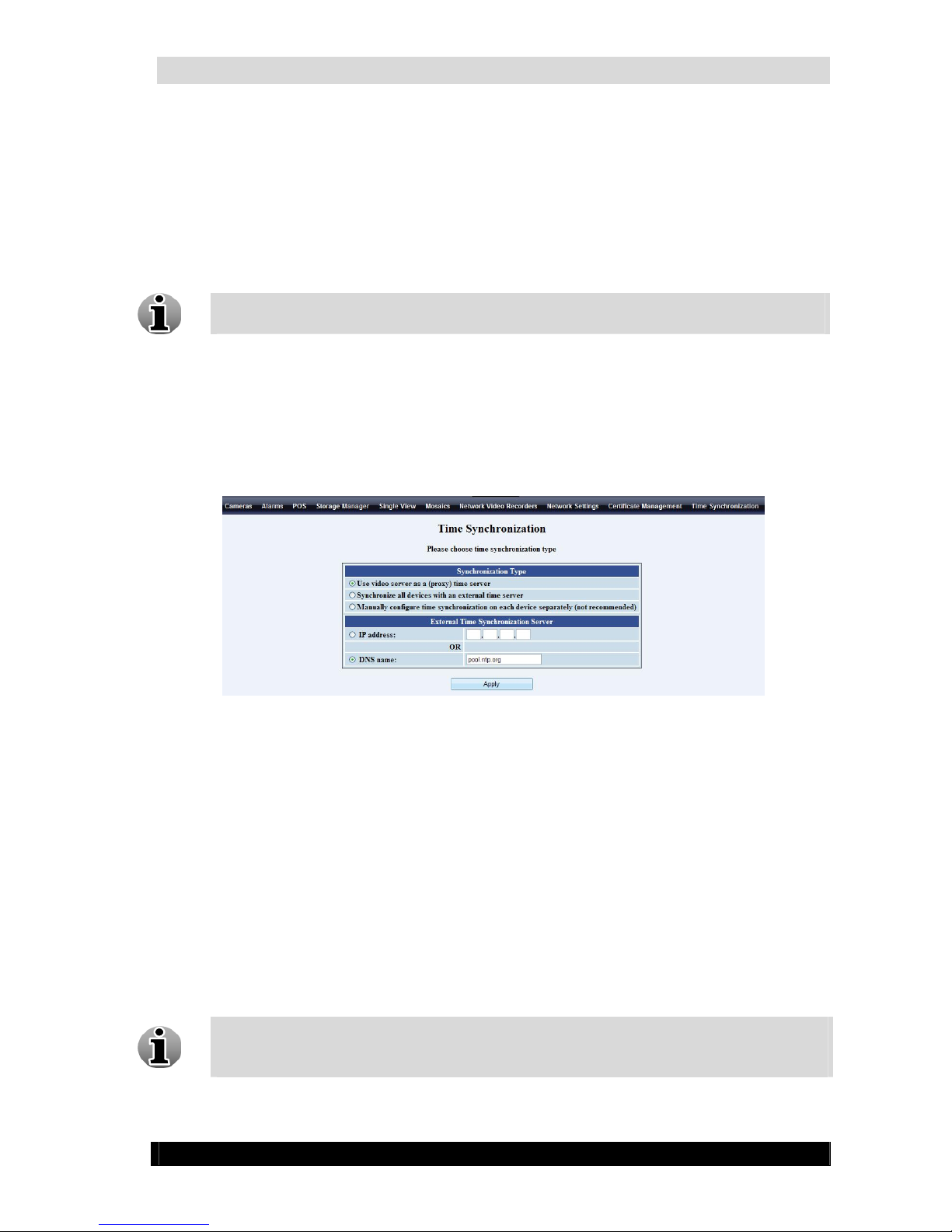

Time Synchronization Screen
There are three options:
Use video server as a (proxy) time server – The unit will synchronize with an
external time server if configured in the bottom part of the screen. If empty, the unit
will act as a time server for itself and the connected devices (e.g. cameras).
Synchronize all devices with an external time server – The unit and all the
connected devices (e.g. cameras) will be synchronized with an external time server.
Configure the IP address or DNS name of the external time server in the bottom part of
the screen.
Manually configure time synchronization on each device separately (not
recommended) – No synchronization at all is performed, neither for the unit nor for
the connected devices (e.g. cameras)
If your unit is part of a domain, this menu will not be available. The unit and
connected devices (e.g. cameras) will be synchronized automatically with the Active
Directory of the domain.
Click Apply to save the settings.

WebCCTV Installation Manual 20
2.3.5.2 Through XPe OS
2.3.5.2.1 Changing time zone
To change the time zone, follow the steps below:
In Control Panel, in the left upper corner click the link ‘Switch to Classic view’.
When in classic view, select Date & Time from the right-hand list.
On the Date and Time properties dialog, select the tab ‘Time Zone’
When on the ‘Time Zone’ tab, select the correct time zone.
Click OK to save the ‘Date and Time’ changes.
To adjust the Date and time manually follow the steps below:
In the Control Panel, in the left upper corner click the ‘Switch to Classic view’ link.
When in classic view, select Date & Time from the right-hand list.
On the Date and Time properties dialog, select the ‘Date & Time’ tab.
When on the ‘Date & Time’ tab, set the correct date and time.
Click OK to save the ‘Date and Time’ changes.
2.3.5.2.2 Time synchronization
Synchronize your computer time with the atomic clock on the Internet for the best time
accuracy.
Optionally the installer/user can configure a WebCCTV to synchronize its time and date
automatically on a regular basis using a so-called ‘Time Server’. These special servers exist
often on bigger corporate networks or on the Internet. To set this up, follow the steps below:
Click Settings -> Control panel.
In Control Panel, in the left upper corner click the ‘Switch to Classic view’ link.
When in classic view, select Date & Time from the right-hand list. On the Date and
Time properties dialog, select the tab ‘Internet Time’. You’ll see the following
screen:
Internet Time Screen
Version 4.3 Series
