Qualcast SDS2810 User manual

Instruction Manual
Important - Please read these instructions fully before starting assembly
These instructions contain important information that will help you get the best from
your mower, ensuring it is assembled correctly and safely.
If you need help or have damaged or missing parts, call the Customer Helpline
on 08456 400 800.
Qualcast
2800W Quiet Shredder (Model: SDS2810)
Aug 2012
UK/Ireland 08456 400 800
Web www.argosspares.co.uk
After Sales Support

Contents
2
Customer Helpline 08456 400 800
Safety Information.......................................................................................................................................... 3
Intended Purpose....................................................................................................................................... 3
Safety Precautions.......................................................................................................................................3
Symbols used in the Instructions ...............................................................................................................3
Symbols on the Shredder............................................................................................................................3
General Notes on Safety .............................................................................................................................4
Preparation.......................................................................................................................................................5
Working with the Device..............................................................................................................................6
Electrical Safety ...........................................................................................................................................7
General description .........................................................................................................................................8
Functional Description.................................................................................................................................8
In the Box .....................................................................................................................................................8
Assembly ..........................................................................................................................................................9
Step 1 - Unpacking ......................................................................................................................................9
Step 2 - Assembling the Shredder............................................................................................................10
Operating Instructions & Tips .......................................................................................................................11
Operating....................................................................................................................................................11
Switching the Shredder On and Off..........................................................................................................11
Emptying the Collection Box and Reverse Operation.............................................................................12
Overload Protection...................................................................................................................................12
Restarting and using the Blade Reversing Mechanism ..........................................................................12
Blade Adjustment ..........................................................................................................................................13
Adjusting Cutting Blade and Pressure Plate............................................................................................13
Disassembly & Storage .................................................................................................................................14
Working Methods...........................................................................................................................................15
General Working Instructions....................................................................................................................15
Maintenance and Cleaning Precautions .................................................................................................15
General Cleaning and Servicing................................................................................................................16
Replacement Parts ...................................................................................................................................16
Troubleshooting .............................................................................................................................................17
General Troubleshooting ...........................................................................................................................17
Technical Data................................................................................................................................................18
Technical Data Table..................................................................................................................................18
Disposal..........................................................................................................................................................18
Disposal and Recycling.............................................................................................................................18
Getting Help ...................................................................................................................................................18

Important - Please read these instructions fully before starting assembly
3
Customer Helpline 08456 400 800
The shredder is intended for compacting brous and wood-related materials such as hedge and tree
cuttings, branches, bark and pine cones. Any use not expressly permitted in this manual may damage the
shredder and pose a serious danger to the user.
Do not put stones, glass, metal, bones, plastics or other materials into the shredder
The operator or user is responsible for accidents and injury or damage to third parties. The manufacturer
cannot be held responsible for any damage caused by improper operation or use beyond the purpose
intended.
This shredder may cause serious injuries if improperly used. Before using the shredder, read the user manual
carefully and familiarise yourself with all of the controls.
In cases of uncertainty, ask an expert for advice. Keep the manual in a safe place and pass it on to any
subsequent owner to ensure that the information contained therein is available at all times.
Warning! Beware of hazards. Take special care to avoid injury or damage.
Precaution symbol (other symbol may be used instead of exclamation mark ) with information on prevention
of harm / damage.
Notice symbol with information on how to handle the device properly.
Warning! Beware of hazards. Take special care to avoid injury or damage.
Read the manual.
Wear ear and eye protection.
Wear hand protection.
Do not expose the unit to rain.
Intended Purpose
Safety Precautions
Symbols used in the Instructions
Symbols on the Shredder
Safety Information

Important - Please read these instructions fully before starting assembly
4
Customer Helpline 08456 400 800
Symbols on the Shredder (continued)
General Notes on Safety
Safety Information
IMPORTANT! Read carefully before use and keep for future reference
• The device must not be used by people (including children) with limited physical, sensory or mental
faculties or who lack the necessary experience and/or knowledge - other than they are supervised by
a person responsible for safety or are being instructed to operate the trimmer by such a person.
Caution! Switch o the motor and disconnect from the mains before adjustment or cleaning work, or if the
ex is caught or has been damaged.
Warning! Danger of injury from rotating blade ..
Keep your hands and feet away from the hopper funnel while the shredder is in operation.
Warning! Danger from thrown objects. Keep your distance from the funnel and ejection area, and keep
others away from the danger area.
Warning! Electric shock hazard.
Always unplug the shredder before working on it.
Guaranteed noise power level
Do not dispose of electrical equipment in the domestic waste.
Safety class II
Protection against contact with the ngers and solid foreign bodies with Ø > 12 mm as well as protection
against splashed water from all directions.
The product complies with the applicable European directives and an evaluation method of conformity for
these directives was done.

Important - Please read these instructions fully before starting assembly
5
Customer Helpline 08456 400 800
• Keep children and pets at a safe distance away from the device. Children must be supervised in order
to ensure that they do not play with the equipment.
• Never allow children or other persons unfamiliar with the user manual to use the shredder. Local
regulations or bylaws may determine the minimum age for using the shredder.
Observe local noise and other regulations.
CAUTION! When using powered tools, observe the following basic safety measures for the prevention of
electric shocks and the risk of injury and re:
Training: Become familiar with the instruction manual before attempting to operate this equipment.
• Never use the shredder with other persons or animals nearby.
• Wear hearing and eye protection at all times when using the shredder.
• Wear appropriate protective clothing such as protective gloves, rm footwear and long trousers. Do
not wear loosely tting clothes or clothes with dangling cords or belts.
• Only use the shredder in the open (that is, away from walls or other rigid structures) on a rm, level
surface.
• Do not use the machine on a paved or gravelled area, or which could be damaged by ejected material.
• Before you start up the shredder, check that all of the nuts, bolts and other fastenings are tight. Covers
must be fastened properly and in good working order. Replace any damaged or illegible stickers.
• Only use replacement parts and accessories supplied and recommended by the manufacturer. Using
third-party parts will immediately invalidate the guarantee.
• Do not leave the shredder working unattended and keep it in a dry place out of children’s reach.
• While being used in the open, connect the shredder to a residual current (RC) circuit breaker with a
trip current of not more than 30 mA.
• When servicing the cutting means be aware that, even though the power source will not start due
to the interlock feature of the guard, the cutting means can still be moved by a manual starting
mechanism.
• Shut-o the power unit before attaching or removing the collection box
• Keep all guards and deectors in place and in good working condition
General Notes on Safety(continued)
Preparation
Safety Information
Preparation

6
Customer Helpline 08456 400 800
• Make sure that the hopper funnel is empty before you start the shredder.
• Keep your head, hair and body away from the intake opening.
• Do not reach into the hopper funnel during operation. The shredder will continue to run for a short
period after you switch it o.
• Always make sure you are standing in a rm, balanced position. Do not lean forwards, and never stand
above the shredder when inserting materials.
• Make sure that the material inserted into the shredder does not contain hard objects made of metal,
stone, glass or similar.
• Do not use the shredder in the rain and in bad weather. Work in daylight or under good lighting
conditions.
• Do not operate the shredder when you are tired or distracted, or under the inuence of alcohol or
medication. Always take a break when you need one and be sensible about how you work.
• Switch the shredder o and pull the plug under the following circumstances:
when you are not using the device,
transporting it or leaving it unattended;
before releasing a jammed blade.
when you are checking the device, cleaning it or removing blockages;
when you are carrying out cleaning or maintenance work or replacing accessories;
before moving or lifting the shredder
If foreign objects should enter the shredder, if the shredder is making unfamiliar noises or vibrations
(check the shredder for damage before starting it up again)
• Do not allow shredded material to accumulate near the ejection area. This may otherwise hinder
proper ejection and force the material back up through the funnel.
• Do not transport or tip the shredder with the motor running.
• Keep hands, other body parts and clothing out of the lling chamber and ejection channel and away
from other moving parts.
• In the event of blockages in the machine intake or ejection, switch o the motor and disconnect the
machine from the mains before removing leftover material in the intake opening or ejection channel.
Ensure that the motor is free of rubbish and other accumulations in order to safeguard the motor from
damage or possible re.
Remember that the cutting tool is also activated when the starting mechanism is started on a motor
operated machine.
Working with the Device
Preparation

7
Customer Helpline 08456 400 800
CAUTION! The following states how damage to the shredder and possible injury to people can be
avoided:
• Handle the unit with care. Clean the ventilation slots regularly, follow the maintenance instructions.
• Do not overload your device. Work only within the indicated range of performance. Do not use low
power machines for heavy duty work. Do not use your device for purposes for which it has not been
designed.
• Only switch the shredder o once the hopper funnel is completely empty since the shredder may
otherwise clog up and not be able to start afterwards.
• Do not attempt to repair the shredder yourself unless you are qualied to do so. Any work not
specied in this manual may only be carried out by a qualied service centre.
CAUTION! The following states how damage to the shredder and possible injury to people can be
avoided:
• Handle the unit with care. Clean the ventilation slots regularly, follow the maintenance instructions.
• Do not overload your device. Work only within the indicated range of performance. Do not use low
power machines for heavy duty work. Do not use your device for purposes for which it has not been
designed.
• Only switch the shredder o once the hopper funnel is completely empty since the shredder may
otherwise clog up and not be able to start afterwards.
• Do not attempt to repair the shredder yourself unless you are qualied to do so. Any work not
specied in this manual may only be carried out by our service centre.
• Only use extension cables that have been approved for outdoor use and are resistant to splash water.
The core diameter for extension cables measuring up to 25 m must be at least 1.5 mm², and 2.5 mm²
for cables longer than 25m. Always roll the whole cable o the reel before use. Check the cable for
damage.
• Do not unplug the shredder pulling on the cable, only pull the plug itself. Keep the cable away from
heat, oil and sharp edges.
Working with the Device (continued)
Electrical Safety
Preparation

8
Customer Helpline 08456 400 800
The silent shredder is equipped with a powerful motor and motor brake, overload protection with an auto-
reverse system, and restart prevention for additional safety. A blade cylinder system is used for cutting, which
works extremely quietly and automatically draws in the shredding material. The sturdy chassis ensures a
stable standing position with good mobility.
Refer to the following descriptions for a functional description of the various components and controls.
Functional Description
In the Box
General Description
1Wheels
2Collection box
3Collection box safety
switch
4Shredder unit
5Mains cable (includes
strain relief only if
tted with a short
cable)
6Transport handle
7Reset switch
8Hopper funnel feed
inlet
9Operating mode
selection switch
10 Pusher to help feed
material into hopper
funnel
11 Cutting blade
adjustor knob
12 Chassis
13 Supports
A
7
8
9
10
11
12
13
6
5
4
3
2
1

9
Customer Helpline 08456 400 800
Remove the shredder from the packaging.
Pull the collection box 2out of the chassis 12 and take out the shredder unit and accessories.
Check the box contents.
Box contents
Operator’s instruction manual.
Shredder unit
Chassis
Collection box
Two wheels and two stabilising feet
Spanner
Allen key
Pusher
Step 1 - Unpacking
Assembly
B
12
2
3

10
Customer Helpline 08456 400 800
Assemble the two wheels 1. Clip the wheel covers into the wheels.
Screw on the two stabilising feet 13 to the chassis 12 .
Fix the shredder unit 4onto the chassis 12 with the four screws enclosed.

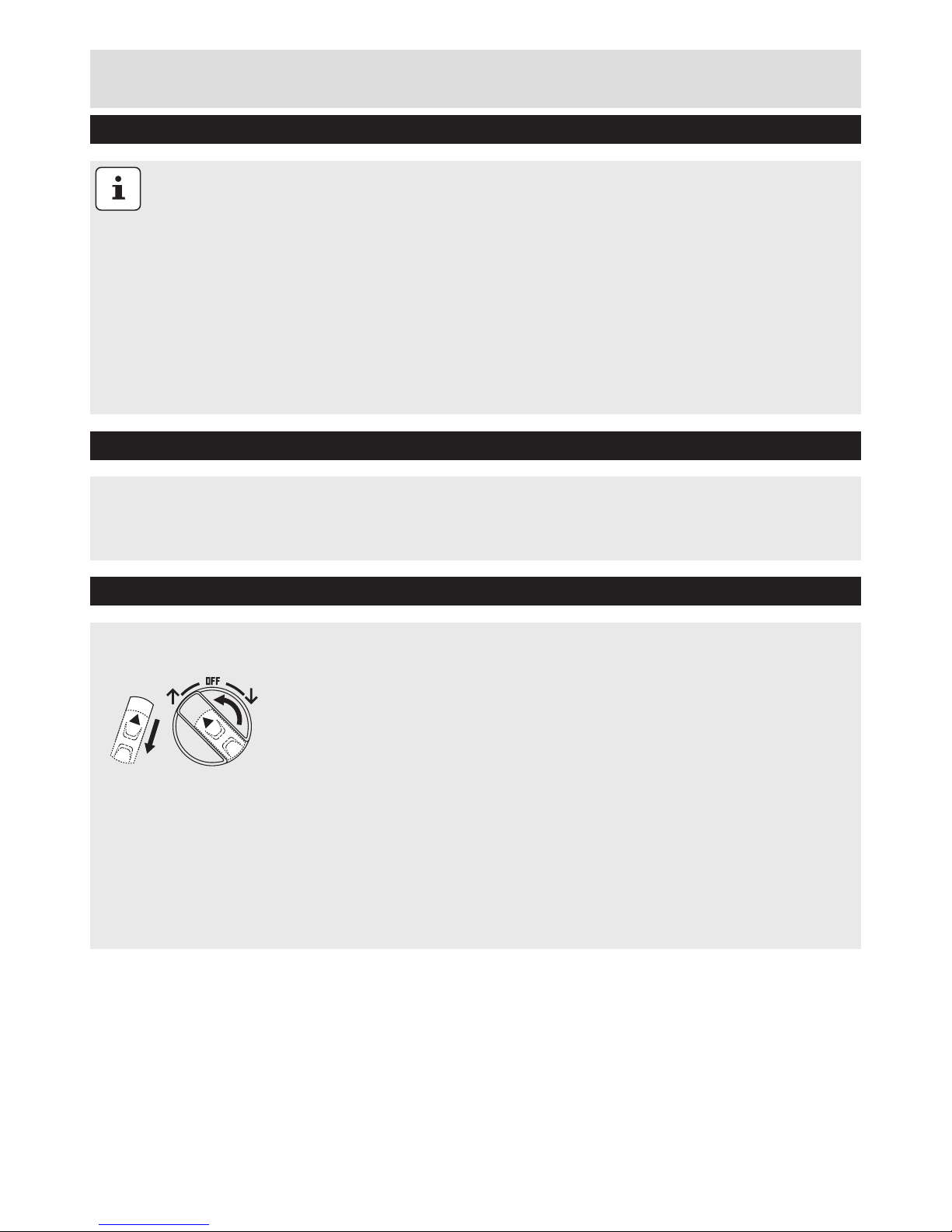

To insert the collection box (A2), the safety switch(see picture D) must be unlocked, i.e. in the“OFF”position.
Push the collection box (A2) into the chassis (A11), with the safety switch (A3) on the side of the wheels (A1).
The collection box (A2) can be pushed in only in one direction.
Lock the collection box (A2) by pushing the safety switch up (Fig D) to the ON position. This is a safety device.
Ensure it connects rmly in position otherwise the shredder motor will not function.
Step 2 - Assembling the Shredder
Assembly
C
1
13
12
12
4
