Quality Craft M870P-28ADC User manual

ELECTRIC FIREPLACE HEATER
INSTRUCTION MANUAL
M870P-28ADC
NDF-65NB-1
ATTENTION:
1. Find a location for the fireplace heater that is protected
from direct sunlight.
2. Do not plug the unit into the power outlet before you
read all instructions.

2
SAFETY INSTRUCTIONS
IMPORTANT
Please note: when you open the carton
carefully check the unit and make sure
there are no damages. If you have any
problems with the unit, with how the various
functions work or with hidden damages or
missing parts please call 1-800-459-4409
(EST) immediately for service.
NOTE: DO NOT RETURN UNIT TO THE
STORE BEFORE CALLING THE TOLL FREE
NUMBER. Do not dispose of your cartons
until you are completely satisfied with your
new fireplace heater. Read all instructions
thoroughly before operating your new
electric fireplace.
NOTE: Light bulbs may become loose
during shipping. If the flame effect is dim
or does not work, please check that light
bulb or bulbs are finger tight in socket. See
instructions for replacing bulb or bulbs.
Please do not return the sample to the store
before checking light bulbs.
NOTE: The electric fireplace heater may
emit a slight harmless odor when first
turned on. This is caused by activating the
internal heater components for the first time
and should not occur again.
1) Read all instructions before using this
electric fireplace heater.
2) This electric fireplace heater is hot when
in use. To avoid burns, do not let bare skin
touch hot surfaces. The grill directly in front
of the heater outlet becomes hot during
heater operation. Keep combustible materi-
als, such as furniture, pillows, bedding,
papers, clothes, and curtains at least 3 feet
(0.9 m) away from the front of the unit and
keep them away from the sides and rear.
3) Extreme caution is necessary when any
heater is used by or near children or
individuals with disabilites and whenever
the fireplace is left operating and unat-
tended.
4) Always unplug fireplace when not in use.
5) Do not operate any electric fireplace with
a damaged cord or plug or after the heater
malfunctions, has been dropped or dam-
aged in any manner.
6) Do not use outdoors.
7) This electric fireplace heater is not in-
tended for use in bathrooms, laundry areas
IMPORTANT SAFETY INSTRUCTIONS
WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAU-
TIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE
RISK OF FIRE, ELECTRIC SHOCK, AND INJURY TO
PERSONS, INCLUDING THE FOLLOWING:

3
and similar indoor locations. Never locate
heater where it may fall into a bathtub or
other water container.
8) Do not run cord under carpeting. Do not
cover cord with throw rugs, runners, or
similar coverings. Arrange cord away from
traffic area and where it will not be tripped
over.
9) To disconnect fireplace, turn controls to
off, then remove plug from outlet.
10) Connect to properly grounded outlets
only.
11) Do not insert or allow foreign objects to
enter any ventilation or exhaust opening as
this may cause an electric shock or fire, or
damage the heater.
12) To prevent a possible fire, do not block
air intakes or exhaust in any manner. Do
not use on soft surfaces, like a bed, where
openings may become blocked.
13) A heater has hot and arcing or sparking
parts inside. Do not use it in areas where
gasoline, paint, or flammable liquids are
used or stored.
14) Use this fireplace heater only as
described in this manual. Any other use
not recommended by the manufacturer
may cause fire, electric shock, or injury to
persons.
SAFETY INSTRUCTIONS
15) Avoid the use of an extension cord be-
cause the extension cord may overheat and
cause a risk of fire. However, if you have
to use an extension cord, the cord shall be
No.14 AWG minimum size and rated not
less than 1875 watts.
16) When storing or transporting the unit
and cord, keep in a dry place, free from
excessive vibration and store so as to
avoid damage.
CAUTION
If you use this heater in conjunction with
a thermal control, a program controller,
a timer or any other device that switches
the heater on automatically, remember to
observe all safety warnings at all times. The
electric fireplace heater has safety overheat
protection. If the overheat protection trips,
unplug the power cord from the recep-
tacle. It should reset automatically after 5
minutes.
WARNING
Procedures and techniques if not carefully
followed, will result in damage to the equip-
ment or will expose the user to the risk of
serious injury, illness or death.
This electric fireplace heater is for use on
120 volts. The cord has a plug as shown at
A in illustration below. An adapter as shown

4
at C is available for connecting three-blade
grounding-type plugs to two-slot recep-
tacles. The green grounding plug extending
from the adapter must be connected to
a permanent ground such as a properly
grounded outlet box. The adapter should not
be used if a three-slot grounded receptacle
is available.
A 15 AMP circuit is required to operate this
heater. If the breaker trips when the heater
is used then you may need to move the
heater to another location or unplug other
appliances that are on the same circuit. If
you require an extension cord use one that
is rated at 1875 watts.
SAVE THESE
INSTRUCTIONS
FOR FUTURE USE.
SAFETY INSTRUCTIONS

5

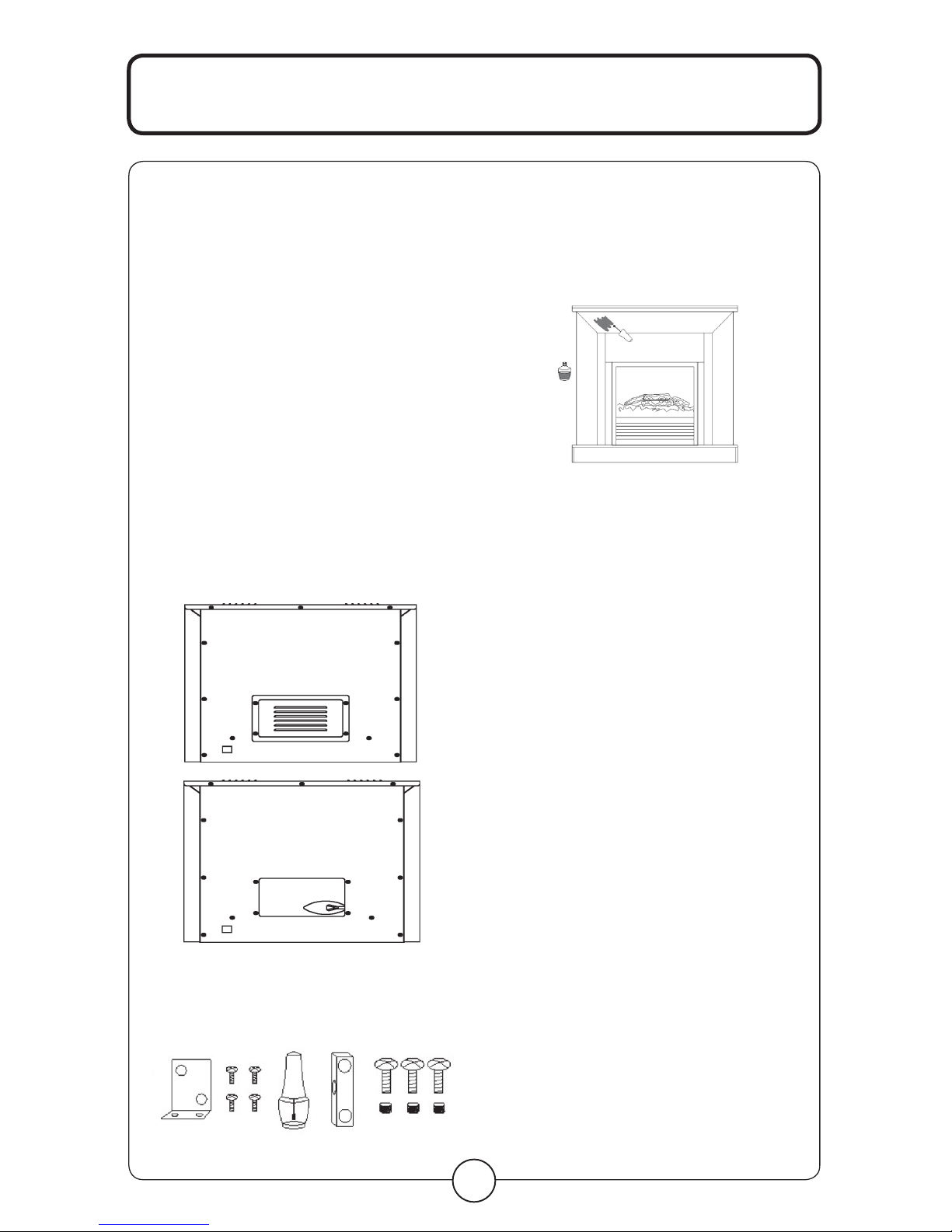

ASSEMBLY INSTRUCTIONS
PARTS LIST:
Fireplace insert 1
A) Top panel 1
B) Base panel 1
C) Front upper panel 1
D) Left front upper panel 1
E) Right front upper panel 1
F) Left front lower panel 1
G) Right front lower panel 1
H) Left upper side panel 1
J) Right upper side panel 1
K) Left lower side panel 1
L) Right lower side panel 1
M) Front lower panel 1
P) 3-holes wood connectors 2
Q) 4-holes wood connectors 2
R) Mounting feet 2
S) Mounting feet screws 8
T) Short KD screws 2
U) Mounting clips 2
V) Mounting brackets 2
W) KD screws 56
X) Plastic Connectors 12
Y) SELF REPAIR SET
Touch-up repair paint (bottle)
L-shape bracket 2
Screws for L bracket 8
Plastic connectors 1
KD screws 3
KD nuts 3
Z) WALL ANCHOR SAFETY CABLE
Wall anchor 1
Screw for wall anchor 1
Screw for mantle 1
Safety cable 1
TOOL REQUIRED: PHILLIPS HEAD SCREWDRIVER
MANTEL ASSEMBLY:
CAUTION: Place a piece of cardboard or
protective sheet on the floor in order to avoid
scratching the decorative surface of your
mantel during assembly.
Please DO NOT fully tighten the KD screws
until all panels are assembled.
NOTE: Each plastic connector is pre-assem-
bled (pre-drilled) on the specific panels with
2 screws. If the KD screw(s) do not fit during
assembly, loosen the 2 (pre-drilled) screws
to adjust the plastic connector until the KD
screws are able to be installed. Tighten all KD
screws once all panels are assembled.

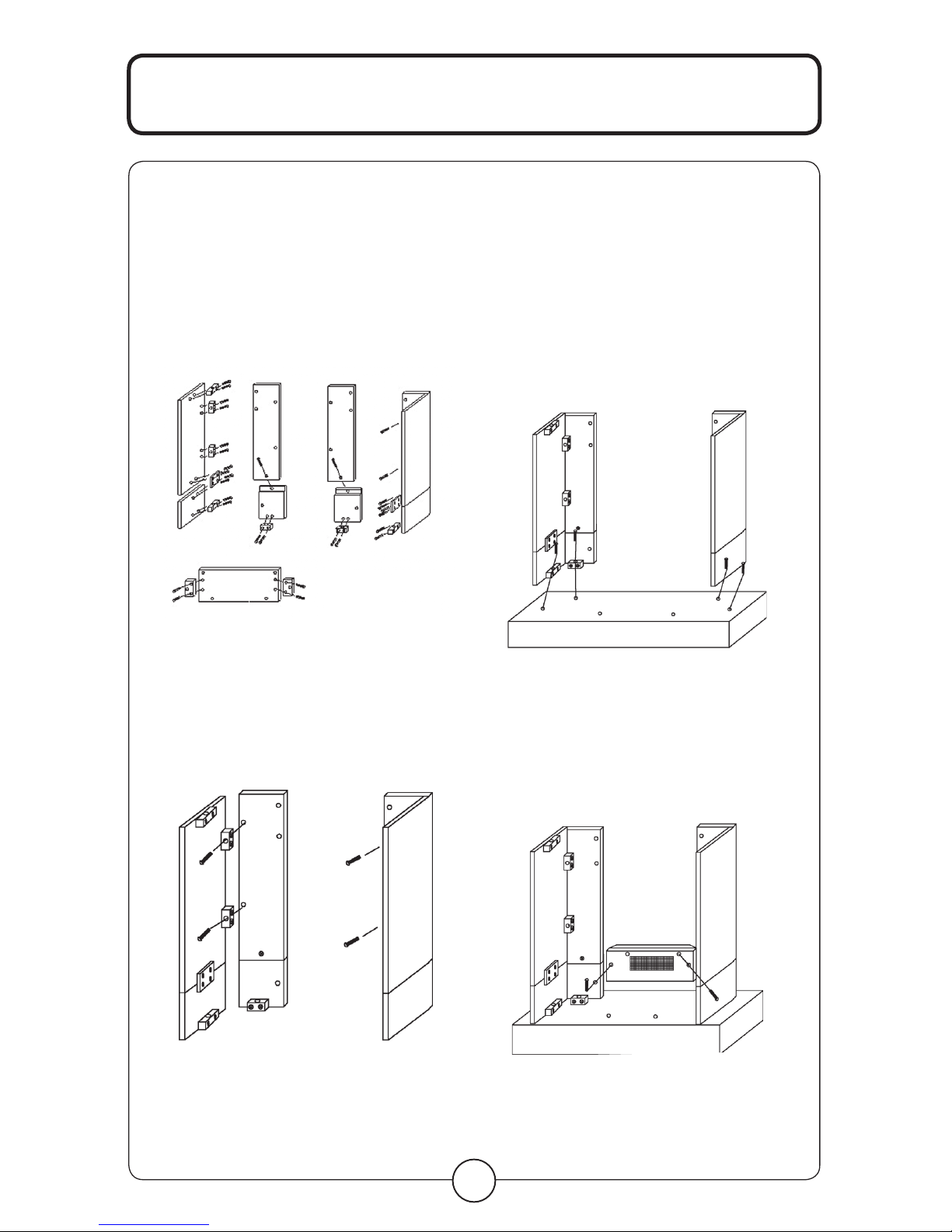

Step 1: Attach 10 PLASTIC CONNECTORS [X]
to the PANELS (F, G, H, J, K and L) as shown in
Fig. A. (2 pcs KD SCREWS for each CONNEC-
TOR). Attach PANEL K and PANEL H together
with 4-HOLES WOOD CONNECTOR (Q) and 4
KD SCREWS. Attach PANEL L and PANEL J
together with 4-HOLES WOOD CONNECTOR
(Q) and 4 KD SCREWS. Attach PANEL F and

6
PANEL D together with 1 KD SCREW. Attach
PANEL G and PANEL E together with 1 KD
SCREW. Attach 2 x 3-HOLES WOOD CONNEC-
TORS (Q), one at each side, to PANEL C with
4 KD SCREWS (2 screws for each 3-HOLES
WOOD CONNECTOR).
fig. A
Step 2: Attach the LEFT SIDE PANEL (H and
K) to the LEFT FRONT PANEL (D and F) with
2 KD SCREWS. Attach the RIGHT SIDE PAN-
EL (J AND L) to the RIGHT FRONT PANEL (E
& G) with 2 KD SCREWS. See fig B.
fig. B
NOTE: If the KD SCREW(S) do not fit during
assembly, loosen the 2 screws to adjust the
PLASTIC CONNECTOR until the PANELS/KD
SCREWS can be installed.
Step 3: Attach the LEFT (D, F, H and K) and
RIGHT (E, G, J and L) SIDE PANELS to the
BASE PANEL (B) using 4 KD SCREWS (2
screws on each side). See Fig C.
fig. C
Step 4: Attach the FRONT LOWER PANEL
(M) to the LEFT FRONT LOWER PANEL (F)
and RIGHT FRONT LOWER PANEL (G) with
2 KD SCREWS (1 screw on each side). See
Fig D.
fig. D
ASSEMBLY INSTRUCTIONS

7
Step 5: Attach the FRONT UPPER PANEL
(C ) to the LEFT AND RIGHT FRONT UPPER
PANEL (D and E) with 2 KD SCREWS (1
screw on each side). See Fig. E.
fig. E
Step 6: Attach 2 PLASTIC CONNECTORS on
the upper side of FRONT UPPER PANEL (C)
with 4 KD SCREWS (2 at each plastic con-
nector). See Fig F.
fig. F
Step 7: Install the TOP PANEL (A) to the unit
as shown and attach with 4 KD SCREWS.
See Fig G.
Step 8: Attach 2 MOUNTING FEET to
fireplace insert (one on each side) with 8
MOUNTING FEET SCREWS (R) (4 screws in
each mounting foot). See Fig. H.
fig. H
Step 9: Carefully place the INSERT in the
unit opening. The front of INSERT should be
flush with the front of the mantel. Care-
fully lift the INSERT into the mantel until the
top stopper is against to mantel. Attach 2
MOUNTING CLIPS (U) to the top side of the
insert with 2 SHORT KD SCREWS (T). Attach
2 MOUNTING BRACKETS (V) to the MOUNT-
NING FEET (R) and attach to the BASE with 2
KD SCREWS (W). See Fig. I.
ASSEMBLY INSTRUCTIONS

8
OPERATION
fig. I
Step 10: Tighten all KD SCREWS.
Step 11: Carefully move the assembled unit
to the desired location. The fireplace mantel
should not be positioned in area exposed to
direct sunlight.

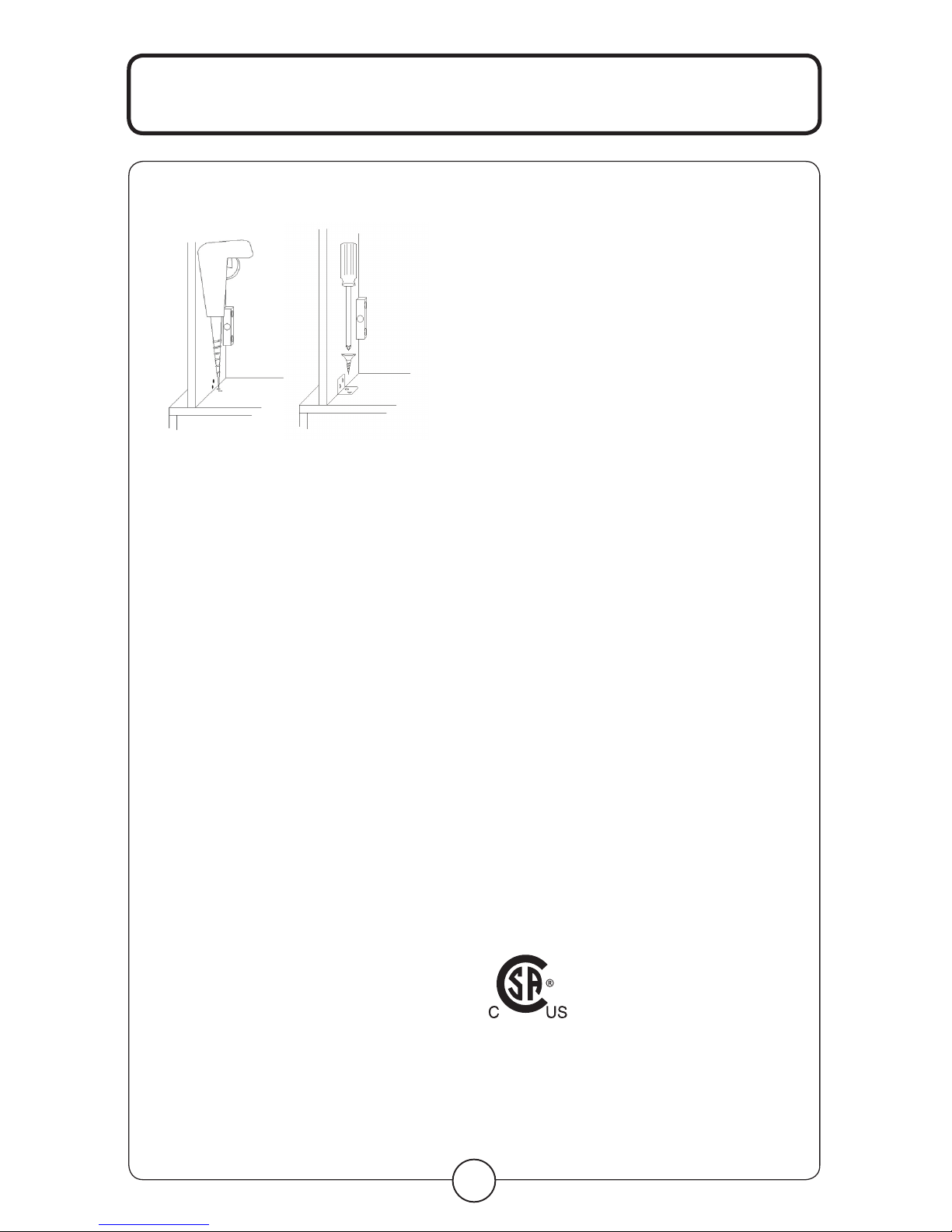

WALL ANCHOR
SAFETY CABLE
The use of WALL ANCHOR SAFETY CABLE
is highly recommended in order to reduce
the risk of the fireplace being tipped over
accidentally. WARNING: This CABLE may
reduce possible risk of injury if the fireplace
is improperly handled, but is not a substi-
tute for proper adult supervision. Children
should not be left unattended near any
heater.
1. Drill a 5/16 in (8 mm) hole in the wall.
Insert the PLASTIC WALL ANCHOR into the
hole and gently tap until the flange on the
anchor is against the wall surface.
2. Position the back edge of the mantle close
to the wall.
3. Attach the SAFETY CABLE to the mantle
using the SCREW FOR MANTLE.
4. Use the SCREW FOR WALL to attach the
other end of SAFETY CABLE to the wall.
5. Make sure all screws are tight.
OPERATION
After reading complete instructions, confirm
all controls on fireplace are in the OFF posi-
tion. Plug the fireplace into a 15AMP/120Volt
outlet. If the cord does not reach, you may
use an extension cord rated for a minimum
of 1875 WATTS. Once the fireplace insert
has been properly connected to a grounded
electrical outlet, it is ready to operate.
OPERATION BY
THE CONTROL PANEL
The controls are located behind the grill
below the front glass and can be accessed by
pulling the grill from the top, forward
and down.

9
MAINTENANCE
ON/OFF: Press this button for main power
and flame effect. The indicator light will turn
on. See below for other control switches.
750W: For low heat function - Press this
switch while the ON/OFF switch is in the on
position for low heat. The indicator light will
turn on.
1500W: For high heat function - Press this
switch while the ON/OFF switch and the
750W switch are in the on position for high
heat. The indicator light will turn on.
TEMPERATURE CONTROL: To adjust the tem-
perature to your individual requirements,
turn the temperature control dial to the right
(clockwise) to increase the desired tempera-
ture and to the left for lower temperature.
This temperature control dial can only be
used while the ON/OFF switch and 750W &
1500W switches are in the ON position.
DIMMER CONTROL KNOB: Turn the dimmer
dial clockwise or counter clockwise to get
the desired flame intensity. The dimmer
switch can only be used when the ON/OFF
switch is in the on position.
NOTE: When the ON/OFF switch is turned
off, all other heater functions will stop even
though the switches may be in the
on position.
MAINTENANCE
WARNING
Disconnect power and unplug the power
cord before attempting any maintenance or
cleaning to reduce the risk of fire, electric
shock or damage to persons. The bulbs in
your unit can become extremely hot. Allow
at least 10 minutes between turning off the
unit and removing the light bulbs to avoid
the accidental burning of the skin.
RISK OF FIRE:
DO NOT EXCEED THE
RECOMMENDED BULB
WATTAGE.

10
TOUCH UP REPAIR PAINT
Paint directly on the mantel unit if
necessary. Fig. A.
fig. A
REPAIRS
If any problems are found with the original
parts during mantel assembly such as the
panels cannot be installed with the plastic
connector. Try to solve by one of the fol-
lowing method.
Tools required: Electric drill, drill bits 3/4
inches (10 mm) or 1/16 inches (2 mm),
pencil, hammer, Philips screwdriver,
safety goggles and gloves (if necessary).
WARNING: Wear goggles before you start
drilling.
OPTION 1:
Use the spare KD NUTS, KD SCREWS and
PLASTIC CONNECTOR.
1. Place the PLASTIC CONNECTOR on the
mantel unit and mark the drill-holes as
shown in Fig. B.
REPLACING THE FLAME
EFFECT LIGHT AND LOG-SET
LIGHT BULBS
Step 1: Remove 4 screws on the back
of fireplace and remove the rear
cover of the unit.
Step 2: You will find 1 X 40W Type B-10
bulbs under log-set bed.
Step 3: Loosen and remove burnt out bulb
and replace with new bulb.
Step 4: Close the rear cover and secure
with the 4 screws.
Step 5: Plug in the unit.
REPAIR SET
REPAIR SET

11
fig. B
2. Drill the holes with diameter 3/4 inches
(10 mm) and depth 3/4 inches
(10 mm) on
the mantel. Each PLASTIC CONNECTOR
needs 3 holes. See Fig. C.
fig. C
fig. D
3. Gently install the KD NUTS into the
drilled-holes with hammer as shown in
Fig. D.
4. Attach the PLASTIC CONNECTOR and
lock in place with KD SCREWS as shown
in Fig. E.
fig. E
OPTION 2:
Use the SMALL L-BRACKETS and
SCREWS.
1. Place the SMALL L-BRACKET to the
unit as shown and mark the drill-holes on
the mantel as shown in Fig. F.
fig. F
2. Drill the holes with diameter 1/16
inches (2 mm) and depth 5/16 inches
(8 mm) on the mantel. Each SMALL L-
BRACKET needs 4 holes. See Fig. G.
REPAIR SET

12
fig. G fig. H
3. Attach the SMALL L-BRACKET and lock
in place with SCREWS as shown in Fig. H.
CLEANING
To clean unit first turn off controls on unit
and unplug the unit from power source. To
clean glass display panel; remove dust with
clean dry cloth or to remove finger prints
and other marks clean glass with clean
damp cloth. Do not use abrasive cleaners or
spray liquids on glass display panel surface.
Metal and metal painted parts should be
cleaned with damp cloth. Do not use
abrasive cleaners or spray liquids on
these surfaces.
WARRANTY
Every electric fireplace heater is tested
before it leaves the factory and it is guar-
anteed for one year. If the unit should fail
to operate correctly within one year from
the date of purchase, call customer service
at 1-800-459-4409 (EST). We will, at our
discretion either repair or replace the unit. It
will have to be returned to us freight prepaid
and we will return the repaired or replaced
unit to you freight prepaid. The company’s
sole obligation is to repair or replace the
unit. This warranty is void if in the opinion
of Quality Craft the unit has been tampered
with, altered, misused, damaged, abused
or used with the wrong power source. Light
bulbs are not covered by this warranty. The
warranty is for homeowner use only and
does not cover units used in commercial
situations.
Imported by
Quality Craft
Laval, Quebec, Canada H7S 2G7
1-800-459-4409 (EST)
www.qualitycraft.com
Made in China
CLEANING/WARRANTY
