Quality Craft MM480PG-47CW User manual

1
IMPORTANT:
Please note when you open the carton carefully check the
unit and make sure there is no damage. If you have any
problems with assembling the unit, with how the various
functions work or with damage or missing parts please call
1-800-459-4409 (9:00am - 5:00pm EST) immediately for
service.
NOTE: DO NOT RETURN UNIT TO THE STORE BEFORE CALLING
THE TOLL FREE NUMBER . Do not dispose of your cartons until
you are completely satisfied with your new fireplace heater.
NOTE: Light bulbs may become loose during shipping. If the
flame effect is dim or does not work, please check that light
bulb or bulbs are finger tight in socket. See instructions for
replacing bulb or bulbs.
INSTRUCTION MANUAL
ATTENTION:
1. Find a location for the fireplace heater that is protected from
direct sunlight.
2. Do not plug the unit into the power outlet before reading all
instructions.
SAVE THESE INSTRUCTIONS
FOR FUTURE USE.
IMPORTANT SAFETY
INSTRUCTIONS
WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAUTIONS
SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, AND INJURY TO PERSONS, INCLUDING THE
FOLLOWING:
1) Read all instructions before using this electric fireplace heater.
2) This electric fireplace heater is hot when in use. To avoid
burns, do not let bare skin touch hot surfaces. The grill directly
in front of the heater outlet becomes hot during heater opera-
tion. Keep combustible materials, such as furniture, pillows,
bedding, papers, clothes, and curtains at least 3 feet (0.9 m)
away from the front of the unit and keep them away from the
sides and rear.
3) Extreme caution is necessary when any heater is used by, or
near, children or individuals with disabilities and whenever the
fireplace is left operating
and unattended.
4) Always unplug fireplace when not in use.
5) Do not operate any electric fireplace with a damaged cord or
plug or after the heater malfunctions, has been dropped or
damaged in any manner.
6 Do not use outdoors.
7) This electric fireplace heater is not intended for use in
bathrooms, laundry areas and similar indoor locations. Never
locate heater where it may fall into a bathtub or other water
container.
8) Do not run cord under carpeting. Do not cover cord with throw
rugs, runners, or similar coverings. Arrange cord away from
traffic area and where it will not be tripped over.
9) To disconnect fireplace, turn controls to off, then remove plug
from outlet.
10) Connect to properly grounded outlets only.
11) Do not insert or allow foreign objects to enter any ventilation
or exhaust opening as this may cause an electric shock or
fire, or damage the heater.
12) To prevent a possible fire, do not block air intakes or exhaust
in any manner. Do not use on soft surfaces, like a bed, where
openings may become blocked.
13) A heater has hot and arcing or sparking parts inside. Do not
use it in areas where gasoline, paint, or flammable liquids are
used or stored.
14) Use this fireplace heater only as described in this manual. Any
other use not recommended by the manufacturer may cause
fire, electric shock, or injury to persons.
15) Avoid the use of an extension cord because the extension cord
may overheat and cause a risk of fire. However, if you have to
use an extension cord, the cord shall be No.14 AWG minimum
size and rated not less than 1875 watts.
16) Caution: Do not plug this product into a receptacle controlled
by a wall switch or dimmer.
17) When storing or transporting the unit and cord, keep in a dry
place, free from excessive vibration and store so as to avoid
damage.
CAUTION:
IF YOU USE THIS HEATER IN CONJUNCTION WITH A THERMAL
ELECTRIC FIREPLACE HEATER
MODEL: MM480PG-47CW (NDF-79NR)

2
CONTROL, A PROGRAM CONTROLLER, A TIMER OR ANY OTHER
DEVICE THAT SWITCHES THE HEATER ON AUTOMATICALLY,
REMEMBER TO OBSERVE ALL SAFETY WARNINGS AT ALL
TIMES. THE FIREPLACE HEATER HAS SAFETY OVERHEAT
PROTECTION. IF THE OVERHEAT PROTECTION TRIPS, SWITCH
OFF ALL SWITCH BUTTONS AND WAIT APPROxIMATELY 5 -10
MINUTES. IT SHOULD RESET AUTOMATICALLY ONCE THE UNIT
COOLS DOWN.
WARNING: PROCEDURES AND TECHNIqUES IF NOT CAREFULLY
FOLLOWED WILL RESULT IN DAMAGE TO THE EqUIPMENT AND
WILL ExPOSE THE USER TO THE RISK OF SERIOUS INJURY,
ILLNESS OR DEATH.
This electric fireplace heater is for use on 120 volts. The cord has
a plug as shown at A in illustration below. An adapter as shown
at C is available for connecting three-blade grounding-type plugs
to two-slot receptacles. The green grounding plug extending from
the adapter must be connected to a permanent ground such as a
properly grounded outlet box. The adapter should not be used if a
three-slot grounded receptacle is available.
A 15 AMP circuit is required to operate this heater. If the breaker
trips when the heater is used then you may need to move the
heater to another location or unplug other appliances that are on
the same circuit. If you require an extension cord use one that is
rated at 1875 watts.
ASSEMBLY INSTRUCTIONS
PARTS LIST qTY
Fireplace insert ........................................................................1
A) Top panel.............................................................................1
B) Base panel ..........................................................................1
C) Upper front panel.................................................................1
D) Mid-front panel....................................................................1
E) Left front panel ....................................................................1
F) Right front panel ..................................................................1
G) Left side panel.....................................................................1
H) Right side panel...................................................................1
J) Pillars .................................................................................2
K) Decorative box.....................................................................2
Q) Spacers ..............................................................................2
R) KD screws.........................................................................46
S) Mounting Screws .................................................................4
U) Mounting Clips.....................................................................2
V) Mounting Bracket.................................................................2
W)Medium KD Screws..............................................................4
X) Plastic Connector ...............................................................12
Y) SELF REPAIR SET
Touch-up repair paint (bottle)....................................................1
L shape bracket.......................................................................2
Screws for L shape ..................................................................8
Plastic connector .....................................................................1
KD screws...............................................................................3
KD nuts...................................................................................3
Z) WALL ANCHOR SAFETY CABLE
Wall anchor .............................................................................1
Screw for wall anchor...............................................................1
Screw for mantel .....................................................................1
Safety cable.............................................................................1
TOOL REQUIRED: PHILLIPS HEAD SCREWDRIVER

3
MANTEL ASSEMBLY:
CAUTION: PLACE A PIECE OF CARDBOARD OR PROTECTIVE
SHEET ON THE FLOOR IN ORDER TO AVOID SCRATCHING THE
DECORATIVE SURFACE OF YOUR MANTEL DURING ASSEMBLY.
DO NOT FULLY TIGHTEN THE KD SCREWS UNTIL ALL PANELS
ARE ASSEMBLED.

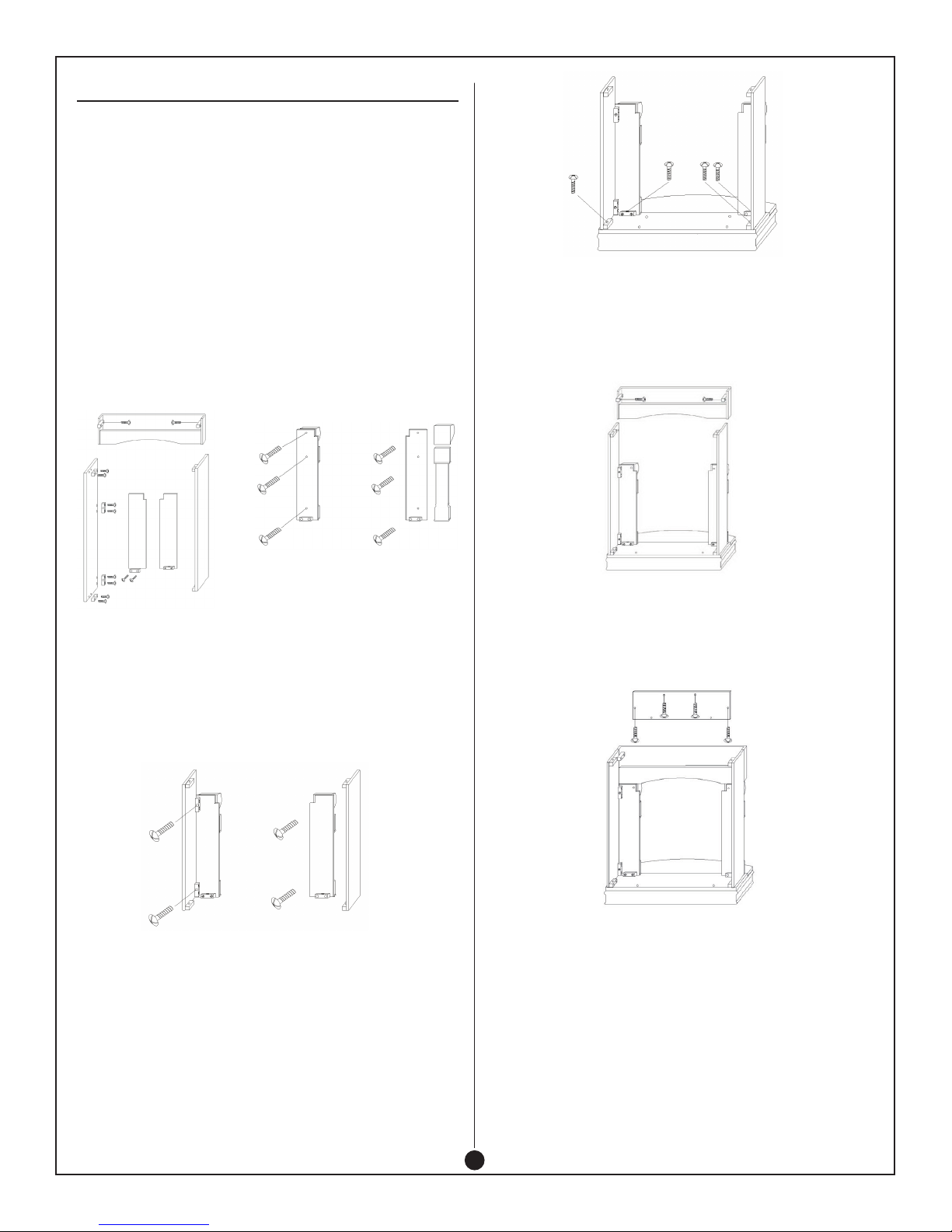

Step 1: Attach all PLASTIC CONNECTORS (X) to the PANELS (C,
E, F, G and H) as shown in Fig. A. (2pcs KD SCREWS [R] for each
CONNECTOR).
Step 2: Attach the PILLARS (J) and DECORATIVE BOX (K) to the
LEFT and RIGHT FRONT PANEL (E and F) with 3 KD SCREWS [R]
as shown in fig. B.
Fig. A Fig. B
Step 3: Attach the LEFT SIDE PANEL (G) to the LEFT FRONT
PANEL (E) with 2 KD SCREWS [R]. Attach the RIGHT SIDE PANEL
(H) to the RIGHT FRONT PANEL (F) with 2 KD SCREWS [R]. See
fig. C.
Fig. C
Step 4: Attach the LEFT (E, G) and RIGHT (F, H) SIDE PANELS to
the BASE (B) using 4 KD SCREWS [R] (2 screws on each side).
See Fig. D.
Fig. D
Step 5: Place the UPPER FRONT PANEL (C) over both FRONT
PANELS (E and F) and lock in place to the SIDE PANELS (G and H)
with 2 KD SCREWS [R] as shown in Fig. E.
Fig. E
Step 6: Attach the MID-FRONT PANEL (D) to the UPPER FRONT
PANEL (C) with 4 KD SCREWS [R] (2 screws each side). See Fig. F.
Fig. F
Step 7: Install the TOP PANEL (A) to the unit as shown and attach
with 4 KD SCREWS [R]. See Fig. G and H.

4
Fig. G Fig. H
Step 8: Tighten all KD SCREWS [R].
FIREPLACE INSERT INSTALLATION:
The fireplace insert can be installed after the mantel has been fully
assembled.
WARNING: MAKE SURE THE FIREPLACE INSERT CONTROLS ARE
IN THE OFF POSITION AND THE UNIT IS NOT PLUGGED IN.
Step 1: Place the INSERT on the floor, directly in front of the MAN-
TEL. (The front of both the mantel and insert should be facing the
same direction).
Step 2: Carefully lift the insert into the mantel opening. The front of
the INSERT should be flush with the front of the mantel. See fig. I.
Fig. I
Step 3: Once the INSERT is in place, attach 2 MOUNTING BRACK-
ETS (V) to the bottom with 2 MED-KD SCREWS (W). See fig. J.
Fig. J
Step 4: Attach 2 MOUNTING CLIP (U) on the top of the INSERT.
Attach 4 MOUNTING SCREWS (S) with the INSERT as shown in
Fig. K and 2 MEDIUM KD SCREWS (W) and 2 Spacers (Q) with the
MANTEL UNIT as shown in Fig. L.
Fig. K
Fig. L
Step 5: Move assembled unit to desired location. Unit should not be
positioned in an area exposed to direct sunlight.

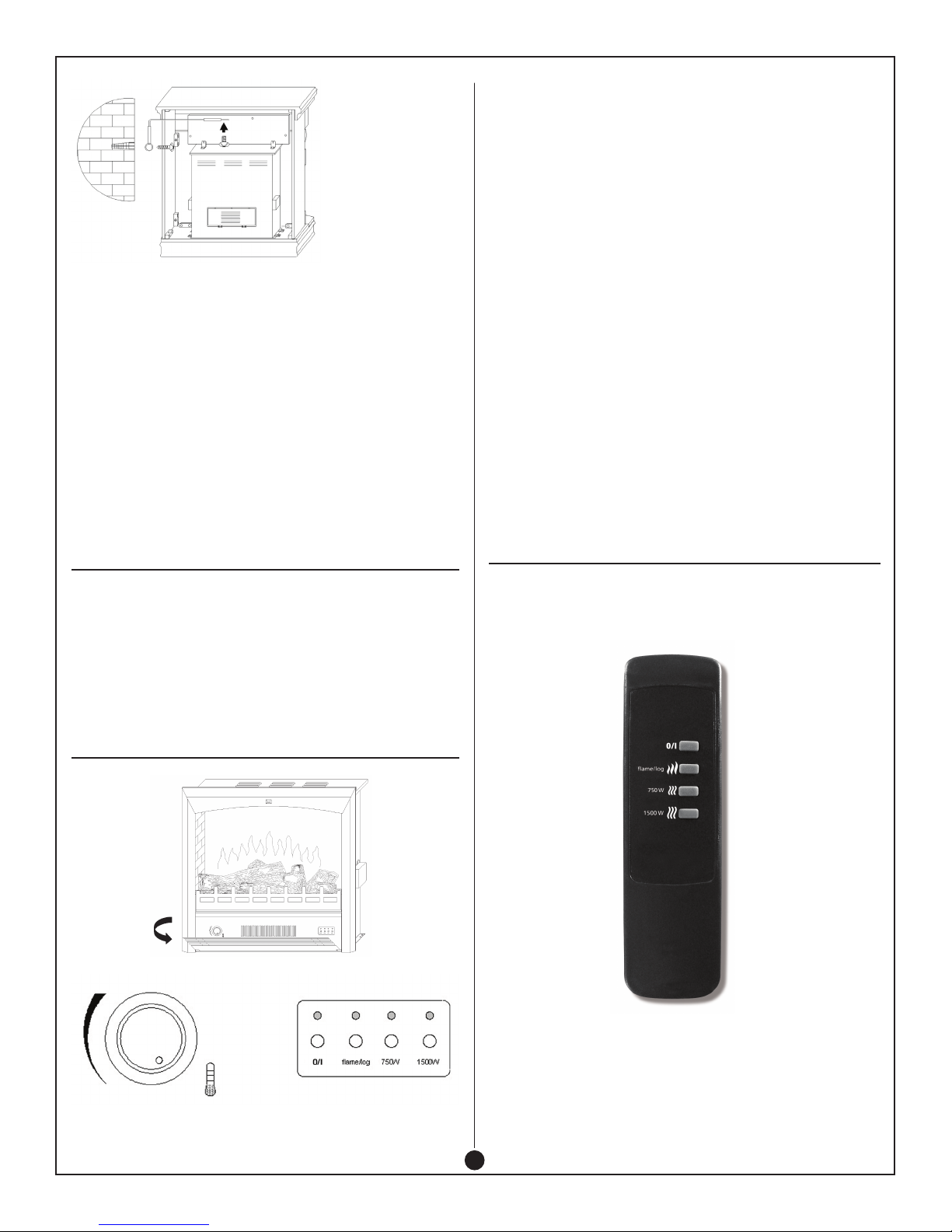

WALL ANCHOR SAFETY CABLE
The use of WALL ANCHOR SAFETY CABLE is highly recommended
in order to reduce the risk of the fireplace being tipped over acci-
dentally. WARNING: This CABLE may reduce possible risk of injury if
the fireplace is improperly handled, but is not a substitute for proper
adult supervision. Children should not be left unattended near any
heater.
1. Drill a 5/16 in (8 mm) hole in the wall. Insert the PLASTIC
WALL ANCHOR into the hole and gently tap until the flange on
the anchor is against the wall surface.
2. Position the back edge of the mantle close to the wall.
3. Attach the SAFETY CABLE to the mantle using the SCREW
FOR MANTLE. See fig. M.
4. Use the SCREW FOR WALL to attach the other end of SAFETY
CABLE to the wall.
5. Make sure all screws are tight.

5
Fig. M
Once the fireplace heater has been properly installed to the mantel,
plug the fireplace into a 15AMP/120 Volt outlet. If the cord does
not reach you may use an extension cord rated for a minimum of
1875 WATTS.
Note: Every time the electric heater is plugged in, it will beep once.
This means the heater has connected to the power outlet. The
electric fireplace Heater is ready to operate.
Note: Ensure the circuit breakers for the power supply are turned
on. The electrical fireplace heater can be operated by the control
panel.
OPERATION
After reading complete instructions, confirm all controls on
fireplace are in the OFF position. Plug the fireplace into a
15AMP/120Volt outlet. If the cord does not reach, you may use
an extension cord rated for a minimum of 1875 WATTS. Once the
fireplace insert has been properly connected to a grounded electri-
cal outlet, it is ready to operate.
OPERATION BY THE CONTROL PANEL
O/I: Press this button for main power function. The unit will beep
and the indicator light will be on. Pressing again will stop the main
power function. Once the heater is switched off, the indicator light
will flash and the unit will keep working with air flow for 5 more
seconds.
FLAME/LOG: Press this button once for flame effect. The unit
will be beep and the indicator light will be ON. The bulbs for flame
effect & log-set will be ON. To adjust the flame intensity, hold down
the button - the flame optics will go higher or lower. Once you have
found the desired setting, release the button. Pressing the button
again will stop the light function.
750W: Press this button for low heat level. The unit will beep, the
pilot light and indicator light will be on. The fireplace heater will
give low heat level. Pressing once again will stop the low heat level
function.
1500W: Press this button for high heat level. The unit will beep, the
pilot light and indicator light will be on. The fireplace heater will give
high heat level. Pressing once again will stop the high heat level
function.
HEAT TEMPERATURE CONTROL KNOB: To adjust the temperature
to your individual requirements, turn the temperature control dial to
the right (clockwise) to increase the desired temperature and to the
left (counter clockwise) to lower the temperature.
OPERATION BY THE REMOTE CONTROL
Plug in your electric fireplace and it will beep once, this means
you have power and your remote is ready to operate your electric
fireplace.
O/I: Press this button for main power function. The unit will beep
and the indicator light will be on. Pressing again will stop the main
power function. Once the heater is switched off, the indicator light
will flash and the unit will keep working with air flow for 5 more
seconds.

6
FLAME/LOG: Press this button once for flame effect. The unit
will be beep and the indicator light will be ON. The bulbs for
flame effect & log-set will be ON. To adjust the flame intensity,
hold down the button - the flame optics will go higher or lower.
Once you have found the desired setting, release the button.
Pressing the button again will stop the light function.
750W: Press this button for low heat level. The unit will beep, the
pilot light and indicator light will be on. The fireplace heater will
give low heat level. Pressing once again will stop the low heat
level function.
1500W: Press this button for high heat level. The unit will beep,
the pilot light and indicator light will be on. The fireplace heater
will give high heat level. Pressing once again will stop the high
heat level function.
REMOTE CONTROL BATTERY REPLACEMENT
Replace with 2 AAA batteries.
WARNING: DO NOT MIx OLD AND NEW BATTERIES DO
NOT MIx ALKALINE, STANDARD (CARBON-ZINC), OR
RECHARGEABLE (NICKEL CADMIUM) BATTERIES.
MAINTENANCE
WARNING:
Disconnect power and unplug the power cord before attempting
any maintenance or cleaning to reduce the risk of fire, electric
shock or damage to persons. The bulbs in your unit can become
extremely hot. Allow at least 10 minutes between turning off the
unit and removing the light bulbs to avoid the accidental burning
of the skin.
RISK OF FIRE: DO NOT ExCEED THE RECOMMENDED
BULB WATTAGE.
REPLACING THE FLAME EFFECT LIGHT AND LOGSET
LIGHT BULBS
Step 1: Remove 14 screws on the back of fireplace and open
the rear cover. There are 2 larger screws and 12 smaller
screws.
Step 2: You will find 2 X 40W Type B-10 bulbs under log-set
bed.
Step 3: Loosen and remove the burnt out bulb and replace with
new bulb.
Step 4: Close the rear cover. Secure the larger screws into the
top left corner hole and bottom right corner holes as
shown in the diagram. Secure the 12 smaller screws
into the remaining holes. Make sure the screws are in
the correct holes and have been tightened.
Step 5: Plug in the unit.
REPAIR SET
TOUCH-UP REPAIR PAINT
Paint directly on the mantel unit if necessary. Fig. A.
Fig. A

7
REPAIRS
If any problems are found with the original parts during mantel
assembly such as the panels cannot be installed with the plastic
connector. Try to solve by one of these following methods:
Tools required: Electric drill, drill bits 3/4 inches (10 mm) or 1/16
inches (2 mm), pencil, hammer, Philips screwdriver, safety goggles
and gloves (if necessary).
WARNING: Wear goggles before you start drilling.
Option 1:
Use the spare KD NUTS, KD SCREWS and PLASTIC CONNECTOR.
1. Place the PLASTIC CONNECTOR on the mantel unit and mark
the drill-holes as shown in Fig. B.
Fig. B
2. Drill the holes with diameter 3/4 inches (10 mm) and depth 3/4
inches (10 mm) on the mantel. Each PLASTIC CONNECTOR needs
3 holes. See Fig. C.
Fig. C Fig. D
3. Gently install the KD NUTS into the drilled-holes with hammer as
shown in Fig. D.
4. Attach the PLASTIC CONNECTOR and lock in place with KD
SCREWS as shown in Fig. E.
Fig. E
Option 2:
Use the SMALL L-BRACKETS and SCREWS.
1. Place the SMALL L-BRACKET to the unit as shown and mark the
drill-holes on the mantel as shown in Fig. F.
Fig. F
2. Drill the holes with diameter 1/16 inches (2 mm) and depth
5/16 inches (8 mm) on the mantel. Each SMALL L-BRACKET
needs 4 holes. See Fig. G.
Fig. G Fig. H
3. Attach the SMALL L-BRACKET and lock in place with SCREWS
as shown in Fig. H.

8
CLEANING
To clean unit first turn off controls on unit and unplug the unit from
power source. To clean glass display panel; remove dust with clean
dry cloth or to remove finger prints and other marks clean glass with
clean damp cloth. Do not use abrasive cleaners or spray liquids on
glass display panel surface. Metal and metal painted parts should
be cleaned with damp cloth. Do not use abrasive cleaners or spray
liquids on these surfaces.
WARRANTY
Every electric fireplace heater is tested before it leaves the factory
and it is guaranteed for one year. If the unit should fail to operate
correctly within one year from the date of purchase, call customer
service at 1-800-459-4409 (EST). We will, at our discretion either
repair or replace the unit. It will have to be returned to us freight
prepaid and we will return the repaired or replaced unit to you
freight prepaid. The company’s sole obligation is to repair or replace
the unit.
This warranty is void if in the opinion of Quality Craft the unit has
been tampered with, altered, misused, damaged, abused or used
with the wrong power source. Light bulbs are not covered by this
warranty. The warranty is for homeowner use only and does not
cover units used in commercial situations.
Imported by
quality Craft
Laval, Quebec, Canada H7S 2G7
1-800-459-4409 (EST)
www.qualitycraft.com
Made in China
