Operations & Maintenance Manual
AF Air Purifier iSeries
AF1000RNP and AF2000RNP
1.0 INTRODUCTION
Congratulations! Youare now the owner of a QUATRO AirFlow Series RNP system, an advanced effective air purifier, designed specifically tohelp protect the
human respiratory system. You can expect a noticeable improvement in air quality as the unit begins the processof reducing microscopic airborne particulate.
The RNP system was designed to provide flexibility in the field. It can be used with adjustable discharge grills for simple recirculation or it can be converted to a
negative pressure system by replacing the adjustable grill with 6”(AF1000RNP) or 10” (AF2000RNP) discharge collar which has been supplied.
This will allow the end user to exhaust clean air from the room to create a negative pressure environment.
2.0 PRECAUTION
Read all the instructions contained within this manual before operating this unit. Keep this manual, as it contains information for proper operation and
maintenance. Keep all fastening hardware tight to ensure that the unit is in good working condition. Familiarise yourself with the way in which filters
are removed, installed, and serviced. All filters must be in place whenever this machine is in operation. Use only on a grounded electrical circuit; do
not use any two-wire electrical prong adapters to defeat the three-pronged plug on the end of the cord. When servicing the motor, be careful when
touching the exterior of the motor as soon as it has been turned off; it may be hot enough to be painful or cause injury. They are built to operate at
higher temperatures. Do not substitute any other filters (particulate or chemical) for those supplied, as this will alter the unit efficiency. DO
NOT SERVICE MOTOR OR CONTROL PANEL UNLESS UNIT IS UNPLUGGED FROM RECEPTACLE (ITS POWER SUPPLY)!
3.0 PRINCIPLE OF OPERATION
The air is drawn in through an intake grille located at the bottom of unit. The air then passes through the particulate, HEPA and optional odor filters.
The clean air is then released through the top discharge grills into the controlled space. The AF iSeries Purifier features a threefold method of
operation; a) captures general particulate; b) HEPA filter removes microscopic particulate matter; c) Optional Chemical filters adsorbs, reacts or
scrubs toxic or nuisance gases (optional).

QUATRO
Air Technologies Inc.
Fresh Air Purifiers-----------------------------------------------------------------------------------------------Engineers Of Clean Air
4.0 MAIN SYSTEM COMPONENTS
BLOWER ASSEMBLY: The blower is factory balanced and tested to ensure quiet, vibration-free operation.
CONTROL PANEL: Designed for easy monitoring, features micro-processor based control for speed variation and filter alarms.
5.0 SYSTEM SPECS
Description
AF2000
AF1000
Nominal Airflow (CFM/m3/hr)
1000 / 1700
600 / 1020
Dimensions, Height:
71” (1803mm)
52” (1321mm)
Dimensions, Width: *
24” (610mm)
22” (559mm)
Dimensions Length:
26” (660mm)
16” (406mm)
Voltage
120/1/60 or 230/1/50
120/1/60 or 230/1/50
Current:
5.4 or 2.3 amps
1.6 or 0.8 amps
Approx. Weight:
350lbs (159kgs)
200lbs (91kgs)
* - add 2" for bend on power cord if req’d for width dimension
6.0 UNIT RECEIVING INSTRUCTIONS
Upon receipt, inspect unit for either visible or concealed damage. Damage should be immediately reported to the transport company. Ensure:
a) All internal components are present and are adequately supported and installed;
b) Labels and serial numbers are present for future identification;
c) Verify that power supply is compatible with equipment. Also check that the unit is plugged into a grounded receptacle;
d) Ensure that unit-mounted casters are tight and secure before manoeuvring the system.
e) Remove any spare filters supplied inside the unit and store for future use.
7.0 START-UP
a) Place unit on a flat surface, ensure filters are installed (see Equipment Installation and Filter Maintenance Guide on face of unit);
b) Ensure that supply and return air grilles are not obstructed in any way (air circulation patterns will be inhibited if airflow is obstructed);
c) Insert male end of cord into the correct voltage circuit. Control will emit 3 beeps and 4 LEDs will flash along with those beeps.
d) Press Power button and adjust airflow (speed control) accordingly. See Section 9.1.
WARNING: DO NOT OPERATE UNIT UNLESS ALL FILTERS ARE IN PLACE.
8.0 FILTER & BLOWER MAINTENACE
Proper maintenance is critical to extend the life of the system. The information presented below outlines basic maintenance procedures ensuring the
unit will provide trouble-free operation. The purifier is designed to allow quick access to the filters, blower/motor and control panel assembly.
Level
Type
Replacement Frequency
AF1000*
AF2000*
Level I
Dust Filter
Every 3 months
F007-8/box
F001-8/box
Level II
12” Intermediate Hi Capacity Filter
Every 6 months
F015-1/box
F014-1/box
or
6” Intermediate High Capacity filter
Every 6 months
F016
(2) F016
or
Intermediate General VOC/Odor Filter
Every 12 months
(1) F003-GPC
(2) F003-GPC
Level III
Hepa Filter (99.97%)
Every 12-18 months
F057-1/box
F052-1/box
or
Hepa Filter High Capacity (99.97%)
Every 12-18 months
F550-1/box
-
or
Hepa Filter (99.995%)
Every 12-18 months
F357
F352
* The filters shown are for the most popular filter sequences. Verify the part number on the filter in your system before ordering.
8.1 FILTER-ALERT SYSTEM AND FILTER REPLACEMENT
QUATRO has included in this unit a “FILTER ALERT” Warning System. When filters need to be replaced, the “Service Filter(s)” light (LED)
illuminates and beeper sounds for 2 seconds every 4 hours. When the appropriate “Service Filter(s)” light (LED) Illuminates, it is time to replace
the filters following the above table. The information presented below outlines basic maintenance procedures ensuring the unit will provide
trouble-free operation for years to come.

QUATRO
Air Technologies Inc.
Fresh Air Purifiers-----------------------------------------------------------------------------------------------Engineers Of Clean Air
8.2 PARTICULATE FILTER REPLACEMENT

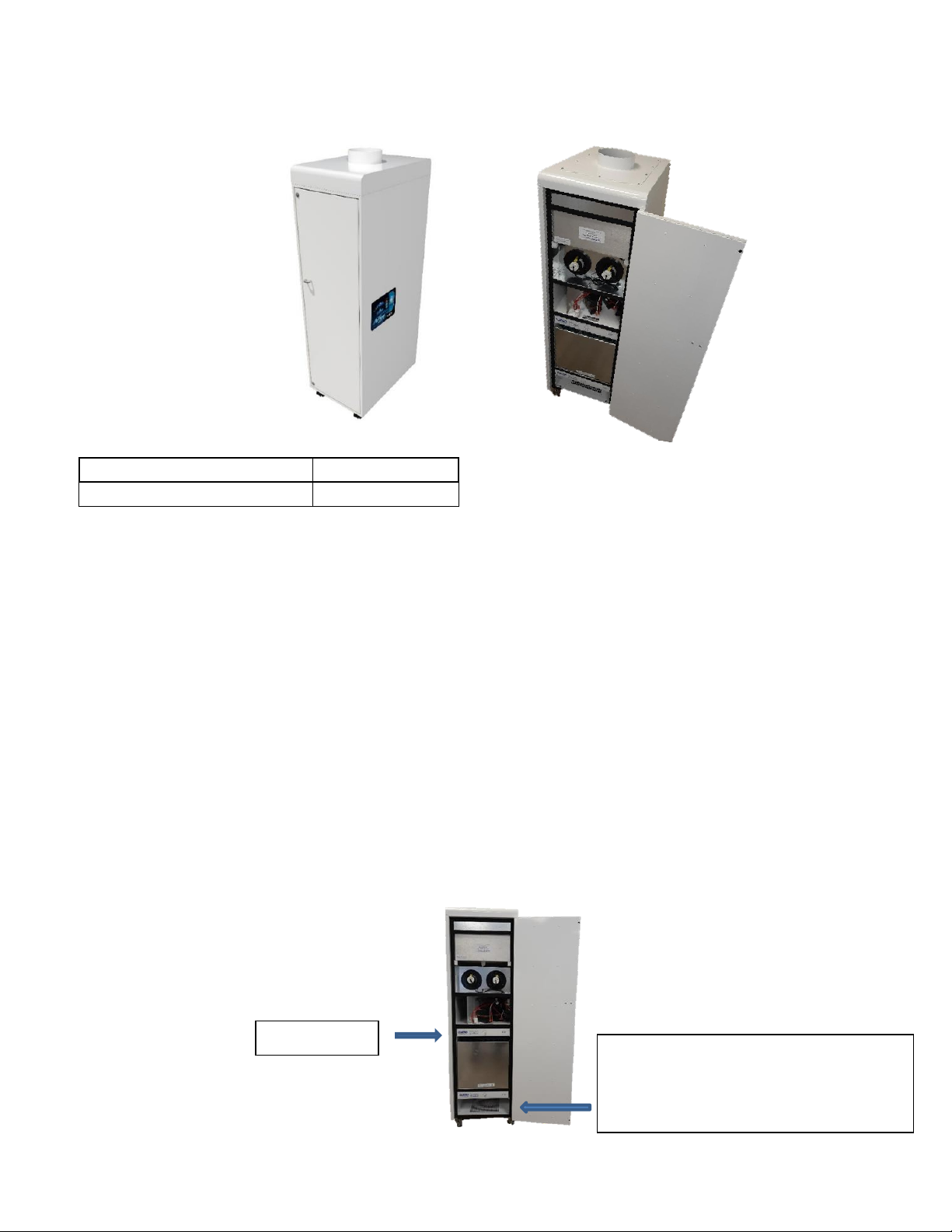

a) Open the filter access door with the appropriate tool (Phillips screw driver) to avoid stripping of screws;
b) Carefully slide pre-filters and high capacity filters along their support channels, Slide clean filters gently into place;
c) Ensure Dust Filters are replaced as per airflow indications;
e) If encountering difficulties, confirm that there are no obstructions in the filter track;
f) Hi-Efficiency filters must be replaced as per airflow arrow on the filter casing;
g) HEPA filters should be installed with gaskets facing up to seal on the section above the filter.
For critical applications, a secondary seal can be applied using continuous bead of removable sealant. (Part# AR321)
This would be applied to the middle of the gasket in a continuous bead prior to putting the HEPA into the system and then
Inserting pressure seal rods
h) The RNP systems are equipped with a HEPA pressure sealing mechanism. The easiest and most effective way to change the HEPA filters is
with the unit lying down on its back. Two or more people will be required to do this safely. Once lying down the pressure sealing mechanism rods
are to be pulled out to release the seal. There are loops on the rods tohelp pull. Ifit is difficult to remove please use a tool for additional leverage.
Please note it critical for thesefilters tobe tightand secure to avoid by-pass sothis is completely normal. If secondary sealant was applied please
remove this prior to installing new filter.
i) Care must be taken not to damage the exposed portions of the new HEPA filter. DO NOT bend aluminium separators as this will obstruct airflow.
j) RESET “Service Filter(s)” Light (see section 8.6)
8.3 Optional CHEMICAL FILTER TRAY (F003) MAINTENANCE
It is essential that the chemical filtermedia be replaced approximately every twelve months OR immediately following any detection of odor. After an
operating period of twelve months (or when the filters are consumed), call your authorised distributor to purchase a new set of chemical filtration
assemblies (Part No: F003-xxx ) prior to removal of existing one.
To replace Odor Filter (Part No: F003-xxx)
a) Ensure that the unit is unplugged, open door with appropriate tool to avoid stripping of screws;
b) Slide out the existing F003 chemical module, remove new F003 from the box that it was shipped in;
c) Reinsert new filter back into the system with removable lid on top;
d) Return door to the closed position and verify that an airtight seal is maintained;
e) RESET “Service Filter(s)” Light (see section 8.6)
8.3 Optional BULK CHEMICAL MEDIA FILTER TRAY (F003) MAINTENANCE
To refill existing F003 chemical filter cell with new bulk odor media:
a) Slide out existing F003 filter (see diagram below);
b) Unscrew the screws and lift off access cover;
c) Pour out used odor filter (this procedure may be dusty, therefore it is recommended to do this in a well-ventilated area. It is also
recommended to wear a dust mask, goggles and gloves when replacing bulk media);
d) Refill F003 container with fresh odor filters and replace the 2 panel covers and re-insert into unit as per diagram on last page of manual;
e) RESET “Service Filter(s)” Light (see section 8.6)
Filter disposal is the responsibility of the end-user. Please contact local authorities for proper and legal disposal.

QUATRO
Air Technologies Inc.
Fresh Air Purifiers-----------------------------------------------------------------------------------------------Engineers Of Clean Air
8.4 BLOWER MAINTENANCE
WARNING: Switch unit off and unplug power cord from wall before servicing the blower.
The motor is equipped with electric motor grade double shielded ball bearings and a special lubricant, assuring long life and quiet operation. No extra
motor maintenance is required.
8.5 ANNUAL GENERAL INSPECTION
The sealing integrity of the AF iSeries Purifier is essential. Every 12 months, verify that all gaskets are in proper condition. Should the door gaskets
adhere to the unit when opening a door, lubricate its surface with a transparent grease or petroleum jelly. Should the unit be relocated continuously
for optimum efficiency, ensure all casters are tightly fastened.
The motor is equipped with electric motor grade double shielded ball bearings and a special lubricant, assuring long life and quiet operation. No extra
motor maintenance is required.
8.6 RESETTING FILTER LIGHTS
When filters need to be replaced, the filter light illuminates and beeper sounds for 2 seconds every 4 hours.
Resetting “Service Filter(s)” Alert
1- Ensure filter access door is closed
2- Plug power back to the unit
3- Press & hold SPEED UP & DN simultaneously until unit BEEPS
4- Hold for 10+ seconds, when panel is beeping continuously, release buttons
5- You are now in RESET MENU, in this condition, “System ON” Led is FLASHING QUICKLY
6- Press SPEED DN (2 Times) until “Service Filter(s)” LED is FLASHING
7- Press & HOLD POWER button while “Service Filter(s)” LED is FLASHING & unit is BEEPING continuously
8- Release, when LED stops FLASHING & stops BEEPING

QUATRO
Air Technologies Inc.
Fresh Air Purifiers-----------------------------------------------------------------------------------------------Engineers Of Clean Air
9.1 SPEED CONTROL
The unit is equipped with built-in speed control. By pressing & holding down the speed UP or DOWN triangles, you respectively increase and decrease
unit’s speed. When you reach the highest or lowest speed, the panel will continuously BEEP alerting you that you have reached the highest or lowest
speed.
Units that are equipped with factory optional Remote Control subD 9 pin connector can purchase an optional foot pedal switch (part# AA175 ) to
turn unit on/off remotely. Also pins 1 and 2 can be wired to any dry contact switch for remote on/off capability.
9.2 Replacement and optional components
10” collar plate for AF2000
H184
AF2000 HEPA seal rod kit (2)
AR329-03
AF2000 (120V) Fan
AR329-02-16
6” Collar plate for AF1000
M701
AF1000 HEPA seal rod kit (2)
AR336-01
AF1000 (120V) Fan
A001-16
8” Collar plate for AF1000
M271-38
Tube of removable sealant
AR321
120 volt power cord
E220
AF1000 grill plate (incl. 3 grills)
AR336-02
Single multi-directional grill
H507
AF2000 replacement grill
H001

QUATRO
Air Technologies Inc.
Fresh Air Purifiers-----------------------------------------------------------------------------------------------Engineers Of Clean Air
9.3 POSITIONING OF UNIT
Mounted on four casters, the unit can be wheeled virtually anywhere in the room for optimal convenience. The unit is designed in an up-flow
configuration allowing the air to create a "sweeping" effect across the room. The clean air is released from top of unit, moving across the room in a
downward motion. The clean air pushes particulate and gaseous matter towards the floor level and draws it in the intake grille located at bottom of
unit. This configuration allows the particles which have already accumulated towards the ground to be pulled towards the return air grille. This results
in a very effective means of space cleaning. The AF iSeries Purifier is more efficient the closer it is placed to its intended source. Conversely, the
unit's efficiency is diminished as it is placed further from the source of pollutants.
9.3 REDUCTION IN AIRFLOW
As the unit cleans the air, the filters are removing the submicronic particles and dust from the air stream. As the filters accumulate debris (both visible
and microscopic), a restriction on the blower/motor is created. As the restriction becomes greater, the air capacity delivered by the blower decreases
rendering the unit less effective. IT IS VERY IMPORTANT TO CHANGE FILTERS ON A REGULAR BASIS.
10.0 TROUBLESHOOTING GUIDE
Symptoms
Possible Cause
Suggested Solution
Unit will not start
o Faulty Power supply
o Blown fuse
o Unit not plugged into receptacle
o Check breaker box
o Replace fuse
o Plug unit in
Excessive noise
o Blower wheel contacting cone
o Fan isolators loose or off
o Realign/replace wheel
o Replace isolator
Insufficient airflow
o Obstruction in system
o Clogged filters
o Remove obstruction
o Replace filters
Excessive airflow
o Filters not in place
o Install filters
11.0 WARRANTY
QUATRO Air Technologies warrants its equipment to be free from defect in material and workmanship under normal use and service for a
period of one year from date of shipment. QUATRO's obligation under this warranty shall be limited to replacing any parts, thereof, which shall
be demonstrated to have been defective. This is expressly in lieu of all other warranties, express or implied, including the warranties of
merchantability and fitness.
QUATRO claims no warranty as to merchantability or as to the fitness of the merchandise for any particular use and shall not be liable for any
loss or damage. No person, firm or corporation is authorised to assume for QUATRO any other liability in connection with the sale of these
goods. Equipment, parts and material manufactured by others and incorporated in QUATRO's equipment are warranted by QUATRO only to
the extent of the original manufacturer's liability to QUATRO Air Technologies Inc.
Conditions and Limitations:
This warranty does not cover abuse, misuse, maintenance negligence, improper assembly, acts of vandalism, acts of God, fear wear,
modifications of the equipment or installation of a part not recommended by QUATRO Air Technologies, as well as operation of the equipment at
voltages other than those specified by QUATRO Air Technologies Inc.

QUATRO
Air Technologies Inc.
Fresh Air Purifiers-----------------------------------------------------------------------------------------------Engineers Of Clean Air

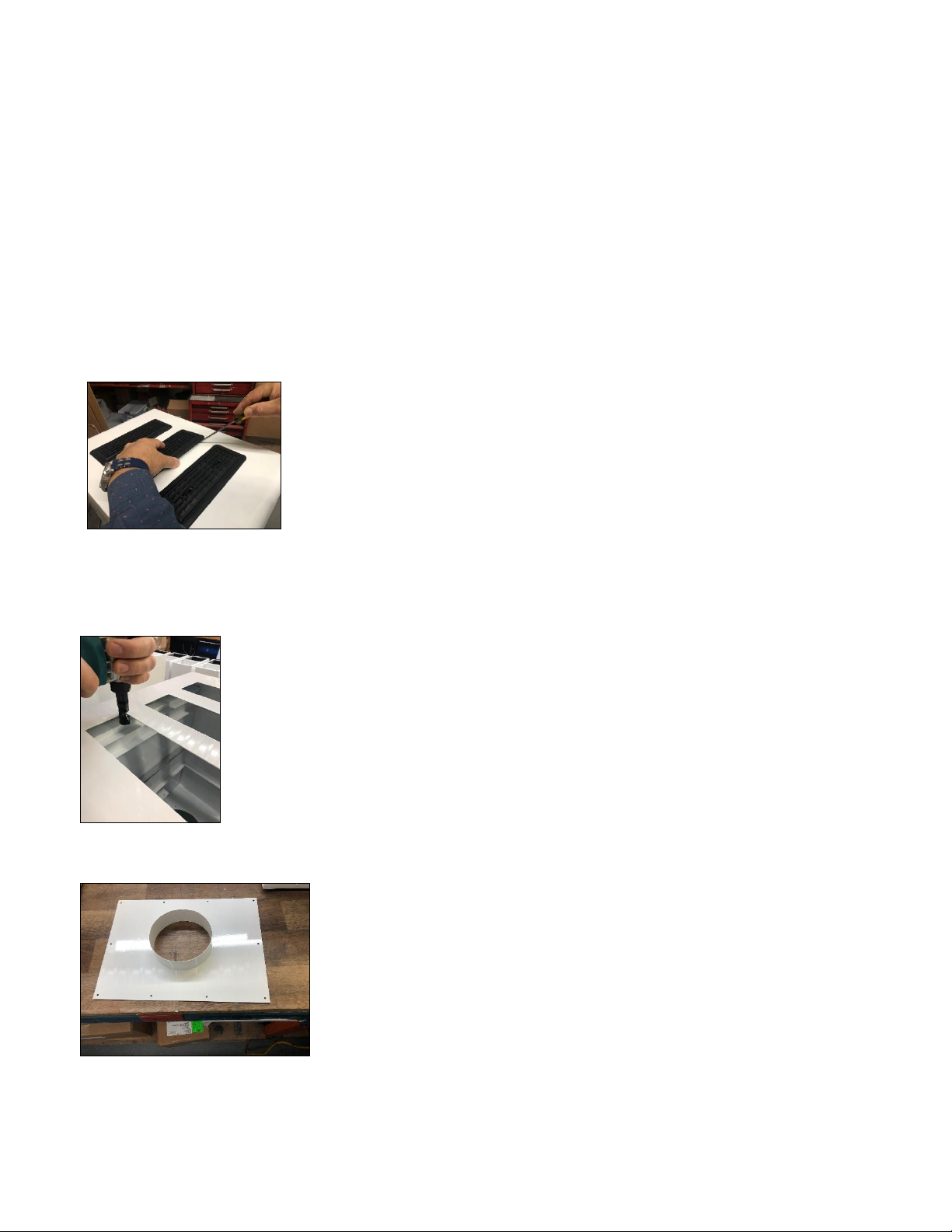

The AF1000RNP and AF2000RNP multipurpose systems are shipped to you as a recirculation system complete with adjustable inlet grill and
adjustable discharge grills installed. If it is desired to operate as a negative pressure system, the 6” (AF1000) or the 10” (AF2000) discharge
collars will need to be installed on the unit. If an additional collar or flexible hose is required to complete the installation, please see replacement
parts table above

QUATRO
Air Technologies Inc.
Fresh Air Purifiers-----------------------------------------------------------------------------------------------Engineers Of Clean Air
CONVERTING FROM RECIRCULATION TO NEGATIVE PRESSURE
For AF-1000RNP units with serial numbers less than 75288
Step 1.
Remove all filters from the AF-1000 and place a cardboard or plastic sheet over the fan
assembly to catch as much steel material as possible during the cutting/drilling process.
If you decide not to replace the HEPA filter you must place something on top of the filter to
protect against the metal shavings dropping into the filter.
Step 2.
Remove the three black supply grilles by using a slotted screwdriver and pressing on the four
tabs located on the black grilles.
Step 3.
Use a jig saw or other type of steel saw to cut the metal material out in between the grilles to
leave a large rectangular opening.
Step 4.
The extra supply collar plate has been supplied; it has an 6’’Ø or 8” Ø opening.

QUATRO
Air Technologies Inc.
Fresh Air Purifiers-----------------------------------------------------------------------------------------------Engineers Of Clean Air
Step 5.
Place the supply collar plate (M701 or M271-38) on the top of the unit - center it and use a marker to dot the location
of the holes, remove plate and drill a 1/16’’Ø pilot hole.
Step 6.
Place a continuous ¼” bead of white or clear silicone around the perimeter of the top of the unit before placing the
collar plate on top of the unit
Step 7.
Use the self-tapping screws to fix the plate on to the top of the unit permanently.
For units built with serial numbers greater than 75288 the 3 black grills will be mounted on a
separate removable plate (AR336-02). This will make the transition from Recirculation to
Negative pressure collar discharge a simple task. The plates will be removable and
interchangeable with no cutting required.
To convert AF2000 units simply remove the discharge grill (H001), apply some caulking to the
10”collar plate (H184) and screw down the plate over the discharge opening using the hardware
provided.

QUATRO
Air Technologies Inc.
Fresh Air Purifiers-----------------------------------------------------------------------------------------------Engineers Of Clean Air
UV Light Installation - AF1000
Tools required:
•#3 Philips screwdriver
OR
•#2 Robertson screwdriver
Caution: Never expose eyes or skin to UV-C energy.
Warning: Before installing or servicing the UV-C lights, turn unit power off.
Note: there is a kill switch that serves this function, as an extra safety precaution.
Note: UV-C light bulbs should be replaced annually. Visible blue light is not an indication of
UV-C output; UV-C wavelength is invisible.
1. Turn off your AF1000-IVF unit.
2. Open the unit door; Use your screwdriver to unfasten the (2) screws securing it.
Material
Part Number
UV-C Light bulb (pack of 4)
#E718
Spare Filter
(
Note: UV-C lights are packaged
and placed in the bottom
compartment of the unit to remain
safe during shipping.

QUATRO
Air Technologies Inc.
Fresh Air Purifiers-----------------------------------------------------------------------------------------------Engineers Of Clean Air
3. Twist the white power cap counter-clockwise and remove.
4. Slide out the yellow safety latch.
5. Twist the power supply counter-clockwise and remove the UV light assembly.
6. Loosen the clamp nut and remove the old UV-C lightbulb from the power supply socket.
Note: Your UV-C bulb
will have 4 prongs, not
2 as illustrated.

QUATRO
Air Technologies Inc.
Fresh Air Purifiers-----------------------------------------------------------------------------------------------Engineers Of Clean Air
7. Insert the new UV-C lightbulb [#E718] into the power supply socket; secure by hand
tightening the clamp nut to create an interference fit.
8. Insert the UV light assembly into the mounting ring.
Note: Make sure to observe alignment slots on the mounting ring, allowing for an easy fit.
9. Pull up on the yellow safety latch. Turn the UV light assembly clock-wise (Note: approx.
60 degrees CW until installed). Push down on the yellow safety latch to lock into
mounting ring.
10.Align the power cap and twist on; Clockwise rotation until you hear it snap into place.
11.Close the unit door and secure by fastening the screws back into place.
For visual purposes, the
HEPA filter above the
UV-C light bulb has
been removed.
