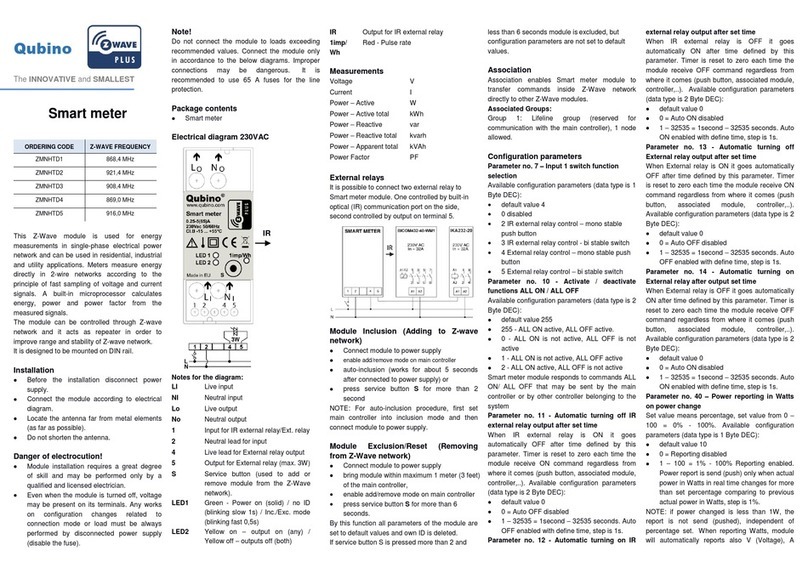

QUBINO Smart meter User manual

USER MANUAL EN.
QUBINO SMART METER
The Qubino Smart Meter is an extremely versatile and powerful Z-Wave device for measuring
energy in a single-phase electrical power network of up to 65A.

EN.
2
Table of contents
About Qubino ................................................................................................................................................................................... 3
Safety Information............................................................................................................................................................................ 5
Smart Meter - Available Frequencies................................................................................................................................................ 6
Where To Buy ................................................................................................................................................................................... 6
1. Introduction .................................................................................................................................................................................. 7
2. Use Cases ...................................................................................................................................................................................... 9
2.1. Installation examples for the Smart Meter - used for measuring energy consumption....................................................... 9
2.2. Installation examples for the Smart Meter - used for measuring energy consumption and for controlling* electrical
devices....................................................................................................................................................................................... 10
2.3. Additional features of Smart Meter which can make your life easier ................................................................................ 11
3. Qubino Smart Meter Advantages and Highlights........................................................................................................................ 12
3.1. Advantages ......................................................................................................................................................................... 12
3.2. Highlights............................................................................................................................................................................ 15
4. Package Contents........................................................................................................................................................................ 16
5. Technical Terms for Switches...................................................................................................................................................... 17
6. Compatibility with Z-Wave Gateways (hubs).............................................................................................................................. 18
7. Installation .................................................................................................................................................................................. 19
8. Device Information and Support................................................................................................................................................. 28
9. Electrical Diagram 230VAC.......................................................................................................................................................... 29
10. Adding the device to a Z-Wave network (Inclusion) ................................................................................................................. 33
11. Removing the device from a Z-Wave network (Exclusion)........................................................................................................ 34
12. Associations .............................................................................................................................................................................. 36
13. Configuration Parameters......................................................................................................................................................... 37
14. Technical Specifications ............................................................................................................................................................ 44
15. Z-Wave Command Classes ........................................................................................................................................................ 46
16. Z-Wave Security ........................................................................................................................................................................ 49
17. Important Disclaimer ................................................................................................................................................................ 50
18. Warning .................................................................................................................................................................................... 50
19. Regulations ............................................................................................................................................................................... 50

EN.
3
About Qubino
Qubino is a family of innovative Z-Wave devices, many of them the smallest of their kind.
Numerous breakthrough innovations, 100% quality control, and responsive customer service
make Qubino the number one choice for making your life more comfortable.
Qubino enables you to transform –inexpensively and invisibly –any traditional electric device
into a smart, connected one that you can control with your smart phone. Qubino devices are
simple to install and use, but also extremely versatile - they offer a wealth of additional features
and parameters for you to play with.
We love helping people who enjoy creating new ideas for their home and then using their hard
work and skill to turn those ideas into reality. We admire their passion and resourcefulness. We
do our best to supply you with products that will enable you to create a unique and special
home for yourself. We innovate so that you can be free to make the smartest home possible.
With just a touch of magic.
"Simple is smart." We believe it is smart to make complex things simple. But only when this
means simple for our customers, not for ourselves. We think a lot so that you won't have to
when it comes to installing or using our devices.
For more information visit: www.qubino.com

EN.
4
About Z-Wave:
The Z-Wave protocol is an interoperable, wireless, RF-based communications technology
designed specifically for control, monitoring, and status reading applications in residential and
light commercial environments. Mature, proven, and broadly deployed (with over 50 million
products sold worldwide), Z-Wave is by far the world market leader in wireless control, bringing
affordable, reliable, and easy-to-use 'smart' products to millions of people in every aspect of
daily life.
Source: www.z-wavealliance.org

EN.
5
Safety Information
For Qubino, safety is first, so we have prepared lots of safety tips and information that can be
found throughout this manual.
To ensure your safety, please read this manual carefully before installing the device; follow
the instructions exactly. The manufacturer (GOAP d.o.o. Nova Gorica) shall not be legally
responsible for any equipment damage or personal injury caused by incorrect installation or
operation other than that covered in this manual.
ⓘPlease check the Technical Specifications and Electrical Diagram chapters, as well as fuse
requirements in the Installation chapter before installing the device.

EN.
6
Smart Meter - Available Frequencies
ORDERING CODE
(MODEL NUMBER)
POWER SUPPLY FREQUENCY
Z-WAVE FREQUENCY*
ZMNHTD1
50/60 Hz
868,4 MHz
ZMNHTD2
50/60 Hz
921,4 MHz
ZMNHTD3
50/60 Hz
908,4 MHz
ZMNHTD4
50/60 Hz
869,0 MHz
ZMNHTD5
50/60 Hz
916,0 MHz
ZMNHTD6
50/60 Hz
868,4 MHz
ZMNHTD7
50/60 Hz
919,8 MHz
ZMNHTD8
50/60 Hz
865,2 MHz
ZMNHTD9
50/60 Hz
922,5 MHz
ZMNHTDA
50/60 Hz
919,7 –921,7 –923,7 MHz
ZMNHTDB
50/60 Hz
868,1 MHz
ZMNHTDC
50/60 Hz
868,1 MHz
ZMNHTDD
50/60 Hz
919,8 MHz
ZMNHTDE
50/60 Hz
920,9 MHz
ⓘPLEASE NOTE THAT SMART METER WORKS ONLY ON 230VAC +15/-20%.
*You can check the Z-Wave frequency in your country here:
https://z-wave.sigmadesigns.com/wp-content/uploads/Z-Wave_Frequency_Coverage-.pdf
Where To Buy
To find your nearest Qubino dealer visit: http://qubino.com/where-to-buy/

EN.
7
1. Introduction
The Qubino Smart Meter is an extremely versatile and powerful Z-Wave device for measuring
energy in a single-phase electrical power network of up to 65A. A built-in microprocessor
calculates energy, power and power factor from the measured signals. It is designed to be
mounted on a DIN rail.
The Qubino Smart Meter can be used in residential, industrial and utility applications. It
measures energy directly in 2-wire networks by means of fast sampling of voltage and current
signals. It calculates energy, power and power factor from the measured signals. You can
control the device through the Z-Wave network.
The Qubino Smart Meter can operate across a wide temperature range, from a chilly -15˚C to a
scorching 55˚C (5˚F–131˚F). Every device also acts as a repeater in order to improve the range
and stability of the Z-Wave network.

EN.
8
Smart Meter measurements:
Voltage
[V]
Current
[A]
Power –
Active [W]
Power –
Reactive
[kvar]
Power
Factor
–[PF]
Energy –Active
power
accumulated
Import [kWh]
Energy –
Active power
accumulated
Export[kWh]
Energy –
Apparent power
accumulated
[kVAh]
Energy –
Reactive power
accumulated
[kvarh]









Smart Meter supported functions:
Associations
Z-Wave Repeater
Auto-inclusion



Optional functions:
Turn ON/OFF
device 1*
Turn ON/OFF
device 2*
Automatically turn
ON/OFF*



*with additional external contactors - IKA/BICOM. IKA and BICOM are sold separately - for more info,
please see Qubino catalogue. Product ordering codes (model numbers): IKA232-20/230V: 030 046 833
000; BICOM432-40-WM1: 30.074.038

EN.
9
2. Use Cases
The Smart Meter can be used in many different scenes, which can help make your life more
comfortable. We have prepared a few of them for you, so you can get an idea for your next
smart home project. Of course, there are countless of other options for how to use Qubino
Smart Meter to measuring energy in a single-phase electrical power network of up to 65A and
remotely control devices via your smartphone.
2.1. Installation examples for the Smart Meter - used for measuring energy
consumption
Track the power consumption of the
house
Track the power consumption of one
electrical device
Track the power generated by the
solar power plant
Track the power consumed from the
electrical power network and power
exported in electrical power network

EN.
10
2.2. Installation examples for the Smart Meter - used for measuring energy
consumption and for controlling* electrical devices
(*with additional external contactors - IKA/BICOM. IKA and BICOM are sold separately - for
more info, please see Qubino catalogue. Product ordering codes (model numbers): IKA232-
20/230V: 030 046 833 000; BICOM432-40-WM1: 30.074.038)
Remotely control and measure the
power consumption of one electrical
device (for example: water heater) –
with external relay BICOM432-40-WM1
Remotely control and measure the
power consumption of one electrical
device (for example: oven) –with the
external relay IKA232-20/230V
Remotely measure the power
consumption of the whole house and
control two groups electrical devices –
with BICOM432-40-WM1 and IKA232-
20/230V

EN.
11
2.3. Additional features of Smart Meter which can make your life easier*
(*with additional external contactors - IKA/BICOM. IKA and BICOM are sold separately - for
more info, please see Qubino catalogue. Product ordering codes (model numbers): IKA232-
20/230V: 030 046 833 000; BICOM432-40-WM1: 30.074.038)
Do you often notice that some devices in
your household consume too much
energy?
The Smart Meter can automatically turn
devices/lights off after they exceed the
set power consumption. For example, the
heating will automatically turn off after it
reaches the set power consumption
value. This function is independent of
other scenes and gateway (hub)
commands.
Do you often forget to turn off devices
when you leave your home, like lights in
the basement or attic?
The Smart Meter can automatically turn
devices/lights on or off after a set period
of time (when you’re away from home).
For example, the light will automatically
turn off if it’s been on for 8 hours, let’s
say. This function is independent of
other scenes and gateway (hub)
commands.

EN.
12
3. Qubino Smart Meter Advantages and Highlights
3.1. Advantages
The Qubino Smart Meter allows the easiest and quickest installation possible. There is
no simpler installation than DIN rail installation –and the Qubino Smart Meter is a DIN
rail mounted device so the installation is really simple.
The Qubino Smart Meter is the only single phase smart meter worldwide which allows
connection of additional two contactors - IKA/BICOM. IKA and BICOM are sold
separately - for more info, please see Qubino catalogue.
Product ordering codes (model numbers): IKA232-20/230V: 030 046 833 000;
BICOM432-40-WM1: 30.074.038

EN.
13
The Qubino Smart Meter can measure: Voltage [V], Current [A], Power –Active [W],
Power –Reactive [kvar], Power Factor –[PF], Energy –Active power accumulated
Import [kWh], Energy –Active power accumulated Export [kWh], Energy –Apparent
power accumulated [kVAh], Energy –Reactive power accumulated [kvarh]
Qubino guarantees 100% device quality. Such high quality can be delivered because
every Qubino goes through rigorous quality control standards throughout the
production process. Every device has a unique serial number and part number, which
are assigned to the device only after it goes through a strict testing procedure.

EN.
14
By scanning the QR code on the side of your Qubino device, the serial and part numbers
will be automatically copied on your mobile phone; they also provide direct access to
Qubino’s technical support team. The serial and part numbers of your device are given
automatically every time you open an inquiry with our support team: this instantly
shares the relevant device information we need to provide the best technical support
possible. For details, please see the Device Information and Support chapter.
The Qubino Smart Meter is engineered and manufactured in the EU, and contains only
the highest quality components.

EN.
15
The Qubino Smart Meter is certified by an independent European Institute and has CE,
FCC, LVD and EMC certificates to ensure the highest safety standards.
3.2. Highlights
Remote (via smartphone or PC) and local measuring energy and optional* control 2
separate electrical circuits
Use the optional contactor or bi-stable switch with the Smart Meter to facilitate the
switching of power circuits or appliances
Ideal for fast switching of motors, electric heating and lights
Works with toggle switches and push-button (momentary switches)
Highly accurate monitoring and energy measurements
Features one of the easiest and quickest installations of devices of this kind –DIN rail
installation
Saves and restores the last status after a power failure.
Supports auto-inclusion mode for quick set up
Can automatically turn devices on and off after a set period of time (helpful when you’re
away from home, for example)**
Supports additional parameters for expert users, which allows for advanced
configuration**
Acts as a signal repeater which improves the range and stability of your Z-Wave network
Can be used to remotely control and trigger other devices in your Z-Wave network
*with additional external contactors - IKA/BICOM. IKA and BICOM are sold separately - for more info, please see
Qubino catalogue. Product ordering codes (model numbers): IKA232-20/230V: 030 046 833 000; BICOM432-40-
WM1: 30.074.038
**Your gateway (hub) needs to support advanced configuration and parameter input if you wish to use this
feature

EN.
16
4. Package Contents
Smart Meter Device
Installation Manual

EN.
17
5. Technical Terms for Switches
Symbol
Switch example images
Definition
EU
USA
Qubino
Other
names
Single pole,
single throw
(SPST) - One
switch
controlling one
light / circuit of
lights
One-way
switch
Two-way
switch
(regular
switch)
Toggle
switch
Switch;
Bi-stable
switch
Single pole,
double throw
(SPDT) - Two
switches
controlling the
same light /
circuit of lights
Two-way
switch
Three-way
switch
Two-way
switch
Used when you
have three or
more switches
controlling the
same light
Intermedi-
ate switch
Four-way
switch
Intermedi-
ate switch
Crossover
switch;
Cross
connection
After being
released, it goes
back to its
original state
Momentary switch
Momentary
switch
Monostable
switch;
Push button

EN.
18
6. Compatibility with Z-Wave Gateways (hubs)
Please check compatibility with your Z-Wave gateway (hub) before you purchase this device. If
you don’t see your gateway (hub) in the table below, please contact us at:
http://qubino.com/support/#email.
ⓘPlease note that the gateway (hub) compatibility was updated on 14.3.2018 and it may not
include the latest testing data.
Smart
Meter
U
I
W
kWh
PF
kVarh
kVah
kVar
Relay 1
Relay 2
Relay1+
Relay2
Domoticz
V3.5877
✓
✓
✓
✓
✓
✕
✓
✕
✕
✓
Fibaro HC
Lite v 4.130
✓
✓
✓
✓
✓
✕
✓
✕
✓
✓
X
Vera Edge v
1.7.2406
✕
✕
✕
✕
✕
✕
✕
✓
✓
✓
Zipato
✓
✓
✓
✓
✓
✕
✓
✓
✓
✓
Z-Wave Me
✓
✓
✓
✓
✓
✕
✓
✕
✕
✓
Homeseer
✓
✓
✓
✓
✓
✕
✓
✓
✓
✓
Open
Z-Wave
✓
✓
✓
✓
✓
✕
✓
T
T
T
Piper
✕
✕
✕
✕
✕
✕
✕
✕
✕
✕
SmartThings
3rd party
T
T
T
T
T
T
T
T
T
T
T
NETIChome
✓
✓
✓
✕
✓
✕
✕
✕
✓
✕
Homey
T
T
T
T
T
T
T
T
T
T
Eedomus
✓
✕
✓
✕
✓
✕
✕
✓
✓
✓
Jeedom
✓
✓
✓
✓
✓
✓
✓
✕
✕
✕
Zipatile
T
T
T
T
T
T
T
T
T
T
Devolo
✕
✕
✓
✕
✕
✕
✕
✕
✕
✕
✕
Verbund
T
T
T
T
T
T
T
T
T
T
Indigo 7
✕
✕
✓
T
✕
✕
✕
✕
✓
✓
✕
ImperiHome
✕
✕
✓
T
✕
✕
✕
✕
✓
✓
✕
OpenHab
✕
✕
✕
✕
✕
✕
✕
✕
✓
✓
✓
Symbol
Explanation
✓
Works fully
✕
Not working
O
See comment
T
Testing in progress

EN.
19
7. Installation
Before installing the device, please read the following carefully and follow the instructions
exactly:
ⓘDanger of electrocution!
Installation of this device requires a great degree of skill and may be performed only by a
licensed and qualified electrician. Please keep in mind that even when the device is turned off,
voltage may still be present in the device’s terminals.
ⓘNote!
Do not connect the module to loads exceeding recommended values. Connect the module only
in accordance to the below diagrams. Improper connections may be dangerous.
Electrical installation must be protected by over current protection fuse with rated current up
to 63A, it must be used according to wiring diagram to achieve appropriate overload
protection of the module.
ⓘ Note!
The DSK code is used to include the device into the Z-Wave network. Once the device will be
mounted, access to the DSK code label may be difficult, so we suggest rewriting the DSK code
or scanning the QR code from the device label, before installing the device in electric box.

EN.
20
The installation process, tested and approved by professional electricians, consists of the
following simple steps:
Step 1 –Turn OFF the fuse:
To prevent electrical shock and/or equipment damage, disconnect electrical power at
the main fuse or circuit breaker before installation and maintenance.
Be aware that even if the circuit breaker is off, some voltage may remain in the wires —
before proceeding with the installation, be sure no voltage is present in the wiring.
Take extra precautions to avoid accidentally turning the device on during installation.
