QUBINO ZMNHXD1 User manual

USER MANUAL EN.
QUBINO 3-PHASE SMART METER
The Qubino 3-Phase Smart Meter is an extremely versatile and powerful Z-Wave device for
measuring energy in a three-phase electrical power network of up to 3 x 65A.

EN.
2
Table of contents
About Qubino ................................................................................................................................................................................... 3
Safety Information............................................................................................................................................................................ 5
3-Phase Smart Meter - Available Frequencies.................................................................................................................................. 6
Where To Buy ................................................................................................................................................................................... 6
1. Introduction.................................................................................................................................................................................. 7
2. Use Cases ...................................................................................................................................................................................... 9
3. Qubino 3-Phase Smart Meter Advantages and Highlights.......................................................................................................... 13
4. Package Contents........................................................................................................................................................................ 18
5. Technical Terms for Switches...................................................................................................................................................... 19
6. Compatibility with Z-Wave Gateways (hubs).............................................................................................................................. 20
7. Installation .................................................................................................................................................................................. 21
8. Device Information and Support................................................................................................................................................. 31
9. Electrical Diagram 3 X 230VAC.................................................................................................................................................... 32
10. Adding the device to a Z-Wave network (Inclusion) ................................................................................................................. 37
11. Removing the device from a Z-Wave network (Exclusion)........................................................................................................ 38
12. Associations .............................................................................................................................................................................. 40
13. Configuration Parameters......................................................................................................................................................... 42
14. Technical Specifications............................................................................................................................................................ 48
15. Z-Wave Command Classes........................................................................................................................................................ 51
16. Z-Wave Security........................................................................................................................................................................ 57
17. Important Disclaimer ................................................................................................................................................................ 58
18. Warning .................................................................................................................................................................................... 58
19. Regulations ............................................................................................................................................................................... 58

EN.
3
About Qubino
Qubino is a family of innovative Z-Wave devices, many of them the smallest of their kind.
Numerous breakthrough innovations, 100% quality control, and responsive customer service
make Qubino the number one choice for making your life more comfortable.
Qubino enables you to transform –inexpensively and invisibly –any traditional electric device
into a smart, connected one that you can control with your smart phone. Qubino devices are
simple to install and use, but also extremely versatile - they offer a wealth of additional features
and parameters for you to play with.
We love helping people who enjoy creating new ideas for their home and then using their hard
work and skill to turn those ideas into reality. We admire their passion and resourcefulness. We
do our best to supply you with products that will enable you to create a unique and special
home for yourself. We innovate so that you can be free to make the smartest home possible.
With just a touch of magic.
"Simple is smart." We believe it is smart to make complex things simple. But only when this
means simple for our customers, not for ourselves. We think a lot so that you won't have to
when it comes to installing or using our devices.
For more information visit: www.qubino.com

EN.
4
About Z-Wave:
The Z-Wave protocol is an interoperable, wireless, RF-based communications technology
designed specifically for control, monitoring, and status reading applications in residential and
light commercial environments. Mature, proven, and broadly deployed (with over 50 million
products sold worldwide), Z-Wave is by far the world market leader in wireless control, bringing
affordable, reliable, and easy-to-use 'smart' products to millions of people in every aspect of
daily life.
Source: www.z-wavealliance.org

EN.
5
Safety Information
For Qubino, safety is first, so we have prepared lots of safety tips and information that can be
found throughout this manual.
To ensure your safety, please read this manual carefully before installing the device; follow
the instructions exactly. The manufacturer (GOAP d.o.o. Nova Gorica) shall not be legally
responsible for any equipment damage or personal injury caused by incorrect installation or
operation other than that covered in this manual.
ⓘPlease check the Technical Specifications and Electrical Diagram chapters, as well as fuse
requirements in the Installation chapter before installing the device.

EN.
6
3-Phase Smart Meter - Available Frequencies
ORDERING CODE
(MODEL NUMBER)
POWER SUPPLY FREQUENCY
Z-WAVE FREQUENCY*
ZMNHXD1
50/60 Hz
868,4 MHz
ZMNHXD2
50/60 Hz
921,4 MHz
ZMNHXD3
50/60 Hz
908,4 MHz
ZMNHXD4
50/60 Hz
869,0 MHz
ZMNHXD5
50/60 Hz
916,0 MHz
ZMNHXD6
50/60 Hz
868,4 MHz
ZMNHXD7
50/60 Hz
919,8 MHz
ZMNHXD8
50/60 Hz
865,2 MHz
ZMNHXD9
50/60 Hz
922,5 MHz
ZMNHXDA
50/60 Hz
919,7 –921,7 –923,7 MHz
ZMNHXDB
50/60 Hz
868,1 MHz
ZMNHXDC
50/60 Hz
868,1 MHz
ZMNHXDD
50/60 Hz
919,8 MHz
ZMNHXDE
50/60 Hz
920,9 MHz
ⓘPLEASE NOTE THAT 3-PHASE SMART METER WORKS ONLY ON 230VAC +15/-20%.
*You can check the Z-Wave frequency in your country here:
https://z-wave.sigmadesigns.com/wp-content/uploads/Z-Wave_Frequency_Coverage-.pdf

EN.
7
Where To Buy
To find your nearest Qubino dealer visit: http://qubino.com/where-to-buy/
1. Introduction
Qubino 3-Phase Smart Meter is used for energy measurements in three-phase electrical power
network and can be used in residential, industrial and utility applications. The device measures
energy directly in 4-wire networks according to the principle of fast sampling of voltage and
current signals. It is designed to be mounted on DIN rail.
The Qubino 3-Phase Smart Meter device can operate across a wide temperature range, from a
chilly -25˚C to a scorching 55˚C (-13F˚to a scorching 131˚F). Every device also acts as a repeater
in order to improve the range and stability of the Z-Wave network.

EN.
8
3-Phase Smart Meter measurements:
Voltage
[V]
Current
[A]
Power –
Active [W]
Power –
Reactive
[var]
Power
Factor
–[PF]
Energy –Active
power
accumulated
Import [kWh]
Energy –
Active power
accumulated
Export[kWh]
Energy –
Apparent power
accumulated
[kVAh]
Energy –
Reactive power
accumulated
[kvarh]
✓
✓
✓
✓
✓
✓
✓
✓
✓
Optional: 3-Phase Smart Meter supported functions:
Turn ON/OFF
device 1*
Turn ON/OFF
device 2*
Automatically
turn ON/OFF*
Z-Wave
Repeater
Auto-
inclusion
✓
✓
✓
✓
✓
*with additional external contactors - IKA/BICOM. IKA and BICOM are sold separately - for more info,
please see Qubino catalogue. Product ordering codes (model numbers): IKA232-20/230V: 030 046 833
000; BICOM432-40-WM1: 30.074.038

EN.
9
2. Use Cases
The 3-Phase Smart Meter can be used in many different scenes, which can help make your life
more comfortable. We have prepared a few of them for you so you can get an idea for your
next smart home project. Of course, there are countless of other options for how to use Qubino
3-Phase Smart Meter to remotely control devices via your smartphone.
2.1. Installation examples for the 3-Phase Smart Meter - used for measuring
consumption
•Track power consumption of the house
•Track power consumption of one 3-
phase electrical device (for example: 3-
phase heat pump)
•Track power consumption of one 3-phase
electrical device (for example: induction
cooktop)
•Measure 3 diferent el.values (V,A,W) on
each phase, plus 5 el. values in common
(kWh,var,kvarh,kVAh,PF)
•
•

EN.
10

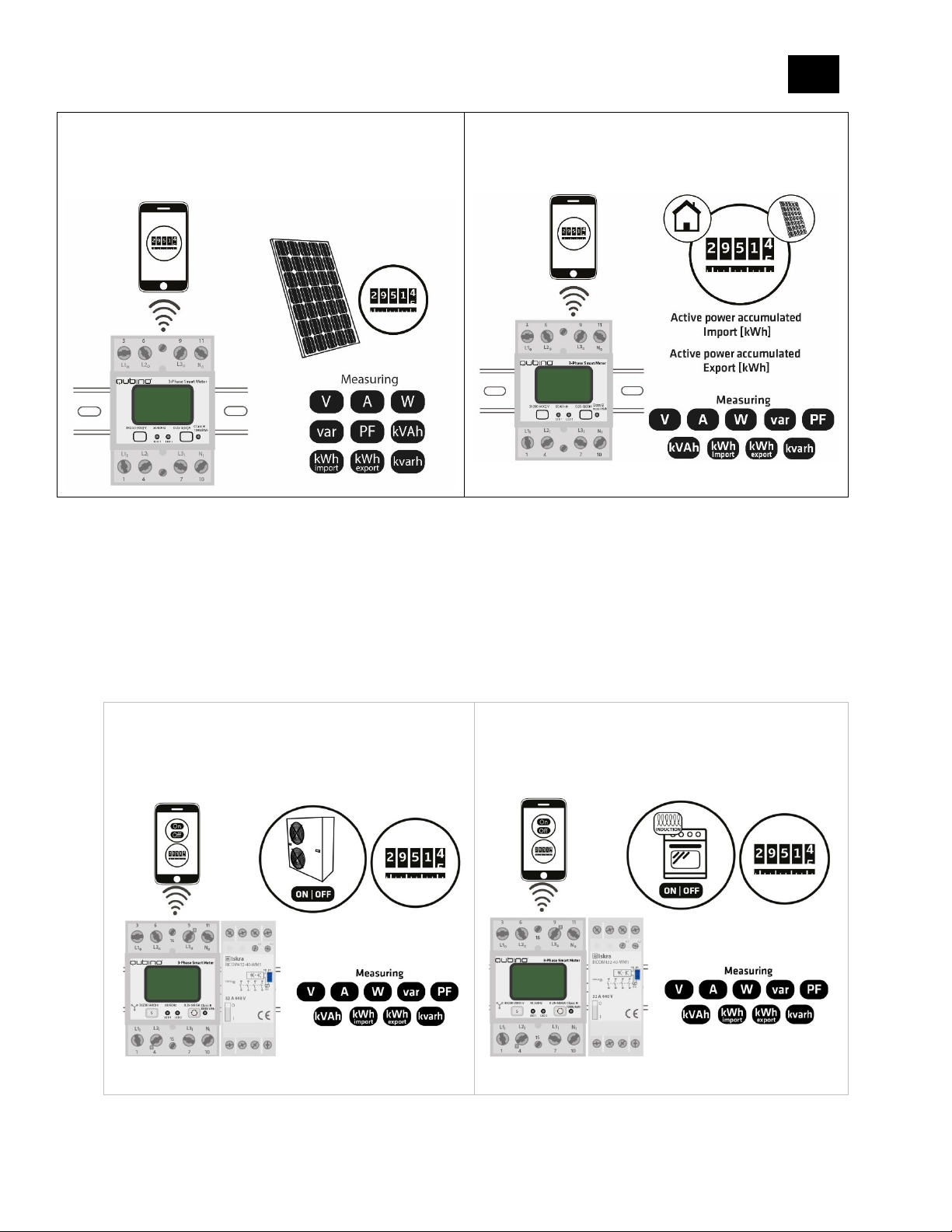

•Track the power generated by the solar
power plant
•Track the power consumed from the
electrical power network and power
exported in electrical power network
2.1. Installation examples for the 3-Phase Smart Meter - used for measuring
consumption and controlling* electrical devices
(*with additional external contactors - IKA/BICOM. IKA and BICOM are sold separately - for more info,
please see Qubino catalogue. Product ordering codes (model numbers): IKA232-20/230V: 030 046 833
000; BICOM432-40-WM1: 30.074.038)
•Remotely control and measure 3-
phase power consumption of one
electrical device (for example: heat
pump) –with BICOM432-40-WM1
•Remotely control and measure 3-phase
power consumption of one electrical
device (for example: induction oven) –
with BICOM432-40-WM1

EN.
11
•Remotely control and measure 3-
phase power consumption of one
electrical device (for example: accurate
information of electrical car energy
consumption) –with BICOM432-40-
WM1
•Remotely measure power consumption
of whole house and control one group
of electrical devices (for example:
lights) –with IKA232-20/230V
•Track power consumption for each of
three electrical devices and control
two groups of electrical devices (for
example: 3-phase heat pump and
lights) –with BICOM432-40-WM1 and
IKA232-20/230V
•Remotely measure power consumption
of whole house and control two groups
electrical devices (for example: 3-phase
heat pump and lights) –with
BICOM432-40-WM1 and IKA232-
20/230V

EN.
12
2.2. Additional features of 3-Phase Smart Meter which can make your life easier
Do you often notice that some devices in
your household consume too much energy?
The 3-Phase Smart Meter can automatically
turn devices/lights off after they exceed the
set power consumption. For example, the
heating will automatically turn off after it
reaches the set power consumption value.
This function is independent of other scenes
and gateway (hub) commands.
Want to control other devices in your Z-Wave
network with the 3-Phase Smart Meter?
Connect the 3-Phase Smart Meter with other
devices in your network to remotely and
automatically trigger another Z-Wave device.
And have other Z-Wave devices trigger your
Qubino 3-Phase Smart Meter.

EN.
13
3. Qubino 3-Phase Smart Meter Advantages and
Highlights

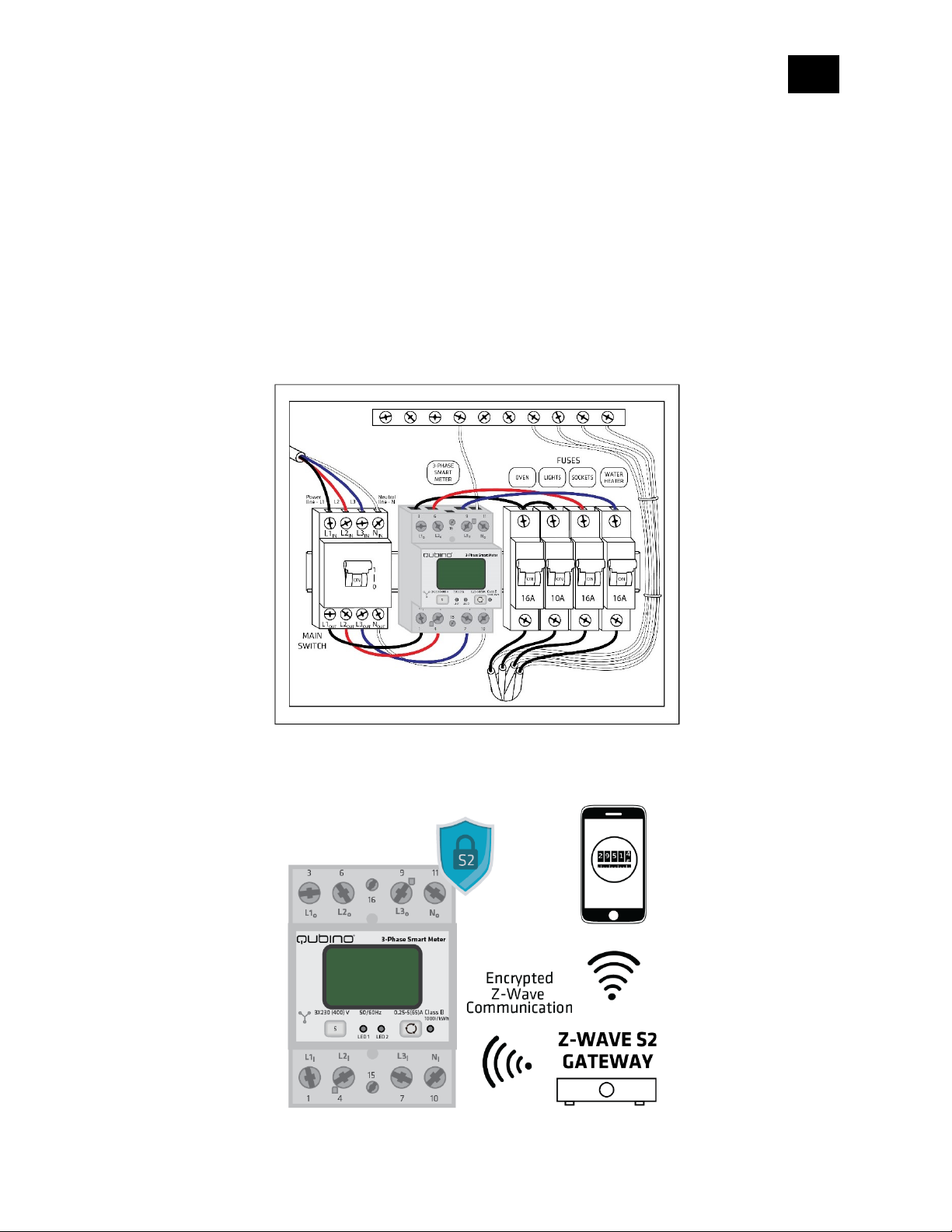

•The Qubino 3-Phase Smart Meter is the most accurate Z-Wave 3-Phase Smart Meter in
the world. It is the only Z-Wave 3-Phase Smart Meter where the current is measured by
passing through the device –not through clamps. Measuring the electric consumption
with a smart meter using clamps, is not as accurate as it is, if the electricity passes
through the device.
•The only Z-Wave 3-Phase Smart Meter in the world that supports Z-Wave S2
Authenticated secure inclusion.

EN.
14

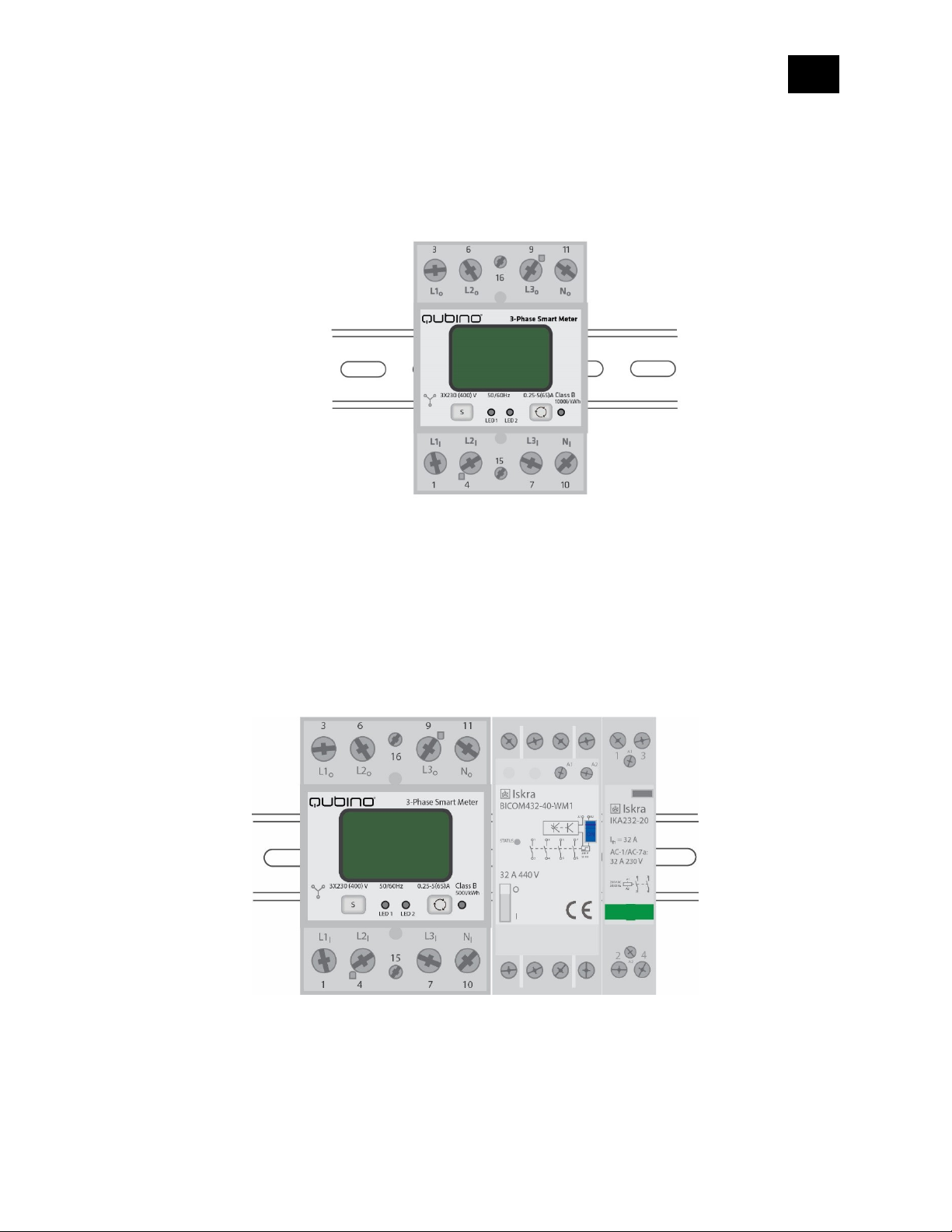

•The Qubino 3-Phase Smart Meter allows the easiest and quickest installation possible.
There is no simpler installation than DIN rail installation –and the Qubino 3-Phase
Smart Meter is a DIN rail mounted device so the installation is really simple.
•The Qubino 3-Phase Smart Meter is the only 3-phase smart meter worldwide that
beside measuring allows you to switch ON/OFF two independent electrical circuits, by
connecting two additional contactors - IKA/BICOM. IKA and BICOM are sold separately -
for more info, please see Qubino catalogue.
Product ordering codes (model numbers): IKA232-20/230V: 030 046 833 000;
BICOM432-40-WM1: 30.074.038

EN.
15
•Qubino 3-Phase Smart Meter can measure: Voltage [V], Current [A], Power –Active
[W], Power –Reactive [var], Power Factor –[PF], Energy –Active power
accumulated Import [kWh], Energy –Active power accumulated Export[kWh],
Energy –Apparent power accumulated [kVAh], Energy –Reactive power
accumulated [kvarh]
•Qubino guarantees 100% device quality. Such high quality can be delivered because
every Qubino goes through rigorous quality control standards throughout the
production process. Every device has a unique serial number and a part number, which
are assigned to the device only after it goes through a strict testing procedure.

EN.
16
•By scanning the QR code on the back of your Qubino device, the serial and part numbers
will be automatically copied on your mobile phone; they also provide direct access to
Qubino’s technical support team. The serial and part numbers of your device are given
automatically every time you open an inquiry with our support team: this instantly
shares the relevant device information we need to provide the best technical support
possible. For details, please see the Device Information and Support chapter.
•The Qubino 3-Phase Smart Meter is engineered and manufactured in the EU, and
contains only the highest quality components.

EN.
17
•The Qubino 3-Phase Smart Meter is certified by an independent European Institute and has
CE, LVD and EMC certificates to ensure the highest safety standards.
3-PHASE SMART METER HIGHLIGHTS:
•Use the optional contactor or bi-stable switch with the 3-Phase Smart Meter to facilitate
the switching of power circuits or appliances
•Ideal for fast switching of motors, electric heating and lights
•Highly accurate monitoring and energy measurements
•Features one of the easiest and quickest installations of devices of this kind; DIN rail
installation
•Saves and restores the last status after a power failure
•Supports auto-inclusion mode for quick set up
•Can automatically turn devices on and off after a set period of time (helpful when you’re
away from home, for example)*
•Supports additional parameters for expert users, which allows for advanced
configuration*
•Acts as a signal repeater which improves the range and stability of your Z-Wave network
•Can be used to remotely control and trigger other devices in your Z-Wave network
*Your gateway (hub) needs to support advanced configuration and parameter input if you wish
to use this feature

EN.
18
4. Package Contents
•3-Phase Smart Meter Device
•Installation Manual
•S2 packaging label

EN.
19
5. Technical Terms for Switches
Symbol
Switch example images
Definition
EU
USA
Qubino
Other
names
Single pole,
single throw
(SPST) - One
switch
controlling one
light / circuit of
lights
One-way
switch
Two-way
switch
(regular
switch)
Toggle
switch
Switch;
Bi-stable
switch
Single pole,
double throw
(SPDT) - Two
switches
controlling the
same light /
circuit of lights
Two-way
switch
Three-way
switch
Two-way
switch
Used when you
have three or
more switches
controlling the
same light
Intermedi-
ate switch
Four-way
switch
Intermedi-
ate switch
Crossover
switch;
Cross
connection
After being
released, it goes
back to its
original state
Momentary switch
Momentary
switch
Monostable
switch;
Push button

EN.
20
6. Compatibility with Z-Wave Gateways (hubs)
Please check compatibility with your Z-Wave gateway (hub) before you purchase this device.
The compatibility table is available online.
https://qubino.com/products/3-phase-smart-meter/smart-meter-3phase-compatibility/
