GB130MG User Manual
EGPRS/LTE Cat-M1/LTE Cat-NB2/GNSS Tracker
TRACGB130MGUM001
Version: 1.00

GB130MG User Manual
TRACGB130MGUM001 - 1 -
Document Title
GB130MG User Manual
Revision
1.01
Date
2021-11-9
Status
Release
Document Control ID
TRACGB130MGUM001
General Notes
Queclink offers this information as a service to its customers, to support application and
engineering efforts that use the products designed by Queclink. The information provided is
based upon requirements specifically provided to Queclink by the customers. Queclink has not
undertaken any independent search for additional relevant information, including any
information that may be in the customer’s possession. Furthermore, system validation of this
product designed by Queclink within a larger electronic system remains the responsibility of the
customer or the customer’s system integrator. All specifications supplied herein are subject to
change.
Copyright
This document contains proprietary technical information which is the property of Queclink
Limited. The copying of this document and giving it to others and the using or communication of
the contents thereof, are forbidden without express authority. Offenders are liable to the
payment of damages. All rights are reserved in the event of grant of a patent or the registration
of a utility model or design. All specifications supplied herein are subject to change without
notice at any time.

GB130MG User Manual
TRACGB130MGUM001 - 2 -
Contents
Contents............................................................................................................................................2
Table Index ........................................................................................................................................3
Figure Index.......................................................................................................................................3
0. Revision History ...........................................................................................................................4
1. Introduction...................................................................................................................................5
1.1. Reference.............................................................................................................................5
2. Product Overview .........................................................................................................................6
2.1. Check Parts List ..................................................................................................................6
2.2. Parts List..............................................................................................................................7
2.3. Interface Definition.............................................................................................................7
3. Getting Started ..............................................................................................................................8
3.1. Open the Case......................................................................................................................8
3.2. Close the Case.....................................................................................................................9
3.3. Install a SIM Card.............................................................................................................10
3.4. Power Connection.............................................................................................................13
3.5. Motion Sensor Direction...................................................................................................15

GB130MG User Manual
TRACGB130MGUM001 - 3 -
Table Index
TABLE 1. GB130MG PROTOCOL REFERENCE.............................................................................................5
TABLE 2. PARTS LIST ..................................................................................................................................7
TABLE 3. DESCRIPTION OF 2-PIN POWER CABLE ......................................................................................7
TABLE 4. DEFINITION OF DEVICE STATUS AND LED.................................................................................14

GB130MG User Manual
TRACGB130MGUM001 - 4 -
0. Revision History
Version
Date
Author
Description of Change
1.00
2021-11-09
Eric Xu
Initial

GB130MG User Manual
TRACGB130MGUM001 - 5 -
1. Introduction
The GB130MG is a device designed for self-installation. It simply mounts directly onto the
vehicle’s battery with only two wires to attach. This approach allows for either a very low cost
installation or for the insurance customer to self-install. Its built-in GNSS receiver has very high
sensitivity, a fast time to first fix and supports 1Hz (every second) location sampling during
vehicle motion. Its built-in Bluetooth can be used for data transmission. Its multiband LTE Cat-M1
and Cat-NB2 allow the GB130MG location to be monitored in real time or periodically tracked by
a backend server and mobile devices. Its built-in 3-axis accelerometer allows motion detection,
800Hz pre/post incident data collection, and extends battery life through sophisticated power
management algorithms. System integration is straightforward as complete documentation is
provided for the full featured @Track protocol. The @Track protocol supports a wide variety of
reports including emergency, geo-fence boundary crossings, low battery, and scheduled and
compressed GNSS position.
1.1. Reference
Table 1. GB130MG Protocol Reference
SN
Document Name
Remark
[1]
GB130MG @Track Air Interface Protocol
The air protocol interface between GB130MG
and backend server.

GB130MG User Manual
TRACGB130MGUM001 - 6 -
2. Product Overview
2.1. Check Parts List
Before starting, check all the following items have been included with your GB130MG. If anything
is missing, please contact your supplier.
Figure 1. Appearance of GB130MG

GB130MG User Manual
TRACGB130MGUM001 - 7 -
2.2. Parts List
Table 2. Parts List
Name
GB130MG Locator
2.3. Interface Definition
The GB130MG has a 2-pin power cable. The definition of the 2-pin power cable is shown below.
Table 3. Description of 2-Pin Power Cable
Index
Colour
Definition
Description
1
Red
VIN
External DC power input, 8-32V
2
Black
GND
Ground

GB130MG User Manual
TRACGB130MGUM001 - 8 -
3. Getting Started
3.1. Open the Case
Remove 6pcs screws from the device, insert the triangular-pry-opener into the gap of the case
and push the opener up until the case is unsnapped.
Figure 2. Open the Case

GB130MG User Manual
TRACGB130MGUM001 - 9 -
3.2. Close the Case

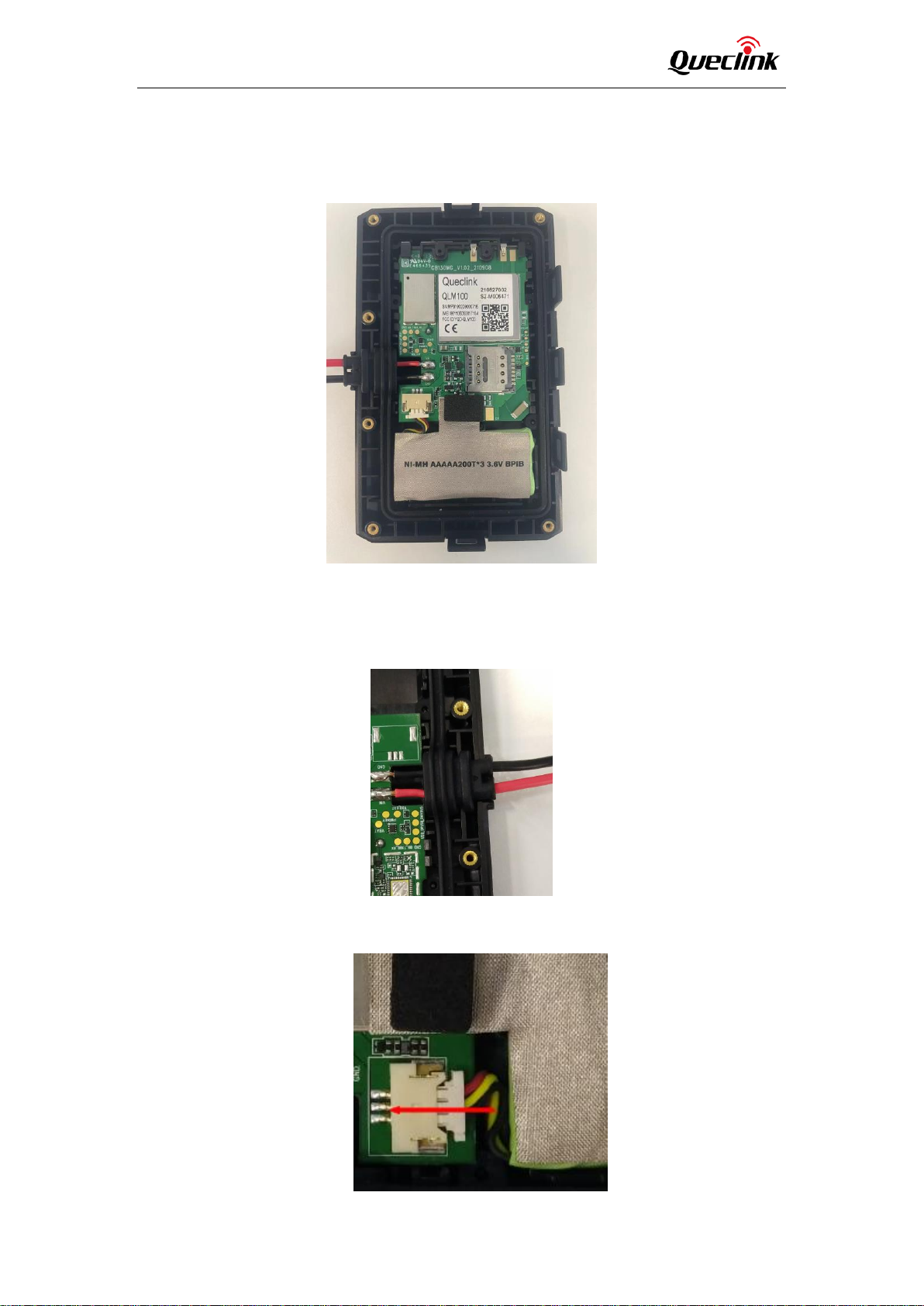

Step_1: Put the motherboard into the front case.
Step_2: Make sure the silicon rubber seal ring is in the gap of the front case and the power cable
wire holder is in the rubber groove of the rear case.
Step_3: Insert the battery connector into the socket.

GB130MG User Manual
TRACGB130MGUM001 - 10 -
Step_4: Place the cover on the bottom, press the cover until it snaps into place, and tighten the
screws.
Figure 3. Close the Case
3.3. Install a SIM Card
Step_1: Slide the holder to the left to open the SIM card holder.
Step_2: Place the SIM card on the holder with the gold-colour contact area facing down. Take
care to align the cut mark.

GB130MG User Manual
TRACGB130MGUM001 - 11 -
Step_4: Slide the holder to the right to close the SIM card holder.
Step_5: Close the case.

GB130MG User Manual
TRACGB130MGUM001 - 12 -
Figure 4. Install a SIM Card

GB130MG User Manual
TRACGB130MGUM001 - 13 -
3.4. Power Connection
VIN (PIN1) / GND (PIN2) are the power input pins. The input voltage range for this device is 8V to
32V. The device is designed to be installed in vehicles that operate on 12V/24V vehicle without
the need for external transformers.
Figure 5. Typical Power Connection
Note:
1. Do not connect any external cable on the GB130MG device.
2. The GB130MG simply mounts directly onto the vehicle’s battery with only two wires to attach.
It should be installed and operated with a minimum distance of 20cm from human body.

GB130MG User Manual
TRACGB130MGUM001 - 14 -
LED Status
Table 4. Definition of Device Status and LED
Device Status
LED Status
Working normally
Continuous on
PDP context not activated
Flashing pattern 1: 100ms On, 2s Off
Network not registered or SIM card
not inserted
Flashing pattern 2: 100ms On, 500ms Off, 100ms On, 2s
Off
GNSS location not fixed
Flashing pattern 3: 100ms On, 500ms off, 100ms On,
500ms Off, 100ms On, 2s off
PDP context not activated and GNSS
location not fixed
Flashing pattern 4: 100ms On, 2s Off, 100ms On, 500ms
Off, 100ms On, 500ms Off, 100ms On, 2s Off
Network not registered or SIM card
not inserted and GNSS location not
fixed
Flashing pattern 5: 100ms On, 500ms Off, 100ms On, 2s
Off, 100ms On, 500ms Off, 100ms On, 500ms Off, 100ms
On, 2s Off
SVR Paired successfully
Flashing pattern 6: 2s on, 2s off, for 40 seconds.
Device power off or sleep mode
Off
Figure 6. GB130MG LED on the Case

GB130MG User Manual
TRACGB130MGUM001 - 15 -
3.5. Motion Sensor Direction
GB130MG has an internal 3-axis accelerometer supporting driving behaviour monitoring and
motion detection. The following shows the directions of the motion sensor. The Z axis points
vertically outward.
Figure 7. Motion Sensor Direction

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance of 20 cm
between the radiator and your body. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
This device complies with part 15 of the FCC rules and RSS-247 of Industry Canada. Operation is
subject to the following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause undesired
operation.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s authority
to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help
- This device and its antenna(s) must not be co-located or operating in conjunction with any other
antenna or transmitter.
