Queclink GV300 User manual

GSM/GPRS/GPS Tracker
GV300
Manage Tool User Guide
TRACGV300MT001
Revision: 1.24
http://www.queclink.com
[e-mail]

GV300 Manage Tool User Guide
TRACGV300MT001 - 1 -
Document Title GV300 Manage tool User Guide
Version 1.24
Date 2015-4-3
Status Release
Document Control ID TRACGV300MT001
General Notes
Queclink offers this information as a service to its customers, to support application and
engineering efforts that use the products designed by Queclink. The information provided is
based upon requirements specifically provided to Queclink by the customers. Queclink has
not undertaken any independent search for additional relevant information, including any
information that may be in the customer’s possession. Furthermore, system validation of this
product designed by Queclink within a larger electronic system remains the responsibility of
the customer or the customer’s system integrator. All specifications supplied herein are
subject to change.
Copyright
This document contains proprietary technical information which is the property of Queclink
Limited., copying of this document and giving it to others and the using or communication of
the contents thereof, are forbidden without express authority. Offenders are liable to the
payment of damages. All rights reserved in the event of grant of a patent or the registration of
a utility model or design. All specification supplied herein are subject to change without
notice at any time.
Copyright © Shanghai Queclink Wireless Solutions Ltd. 2011
Queclink
Confidential

GV300 Manage Tool User Guide
TRACGV300MT001 - 2 -
Contents
Contents ............................................................................................................................................2
1. Revision History ...........................................................................................................................3
2. GV300 Manage Tool Interface .....................................................................................................9
2.1. System Requirements..........................................................................................................9
2.2. COM Setting .....................................................................................................................10
2.3. Quick Setting Wizard........................................................................................................10
2.4. Professional Setting Windows...........................................................................................12
2.4.1. Title Bar...........................................................................................................12
2.4.2. Menus..............................................................................................................12
2.4.3. Toolbar ............................................................................................................16
2.4.4. Status Bar ........................................................................................................16
2.4.5. Command Browser and Command Operation Space......................................17
2.5. Operation Result Interface ................................................................................................19
2.5.1. Operation Successfully Interface.....................................................................19
2.5.2. Operation Failed Interface...............................................................................19
3. Operation Instruction ..................................................................................................................21
3.1. Device Configuration with Quick Setting Wizard.............................................................21
3.1.1. Welcome to Quick Setting Wizard..................................................................21
3.1.2. GPRS Network Setting....................................................................................21
3.1.3. Main Server Setting.........................................................................................22
3.1.4. Fixed Time Report Setting ..............................................................................23
3.1.5. Send Command to Device...............................................................................24
3.2. Device Configuration in Professional Setting Mode.........................................................26
3.3. Read/Save All Configuration.............................................................................................27
3.4. Load/Send All Configuration ............................................................................................28
Queclink
Confidential

GV300 Manage Tool User Guide
TRACGV300MT001 - 3 -
1. Revision History
Revision Date Author Description of change
1.00 2011-08-22 Wogle zhou Initial
1.01 2011-11-16 Moon Xie 1) Add AGPS function to AT+GTCFG
2) Add GSM function toAT+GTCFG
1.02 2012-06-18 Happy Peng 1) Add chapter3.2.10 to
introduce how to
configure the jamming behavior function.
2) Add chapter3.2.11 to introduce
how to
configure the white list function.
3) Add chapter3.2.13 to
introduce how to
configure the start stop report function.
4) Add chapter3.2.20 to
introduce how to
configure the start stop report function.
5) Add chapter3.2.31 to
introduce how to
configure the white list function.
6) Update the support version to
GV300R00A05V05M128_NMX
1.03 2012-8-08 Happy Peng 1) Add <SMS ACK Enable> function to
AT+GTSRI
2) Command AT+GTQSS, AT+GTDAT,
AT+GTRTO will not be sent when “Send All
Configuration”.
3) Add read “Mcu Version” and “Hw Version ”
from device to About
4) Added the mode 3 in AT+GTDAT to transmit
data without CRLF
5) Cancel Mode3 in AT+GTAIS
6) Cancel parameters <Fuel Sensor Delay>
、
<Fuel Lost Alarm> in AT+GTAIS
7) Extend the “bit5” to “+RESP:GTTOW” in
<GSM Report> in AT+GTCFG
8) Modified the AT+GTJBS function
9) Change “Bit11_Reserved” in <Response
Mask>
、 <Event Mask> to “Battery Level” in
AT+GTHRM
10) Change “Reserved” in <Working Mode> to
“Use UART to transfer data with Garmin” in
AT+GTURT
11) Update the support version to
GV300R00A06V12M128_NMX
1.04 2012-9-18 Leaf Ye 1）Add parameters <GSM Interval> and <PDP
Queclink
Confidential

GV300 Manage Tool User Guide
TRACGV300MT001 - 4 -
Interval> to the command AT+GTDOG
2）Update the support version to
GV300R00A06V15M128_NMX
1.05 2012-10-25 Leaf Ye 1) Update the support version to
GV300R00A06V17M128_NMX
1.06 2012-12-06 Ada Jiang
Leaf Ye
1) Add chapter3.2.12to introduce how to
configure the Preserve special devices state
function
2) Add chapter3.2.33 to introduce how to
configure theAC100 devices function
3) Add chapter3.2.34 to introduce how to
configure Extend digit fuel sensor function
4) Add chapter3.2.35 to introduce how to
configure the ID Authentication function
5) Add <Backup GPRS Settings>function to
AT+GTBIS
6) Add parameter <ERI Mask> in AT+GTFRI
7) Add parameter <DOS Report> in
AT+GTOUT
8) Add parameter <No ignition> in AT+GTDIS
9) Add Working Mode 4 ,Mode 5 and parameter
<Digital Fuel Sensor Type> in AT+GTURT
10) Add <No Alarm Mode>in AT+GTAIS
11) Add <Single AT Command> in AT+GTRTO
12) Add Command Din AT+GTRTO
13) Update the support version to
GV300R00A07V20M128_NMX
1.07 2013-01-06 Leaf Ye 1) Add parameters <Trigger Mode> and
<Trigger Report> in AT+GTGEO
2) Add parameters <Validity Time> and <Validity
Mode> in AT+GTDIS
3) Add <CR606> digit fuel sensor support in
AT+GTURT
4) Add parameter <Ex Filter Factor>in
AT+GTEFS
5) Add chapter3.2.36 to introduce how to configure
the buzzer alarm definition function.
6) Add chapter3.2.37 to introduce how to configure
the over speed alarm function.
7) Update the support version to
GV300R00A08V05M128_NMX
1.08 2013-02-26 Penny Pei 1) Update the support version to
GV300R00A08V06M128_NMX
1.09 2013-03-20 Penny Pei 1) Add parameter < State of wave shape 1> in
Queclink
Confidential

GV300 Manage Tool User Guide
TRACGV300MT001 - 5 -
AT+GTPDS
2) Add Command Ein AT+GTRTO
3) Change “SubAT Command”to “Sub AT
Command | Configuration Mask”in
AT+GTRTO
4) Change “ Bit 7- Reserved”of Information
Mask to “Expand INF Mask”in AT
+GTHRM
5) Add Mode 5 “Fixed Time or Mileage Report
”
in AT+GTFRI
6) Add parameter < long stop> in AT+GTSSR
7) Add parameter <Need Judge Motion Sensor>
and <GPS Fix Fail Timeout Timer> in
AT+GTJBS
8) Add mode 2 to <Sleep Enable> in AT
+GTURT
9) Update the support version to
GV320R00A09V11M128_NMX
1.10 2013-04-25 Penny Pei 1) Update the support version to
GV300R00A10V01M128_NMX
1.11 2013-05-09 Penny Pei 1) Extern the GEO fence to 20
2) Update the support version to
GV300R00A10V08M128_NMX
1.12 2013-06-27 Penny Pei 1) Add mode 2 to <<Mode> in AT + GTIDA;
2) Modify < Timeout after Ignition off> in
AT+GTIDA;
3) Update the support version to
GV300R00A10V09M128_NMX
1.13 2013-07-17 Penny Pei 1) Update the support version to
GV300R00A10V10M128_NMX
1.14 2013-8-31 Happy Peng 1) Add parameter < long Operation2> and <
long Operation3> in AT+GTSSR
2) Add Mode 6,7,8 in AT+GTURT
3) Add parameter < Output ID> and < Output
Status>in AT+GTMON
4) Add parameter MUT,UDT and TMP to <Sub
AT Command> and <Configuration Mask> in
AT+GTRTO
5) Add parameter < Enable Siren > in
AT+GTJBS
6) Modified the description of <No Ignition>
in AT+GTDIS
7) Add chapter3.2.38 to introduce how to
configure the TemperatureAlarmfunction
Queclink
Confidential

GV300 Manage Tool User Guide
TRACGV300MT001 - 6 -
8) Add chapter3.2.39 to introduce how to
configure the Main Serial Port Setting function
9) Add chapter3.2.40 to introduce how to
configure the Uart Data Transfer function
10) Add Mode 2 in AT+GTJDC
11) Add parameter <Jamming Cell Number
Threshold>, <Enter Jamming Timer
Threshold>, <Quit Jamming Timer Threshold>
and change < C1 Threshold >to <Reserved> in
AT+GTJDC
12) Add SACK Mode 2 in AT+GTSRI
13) Update the support version to
GV300R00A11V16M128_NMX
1.15 2013-10-11 Happy Peng 1) Chang <Bit13_Reserved> to <Analog Input
Mode> in AT +GTHRM
2) Add mode 3 and mode 5 inAT +GTAIS
3) Add chapter3.2.41 to introduce how to
configure the Fuel Sensor Calibration Table
4) Update the support version to
GV300R00A11V19M128_NMX
1.16 2013-11-28 Happy Peng 1）Remove the mode 6,7,8 in AT+GTURT
2）Update the support version to
GV300R00A11V26M128_NMX
1.17 2013-12-30 Happy Peng 1）Add parameter <Ex Full Value> in AT
+GTEFS
2）Add type 4:UFS100 to < Digit Fuel Sensor
Type> in AT +GTURT
3) Extern the ID Number List to 250 in
AT+GTIDA
4) Update the support version to
GV300R00A11V31M128_NMX
1.18 2014-3-18 Happy Peng 1）Change the range of <Ex Full Value> to
0-65535 in AT+GTEFS
2）Add parameter <Single AT Command>for
reset special configuration in AT+GTRTO/4
3）Add mode 6,7,8,9 in AT+GTURT
4）Extend the range of mode to 0-3,the range of
FRI mode to 0-5 in AT+GTFFC
5）Add chapter3.2.42 to introduce how to
configure the Polygon Geo-Fence
6）Add chapter3.2.43 to introduce how to
configure the Roaming Detection
7）Add chapter3.2.44 to introduce how to
configure the Camera Setting Command
Queclink
Confidential

GV300 Manage Tool User Guide
TRACGV300MT001 - 7 -
8）Add chapter3.2.45 to introduce how to
configure the Take Picture Command
9）Add PEO，RMD，CMS to Single AT
Command and Configuration Mask in
AT+GTRTO
10) Change Bit15 to GEO Status Mask in
AT+GTUDT
11) Add parameter <ID Validity Time>and change
the range of <Timeout after Ignition off>to
0|15–600 Seconds in AT+GTIDA
12) Add Bit6，Bit7，Bit8，Bit9 to Mask in
AT+GTPDS
13) Add <+DAT Mask> in AT+GTHRM
14) Update the support version to
GV300R00A12V16M128_NMX
1.19 2014-4-26 Happy Peng 1）change “Heading” to “Azimuth” in
AT+GTCFG, AT+GTHRM, AT+GTUDT
2）Update the support version to
GV300R00A12V19M128_NMX
1.20 2014-6-9 Penny Pei 1) Update the support version to
GV300R00A12V20M128_NMX
1.21 2014-7-19 Penny Pei 1) Add chapter3.2.46 to introduce how to
configure the CANBUS Device Configuration
2) Add mode 11 for AT+GTMUT
3) Add mode 7 for < Report Mode> of
AT+GTSRI.
4) Add type 6 in <Digit Fuel Sensor Type> of
AT+GTURT for DUE-E DUM fuel sensor
support.
5) Add 0、1、2、3、4、6 in Sensor Type of
AT+GTFSC
6) Add <Max Tank Volume> in AT+GTFSC
7) Add <Need Ack> in AT+GTDAT
8) Add Bit3，Bit4，Bit5 in ERI mask of
AT+GTFRI
9) Update the support version to
GV300R00A13V11M128_NMX
1.22 2014-11-17 Happy Peng 1）Add chapter3.2.47 to configure how to upgrade
the firmware in UFSxxx fuel sensor over the
air
2）Add chapter3.2.48 to introduce how to
configure the FTP server information where
and how to upload pictures
3）Add mode 12 for AT+GTMUT
Queclink
Confidential

GV300 Manage Tool User Guide
TRACGV300MT001 - 8 -
4）Add mode 14 for AT+GTMUT
5）Add mode3 to <Location By Call> in
AT+GTCFG
6）Add < +RESP:GTEXP> to <Event Mask> in
AT+GTCFG
7）Add parameter <Report Sensor Data>in
AT+GTEFS
8）Add parameter <Server Type> in AT+GTCMS
9）Change the range of <CAN report
interval>and<CAN report interval IGF>to
0|5–86400 in AT+GTCAN
10) Change Bit20 and Bit21 to <Total vehicle
overspeed time> and <Total vehicle engine
overspeed time> in AT+GTCAN
11) Add parameter <Additional Event> in
AT+GTCAN
12) Add sub command 10 and 11 in AT+GTRTO
13) Add FTP to Single AT Command and
Configuration Mask in AT+GTRTO
14) Change bit1 to “+RESP:GTUVN” in<Expand
INF Mask> in AT+GTHRM
15) Delete the related content about AC200
16) Update the support version to
GV300R00A14V08M128_NMX
1.23 2015-3-07 Gricy Wang 1) Add command AT+GTCMD and
AT+GTUDF.
2) Add sub command in AT+GTRTO
to get
software version of CAN100.
3) Add <CAN DATA> for <+RESP MASK> and
<Event Mask> in AT+GTHRM.
4) Add the paremeter <Behavior Duration
> for
AT+GTHBM.
5) Add the parameter <Start Time>, <End Time>
for AT+GTGEO.
GV300R00A15V10M128_NMX
1.24 2015-4-3 Gricy Wang 1）Update the support version to
GV300R00A15V13M128_NMX
Queclink
Confidential

GV300 Manage Tool
TRACGV300MT001- 9 -
2. GV300 Manage Tool Interface
GV300 manage tool is PC software which can be used to configure GV300 through UART. It is
easy for the backend server developers to configure GV300 with manage tool, which has friendly
user interface. The correct command messages sent to GV300 will be displayed on the manage
tool. (These messages can also be sent by SMS or GPRS ).
The administrators can also use the manage tool to configure GV300 before selling. But it is
strongly recommended to establish a backend server and implement the way to control GV300 by
SMS or GPRS. Please refer to “GV300 @Track Air Interface Protocol” for detail.
Before using the manage tools please install driver for the USB data cable (DATA CABLE_M).
After that a new COM port can be found in the PC system, and then please follow the steps as
below:
1. Connect GV300 to 12VDC power supply and GV300 will power on.
2. Connect GV300 to PC with USB data cable (DATA CABLE_M).
3. Run “GV300 Manage Tool Vx.xx.exe”.
2.1. System Requirements
In order for this manage tool to run on your computer, you must use it in below operating system:
♦Windows XP SP2 and above (32 & 64 bit);
♦Windows Server 2003 (32 & 64 bit);
♦Windows Server 2008 (32 & 64 bit);
♦Windows Vista (32 & 64 bit);
♦Windows 7 (32 & 64 bit);
♦Windows 8 (32 & 64 bit);
Supported System Environments:
♦Microsoft .NET Framework 4.0 or higher
Microsoft .NET Framework 4.0 download
link: http://www.microsoft.com/en-US/download/details.aspx?id=17718
Queclink
Confidential

GV300 Manage Tool
TRACGV300MT001- 10 -
2.2. COM Setting
Select the COM port, baud rate (115200bps in default), input the password (“gv300” in default),
and click “OK” button, then setting window will display.

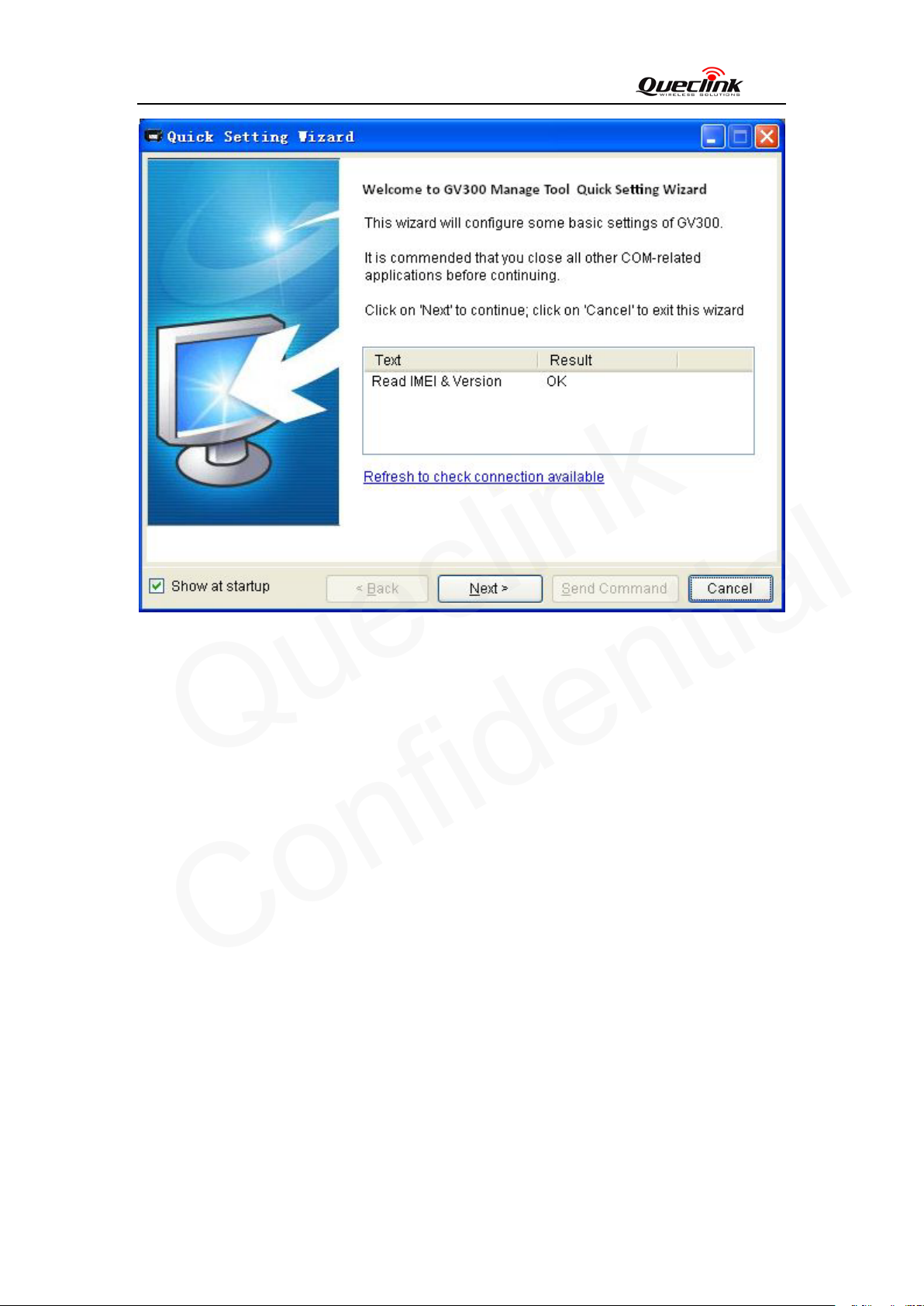

2.3. Quick Setting Wizard
The quick setting wizard gives a basic setting for device. If you want use more functions of
GV300, please change to enter professional setting mode.
Before you enter quick setting wizard, you must make sure the COM connection is OK.
Please refer chapter 3.1 for the detail of setting with quick setting wizard.
Queclink
Confidential

GV300 Manage Tool
TRACGV300MT001- 11 -
Queclink
Confidential

GV300 Manage Tool
TRACGV300MT001- 12 -

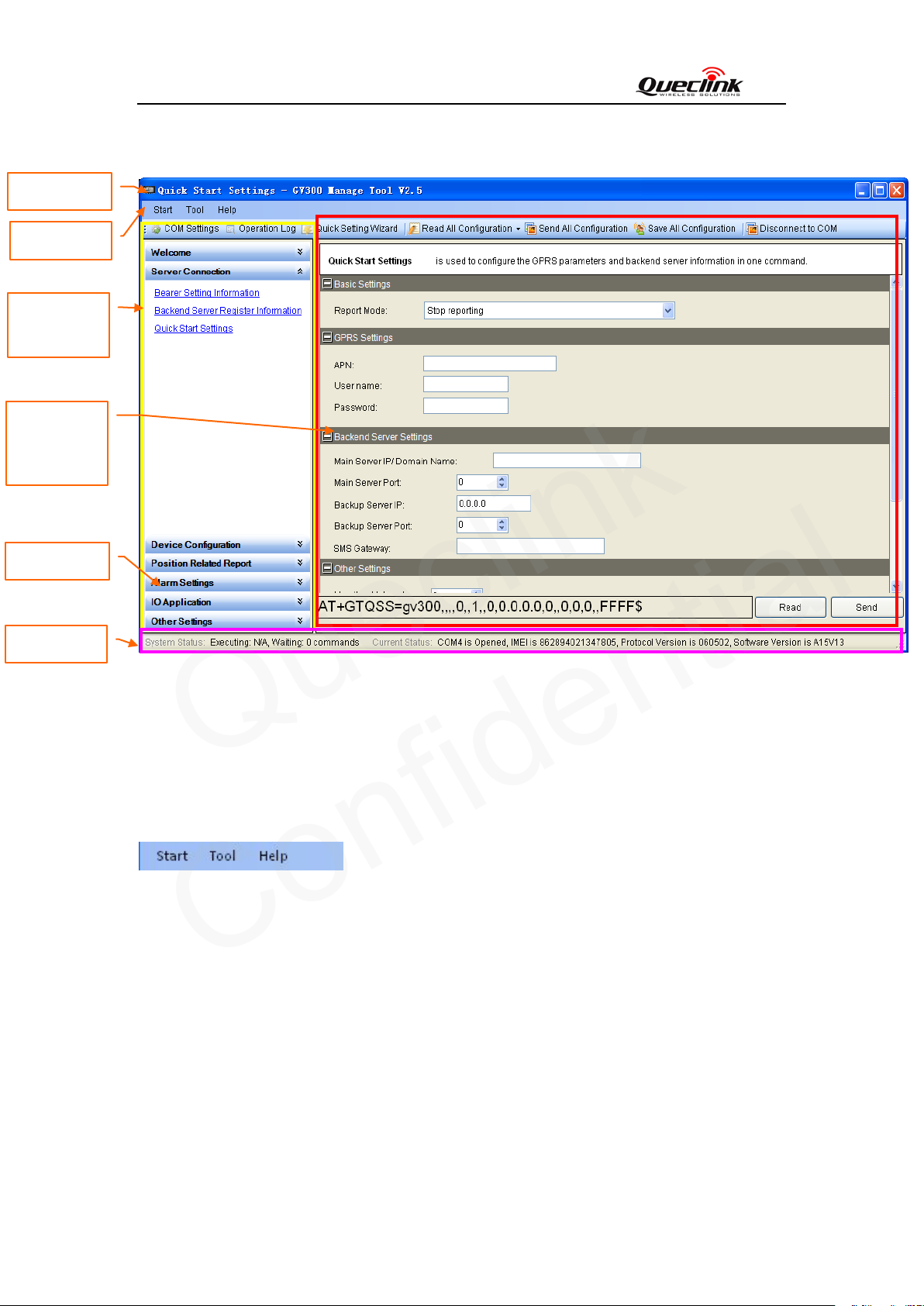

2.4. Professional Setting Windows
2.4.1. Title Bar
Title Bar indicates current operational command title and the name of manage tool.
2.4.2. Menus
It include “Start”, “Tool”, “Help” menu in menus.
2.4.2.1 Start Menu
Start menu include “COM Settings”.
[COM Setting]: It is used to set the COM information and password Setting details please refer to
chapter 2.2
2.4.2.2 Tool Menu
Tool menu include “Quick Setting Wizard”,”Operation Log”, “Options” setting.
[Quick Setting Wizard]: It is used to open quick setting wizard directly. Please refer to chapter
Menus
Toolbar
Title Bar
Command
Browser
Status Bar
Command
Operation
Space
Queclink
Confidential

GV300 Manage Tool
TRACGV300MT001- 13 -
3.1 for details.

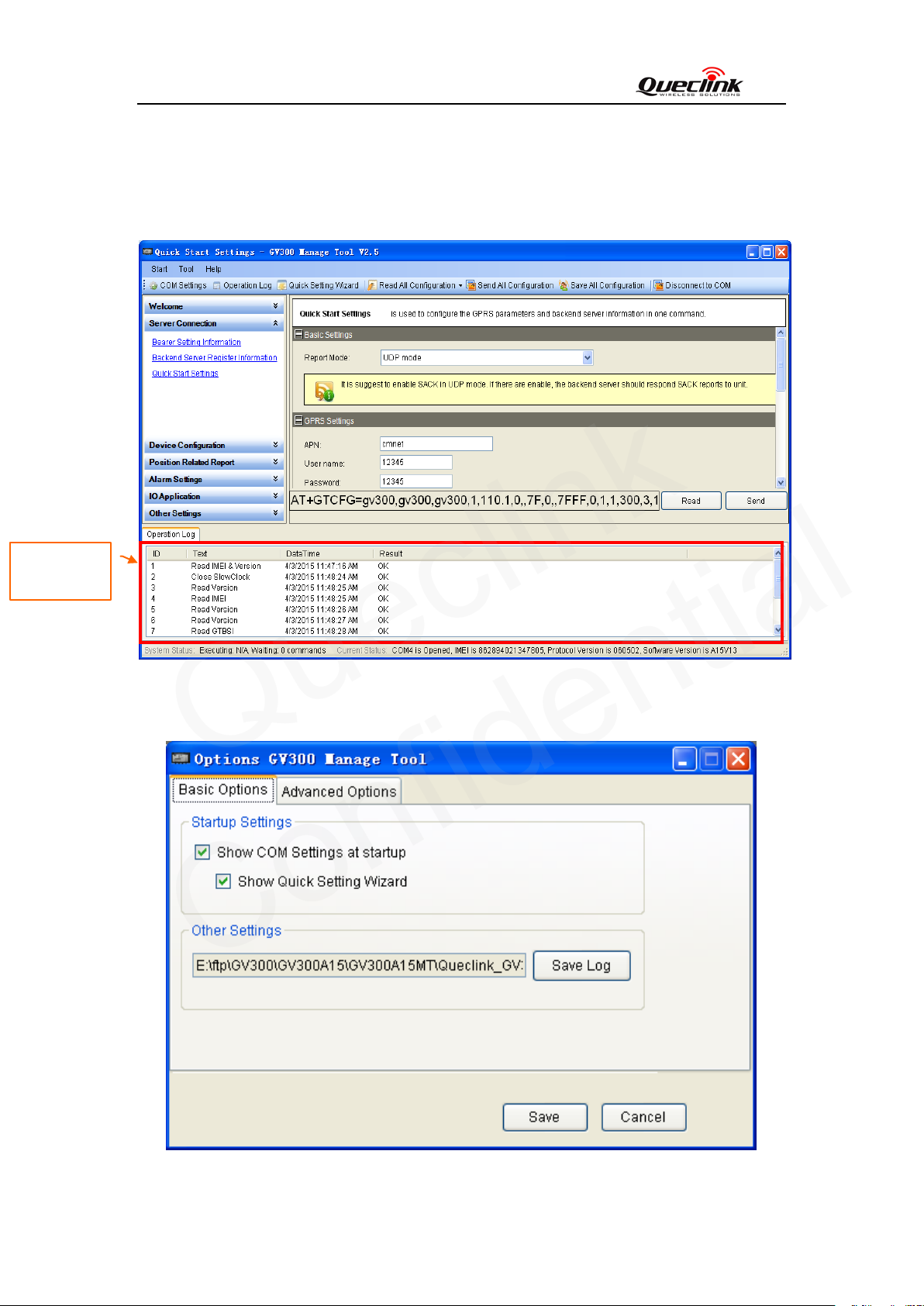

[Operation Log]: It is used to display/hidden the operation log.
[Options]: It is used to set the basic setting of manage tool.
“Basic Options” include startup setting options and log save option.
Operation
Log
Queclink
Confidential

GV300 Manage Tool
TRACGV300MT001- 14 -
“Advanced Options” include COM settings and other settings.
COM Settings is used to set COM setting. It is recommended using default setting for
these settings.
Queclink
Confidential

GV300 Manage Tool
TRACGV300MT001- 15 -
2.4.2.3 Help Menu
[About]: Select “About”. Then the following pop up window will display.
“Manage Tool Version” indicates the version of this manage tool.
“Support Version” indicates the firmware which this manage tool used for.
“Device Version” indicates the firmware which connects to the PC. It is recommended
using the same version of support version. If it is different between support version and
device version, the new character of device can not be used in this tool.
“Mcu Version” indicates the device’s MCU version which connects to the PC.
“Hw Version” indicates the device’s HW version which connected to the PC.
Queclink
Confidential

GV300 Manage Tool
TRACGV300MT001- 16 -
2.4.3. Toolbar
It include “COM Setting”, “Operation Log”, “Quick Setting Wizard”, “Real All Configuration”,
“Send All Configuration” , “Save All Configuration”, “Connect/Disconnect to COM”.
[COM Setting]: It is used to set the COM information and password. Setting details please refer
to chapter 2.2.
[Operation Log]: It is used to display/hidden operation log.
[Quick Setting Wizard]: It is used to open quick setting wizard directly. Please refer to chapter
3.1 for details.
[Read All Configuration]: It is used to display/hidden read and load.
“Read From Device”: It is used to read all configuration(except command GTDAT) from
device which connects to PC.
“Load Configuration From File”: It is used to load configuration file to the manage tool.
[Send All Configuration]: It is used to send all configurations(except command GTQSS, GTDAT,
GTRTO) in Command Operation Space.
[Save All Configuration]: It is used to save all configurations in Command Operation Space to
file.
[Connect/Disconnect to COM]: It is used to Connect/Disconnect to COM manually.
2.4.4. Status Bar
There is system status and current status in status bar.
[System Status]: It indicates the count of commands which are waiting and executing to set.
[Current Status]: It indicates current COM status, IMEI, protocol version and software version
which read from device.
Queclink
Confidential

GV300 Manage Tool
TRACGV300MT001- 17 -
2.4.5. Command Browser and Command Operation Space
This area is mainly read and set parameters of device.
2.4.5.1 Command Brower
Command Brower separates all @track protocol command to several parts. Click Function in
command Brower, reference parameters of this command will be shown in command operation
space.
Command Brower Function Description Relative Command
Server Connection Bearer Setting Information GTBSI
Backend Server Register Information GTSRI
Quick Start Settings GTQSS
Device Configuration Global Configuration GTCFG
Auto-Unlock PIN GTPIN
Software Protocol Watchdog GTDOG
Outside Working Hours GTOWH
Time Adjustment GTTMA
Jamming Detection Configuration GTJDC
Jamming Behavior Setting GTJBS
Hex Report mask GTHRM
Preserve special device logical state GTPDS
Position Related Report Fixed Position Information GTFRI
Frequen
cy Change of Fixed Report
Information
GTFFC
Alarm Setting Geo-Fence Configuration GTGEO
Tow Alarm Configuration GTTOW
Speed Alarm GTSPD
SOS Alarm GTSOS
Excessive Idling Detection GTIDL
Harsh Behavior Monitoring GTHBM
Start Stop Report GTSSR
Buzzer Alarm Definition GTBZA
Over Speed Alarm GTSPA
Temperature Alarm GTTMP
Roaming Detection Configuration GTRMD
Polygon Geo-Fence GTPEO
IO Application Digital Output Port Settings GTOUT
External Power Supply Monitoring GTEPS
Digital Input Port Setting GTDIS
Analog Input Port Setting GTAIS
Input/Output Port Binding GTIOB
Queclink
Confidential

GV300 Manage Tool
TRACGV300MT001- 18 -
Other Settings Voice Monitor GTMON
Transparent Data Transmission GTDAT
Hour Meter Counter GTHMC
Real Time Operation GTRTO
Serial Port Setting GTURT
White List GTWLT
AC100/AC200 Devices Setting GTACD
Extend digit fuel sensor GTEFS
ID Authentication GTIDA
Main Serial Port Setting GTMUT
Uart Data Transfer GTUDT
Fuel Sensor Calibration Table GTFSC
Camera Setting Command GTCMS
Take Picture Command GTTAP
CANBUS Device Configuration GTCAN
UFSxxx FOTA Upgrade GTUFS
FTP server information GTFTP
Store Command String GTCMD
User Defined Function GTUDF
2.4.5.2 Command Operation Space
[Command Description]: There is a short description for reference command.
Command
Description
Parameters
Area
Command
Display
Queclink
Confidential

GV300 Manage Tool
TRACGV300MT001- 19 -
[Parameters Area]: Set/Read parameters of this command in this area.
[Command Display]: Command with parameters in parameters area display in this area.
[Read]: Click this button to read this command from device.
[Send]: Click this button to send this command to device.
2.5. Operation Result Interface
2.5.1. Operation Successfully Interface
2.5.2. Operation Failed Interface
There should be COM port connection problem if the fail reason is timeout.
There should be COM port is occupied. Please close all other COM-related applications.
