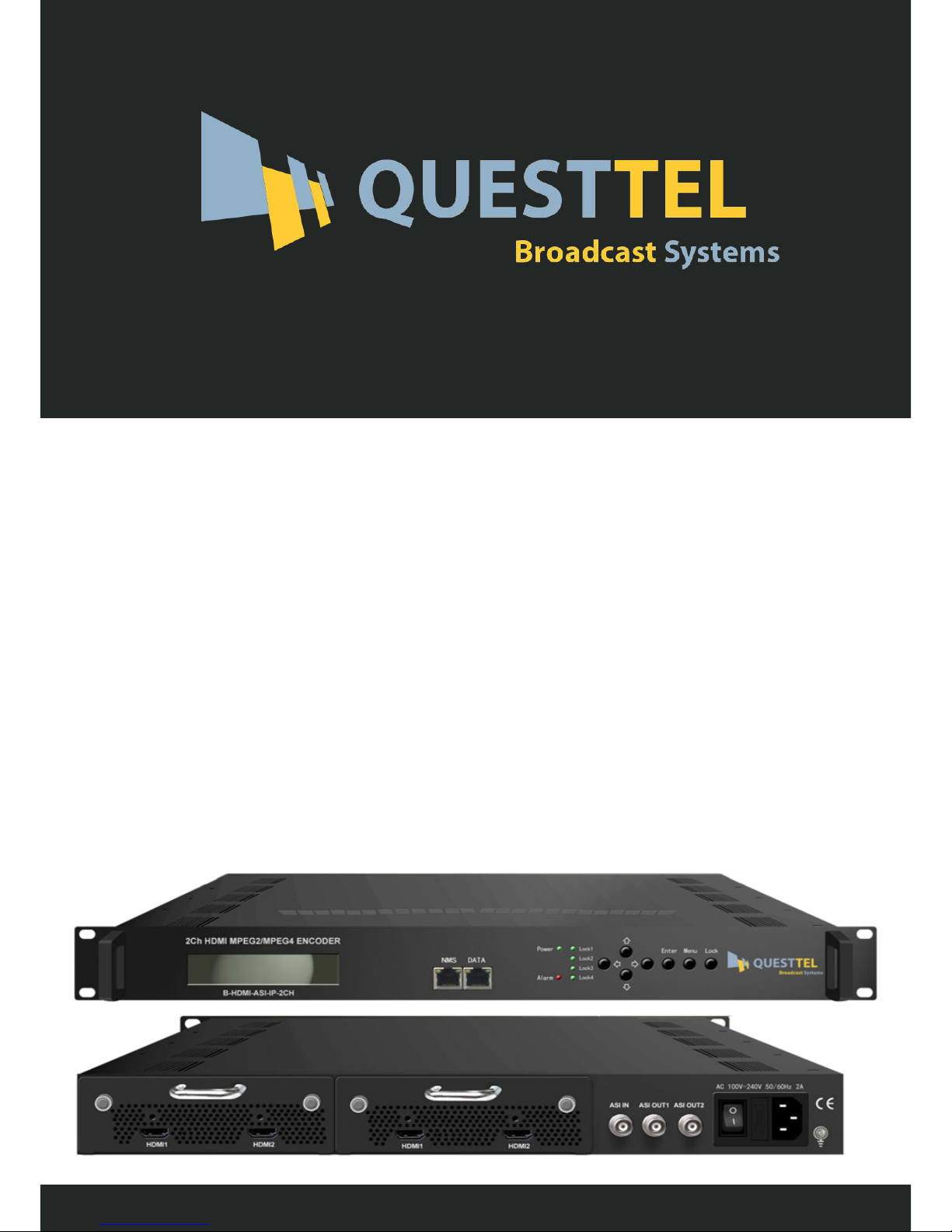

User Manual
2CH HDMI to ASI and IP MPEG2/
MPEG4(H.264) Encoder
B-HDMI-ASI-IP-2CH

About This Manual
Intended Audience
This user manual has been written to help people who have to use, to integrate and to
install the product. Some chapters require some prerequisite knowledge in electronics
and especially in broadcast technologies and standards.
Disclaimer
No part of this document may be reproduced in any form without the written permission
of the copyright owner.
The contents of this document are subject to revision without notice due to continued
progress in methodology, design and manufacturing. QuestTel shall have no liability
for any error or damage of any kind resulting from the use of this document.
Copy Warning
This document includes some confidential information. Its usage is limited to the
owners of the product that it is relevant to. It cannot be copied, modified, or
translated in another language without prior written authorization from QuestTel.
HDMI MEPG-2 H.264 Encoder User Manual
B-HDMI-ASI-IP-2CH
www.questtel.com [email protected]

Directory
CHAPTER 1 INTRODUCTION ...................................................................................................................1
1.1 PRODUCT OVERVIEW...............................................................................................................................1
1.2 KEY FEATURES ........................................................................................................................................1
1.3 SPECIFICATIONS....................................................................................................................................... 2
1.4 PRINCIPLE CHART....................................................................................................................................3

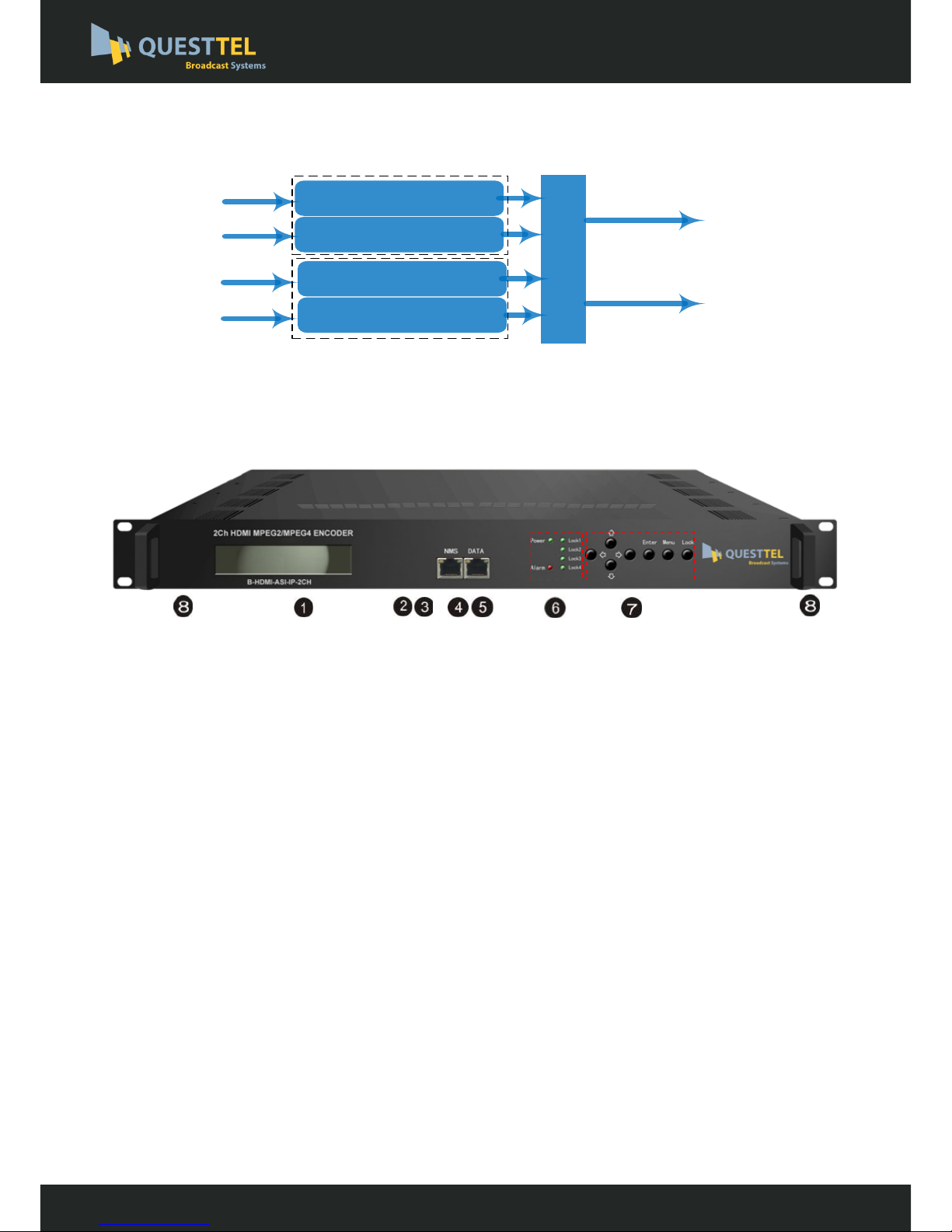

1.5APPEARANCE AND DESCRIPTION .............................................................................................................3
CHAPTER 2 INSTALLATION GUIDE...........................................................................................................5
2.1 GENERAL PRECAUTIONS..........................................................................................................................5
2.2 POWER PRECAUTIONS.............................................................................................................................. 5
2.3 DEVICE’S INSTALLATION FLOW CHART ILLUSTRATED AS FOLLOWING..................................................... 5
2.4 ENVIRONMENT REQUIREMENT ................................................................................................................5
2.5 GROUNDING REQUIREMENT ....................................................................................................................6
CHAPTER 3 OPERATION..........................................................................................................................7
3.1 LCD MENU CLASS TREE......................................................................................................................... 7
3.2 INITIAL STATUS........................................................................................................................................8
3.3 GENERAL SETTINGS FOR MAIN MENU.....................................................................................................8
CHAPTER 4 WEB NMS OPERATION .......................................................................................................16
4.1 LOGIN ....................................................................................................................................................16
4.2 OPERATION............................................................................................................................................ 17
CHAPTER 5 TROUBLESHOOTING...........................................................................................................24
CHAPTER 6 PACKING LIST .....................................................................................................................25
HDMI MEPG-2 H.264 Encoder User Manual
B-HDMI-ASI-IP-2CH
www.questtel.com [email protected]

Chapter 1 Introduction
1.1 Product Overview
The B-HDMI-ASI-IP-2CH 4-in-1 MPEG2/H.264 HD Encoder is a new professional
HD audio & video encoding device with powerful functionality. It has equipped with 2
HDMI channels input supporting MPEG‐2 and MPEG‐4 AVC/H.264 video
encoding and MPEG‐1 Audio layer 2, LC‐AAC, HE‐AAC and DD AC3 audio
encoding. The 4 encoded programs will output through ASI and IP ports in MPTS or
SPTS. It adopts inner drawer‐type structural design which greatly facilitates the
change of encoding modules to SDI if needed.
1.2 Key Features
Dual power supply
MPEG2 HD/SD & MPEG4 AVC/H.264 HD/SD video encoding
MPEG1 Audio Layer 2, LC-AAC, HE-AAC and AC3 audio encoding
2*HD-HDMI input
Support VBR/CBR rate control mode
Support CC (closed caption) EIA608 & EIA708
Support Low Latency function
Support PSI/SI editing and inserting
Supports IPnull packet filter
ASI output, IP(MPTS & 4 SPTS) output over UDP, RTP
LCD display, Remote control and firmware
Web-based NMS management; Updates via web
HDMI MEPG-2 H.264 Encoder User Manual
B-HDMI-ASI-IP-2CH
www.questtel.com [email protected]

1.3 Specifications
Encoding Section
Video
Encoding
MPEG2 & MPEG4 AVC/H.264
Input
HD-HDMI*2
Resolution
1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only)
1920*1080_60i, 1920*1080_50i,
1280*720_60p, 1280*720_50P
720*480_60i, 720*576_50i
Bit Rate
0.5~19.5Mbps for H.264 encoding
1~19.5Mbps for MPEG-2 encoding
Rate Control Mode
CBR/VBR
Audio
encoding
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3
Sample rate
48KHz
Bit rate
64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps
System
Local interface
LCD + control buttons
Remote management
Web NMS
Low Latency Mode
Normal, mode 1, mode 2
output
2*ASI out (BNC type);
IP (1 MPTS & 4 SPTS) over UDP, RTP (RJ45, 100M)
NMS interface
RJ45, 100M
Language
English
General
Power supply
AC 100V~240V
Power Consumption
45W
Dimensions
482*400*44mm
Weight
4.5 kgs
Operation temperature
0~45℃
