Quictent WGB-01 User manual

35.4" x 23.6" x 35.4" 48" x 48" x 11”
USER MANUAL
Please read, understand, and practice the guidelines in this user manual
before use, and keep it for future reference.
* The Parts List varies by the model. Please check which one you have.

Tableof Contents
About Quictent
...........................................................................
6
.....................................................................................
Appendix 18
......................................................................................
17Warranty
735.4" x 23.6" x 35.4" (Model #WGB-01)
........................................................
............................................
1448" x 48" x 11" (Model #WGB-02)
1
IMPORTANT
We’d love to hear from our customers. If you have any questions about the manual or
would like us to help in any way, please feel free to contact the support team. We will
reply in 12 hours (business days).
Check the Spam and your email Settings if you do not receive a reply in time as
it is probably blocked because our support team will always get back to you no
later than the timeframe.
Add the following email address to your CONTACT LIST in case of any blocking.
Email: [email protected], [email protected].

Garden Beds from Quictent
* Only WGB-01 & WGB-02 have instructions in this manual
2
49" x 37.4" x 36" GB-01
49" x 37.4" x 36" GB-02

3

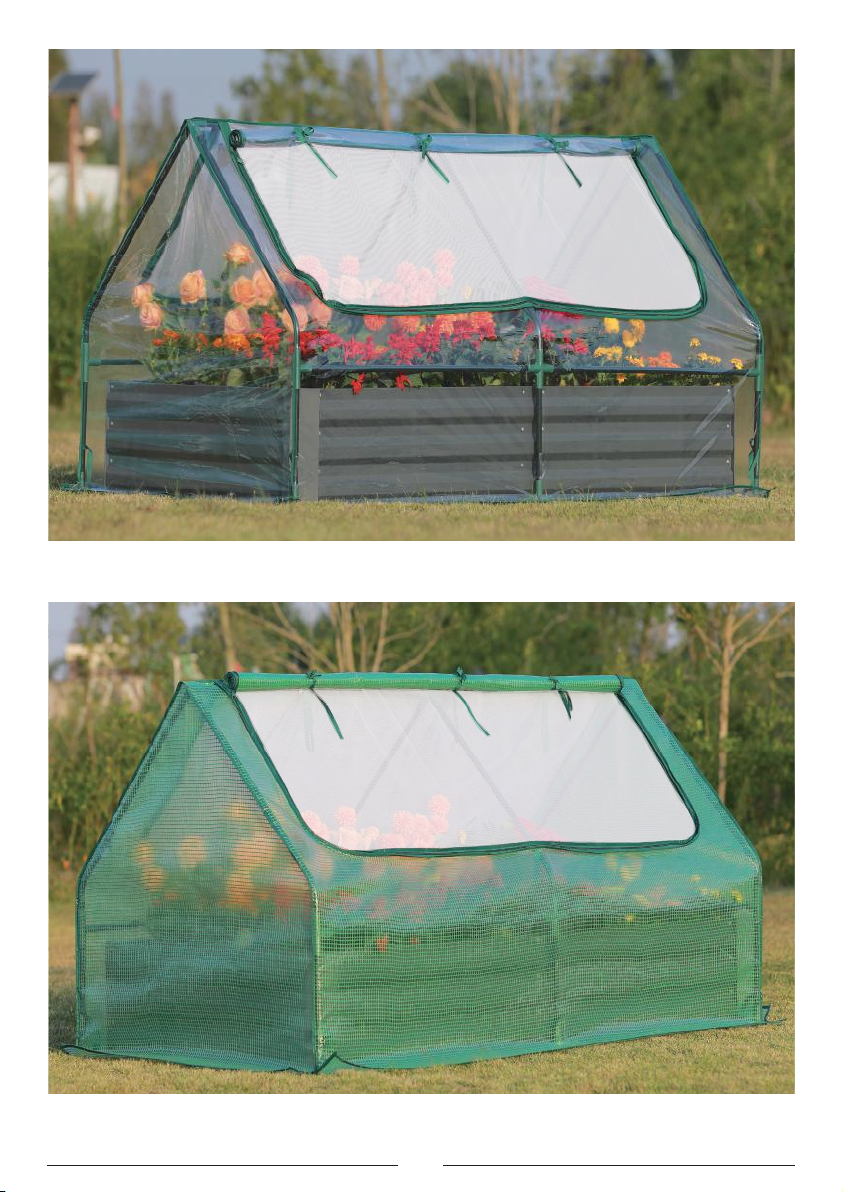

72.8" x 37.4" x 36" GB-51
72.8" x 37.4" x 36" GB-51G

4
48" x 48" x 11" WGB-02
35.4" x 23.6" x 35.4" WGB-01

5
47" x 35.4" x 12" GB-03S 47" x 35.4" x 22.4" GB-03H
47" x 35.4" x 12" GB-03S 47" x 35.4" x 22.4" GB-03H
71" x 35.4" x 22.4" GB-04H71" x 35.4" x 12" GB-04S

3
AboutQuictent
This user manual applies to Quictent wooden raised garden beds. It will help you to
get to know your Quictent wooden raised garden bed. Please read the guidelines in
this manual and keep the manual for future reference.
Our Vision
Creating unique spaces to meet every specific need, and become a part of America's
landscape.
Our Mission
To keep innovating and provide a wide range of reliable shelters and shades at
consumer-grade prices with customer-first service.
Our Service
The customer-centric services are what we at Quictent take great pride in. In
addition to the hassle-free warranty covering all Quictent products, an industri-
al-leading support team is standing behind at all times. Whenever you need help or
have any suggestions and comments about our products, do not hesitate to reach
out to us at [email protected] or [email protected]. You’re sure to
get a to-the-point reply in 12 hours.
Founded in the early 21st century, Quictent has grown into a popular brand with
reliable products and excellent customer services during the past decades. We
started with pop up canopies, and then expanded to other 6 categories for shelters
and the like including raised garden beds, carports, greenhouses, shade sails, patio
umbrellas and grow tents. Driven by the vision to create unique spaces to meet
every specific need and become a part of America's landscape, we at Quictent
would spare no effort to keep innovating.
We may update the manual without notice in advance. You can always search
“Quictent Instructions” online for the latest version.
6

35.4" x 23.6" x 35.4" (Model # WGB-01)
You’ll receive one (1) box for this model. Please pay particular attention to making
sure all parts are numbered and graphically indexed as shown on the Parts List
(Table 1), so does the quantity for each part. If you need any help, please email the
support team at [email protected] or [email protected] with the
order number, required parts (name, quantity, and part number for each),
and photos (or videos, if applicable), we will get back and help out soon.
4
7
A
D
E
C
B
1
8
7
8
8
9
2
4
3
5
6

The T-Type Plant Tags (#13) and the Planting Shovel (#14) are used to make
your future planting easy, you’ll not use them during the assembly.
There are Part #A, Part #B, Part #C, Part #D, and Part #E in the Screw Bag (#10),
please refer to the Table 2 Details for Screw Bag below.
4
8
#1
#2
#3
#4
#5
Part
Number DescriptionDiagram Quantity
Long Wooden Board 2
Short Wooden Board 2
Leg Post 4
Wooden Shelf 1
Supporting Block 4
Reminders!
Parts List
Table 1. Parts List
Side. a
Side. b

4
9
Part
Number DescriptionDiagram Quantity
#6 Bottom Wooden
Board 1
Planting Shovel
T-Type Plant Tag 50
Glove 2 (1 Pair)
1 (Set)
Non-Woven Cloth 2
#10
#11
#12
#13
#14
Screw Bag (Learn
More from the Table
2 Below)
1
#9 Leg Cap 4
#8 Short Dividing Bar 3
#7 Long Dividing Bar 1

4
10
Before the assembly, please check to make sure that you have all the parts listed
in the Parts List.
We highly recommend you use an electric drill (not provided) when installing
the screws.
Before installing the screws, please make sure the parts are fully aligned.
Please always wear gloves (#7) during the assembly.
Reminders!
Assembly
Part
Number DescriptionDiagram Quantity
#A 3 x 35 mm Screw 16
#B 3.5 x 35 mm Screw 8
#C 3.5 x 40 mm Screw 16
#D 3.5 x 45 mm Screw 12
#E M6 x 60 mm Bolt 4
Table 2. Details for Screw Bag (#10)

11
Step 1 Layout and assemble the garden bed with 2 x part #1 (Long Wooden
Board), 2 x part #2 (Short Wooden Board), and 8 x part #C (3.5 x 40 mm
Screw).
Step 2 Attach the 4 x part #3 (Leg Post) to the boards with 8 x part #B (3.5 x 35
mm Screw) and 8 x part #C (3.5 x 40 mm Screw).
VERY IMPORTANT!
C
C
C
C
2
1
1
2
You should ALWAYS align the
Side. b with the Short Wooden
Boards (#2) and fix them
together with the part #B (3.5 x
35 mm Screw).
You should ALWAYS align the
Side. a with the Long Wooden
Boards (#1) and fix them
together with the part #C (3.5 x
40 mm Screw).
The Side. a of all the Leg Posts
(#3) is larger than the Side. b.
B
B
B
B
C
C
C
C
3
3
3
3
Please lay down the side of the
wooden board with screw holes
on the ground.
Reminders!

D
D
D
D
D
D
D
E
E
E
E
D
12
Step 3 Reinforce the structure with
4 x part #5 (Supporting
Block). You’ll use 12 x part
#D (3.5 x 45 mm Screw).
Step 4 Assemble the part #4 (Wood-
en Shelf) by using 4 x part #E
(M6 x 60 mm Bolt).
Step 5 Turn over the assembled
frame, then attach the part #6
(Bottom Wooden Board) and
place the part #11 (Non-Woven
Cloth) inside the garden bed.
5
5
4
6
11
5
5

A
AA
A
A
A
A
A
A
A
13
Step 6 (Optional step!) Create the
grids with the 1 x part #7
(Long Dividing Bar) and the
3 x part #8 (Short Dividing
Bar). You'll use 8 x part #A
(3 x 35 mm Screw) to fix all
the parts.
Step 7 To better protect the leg
posts and secure the garden
bed, please add the 4 x part
#9 (Leg Cap) to the top of leg
posts. You'll use 8 x part #A
(3 x 35 mm Screw) in this
step.
8
9
9
8
87

48" x 48" x 11" (Model #WGB-02)
You’ll receive one (1) box for this model. Please pay particular attention to making
sure all parts are numbered and graphically indexed as shown on the Parts List, so
does the quantity for each part. If you need any help, please email the support team
at [email protected] or [email protected] with the order number,
required parts (name, quantity, and part number for each), and photos (or
videos, if applicable), we will get back and help out soon.
4
14
The T-Type Plant Tags (#8) are gifts so that you can label your plants and give
them correct care accordingly. You’ll not use them during the assembly.
Reminders!
Parts List
3
4
12
5

4
15
Part
Number DescriptionDiagram Quantity
#1 Outer Wooden Board 2
#8 T-Type Plant Tag 50
#7 Glove 2 (1 Pair)
#2 Inner Wooden Board 2
#3 Exterior Corner Bracket 4
#4 Interior Corner Bracket 4
#5 Screw (3.5 x 20 mm) 48
#6 Weed Barrier 1
Before the assembly, please check to make sure that you have all the parts listed
in the Parts List.
We highly recommend you use an electric drill (not provided) when installing
the screws.
Please make sure the parts are fully aligned when installing the screws.
Please always wear gloves (#7) during the assembly.
Reminders!
Assembly
cm
1174 mm
1214 mm

16
Step 1 Layout the 2 x part #1 (Outer
Wooden Board) and the 2 x
part #2 (Inner Wooden Board)
as instructed, then connect
them with 4 x part #3 (Exterior
Corner Bracket) and 24 x part
#5 (Screw).
Step 2 Reinforce the bed with the
4 x part #4 (Interior Corner
Bracket) and 24 x part #5
(Screw), then put the Weed
Barrier (#6) inside the
garden bed.
1
55
5
5
5
5
6
4
5
55
5
1
2
2
1
2

REMINDER
In the event that you failed to access your order information online, we strongly
advise you to keep the original packaging and shipping carton(s) because they
are treated as a proof of purchase.
1.
To get what you need as soon as possible, we strongly suggest you provide all of
the following information at your first inquiry:
Restructuring the product without written permission from Quictent in advance
would VOID the warranty.
2.
Order number
Required parts (name, quantity, and part number for each)
Pictures (or video clips, if applicable)
Damages due to improper use in severe weather conditions, including but not
limited to high winds, heavy rain, sleet, snow, etc., will NOT be covered by the
warranty.
WARNING
Warranty
The 12-month limited warranty covering the materials and the craftsmanship under
normal use and service conditions takes effect from the purchase date (on the
invoice). Please note that the order purchase proof (order number or shipping infor-
mation on the shipping carton) is the only valid evidence to claim for warranty.
