Quloos QU02 User manual

— 1 —
QU02 User Manual
Front Panel
APower Indicator BSample Rate Indicator
Sample Rate Indicator
1X
2X
4X
8X
44.1kHz(PCM)
44.1kHz
88.2kHz
176.4kHz
352.8kHz
48kHz(PCM)
48kHz
96kHz
192kHz
384kHz
DSD
DSD64
DSD128
DSD256
DSD512
Rear Panel

— 2 —
Port Name
Functional Description
A
I2S
I2S Output（LVDS）
B
AES
AES Output【1: GND，2: +(HOT) ，3: -(COLD)】
C
OPT
Optical SPDIF Output
D
COAX1
Coaxial SPDIF Output 1
E
COAX2
Coaxial SPDIF Output 2
F
USB
USB Input
G
DC12V IN
Power Input: DC12V(12-13V) 2A
@DC Base 5.5*2.1，Internal is Positive.
H
POWER
Power Switch
I2S Port Definition Settings
The I2S port uses an HDMI socket，But the I2S signals are completely different
than HDMI video signals. Do not attempt to connect a monitor, TV and
computer. Please set up the I2S interface before using I2S Output.

— 3 —
●K1：K1 to ON, DSD FLAG is PIN15, Set PIN15 as the FLAG Bit.
●K2：K2 to ON, DSD FLAG is PIN14, Set PIN14 as the FLAG Bit.
●K3：Phase setting of I2S interface, K3 to ON is Standard phase,K3 to OFF is
Reverse phase.
●K4：DSD channel setting for I2S interface, K4 to OFF is DSDR using LRCK，
K4 to ON is DSDR using DATA.
Note：After setting K3 or K4, You need to restart the device for this to take
effect。

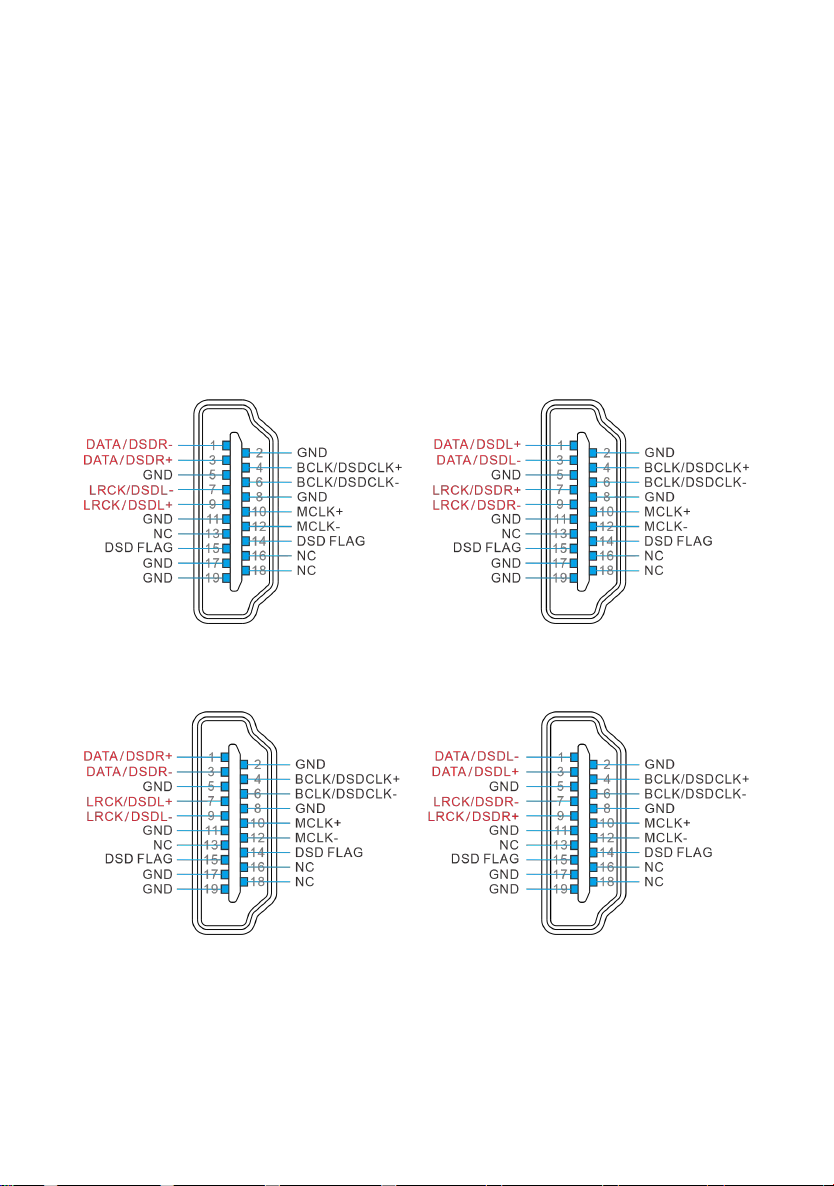

K3-ON K4-ON K3-OFF K4-OFF
K3-OFF K4-ON K3-ON K4-OFF

— 4 —
Product Parameters
Port
PCM
DSD
I2S
32Bit / 44.1kHz ~ 384kHz
DSD64 ~ DSD512(Native)
AES
24Bit / 44.1kHz ~ 384kHz
Dop64 ~ Dop128
OPT
24Bit / 44.1kHz ~ 192kHz
Dop64
COAX
24Bit / 44.1kHz ~ 384kHz
Dop64 ~ Dop128
Port
Impedance Matching
Output Level
I2S
100Ω
LVDS
AES
110Ω
3Vpp
OPT
---
---
COAX
75Ω
0.55Vpp
●Download KS/Wasapi/WDM/ASIO Drivers for Win7,Win8,Win10,Win11 ：
http://www.qlshifi.com/en/Download.htm
●NO Drivers needed for Mac OSX 10.6+ and Linux with UAC2 compliant
kernel.
●Device name: Quloos QU02 or Amanero ASIO Combo384.
●Using an OTG to USB-A adapter, QU02 can connect to most mobile phones
or iPad.
Contact US：
Email：[email protected]
