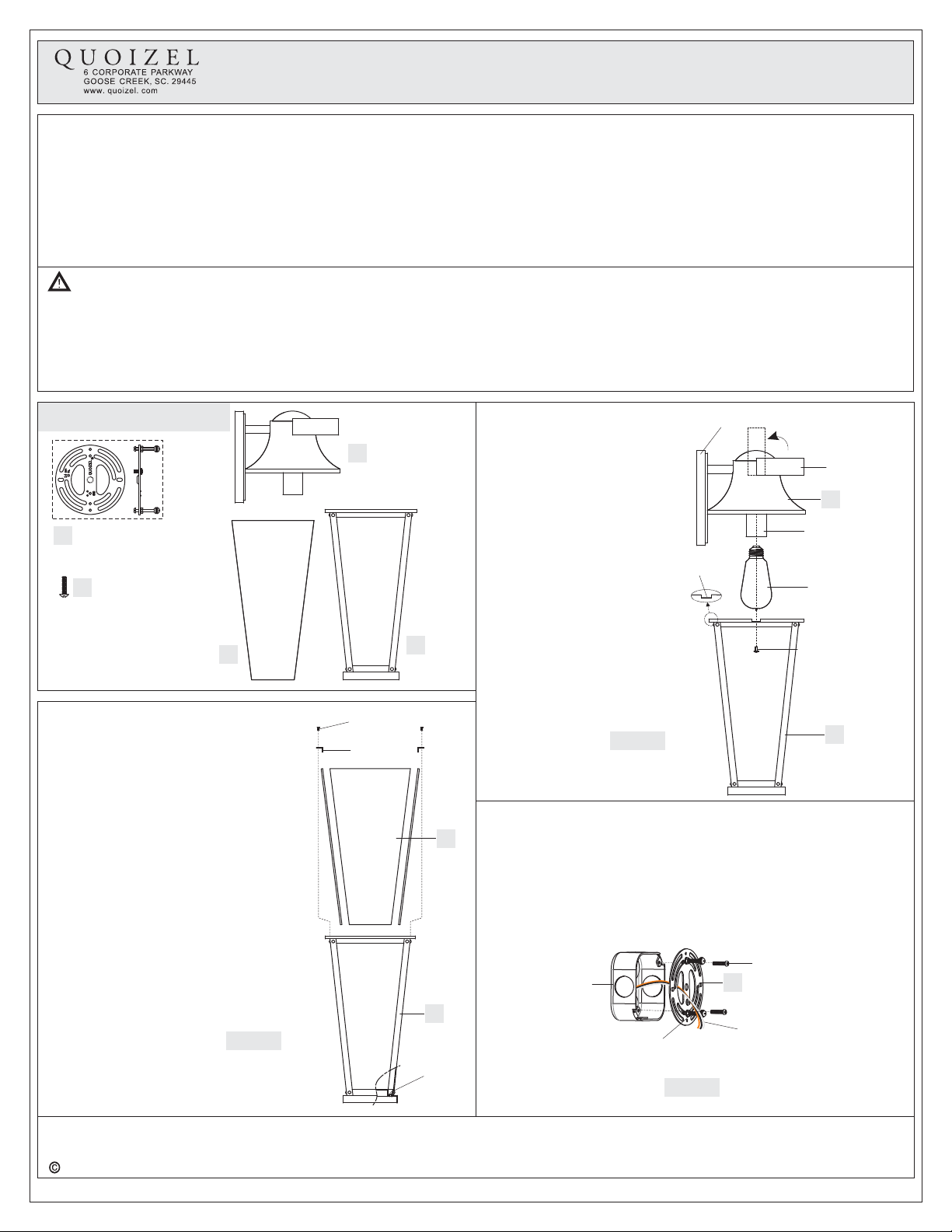

Quoizel GLV8408MB Mounting instructions

Package Contents
Warnings and Cautions
1of2
Assembly Instruction Sheet #IS-GLV8408MB
For Style GLV8408MB
2017 QuoizelInc.
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
ACrossbar Assembly
x1
Pleasegoto forproductcleaningtips.Gotothe selection.
(1)A21MediumBasebulb150WMaximumor
(1)MediumBaseVintageBulbisrecommendedbutnotsupplied.
20-30minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtoensureallpartsare
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerserviceforreplacement
parts.
www.quoizel.com Care + Maintenance
LightSource:
EstimatedAssembly Time:
Preparation:
Fixturecanonlybemountedinthedirectionindicatedonpage2.
ToolsRequired:Flatheadscrewdriver,Phillipsscrewdriver,pliers,wirecutters,wirestrippers,electricaltape,safetyglasses.
CFixture Body
x1
ReleasedDate:2017-11-01
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
D
Glass Panel
x4
ECage
x1
B
Alternate
Mounting
screw
x2
STEP 1 Attach the Glass Panels to
the Cage
-
A. Remove Allen screws and tabs from
the top edge of the Cage (E).
B. Insert Glass Panels (D) into the slot
in the bottom edge of the Cage (E).
Place tabs onto the top edge of
Glass Panels (D) and align holes on
tabs to mounting holes on the top
edge of the Cage (E). Secure by
threading Allen screws back into the
Cage (E). Hand tighten until snug
with screwdrivers.
Allen
Screw
Tab
Figure 1
STEP 2 Install the Bulb and
the Cage
-
A. Remove lock screws from
the fixture hood.
B. Insert the bulb onto the
socket and screw snugly into
place.
C.
D. Rotate the curve metal until
it is just on the top of the
Fixture Body (C).
Attach the fixture hood of
the Fixture Body (C) onto the
top edge of the Cage (E) with
one gap on the Cage (E)
against the backplate and
align other gaps to the side
of the fixture hood. Secure
with previously removed
lock screws. Tighten until
snug with screwdrivers.
Curve Metal
C
Vintage Bulb
(recommended
but not supplied)
Socket
E
Lock Screw
Figure 2
STEP 3 Installing the Crossbar Assembly-
A. Pass the supply wires through the Crossbar Assembly (A). Attach
the Crossbar Assembly (A) to the Outlet Box with the head of the
Green Ground Screw facing you. Secure the Crossbar Assembly (A)
with Outlet Box Screws (not included). Tighten until snug
Note: Use the Alternate Shorter Mounting Screw (B) if your
installation requires a shorter mounting screw.
.
Supply Wires
with Ground Wire
Outlet Box Screws
(not included)
Outlet
Box A
Figure 3
Mounting Screw
or Alternate Short
Mounting Screw
D
E
Slot
Gap
Backplate

2of2
2017 QuoizelInc.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
Figure 7
Exterior
Grade Caulk
Backplate
Exterior
Grade Caulk
STEP 7 -Apply Silicone Sealer
A. Make sure the exterior wall
surface and fixture backplate
arefreeofdirtbefore
applying caulk. Using exterior
grade caulk, caulk over top of
backplate and down both
sides. Do not caulk the
bottom of the fixture
backplate to ensure proper
moisture drainage.
Your fixture is now assembled
and ready to use. Enjoy!
GLV8408MB
FINISH: MOTTLED BLACK
9.5"
NOTE: ALL DIMENSIONS ARE ROUNDED
UP TO THE NEAREST 1/4"
Fixture can
only be
mounted in
the direction
indicated
ReleasedDate:2017-11-01
STEP 4 Test Fit the Backplate to the Crossbar Assembly-
A. Remove the mounting balls from the Crossbar Assembly (A). Place
the backplate and Fixture Body (C) onto the Crossbar Assembly (A)
and secure with mounting balls. Note: The backplate and Fixture
Body (C) should be snug against the wall and held tight with the
mounting balls. If it is not, adjust the length of the mounting screw
C
Mounting Ball
A
Backplate
Hex Nut and
Lock Washer
Mounting Screw
or Alternate Short
Mounting Screw
Figure 4
STEP 5 - Wire Connections
A. Wrap bare or green ground wire around green ground screw on the
crossbar, no less than 2 inches from the end of the wire. Tighten the
green ground screw.
B. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
Green Ground Screw
on the Crossbar
White wire
from outlet box White wire
from fixture
Black wire from
outlet box (or Red)
Black wire
from fixture
Bare, or Green
Ground wire
from outlet box
Ground wire
from Fixture
Figure 5
STEP 6 Install the
Fixture Body
-
A. Position the backplate
and Fixture Body (C)
onto the Crossbar
Assembly (A). Place the
holes in the backplate
over the mounting
screws or alternate
short mounting screws.
Secure the Fixture Body
by using the mounting
balls and hand tighten
the mounting balls until
snug.
Figure 6
5.25"
9"
22"
5"
or alternate short
mounting screw on the
Crossbar Assembly (A) by
unscrewing the
preassembled hex nut
and lock washer and then
screwing the mounting
screws or alternate short
mounting screws in or out
of the crossbar until the
correct length is
achieved. Once the
backplate and Fixture
Body (C) is secure,
remove the mounting ball
and Fixture Body (C) and
proceed to Step 5.
C
Mounting Ball
A
Backplate
Mounting Screw
or Alternate Short
Mounting Screw
8.5"
8.5"
