● When installing Quuppa LD7L, make sure the installation surface can safely
carrytheweightoftheequipmentandpossiblewindloads.
● Your service technician or dealer may be able to provide you with information on
alternatives for mounting the equipment suitably in different types of
environments.
● Do not smoke when installing the equipment. Make sure there is no source of fire
orflamenearby.
● Make sure cables are placed so that they will not be subject to mechanical wear
andtear.
Installationnotes
Quuppa LD7L should be mounted clear of any metal obstructions
(such airconditioning ducts, large ceiling trusses, building
superstructures) to the side or front of the enclosure. In case needed,
use a rigid conduit to lower the Quuppa LD7L away from these
obstructions.
Quuppa LD7L should be aimed into the intended coverage area,
therefore mount the device so that the desired mechanical tilt can be
achieved.
Selectingcompatiblemountingbracket

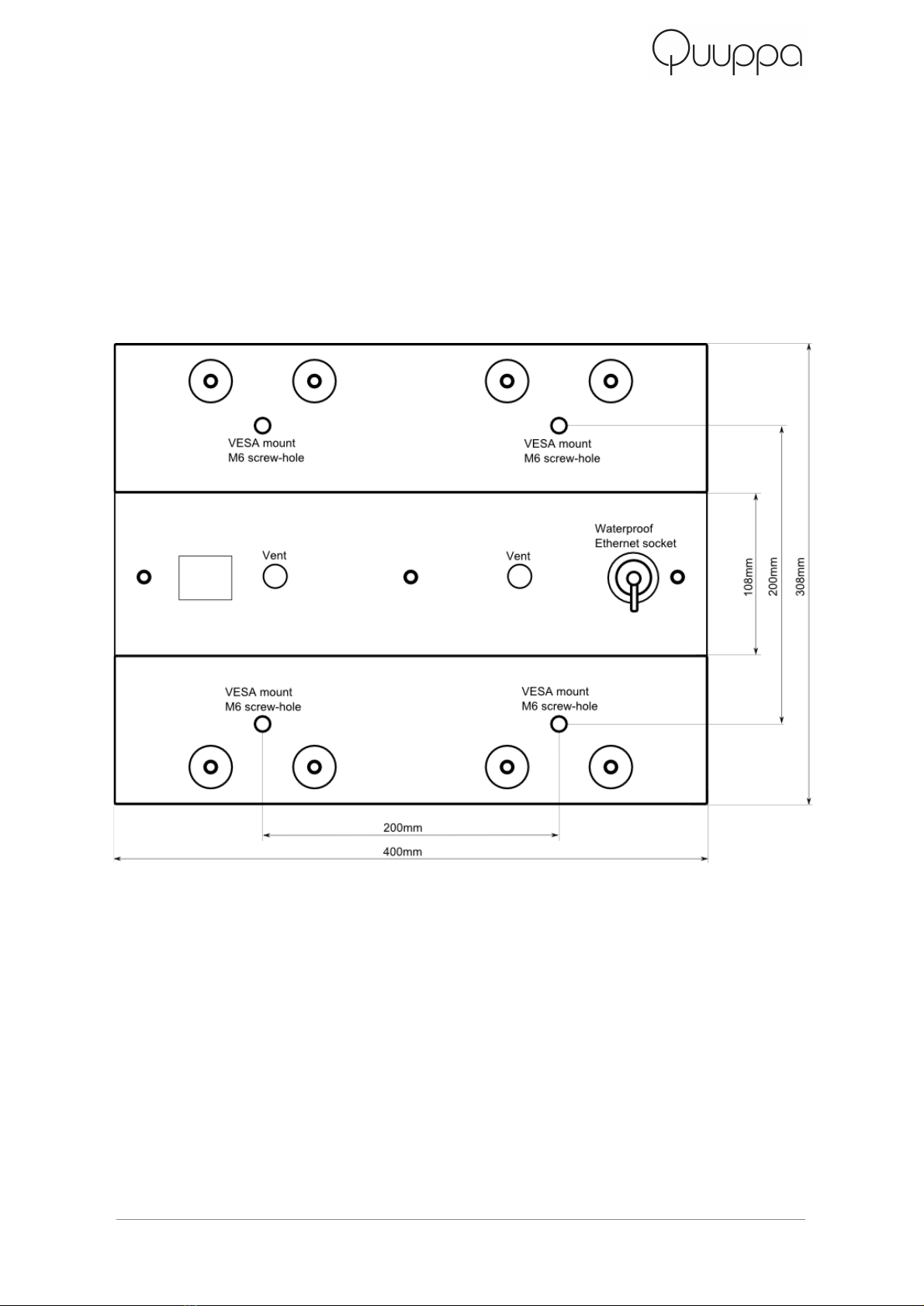

The mounting holes of Quuppa LD7L are arranged according to VESA
MISF, 200, Y, 6 standard (Four M6 threaded holes in 200x200mm
pattern). Select your mounting bracket according to the requirements
set by the installation environment. Make sure that the mounting bracket
cancarrytheweightofQuuppaLD7Landpossiblewindloads.
7 QuuppaLD7LInstallationGuideandSafetyInformation ©2014Quuppa
