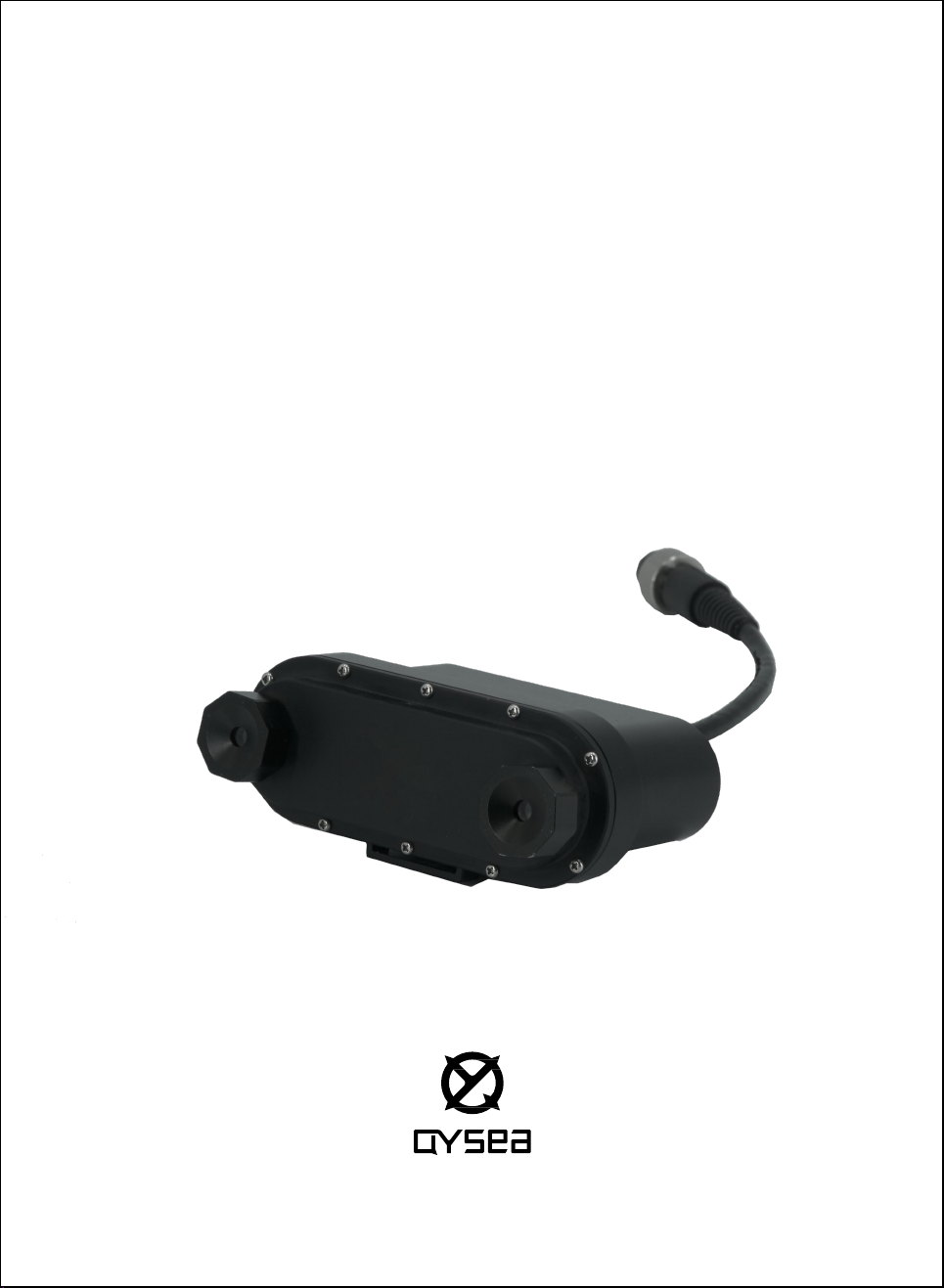

QYSEA V6 Series User manual

User Manual for
Laser Scaler

Contents
Packing list·······································································································································01
Safety Rules·····································································································································02
Product specification······················································································································03
Usage instructions··························································································································04
Installation······································································································································05
Operation········································································································································10
Maintenance and after-sales support···························································································· 14
Disclaimer········································································································································15

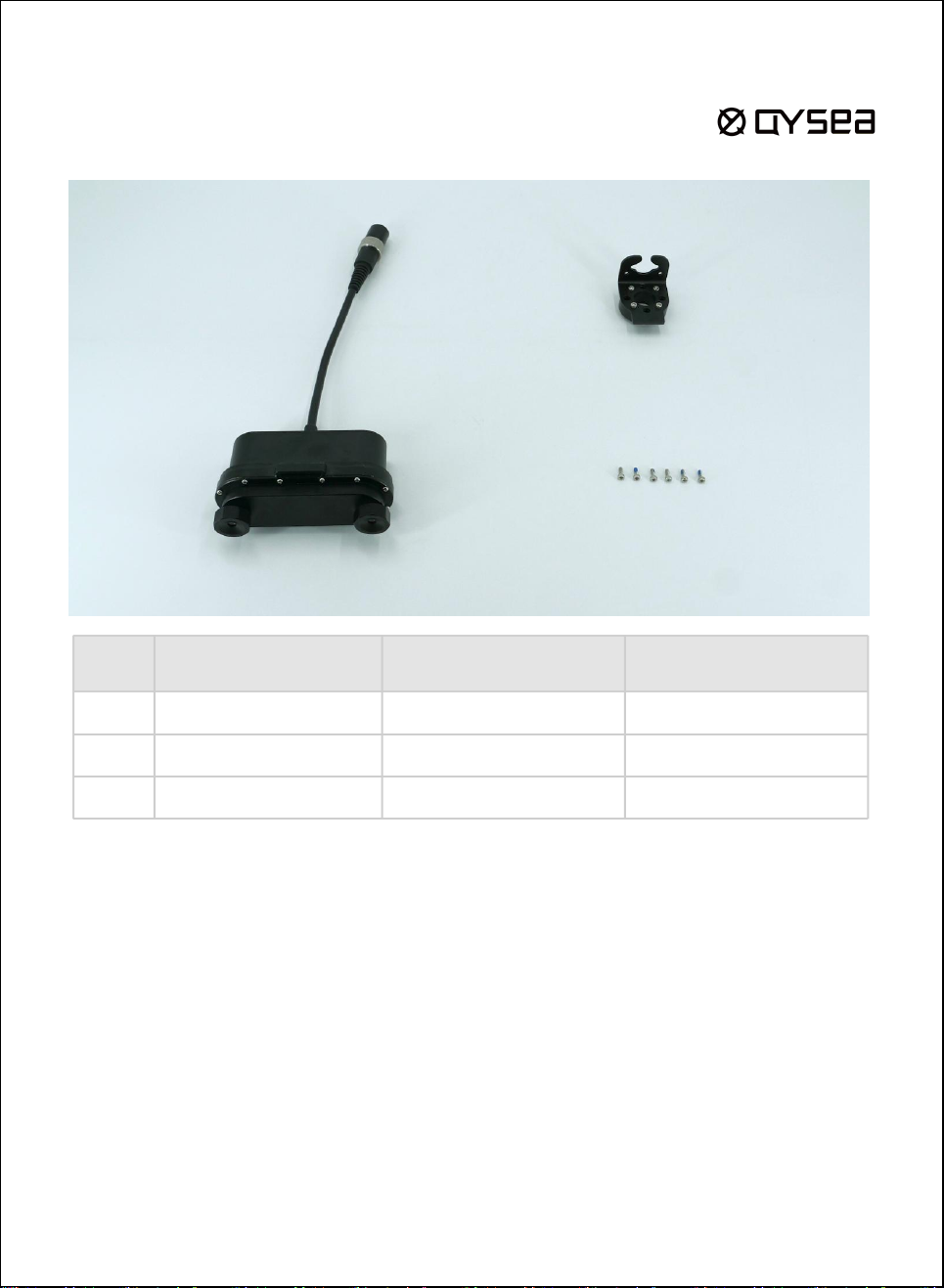

01/ Introduction and Packing List
Serial
Number
Item Name
Quantity
Unit
1
Laser Scaler Bracket
1
PCS
2
M3*8 Hex Socket Head Cap
Screws
8
PCS
3
User manual
1
PCS
01

Before operating FIFISH products, please be sure to receive relevant training and
take practices, and read this document thoroughly before performing underwater
operations. Operations in violation of QY safety rules may result in the consequence
that your safety and interests cannot be guaranteed.
1.Regarding the damages to accessories and underwater vehicle caused by unauthorized modification,
disassembly or opening in violation of regulations, or damages to accessories and underwater vehicle caused
by improper installation, improper use or operations not in accordance with official regulations, QY doesn’t
bear any legal responsibility and the warranty will also be ineffective.
2. When installing the accessories, the underwater vehicle shall be shut down.
3. Please check whether all the parts are complete. If there is any part missing, please contact QY after-sales
service personnel in a timely manner.
4. Please check whether all interfaces, plug-ins and O-rings are kept dry and tidy, otherwise they should be
replaced as soon as possible.
02/Safety Rules
02

03/ Product Specification
Item
Specification
Laser Tube Type
Spot Laser
Wavelength
650nm（Red）
Scale Length
10cm
Wave beam
100 meters
Work temperature
-5℃~45℃
03

04/ Usage Instructions
Precautions before usage
1. Please get the FIFISH APP ready before using the products.
2. Before usage, please check whether all accessory interfaces, plug-ins, and O-rings are damaged or missing,
and whether they are kept dry and clean.
3. Before connecting the Laser Scaler with the underwater vehicle, the underwater vehicle shall be powered off.
4 Check the battery level of the underwater vehicle to ensure that there is sufficient and stable power.
5. Before entering the water, please check whether the probes and connectors of the accessories are tightly
sealed.
6. When connecting the connectors on the underwater vehicle, they must be aligned with the positioning pin,
forcible inserting may cause damage to the connector.
7. Check whether the underwater robot and the remote control are working normally when connected to the
connector on the underwater vehicle.
8. Check the batteries of mobile phones, tablet PCs and laptops.
9.After-sales mailbox: [e-mail]
04

05/Installation
1. Remove the protective cover of the accessory port at the bottom of the ROV’s
body
05

05/Installation
1. Remove the protective cover of the accessory port at the bottom of the ROV’s
body
06
Laser Scaler Bracket
M3*8 Hex Socket
Head Cap Screws
1.1 Install bracket into the accessory port and fix it with four M3 screws

2. Install the Laser Scaler onto the bracket (Please note: the slot of the Laser Scaler
must be facing downward to be inserted into the latch of the bracket)
07
05/Installation

2. Install the Laser Scaler onto the bracket (Please note: the slot of the Laser Scaler
must be facing downward to be inserted into the latch of the bracket)
08
05/Installation
2.1 Fix the Laser Scaler to the bracket with two M3 screws
M3*8 Hex Socket
Head Cap Screws

3. Remove the cover of the accessory port under the FIFISH V6 EXPERT, connect the to
the cable of the Laser Scaler, and tighten its cap
09
05/Installation

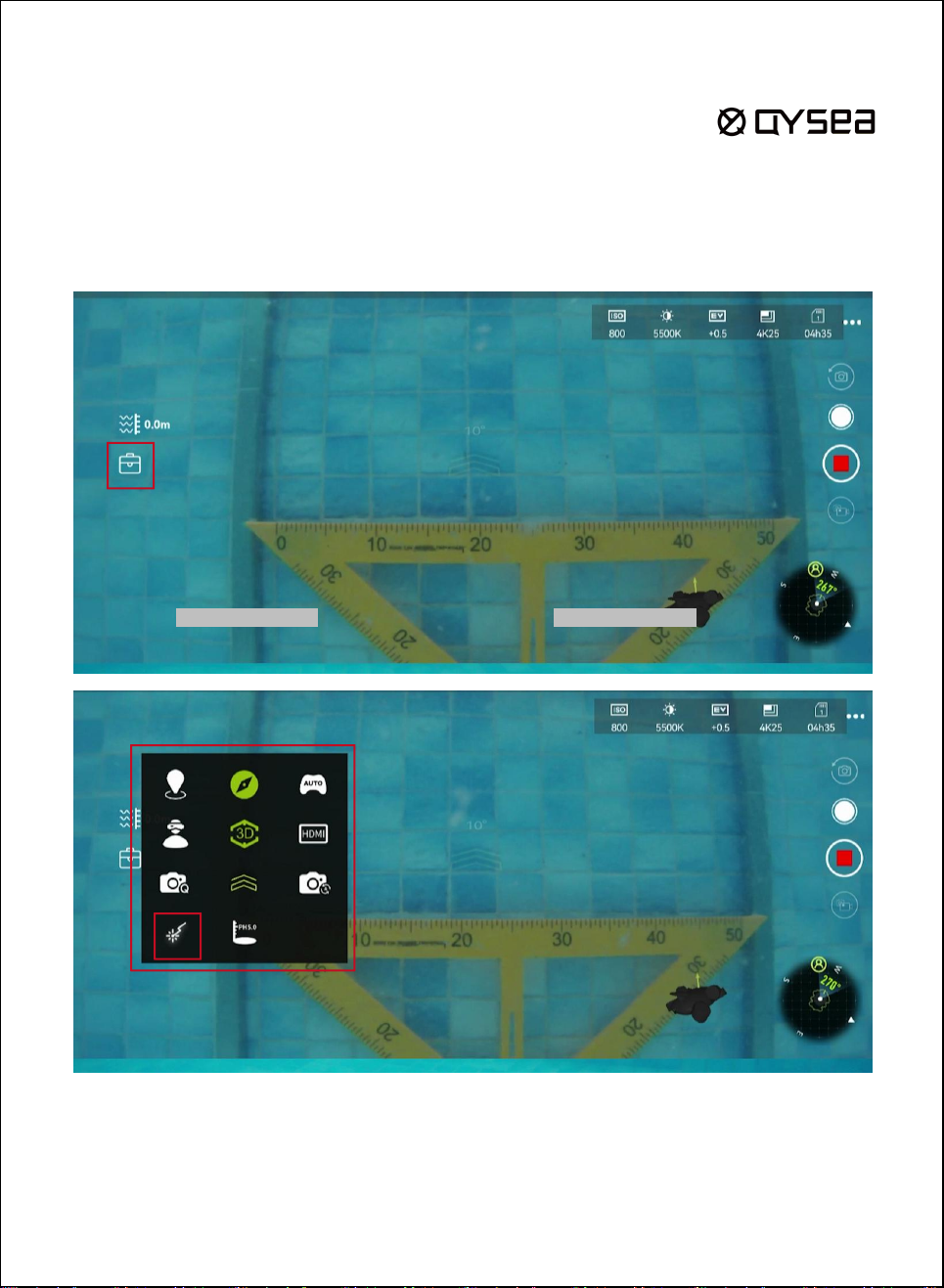

1. Following integration with the ROV, open the toolbox icon in the APP interface and
select the Laser Scaler widget
10
06/Operation
Laser Transmitter Laser Transmitter

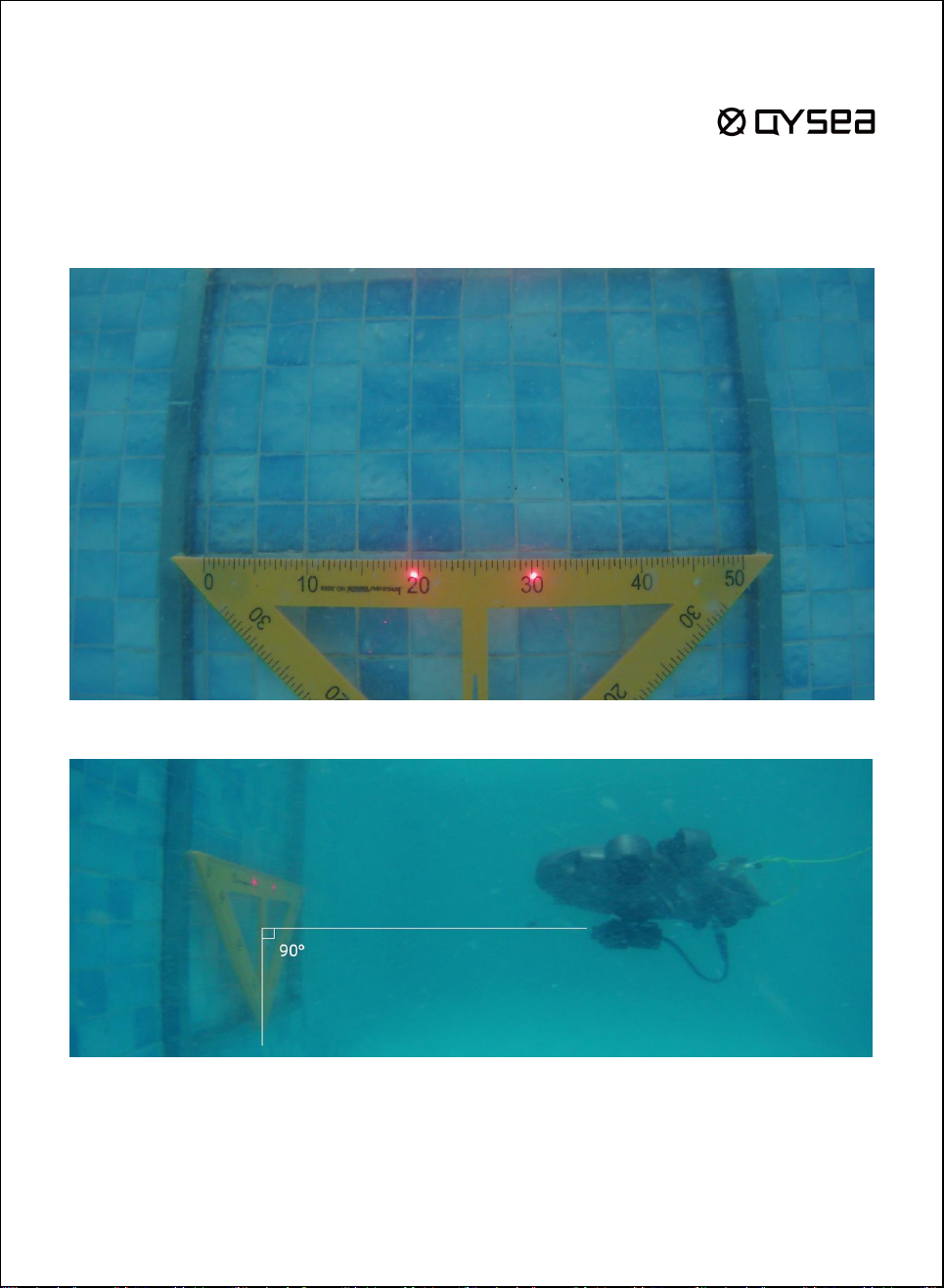

2. The distance between the two points of the laser is 10 cm, which can be used as a
reference point for measurements
11
3. Please ensure the laser points are perpendicular to the object being measured
06/Operation

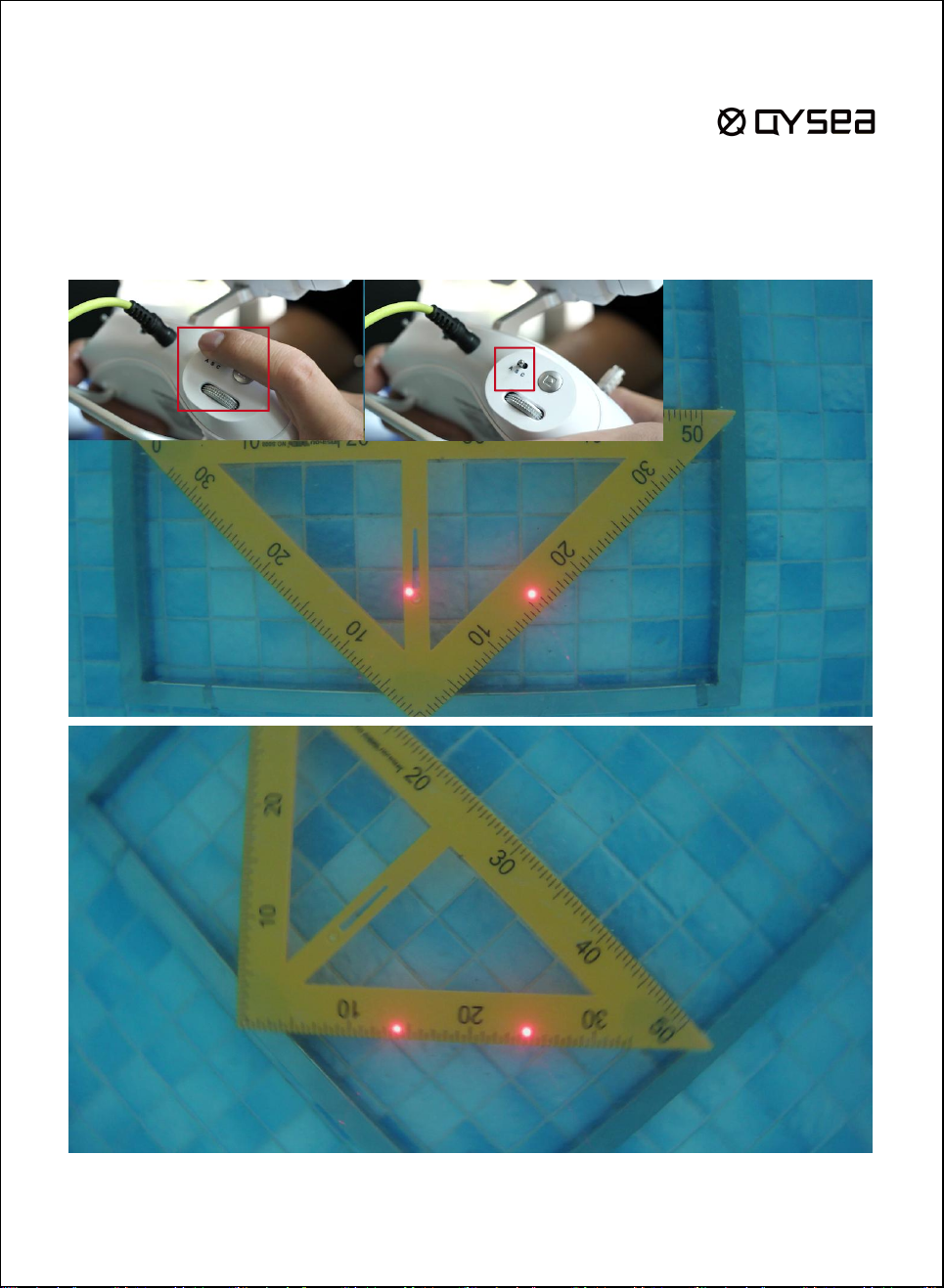

4.When then ROV is switched to ‘S’ mode, it will be able to measure objects in multiple
angles
12
06/Operation

4.When then ROV is switched to ‘S’ mode, it will be able to measure objects in multiple
angles
13
06/Operation

07/ Maintenance and After-sales Support
Maintenance
1. All connectors (ports and plugs) shall be kept clean and dry and covered with protective caps if not in use.
2. Check the sealing parts and rubber sealing washers, and replace them if they are worn or damaged.
3. Please keep the product in a dry and cool place after usage.
4. After usage, please put the protective cover back on the submersible.
5. Usage in a strong acid/alkali environment may reduce the service life of the underwater vehicle and its
accessories.
After-sales support
If needing any help, please contact QY after-sales personnel
1. Online customer service: you can find the entrance of customer services via the FIFISH APP,
WeChat official account (FIFISH Underwater Robot) and the official website.
2. Contact number: [phone] Working hours: Monday to Friday, 9:00-22:30 (GMT+8)
3. Email: [email protected]
4. If there is a machine malfunction, please record the malfunction video in advance, as well as providing the
machine SN number and purchase invoice, so that we can provide you with a solution faster.
For more information about FIFISH Authorized Service Center,
please visit https://www.qysea.com/support/repair-center/
14

08/Disclaimer
We provide after-sales services to our customers, except for the following situations:
Collision damages caused by non-manufacturing factors, including but not limited to user faults.
Damages caused by unauthorized modification, disassembly, or opening of the enclosure that is not in
accordance with official instructions or manuals.
Damages caused by improper installation, improper use or operation not in accordance with official instructions
or manuals.
Damages caused by unauthorized service providers.
Damages caused by unauthorized modification of circuits and mismatch or misuse of the battery and charger.
Damages caused by underwater operations without following the instructions and manual recommendations.
Damages caused by working in harsh water conditions (such as strong acid, strong alkali, strong current, huge
waves, etc.).
Damages caused by product operations in an environment with electromagnetic interference (namely, mining
areas or the areas near radio towers, caves, muddy areas, environment with radiation, tunnels, etc.).
Damages caused by operating the product in an environment that is interfered by other wireless devices
(namely, transmitters, video downlinks, Wi-Fi signals, etc.).
Damages caused by forced diving with aging or damaged components.
Damages caused by using unauthorized third-party parts that have reliability or compatibility issues.
Damages caused by operating equipment with insufficient power or defective batteries.
Continuous or error-free product operation
Loss or damage of user data caused by the product
Any software, no matter it is provided with the product or subsequently installed.
Failures or damages caused by any third-party products (including products that QYSEA may provide or
integrate into QYSEA products at the request of users).
Any damage caused by non-QYSEA technology or other support (for example, the support for solving the
"operation method" problem or incorrect product settings, installation and firmware upgrades).
Damages caused by operating ROV in sensitive areas (such as military areas, natural resource reserves, marine
reserves, marine conservation areas, etc.).
Damages caused by unpredictable factors (such as water flow, cave collapse, animal swallowing, etc.).
Products or parts whose identification labels have been changed or without identification labels
Do not place heavy objects on the product, and handle it with care.
Water droplets or stains on the ROV may be caused by testing in the water in the manufacturing plant, which
will not affect the characteristics and functions of the FIFISH underwater robot.
For more information, please view the explanation video on our website, or refer to the FAQs section in "FIFISH
Application/Help/FAQs".
For the latest version of the user guide/manual and other instructions, please visit our website.
https://www.qysea.com/support/user-manual/
Please email us via [email protected] to contact our technical support
Notice:
This content is subject to change without notice.
15
