R for Rabbit Picaboo Instruction Manual

Group 0+ : 0-13 KG, Universal
Picaboo Grand Car Seat
Installation & User Manual

Only suitable use in the listed vehicles fitted
with lap /3 point/static /with retractor safety-belts,
approved to ECE Regulation No.16 or other
equivalent standards.
Do not use cars seat in seating positions when an
active front airbag is installed.
Notice
1) This is a "universal " child car seat. It is approved to
Regulation No. 44 ,04 series of amendments,for general use
in vehicles and it will fit most,but not all,car seats.
2) A correct fit is likely if the vehicle manufacturer has
declared in the vehicle handbook that the vehicle is capable
of accepting a “Universal”child car seat for this age group.
3)This child car seat has been classifiedfias “Universal” under
more stringent conditions than those which applied to earlier
designs which do not carry this notice.
4) If in doubt,consult either the child car seat manufacturer
or the retailer.
PAGE 2
PICABOO GRAND

1. The instruction can be kept in the reserved place of the car seat within the
usage period
2. Do not use this child seat in the home. It has not been designed for home use
and should only be used in your car
3. Be sure that child is not left in the child car seat system unattended.
4. The child restraint system should be changed when it has been subject to
violent stresses in an accident.
5. Any straps holding the car seat to the vehicle should be tight; Restraining the
child should be adjusted according to the child's body, and should not be twisted.
6. Any lap strap should be worn low down, so that the pelvis is firmly engaged,
shall be stressed.
7. Be sure any luggage or other objects liable to cause injuries in the event of a
collision shall be properly secured.
8. The rigid items and plastic parts of a child car seat shall be so located and
installed that they are not liable, during everyday use of the vehicle, to become
trapped by a movable seat or in a door of the vehicle.
9. It is danger to make any alterations or additions to the device without the
approval of the Type Approval Authority, and it is also danger in not following
closely the installation instructions.
10. It is extremely dangerous to use any load bearing contact points other than those
described in the instructions and marked in the child car seat.
11. The child car seat shall not be used without the cover; The seat cover should
not be replaced with any other than the one recommended by the company. .
12. The child should be taken out from the car seat when it is being moved or
adjusted.(except adjusting the headrest)
13. The seat should be kept away from sunlight if the seat is not provided with
a textile, otherwise it may be too hot for the child's skin.
14. Please do not buy the second hand safety car seat. Because you may not
know the using history of the car seat. It may have been in an accident or lack
some parts.
For the child 's safety, Please read the instructions carefully below. Carelessness
or improper operations may cause damage that should be avoided.
Warning
PAGE 3
PICABOO GRAND

adjustable straps

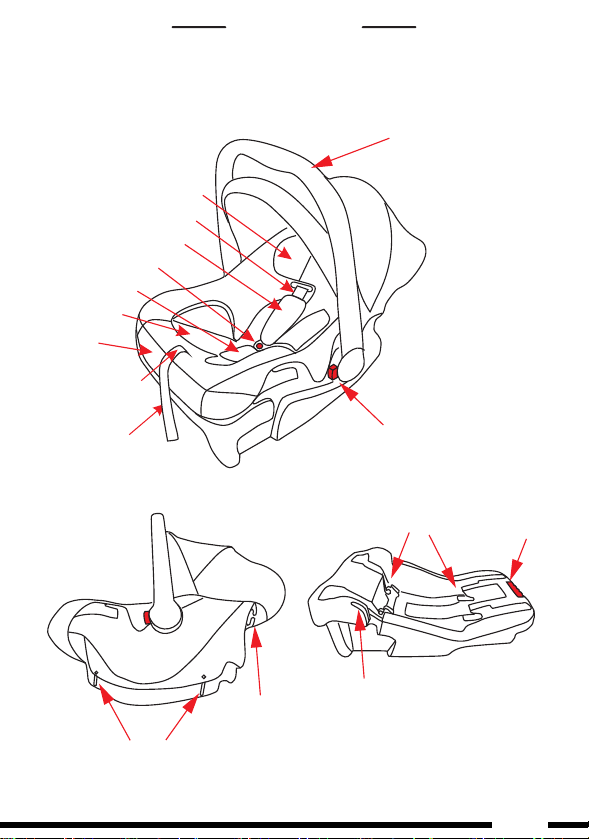

2.Name of parts
buckle
buckle pad
Shoulder pad
cover
comfort pad
shoulder straps adjuster
Handle
headrest pad
Strap
handle adjuster
lap belt hook
Lock-off device
lap belt hook
hook
Fixed bar
PAGE 4
PICABOO GRAND

Only suitable use in the listed vehicles fitted
with lap /3 point/static /with retractor safety-belts,
approved to ECE Regulation No.16 or other
equivalent standards.
right fitting wrong fitting
3.1 The right fitting position in the car
3. Installation location and adjustment of child seat
3.2
PAGE 5
PICABOO GRAND

PAGE 6
PICABOO GRAND

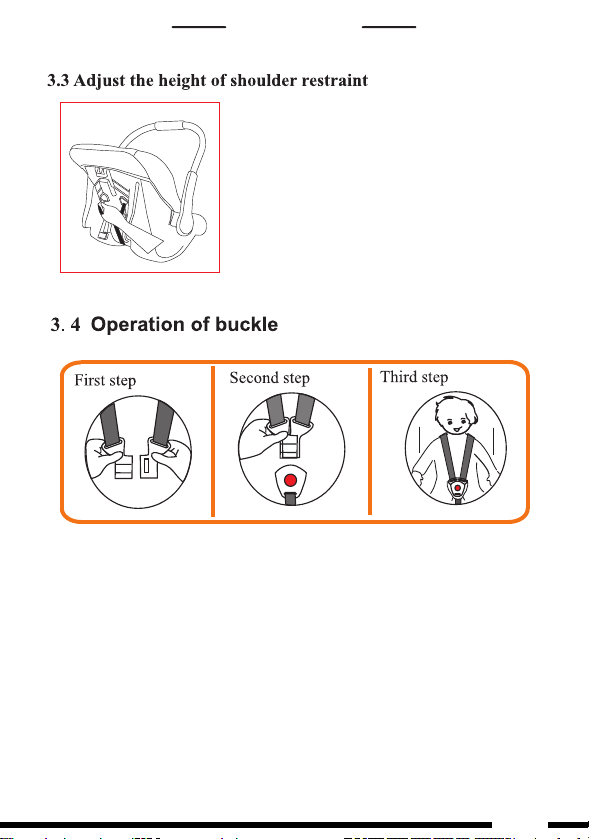

Step 1: Loosen the shoulder straps, open the buckle
Step 2: Pull out the buckle tongues from the chest
pad and slots on the cover and the shell, then thread
them into the corresponding belt slots. Ensure that
both of the shoulder belts go through the slots at the
same height, and not twisted.
Step1. Loosen the harness (see point above), open the buckle and place them
down side ways. Seat your child in the child car seat. Place both shoulder straps
over your child's shoulders.
Note: Baby below 5kg, using comfort pad and headrest pad.
Baby above 5 kg, only using headrest pad.
Step 2. Put the two metal sections of the buckle connectors together (fig. 1),
Slot the two buckle connectors into the slot in the top of the buckle until they
"click" into place. Check the harness is correctly locked by pulling the shoulder
straps upwards.

PAGE 7
PICABOO GRAND
Pull the adjustment straps until the harness straps
are totally tight. The shoulder restraint shall be
adjusted as tightly as possible without causing
discomfort to your child. Check whether the straps
are adjusted tightly enough and not twisted when
the child is sitting in the seat. Be sure the distance
between the shoulder straps and shoulder is less
than 1 cm. The lab strap shall be worn low down,
so that the pelvis is firmly engaged. The loose
straps are very dangerous for the child.
Find the right position of harness strap adjuster.
(See position 1 as showed in the left picture)
Keep pressing down the harness straps adjuster
by one hand, meanwhile grip two shoulder
straps and pull them towards you by the other
hand. With the operation mentioned above, you
can loosen the harness restraint and adjust as
you required.
Pull the red lock-off device with one hand and
the other hand takes the carrier up to separate
the basket from the base.

PAGE 8
PICABOO GRAND
The bottom two steel rods of the carrier are
aligned with the four clasps of the base and
pressed down. When you hear the "click", the
carrier and the base are completely combined.
The handle for the baby car seat can be snapped into 4
stable positions. To adjust the handle, please press the
red buttons of the handle on both side at the same time.
Now it can be rotated.
Make sure all the belts position is right and they have not gone twisted. Also check
that the cover is not impeding the movement or fit of the belt webbing in any way. To
release your baby car seat following the above instructions in reverse order.

PAGE 9
PICABOO GRAND

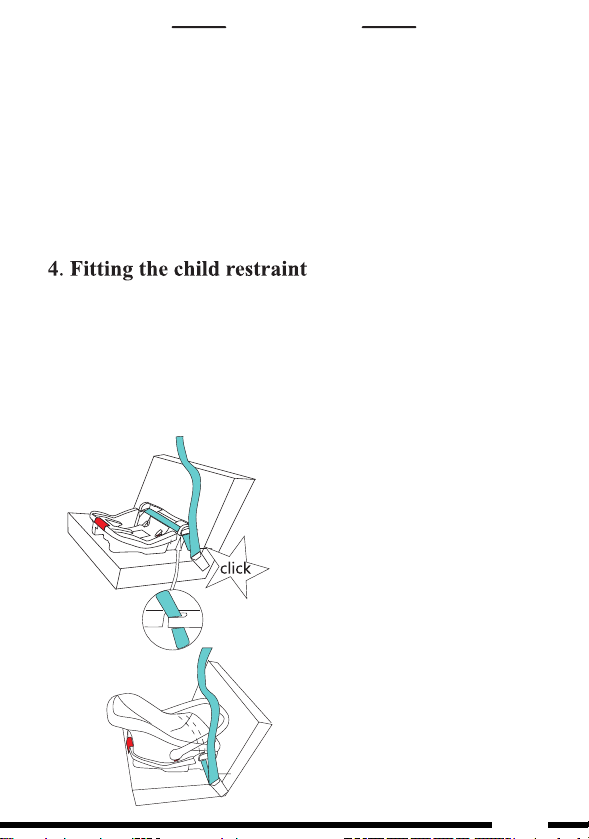

Step 1: Put the base in the car’s seat. Slide the
lap belt of the vehicle’s 3-Point seat belt
through both lap belt guides. Let the tongue
plate snap in the belt lock with a clearly
audible click sound. Put the shoulder belt in
narrow direction to tighten the lap belt.
Check to make sure the tongue plate is
locked by pulling on the belt.
Step 2: Combination carrier and base
following operation of 3.8.
Position one : Rearward facing installed in the car. This position (only this position)
is suitable for the baby car seat installed on the vehicle seat.
Position two : Straight up for carrying.
Position three : Handle clicked back to initiate the rocking feature.
Position four : Down to support baby for feeding and play.
Ensure that the handle is locked in a position, the harness is correctly fitted and the
buckle fastened before carrying your car seat.
Please read the operating handbook in your vehicle to know about the basics concern-
ing children 's seats in vehicles. Do not place this baby seat on seats with front
airbags.
This baby car seat can only be installed using a three-point vehicle belt. The baby car
seat must be installed rearward facing (in the direction opposite the one in (fig 1)
which you are traveling).

PAGE 10
PICABOO GRAND

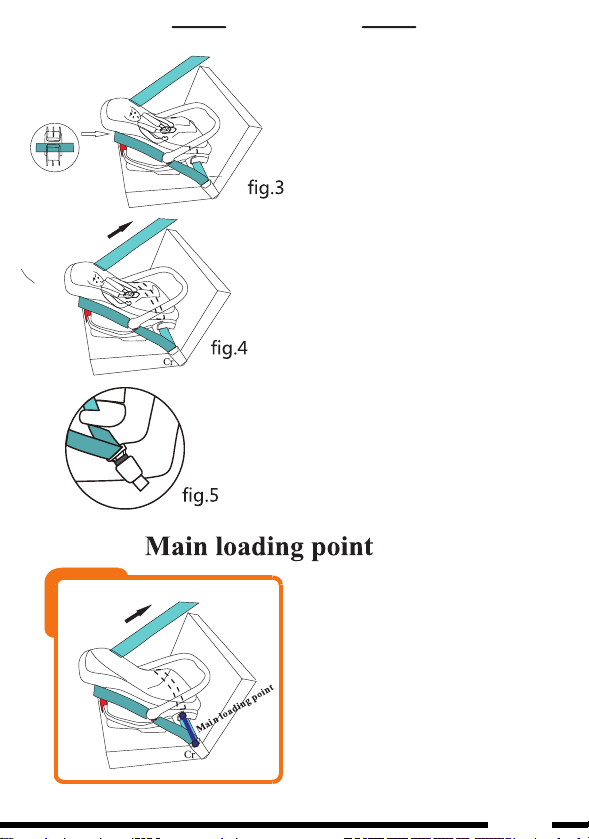

Step 3. Put the diagonal belt through the
guide hook behind the child seat.
Step 4. Tighten the vehicle's own3-point seat
belt by pulling hard on the positions showed
in fig. 1 and fig. 3.
Step 5. The satisfactory position of the adult
safety-belt buckle car seat relative to the
child restraints is as the Fig 5. You can
contact the child car seat manufacturer if in
doubt about this point
Be sure the distance
between main loading
and car seat must be
more than 150 mm.
Please contanct the
child restraint

PAGE 11
PICABOO GRAND
1. Release the harness, open the buckle.
2. Pull out the buckle tongues and the harness straps from the slots of the harness.
3. Take off the buckle.
4.Take off the comfort pad and headrest pad.
5. Take off the cover.
1. In the daily usage, you need to check the wear and tear situation of the child car
seat.
2. The child car seat should be kept in a dry, ventilated and cool place when it is not
used.
3. If the child seat is dirty, you can use the wet sponge to clean the Y-shaped straps,
buckle or cover.
4. Washing instructions are listed as below:
1. The warranty period starts from the date of purchase and is valid for a period of
12 months.
2. The manufacturer is not liable for any damages other than those on products
supplied.
3. The following conditions are the warranty exceptions:
3.1. The device is not used in accordance with the instruction manual.
3.2. Users make alterations or demolition.
3.3. Use after accident.
3.4. Damage due to unexpected disasters, such as fire, floods, etc.

R for Rabbit Baby Products Pvt. Ltd.
A1-305, Palladium, Corporate Road, Makarba,Ahmedabad,
Gujarat - 380015
[phone] | www.rforrabbit.com
[email protected]
