RAB Lighting RDDLED2R User manual

REMODELER & NEW CONSTRUCTION TRIM
2IN 10W ROUND & SQUARE INSTRUCTIONS
Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: mark[email protected]
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB xtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding
is required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A
PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining xture.

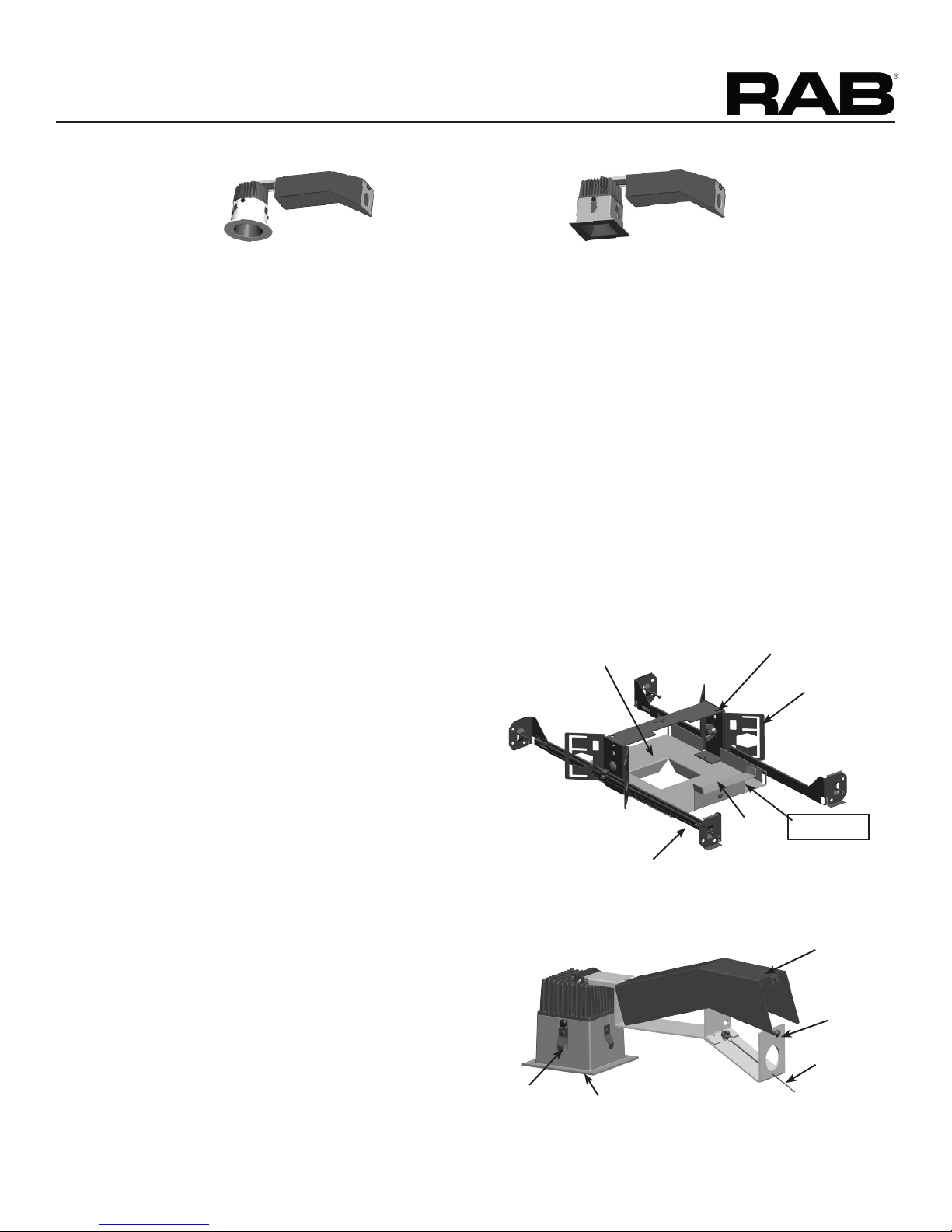

RDDLED2R RDDLED2S
Fig: 1
ROUGHIN MOUNTING FOR
ND2RT & ND2ST
For round ceiling cut out 2-1/2” dia. For square ceiling use
the 2-1/2” sq cut out template from packaging material.
1. Nailer bars are provided for use with wood joist
installations. Insert through nailer bar slots and secure
accordingly.
2. Buttery brackets provided to use C-Channels.
(optionally available, consult factory). Consult local
building codes for nal support of xture.
3. The xture can be adjusted from 1/2” to 1” max ceiling
thickness. For height adjustment, loosen the Wing Nut
and slide the Buttery Bracket. If necessary remove the
Wing Nut and insert in screw in dierent hole provided
on the Buttery Bracket. (Fig: 1)
4. Adjust both the Buttery Brackets such that the
downturn collar of Rough-In Section is ush with the
nished ceiling surface. Tighten the Wing nuts.
5. Drop down Supply Wire must be atleast 9” long to allow
xture removal.
6. Loosen the Junction Box Screw and open the Junction
Box (Fig.2). Attach Supply Wires into Junction Box and
connect to the xture. See wiring section for details.
7. Push up and slide the Junction Box section into the
ceiling. Be sure the Spring Clips is snapped in and Trim
Ring is ush and secure. Allow the Junction Box section
of housing to rest on the Leg support of the Rough-in
Section.
Buttery Brackets
Nailer Bar
Wing Nut
SURFACE PREPARATION
• This xture can be installed with minimum plenum height of 5”.
• The xture can be used to replace an existing unit or for new construction.
• For both round and square xture, cutout must be accurate not undersized or oversized. A hole saw is recommended.
CEILING CUT OUT MUST BE FREE OF ANY DEBRIS AND BURRS.
Downturn Collar
Rough-in
Section
Leg
WARNING: Suitable for wet location with covered ceiling mount.
WARNING: Suitable for installation in Non-Accessible and Accessible Ceilings.
WARNING: Suitable for installation in Non-Insulated Ceilings.
Supply wires
Junction Box
Screw
Junction Box
Fig: 2
Trim Ring
Spring Clip

REMODELER & NEW CONSTRUCTION TRIM
2IN 10W ROUND & SQUARE INSTRUCTIONS
Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: mark[email protected]
REMODELER MOUNTING
For round ceiling cut out 2-3/8” dia. For square ceiling use
the 2-3/8” sq cut out template from packaging material.
1. Install Ceiling Collar into opening. Secure Ceiling Collar
by pushing ngertabs down tightly over ceiling. Fig. (3)
Note: Ceiling Collar is intended for 5/8”-3/4” sheet rock
ceilings. For 1/2” ceiling applications, use 1/8” shim to secure
trim module.
2. Loosen the Junction Box Screw and open the Junction
Box (Fig.2). Attach Supply Wires into Junction Box and
connect to the xture. See wiring section for details.
3. Push up and slide the Junction Box section into the
Ceiling Collar. Be sure the Spring Clips are snapped in
and Trim Ring is ush and secure.
Ceiling
Fig: 3
Remodeler Unit
Fig: 4
Ceiling Collar
5/8”TYP
3/4”MAX
TROUBLESHOOTING
1. Check that the line voltage at the xture is correct. Refer
to wiring directions.
2. Is the xture grounded properly?
CLEANING & MAINTENANCE
CAUTION: Be sure xture temperature is cool enough to
touch. Do not clean or maintain while xture is energized.
1. Do not open xture to clean the LED. Do not touch
the LED.
2. Do not touch reector, lens or trim cone.
3. Do not clean any xture surface with wood base cleaning
material such as paper towels or tissues.
WIRING
RISK OF FIRE. Universal voltage driver permits operation
at 120V thru 277V, 50 or 60 Hz. Drop down supply wires
must be at least 9” long to allow xture removal. For Non-
Dimming (on/o), Electronic Low Voltage (ELV) and Triac
Dimming follow the wiring directions in Fig. 6. For 0-10V
dimming, Fig. 7.
1. Connect GROUND wire from xture to supply ground.
2. Connect black xture lead to the (+) LINE supply lead.
3. Connect white xture lead to the (-) COMMON supply lead.
Ceiling Collar
use wood
Shim (if
necessary)
WALLWASH MOUNTING
1. For the Wallwash Model, orient the xture such that
the Lens such that the thin section is aimed in correct
orientation.
2. If necessary, rotate of the wall wash lens to orient in
certain direction.
Fig: 5
This side away
from wall
Wall Wash lens
Fig: 7
Fig: 6

REMODELER & NEW CONSTRUCTION TRIM
2IN 10W ROUND & SQUARE INSTRUCTIONS
Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: mark[email protected]
Note: These instructions do not cover all details or variations in equipment nor do they provide for every possible situation during installation,
operation or maintenance.
RDDLED2T-IN 0918
Ø1.875”
2.95”
7.9”
3.25”
1-1/4”
2.9X2.9”

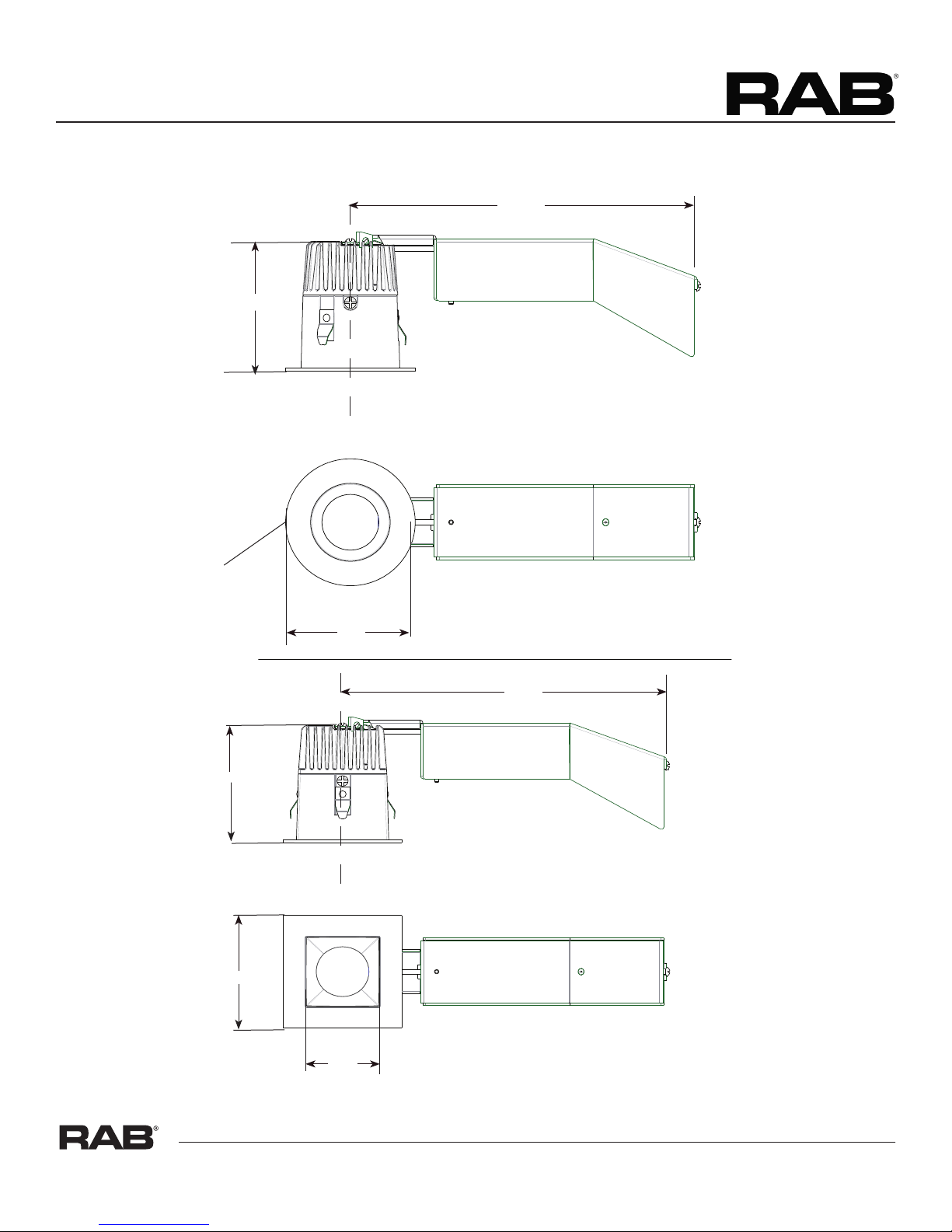

DIMENSIONAL DRAWING
RDDLED2R
RDDLED2S 7.9”
3.25”
Easy Answers
rablighting.com
Visit our website for product info
Tech Help Line
Call our experts: 888 722-1000
e-mail
Answered promptly - sal[email protected]
Free Lighting Layouts
Answered online or by request
© 2018 RAB LIGHTING Inc.
Northvale, New Jersey 07647 USA

Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: mark[email protected]
REMODELER & NEW CONSTRUCTION TRIMLESS
2IN 10W ROUND & SQUARE INSTRUCTIONS
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB xtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding
is required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A
PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining xture.
RDDLED2R RDDLED2S
Fig: 1
ROUGHIN MOUNTING FOR
ND2RTL & ND2STL
For round ceiling cut out 3-3/16” dia. For square ceiling use
the 3-3/16” sq cut out template from packaging material.
1. Nailer bars are provided for use with wood joist
installations. Insert through nailer bar slots and secure
accordingly.
2. Buttery brackets provided to use C-Channels.
(optionally available, consult factory). Consult local
building codes for nal support of xture.
3. The xture can be mounted into max 3/4” ceiling
thickness. For height adjustment, loosen the Wing Nut
and slide the Buttery Bracket. If necessary remove the
Wing Nut and insert in screw in dierent hole provided
on the Buttery Bracket. (Fig: 1)
4. Adjust both the Buttery Brackets such that the frame
of Rough-In Section is ush with the nished ceiling
surface. Tighten the Wing nuts.
5. Drop down Supply Wires must be atleast 9” long to
allow xture removal.
6. Loosen the Junction Box Screw and open the Junction
Box (Fig.2). Attach Supply Wires into Junction Box and
connect to the xture. See wiring section for details.
7. Push up and slide the Junction Box section into the
ceiling. Be sure the Spring Clips is snapped in and Trim
Ring is ush and secure. Allow the Junction Box section
of housing to rest on the Leg support of the Rough-in
Section.
Buttery Brackets
Nailer Bar
Wing Nut
SURFACE PREPARATION
• This xture can be installed with minimum plenum height of 5”.
• The xture can be used to replace an existing unit or for new construction.
• Cutout must be accurate not undersized or oversized. A hole saw is recommended. CEILING CUT OUT MUST BE FREE
OF ANY DEBRIS AND BURRS.
Rough-in
Section
Supply wires
Junction Box
Screw
Junction Box
Leg
Fig: 2
Trim Ring
Spring Clip
WARNING: Suitable for wet locations with covered ceiling mount.
WARNING: Suitable for installation in Non-Accessible and Accessible Ceilings.
WARNING: Suitable for installation in Non-Insulated Ceilings.

Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: mark[email protected]
REMODELER & NEW CONSTRUCTION TRIMLESS
2IN 10W ROUND & SQUARE INSTRUCTIONS
Fig: 3
SPACKLED FLANGE MOUNTING
1. Place Spackle Flange on ceiling and align the opening
with the ceiling cutout. Carefully mark the (4) hole
pattern on ceiling and remove Spackle Flange.
2. For New Construction (Fig: 3): Use a 7/32”drill bit to drill
ceiling typical 5/8” ceiling depth. Align rib of Spackle
Flange to rib in Rough-in. Insert the Spackle Flange and
secure with 8-32 x 1-1/2”at head counter shank machine
screws. NOTE: DO NOT DRILL HOLES DEEPER THAN THE
CEILING THICKNESS.
3. For Remodeler Unit (Fig4): Use 5/16”drill bit and drill
ceiling at 4 marked places. Install Wall Anchors and
secure Spackled Flange with 8-32 X 1-1/4” at head
counter shank sheet metal screws.
4. Apply joint compound to spackle frame edge. Remove
Dust protector and remove small debries and make it
ush to ceiling.
Wall Anchors (4)
Fig: 4
WALLWASH MOUNTING
1. For the Wallwash Model, orient the xture such that
the Lens such that the thin section is aimed in correct
orientation.
2. If necessary, rotate of the wall wash lens to orient in
certain direction.
Spackled Flange
Ceiling
Fig: 5
Spackled Flange
Ceiling
This side away
from wall
Wall Wash lens
WIRING
RISK OF FIRE. Universal voltage driver permits operation
at 120V thru 277V, 50 or 60 Hz. Drop down supply wires
must be at least 9” long to allow xture removal. For Non-
Dimming (on/o), Electronic Low Voltage (ELV) and Triac
Dimming follow the wiring directions in Fig. 6. For 0-10V
dimming, Fig. 7.
1. Connect GROUND wire from xture to supply ground.
2. Connect black xture lead to the (+) LINE supply lead.
3. Connect white xture lead to the (-) COMMON supply lead.
Fig: 7
Fig: 6
TROUBLESHOOTING
1. Check that the line voltage at the xture is correct. Refer
to wiring directions.
2. Is the xture grounded properly?
CLEANING & MAINTENANCE
CAUTION: Be sure xture temperature is cool enough to
touch. Do not clean or maintain while xture is energized.
1. Do not open xture to clean the LED. Do not touch
the LED.
2. Do not touch reector, lens or trim cone.
3. Do not clean any xture surface with wood base cleaning
material such as paper towels or tissues.
8/32 X 1-1/4” counter
shank sheet metal
screws (4)
8-32 x 1-1/2” counter
shank machine screws
(4)

Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: mark[email protected]
REMODELER & NEW CONSTRUCTION TRIMLESS
2IN 10W ROUND & SQUARE INSTRUCTIONS
Ø1.875”
2.95”
7.9”
3.25”
1-1/4”
2.9X2.9”
DIMENSIONAL DRAWING
RDDLED2R
RDDLED2S 7.9”
3.25”
RDDLED2TL-IN 0918
Note: These instructions do not cover all details or variations in equipment nor do they provide for every possible situation during installation,
operation or maintenance.
Easy Answers
rablighting.com
Visit our website for product info
Tech Help Line
Call our experts: 888 722-1000
e-mail
Answered promptly - sal[email protected]
Free Lighting Layouts
Answered online or by request
© 2018 RAB LIGHTING Inc.
Northvale, New Jersey 07647 USA
