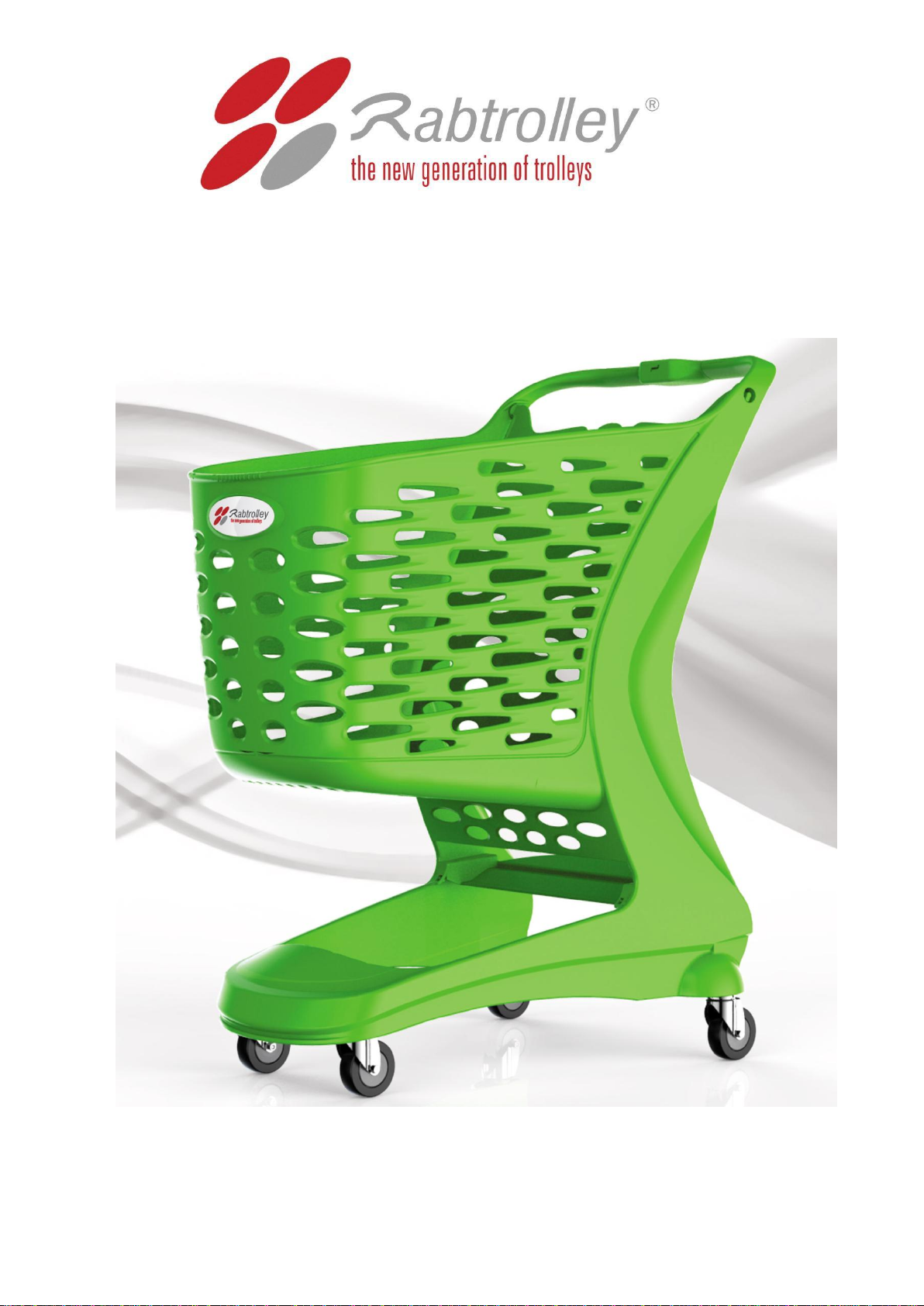

Rabtrolley 80 L User manual

SHOPPING TROLLEY
MODEL: 80 L
USER’S MANUAL

LIST OF CONTENTS
I
Introduction –general information ......................................................................
p.2
1
Brand .....................................................................................................................
p.2
2
From idea to final product.....................................................................................
p.2
II
Shopping trolley Rabtrolley® MINI 80 L...............................................................
p.3
1
General information...............................................................................................
p.3
2
Features of the Rabtrolley®MINI 80L....................................................................
p.4
2.1
Esthetics of performance ↔ brainy project + plastics.......................................
p.4
2.2
Increased load capacity ↔ large capacity basket + shelf for bottles............
p.4
2.3
Easiness to maneuver ↔ high-quality wheels....................................................
p.4
2.4
Eco-friendliness ↔ecological product................................................................
p.5
2.5
Security warranty ↔ conformity to standards……………...................................
p.5
2.6
Traceability ↔ barcode label + compatibility with RFID technology....................
p.5
3
Versions of Rabtrolley®MINI 80 L.........................................................................
p.6
3.1
MINI 80L Basic ........................................................................................................
p.6
3.2
MINI 80L Eko ...........................................................................................................
p.6
3.3
MINI 80L Glamour ..................................................................................................
p.6
3.4
MINI 80L Flock ........................................................................................................
p.6
III
Information for users...............................................................................................
p.8
p. 1/12

I I. Introduction –general information:
1. Brand
Rabtrolley®is a brand of Rabugino Sp. zo.o. created for the purpose of commercialization
of the modern innovative line of shopping trolleys for the retail trade sector.
We are the producer of shopping trolleys having over 30-years’ experience in the area of
plastics processing.
Through the market research and the analysis of the collected data realized in 2 years’
time, we have created the product of the highest quality that has unique features,
including first of all the functionality, comfort of use and stylish design - the result of work of
the Italian designer's Pino Spagnolo’s studio.
Our efforts were recognized and honored with the prestigious statuette on May 23th 2013
when the line of Rabtrolley® shopping trolleys received Zloty Paragon (The Golden Receipt)
- The Award of Polish Buyers 2013 in the category of "Creativity & Innovation". The award
was given with partnership of Polish Ministry of Economy. While on January 20th 2014 the
shopping trolley Rabtrolley® Midi 160 l. won the silver award in the category 'Shop Ideen' at
the finals of the Top Produkt Handel Competition 2014 organized by Handels Journal, the
largest monthly magazine for the FMCG industry in Germany. The Rabtrolley® shopping
trolleys received also the title Odkrycie Roku 2014 (Discovery of the Year 2014) in a Polish
national competition Laur Konsumenta (Laurel of Consumer).
The production of trolleys is entirely realized in Poland, in Grodzisk Mazowiecki (40 km form Warsaw).
2. From idea to final product
Rabtrolley® “the new generation of trolleys”
Why „the New Generation”? Our shopping trolleys are innovative and more functional than others available
on the market. A brand new design, unbeatable quality, functionality, easiness of keeping clean and care for
the environment (recycling) these are the assets of Rabtrolley® trolleys.
Why plastic? The use of plastic gives us the opportunity to make our trolleys light, colorful and pleasing to
the sight, it lets the Client personalizes the product in an exceptional way. In the meantime the plastic is a very
reliable material that does not corrode. Our trolleys are environmentally friendly because for their production we
use recycled raw materials, moreover the plastic from used Rabtrolley® trolleys can be recovered and used to
produce new ones.
Thanks to the plastic, the shopping trolleys Rabtrolley ® Mini 80 l. are compatible with RFID technology, which
through electronic tags stuck on the products can accelerate and facilitate cash service in the stores and
reduce its costs.
p. 2 /12

II.Shopping trolley Rabtrolley® MINI 80 L
1.General information
The shopping trolley Mini 80L is made entirely of plastic and stands out for its unique Italian design.
The Rabtrolley® Mini 80L has been constructed as an intelligent alternative for a traditional shopping basket.
Handiness in use, big load capacity of the basket - 80L net (40 kg) and comfortable shelf for bottles(15 kg) will
surely have influence on the rise of turnover in the shop.
Compact dimensions and excellent maneuverability of the Rabtrolley® Mini 80L increase its attractiveness,
especially in small stores.
Each version of the trolley can be optionally equipped with a coin-lock system. It is possible to order such a
system for any currency you need.
The castors used in the Rabtrolley® MINI 80L have the diameter of Ø 75 mm . In the standard equipment wheels
have a metal fork.
The model MINI 80L is produced in 4 versions: Basic, Eko, Glamour and Flock. Each trolley, besides its standard
colours, can be realized in a specific colour requested by the Customer, it can be assembled with flap and shelf
for bottles in different colours as well. The Rabtrolley® Mini 80L can be also personalized with store’s logo. For
orders over 100 pcs we can produce the trolley in a different colour chosen by the Customer from the RAL or
Pantone palette. Thanks to the stylish design and the possibility of individual adjustment of trolleys to the
character of the store, Customer gets not only a functional trolley, but the trolley that furnishes and adorns the
interior.
p. 3 /12

2.Features of Rabtrolley® MINI 80 L
Choosing the right shopping trolley/basket may significantly affect on the store’s turnover. Uncomfortable,
unsightly, uncapacious and uncomfortable to maneuver trolley can effectively discourage the Customer
from shopping in the market. Our Rabtrolley® MINI 80 l. guarantees your Clients satisfaction and comfort of
use. Its main assets are esthetics of performance, easiness of maintenance, high load capacity, comfort to
maneuver, eco-friendliness and security.
2.1 Esthetics of performance ↔ brainy project + plastics
The esthetics of performance and stylish design are undeniable advantages of Rabtrolley® MINI 80l. By
using a proper plastics material the trolley gains the lightness that makes it practical and convenient to
operate. A wide range of colours allows the maximum customization of trolleys offering your Customers
not only a tool to facilitate shopping but also pleasing decoration of the store’s interior.
2.2 Increased load capacity ↔ large capacity basket + shelf for bottles
The Rabtrolley® MINI 80l. is a perfect solution especially for markets with small
sales area. It is characterized by a smart compact shape with a relatively large
load capacity basket (80 l. up to 40 kg.). In many malls the shelving with
beverages are situated near the exit, that makes difficult loading beverages
packs for Customers which have already filled their shopping trolleys with chosen
goods and they have not enough space to put bottles inside. In such situation
the Client may hold back from purchasing beverages, reducing the turnover of
the store as well. In turn, placing heavy bottles on the products may
unnecessarily crush and destroy already packed articles. Our external shelf for bottles let the Customers
put beverages outside the basket in a safe place, isolated from the other products in an easy and
comfortable way. We guarantee the load capacity of the bottle shelf for maximally 15 kg, so more than
a standard pack of 1,5 liter beverages can weigh.
2.3 Easiness to maneuver ↔ high-quality wheels
Good quality wheels = easy maneuvering = Customer’s comfort
Very often even a relatively good quality shopping trolley may be inconvenient
for the Customer because of the difficult maneuvering due to improper
installation of wheels. Castors used by us meet the highest quality requirements
and they are characterized by high resistance to abrasion and negative effects
of the passage of time, causing that the trolley runs smoothly over the
commercial surfaces, ensuring the Customer comfort as well. The effect is our Rabtrolley –a shopping
trolley easily and smoothly maneuverable on commercial surfaces.
p.4 /12

2.4 Eco-friendliness ↔ ecological product
Nowadays, the society pays more attention to environmental concerns. Despite
appearances, plastics used to produce the shopping trolleys Rabtrolley® are eco-
friendly due to the fact that they may be subjected to a re-processing. Our trolleys
can be realized in 75% of recycled plastic (Eko versions). While worn or damaged
trolleys are also suitable for re-processing and so they can be reused in the
production of new trolleys!
2.5 Security guarantee ↔ conformity to standards
We have paid much attention to guarantee the security of our products. The design of our trolleys has
been created by application of details friendly and secure for the Customer, that eliminates the risk of
damages during his shopping time.
The shopping trolleys Rabtrolley® have been designed and manufactured in conformity of standards
UNI EN 1929, that define the EU requirements and tests for basket trolleys (with or without a child carrying
facility, adapted or not adapted to be used on passenger conveyors) serving the Customers of self-
service stores to carry purchased goods.
2.6 Traceability ↔ barcode label + compatibility with RFID technology
Each Rabtrolley®is equipped with a barcode label placed on the frame
inside the trolley on the left. The label contains information, written down at
the end of the production, that includes the kind of material, year and month
of production etc. On the sticker there is also the serial number which allows
more accurate verification of all materials used in production.
The Rabtrolley® trolleys are adapted to equip them with a RFID label.
Due to the fact that Rabtrolley ® MINI 80 L. trolleys are entirely made of plastics, they are compatible
with the innovative RFID technology, which allows to scan and identify all the products at the checkout
without the necessity of putting them out on conveyor belts.
p.5 /12

3. Versions of Rabtrolley®MINI 80 L.
In our offer we have 4 versions of the model 80L, each of them has been created just to satisfy the special
requirements of our Customers.
3.1 MINI 80L Basic ––made of 100% polypropylene - material highly
resistant to wear and abrasion. This version is available in 4 standard
colors: red, orange, light green, blue. On Customer's request, for orders
over 100 pcs., it is possible to choose any color from RAL or PANTONE
palette, so you can get a personalized shopping trolley, matching the
shop ‘s character, style and equipment.
3.2 MINI 80L Eko –made of 75% recycled plastics, realized in one color -
black. The Eko is the most economical version of the Rabtrolley® MINI 80L.
This variant is a perfect solution for Customers who attach great
importance to care for the environment and appreciate excellent quality
at an affordable price.
3.3 MINI 80L Glamour –made of polycarbonate. The stylish shopping trolley
will satisfy even the most demanding Customer. The use of plastics
containing glass fiber gives to the Rabtrolley® Glamour the transparency
effect, keeping all the benefits of the standard version of MINI 80L as well
and gaining even greater resistance to bending and impact. The
Glamour is a perfect complement to the shops that "sets much store" by
elegance of interiors.
3.4 MINI 80L Flock –made of plastics covered with a special suede like
material that gives its surface the velvet effect. The Flock is an elegant
solution perfect for the clothing stores, shoe stores and various boutiques
as well. This trolley is particularly suitable to be used as a display at different
points of the store. Prefect to contain loose products or small boxes.
*All versions of the Rabtrolley® MINI 80L can be realized with or without the coin-lock system.
p.6 /12

p. 7 / 12

III. Information for users
RABTROLLEY® MINI 80L – CONSTRUCTION AND DIMENSIONS (mm)
Model Rabtrolley® MINI 80L consists of a basket suspended on a frame (that forms a coherent whole), and
separately mounted: plastic flap, shelf for bottles, wheels.
Nesting of Rabtrolley MINI 80L –the distances of the second trolley nested into MINI 80L is 110 mm
The carts Rabtrolley® MINI 80L have been designed and manufactured in conformity of standards UNI EN
1929, that define the EU requirements and tests for basket trolleys (with or without a child carrying facility,
adapted or not adapted to be used on passenger conveyors) serving the Customers of self-service stores
to carry purchased goods..
The carts Rabtrolley® MINI 80L (except the Flock version) are adapted to contact with food. The plastics
and accessories we use are nontoxic. The individual components of the trolleys are suitable for
reprocessing.
PROPER USE OF TROLLEY
The cart Rabtrolley® MINI 80L has been designed for the storage and transportation of commercial goods
during the shopping in the sales points.
The shopping trolley should be used according to its destination. It is not allowed to use the trolley for other
purposes.
Never allow the use of damaged or defective shopping trolley, whenever noticed any defective trolley, it
should be immediately removed from use and repaired / replacement of a broken component. There
should be carried out periodic inspections of the technical condition of trolleys, not less frequently than
every 6 months.
LOAD CAPACITY
The trolley can transport goods with a total weight up to 55 kg, including max. 40 kg. in its basket and max.
15 kg. on its shelf for bottles.
p.8 /12

CARRING CHILDREN
It is allowed to carry children ONLY INSIDE THE SPECIALLY ADAPTED FOR THAT BABY SEATS.
The model MINI 80L is not equipped with a baby seat destined for carrying children, for this reason it is
absolutely FORBIDDEN to carry children inside the Rabtrolley® MINI 80L.
On the handle of the trolley there have been stamped a pictorial instruction of improper use of the
Rabtrolley®MINI 80L:
1. It is forbidden to climb a shelf for bottles and dangle on
the back side of the trolley
2. It is forbidden to climb a trolley’s frame and dangle on the
front side of the trolley
3. It is forbidden to carry children inside the trolley’s basket
PARKING OF TROLLEYS
Shopping trolleys should be parked in a designated place, in rows arranged by inserting one trolley into
another.
ATTENTION! The trolley is equipped with a hinged flap that rises and falls allowing the nesting of trolleys, that
means parking of trolleys one into another creating appropriate rows. At the parking or collecting of
trolleys it is necessary to be careful. Make sure that the basket of trolley is empty, do not put hands into the
basket while parking and collection of the trolley. In the case of models equipped with a flap integrated
with a seat for a child, before parking remove the child from the seat. During the shopping with children, it
is necessary to make sure that the child does not put your hands into the basket.
If the trolley is equipped with a coin-lock system, during its collecting and parking should be followed the
below described instruction.
COIN-LOCK SYSTEM
Coin locks are situated on the trolley's handle and they fit to the currency indicated on the coin slot. The
use of an inappropriate coin can block the coin slot.
HOW TO GET THE
TROLLEY
1.Put a coin into the coin
slot of the last trolley.
2.After inserting a coin,
the key at the end of the
chain connecting the
trolleys will be unlocked
HOW TO REPLACE THE
TROLLEY
1.Put the last trolley’s key into
the other side of the coin slot
on the your trolley’s handle
2.After inserting the key, the
coin will be automatically
ejected from the coin slot.
p.9 /12

BAG HANGER AND SHELF FOR BOTTLES ( ADDITIONAL SHELF FOR PRODUCTS )
The bag hanger is situated in the trolley’s flap.
The shelf for bottles is situated on the back side of trolley,
below the handle and below the basket’s level.
The maximal load capacity of the shelf is 15 kg.
The most comfortable way to carry the package of bottles is
to put it in horizontal position.
ATTENTION! Do not step on the shelf for bottles and do not carry children on it.
CLEANING
In order to maintain hygiene we recommend to clean shopping trolleys periodically,
at least once every 6 months. Do not use chemical products for cleaning because
they can deteriorate mechanic characteristics of the material!
For cleaning we recommend to use only soap and water at temperature below
60ºC.
Thanks to specially designed shape of the perforation of Rabtrolleys® MINI 80L that
facilitates the flow of water on the surface of the basket speeding up the cleaning and hindering the deposition
of dust on the superficies of the trolley’s basket.
MAINTENANCE AND STORAGE
To maintain optimal maneuverability the trolley shall be regularly subjected to the following operations:
•keep castors clean (remove dirts deposited on the axles that could block the castors).
•control the castors’ condition and their proper functioning
In case of any anomalies regarding the wheels, please contact our sales office: [email protected].
The Rabtrolley® shopping trolleys should not be stocked in the areas directly exposed to sunlight. For outdoor
storage we recommend to use the adequate trolley’s shelters.
Allowed temperatures of ambient:
Maximum temperature: 50°C Minimum temperature: - 20°C
ATTENTION! Never use the trolleys to transport hot products, eg. breads taken out directly from the oven.
Never allow the use of damaged or defective shopping trolley, whenever noticed any defective trolley, it
should be immediately removed from use and repaired / replacement of a broken component.
There should be carried out periodic inspections of the technical condition of trolleys, not less frequently
than every 6 months.
During the inspection, check the screws used for assembling of the trolley and tighten them if necessary.
GUARANTEE
The Rabtrolley® MINI 80l. carts are covered by a two-year guarantee on the body of the trolley (items
made of plastic: forming a coherent whole basket and frame, flap, as well as optional shelf for bottles).
The trolley’s castors and the optional coin-lock system have a two-year manufacturer's guarantee.
p.10/12

The guarantee does not cover damages caused by improper use and cleaning of the trolley and its
components.
TRACEABILITY
Each Rabtrolley® is equipped with a barcode label that contains, in accordance with the EU standards, the
following information:
Name and brand of producer
Producer’s address
Commercial designation
Load volume expressed in liters
Load capacity expressed in kilograms
Month and year of the production
Numbers of the UE standards that the trolley is compatible with
Barcode
Each finished trolley has its individual barcode, that allows to read off the kind of raw material used during its
production.
This code is generated automatically by the computer system and printed on the label.
NOTE: In case of complaint it is necessary to indicate the serial number indicated on the left side of the
label, above the barcode.
FIRE PROTECTION
The Rabtrolley®shopping carts should be kept away from sources of fire.
Grades of fire-resistance of Rabtrolley shopping carts:
PA ( Poliamide ): HB - V2
PP ( Polypropylene ): HB –V2
PC ( Polycarbonate ): HB - V2
HIGHLY SELF-EXTINGUISHING PRODUCTS IN CONFORMITY OF THE STANDARD UL 94
Analysis made by the American Underwriters Laboratories are the most popular tests of flammability and self-
extinguishing of polymers.
HB
This test consist in the measurement of burning time of a horizontally placed plastic sample, that has a specified
thickness (3 mm), by a Bunsen flame for 30 sec.
p.11 /12

According to the standard UL 94 HB {Horizontal Burning } the material is categorized as HB if the sample of the
thickness of 3 mm burns at maximum speed of 76 mm/minute. The materials classified as HB are considered self-
extinguishing materials.
V.0 , V.1 , V.2
These tests (UL 94 V.0 , V.1 , V.2 –{Vertical Burning}) consist in the measurement of self-extinguishing time of a
vertically placed plastic sample, that has thicknesses from 3 till 6 mm , burned by a Bunsen flame for 10 sec.
- V.0–the categorization of the material if the flame extinguishes within 10 seconds;
- V.1–the categorization of the material if the flame extinguishes within 30 seconds without dripping;
- V.2–the categorization of the material if the flame extinguishes within 30 seconds with dripping.
p.12 /12

PRODUCER:
Rabugino Sp.zo.o.
ul. Graniczna 48, 05-825 Grodzisk Mazowiecki, Polska
www.Rabtrolley.com
[email protected]m
DISTRIBUTOR: (space for stamp of the distributor)
