ORIGINAL INSTRUCTIONS >EN
ELECTRIC TILLER
RAC1036ET
USER GUIDE
CAUTION: Read this manual before using this machine!

CONTENTS
1. INTENDED USE..................................................................................................................................................... 3
2. SAFETY INSTRUCTIONS.................................................................................................................................... 3
3. YOUR PRODUCT................................................................................................................................................ 10
4. ASSEMBLY……………………………………………………………………………………………………..12
5. OPERATION......................................................................................................................................................... 13
6. MAINTENANCE AND STORAGE.....................................................................................................................15
7. TROUBLESHOOTING…………..…………………………………………………………………………….16
8. DISPOSAL............................................................................................................................................................ 16
9. DECLARATION OF CONFORMITY................................................................................................................. 17
10. WARRANTY....................................................................................................................................................... 18
11. PRODUCT FAILURE........................................................................................................................................ 19
12. WARRANTY EXCLUSIONS............................................................................................................................ 20

1. INTENDED USE
This device is only intended as an electric tiller for
aerating lawns and grassy areas in private domestic
and hobby gardens.
It is not designed for use in public areas, parks, sports
areas, and in agriculture and forestry.
Using the application for any other purpose is
considered incorrect and unapproved.
The manufacturer is not liable for any damage or injury
resulting from such use. The user is entirely responsible
for any associated risks.
2. SAFETY WARNINGS
Read the operating instructions and act accordingly.
Keep it for general use.
Comply with the safety information and the warning on
the device.
Always use this device according to the instructions in
this manual.
1)TRAINING
a)Read the instructions carefully. Be familiar with the
controls and the proper use of the equipment.
b)Never allow children or people unfamiliar with these
instructions to use the machine. Local regulations can
restrict the age of the operator.
c) Never work while people, especially children, or pets
are nearby.
d)Keep in mind that the operator or user is responsible
for accidents or hazards occurring to other people or
their property.
2)PREPARATION
a)While working, always wear substantial footwear and
long trousers. Do not operate the equipment when
barefoot or wearing open sandals.

b)Thoroughly inspect the area where the equipment is
to be used and remove all objects which can be
thrown up by the machine.
c) Before using, always visually inspect to see that the
tools are not worn out or damaged. Replace worn out
or damaged elements and bolts in sets to preserve
balance.
3)OPERATION
a)Do not operate the engine in a confined space where
dangerous carbon monoxide fumes can collect.
b)Work only in daylight or in good artificial light.
c) Always be sure of your footing on slopes.
d)Walk, never run with the machine.
e)Work across the slopes, never up and down.
f) Exercise extreme caution when changing direction on
slopes.
g)Do not work on excessively steep slopes.
h)Use extreme caution when reversing or pulling the
machine towards you.
i) Do not change the engine governor settings or over
speed the engine.
j) Start the engine carefully according to manufacturer
instructions and with feet well away from the tool.
k) k) Do not put your hands or feet near or under
rotating parts.
l) Never pick up or carry a machine while the engine is
running.
m) Stop the engine when you leave the machine.
4)MAINTENANCE AND STOCKAGE
a)Keep all nuts, bolts and screws tight to ensure the
equipment is in safe working condition.
b)Allow the engine to cool before storing in any
enclosure.
c) To reduce the fire hazard, keep the engine free of
vegetative material and excessive grease.
d)Replace worn or damaged parts for safety.

5)BEFORE OPERATION
a)The machine should always be used according to the
manufacturer's instructions in the instruction manual.
b)The machine must be stopped when carrying out
maintenance and cleaning operations, when changing
tools or when transported by means other than under
its own power.
c) The machine must be used by appropriately trained
people.
d)The device must be assembled correctly before use.
e)The device should be checked carefully before use.
You should only work with an device that is in good
condition. If you notice any defect on the machine that
may cause danger to the operator, do not operate the
device until defects are rectified.
f) Replace worn or damaged parts for safety. Use only
original spare parts. Parts not produced by
manufacturer may cause poor fit and possible injury.
g)Before use, all foreign bodies must be removed from
the lawn, also pay attention to foreign bodies during
the operation.
h)Only work in daylight or sufficiently good artificial light.
i) Wear eye protection and face or dust mask if
operating in dusty conditions.
j) Dress properly. Wear the following clothing while
using the application:
Use of rubber gloves and substantial footwear is
recommended.
Wear protective hair covering to contain long hair.
Avoid wearing loose clothing or jewelry that could
get caught in the rotating tines.
Carry always resistant footwear and long trousers.
Do not use the machine when they are bare feet or
in sandals.
6)PROPER USE
The user is responsible for third parties while working
with the device.

a)People not acquainted with the operating instructions,
children, juveniles who have not yet reached the
minimum age for using this device, and people under
the influence of alcohol, drugs or medication are not
allowed to use the device.
b)Children and adolescents under the age of 16 and
persons unfamiliar with the instruction manual are not
allowed to use the device.
c) People whose physical, sensory or intellectual
abilities are or who do not have the necessary
experience and / or knowledge are not allowed to use
the machine unless they are supervised or instructed
about the handling of the machine by a person in
charge of safety.
d)Supervise children to make sure they do not play with
the machine.
e)Only use the device for its designed purposes.
f) Keep children and pets away. All onlookers should be
kept a safe distance away from the device when it is
in use.
g)Make sure that all the protective devices are fitted
and in good condition.
h)Do not operate the application near underground
electric cables, telephone lines, pipes or hoses.
i) Before connection the plug, make sure that the socket
ratings are correct and correspond to those indicated
on the rating label on the device.
j) The use of the device is only permitted if the safety
distance provided by the guide bar is complied with.
k) Do not operate the application on a slope that is too
steep for safe operation.
l) When on slopes, slow down and make sure you have
good footing.
m) Before starting the application, make sure tines are
not touching foreign objects and must be completely
free to move.
n)Grip guide bar firmly with both hands. Never operate
the application with one hand.

o)Be aware that the application may unexpectedly
bounce upward or jump forward if the tines should
strike extremely hard, packed soil, frozen ground, or
buried obstacles such as large stones, roots or
stumps.
p)Do not put hands, feet or any body part or clothing in
the vicinity of rotating tines. Caution! Risk of injury!
q)Only guide the device at walking pace. Do not over
reach. Maintain proper footing and balance at all
times.
r) Be aware of extension cord while operation. Be
careful not to trip over cord. Always guide the cord
away from tines at all times.
s) If the device strikes a foreign body, examine the
application for signs of damage and carry out any
necessary repairs before restarting and continuing to
work.
t) If the device should start to vibrate abnormally, switch
off the motor and check for the cause immediately.
Vibration is generally a warning of trouble.
u) Holding the guide bar and lift the application to move
it from one place to another.
v) Always switch off the device, disconnect the plug and
wait until the application stops before carrying out
maintenance or cleaning work. Caution! Tines do not
stop immediately after switching off.
w) Use caution when cleaning or performing
maintenance on the device. DANGER! Watch your
fingers! Wear gloves!
x) It is forbidden to move or modify any of the electrical
and mechanical safety devices.
y) The machine must be stopped when carrying out
maintenance and cleaning operations, when changing
tools or when transported by means other than under
its own power. If the supply cord is damaged, it must
be replaced by a special cord or assembly available
from the manufacturer or its service agent.

7)ELECTRICAL SAFETY
a)The mains voltage must correspond to the one
marked on the technical data plate (230V~50Hz).
Do not use other sources of power.
b)The use of a safety circuit-breaker is recommended
for the power supply line for an intervention range of
10 to 30 rated mA. Consult a reliable electrician.
c) Never pass the device over the extension cable that
the application is working, as this could cut the cable.
Mark sure you always know where the cable is.

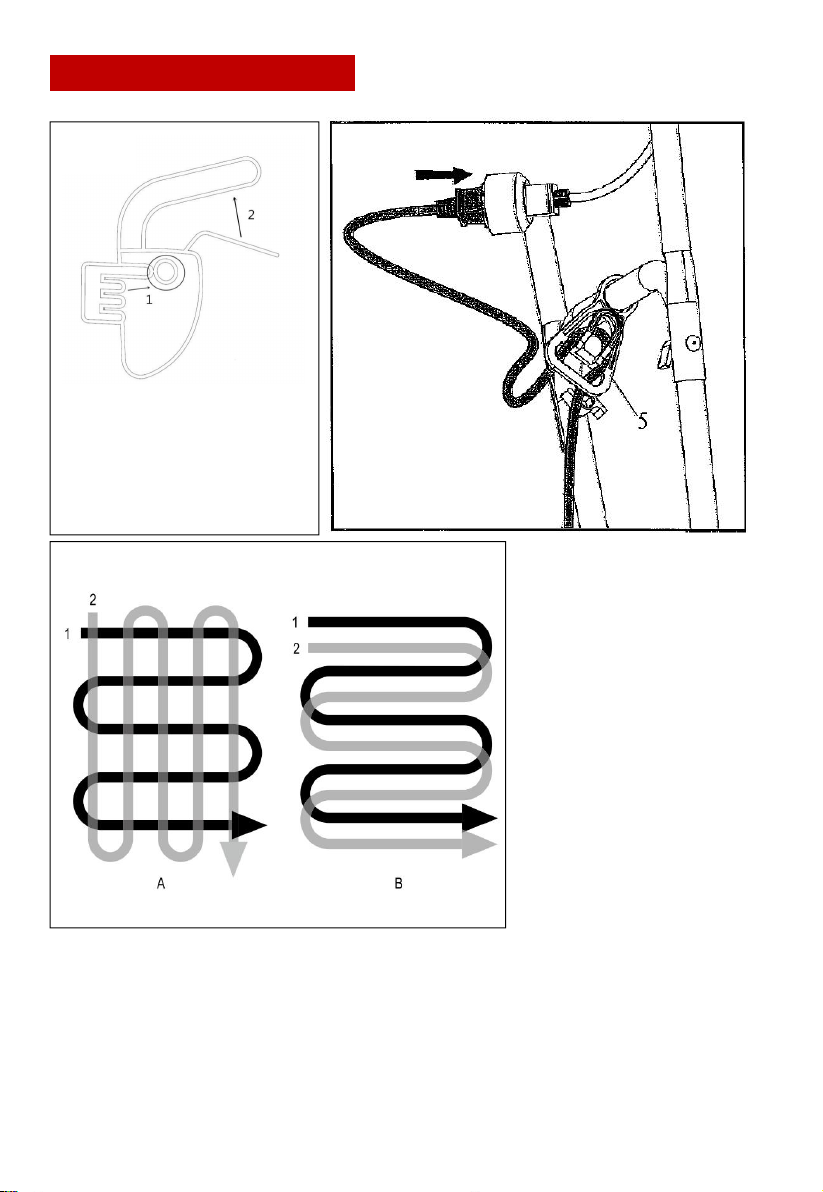

d)Use the special cable holder for the connection of the
extension cable.
e)Never use the device when it is raining. Try to prevent
it from getting wet or being exposed to humidity. Do
not leave it outside overnight. Do not cut damp or wet
grass.
f) The power supply cable should be checked regularly
and before using it each time, make sure the cable is
not damaged or old out. If the cable is not in good
condition, do not use the device; take it to an
authorized service center instead.
g)Only use an extension cable that is suitable for
outdoor work. Keep it away from the cutting area,
from damp, wet or oily surfaces or with sharp edges
and away from heat and fuels.
h)The mobile socket of the extension cable should be
splash proof in compliance with DIN 57282 and VDE
0282 regulations; the cross-section of the wire (max.
length 75 m) should be at least 1.5 mm2. Use
H07RN-F harmonized cable.
i) If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
j) CAUTION: In order to avoid a hazard due to
inadvertent resetting of the thermal cut-out, this
appliance must not be supplied through an external
switching device, such as a timer, or connected to a

circuit that is regularly switched on and off by the
utility.
8)DOUBLE INSULATION
The application has double insulation. This means
that all external metal parts are insulated from the
electrical supply.
This is achieved by introducing an insulation layer
between electrical and mechanical parts. The double
insulation guarantees you the greatest possible safety.

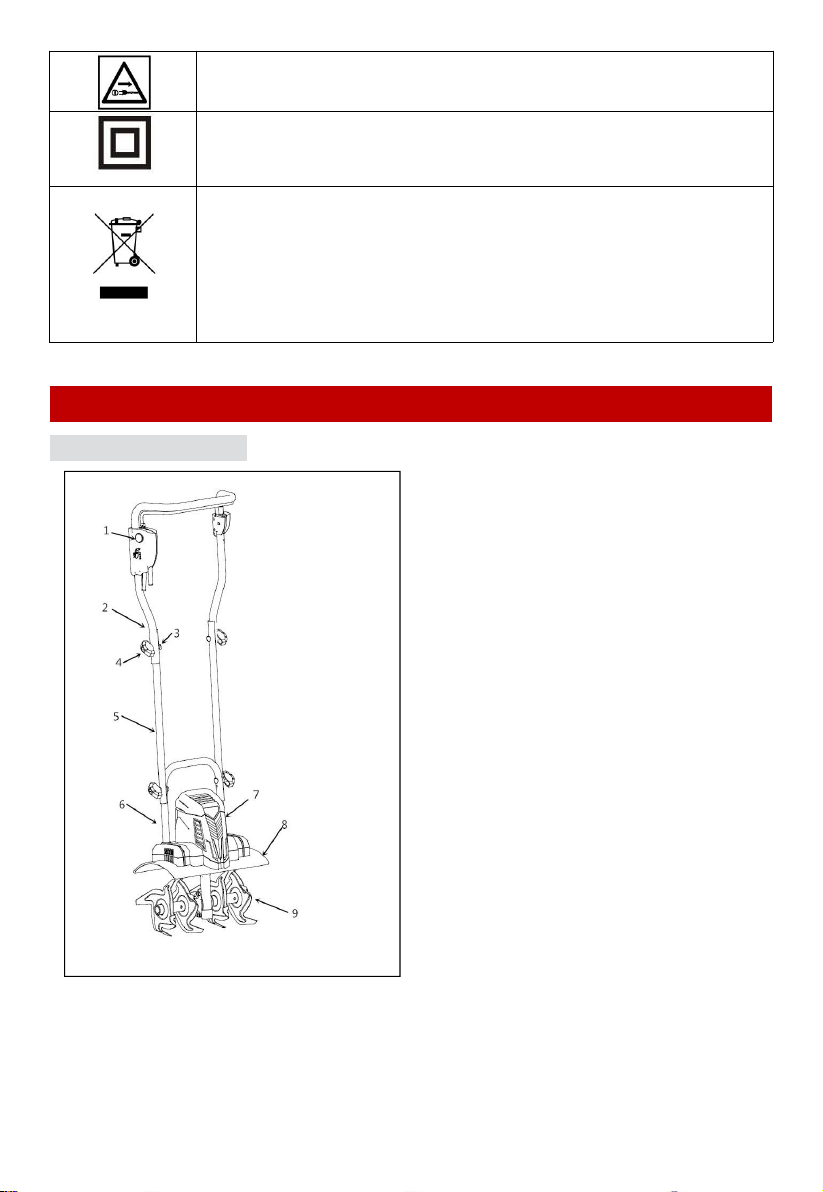

9)EXPLANATION OF SYMBOLS
Caution! The following warning symbols are
to remind you of the safety precautions you
should take when operating this tiller.
Read the instruction manual and follow the
warning and safety instructions!
Caution! Always wear eye protection and
earmuffs!
Do not use this product in the rain or damp
conditions. Protect it from moisture.
Danger! Keep bystanders away from the
danger zone!
Guarantee sound power level
Danger! Keep hands and feet away from
the cutting equipment!
Always switch off the device,
disconnect the power and wait till the
machine comes to a standstill prior to
maintenance, cleaning or repair work!
Danger! Rotating blades. Keep
hands and feet out of openings while
machine is running.

Caution! Unplug immediately if the power
cord or plug becomes damaged!
Double insulation.
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with
your local authority or retailer for recycling
advice.
3. YOUR PRODUCT
3.1 DESCRIPTION
1. Safety lock button
2. Upper tube
3. Bolt
4. Wing nut
5. Middle tube
6. Lower tube
7. Motor housing
8. Protection guard
9. Blades

3.2 TECHNICAL DATA
Model
RAC1036ET
Rated voltage
230-240V~
Rated frequency
50Hz
Input power
1000W
Working width
360mm
Weight
9.0kg
Measured Sound pressure level
78.1 dB(A) Uncertainty K=3.0 dB(A)
Measured Sound power level
91.6 dB(A) Uncertainty K=1.23 dB(A)
Guaranteed sound power level
93 dB(A)
Vibration
1,082 m/s2K=1.5 m/s2
INFORMATION
The declared vibration total value(s) and the declared noise emission value(s) have been
measured in accordance with a standard test method and may be used for comparing one tool
with another.
The declared vibration total value(s) and the declared noise emission value(s) may also be used
in a preliminary assessment of exposure.
WARNING!
The vibration and noise emissions during actual use of the power tool can differ from the
declared values depending on the ways in which the tool is used especially what kind of
workpiece is processed.
Need to identify safety measures to protect the operator that are based on an estimation of
exposure in the actual conditions of use (taking account of all parts of the operating cycle such
as the times when the tool is switched off and when it is running idle in addition to the trigger
time).
Wear hearing protection.

4. ASSEMBLY
This product must be assembled correctly before use.
1) Open the package and remove the machine from package. Taking out the main part of the
machine and accessories
2) Assembling the middle tube(Fig1)
3) Assembling the upper tube(Fig2)
WARNING: If any parts are damaged or missing do not operate this product until the parts are
replaced. Failure to heed this warning could result in serious personal injury. Call our customer
service help line.
WARNING: Do not attempt to modify this product or create accessories not recommended for use
with this product. Any such alteration or modification is misuse and could result in a hazardous
condition leading to possible serious personal injury.
WARNING: Do not connect to power supply until assembly is complete. Failure to comply could
result in accidental starting and possible serious personal injury.
Fig.1
Fig.2

5. OPERATION
1) Press the safety lock button(1)
2) Lift the switch trigger (2) (See Fig3)
To start the tiller press the safety lock button (1) on the safety switch and then pull the trigger
lever (2) up and against the handle bar. The motor will start and the tines will begin to rotate.
To stop the tiller simply releases the lever.
Fig.4 : Secure the extension cord into the cord retainer (5). The loop of the extension cord must be
long enough for the cord retainer to freely slide from one side to the other. Plug the extension cord
into the power cord plug on the tiller.
Fig.3
Fig.5
Fig.4

For breaking sod or deep tilling, allow the tines to pull the tiller forward to the end of your arm's
reach, then firmly pull it back toward yourself. You will achieve the best results by repeatedly
allowing it to move forward and pulling it back.
By pulling the tiller back towards yourself, the tines will dig deeper and more aggressively.
To prevent tripping, take extra precautions when moving backwards and when pulling the tiller
back toward yourself.
If the tiller digs deep enough to stay in one spot, gently rock it side to side until it starts moving
forward again.
Never pass the tiller over the extension cord. Make sure the cord is always in a safe position
behind you.
When working on inclines always stand diagonally to the incline to retain a firm, safe footing. Do
not work on extremely steep slopes.
Before use, remove any visible stones or other foreign bodies from the area.
CAUTION: Before moving the tiller from one area to another switch off the motor and wait for the
tines to come to a complete stop. Be careful not to let the tines touch the ground while moving the
tiller. The tines as well as the unit itself may be damaged even if the motor is switched off.
Clearing foreign objects:
During operation a stone or root could become lodged in the tines, or tall grass or weeds may
become wrapped around the tine shaft. To clear the tines or tine shaft release the trigger lever,
wait for the tines to come to a complete stop and unplug the tiller. Dislodge or remove the foreign
matter from the tines or tine shaft. To simplify removal of tall grass or weeds from the tine shaft,
remove one or more of the tines. See the chapter:Tines removal and installation.
Tips
Move the application to the work area prior to starting the motor.
Hold the application firmly while switch on.
The tines will pull the tiller forward during operation, press the guide bar to lower the tines
slowly.
By pulling tiller back towards yourself, the tines will dig deeper and more aggressively.
For breaking sod or deep tilling, allow the tines to pull the tiller forward to the end of your arm’s
reach, then firmly pull the tiller back towards you. By repeatedly allowing the tiller to move
forward and then pulling back to you, the tiller will be most effective.
If the tiller digs deep enough to stay in one spot, gently rock the tiller side to side to start the
tille rmoving forward again.
For preparing seed bed, we recommend using one of the tilling patterns shown in Fig. 5.
Tilling Pattern A – Make two passes over area to be tilled, the second at a right angle to the
first.
Tilling Pattern B – Make two passes over area to be tilled, the second overlapping the first.
To prevent tripping take particular care when moving backwards and when pulling the tiller.
Always let the tines rotates at top speed; do not work in such a way as to overload the
appliance.
Never pass the tiller over the extension cord; make sure it is always in a safe position behind
your back.
When working on inclines always stand diagonally to the incline in a sturdy, safe stance. Do
not work on extremely steep slopes.

6. MAINTENANCE AND STORAGE
Before carrying out maintenance operations, disconnect power supply.
CAUTION: Always clean the tiller after each use. Failure to carry out proper cleaning can result in
damage to the tiller or result in poor performance.
Clean the underside of the motor support plate and housing around the tines with a scrub brush,
and a soft cloth dampened with a mild soap and water mixture.
Never use a water hose to clean the tiller! To remove soil and debris from the transmission and
tines, use a stiff brush or a dampened cloth. Clean the vents on the motor housing and remove
any remaining grass or dirt. Once cleaned, wipe the tines and shaft dry and apply a light coat of oil
to prevent rust.
Tines Removal and installation (Fig. 6):
Worn tines invite poor performance and overload of the motor. Check tines before each use.
Sharpen or replace the tine assemblies with new ones when necessary. Call our customer service
help line.
WARNING: Injury can occur while working on the tines. Wear protective gloves.
To remove the complete tine assemblies from the shaft, remove the M8 X 40 hex head bolt from
the shaft. Remove the tine assembly from the shaft. Reverse above steps to install tines.
Adding Transmission Lubricant (Fig. 7):
Drain screw plug is located on the right side of transmission housing. Lay the tiller on its left side
and clean the transmission of dirt and debris prior to removing the drain screw plug. If necessary,
remove tine assemblies to have better access to the drain screw plug. Use a 5mm hex key to
unscrew the plug.
Empty the oil from the transmission. Fill with a high-quality SAE 30 weight oil, until it begins to
seep out around the hole. Reinstall the drain screw plug.
Replace worn or damaged parts with original replacement parts only. Parts from another tiller/
cultivator may not fit properly causing an unsafe situation.
Make sure all protective devices are secure and in good condition. Repair or replace if necessary.
STORAGE
Store the Tiller in a dry, clean area out of reach of children.
During extended periods of storage, ensure that the tiller/ cultivator is protected against corrosion
and frost.
M8 X 40
M8 X 40
M8
M8

At the end of the season, or if the tiller is not being used for longer than a month, wipe over all
metal surfaces with an oil impregnated cloth to protect them from corrosion or spray with a fine
coat of oil. Fold the guide bar down, and store the tiller in a suitable place.
7. TROUBLESHOOTING
Problem
Possible causes
Remedy
Motor does
not start
Unit not plugged in
Plug in the unit
No electricity
Check power supply
Defective cable
Check cable. Repair or replace if required
Defective safety
switch/plug
Arrange for repair
Overheat protection
activated
1.Working depth too large, set to a shorter depth.
2.Blades blocked, remove the blockage.
3.Soil too hard, select correct work depth and move
forward and backward several times while slowing
down the operation speed.
Wait until the motor cools down for about 15 minutes
before further use.
Abnormal
noises
Blade is jammed
Switch off. Wait till tines come to a complete stop.
Remove jammed objects.
Lubrication running
out
Tiller must be repaired. Call our customer service help
line.
Bolts, nuts or other
components are
loose.
Tighten all components. Arrange for repair if noises
continue.
Abnormal
vibrations
Blades damaged or
worn
Replace damaged or worn blades.
Working depth too
large
Set to correct working depth.
Poor results
Working depth too
small
Set to correct working depth.
Worn blades
Replace damaged or worn blades.
8. DISPOSAL
Electrical products should not be discarded with household products. According to the European
Directive 2012/19/UE on waste electrical and electronic equipment and its implementation into
national law, electrical products used must be collected separately and disposed of at collection
points provided for this purpose. Talk with your local authorities or dealer for advice on recycling.

9. DECLARATION OF CONFORMITY
BUILDER SAS
32, rue Aristide Bergès - ZI 31270 Cugnaux – France
declare that the machine
Electric tiller
Model: RAC1036ET
Serial number: 20220920097-20220920346
Is in conformity with the European Directives:
Machine Directive 2006/42/EC
EMC Directive 2014/30/EU
RoHs Directive (EU)2015/863 amending 2011/65/EU
Noise Directive 2000/14/EC amended by 2005/88/EC, Article 12, Annex III item 40.
This product is also in conformity with the following standards:
EN 60335-1:2012+A11+A13+A1+A14+A2
EN ISO 12100:2010
EN 709:1997+A4
EN 62233:2008
EN 55014-1:2017
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
EN ISO 3744: 1995, ISO 11094:1991
the noise notified body:
TÜV Rheinland LGA Products GmbH
under number 0197 at the EC Commission
Tillzstrasse 2 - 90431 Nürnberg
Measured Sound power level
91.6 dB(A) Uncertainty K=1.23 dB(A)
Guaranteed sound power level
93 dB(A)
The technical documentation is kept by: Olivier Patriarca
Cugnaux, 11/08/2022
Philippe MARIE / PDG

10. WARRANTY
The manufacturer guarantees the product against defects in material and workmanship for a
period of 2 years from the date of the original purchase. It can be extended by one year if the user
subscribes to website of myswap. The warranty only applies if the product is for household use.
The warranty does not cover breakdowns due to normal wear and tear.
The manufacturer agrees to replace parts identified as defective by the designated distributor. The
manufacturer does not accept responsibility for the replacement of the machine, in whole or in part,
and/or ensuing damage.
The warranty does not cover breakdowns due to:
insufficient maintenance.
abnormal assembly, adjustment or operations of the product.
parts subject to normal wear and tear.
The warranty does not extend to:
shipping and packaging costs.
using the tool for a purpose other than that for which it was designed.
the use and maintenance of the machine done in a manner not described in the user
manual.
Due to our policy of continuous product improvement, we reserve the right to alter or change
specifications without notice. Consequently, the product may be different from the information
contained therein, but a modification will be undertaken without notice if it is recognized as an
improvement of the preceding characteristic.
READ THE MANUAL CAREFULLY BEFORE USING THE MACHINE.
When ordering spare parts, please indicate the part number or code, you can find this in the spare
parts list in this manual. Keep the purchase receipt; without it, the warranty is invalid. To help you
with your product, we invite you to contact us by phone or via our website:
+33 (0)9.70.75.30.30
https://services.swap-europe.com/contact
You must create a "ticket" via the web platform.
Register or create your account.
Indicate the reference of the tool.
Choose the subject of your request.
Describe your problem.
Attach these files: invoice or sales
receipt, photo of the identification plate
(serial number), photo of the part you need
(for example: pins on the transformer plug
which are broken).

11. PRODUCT FAILURE
WHAT TO DO IF MY MACHINE BREAKS DOWN?
If you bought your product in a store:
• Make sure that your machine is complete with all accessories supplied, and clean! If this is
not the case, the repairer will refuse the machine.
• Go to the store with the complete machine and with the receipt or invoice.
If you bought your product on a website:
• Make sure that your machine is complete with all accessories supplied, and clean! If this is
not the case, the repairer will refuse the machine.
• Create a SWAP-Europe service ticket on the site: https://services.swap-europe.com When
making the request on SWAP-Europe, you must attach the invoice and the photo of the nameplate
(serial number).
Contact the repair station to make sure it is available before dropping off the machine.
Go to the repair station with the complete machine packed, accompanied by the purchase invoice
and the station support sheet downloadable after the service request is completed on the SWAP-
Europe site
Please keep your original packaging to allow for after-sales service returns or pack your
machine with a similar cardboard box of the same dimensions.
For any question concerning our after-sales service you can make a request on our website
https://services.swap-europe.com
Our hotline remains available at +33 (9) 70 75 30 30.

12. WARRANTY EXCLUSIONS
THE WARRANTY DOES NOT COVER:
• Start-up and setting up of the product.
• Damage resulting from normal wear and tear of the product.
• Damage resulting from improper use of the product.
• Damage resulting from assembly or start-up not in accordance with the user manual.
• Breakdowns related to carburetion beyond 90 days and fouling of carburetors.
• Periodic and standard maintenance events.
• Actions of modification and dismantling that directly void the warranty.
• Products whose original authentication marking (brand, serial number) has been degraded,
altered or withdrawn.
• Replacement of consumables.
• The use of non-original parts.
• Breakage of parts following impacts or projections.
• Accessories breakdowns.
• Defects and their consequences linked to any external cause.
• Loss of components and loss due to insufficient screwing.
• Cutting components and any damage related to the loosening of parts.
• Overload or overheating.
• Poor power supply quality: faulty voltage, voltage error, etc.
• Damages resulting from the deprivation of enjoyment of the product during the time
necessary for repairs and more generally the costs related to the immobilization of the product.
• The costs of a second opinion established by a third party following an estimate by a
SWAP-Europe repair station
• The use of a product which would show a defect or a breakage which was not the subject of
an immediate report and/or repair with the services of SWAP-Europe.
• Deterioration linked to transport and storage*.
• Launchers beyond 90 days.
• Oil, petrol, grease.
• Damages related to the use of non-compliant fuels or lubricants.
*In accordance with transport legislation, damage related to transport must be declared to carriers
within 48 hours maximum after observation by registered letter with acknowledgement of receipt.
This document is a supplement to your notice, a non-exhaustive list.
Attention: all orders must be checked in the presence of the delivery person. In case of refusal by
the delivery person, it you must simply refuse the delivery and notify your refusal.
Reminder: the reserves do not exclude the notification by registered letter with acknowledgement
within 72 hours.
Information:
Thermal devices must be wintered each season (service available on the SWAP-Europe site).
Batteries must be charged before being stored.
Table of contents
Other Racing Tiller manuals
